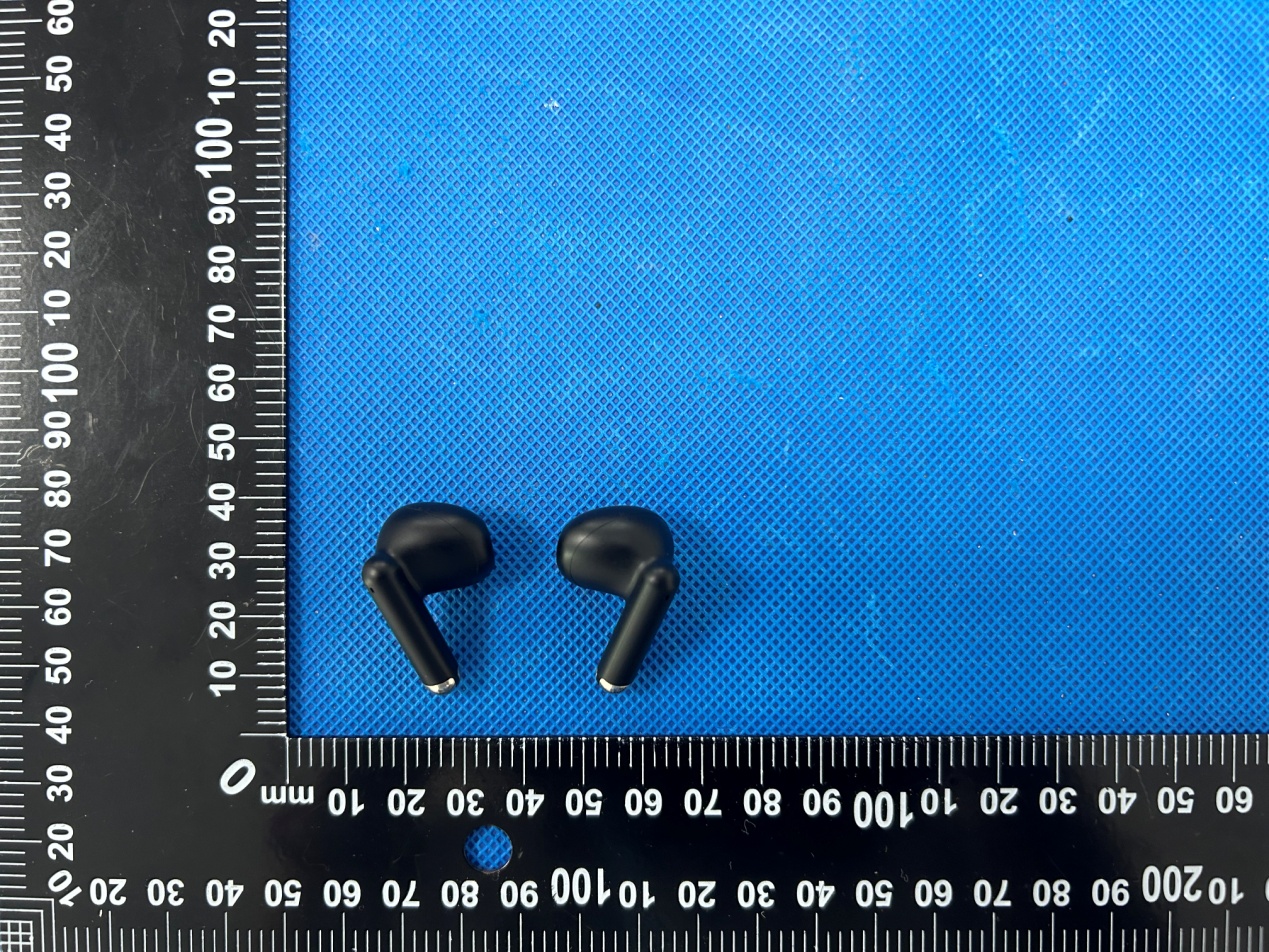

2BB5Y-TS08Wireless Bluetooth Headset

FCC ID LABEL: Ca. 15mm x 5mm Label Location FCC ID:2BB5Y-TS08

FCC RF Exposure EUT Description: Wireless Bluetooth Headset Model No.: TS08 FCC ID: 2BB5Y‐TS08 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Frequency (MHz) Output power (dBm) Tune Up Power (dBm) Max Tune Up power (dBm/mW) Min test separation distance (mm) ResultLimit SAR Test Exclusion 2402 6.41 6±1 7/5.012 5 1.5543.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2409185388‐1E/2E, antenna gain= 2.78dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 1.554 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

SymbolsLWTA Dimensions 1.60±0.200.80±0.200.80±0.200.30±0.10 NumberTerminalName ① INPUT ② NC Dimensions(Unit: mm) w ①② ( Side View) ( Bottom View) ( Top View) A T L Shenzhen HanyangAntenna Design Co. Ltd. 1.Bluetooth 2.Dual-band WLAN 3.ISM and UWB 1.Surfacemountedelementwithasmalldimensionof1.6×0.8×0.8mmmeetfutureminiaturizationtrend. 2.EmbeddedandLTCC(lowtemperatureco-firedceramic)technologyisabletointegratewithsystemdesign aswellasbeatifyingthehousingoffinalproduct. 3.Miniaturization,wideband,highstability,lowESR,andlowtolerance. 4.Dual-bandresonancesinthedominantandharmonicmodesenablesmultibandoperations. 5.Novelground-radiationtechniqueenablesradiationfromboththeantennaandthegroundplane. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 Features: Applications: RF chip ANT chipANT pattern PCB ground Mode-2 Mode-1 P/N: HY160808 SRF09 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page1 Layout-1 (3.5mm×6.5mm) ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page2 1.5 1 3.5 2.5 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) RF Input/Output 6.5 0.5 0.5 0.5 1.5 3.5 2.5 0201 footprint (E3) 6.5 Top layer: Bottom layer: 0.5 0.5 RF chip E1 E3 E2 ANT Equivalentcircuit: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 2.5 0201 footprint 0603 footprint 10 0.5 1.5 0201 footprint 1.5 3 2.5 10 1.5 2 0.5 0201 footprint Layout-2 (1.5mm×10mm) Top layer: Bottom layer: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page3 RF Input/Output ElectricalCharacteristics: CharacteristicCurves: FeatureSpecification 1 Centralfrequency2.45GHz 2 Bandwidth>150MHz 3 Peak gain2.78dBi 4 VSWR<2 5 PolarizationLinear 6 AzimuthbeamwidthOmnidirectional 7 Impedance50Ω P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page5 RadiationPattern: Y-ZPlaneX-ZPlane coordinates： 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 青岛市崂山区松岭路399号海信产业园A1号楼606 电话：0755-23069700 传真：0755-23069700 HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page5 RadiationPerformance: P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 深圳汉阳天线设计有限公司 Shenzhen Hanyang Antenna Design Co. Ltd. X-YPlane Frequency 2400MHz2450MHz2500MHz Avg.gain-1.92-1.35-1.56 Peakgain1.792.782.66 Efficiency74.5580.2576.98 Temperature：40±2°C Humidity：90~95%RH Duration：500h Recovery conditions：Room temperature Recovery Time：24h (Class1) or 48h (Class2) Test Temperature Operating Temperature Temperature RelativeHumidity 25°C±5°C -25°C~+125°C 5~40°C 20~70% Notenoughsolder Weak holding forcemay cause bad connection between the chipandPCB. RecommendedSolderingAmounts The optimal solder fillet amounts forre-flowsoldering 天线厚度 以下 The optimal solder fillet amounts for wavesoldering DependabilityTest Too much solder Cracks tend to occur due to large stress. MoistureProof OptimumSolderAmount forReflowSoldering Solderability At least 95% of the terminal electrode is covered by newsolder. Preheating conditions:80 to 120°C;10~30s. Solder Tem p e r at u r e :2 3 5 ±5°CDuration:2 ±0.5s , Solder Tempe r ature:24 5±5°CDu rat ion:2±0.5s P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page6 10±1S AppliedForce:5NDuration:10±1S Preheating conditions: up-category temperature, 1h Recovery time:24±1h InitialMeasurement Cycling Times: 5 times, 1 cycle, 4steps: Preheating80to120°C;10~30s.SolderTemperature:235±5°C;Duration:2±0.5s;SolderTemperature:245±5°C Duration:2±0.5s;Preheating100to200°C;10±2min. SolderTemperature:265±5°C;Duration:10±1s Cleanthecapacitorwithsolventandexamineitwitha10X(min.)microscope. RecoveryTime:24±2h Recoverycondition:Roomtemperature Test Board: Al 2 O 3 orPCBWarp:1mm Speed:0.5mm/sec. Unit:mm Themeasurementshouldbemadewiththeboardinthe bendingposition. Resistance to Soldering Heat ResistancetoFlexureofSubstrate Temperature CycleTest P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page7 StageTemperatur…

Text truncated - open the document above for the full version.

Page 1 of 48 Report No.: HK2409185388-1E FCC Test Report Test Report On Behalf of Shenzhen Huajue Communication Co., Ltd For Wireless Bluetooth Headset Model No.: TS08, H33 FCC ID: 2BB5Y-TS08 Prepared For: Shenzhen Huajue Communication Co., Ltd Guangfang 301, No. 2, No. 10, Jixiang Third Road, Yixin Community, Pingdi Street, Longgang District, Shenzhen, China Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Sept. 18, 2024 ~ Sept. 25, 2024 Date of Report: Sept. 25, 2024 Report Number: HK2409185388-1E Page 2 of 48 Report No.: HK2409185388-1E Test Result Certification Applicant’s Name .................. : Shenzhen Huajue Communication Co., Ltd Address .................................. : Guangfang 301, No. 2, No. 10, Jixiang Third Road, Yixin Community, Pingdi Street, Longgang District, Shenzhen, China Manufacturer's Name ........... : Shenzhen Huajue Communication Co., Ltd Address .................................. : Guangfang 301, No. 2, No. 10, Jixiang Third Road, Yixin Community, Pingdi Street, Longgang District, Shenzhen, China Product Description Trade Mark ............................. : N/A Product Name ........................... : Wireless Bluetooth Headset Model and/or Type Reference...: TS08, H33 Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of Performance of Tests ............ : Sept. 18 ~ Sept. 25, 2024 Date of Issue ........................................... : Sept. 25, 2024 Test Result ............................................... : Pass Testing Engineer Len Liao Technical Manager Sliver Wan Authorized Signatory Jason Zhou Page 3 of 48 Report No.: HK2409185388-1E Table of Contents Page 1. Summary ............................................................................................................. 5 1.1. Test Standards ............................................................................................................................ 5 1.2. Test Description .......................................................................................................................... 5 1.3. Information of the Test Laboratory ............................................................................................ 6 1.4. Statement of the Measurement Uncertainty ............................................................................. 6 2. General Information ............................................................................................. 7 2.1. Environmental Conditions .......................................................................................................... 7 2.2. General Description of EUT ........................................................................................................ 7 2.3. Description of Test Modes and Test Frequency .......................................................................... 8 2.4. Equipments Used during the Test ............................................................................................... 9 2.5. Related Submittal(s) / Grant (s) ................................................................................................ 10 2.6. Modifications ............................................................................................................................ 10 2.7. Description of Test Setup .......................................................................................................... 10 2.8. Description of Support Units .................................................................................................... 11 3. Test Conditions and Results ................................................................................ 12 3.1. Conducted Emissions Test ........................................................................................................ 12 3.2. Radiated Emissions and Band Edge .......................................................................................... 15 3.3. Maximum Peak Conducted Output Power ............................................................................... 26 3.4. 20dB Bandwidth ....................................................................................................................... 27 3.5. Frequency Separation ............................................................................................................... 30 3.6. Number of Hopping Frequency ................................................................................................ 32 3.7. Time of Occupancy (Dwell Time) ............................................................................................. 34 3.8. Out‐of‐Band Emissions ............................................................................................................. 37 3.9. Pseudorandom Frequency Hopping Sequence ........................................................................ 44 3.10. Antenna Requirement............................................................................................................... 45 4. Test Setup Photos of the EUT ............................................................................. 46 5. Photos of the EUT .............................................................................................. 48 Page 4 of 48 Report No.: HK2409185388-1E ** Modified History ** Revision Description Issued Data Remark …

Text truncated - open the document above for the full version.

Page 1 of 48 Report No.: HK2409185388-2E FCC Test Report Test Report On Behalf of Shenzhen Huajue Communication Co., Ltd For Wireless Bluetooth Headset Model No.: TS08, H33 FCC ID: 2BB5Y-TS08 Prepared For: Shenzhen Huajue Communication Co., Ltd Guangfang 301, No. 2, No. 10, Jixiang Third Road, Yixin Community, Pingdi Street, Longgang District, Shenzhen, China Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Sept. 18, 2024 ~ Sept. 25, 2024 Date of Report: Sept. 25, 2024 Report Number: HK2409185388-2E Page 2 of 48 Report No.: HK2409185388-2E Test Result Certification Applicant’s Name .................. : Shenzhen Huajue Communication Co., Ltd Address .................................. : Guangfang 301, No. 2, No. 10, Jixiang Third Road, Yixin Community, Pingdi Street, Longgang District, Shenzhen, China Manufacturer's Name ........... : Shenzhen Huajue Communication Co., Ltd Address .................................. : Guangfang 301, No. 2, No. 10, Jixiang Third Road, Yixin Community, Pingdi Street, Longgang District, Shenzhen, China Product Description Trade Mark ............................. : N/A Product Name ........................... : Wireless Bluetooth Headset Model and/or Type Reference...: TS08, H33 Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of Performance of Tests ............ : Sept. 18 ~ Sept. 25, 2024 Date of Issue ........................................... : Sept. 25, 2024 Test Result ............................................... : Pass Testing Engineer Len Liao Technical Manager Sliver Wan Authorized Signatory Jason Zhou Page 3 of 48 Report No.: HK2409185388-2E Table of Contents Page 1. Summary ............................................................................................................. 5 1.1. Test Standards ............................................................................................................................ 5 1.2. Test Description .......................................................................................................................... 5 1.3. Information of the Test Laboratory ............................................................................................ 6 1.4. Statement of the Measurement Uncertainty ............................................................................. 6 2. General Information ............................................................................................. 7 2.1. Environmental Conditions .......................................................................................................... 7 2.2. General Description of EUT ........................................................................................................ 7 2.3. Description of Test Modes and Test Frequency .......................................................................... 8 2.4. Equipments Used during the Test ............................................................................................... 9 2.5. Related Submittal(s) / Grant (s) ................................................................................................ 10 2.6. Modifications ............................................................................................................................ 10 2.7. Description of Test Setup .......................................................................................................... 10 2.8. Description of Support Units .................................................................................................... 11 3. Test Conditions and Results ................................................................................ 12 3.1. Conducted Emissions Test ........................................................................................................ 12 3.2. Radiated Emissions and Band Edge .......................................................................................... 15 3.3. Maximum Peak Conducted Output Power ............................................................................... 26 3.4. 20dB Bandwidth ....................................................................................................................... 27 3.5. Frequency Separation ............................................................................................................... 30 3.6. Number of Hopping Frequency ................................................................................................ 32 3.7. Time of Occupancy (Dwell Time) ............................................................................................. 34 3.8. Out‐of‐Band Emissions ............................................................................................................. 37 3.9. Pseudorandom Frequency Hopping Sequence ........................................................................ 44 3.10. Antenna Requirement............................................................................................................... 45 4. Test Setup Photos of the EUT ............................................................................. 46 5. Photos of the EUT .............................................................................................. 48 Page 4 of 48 Report No.: HK2409185388-2E ** Modified History ** Revision Description Issued Data Remark …

Text truncated - open the document above for the full version.
