2BB64C10GSLTE Modem/Module

1 w w w .cavliw ireless.com C10GS Hardw are Manual Connect to our website and feel free to contact our technical support team for any assistance C avli C 10 G S LTE C AT 1/4 Module Integrated eSIM Hardw are Manual External Release Version 2.2 www.cavliw ireless.com 2 w w w .cavliw ireless.com C10GS Hardw are Manual Connect to our website and feel free to contact our technical support team for any assistance. Cavli Inc., Cavli Inc., 99 South Almaden Blvd., Suite 600, San Jose, California, 95113 Phone: 1-650-535-1150 Web: www.cavliwireless.com IoT Connectivity Platform: www.cavlihubble.io Support Center https://www.cavliwireless.com/support-center.html e-Mai l : support@cavliw i rel ess. com For sales enquiries https://www.cavliwireless.com/contact-us.html e-Mai l : sal es@cavli wi rel ess.com More IoT Modules https://www.cavliwireless.com/iot-modules/cellular-modules.html COPYRIGHT THE INFORMATION CONTAINED HERE IS PROPRIETARY TECHNICAL INFORMATION OF CAVLI INC. TRANSMITTING, REPRODUCTION, DISSEMINATION AND EDITING OF THIS DOCUMENT AS WELL AS UTILIZATION OF THE CONTENT ARE FORBIDDEN WITHOUT PERMISSION. OFFENDERS WILL BE HELD LIABLE FOR PAYMENT OF DAMAGES. ALL RIGHTS ARE RESERVED IN THE EVENT OF A PATENT GRANT OR REGISTRATION OF A UTILITY MODEL OR DESIGN. EVERY EFFORT HAS BEEN MADE IN PREPARATION OF THIS DOCUMENT TO ENSURE ACCURACY OF THE CONTENTS. BUT ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS DOCUMENT DO NOT CONSTITUTE A WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE DUE TO PRODUCT VERSION UPDATEOR OTHER REASONS. FOR MOST RECENT DOCUMENTS, ALWAYS REFER THE PRODUCT PORTFOLIO SECTION AT WWW.CAVLIWIRELESS.COM. Copyright © Cavli Inc. All rights reserved 3 w w w .cavliw ireless.com C10GS Hardw are Manual Table of C ontents 1 Introduction .........................................................................................................................................9 2 Module O verview ............................................................................................................................10 2.1 Module introduction ................................................................................................................... 10 2.2 Module characteristics ............................................................................................................ 11 2.3 Module function .......................................................................................................................... 13 2.4 Module w orking mode ............................................................................................................. 13 3 Interface application description ..............................................................................................14 3.1 C hapter overview ....................................................................................................................... 14 3.2 Module interface ........................................................................................................................ 15 3.2.1 C10GS Pin layout .......................................................................................................................................................................................... 15 3.2.2 C10GS pin interface.................................................................................................................................................................................. 16 3.3 Pow er interface .......................................................................................................................... 21 3.3.1 Power supply design ............................................................................................................................................................................... 21 3.3.2 Power reference circuit ...................................................................................................................................................................... 23 3.3.3 VREF 1.8 voltage output ..................................................................................................................................................................... 24 3.4 Sw itching machine reset mode ........................................................................................... 24 3.4.1 Turn ON Module .......................................................................................................................................................................................... 24 3.4.2 Reset control .................................................................................................................................................................................................. 25 3.5 U SB interface .............................................................................................................................. 26 3.6 U ART interface ........................................................................................................................... 28 3.6.1 UART1 serial port ........................................................................................................................................................................................ 28 3.6.2 UART2 serial port ...................................................................................................................................................................................... 28 3.6.3 Serial port application circuit ....................................................................................................................................................... 29 4 w w w .cavliw ireless.com C10GS Hardw are Manual 3.6.4 UART3 serial port ...........................................................................................................................................................................…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:2023/8/23 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BB64C10GS Cavli Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/8/23 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BB64C10GS Cavli Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment.

Cavli Inc. 99 South Almaden Blvd., Suite 600, San Jose, CA, USA Contact: +1-650-334-3414 Email: [email protected] • www.cavliwireless.com Date: 2023/8/23 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Cavli Inc. the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the Cavli Inc. solely in matters relating to the application for an FCC equipment authorization FCC ID: 2BB64C10GS including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the Cavli Inc. Cavli Inc. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, (signature) Print name: Tarun Thomas Geroge Title: COO Cavli Inc.

Cavli Inc. 99 South Almaden Blvd., Suite 600, San Jose, CA, USA Contact: +1-650-334-3414 Email: [email protected] • www.cavliwireless.com Date: 2023/8/23 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: Cavli Inc. FCC ID: 2BB64C10GS FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Cavli Inc. requests that the following documents regarding this submission for FCC ID: 2BB64C10GS be kept Long-Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf Part list BOM.pdf Tune-Up-Procedure Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Cavli Inc. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Cavli Inc. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Print name: Tarun Thomas George Title: COO Cavli Inc.

Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: __FCC ID: 2BB64C10GS______ Items to be covered by Single modular transmitters. Answer from applicant 1.The modular transmitter must have its own RF shielding.Yes, please see exhibition external photos 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, The modular has buffer modulation /data inputs 3.The modular transmitter must have its own power supply regulation.Yes, please see the schem.pdf 4.The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Yes, The requirements of antenna connector and spurious emission have been fulfilled. Please refer to the test report exhibition. 5.The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, Please refer to the setup photo exhibition for the stand-alone configuration 6.The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). Yes, The Module will be label with its own FCC ID ,and the instruction on the labelling rule of the end product has been stated in the user manual of this module .please refer to the label and user manual exhibition. 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, The required FCC rule has been fulfilled and all the instruction for maintaining compliance have been clearly stated in the user manual. 8.The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, Please refer exhibition RF exposure for the compliance of MPE RF exposure rule. Items to be covered by Split modular transmitters. Answer from applicant 1.The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2.Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3.Control information and other data may be exchanged between the transmitter control elements and radio front end. 4.The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5.Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): _Lucy Liu Date: _2023/9/6__

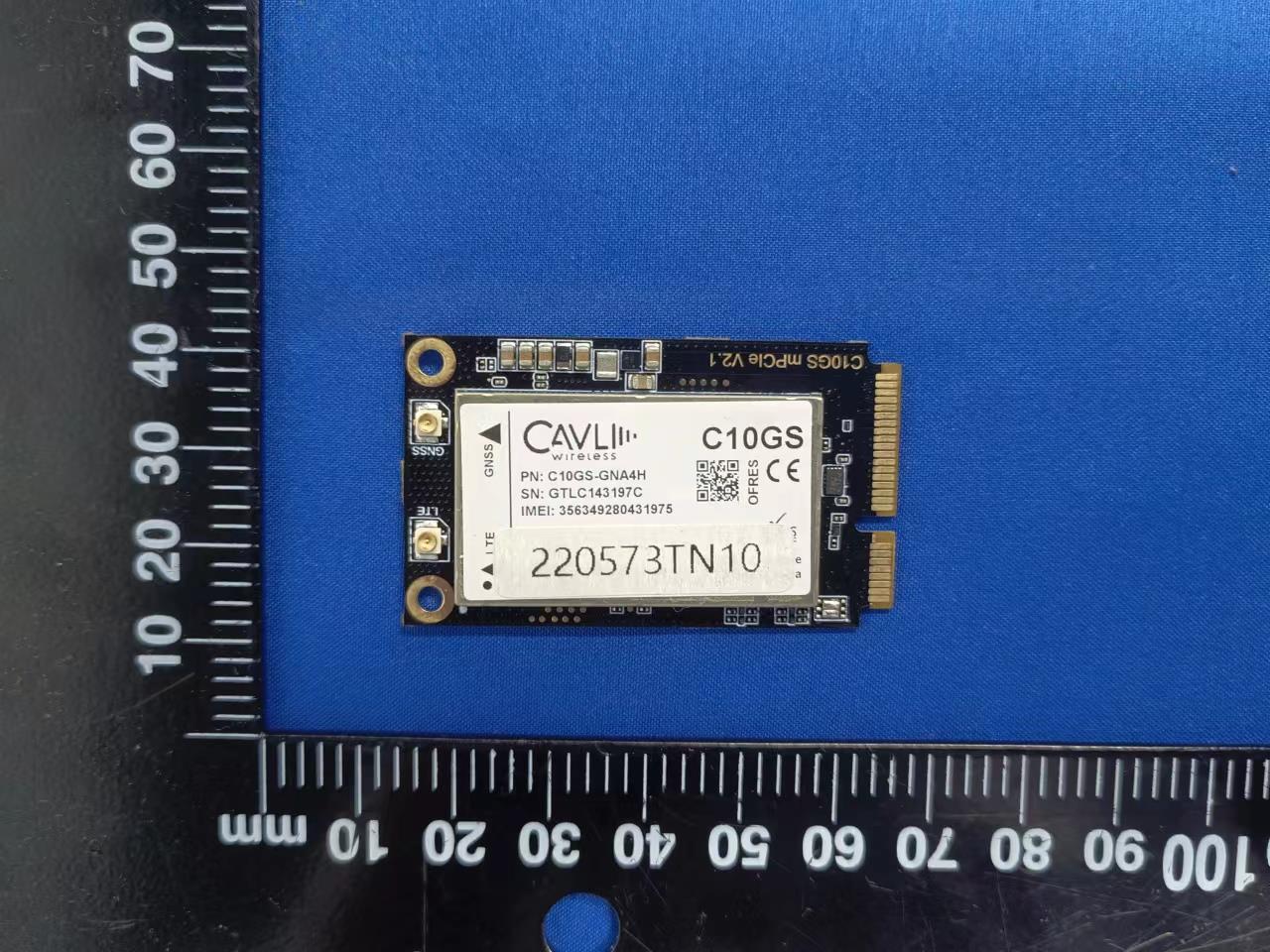

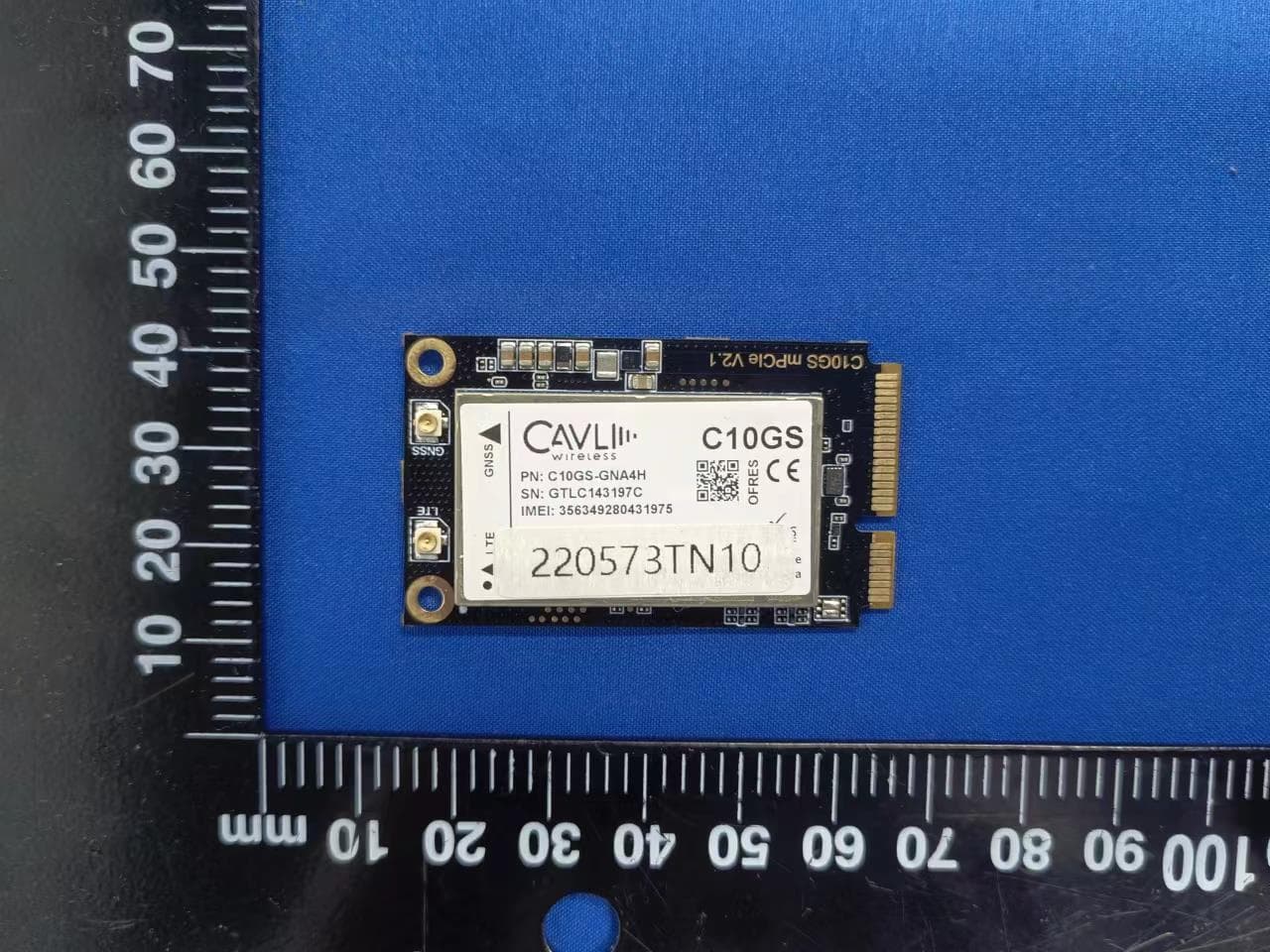

Report No.: BL-SZ2370302-AW 1 / 3 ANNEX C EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2370302-AW 2 / 3 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ2370302-AW 3 / 3 TOP VIEW OF EUT BOTTOM VIEW OF EUT --BLANK BELOW--

Report No.: BL-SZ2370302-AI 1 / 2 ANNEX D EUT INTERNAL PHOTOS MAIN BOARD TOP VIEW (WITH SHIELDING) MAIN BOARD TOP VIEW (WITHOUT SHIELDING) Report No.: BL-SZ2370302-AI 2 / 2 MAIN BOARD REAR VIEW --BLANK BELOW--

Report No.: BL-SZ2370302-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Cavli Inc. Address: 99 South Almaden Blvd., Suite 600, San Jose, CA 95113 United States Equipment Type: LTE Modem/Module Model Name: C10GS (refer to section 2.4) Brand Name: Cavli Wireless FCC ID: 2BB64C10GS Test Standard: 47 CFR Part 2.1091 KDB 447498 D04 v01 Sample Arrival Date: Jul. 07, 2023 Test Date Jul. 07, 2023 - Aug. 18, 2023 Date of Issue: Aug. 25, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Xiong Lining Checked by: Xu Rui Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2370302-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Aug. 25, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ............................................................................................................ 3 1.2 Test Location ................................................................................................................ 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information .................................................................................................... 4 2.2 Manufacturer Information .............................................................................................. 4 2.3 General Description for Equipment under Test (EUT) ................................................... 4 2.4 Ancillary Equipment ...................................................................................................... 4 2.5 Technical Information ................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................. 6 3.1 Test Standards ............................................................................................................. 6 4 DEVICE CATEGORY AND LEVELS LIMITS ............................................................................. 7 5 ASSESSMENT RESULT ........................................................................................................... 9 5.1 Output Power ............................................................................................................... 9 5.2 Tune-up power ............................................................................................................. 9 5.3 RF Exposure Evaluation Result .................................................................................. 10 5.4 Conclusion .................................................................................................................. 10 Report No.: BL-SZ2370302-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2370302-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Cavli Inc. Address 99 South Almaden Blvd., Suite 600, San Jose, CA 95113 United States 2.2 Manufacturer Information Manufacturer Cavli Inc. Address 99 South Almaden Blvd., Suite 600, San Jose, CA 95113 United States 2.3 General Description for Equipment under Test (EUT) EUT Name LTE Modem/Module Model Name Under Test C10GS Series Model Name C10GS-S001H, C10GS-S001N, C10GS-GNA1H, C10GS-GNA1N, C10GS-S004H, C10GS-S004N, C10GS-GNA4H, C10GS-GNA4N Description of Model name differentiation All these have the same PCB are same product with optional features omitted (this information provided by the customer) Hardware Version 2.8 Software Version 1.3.0 Dimensions (Approx.) N/A Weight (Approx.) N/A 2.4 Ancillary Equipment Note: Not Applicable. Report No.: BL-SZ2370302-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 5 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2.5 Technical Information Network and Wireless connectivity 4G Network LTE FDD Band 2/4/5/18/19/25/26/66 LTE TDD Band 40 The requirement for the foll…

Text truncated - open the document above for the full version.

Document No:BL-SZ2370302 Page 1 of 114 Annex A.2 Peak to Average Ratio Document No:BL-SZ2370302 Page 2 of 114 1. LTE_Band2 1.1. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:1, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.48 13 Pass Document No:BL-SZ2370302 Page 3 of 114 1.2. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:2, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.72 13 Pass Document No:BL-SZ2370302 Page 4 of 114 1.3. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:3, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.91 13 Pass Document No:BL-SZ2370302 Page 5 of 114 1.4. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:4, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 6.47 13 Pass Document No:BL-SZ2370302 Page 6 of 114 1.5. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:5, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.95 13 Pass Document No:BL-SZ2370302 Page 7 of 114 1.6. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:6, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.91 13 Pass Document No:BL-SZ2370302 Page 8 of 114 1.7. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:7, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 6.56 13 Pass Document No:BL-SZ2370302 Page 9 of 114 1.8. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:8, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 6.61 13 Pass Document No:BL-SZ2370302 Page 10 of 114 1.9. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:9, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.86 13 Pass Document No:BL-SZ2370302 Page 11 of 114 1.10. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:10, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.95 13 Pass Document No:BL-SZ2370302 Page 12 of 114 1.11. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:11, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 6.89 13 Pass Document No:BL-SZ2370302 Page 13 of 114 1.12. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:12, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 6.52 13 Pass Document No:BL-SZ2370302 Page 14 of 114 2. LTE_Band4 2.1. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:1, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.91 13 Pass Document No:BL-SZ2370302 Page 15 of 114 2.2. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:2, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.72 13 Pass Document No:BL-SZ2370302 Page 16 of 114 2.3. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:3, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 7.03 13 Pass Document No:BL-SZ2370302 Page 17 of 114 2.4. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:4, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 6.42 13 Pass Document No:BL-SZ2370302 Page 18 of 114 2.5. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:5, Channel:20175, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.5 0.1 5.67 13 Pass Document No:BL-SZ2370302 Page 19 of 114 2.6. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:6, Channel:20175, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.5 0.1 5.91 13 Pass Document No:BL-SZ2370302 Page 20 of 114 2.7. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:7, Channel:20175, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.5 0.1 6.05 13 Pass Document No:BL-SZ2370302 Page 21 of 114 2.8. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:8, Channel:20175, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.5 0.1 6.52 13 Pass Document No:BL-SZ2370302 Page 22 of 114 2.9. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:9, Channel:20300, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1745 0.1 5.91 13 Pass Document No:BL-SZ2370302 Page 23 of 114 2.10. LTE Peak to Average Ratio_Part22-24-27(NTNV)(Subtest:10, Channel:20300, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Positio…

Text truncated - open the document above for the full version.

Document No:BL-SZ2370302 Page 1 of 262 Annex A.3 Occupied Bandwidth Document No:BL-SZ2370302 Page 2 of 262 1. LTE_Band2 1.1. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:1, Channel:18607, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1850.7 99 26 0.027 Peak 1.092 1.252 1.4 Pass Document No:BL-SZ2370302 Page 3 of 262 1.2. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:2, Channel:18607, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1850.7 99 26 0.027 Peak 1.1 1.277 1.4 Pass Document No:BL-SZ2370302 Page 4 of 262 1.3. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:3, Channel:18900, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.027 Peak 1.093 1.263 1.4 Pass Document No:BL-SZ2370302 Page 5 of 262 1.4. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:4, Channel:18900, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1880 99 26 0.027 Peak 1.089 1.253 1.4 Pass Document No:BL-SZ2370302 Page 6 of 262 1.5. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:5, Channel:19193, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1909.3 99 26 0.027 Peak 1.095 1.266 1.4 Pass Document No:BL-SZ2370302 Page 7 of 262 1.6. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:6, Channel:19193, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1909.3 99 26 0.027 Peak 1.098 1.261 1.4 Pass Document No:BL-SZ2370302 Page 8 of 262 1.7. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:7, Channel:18615, Bandwidth:3, Modulation:QPSK, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1851.5 99 26 0.062 Peak 2.704 2.996 3 Pass Document No:BL-SZ2370302 Page 9 of 262 1.8. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:8, Channel:18615, Bandwidth:3, Modulation:Q16, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1851.5 99 26 0.062 Peak 2.704 3.014 3 Pass Document No:BL-SZ2370302 Page 10 of 262 1.9. LTE Occupied Bandwidth_Part22-24-27(NTNV)(Subtest:9, Channel:18900, Bandwidth:3, Modulation:QPSK, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW…
