User Manual A4 Thermal Paper Printer A4 Thermal Paper Printer Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide Reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. Warning: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF exposure statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Xiamen Jing Xin Science and Technology Co., Ltd Add: 2nd Floor,No.33-35,Huli Avenue, Xiamen Area,China(Fujian)Pilot Free Trade Zone, Xiamen, China Tel: +86-18020764585 Fax: +86-0592-5692518 E-mail: [email protected] Date: 2025-11-18 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Xiamen Jing Xin Science and Technology Co., Ltd, hereby authorize Bay Area Compliance Laboratories Corp. (Xiamen) to act as a laboratory for testing and test report generation for the following project(s): (Product name: A4 Thermal Paper Printer, Model number:JXM800R-25, JXM800R-25P, 800R-25, 800R-25P,FCC ID: 2BB6H-JXM800R-25) This product only supports BT(GFSK) and BLE(1M), other functions were disabled by software, the end user has no capability to activate them. Sincerely, Signature: Contact Person: yuzhen CAI Title: Research Assistant

Xiamen Jing Xin Science and Technology Co., Ltd Add: 2nd Floor,No.33-35,Huli Avenue, Xiamen Area,China(Fujian)Pilot Free Trade Zone, Xiamen, China Tel: +86-18020764585 Fax: +86-0592-5692518 E-mail: [email protected] Attestation Letter Date: 11/18/2025 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: 2BB6H-JXM800R-25 Xiamen Jing Xin Science and Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Xiamen Jing Xin Science and Technology Co., Ltd (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Xiamen Jing Xin Science and Technology Co., Ltd (“the applicant”) certifies that our product does not use Kaspersky's software information. Sincerely, Signature Contact Person: yuzhen CAI Title: Research Assistant

U.S. AGENT LETTER OF ATTESTATION Date: 2025-11-18 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BB6H-JXM800R-25 Xiamen Jing Xin Science and Technology Co., Ltd certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Xiamen Jing Xin Science and Technology Co., Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Xiamen Jing Xin Science and Technology Co., Ltd Address: 2nd Floor,No.33-35,Huli Avenue, Xiamen Area,China(Fujian)Pilot Free Trade Zone, Xiamen, China FRN: 0034030262 Tel: +86-18020764585 Email: [email protected] Signed by (printed name): yuzhen CAI Signature:

QA-FR-170-B Xiamen Jing Xin Science and Technology Co., Ltd Add: 2nd Floor,No.33-35,Huli Avenue, Xiamen Area,China(Fujian)Pilot Free Trade Zone, Xiamen, China Tel: +86-18020764585 Fax: +86-0592-5692518 E-mail: [email protected] FCC Authorization Date: 2025-11-18 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Xiamen Jing Xin Science and Technology Co., Ltd, Hereby authorizes Bay Area Compliance Laboratories Corp. (Xiamen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Xiamen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Contact Person: yuzhen CAI Title: Research Assistant

QA-FR-171-A Xiamen Jing Xin Science and Technology Co., Ltd Add: 2nd Floor,No.33-35,Huli Avenue, Xiamen Area,China(Fujian)Pilot Free Trade Zone, Xiamen, China Tel: +86-18020764585 Fax: +86-0592-5692518 E-mail: [email protected] FCC Confidential Authorization Date: 2025-11-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BB6H-JXM800R-25 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Xiamen Jing Xin Science and Technology Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Contact Person: yuzhen CAI Title: Research Assistant

Xiamen Jing Xin Science and Technology Co., Ltd ADD: 2nd Floor,No.33-35,Huli Avenue, Xiamen Area,China(Fujian)Pilot Free Trade Zone, Xiamen, China TEL: +86-18020764585 FAX: +86-0592-5692518 Mail Address: [email protected] DECLARATION OF SIMILARITY Date: 2025-08-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Xiamen Jing Xin Science and Technology Co., Ltd, hereby declare that the product: A4 Thermal Paper Printer, FCC ID: 2BB6H-JXM800R-25. model: JXM800R-25P, 800R-25, 800R-25P are electrically identical with the model: JXM800R-25 which was tested by Bay Area Compliance Laboratories Corp.(Xiamen) with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name. the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: yuzhen CAI Title: Research Assistant

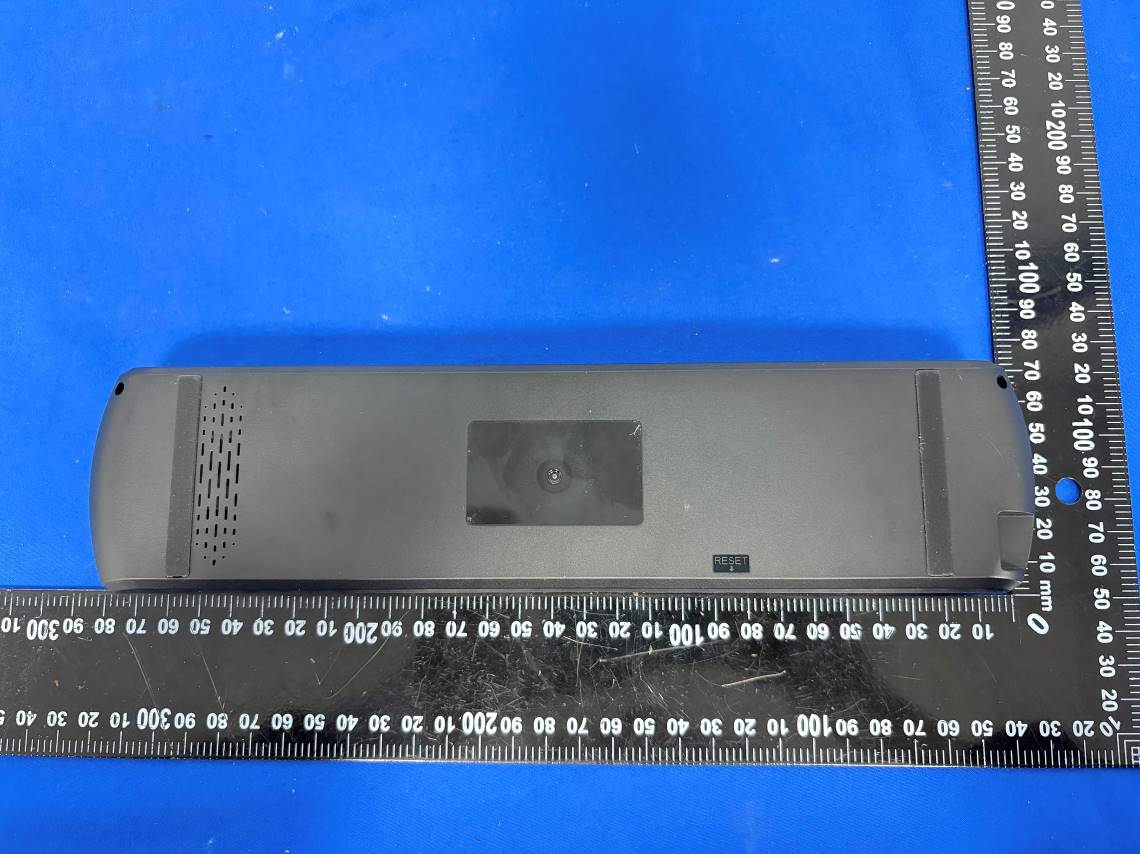

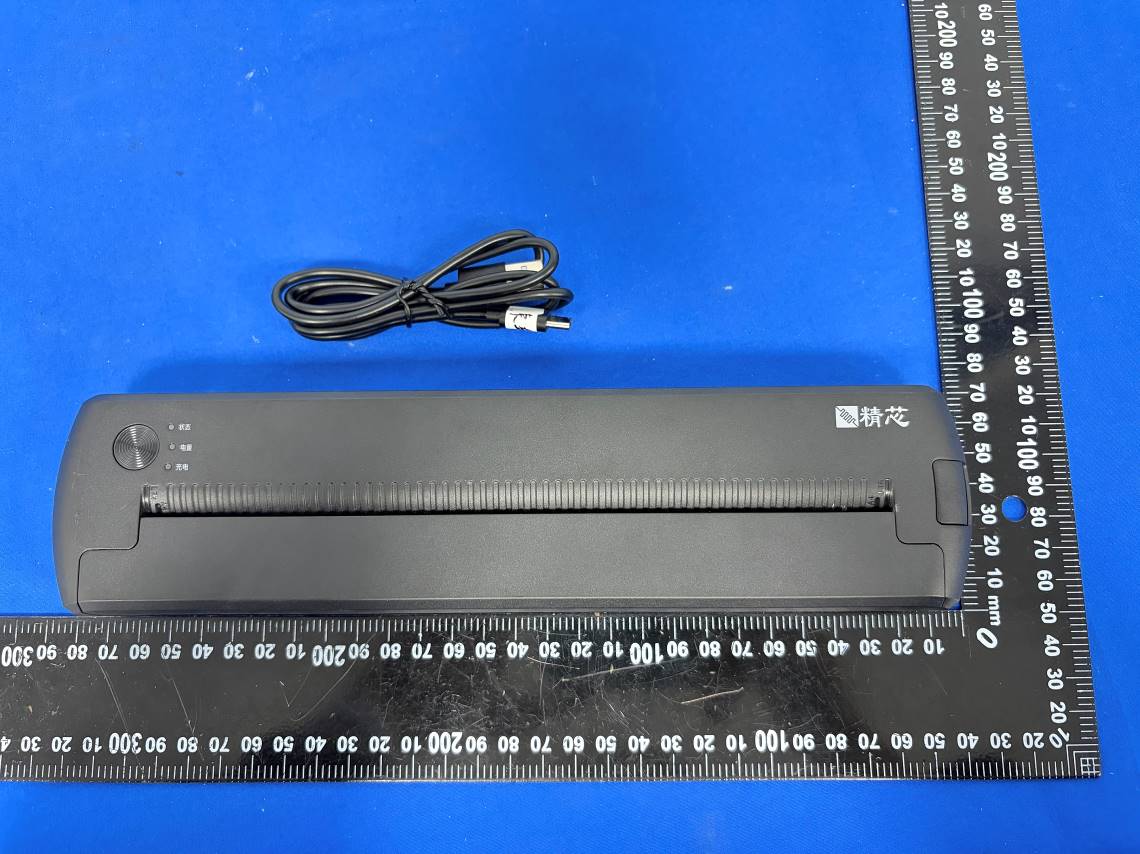

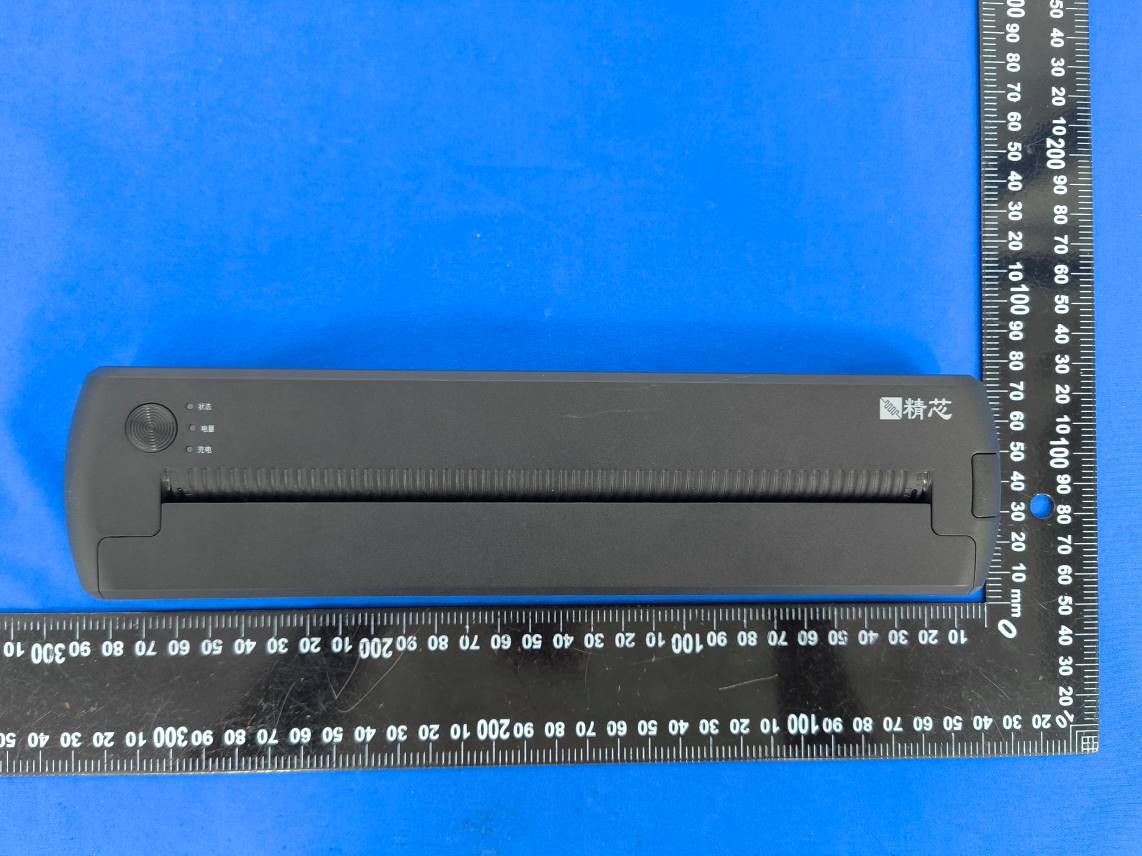

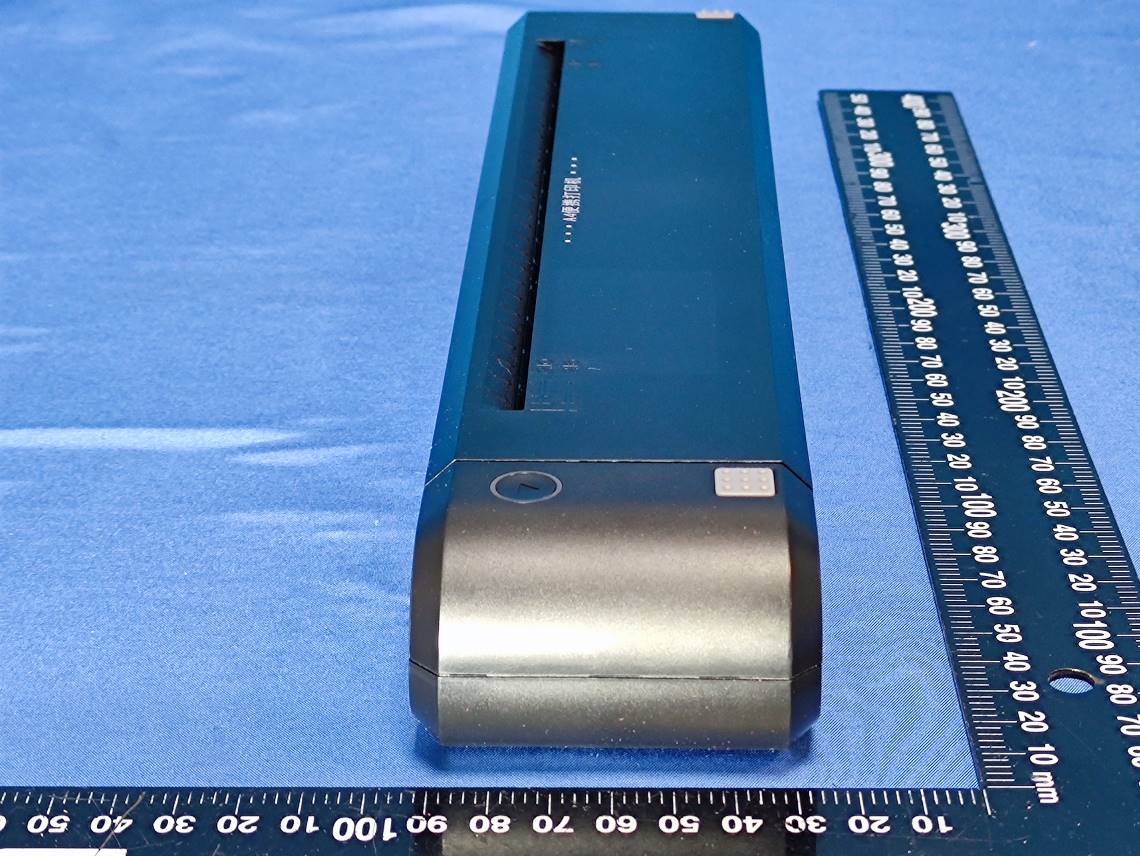

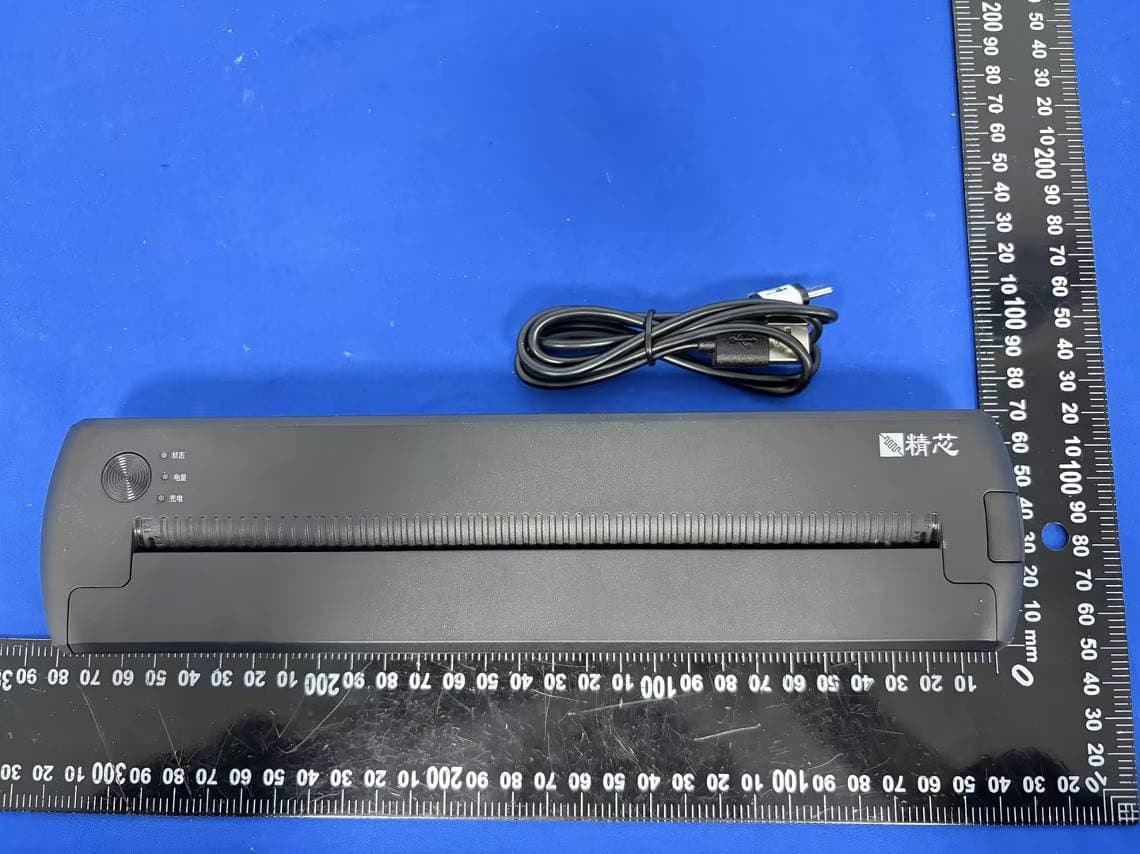

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 1 / 14 EUT EXTERNAL PHOTOS JXM800R-25 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 2 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 3 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 4 / 14 JXM800R-25P Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 5 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 6 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 7 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 8 / 14 800R-25 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 9 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 10 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 11 / 14 800R-25P Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 12 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 13 / 14 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-EXP Page 14 / 14

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-INP Page 1 / 7 EUT INTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-INP Page 2 / 7 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-INP Page 3 / 7 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-INP Page 4 / 7 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-INP Page 5 / 7

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-INP Page 6 / 7 Bluetooth Antenna Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-INP Page 7 / 7

RF EXPOSURE REPORT For Xiamen Jing Xin Science and Technology Co., Ltd 2nd Floor,No.33-35,Huli Avenue, Xiamen Area,China(Fujian)Pilot Free Trade Zone, Xiamen, China FCC ID: 2BB6H-JXM800R-25 Report Type: Original Report Product Name: A4 Thermal Paper Printer Report Number: 2507W17343E-RF-03 Report Date: 2025-12-23 Reviewed By: Ash Lin Approved By: Miles Chen Prepared By : Bay Area Compliance Laboratories Corp. (Xiamen) Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen Tel: +86-592-3200111 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-03 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 Page 2 of 7 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................ 5 CALCULATED DATA: .................................................................................................................................................... 5 EUT PHOTOGRAPHS ................................................................................................................................................. 6 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-03 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 Page 3 of 7 REPORT REVISION HISTORY Number of Revisions Report No. Version Issue Date Description 0 2507W17343E-RF-03 R1V1 2025-10-21 Initial Release Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-03 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 Page 4 of 7 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Product Name: A4 Thermal Paper Printer Tested Model: JXM800R-25 Multiple Model(s): JXM800R-25P, 800R-25, 800R-25P Trade Mark: JINGXINKJ Power Supply: DC 5V from adapter or DC 7.4V from battery Maximum Peak Conducted Output Power: BLE: -3.14dBm BT: -3.6dBm Frequency Range: 2402-2480 MHz Modulation Technique: BLE: GFSK BT: GFSK Antenna Type: Ceramic antenna ★Maximum Antenna Gain: 2.64dBi EUT Received Status: Good Note: 1. The Maximum Antenna Gain was declared by manufacturer. 2. The test model is identify with the series model except for the model name, please refer to declaration letter for more details. 3. The EUT supplied by the applicant was received on 2025-08-14. Test Facility The Test site used by Bay Area Compliance Laboratories Corp. (Xiamen) to collect test data is located on the Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen. Bay Area Compliance Laboratories Corp. (Xiamen) Lab is accredited to ISO/IEC 17025 by A2LA (Certificate Number: 7134.01) and the lab has been recognized as the FCC accredited lab under the KDB 974614 D01, the FCC Designation No. : CN1384. Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-03 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 Page 5 of 7 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 – MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC §1.1307(b)(1) & §2.1091, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Limits for Maximum Permissible Exposure (MPE) f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1307(b)(1) & §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency (MHz) ★Antenna Gain ★Tune-up Output Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limt (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) BLE 2402-2480 2.64 1.84 -3.0 0.50 20 0.0002 1 BT 2402-2480 2.64 1.84 -3.5 0.45 20 0.0002 1 Note: 1. The Tune-up output power was declared by the Manufacturer. Result: The device meets MPE at distance 20cm. Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-03 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 Page 6 of 7 EUT PHOTOGRAPHS Please refer to the attachment 2507W17343E-RF-EXP EUT EXTERNAL PHOTOGRAPHS and 2507W17343E-RF-INP EUT INTERNAL PHOTOGRAPHS. Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507W17343E-RF-03 FCC§15.247 (i), §1.1307(b)(1) & §2.1091 Page 7 of 7 Declarations 1. Bay Area Compliance Laboratories Corp. (Xiamen) is not responsible for authenticity of any information provided by the applicant. Information from the applicant that may affect test results are marked with an asterisk “★”. 2. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. 3. Unless required by the rule provided by the applicant or product regulations, then decision rule in this report did not consider the uncertainty. 4. The extended uncertainty given in this report is obtained by combining the standard uncertainty times the coverage factor k=2 with the 95% confidence interval. 5. This report cannot be reproduced except in full, without prior written approval of Bay Area Compliance Laboratories Corp. (Xiamen). 6. This report is valid only with a valid digital signature. The digital signature may be available o…
