2BB9K-DS02Smart Door Lock

Smart Door Lock User Manual INSTALLATION GUIDE ..................................................2 Prepare Door and Check Dimensions ..............................3 Install Latch and Strike ....................................................4 Pull out the Interior Knob & Install the Exterior Knob .......5 Install the Interior Knob ...................................................6 OPERATION GUIDE .......................................................7 APP GUIDE .....................................................................10 .....................................................10 Pairing Your Lock ...........................................................11 App Unlock/Lock ............................................................13 M e mber Management and Fingerprints .....................15 Create Smart Scenes ......................................................17 ...........................................................................18 .............................................19 SPECIFICATIONS ...........................................................20 FCC WARNING ..............................................................21 CONTENTS INSTALLATION GUIDE Prepare Door and Check Dimensions Install Latch and Strike Pull out t he Inter io r Knob Install t he Ext er io r Knob Install t he Inter io r Knob The up mark above the rosette should face upward. BuzzerIndicator Power onBeep once Finge r print a dded successfully Long BeepSt ay green for a while Unlocking successfulBeeps onceBlinks green once Unlocking failureBeeps twiceBlinks red once Beeps once (after using fingerprint or app to unlock) Blinks green then blinks red (after using fingerprint or app to unlock) Long BeepBlinks green once Scan the Tuya QR Code to download the app or search"Tuya" in APP Store (IOS) and Google Play (Android) for downlo ad. SPECIFICATIONS Technical Par ameter s Name USBType-C/5V2A Fingerprints max20 Low power warning3.5V±0.2 Voltage range3.0~4.2V St and-by current<90μA Working current<500mA ≈1.5sec Working temperature23 ~131 5 ~55 FCC CAUTION Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body Use only the supplied antenna. FCC ID: 2BB9K-DS02

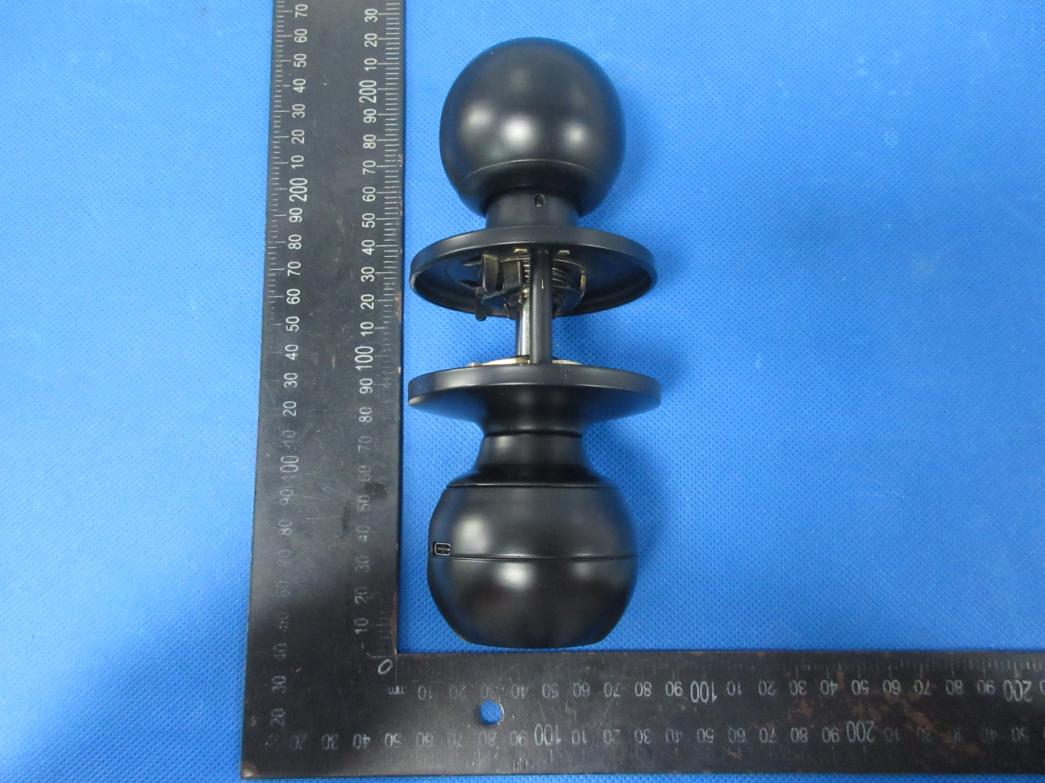

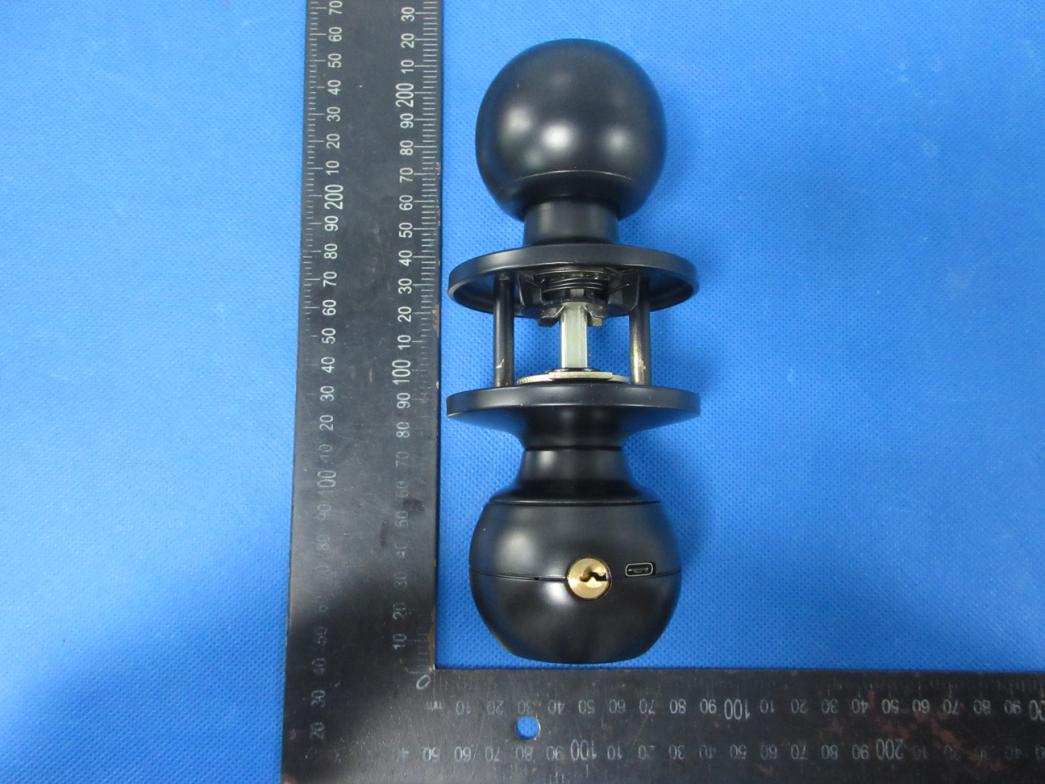

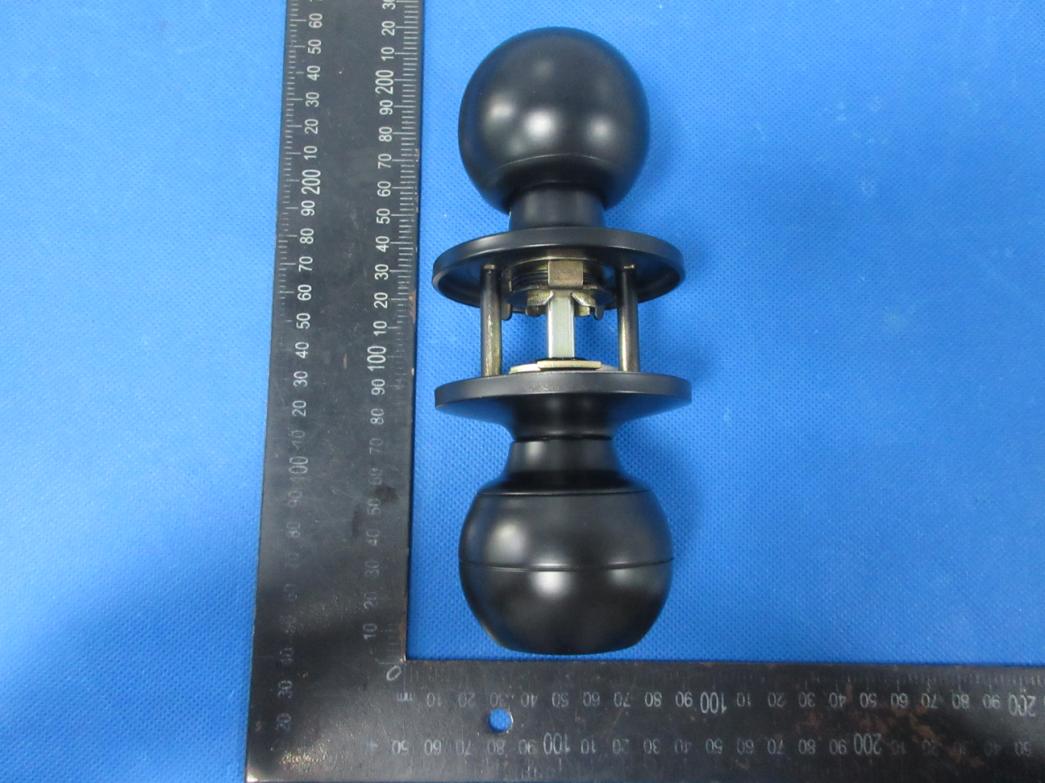

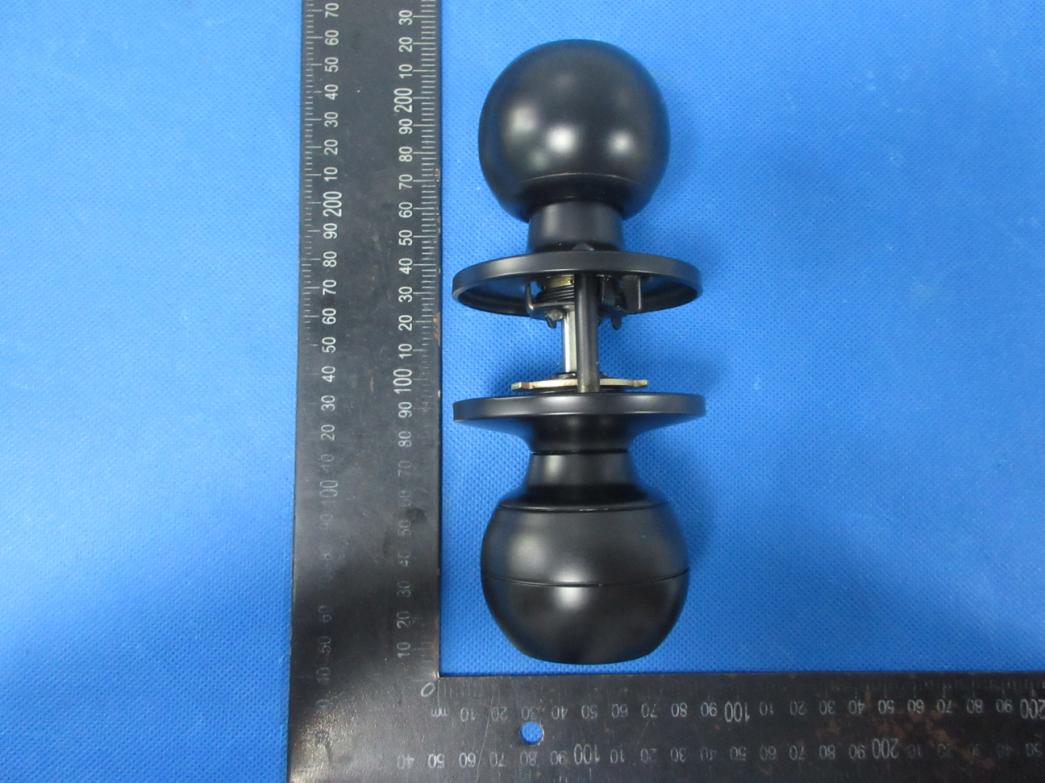

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 ANT Photo 7 Photo 8 Photo 9 Photo 10 Photo 11

FCC ID:2BB9K-DS02 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Measurement Result Operation Frequency: BT: 2402-2480MHz Power density limited: 1mW/ cm2 Antenna Type: Ceramic Antenna Antenna gain: 2.12 dBi, conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402 6.37 6±17 5.0122.121.630.00161 2440 6.35 6±17 5.0122.121.630.00161 2480 6.35 6±17 5.0122.121.630.00161 2402 6.33 6±17 5.0122.121.630.00161 2440 6.31 6±17 5.0122.121.630.00161 2480 6.31 6±17 5.0122.121.630.00161 BLE(2M) Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) BLE(1M) (mW/cm2 )(mW/cm2) Antenna Gain Max tune-up power Conclusion: For the max result : 0.0032≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 8/15/2023 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Approval sheet Page 1 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 MULTILAYER CERAMIC ANTENNA RFANT Series – RoHS Compliance 2.4 GHz ISM Band Working Frequency P/N: RFANT3216120A5T Series *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 FEATURES 1. Surface Mounted Devices with a small dimension of 3.2 X 1.6 X1.2 mm 3 meet future miniaturization trend. 2. LTCC process 3. High stability in Temperature / Humidity Change APPLICATIONS 1. 2.4GHz ISM band RF applications 2. Bluetooth, Wireless, HomeRF CONSTRUCTION DIMENSIONS Figure Symbol Dimension (mm) L 3.20 ± 0.20 W 1.60 ± 0.10 T 1.20 ± 0.10 a 0.25 ± 0.15 1. Feeding 2. Identification Mark 3. Soldering terminal W T E a a Approval sheet Page 3 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Ground Soldering Pad 50 ΩTransmission Line Unit : mm 19.4 Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 45mm 20mm Series 1 Series 2 Ground Soldering Pad 50 ΩTransmission Line Unit : mm 19.4 Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 45mm 20mm Series 1 Series 2 ELECTRICAL CHARACTERISTICS RFANT3216120A5T Specification Working Frequency Range 2450 ± 50 MHz Fc (GHz) 2.9 Gain (dBi) 2 (Typical) VSWR 2 max. Series 1 6.8nH Matching component value Series 2 - Operation Temperature -40 ̊C ~ +85 ̊C * This frequency must be adjusted to 2.45GHz with matching circuit. SOLDER LAND PATTERN DESIGN Figure 1.66 0.8 2.3 1.63 6 3.43 1.6 6 1.36 0.36 0.88 0.34 1.88 1.83 0.8 0.54 1.66 0.8 2.3 1.63 6 3.43 1.6 6 1.36 0.36 0.88 0.34 1.88 1.83 0.8 0.54 Approval sheet Page 4 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Antenna on Test Board ( Thickness 1.2mm) Antenna S11 on Test Board Antenna VSWR on Test Board E 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND E Approval sheet Page 5 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT3216120A5T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Vertical Horizontal Y - Z Plane Average Gain= 0.891 dBi Peak Gain = 2.12dBi Average Gain = 0.64 dBi Peak Gain= -6.07dBi Average Gain=-11.62dBi X - Z Plane Average Gain= -1.846 dBi Peak Gain= -7.78 dBi Average Gain= -11.97dBi Peak Gain= 0.96 dBi Average Gain= -2.29 dBi X - Y Plane Average Gain= -2.556 dBi Peak Gain= -9.41 dBi Average Gain= -15.54dBi Peak Gain= 1.40 dBi Average Gain= -2.78 dBi GROUND X Y Z GROUND X Y Z X Y Z Approval sheet Page 6 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 RELIABILITY TEST Test item Test condition / Test method Specification Solderability JIS C 0050-4.6 JESD22-B102D *Solder bath temperature：235 ± 5°C *Immersion time：2 ± 0.5 sec *Solder：Sn3Ag0.5Cu for lead-free At least 95% of a surface of each terminal electrode must be covered by fresh solder. Leaching (Resistance to dissolution of metallization) IEC 60068-2-58 *Solder bath temperature：260 ± 5°C *Leaching immersion time：30 ± 0.5 sec *Solder : SN63A Loss of metallization on the edges of each electrode shall not exceed 25%. Resistance to soldering heat JIS C 0050-5.4 *Preheating temperature：120~150°C, 1 minute. *Solder temperature：270±5°C *Immersion time：10±1 sec *Solder：Sn3Ag0.5Cu for lead-free Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Loss of metallization on the edges of each electrode shall not exceed 25%. Drop Test JIS C 0044 *Height：75 cm *Test Surface：Rigid surface of concrete or steel. *Times：6 surfaces for each units；2 times for each side. No mechanical damage. Samples shall satisfy electrical specification after test. Adhesive Strength of Termination JIS C 0051- 7.4.3 *Pressurizing force： 5N(≦0603)；10N(>0603) *Test time：10±1 sec No remarkable damage or removal of the termination. Bending test JIS C 0051- 7.4.1 The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1 mm/s per second until the deflection becomes 1mm/s and then pressure shall be maintained for 5±1 sec. Measurement to be made after keeping at room temperature for 24±2 hours No mechanical damage. Samples shall satisfy electrical specification after test. Approval sheet Page 7 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Temperature cycle JIS C 0025 1. 30±3 minutes at -40°C±3°C, 2. 10~15 minutes at room temperature, 3. 30±3 minutes at +85°C±3°C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Vibration JIS C 0040 *Frequency：10Hz~55Hz~10Hz(1min) *Total amplitude：1.5mm *Test times：6hrs.(Two hrs each in three mutually perpendicular directions) No mechanical damage. Samples shall satisfy electrical specification after test. High temperature JIS C 0021 *Temperature：85°C±2°C *Test duration：1000+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Humidity (steady conditions) JIS C 0022 *Humidity：90% to 95% R.H. *Temperature：40±2°C *Time：1000+24/-0 hrs. Measurement to be made after keeping at room temperature for 24±2 hrs ※ 500hrs measuring the first data then 1000hrs data No mechanical damage. Samples shall satisfy electrical specification after test. Low temperature JIS C 0020 *Temperature：-40°C±2°C *Test duration：1000+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Approval sheet Page 8 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 SOLDERING CONDITION Typical examples of soldering processes that provide …
