2BB9O-600PROPortable Power Station

www.ampacepower.com Contact Us / [email protected] ANDES 600 PRO POWER YOUR LIFE User Manual Contents 1 01 Specifica�on 2 03 Safety Instruc�ons 5 11 Troubleshoo�ng 6 13 Packing List 4 10 FAQ 7 14 Warranty 8 15 FCC Warning 3 04 Ge�ng Started 2.1 Usage 2.2 Disposal 03 03 04 06 07 08 09 3.1 Product Details 3.2 General Product Instruc�ons 3.3 Charging Method 3.4 Using APP 3.5 Emergency Power Supply Read and understand all sa�y instruc�ons before using this Ampace product. You take full responsibility for any usage and opera�ons. Follow all the safety instruc�ons for compliance with local regula�ons. www.ampacepower.com Disclaimer Input Ports 1 Specifica�on Ba�ery Info Cell Chemistry System Cycle Life Protec�on LiFePO 4 Hybrid System 2000 cycles Over-voltage Protec�on; Over-load Protec�on; Over-temperature Protec�on; Short Circuit Protec�on; Low Temperature Protec�on; High Temperature Protec�on; Low Voltage Protec�on; Over-current Protec�on. Not all electrical appliances with a resis�ve load under 1,800W are suitable. It's incompa�ble with appliances that have strict voltage requirements, like precision instruments. It's be�er suited for hea�ng devices. This feature will maintain the device's opera�on, albeit at a lower power than the device's rated capacity. Car charger shares power with the DC5521 output port, offering a maximum output of 120W. 1 2 Product Info Net Weight Dimensions (W*D*H) Capacity APP Control Cer�fica�on Home EPS LED Light Opera�ng Temperature for Charging Opera�ng Temperature for Discharging 7.6kg/16.8lbs 285*209*214mm/11.2*8.2*8.4in 584Wh 15.2V Ye s UL, CE, FCC, PSE, RoHS 20ms Ligh�ng lamp + Atmosphere lamp -10~45°C (14°F~113°F) -20~45°C (-4°F~113°F) Output Ports AC (*2) 1,800W for resis�ve load Pure Sine Wave, total 600W(Surge 1800W), US 120V 60Hz, UK/EU/ AU/ZA 220~240V 50Hz 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 100W max USB-C (*1) DC 5521 Output (*2) ② Car Socket (*1) USB-A (*2) Max Device(s) Power Supported by A-turbo ① USB-C (*1) 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 60W max 5V/3A, 9V/2A, 12V/1.5A, 18W max, per port 12V/10A, 120W max 12V/10A, 120W max 0102 US 120V 60Hz, UK/EU/AU/ZA 220~240V 50Hz (550W, MAX) DC 11~30V, 12A (200W max) DC 12V/24V, 8A (96W max) AC Charging Solar panel Charging Car charger Do not use the product near heat sources, such as fire or hea�ng furnace. Avoid contact with any liquid. Do not immerse the product in water or get it wet. Do not use the product in rainy or humid environment. Do not use the product in a strong sta�c/magne�c environment. Do not disassemble the product in any way or pierce with sharp objects. Avoid using wires or other metal objects that may cause short circuit. Do not use any non-Ampace accessories. To replace any accessories, contact Ampace for help. Always follow the environmental opera�ng temperature specified in this user manual when using the product. If the temperature is too high, serious hazardous situa�ons such as fire or explosion may occur. If the temperature is too low, the product performance may be severely reduced, or the product may cease to work. Do not stack any heavy objects on the product. Do not place any object in front of fans, nor place the product in the unven�lated or dusty area. Avoid collision, dropping or severe vibra�on when using the product. In case of a severe external collision, turn off the power supply immediately and stop using the product. Ensure that the product is well fastened during transporta- �on to avoid vibra�on and collision. If the product accidentally falls into water, put it in a safe open area un�l it is completely dry. The dried product is forbidden to be used again, and should be properly recycled or disposed of according to Sec�on 2.2 below. If the product catches fire, it is recommended to use fire ex�nguishers in the following order: water or water mist, sand, fire blanket, dry powder, and carbon dioxide fire ex�nguisher. Place the product on a flat surface to avoid damages from falling down. If the product flips over and is severely damaged, turn it off immediately, place it in an open area away from people or flammable materials, and dispose of it in accordance with local laws and regula�ons. 2.1 Usage 2 Safety Instruc�ons If possible, ensure that the ba�ery is fully discharged before disposing of it into a designated ba�ery recycling bin. The product contains ba�eries with poten�ally hazardous chemicals, it is forbidden to dispose of it into ordinary trash cans. For details, follow the local laws and regula�ons regarding ba�ery recycling and disposal. If the ba�ery cannot be fully discharged due to product failures, do not dispose of the ba�ery directly into the ba�ery recycling bin. Contact Ampace or other professional ba�ery recycling authority for further processing. Over-discharged ba�eries that cannot be recharged should be disposed of. 2.2 Disposal 3 Ge�ng Started3 Ge�ng Started 3.1 Product Details 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 Front View Rear View 0304 AC Output USB-C100W max USB-C, 60W max USB1*2, 18W max LED Light LCD Screen Car Socket DC5521 *2 LED Light Power Bu�on Main Power Bu�on AC Power Bu�on DC Power Bu�on AC Input Solar / Car Input When you press any power bu�on, the LCD screen will light up displaying charging or discharging status, ba�ery power, recharging �me, remaining �me (Mins or Hours), power consump�on (Wa�s ), and other informa�on. LCD Screen Power on Short press the Main Power bu�on for 1s to turn on the product. The LCD screen will light up and the ba�ery level indicator will display. The product enters standby mode a�er 5 minutes of idle opera�on, the LCD screen will automa�cally turn off. When the product senses any load or opera�on, the LCD screen will automa�cally light up. To turn the LCD screen on or off, short press the Main Power bu�on. Power off Press and hold the Main Power bu�on for 3 seconds to turn off the product. Automa�c shutdown The default standby �me is 4 hours. With other Power bu�ons turned off and no…

Text truncated - open the document above for the full version.

(Xiamen Ampace Technology Limited) (September 12, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BB9O-600PRO) [Xiamen Ampace Technology Limited] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Yosen Zheng (Xiamen Ampace Technology Limited) (September 12, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BB9O-600PRO) [Xiamen Ampace Technology Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Yosen Zheng

AttestationStatements (Jul.31,2023) TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA RE:AttestationStatementsPart2.911(d)(7)requestfor(FCCID:2BB9O-600PRO) (XiamenAmpaceTechnologyLimited),theundersigned,herebyauthorize(UGK- LVMUNITEDINC)toactasourdesignatedU.S.agentforserviceofprocess,(Xiamen AmpaceTechnologyLimited)acceptstomaintainanagentfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionofany Commission-relatedproceedinginvolvingtheequipment. (UGK-LVMUNITEDINC)acceptstheresponsibilitytoactasdesignatedU.S.agentfor serviceofprocess,providesanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantInformation： Companyname:XiamenAmpaceTechnologyLimited ContactName:YosenZheng Address:No.600HongtangRoad,TongxiangHigh-techZone,TorchHigh-tech District,XiamenCity,FujianProvince,China. TelephoneNo:13959265806 Email:[email protected] U.S.AgentInformation: CompanyName:UGK-LVMUNITEDINC Address:6547NAcademyBlvd#2266,ColoradoSprings,CO80918,UnitedStates. ContactName:Jimmychen TelephoneNo:001-323-5104660 Email:[email protected] FRN:0033476375 ApplicantSignature:AgentSignature: Applicantprintedname:YosenZhengAgentprintedname:Jimmychen

Xiamen Ampace Technology Limited (September 11, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Portable Power Station / Andes 600 Pro / FCC ID: 2BB9O-600PRO) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Yosen Zheng Title: Manager

Xiamen Ampace Technology Limited (September 11, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Yosen Zheng Title: Manager

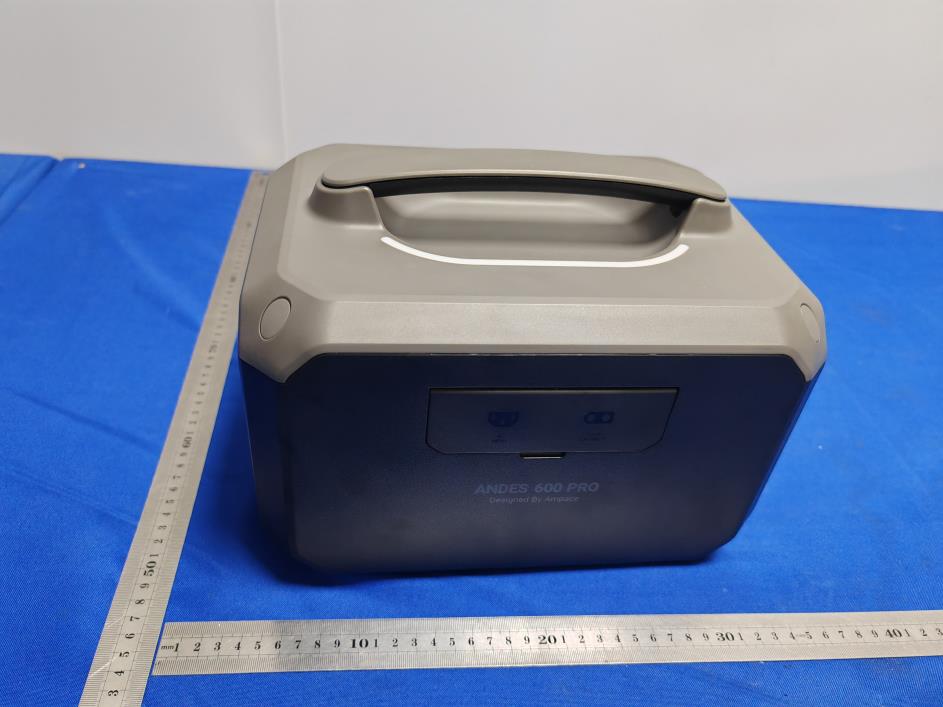

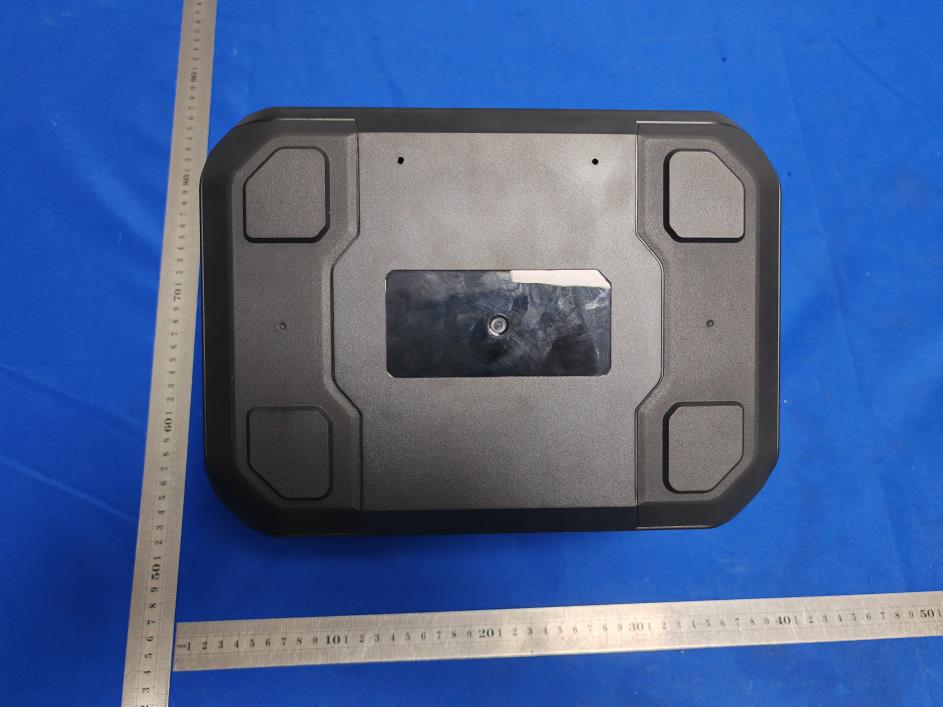

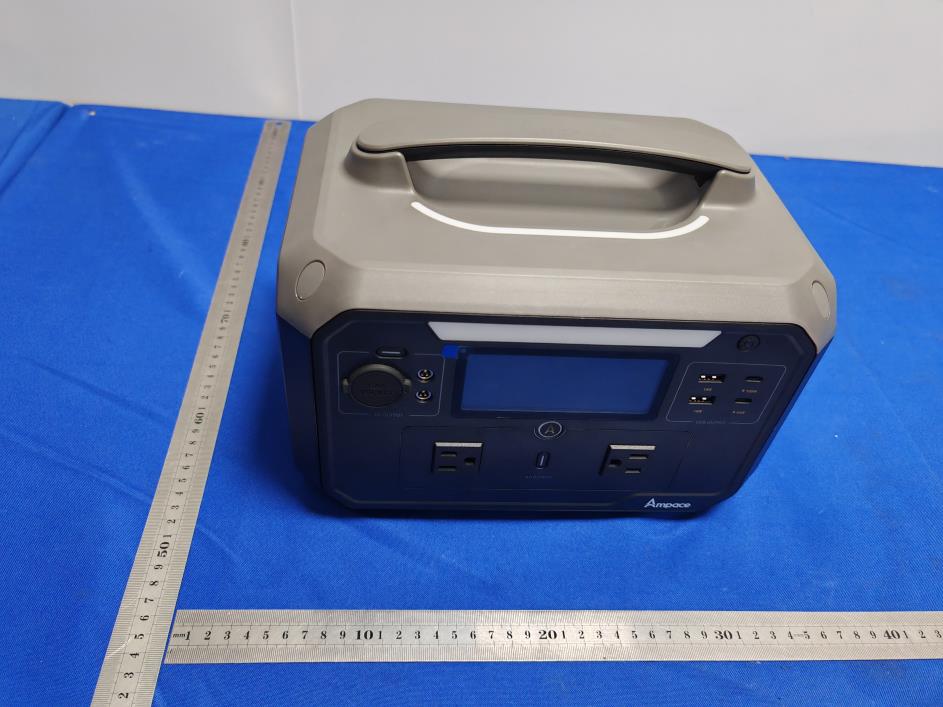

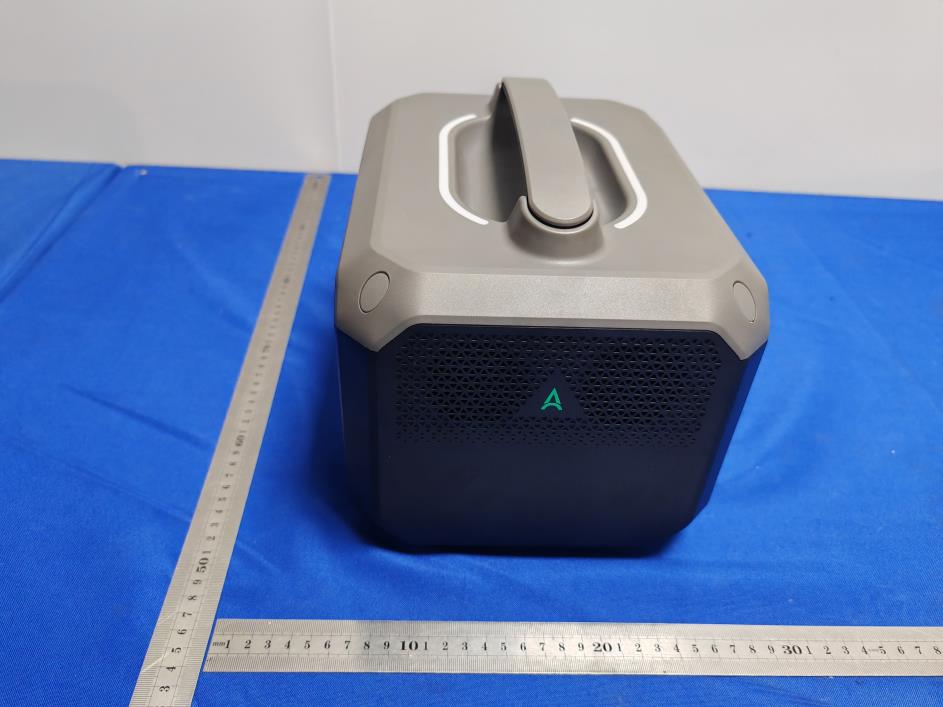

External Photos

FCC ID LABEL: Label Location:

Internal Photos ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BB9O-600PRO Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BLE GFSK& HCH 0±1 1 1.2589 2.3496 (3.71dBi) 0.0006 1 Pass EDR 8DPSK&H CH 1±1 2 1.5849 2.3496 (3.71dBi) 0.0007 1 Pass 2.4G WIFI 802.11b&2 462 14±1 15 31.6228 2.3496 (3.71dBi) 0.0148 1 Pass
