2BB9RDW221Smart Microwave Oven with Bluetooth, WiFi and LTE

QUALIFICATION Inspector : Production Date: This product is qualified after inspection Shenzhen Shuying Technology Co.,Ltd. Shenzhen Shuying Technology Co.,Ltd. No1006, building 1, Aerospace building, No.51,Gaoxin South 9 road, Yuehai street,Nanshan District,Shenzhen Service Call:4001007135 WANDECHU Microwave Oven Instruction Manual Model:DW221 *To avoid accidents or damage to electrical appliances, please read the instructions carefully before installation and usage * Due to our continue improvement of product performance, we reserve the right to make changes on the manual CONTENT Specifications ....................................................................................... 1 Checking before unpacking ................................................................... 1 Microwave oven installation requirements ............................................ 1 Microwave oven placement requirements ............................................ 2 Usage and safety notice ...................................................................... 2 Microwave oven introduction .............................................................. 4 Control panel introduction ................................................................... 4 Operating instruction and functions ...................................................... 5 Cleaning and maintenance ................................................................. 6 Microwave oven service instructions ................................................... 7 Warranty card ....................................................................................... 8 — 1— SPECIFICATIONS Model DW221 Voltage/ rated frequency 110V~60Hz Rated input power 1580W Microwave output power 1000W Rated microwave frequency 2450MHz Product Dimensions (width x depth x height) 572x480x430mm Cavity Dimensions (width x depth x height) 332x368x285mm Capacity 35L Net weight 22.5KG Checking before unpacking Open the package, please check the following: 1. Check whether the accessories are complete, and there is one manual. 2. Check whether the exterior and internal cavity of the microwave oven is damaged or not. If you find that the microwave oven is damaged, please contact the distributor or our special maintenance department immediately. — 1— Microwave oven installation requirements 1. It is recommended not to use the microwave oven in the cabinet; 2. Please keep the microwave oven flat, and use it in a dry, ventilated and no corrosive environment, away from high temperature and humidity environment; 3. Please note that the microwave oven should be installed away from radio frequency equipment such as TV, radio and antenna (generally larger than 5m) to avoid mutual interference; 4. The microwave oven needs to use an independent special socket, the current needs to be above 10A, and the household power socket must have a grounding wire. In case of leakage, you can ground the wire to form a current loop to avoid electric shock; 5. Ensure that the installation environment does not affect the switch of the furnace door; 6. The power cord, plug do not close to the exhaust port, the cover temperature is high or humid place, so as to avoid the danger caused by the aging of the power cord; 7. When the microwave oven is used for the first time, due to the residue or grease in the production process exists in the furnace cavity or on the heating tube, There may be odor when heating, and even white smoke, which is a normal phenomenon, after several times of use, this situation will disappear, please pay attention to open the doors and Windows when the first few times of use, and keep the room well ventilated. —2— Microwave oven placement requirements Do not place anything on top of the stove. in order to have enough space air flow space, the product should be placed 85cm the product should be placed 85cm above the ground of Plane position ● The distance between both sides of the microwave oven and the wall should not be less than 15cm; ● The distance between the furnace back and the wall should not be less than 20cm; ●The distance between the furnace back and the top wall cabinet is not less than 20cm; ● Do not use door handles during handling. Lift from the bottom of the product and handle gently. Usage and safety notice Please read the safety precautions carefully before using the WANDECHU microwave oven, so that you can use the microwave oven safely and easily. The Equipment Provider shall not be liable for any injury or damage resulting from non-compliance with the safety precautions. Keep the instructions securely and give them to anyone who will use the appliance. 1. Ensure that the power supply range of the microwave oven is consistent with that marked on the nameplate, and that the wall power outlet is properly grounded. —2— 2. Please be sure to pay attention to no no-load heating; 3. In order to avoid fire in the furnace cavity, please pay attention to the following: a). Please do not cover the food sealed heating, unless the food is labeled to be sealed heating in a microwave oven; b). When the food wrapped in paper or plastic is heated in the oven, please remove the string and observe the microwave oven, because there is a possibility of fire; c). Please do not heat food oil or fry food, because the temperature of the oil will become too high and difficult to control; d). After each use, please clean the food and grease spilled on the furnace wall with a wet cloth and then a dry cloth to prevent the possibility of causing black smoke or fire; e). If smoke is found, turn off the appliance or unplug the power, and keep the furnace door closed to inhibit the spread of flame; f). If the food is heated in a disposable container, please pay attention to the use of microwavable materials, and please pay attention to the situation in the microwave oven during the heating process; 4.In order to avoid explosion and sudden boiling, please note the following: a). Warning: Do not heat…

Text truncated - open the document above for the full version.

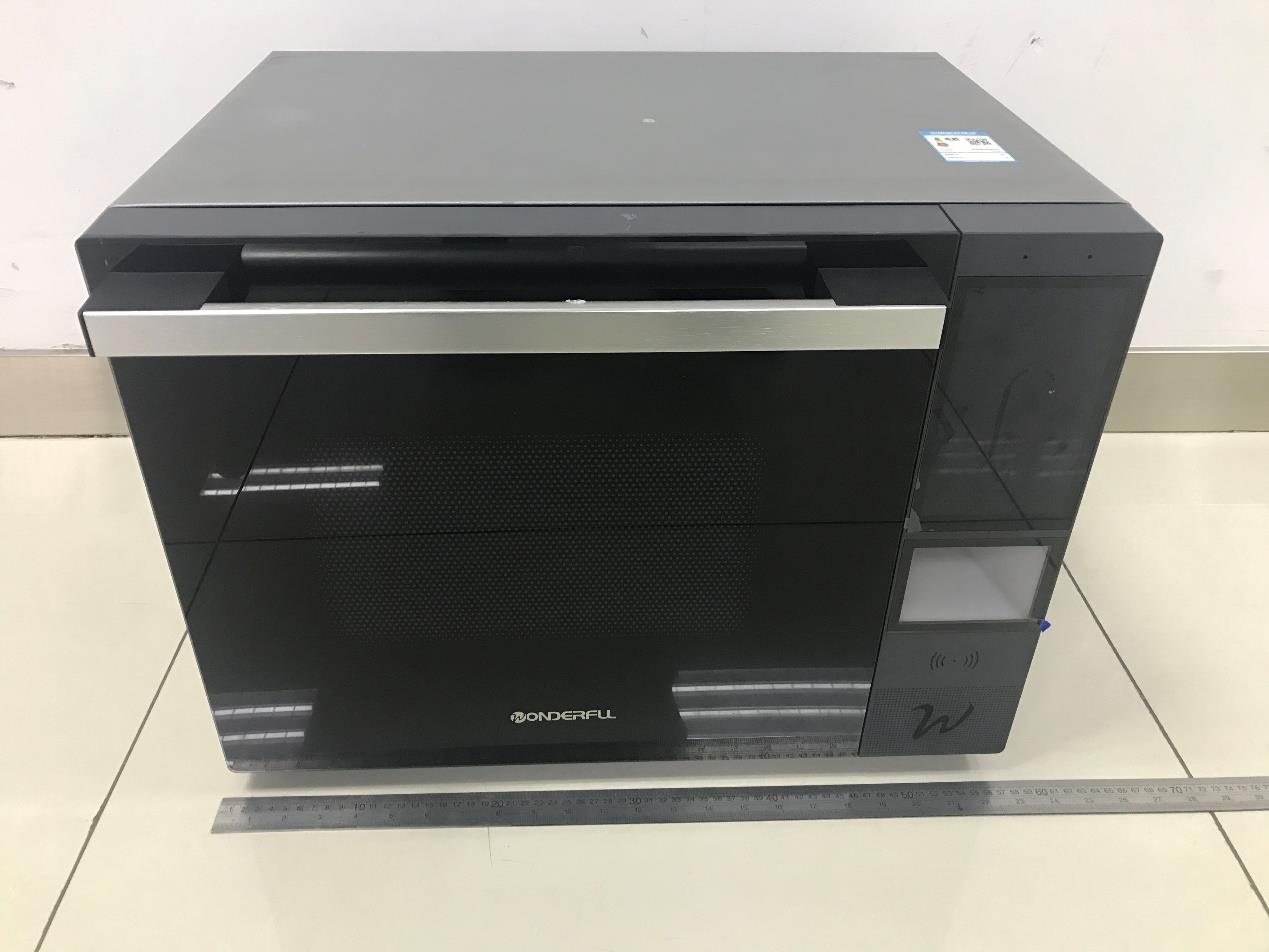

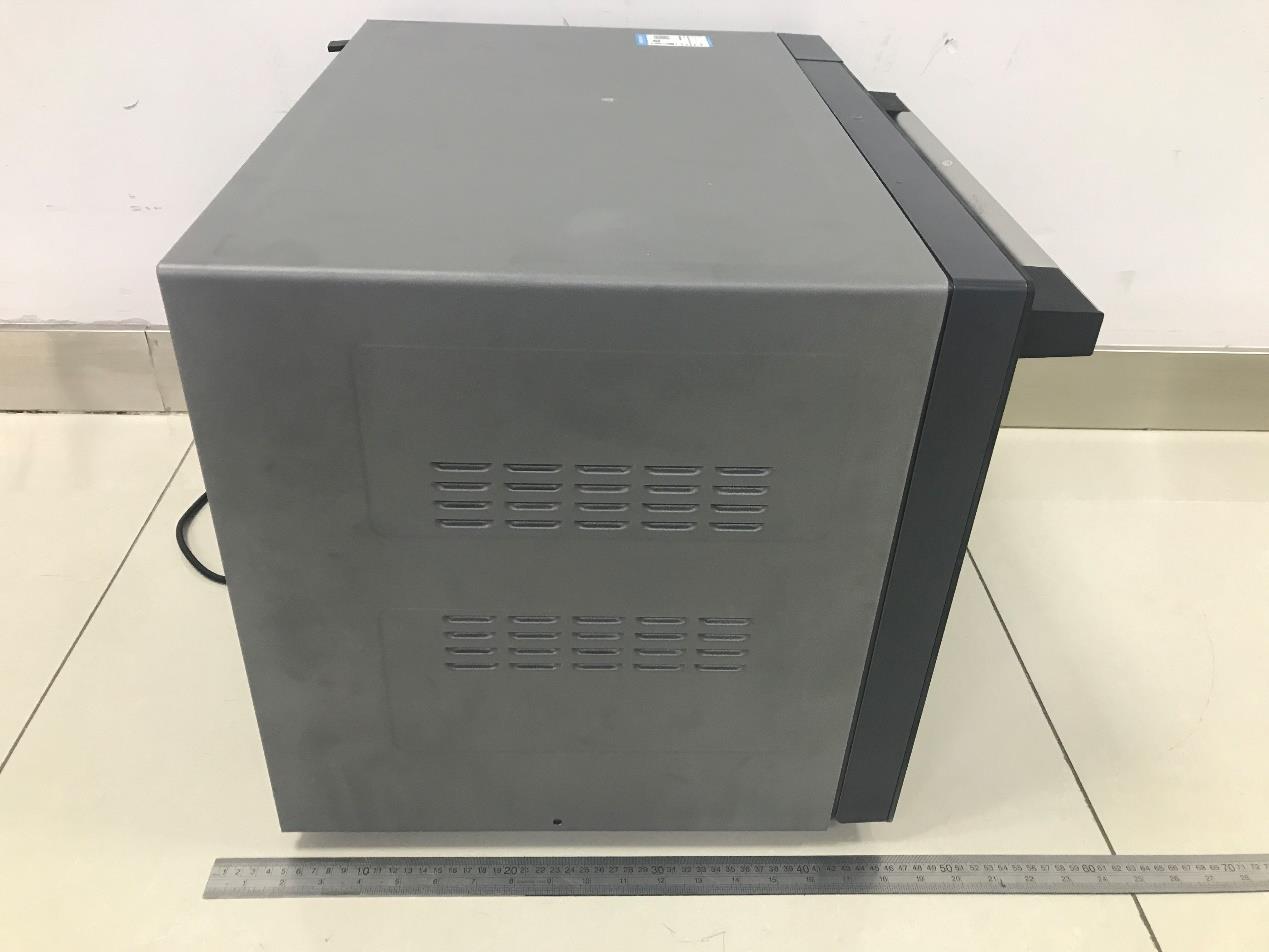

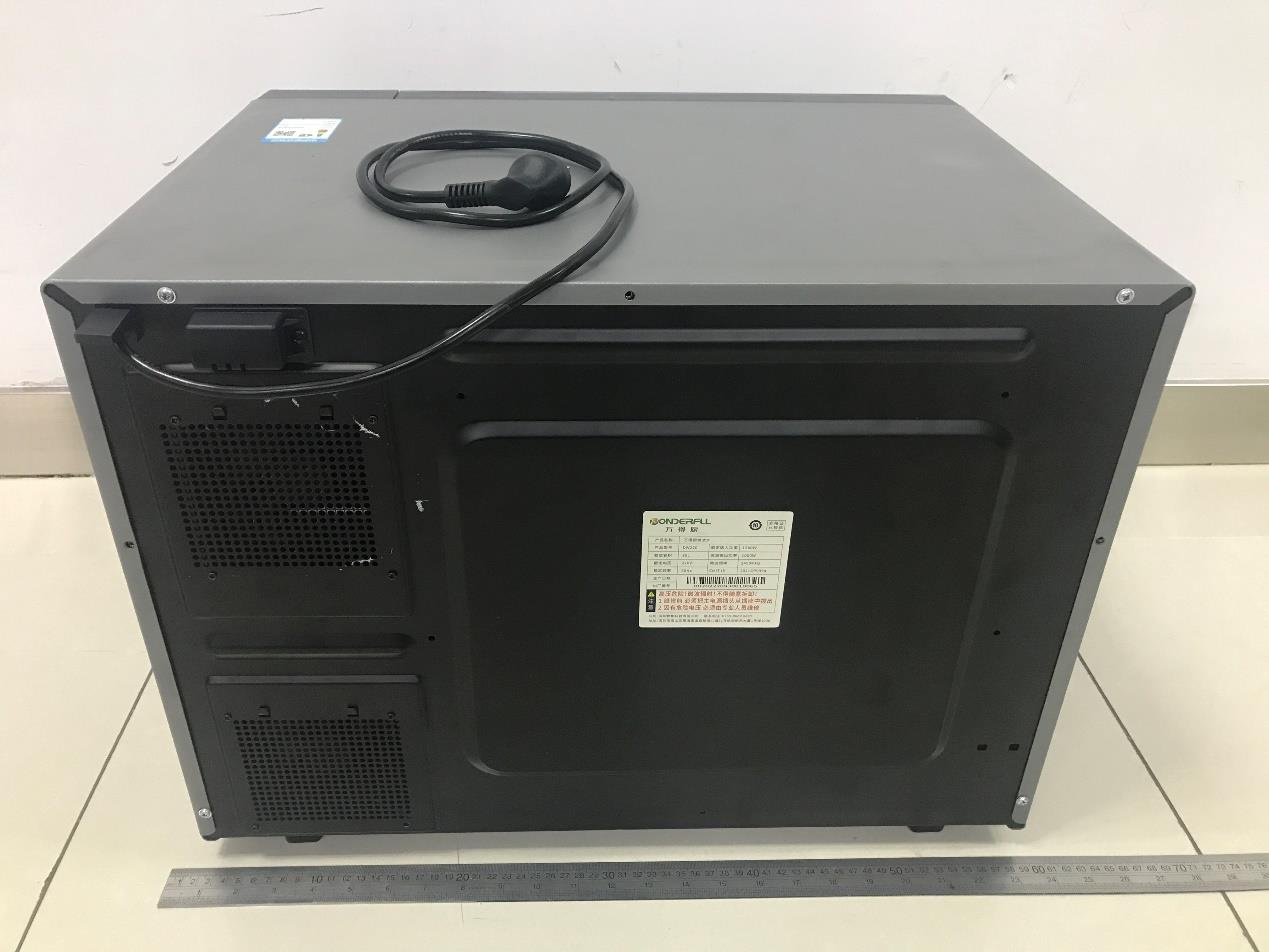

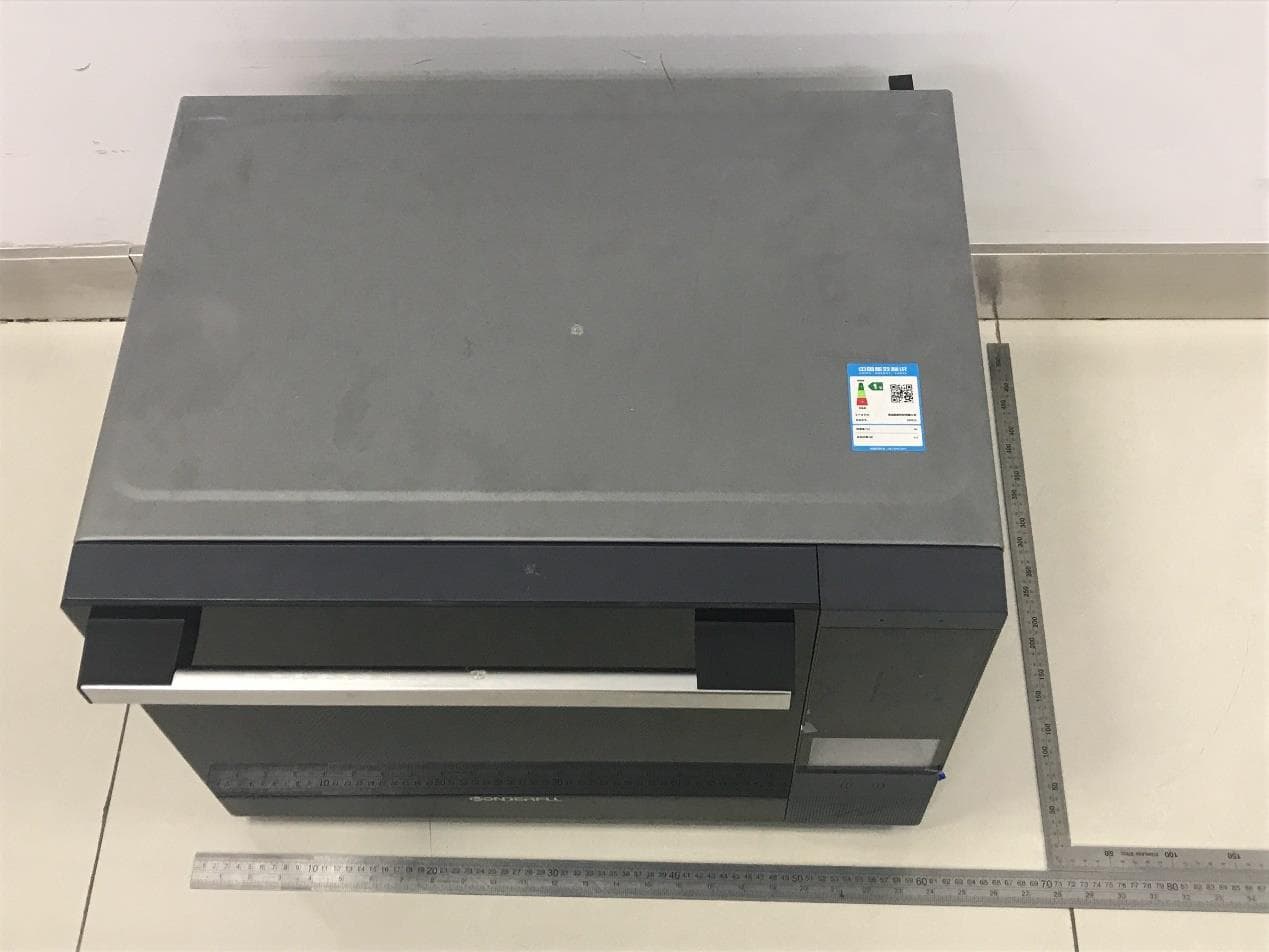

FCC ID: 2BB9RDW221 Photo 1 Appearance of EUT Photo 2 Appearance of EUT Photo 3 Appearance of EUT Photo 4 Appearance of EUT Photo 5 Appearance of EUT Photo 6 Appearance of EUT
