2BBDS-SVMSmart Vision

SMART VISION User Manual Sep 2023 © 2023 Vision Group Smart Vision Introduction © 2023 Vision Group The SmartVisionis a BLE-enabled device that has built-in sensors to record cooler telemetry data, monitor door actions, Magnetometer, and take coolerimages. 1 2 Magnetwithhousingwith3Madhesivetape (25x 22.7 x 12mm)forDoorsensorD1. SmartVision Magnet Bar Code Smart Vision SR# Wake Up Sensor SmartVisionMAC M Door Sensor © 2023 Vision Group The installation position of Smart Vision and Magnet are depended on the cooler model. The next section will explain the installation position. NOTE: DO NOT WAKE UP THE DEVICE BEFORE THE DEVICE INSTALL IN THE COOLER. ImportantConditionsforInstallation: SmartVisionmustalwaysbeinstalledintheCoolercabinet(Preferableplaceis onSlide- #4). Edgeofthed o o r, oppositethehinge. MakesurethemagnetshouldinstalloppositethedoorhingeandtowardstheDoorsensorinstalledinsidethe cabinet. Clearthecoolersurfaceusinga tissueif dustorwaterparticlesareavailable. ForInstallation,peelthecoverfromthe3MadhesivetapeandplacetheSmartVisiononthecoolerDoor. Allow it tostayfor30secondswithoutanydisturbances. If thereareanychangestobemadeintheinstallationpositionthereisonlya 30-secondwindowtomoveit, after30secondstheDevicewillstickpermanently. © 2023 Vision Group The Smart Vision device is installed at the center of the cooler door using 3M double side tape shown below image. Camera1 Camera2 SmartVisionisinstalled completelyalignedwiththe inneredgeofthedoorwithout obstructingthedoor’sclose. SmartVisionmustbeinstalled inwardsfromthecoolerdoor frameandshouldnottouchthe CoolerLEDwhileDooris closed. © 2023 Vision Group Ensure that the device is installed the same as shown in the below image (Barcode should be facing toward the magnet). TheretheDevicehastwo sensors:awake-upsensorto wakeupthesmartdeviceanda Doorsensortomonitorthedoor operationofthecooler. Wake Up sensor Door Sensor © 2023 Vision Group Camera1 Theinstallationpositionistheuppersideof theinstalledSmartVision Camera2 Theinstallationpositionisthelowersideof theinstalledSmartVision See below the image installation positions for Camera 1 & Camera 2. Camera1 Camera2 © 2023 Vision Group Wake Up Process After Installing the Smart Vision Device follow the below points for the further process. ItisimportanttokeepthemagnetneartheWake-upSensorinthegap within1cmbetweentheDeviceandthemagnetfora minimumof20 secondsContinuousasshownintheimage. ThiswillensurethattheWake-upSensoristriggeredproperly,andthe Devicewillbeabletowakeup.Failuretodosomayresultinthedevice setupnotworkingcorrectly. Afterwakingup,thedevicewillstartadvertisingfor15minutes. Duringthisadvertisementperiod,theinstallermustcompletethemagnet installationonthecoolerwall,andtheassociationprocesswiththephone applicationwithinthe15-minutetimelimit. Thisprocessneedstobecompletedtoensurethatthedeviceisproperly configured. Oncetheinstallationandassociationprocessiscomplete,thedevicewill bereadyforuse. © 2023 Vision Group Magnet Installation The magnet installation position might depend on the cooler model. ImportantConditionsforInstallation: ThemagnetisalwaysinstalledoppositetotheSmartVision(MagnetshouldbeinstalledontheCoolerwalland towardstheDeviceDoorsensors. Themagnetmustbeplacedonthewallofthecoolersuchthatwhenthedooris closed,themagnetlies<10cm fromtheSmartVisiondoorsensorposition. Wipethemoisturefromtheinstallationspotusingdrytissue. Peelthecoverfromthe3mmtapeandpastethemagnetintherequiredposition. If thereareanychangestobemadeinthepositionofthemagnetthereisonlya 30-secondwindowtomoveit, after30secondsthemagnetwillstickpermanently. © 2023 Vision Group Magnet for Door Sensor The magnet should be installed edge of the device and the front of the magnet sensor- See image slide. If theuserhasa circularmagnet,installit likea squareone,asshownbelow. Themagnetmustbeplacedexactlyin frontofthesmartvisionontheinsideedgeofthecooler. © 2023 Vision Group A MagnetcanbeinstalledinthebelowshowingrangeareafortheDoorSensor. 10 cm x 10 cm AMagnetcan beinstalledin thehighlighted area. DoorSensor © 2023 Vision Group OncetheSmartVisiondeviceandmagnetareinstalledproperly. NeedtoCalibratethedeviceforDoorclosing. AfterSuccessfullycalibrateGyro,waitfor30Secasthecalibrationprocessis ongoing. ChecktheDoorstatusinanadvertisement– It shouldshowasDoorClose. How to calibrate Magnet & Device for Door Close? © 2023 Vision Group Application Installation Search the VISION IOT SmartCooler application in the Google Play store and Install it. © 2023 Vision Group Smart Vision Association The Vision IOT Installation application is compatible only with Smartphones having Android v7.0 and above. 1.OpenVISIONIOTSmartCoolerapplication. 2.Loginusingthecredentialsprovidedbyyour administrator–aftersuccessfullogin,theuserwillbe redirectedtotheOutletlistviewscreen. Note:PleaseensureBluetoothonthedeviceisON. The applicationwillcommunicatewiththedeviceusingBluetooth. © 2023 Vision Group Device Sensor ( Door, Light, Motion, Temperature) Afterconnection,gotothehamburgermenu> Ta pon“Devicedata”>thenTa p“Readcurrentdata”. Users can see real-time sensor data, Door status, current temperature, and current light condition with current date and time. © 2023 Vision Group Verify Smart Vision Door Sensor 1.AftertheAssociationProcessoftheSmartVisionandmagnet, thedooropenandclosemustbevalidatedtomakesurethat themagnetisplacedproperly. Followthestepsmentioned belowtoverify. 2.Ta pontheConfigurationTa bandscanforanydevicesin proximity. 3.TheapplicationlistsalltheSmartVisionavailableinthe proximity. 4.ChecktheDoorflagforthedevicematchingourSmartVision serialnumber, DoorStatus: Close,If theDooris Closed. DoorStatus: Open,If theDooris Open. © 2023 Vision Group Verify Smart Vision Image on Door Open / Close 1.AfterthephysicalinstallingoftheSmartVisionandmagnet, thedooropenandclosemustbevalidatedtomakesurethat themagnetis placedproperly. 2.Ta kepictureinthedeviceusingDooropen/closeevent,once imagedataareavailableinthedevicethen“Picimage”flag…

Text truncated - open the document above for the full version.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Vision IOT Inc Address 22994 Lavender Valley CT ASHBURN, VA 20148 United States Grantee Code 2BBDS FCC ID 2BBDS-SVM Authorized Contact Name Rishabh Arora Contact Email [email protected] Contact Phone (703) 981 9354 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List [Vision IOT Inc] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Vision IOT Inc] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2023-09-22 Print Name: Rishabh Arora Title: Sr. VP-IOT *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

UNITED STATES DESIGNATED AGENT LETTER Date: 2023/09/22 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: Vision IOT Inc Company Name: Vision IOT Inc Grantee Code: 2BBDS FRN: 0033818055 Contact Name: Rishabh Arora Contact Name: Rishabh Arora Address: 22994 LAVENDER VALLEY CT, ASHBURN, VA 20148 United States Address: 22994 LAVENDER VALLEY CT, ASHBURN, VA 20148 United States Telephone: (703) 981 9354 Telephone: (703) 981 9354 Email: [email protected] Email: [email protected] Applicable Equipment: FCC ID: 2BBDS-SVM ATTN: Director of Certification: We, < Vision IOT Inc > understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e-mail of the designated agent listed above. We, < Vision IOT Inc > acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Applicant/U.S. designated agent Name (Printed): Rishabh Arora Title: Sr. VP-IOT Signature:

Vision IOT Inc TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2BBDS-SVM LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within aforementioned days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Rishabh Arora Title: Sr. VP-IOT Signature: On behalf of Company: Vision IOT Inc Telephone: (703) 981 9354 E-mail: [email protected]

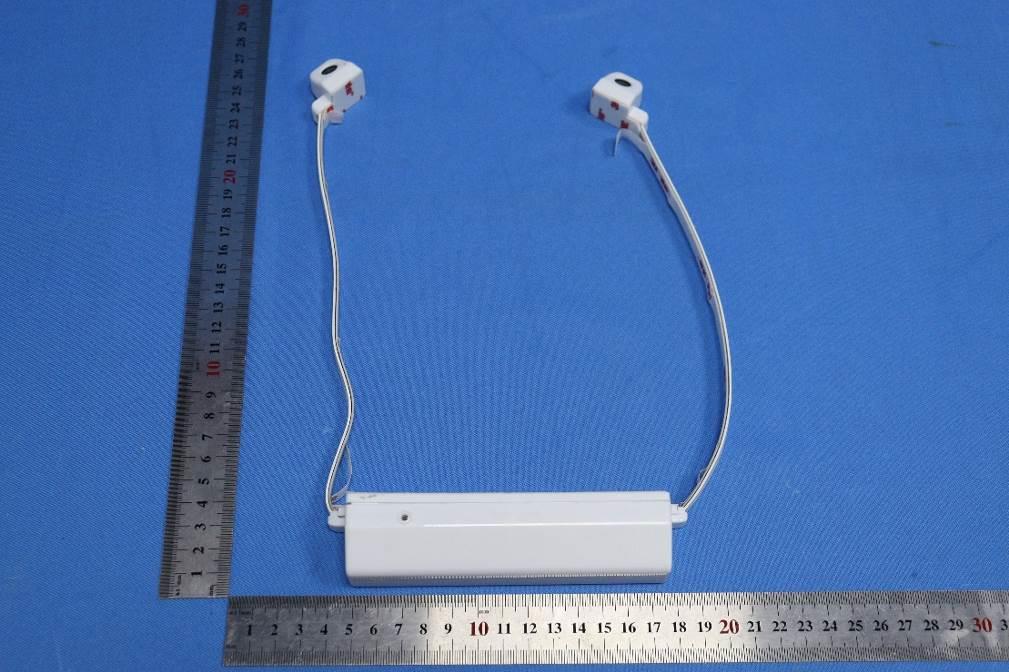

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A02 Rev.A/0 Page: 1 of 4 Appendix External Photos for SZCR2309003048AT FCC ID: 2BBDS-SVM SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A02 Rev.A/0 Page: 2 of 4 EUT Constructional Details (EUT Photos) Label Location SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A02 Rev.A/0 Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A02 Rev.A/0 Page: 4 of 4 - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A03 Rev.A/0 Page: 1 of 4 Appendix Internal Photos for SZCR2309003048AT FCC ID: 2BBDS-SVM SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A03 Rev.A/0 Page: 2 of 4 EUT Constructional Details (EUT Photos) Antenna SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A03 Rev.A/0 Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A03 Rev.A/0 Page: 4 of 4 - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304803 Page: 1 of 7 Keny Xu EMC Laboratory Manager 1 Cover page RF Exposure Evaluation Report Application No.: SZCR2309003048AT Applicant: Vision IOT Inc Address of Applicant: 22994 Lavender Valley CT ASHBURN, VA 20148 United States Manufacturer: Vision IOT Inc Address of Manufacturer: 22994 Lavender Valley CT ASHBURN, VA 20148 United States Factory: SHI JIAZHUANG OURPCB Tech. Ltd Address of Factory: 3RD FLOOR NANHAI PLAZA, NO.505 XINHUA ROAD, XINHUA DISTRICT, SHIJIAZHUANG, HEBEI, CHINA Equipment Under Test (EUT): EUT Name: Smart Vision Model No.: SVET312320M FCC ID: 2BBDS-SVM Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 Date of Receipt: 2023-09-19 Date of Test: 2023-09-21 to 2023-10-10 Date of Issue: 2023-10-11 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304803 Page: 2 of 7 2 Version Revision Record Version Chapter Date Modifier Remark 01 2023-10-11 Original Authorized for issue by: Edison Li/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304803 Page: 3 of 7 3 Contents Page 1 COVER PAGE .............................................................................................................................................. 1 2 VERSION ...................................................................................................................................................... 2 3 CONTENTS .................................................................................................................................................. 3 4 GENERAL INFORMATION .......................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF EUT ................................................................................................................. 4 4.2 TEST LOCATION .......................................................................................................................................... 5 4.3 TEST FACILITY ............................................................................................................................................ 5 4.4 DEVIATION FROM STANDARDS ..................................................................................................................... 5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS ............................................................................................ 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ................................................................................. 5 5 RF EXPOSURE EVALUATION .................................................................................................................... 6 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT ................................................................................................ 6 5.1.1 Limits ................................................................................................................................................ 6 5.1.2 Test Procedure ................................................................................................................................ 6 4.1.3 EUT RF EXPOSURE EVALUATION ............................................................................................................... 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304803 Page: 4 of 7 4 General Information 4.1 General Description of EUT Power supply: 3.6VDC, 7000mAh Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.0 Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Data rate: 1Mbps, 2Mbps Antenna Type: PCB Antenna Antenna Gain: 2.96dBi Remark:The information in this section is provided by the applicant or manufacturer, SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304803 Page: 5 of 7 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI (Member No. 1937) The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen EMC laboratory have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1336 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1336. Test Firm Registration Number: 787754. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C. 4.4 Deviatio…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304802 Page: 1 of 62 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZCR2309003048AT Applicant: Vision IOT Inc Address of Applicant: 22994 Lavender Valley CT ASHBURN, VA 20148 United States Manufacturer: Vision IOT Inc Address of Manufacturer: 22994 Lavender Valley CT ASHBURN, VA 20148 United States Factory: SHI JIAZHUANG OURPCB Tech. Ltd Address of Factory: 3RD FLOOR NANHAI PLAZA, NO.505 XINHUA ROAD, XINHUA DISTRICT, SHIJIAZHUANG, HEBEI, CHINA Equipment Under Test (EUT): EUT Name: Smart Vision Model No.: SVET312320M FCC ID: 2BBDS-SVM Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2023-09-19 Date of Test: 2023-09-21 to 2023-10-10 Date of Issue: 2023-10-11 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304802 Page: 2 of 62 Revision Record Version Chapter Date Modifier Remark 01 2023-10-11 Original Authorized for issue by: Edison Li/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304802 Page: 3 of 62 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230900304802 Page: 4 of 62 3 Contents Page 1 Cover Page ................................................................................................................................................ 1 2 Test Summary ........................................................................................................................................... 3 3 Contents .................................................................................................................................................... 4 4 General Information .................................................................................................................................. 6 4.1 Details of E.U.T. ................................................................................................................................. 6 4.2 Description of Support Units .............................................................................................................. 6 4.3 Measurement Uncertainty .................................................................................................................. 6 4.4 Test Location ...................................................................................................................................... 7 4.5 Test Facility ........................................................................................................................................ 7 4.6 Deviation from Standards ................................................................................................................... 7 4.7 Abnormalities from Standard Conditions ........................................................................................... 7 5 Equipment List .......................................................................................................................................... 8 6 Radio Spectrum Technical Requirement ............................................................................................. 10 6.1 Antenna Requirement ...................................................................................................................... 10 6.1.1 Test Requirement: ....................................................................................................................... 10 6.1.2 Conclusion ................................................................................................................................... 10 7 Radio Spectrum Matter Test Results .................................................................................................... 11 7.1 Conducted Peak Output Power........................................................................................................ 11 7.1.1 E.U.T. Operation .......................................................................................................................... 11 7.1.2 Test Mode Description ................................................................................................................. 11 7.1.3 Test Setup Diagram ..................................................................................................................... 11 7.1.4 Measurement Procedure and Data............................................................................................. 12 7.2 Minimum 6dB Bandwidth ..................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A04 Rev.A/0 Page: 1 of 3 Appendix Test Setup Photos for SZCR2309003048AT FCC ID: 2BBDS-SVM SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A04 Rev.A/0 Page: 2 of 3 Test Setup Photo Radiated Spurious Emissions Below 1GHz Radiated Spurious Emissions Above 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A04 Rev.A/0 Page: 3 of 3 Radiated Emissions which fall in the restricted bands - End of the Appendix -
