2BBF2-YBWireless Backup Camera System

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Xianghan Technology Co., LTD. 5th Floor, Zhida Industrial Area, No.4 Longping West Rd., Longcheng St., Longgang District, Shenzhen, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/06/26 U.S. Agent Designation Shenzhen Xianghan Technology Co., LTD. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BBF2-YB): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #226 Colorado USA FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Xianghan Technology Co., LTD. Shenzhen Xianghan Technology Co., LTD. with the FRN [0033839127] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Solo hua Manager Shenzhen Xianghan Technology Co., LTD. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Solo hua /Manager Company: Shenzhen Xianghan Technology Co., LTD. Address: 5th Floor, Zhida Industrial Area, No.4 Longping West Rd.,Longcheng St.,Longgang District, Shenzhen, Guangdong, China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

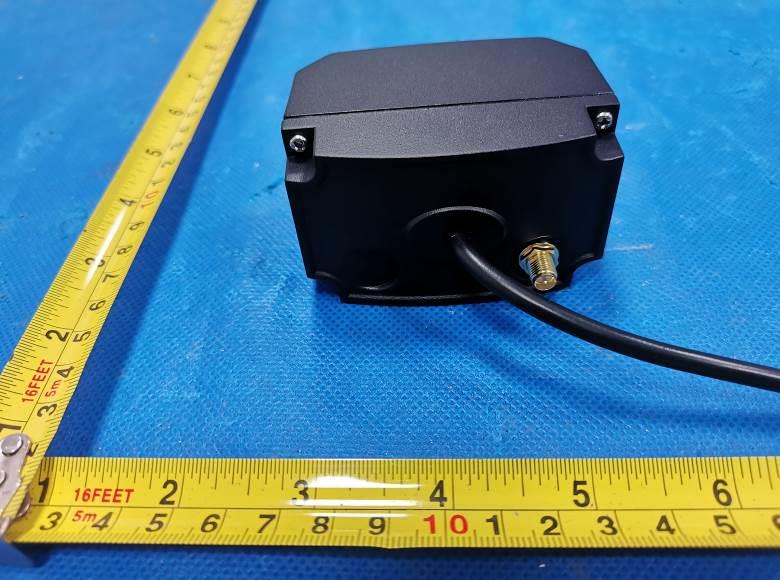

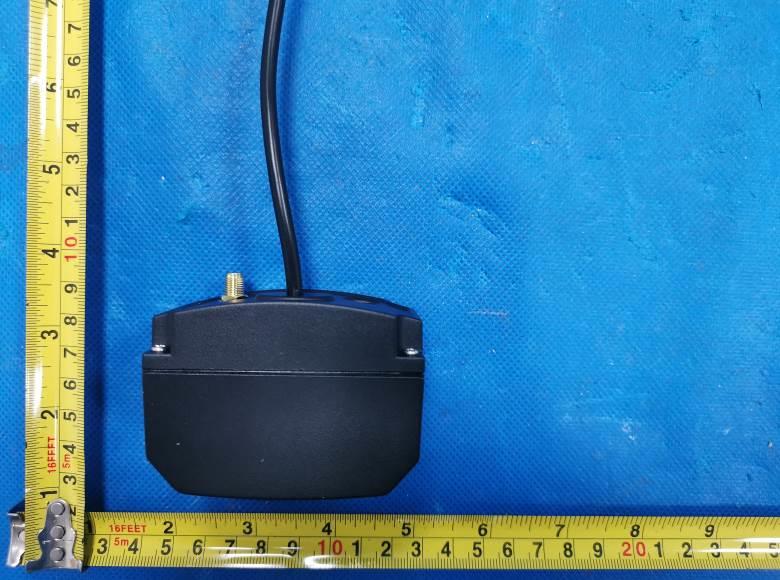

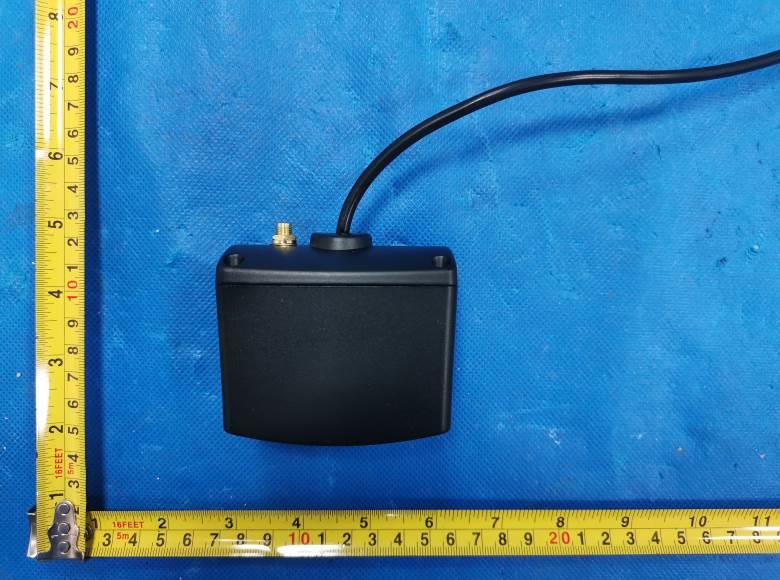

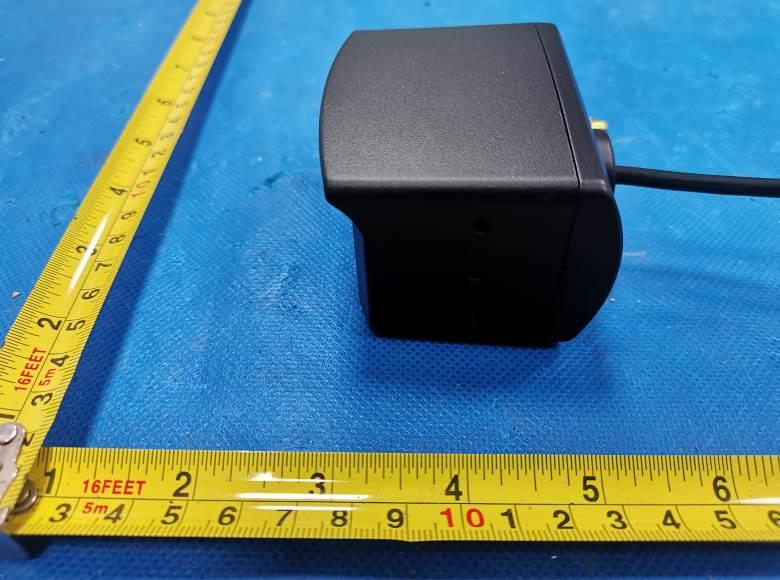

FCC ID: 2BBF2-YB External Photos of the EUT YB-Wireless-1 Photo 1 YB-Wireless-2 Photo 2 YB-Wireless-4 Photo 3 FCC ID: 2BBF2-YB YB-N-Wireless-1 Photo 4 YB-N-Wireless-2 Photo 5 YB-N-Wireless-4 Photo 6 FCC ID: 2BBF2-YB YB-Wireless-CARMER Photo 7 Photo 8 Photo 9 FCC ID: 2BBF2-YB Photo 10 Photo 11 Photo 12 FCC ID: 2BBF2-YB YB-N-Wireless-CARMER Photo 13 Photo 14 Photo 15 FCC ID: 2BBF2-YB Photo 16 Photo 17 Photo 18

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BBF2-YB

FCC ID: 2BBF2-YB Internal Photos of the EUT YB-Wireless-CARMER Photo 1 Photo 2 Photo 3 FCC ID: 2BBF2-YB Photo 4 Photo 5 Photo 6 FCC ID: 2BBF2-YB Photo 7 Photo 8 Photo 9 2.4G External antenna FCC ID: 2BBF2-YB Photo 10 YB-N-Wireless-CARMER Photo 11 Photo 12 FCC ID: 2BBF2-YB Photo 13 Photo 14 Photo 15 FCC ID: 2BBF2-YB Photo 16 Photo 17 Photo 18 2.4G External antenna FCC ID: 2BBF2-YB Photo 19 Photo 20

RF Exposure evaluation FCC ID: 2BBF2-YB Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information YB-Wireless-1 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / External antenna 1.50dBi for 2409-2475MHz; 5. Manufacturing Tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 2409MHz 110.61 15.05 14.5±1 15.5 Note: EIRP=E-104.8+20logD, D=3 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.50dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4G 15.5 35.4813 1.5 1.4125 0.010 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type External antenna Model YB-Wireless-1 Frequency range 2400-2500MHz Manufacturer Shenzhen Xianghan Technology Co., LTD. ANT Peak Gain 1.50 dBi 2. Antenna Photo: Length :155.5mm Width:12.8mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China TEST REPORT FCC Rules and Regulations Part PART 15.249 Report Reference No..............: CTA23053100301 FCC ID...................................: 2BBF2-YB Compiled by ( position+printed name+signature ... : File administrators Zoey Cao Supervised by ( position+printed name+signature ... : Project Engineer Amy Wen Approved by ( position+printed name+signature ... : RF Manager Eric Wang Date of issue ..................................... : Jun. 13, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Xianghan Technology Co., LTD. Address ............................................ : 5th Floor, Zhida Industrial Area, No.4 Longping West Rd., Longcheng St., Longgang District, Shenzhen, Guangdong, China Standard ........................................... : FCC Rules and Regulations PART 15.249 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wireless Backup Camera System Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Xianghan Technology Co., LTD. Model/Type reference....................... : YB-Wireless-1 Listed Models .................................. : YB-Wireless-2, YB-Wireless-4, YB-Wireless-M05-1, YB-Wireless-M05- 2,YB-Wireless-M05-4, YB-N-Wireless-1, YB-N-Wireless-2, YB-N- Wireless-3, YB-MW-43, YB-MW-51,YBW-1, YBW-2, YB-Wireless- Solar, YB-Wireless-RT Modulation ....................................... : GFSK Frequency .......................................... 2409-2475MHz Ratings ............................................. : DC 12.0V From Battery Result................................................ : PASS Report No.: CTA23053100301 Page 2 of 33 T E S T R E P O R T Equipment under Test : Wireless Backup Camera System Model /Type : YB-Wireless-1 Listed Models : YB-Wireless-2, YB-Wireless-4, YB-Wireless-M05-1, YB-Wireless- M05-2, YB-Wireless-M05-4, YB-N-Wireless-1, YB-N-Wireless-2, YB- N-Wireless-3, YB-MW-43, YB-MW-51,YBW-1, YBW-2, YB-Wireless- Solar, YB-Wireless-RT Applicant : Shenzhen Xianghan Technology Co., LTD. Address : 5th Floor, Zhida Industrial Area, No.4 Longping West Rd., Longcheng St., Longgang District, Shenzhen, Guangdong, China Manufacturer : Shenzhen Xianghan Technology Co., LTD. Address : 5th Floor, Zhida Industrial Area, No.4 Longping West Rd., Longcheng St., Longgang District, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23053100301 Page 3 of 33 Contents 1. 0BT E S T S T A N D A R D S................................................................. 4 2. 1BS U M M A R Y ............................................................................ 5 2.1. General Remarks 5 2.2. 7BProduct Description 5 2.3. 8BEquipment Under Test 5 2.4. 9BShort description of the Equipment under Test (EUT) 5 2.5. 10BEUT operation mode 6 2.6. 11BBlock Diagram of Test Setup 6 2.7. Modifications 6 3. 2BT E S T E N V I R O N M E N T ............................................................. 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. 17BEnvironmental conditions 7 3.4. 18BSummary of measurement results 8 3.5. Statement of the measurement uncertainty 8 3.6. 20BEquipments Used during the Test 8 4. 3BT E S T C O N D I T I O N S A N D R E S U L T S .......................................... 10 4.1. 21BAC Power Conducted Emission ................................................................................... 10 4.2. Radiated Emission and Band Edges ............................................................................ 11 4.3. 20dB Bandwidth Measurement .................................................................................... 17 4.4. 31BAntenna Requirement ................................................................................................... 19 5. 4BT E S T S E T U P P H O T O S O F T H E E U T ........................................ 20 6. 4BT E S T P H O T O S O F T H E E U T .................................................. 21 Report No.: CTA23053100301 Page 4 of 33 1. 0BT E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices ANSI C63.4: 2014: –American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz Range of 9 kHz to 40GHz Report No.: CTA23053100301 Page 5 of 33 2. 1BS U M M A R Y 2.1. General Remarks Date of receipt of test sample : Jun. 05, 2023 Testing commenced on : Jun. 05, 2023 Testing concluded on : Jun. 13, 2023 2.2. 7BProduct Description Name of EUT Wireless Backup Camera System Model Number YB-Wireless-1 Power Rating DC 12.0V From Battery Sample ID: CTA230531003-1#(Engineer sample) CTA230531003-2#(Normal sample) Operation frequency 2409-2475MHz Modulation GF…

Text truncated - open the document above for the full version.

FCC ID: 2BBF2-YB Test Setup Photos of the EUT
