2BBFK-BCRK5GWireless Adapter for Android Auto

FCC ID: 2BBFK-BCRK5G Model: BCRK5G BetaConnect Wireless Adapter For Android Auto™ Manual Important Product Information Quick Start Guide (Optional) Activate Android Auto™ using USB cable first between your car and phone by granting all necessary permissions. Download and install BetaConect App by visiting app.beta- connect.com or scanning the QR code on the back of this manual. Install BetaConnect device to your car's USB port. Follow the app instructions to register your device. Enjoy wireless Android Auto™ on you car. 1. 2. 3. 4. 5. Device Status Indication BetaConnect device has an LED next to its USB port to indicate the operating state of the device as below. Blinking Green: System initializing or installing the firmware Blinking Blue: Ready to connect Android Auto™ Solid Blue: Android Auto™ is running Restore to Factory Settings Locate the Reset button on the bottom of the device. With the device powered on, wait until the LED with the blinking blue light. Use the pointed end of a paperclip or similar object to press and hold the Reset button for 5 seconds. Wait for the device to fully reset and power on. 1. 2. 3. 4. FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK, OR OTHER INJURY OR DAMAGE. Important Product Information Do not expose your device to water or other liquids. The device is not waterproof. Do not disassemble the device. If your device needs service, please contact at [email protected] Do not attempt to dry your device with an external heat source, such as a microwave oven or hair dryer. Clean your device only with a soft dry cloth. Do not use any harsh chemicals or solvents to clean the device. Do not expose the device to steam, extreme heat or cold, corrosive gasses, vibrations or very humid conditions. - - - - - - Product Specifications Model Number: BCRK5G Dimensions: 2.8 × 1.8 × 0.4 in (70 × 46 × 10 mm) Operating Temperature: 32 to 95°F (0 to 35°C) Input Connector: USB-C Wi-Fi: 2.4Ghz / 5Ghz AC Product Disposal Instructions The cardboard box, the plastic contained in the packaging, and the parts that make up this product can be recycled in accordance with regionally established regulations. Never dispose of this electronic equipment along with your household waste; you may be subject to penalties or sanctions under the law. Instead, please be responsible and ask for disposal instructions from your local government. FCC Compliance Statementt This device complies with part 15 of the FCC Rules. Operation of the Device is subject to the following two conditions: (1) the Device may not cause harmful interference, and (2) the Device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the Device does cause harmful interference to radio or television reception, which can be determined by turning the Device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - - - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - RF Exposure Warning The output power of the radio technology used in the Products is below the radio frequency exposure limits set by the FCC. Nevertheless, it is advised to use the Products in such a manner that minimizes the potential for human contact during normal operation.This device should be installed and operated with at least 20 cm between the radiator and your body. Guía de inicio rápido (Opcional) Active Android Auto™ usando primero un cable USB entre su automóvil y el teléfono otorgando todos los permisos necesarios.Descargue e instale la aplicación BetaConect visitando app.beta-connect.com o escaneando el código QR en la parte posterior de este manual.Instale el dispositivo BetaConnect en el puerto USB de su automóvil.Siga las instrucciones de la aplicación para registrar su dispositivo.Disfruta de Android Auto™ inalámbrico 1. 2. 3. 4. 5. Indicación de estado del dispositivo El dispositivo BetaConnect tiene un LED junto a su puerto USB para indicar el estado operativo del dispositivo como se muestra a continuación. Verde parpadeante: Sistema inicializando o instalando el firmware Azul parpadeante: Listo para conectar Android Auto™ Azul continuo: Android Auto™ se está ejecutando Restaurar a la configuración de fábrica Localice el botón Restablecer en la parte inferior del dispositivo.Con el dispositivo encendido, espere hasta que el LED con la luz azul parpadeante.Utilice el extremo puntiagudo de un clip o un objeto similar para mantener presionado el botón Restablecer durante 5 segundos.Espere a que el dispositivo se reinicie por completo y se encienda. 1. 2. 3. 4. EL NO SEGUIR ESTAS INSTRUCCIONES DE SEGURIDAD PODRÍA RESULTAR EN INCENDIOS, DESCARGAS ELÉCTRICAS U OTRAS LESIONES O DAÑOS. Información importante del productot No exponga su dispositivo al agua u otros líquidos. El dispositivo no es resistente al agua. No desmonte el dispositivo. Si su dispositivo necesita servicio, comuníquese con [email protected] No intente secar su dispositivo con una fuente de calor externa, como un horno de …

Text truncated - open the document above for the full version.

(BetaConnect) (June. 01, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BBFK-BCRK5G) [BetaConnect] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Sungho (James) Hong (BetaConnect) (June. 01, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BBFK-BCRK5G) [BetaConnect] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sungho (James) Hong

Attestation Statements (June. 01, 2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2BBFK-BCRK5G ) (BetaConnect), the undersigned, hereby authorize (BetaConnect) to act as our designated U.S. agent for service of process, (BetaConnect) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (BetaConnect) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: BetaConnect Contact Name: Sungho (James) Hong Address: 8619 137th Ave SE Newcastle, WA 98059 USA Telephone No: 13538214502 Email: [email protected] U.S. Agent Information: Company Name: BetaConnect Address: 8619 137th Ave SE Newcastle, WA 98059 USA Contact Name: Sungho (James) Hong Telephone No: 13538214502 Email: [email protected] FRN: 0033834896 Applicant Signature: Applicant printed name: Sungho (James) Hong Agent Signature: Agent printed name: Sungho (James) Hong

BetaConnect (2023.06.01) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless Adapter for Android Auto / BCRK5G / FCC ID: 2BBFK-BCRK5G) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Sungho (James) Hong Title: CEO

BetaConnect (2023.06.01) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Sungho (James) Hong Title: CEO

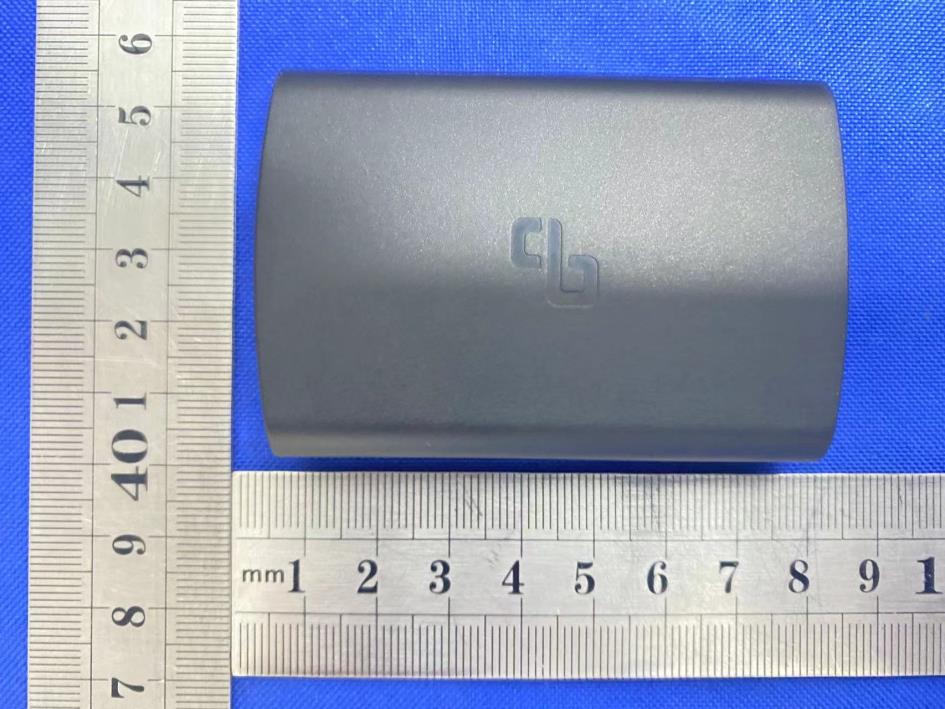

External Photos

FCC ID LABEL: Label Location: FCC ID: 2BBFK-BCRK5G Model No.: BCRK5G

Internal Photos ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BBFK-BCRK5G Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 2.4G WIFI 802.11g &2437 14±1 15 31.6228 1.6069 (2.06dBi) 0.01011 1 Pass 5.2GWIFI 802.11ac2 0 & 5240 13±1 14 25.1189 1.7742 (2.49dBi) 0.0089 1 Pass 5.8GWIFI 802.11a20 & 5785 12±1 13 19.9526 1.4454 (1.6dBi) 0.0057 1 Pass

1 / 7 SPECIFICATION FOR APPROVAL CUSTOMER(客户名称) Shenzhen Haochuangyi Technology Co.,Ltd CS P/N(客户机种) PART NAME(品名) FPC ANT FREQUENCY(频率) 2.4~2.5GHz&5.15~5.85GHz Model No.(料号) ANT-HC-1J0 RTANT NO.(物料编号) K220-10025-A DATE(日期) 2022.06.02 出样签章 APPROVED BY 核准 CHECKED BY 确认 DRAWED BY 制作 黄龙保 宋逸锋 刘云海 Remark(备注)： 客户承认签章 APPROVED BY 核准 CHECKED BY 确认 TESTED BY 检测 Sign(客户确认签字盖章)： 2019/08/08 3 / 7 规格表Specification A.Electrical Properties Frequency Rang频段范围 2.4- 2.5GHz&5.15-5.85GHz Impedance特性阻抗 50Ω Nominal VSWR电压驻波比 2.0Max.（带机壳） Gain(peak)增益（峰值） 2.06dBi Efficiency效率 >40% Out of roundness不圆度 3.0 dBi（Max.） Radiation辐射方式 Omni- Directional/ 全向 Polarization极化方式 Linear Vertical/垂直 B. Physical Properties Connector Type连接方式 一代IPEX Cable线材 Φ1.13mm Antenna Radiator天线振子 体 FPC C.Environmental Storage Temp存储环境范 围 -10°C~+60°C Operating Temp工作环境 -40°C~+65°C Storage humidity存储湿度 95％ Working humidity工作湿度 5%～95% 2019/08/08 4 / 7 电性测试报告Electrical Test Report Test equipment 2019/08/08 5 / 7 Antenna sticking position Network analyzer test report ANT 2019/08/08 6 / 7 2D、3DRaditation Pattern Dark room passive test data

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230529009RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.net Page 1 of 62 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Wireless Adapter for Android Auto FCC ID: 2BBFK-BCRK5G Trademark: BetaConnect Model Number: BCRK5G Prepared For: BetaConnect Address: 8619 137th Ave SE Newcastle, WA 98059 USA Manufacturer: Shenzhen Haochuangyi Technology Co.,Ltd Address: 401, 402, and 201, Building F and E, Gangshen Innovation Park, No. 40 Huaning Road, Xinshi Community, Dalang Street, Longhua District, Shenzhencity, GuangDongprovince, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: May. 18, 2023 Sample tested Date: May. 18, 2023 to May. 29, 2023 Issue Date: May. 29, 2023 Report No.: CTB230529009RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is WIFI-2.4GHz band radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230529009RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 62 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 3 2. TEST SUMMARY ................................................................... 4 3. MEASUREMENT UNCERTAINTY ..................................................... 5 4. PRODUCT INFORMATION AND TEST SETUP .......................................... 6 4.1 Product Information .................................................................... 6 4.2 Test Setup Configuration ............................................................... 6 4.3 Support Equipment .................................................................... 6 4.4 Channel List .......................................................................... 7 4.5 Test Mode ............................................................................ 7 4.6 Test Environment ...................................................................... 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................... 8 5.1 Test Facility ........................................................................... 8 5.2 Test Instrument Used .................................................................. 8 6. AC POWER LINE CONDUCTED EMISSION ............................................ 10 6.1 Block Diagram Of Test Setup .......................................................... 10 6.2 Limit ................................................................................ 10 6.3 Test procedure ....................................................................... 10 6.4 Test Result .......................................................................... 12 7. RADIATED SPURIOUS EMISSION ................................................... 14 7.1 Block Diagram Of Test Setup .......................................................... 14 7.2 Limit ................................................................................ 14 7.3 Test procedure ....................................................................... 15 7.4 Test Result .......................................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS .......................... 38 8.1 Block Diagram Of Test Setup .......................................................... 38 8.2 Limit ................................................................................ 38 8.3 Test procedure ....................................................................... 38 8.4 Test Result .......................................................................... 39 9. COUDUCTED OUTPUT POWER ..................................................... 46 9.1 Block Diagram Of Test Setup .......................................................... 46 9.2 Limit ................................................................................ 46 9.3 Test procedure ....................................................................... 46 9.4 Test Result .......................................................................... 47 10. 6DB OCCUPIED BANDWIDTH ....................................................... 48 10.1 Block Diagram Of Test Setup ......................................................... 48 10.2 Limit ............................................................................... 48 10.3 Test procedure ...................................................................... 48 10.4 Test Result ......................................................................... 49 11. POWER SPECTRAL DENSITY ...................................................... 54 11.1 Block Diagram Of Test Setup ......................................................... 54 11.2 Limit ............................................................................... 54 11.3 Test procedure ...................................................................... 54 11.4 Test Result ......................................................................... 55 12. ANTENNA REQUIREMENT ......................................................... 60 13. EUT TEST SETUP PHOTOGRAPHS ...................................…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G Conducted emissions
