GPS TRACKER USER MANUAL PREFACE Thank you for purchasing GPS tracker. This manual shows how to operate the device smoothly in details, please make sure to read this manual carefully before using the device. Please be noted that any update of the manual is made without prior notice. Each time the update of the manual will be released in the latest product sales. The manufacturer won’t assume any legal responsibility for any errors or omissions made in this manual. 1.Hardware Description 1) Notices: GPS tracking can be worked outdoor. Must have mobile phone gsm signal and have GPS signal, It can block GPS satellite signal when there are metal or building above the GPS tracker 2).Pls make sure GSM 2g SIM card or 4g and 3G compatibility 2G GSM network sim card, supports making calls, sending messages, GPRS network.have money,NO PIN code The GPS tracker must be installed by professional personnel device face up the sky When install in car 2.2 Device wiring requirements Device default is 3pin, 4pin(option) 1)red wire connect power positive+, 2)black wire connect power negative-, 3) orange wire connects to ACC Ignition line positive+ 4) White wire connects to relay white wire(option) If choice the relay ,so connect relay way as follows: The device white wire connect relay yellow wire,relay white wire connect the car power positive+,cut off the pump wire ,relay green wire connect to engine side, relay another green wire connect to fuel pump side. INDICATOR LIGHT STATUS MEANING green light -Solid GSM signal connection green light -Flash searching GSM signal Blue light -Solid GPS signal connection Blue light -Flash searching gps signal Red light-Solid Power ok Note: All led will turn off after 10 minutes for best hide.if you call the device sim card number,so the led will turn on work again. Connect 12V-80 v voltage of the power supply 3.operating Use mobile phone call the device and hang up or send“smslink123456” to sim card in tracker ,tracker reply positioning information EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE Pic(1)have gps signal Pic(2)no gps signal Pic 1:Replied real-time tracking information under GPS satellites signal. ◆ Lat:22.67533 lon:114.03913 Positioning of the latitude and longitude values. ◆ Speed:000.3 device moving speed. The unit is km/h. T:06/14/17 09:14 Real-tracking time, the Default is London time. You can Set a time zone by sms command Google Link: Google map showing the position of the device. Pic 2:Replied LBS information without GPS satellites signal. ◆ smcc:27a4 1223: Real-time LBS data. ◆ Time:08/00/00 LBS positioning time. ◆ If you received positioning information as picture 2, please take gps tracker go to outdoor and Walking ,then you can receive the satellite signal. 4:Support Website tracking and APP tracking 4.1 Scan APP and Download APP 1)scan QR code---open with browser--- choose Android or IPHONE---download-- installation app 2) Download iOS APP:login in app store---dagps---Install the dagps APP 4.2: login platform positioning 1)Open www.dagps.net Use tracker IMEI login, default password 123456. You can tracker device,it is ok PC login APP login NOTE:If device online in platform, no need set apn commands If you insert the correct SIM card and open GPRS, device in outdoor, still not online.Please set the APN commands we have two methods to find out apn content:ask sim card company or put sim card into cell phone to find out APN SMS1: APN123456+space+Apn name ( for example tell you the apn name is ABC,so send: APN123456 ABC) If have the APN user name and password, need plus APN user name and password behind the APN name) Eg:APN123456+space+APNname+space+APNuser name+space+ APNpassword If device online in platform, no need set apn commands 5. SMS Command NOTE: 1) Device default password:123456,note the space in the command 2)use of mobile phone APP or send message to the tracker about all set command 3)the default alarm way is SMS+platform Send command “way123456 2” to gps tracker,then alram way will be SMS+pl atform+call FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 6. FAQ and processing methods. INSTRUCTION Example REPLY Set admin number support 5pcs admin admin123456 mobile number admin number receive alarm message admin ok Cancel admin number noadmin123456 mobile number noadmin ok set APP online position(set …
Text truncated - open the document above for the full version.
Shenzhenshi huazhirui keji Co. LTD 2023-6-15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2BBGL-T12) [Shenzhenshi huazhirui keji Co. LTD] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Name: Shaohua xie Title: Manager Shenzhenshi huazhirui keji Co. LTD 2023-6-15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2BBGL-T12) [Shenzhenshi huazhirui keji Co. LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Name: Shaohua xie Title: Manager
Attestation Statements 2023-6-15 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (2BBGL-T12) (Shenzhenshi huazhirui keji Co. LTD), the undersigned, hereby authorize (UGK- LVMUNITEDINC) to act as our designated U.S. agent for service of process, Shenzhenshi huazhirui keji Co. LTD accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (UGK-LVMUNITEDINC) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information: Company name: Shenzhenshi huazhirui keji Co. LTD Contact Name: Shaohua xie Address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen Telephone No: 13480796913 Email: [email protected] Signature: Shaohua xie/Manager U.S. Agent Information: Company Name: UGK-LVMUNITEDINC Address: 6547NAcademyBlvd#2266,ColoradoSprings,CO80918 FRN: 0033476375 Contact Name: Jimmychen Telephone No: 001-323-51 04660 Email: [email protected] Signature Jimmychen/Manager
Shenzhenshi huazhirui keji Co. LTD 2023-6-15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT NAME: GPS TRACKER MODEL: T12, TK200, TK201, TK202A, TK202B, TK203, TK205, TK206, TK208, TK209, TK300, TK306, TK600, TK800b, TK800C, TK900, GT02, GT02D, TK100, TK110, GT06, TK102b, TK103A, TK103b, ST901, PG03, CJ720, MV720 FCC ID: 2BBGL-T12 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Company name: Shenzhenshi huazhirui keji Co. LTD Address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen Signature: Shaohua xie/Manager
Shenzhenshi huazhirui keji Co. LTD 2023-6-15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen DL Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Company name: Shenzhenshi huazhirui keji Co. LTD Address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen Signature: Shaohua xie/Manager
Shenzhenshi huazhirui keji Co. LTD Product Similarity Declaration Company: Shenzhenshi huazhirui keji Co. LTD Address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen Product Name: GPS TRACKER Model Number: T12, TK200, TK201, TK202A, TK202B, TK203, TK205, TK206, TK208, TK209, TK300, TK306, TK600, TK800b, TK800C, TK900, GT02, GT02D, TK100, TK110, GT06, TK102b, TK103A, TK103b, ST901, PG03, CJ720, MV720 FCC Identifier: 2BBGL-T12 We (Shenzhenshi huazhirui keji Co. LTD ) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name and appearance color. Client’s signature Client’s name / title : Shaohua xie / Manager Contact information /address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen Date: 2023-06-15

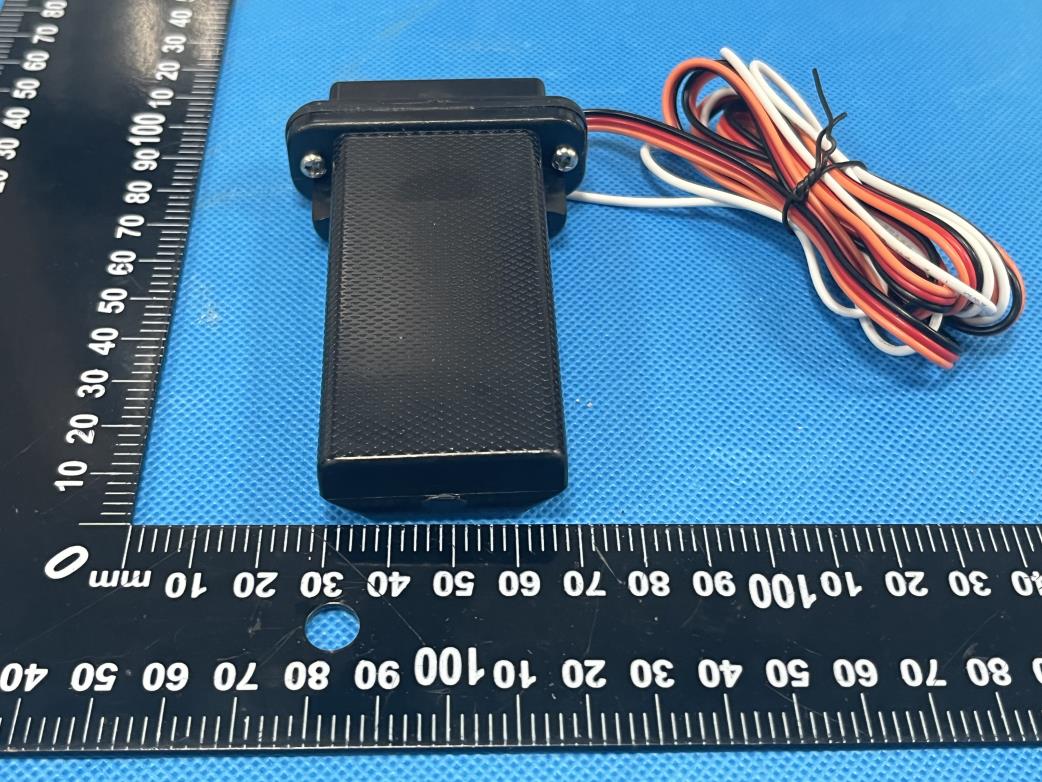

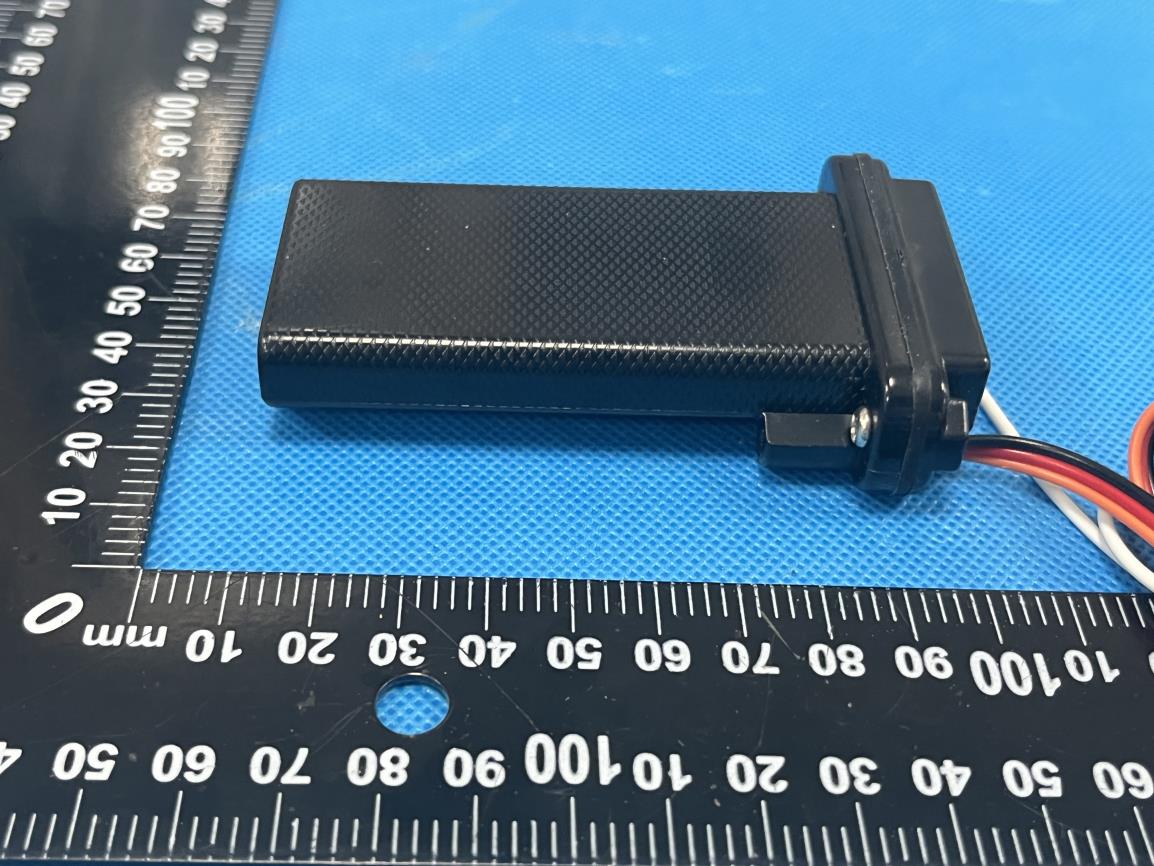

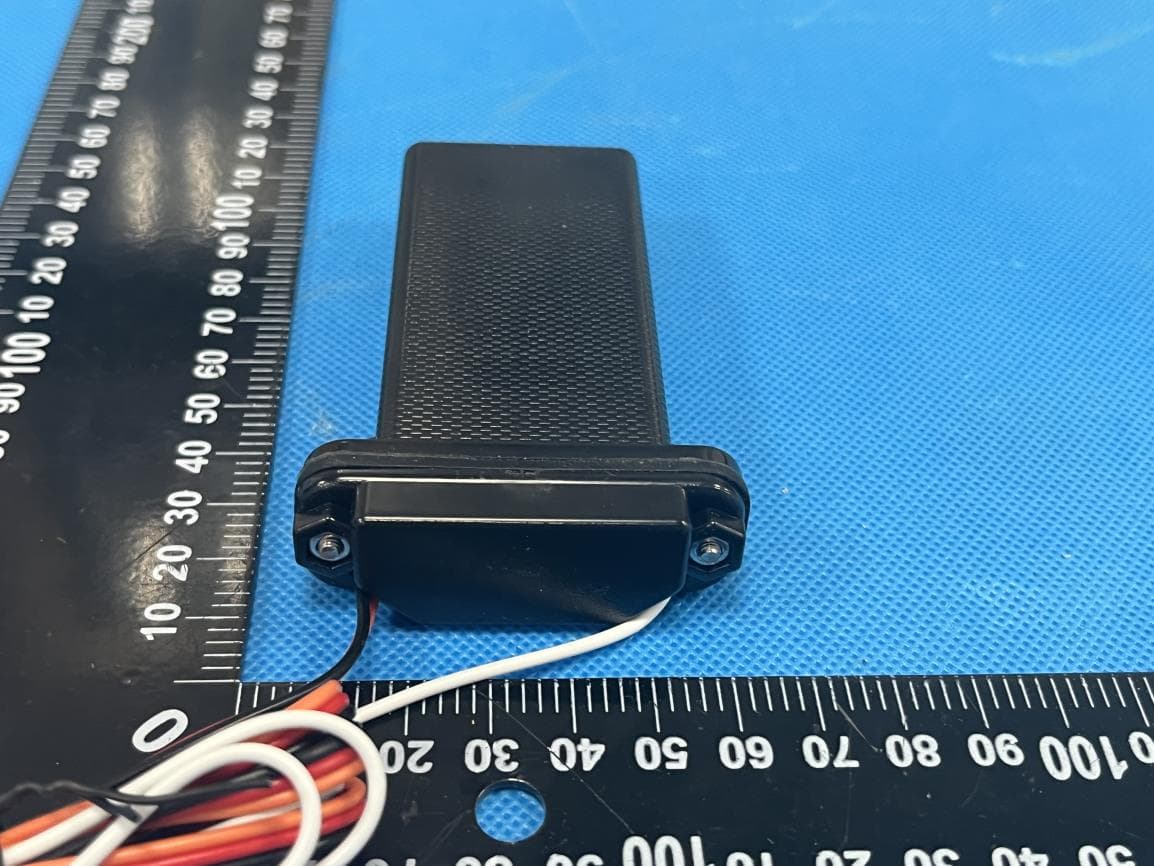

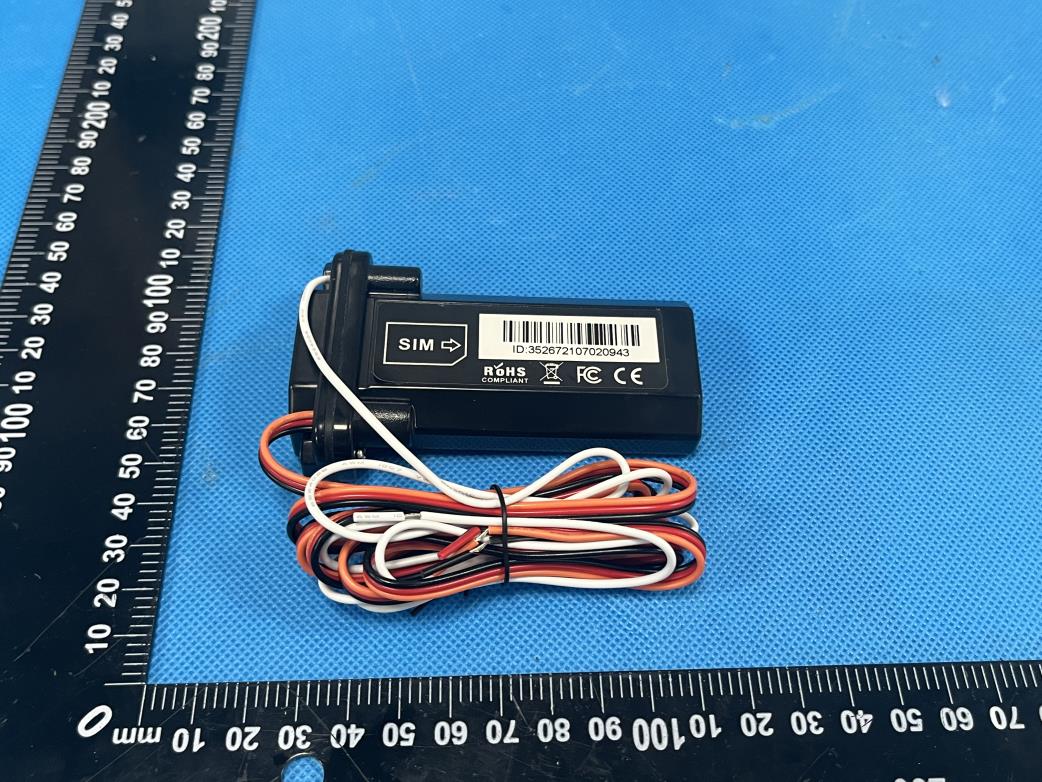

Size:16*14mm MODEL: T12 FCC ID: 2BBGL-T12 Label location
GSM Antenna location
FCC ID: 2BBGL-T12 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result GSM850 32.45 1757.92 0.44028 0.549 Pass DCS1900 30.38 1091.44 0.27336 1.0 Pass Remark: antenna gain=1.0dBi
. 2023-05-04 Shenzhen Boda terminal electricity co., ltd Antenna report Manufacturer:Shenzhenshi huazhirui keji Co. LTD Name: T12-ANT Antenna material copper nickel zinc alloy Working frequency band: See attached table. catalogue 1: antenna description 2. Matching circuit 3. Test data B1:1920-2170MHZ B2:1850-1990MHZ B3:1710-1880mhz B4:1710-2155mhz B5:824-894mhz B7:2500-2690mhz B8:880-960mhz B28:703-803mhz B66:1710-2100mhz GSM850:824-894mhz 900:880-960mhz DCS:1710-1880mhz PCS:1850-1910mhz 1: antenna description Working frequency band Standing wave ratio: < 15 Impedance: 50 ohms Gain: 1DBI Directionality: omnidirectional Polarization mode: vertical polarization Maximum power: 10W 703-960mhz 1710-2170MHZ 2500-2690MHZ Antenna E2=0Ω E1E3 2. Matching circuit Radio frequency module EGSM900DCS1800 CH1CH62CH124CH512CH698CH885 TRP26.1626.1226.3925.726.327.6 TIS-103-104.5-103-102-103-104 3. Test data Gain0.891.00 0.98 1.000.920.95 Test Data 测试内容 B1B2B3B4B5B7 TRP18.118.317.517.816.617.2 TIS-96.1-96-96.2-96.1-95.1-96 测试内容 B8B28B66 TRP1615.817.8 TIS-96.1-95.8-96.3 天线图纸: 博达感谢您的支持!
Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 31 ANNEX FCC Test Report FCC ID: 2BBGL-T12 Applicant: Shenzhenshi huazhirui keji Co. LTD Address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen Manufacturer: Shenzhenshi huazhirui keji Co. LTD Address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen EUT: GPS TRACKER Trade Mark: N/A Model Number: T12, TK200, TK201, TK202A, TK202B, TK203, TK205, TK206, TK208, TK209, TK300, TK306, TK600, TK800b, TK800C, TK900, GT02, GT02D, TK100, TK110, GT06, TK102b, TK103A, TK103b, ST901, PG03, CJ720, MV720 Date of Receipt: May. 22, 2023 Test Date: May. 22, 2023 - Jun. 06, 2023 Date of Report: Jun. 06, 2023 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC CFR Title 47 Part22 Subpart H FCC CFR Title 47 Part24 Subpart E ANSI/ TIA/ EIA-603-D-2010 FCC KDB 971168 D01 Power Meas. License Digital Systems v02v02 ANSI C63.26:2015 Test Result: Pass Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 31 15 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 6.35692 13.00 PASS EGPRS1900 661 1880 6.294960317 13.00 PASS EGPRS1900 810 1909.8 6.218036364 13.00 PASS EGPRS850 128 824.2 8.810377834 13.00 PASS EGPRS850 190 836.6 8.896847826 13.00 PASS EGPRS850 251 848.8 8.679633968 13.00 PASS Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 31 EGPRS1900 Channel=661 EGPRS1900 Channel=512 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 31 EGPRS1900 Channel=810 EGPRS850 Channel=128 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 31 EGPRS850 Channel=251 EGPRS850 Channel=190 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 31 16 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 247.696 312.671 PASS EGPRS1900 661 1880 237.878 300.583 PASS EGPRS1900 810 1909.8 244.668 306.320 PASS EGPRS850 128 824.2 259.242 328.292 PASS EGPRS850 190 836.6 255.583 320.512 PASS EGPRS850 251 848.8 258.036 313.544 PASS Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 7 of 31 EGPRS1900 Channel=512 EGPRS1900 Channel=810 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 8 of 31 EGPRS1900 Channel=661 EGPRS850 Channel=190 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 9 of 31 EGPRS850 Channel=128 EGPRS850 Channel=251 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 10 of 31 17 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.97 -32.84 -13 PASS EGPRS1900 810 1909.8 1910.01 -31.22 -13 PASS EGPRS850 128 824.2 824.00 -31.88 -13 PASS EGPRS850 251 848.8 849.00 -31.16 -13 PASS Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 11 of 31 EGPRS1900 Channel=512 EGPRS1900 Channel=810 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 12 of 31 EGPRS850 Channel=251 EGPRS850 Channel=128 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 13 of 31 18 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 18913.13 -22.33 -13 PASS EGPRS1900 661 1880 19663.51 -22.23 -13 PASS EGPRS1900 810 1909.8 19512.73 -21.94 -13 PASS EGPRS850 128 824.2 5835.28 -28.71 -13 PASS EGPRS850 190 836.6 7258.50 -28.16 -13 PASS EGPRS850 251 848.8 6218.63 -28.54 -13 PASS Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 14 of 31 EGPRS1900 Channel=512 EGPRS1900 Channel=661 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 15 of 31 EGPRS1900 Channel=810 EGPRS850 Channel=128 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 16 of 31 EGPRS850 Channel=251 EGPRS850 Channel=190 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 17 of 31 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.700713306 13.00 PASS GPRS1900 661 1880 2.70840123 13.00 PASS GPRS1900 810 1909.8 2.708556452 13.00 PASS GPRS850 128 824.2 2.715770833 13.00 PASS GPRS850 190 836.6 2.725524862 13.00 PASS GPRS850 251 848.8 2.718330508 13.00 PASS Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 18 of 31 GPRS1900 Channel=512 GPRS1900 Channel=810 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 19 of 31 GPRS1900 Channel=661 GPRS850 Channel=128 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 20 of 31 GPRS850 Channel=251 GPRS850 Channel=190 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 21 of 31 10 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 240.843 307.384 PASS GPRS1900 661 1880 246.810 318.783 PASS GPRS1900 810 1909.8 245.634 321.802 PASS GPRS850 128 824.2 247.863 317.034 PASS GPRS850 190 836.6 248.209 314.822 PASS GPRS850 251 848.8 247.288 319.629 PASS Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 22 of 31 GPRS1900 Channel=661 GPRS1900 Channel=512 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 23 of 31 GPRS1900 Channel=810 GPRS850 Channel=128 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 24 of …
Text truncated - open the document above for the full version.
Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230526020E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 24 FCC Test Report FCC ID: 2BBGL-T12 Applicant: Shenzhenshi huazhirui keji Co. LTD Address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen Manufacturer: Shenzhenshi huazhirui keji Co. LTD Address: Room 2301B16, Building A, Xinghe Century, No. 3069, Caitian Road, Gangsha Community, Futian Street, Futian District, Shenzhen EUT: GPS TRACKER Trade Mark: N/A Model Number: T12, TK200, TK201, TK202A, TK202B, TK203, TK205, TK206, TK208, TK209, TK300, TK306, TK600, TK800b, TK800C, TK900, GT02, GT02D, TK100, TK110, GT06, TK102b, TK103A, TK103b, ST901, PG03, CJ720, MV720 Date of Receipt: May. 22, 2023 Test Date: May. 22, 2023 - Jun. 06, 2023 Date of Report: Jun. 06, 2023 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC CFR Title 47 Part22 Subpart H FCC CFR Title 47 Part24 Subpart E ANSI/ TIA/ EIA-603-D-2010 FCC KDB 971168 D01 Power Meas. License Digital Systems v02v02 ANSI C63.26:2015 Test Result: Pass Report Number: DL-20230526020E Prepared (Test Engineer): Pxing Huang Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230526020E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 24 TABLE OF CONTENTS Test Report Declaration Page 1. TEST SUMMARY .......................................................................................................................................... 3 2. GENERAL PRODUCT INFORMATION ........................................................................................................ 4 2.1. Description of Device (EUT) .................................................................................................................. 4 2.2. Product Function ................................................................................................................................... 5 2.3. Independent Operation Modes .............................................................................................................. 5 3. TEST SITES ................................................................................................................................................... 5 3.1. Test Facilities ......................................................................................................................................... 5 3.2. Measurement Uncertainty ..................................................................................................................... 5 3.3. List of Test and Measurement Instruments ........................................................................................... 6 4. TEST SET-UP ................................................................................................................................................ 7 4.1. Principle of Configuration Selection ...................................................................................................... 7 4.2. Block Diagram of Test Set-up ............................................................................................................... 7 4.3. Test Environment: ................................................................................................................................. 7 5. EMISSION TEST RESULTS ......................................................................................................................... 8 5.1. Conducted RF Output Power ................................................................................................................ 8 5.2. -26dB and 99% Occupied Bandwidth ................................................................................................... 9 5.3. Peak to Average Radio ....................................................................................................................... 10 5.4. Frequency Stability .............................................................................................................................. 11 5.5. Conducted Spurious Emissions .......................................................................................................... 14 5.6. Conducted Out of Band Emissions ..................................................................................................... 15 5.7. Transmitter Radiated Power (EIRP/ERP) .............................................................................................. 16 5.8. Radiated Out of Band Emissions........................................................................................................... 18 6. PHOTOGRAPHS OF TEST SET-UP .......................................................................................................... 22 7. PHOTOGRAPHS OF THE EUT .................................................................................................................. 23 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20230526020E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 24 1. TEST SUMMARY Test Items Test Requirement Result Conducted RF Output Power 2.1046 PASS Peak to Average Radio 2.1055,22.355 24.235 PASS 99% & -26 dB Occupied Bandwidth 2.1049, 22.917 24.238, PASS Frequency Stability 2.1055, 22.355 24.235 PASS Conducted Out of Band Emissions 2.1051,2.1057 22.917, 24.238 PASS Band Edge 2.1051,2.1057 22.917, 24.238 PASS Transmitter Radiated Power (EIPR/ERP) 22.913, 24.23…
Text truncated - open the document above for the full version.
Radiated Measurement Photos
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 4 | 24E | 1.85 GHz - 1.91 GHz | 1.06414 W | 248KG7W | 0.0702 ppm |
