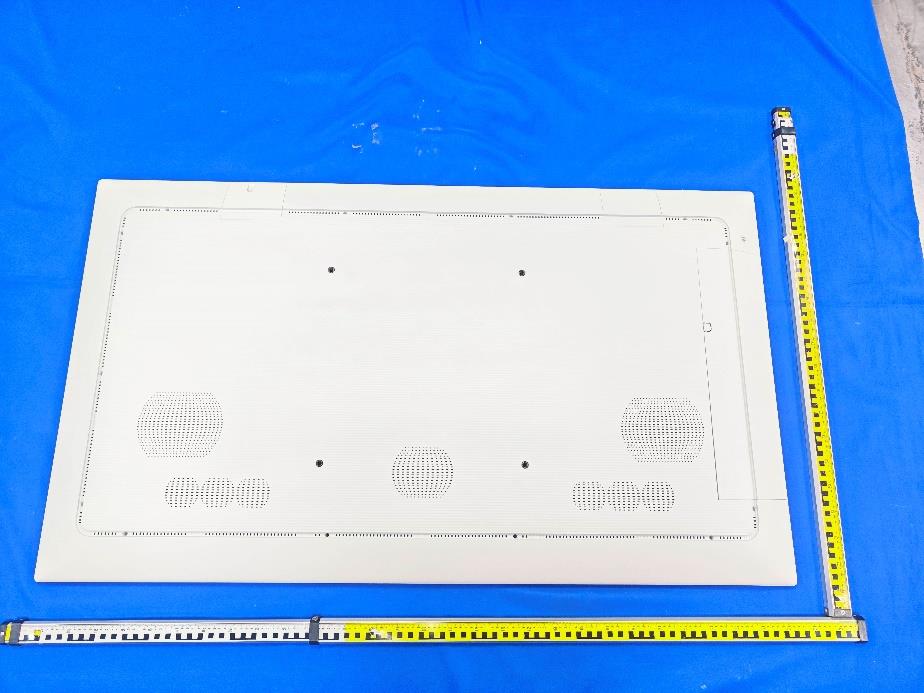

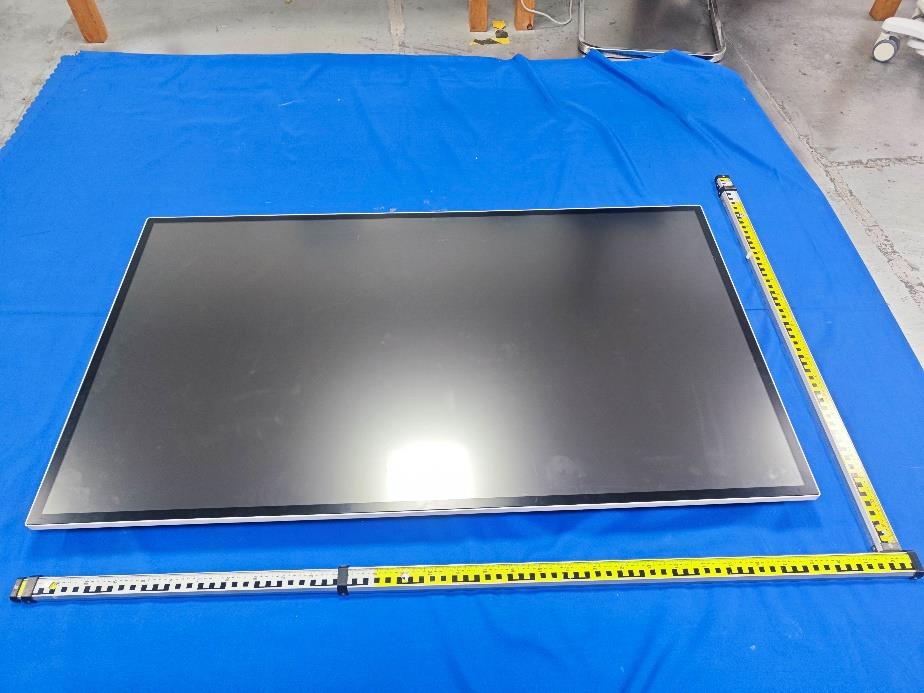

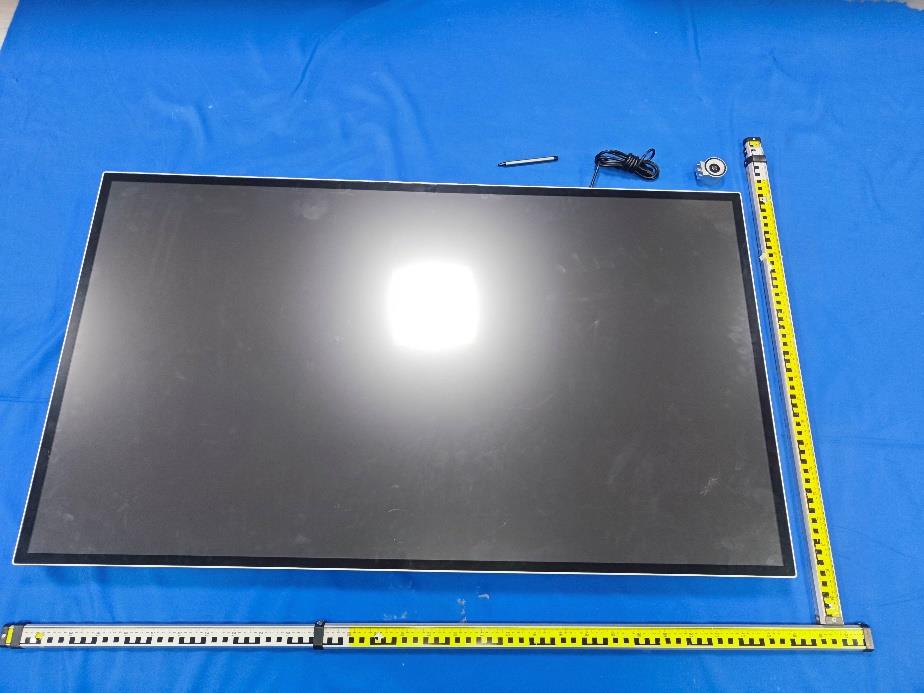

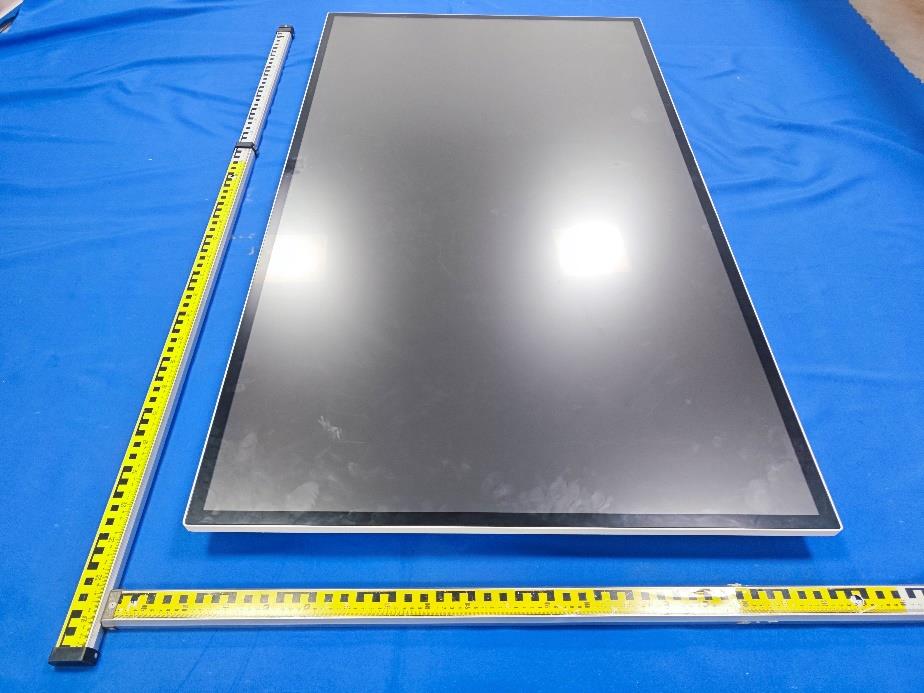

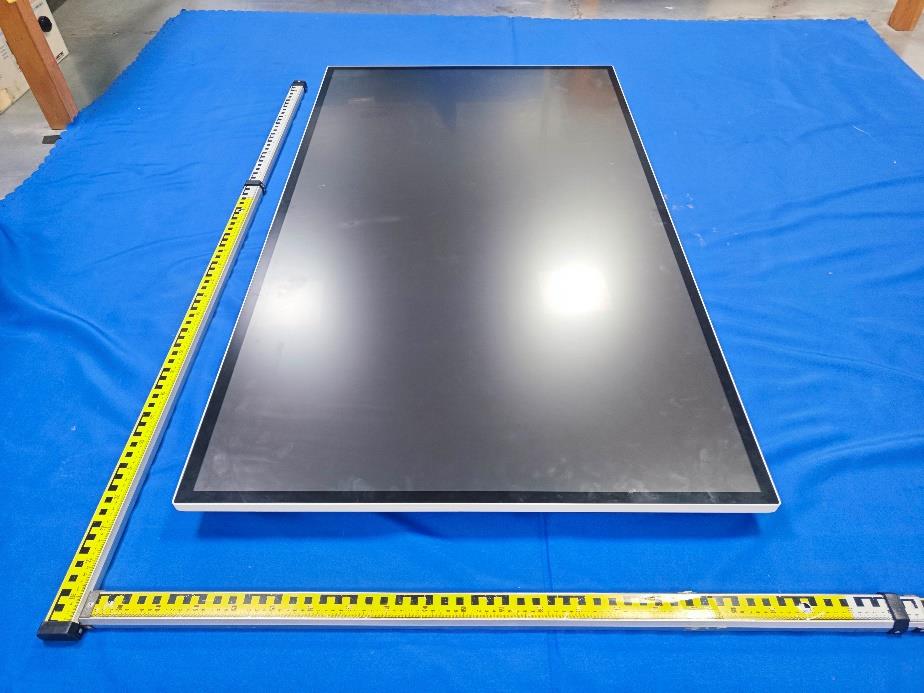

2BBKK-TM65Interactive Flat Panel

Report No.: PTC25082710501E-FC04 Page 113 of 213 11AX40SISO-Ant0-5230-5360~27000-PASS 11AX40SISO-Ant0-5755-30~5650-PASS Report No.: PTC25082710501E-FC04 Page 114 of 213 11AX40SISO-Ant0-5755-5925~27000-PASS 11AX40SISO-Ant0-5795-30~5650-PASS Report No.: PTC25082710501E-FC04 Page 115 of 213 11AX40SISO-Ant0-5795-5925~27000-PASS Note1: 27~40GHz at least have 20dB margin. No recording in the test report. Note2: The report only shows the worst case data. Report No.: PTC25082710501E-FC04 Page 116 of 213 6.6 Band edge measurements Test Result: TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant0 Low 5180 -38.1 ≤-27 PASS 11A Ant0 High 5240 -37.03 ≤-27 PASS 11N20SISO Ant0 Low 5180 -37.85 ≤-27 PASS 11N20SISO Ant0 High 5240 -37.6 ≤-27 PASS 11N40SISO Ant0 Low 5190 -38.4 ≤-27 PASS 11N40SISO Ant0 High 5230 -37.99 ≤-27 PASS 11AC20SISO Ant0 Low 5180 -37.98 ≤-27 PASS 11AC20SISO Ant0 High 5240 -37.94 ≤-27 PASS 11AC40SISO Ant0 Low 5190 -37.91 ≤-27 PASS 11AC40SISO Ant0 High 5230 -37.66 ≤-27 PASS 11AX20SISO Ant0 Low 5180 -38.09 ≤-27 PASS 11AX20SISO Ant0 High 5240 -37.69 ≤-27 PASS 11AX40SISO Ant0 Low 5190 -37.82 ≤-27 PASS 11AX40SISO Ant0 High 5230 -38.22 ≤-27 PASS TestMode Antenna ChName Frequency[M Hz] FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant0 Low 5745 5720~5725 -40.98 ≤17.65 PASS 11A Ant0 Low 5745 5700~5720 -38.85 ≤11.25 PASS 11A Ant0 Low 5745 5650~5700 -40.45 ≤7.17 PASS 11A Ant0 Low 5745 5760~5650 -41.46 ≤-27 PASS 11A Ant0 High 5825 5850~5855 -39.53 ≤24.72 PASS 11A Ant0 High 5825 5855~5875 -38.55 ≤10.82 PASS 11A Ant0 High 5825 5875~5925 -37.9 ≤-15.57 PASS 11A Ant0 High 5825 5925~5935 -38.91 ≤-27 PASS 11N20SIS O Ant0 Low 5745 5720~5725 -40.77 ≤18.70 PASS 11N20SIS O Ant0 Low 5745 5700~5720 -40.4 ≤14.63 PASS 11N20SIS O Ant0 Low 5745 5650~5700 -39.74 ≤5.55 PASS 11N20SIS O Ant0 Low 5745 5760~5650 -41.69 ≤-27 PASS 11N20SIS O Ant0 High 5825 5850~5855 -39.96 ≤23.49 PASS 11N20SIS O Ant0 High 5825 5855~5875 -38.65 ≤15.50 PASS 11N20SIS O Ant0 High 5825 5875~5925 -38.46 ≤-26.26 PASS 11N20SIS O Ant0 High 5825 5925~5935 -38.65 ≤-27 PASS 11N40SIS O Ant0 Low 5755 5720~5725 -40.89 ≤20.35 PASS 11N40SIS O Ant0 Low 5755 5700~5720 -40.09 ≤10.55 PASS 11N40SIS O Ant0 Low 5755 5650~5700 -40.46 ≤-3.53 PASS 11N40SIS O Ant0 Low 5755 5780~5650 -41.65 ≤-27 PASS Report No.: PTC25082710501E-FC04 Page 117 of 213 11N40SIS O Ant0 High 5795 5850~5855 -39.1 ≤19.42 PASS 11N40SIS O Ant0 High 5795 5855~5875 -38.69 ≤15.40 PASS 11N40SIS O Ant0 High 5795 5875~5925 -38.39 ≤1.28 PASS 11N40SIS O Ant0 High 5795 5925~5935 -38.9 ≤-27 PASS 11AC20SIS O Ant0 Low 5745 5720~5725 -40.34 ≤22.63 PASS 11AC20SIS O Ant0 Low 5745 5700~5720 -40.11 ≤14.95 PASS 11AC20SIS O Ant0 Low 5745 5650~5700 -39.99 ≤1.47 PASS 11AC20SIS O Ant0 Low 5745 5760~5650 -41.51 ≤-27 PASS 11AC20SIS O Ant0 High 5825 5850~5855 -39.68 ≤20.41 PASS 11AC20SIS O Ant0 High 5825 5855~5875 -38.74 ≤10.93 PASS 11AC20SIS O Ant0 High 5825 5875~5925 -39.07 ≤-10.87 PASS 11AC20SIS O Ant0 High 5825 5925~5935 -39.39 ≤-27 PASS 11AC40SIS O Ant0 Low 5755 5720~5725 -40.41 ≤20.05 PASS 11AC40SIS O Ant0 Low 5755 5700~5720 -39.9 ≤10.10 PASS 11AC40SIS O Ant0 Low 5755 5650~5700 -39.49 ≤-2.03 PASS 11AC40SIS O Ant0 Low 5755 5780~5650 -41.47 ≤-27 PASS 11AC40SIS O Ant0 High 5795 5850~5855 -39.12 ≤21.68 PASS 11AC40SIS O Ant0 High 5795 5855~5875 -38.04 ≤14.89 PASS 11AC40SIS O Ant0 High 5795 5875~5925 -37.68 ≤8.61 PASS 11AC40SIS O Ant0 High 5795 5925~5935 -39.42 ≤-27 PASS 11AX20SIS O Ant0 Low 5745 5720~5725 -39.53 ≤25.26 PASS 11AX20SIS O Ant0 Low 5745 5700~5720 -39.92 ≤11.57 PASS 11AX20SIS O Ant0 Low 5745 5650~5700 -40.46 ≤4.19 PASS 11AX20SIS O Ant0 Low 5745 5760~5650 -41.25 ≤-27 PASS 11AX20SIS O Ant0 High 5825 5850~5855 -39.54 ≤22.26 PASS 11AX20SIS O Ant0 High 5825 5855~5875 -39.37 ≤13.65 PASS 11AX20SIS O Ant0 High 5825 5875~5925 -38.79 ≤-17.17 PASS 11AX20SIS O Ant0 High 5825 5925~5935 -37.78 ≤-27 PASS 11AX40SISAnt0 Low 5755 5720~5725 -40.86 ≤21.89 PASS Report No.: PTC25082710501E-FC04 Page 118 of 213 O 11AX40SIS O Ant0 Low 5755 5700~5720 -40.41 ≤12.21 PASS 11AX40SIS O Ant0 Low 5755 5650~5700 -40.36 ≤-3.53 PASS 11AX40SIS O Ant0 Low 5755 5780~5650 -41.97 ≤-27 PASS 11AX40SIS O Ant0 High 5795 5850~5855 -39.72 ≤22.05 PASS 11AX40SIS O Ant0 High 5795 5855~5875 -38.2 ≤11.47 PASS 11AX40SIS O Ant0 High 5795 5875~5925 -38.28 ≤-6.41 PASS 11AX40SIS O Ant0 High 5795 5925~5935 -39.28 ≤-27 PASS Test Graphs: 11A-Ant0-5180-PASS 11A-Ant0-5240-PASS Report No.: PTC25082710501E-FC04 Page 119 of 213 11N20SISO-Ant0-5180-PASS 11N20SISO-Ant0-5240-PASS Report No.: PTC25082710501E-FC04 Page 120 of 213 11N40SISO-Ant0-5190-PASS 11N40SISO-Ant0-5230-PASS Report No.: PTC25082710501E-FC04 Page 121 of 213 11AC20SISO-Ant0-5180-PASS 11AC20SISO-Ant0-5240-PASS Report No.: PTC25082710501E-FC04 Page 122 of 213 11AC40SISO-Ant0-5190-PASS 11AC40SISO-Ant0-5230-PASS Report No.: PTC25082710501E-FC04 Page 123 of 213 11AX20SISO-Ant0-5180-PASS 11AX20SISO-Ant0-5240-PASS Report No.: PTC25082710501E-FC04 Page 124 of 213 11AX40SISO-Ant0-5190-PASS 11AX40SISO-Ant0-5230-PASS Report No.: PTC25082710501E-FC04 Page 125 of 213 Report No.: PTC25082710501E-FC04 Page 126 of 213 Test plots B4: 11A-Ant0-5745-PASS 11A-Ant0-5825-PASS 11N20SISO-Ant0-5745-PASS Report No.: PTC25082710501E-FC04 Page 127 of 213 11N20SISO-Ant0-5825-PASS 11N40SISO-Ant0-5755-PASS Report No.: PTC25082710501E-FC04 Page 128 of 213 11N40SISO-Ant0-5795-PASS 11AC20SISO-Ant0-5745-PASS Report No.: PTC25082710501E-FC04 Page 129 of 213 11AC20SISO-Ant0-5825-PASS 11AC40SISO-Ant0-5755-PASS Report No.: PTC25082710501E-FC04 Page 130 of 213 11AC40SISO-Ant0-5795-PASS 11AX20SISO-Ant0-5745-PASS Report No.: PTC25082710501E-FC04 Page 131 of 213 11AX20SISO-Ant0-5825-PASS 11AX40SISO-Ant0-5755-PASS Report No.: PTC25082710501E-FC04 Page 132 of 213 11AX40SISO-Ant0-5795-PASS Report No.: PTC25082710501E-FC04 Page 133 of 213 7 Emission Bandwidth and Occupied Bandwidth Test Requirement : FCC CFR47 Part 15 Section 15.407(a)(e) Test Method : ANSI C63.10-2020 Test Limit According to FCC §15.407(a), The maxim…

Text truncated - open the document above for the full version.

ConductedEmissions RadiatedSpuriousEmissions From30MHz-1000MHz TestfrequencyfromAbove1GHz RFConductedtestsetupphotos

Report No.: PTC25082710501E-FC06 11AC20-Ant2-5240-5360~40000-PASS 11AC20-Ant1-5745-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant1-5745-5925~40000-PASS 11AC20-Ant2-5745-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant2-5745-5925~40000-PASS 11AC20-Ant1-5785-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant1-5785-5925~40000-PASS 11AC20-Ant2-5785-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant2-5785-5925~40000-PASS 11AC20-Ant1-5825-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant1-5825-5925~40000-PASS 11AC20-Ant2-5825-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant2-5825-5925~40000-PASS 11AC40-Ant1-5190-30~5140-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant1-5190-5360~40000-PASS 11AC40-Ant2-5190-30~5140-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant2-5190-5360~40000-PASS 11AC40-Ant1-5230-30~5140-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant1-5230-5360~40000-PASS 11AC40-Ant2-5230-30~5140-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant2-5230-5360~40000-PASS 11AC40-Ant1-5755-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant1-5755-5925~40000-PASS 11AC40-Ant2-5755-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant2-5755-5925~40000-PASS 11AC40-Ant1-5795-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant1-5795-5925~40000-PASS 11AC40-Ant2-5795-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant2-5795-5925~40000-PASS 11AC80-Ant1-5210-30~5140-PASS Report No.: PTC25082710501E-FC06 11AC80-Ant1-5210-5360~40000-PASS 11AC80-Ant2-5210-30~5140-PASS Report No.: PTC25082710501E-FC06 11AC80-Ant2-5210-5360~40000-PASS 11AC80-Ant1-5775-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC80-Ant1-5775-5925~40000-PASS 11AC80-Ant2-5775-30~5650-PASS Report No.: PTC25082710501E-FC06 11AC80-Ant2-5775-5925~40000-PASS Report No.: PTC25082710501E-FC06 Appendix G: Frequency Stability Test Result TestMode Antenn a Freque ncy[MH z] Voltage [Vdc] Temper ature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict 11A Ant1 5180 NV NT 3000.00 0.579151 20 PASS 11A Ant1 5180 LV NT -14000.00 -2.702703 20 PASS 11A Ant1 5180 HV NT -13000.00 -2.509653 20 PASS 11A Ant1 5200 NV NT -16000.00 -3.076923 20 PASS 11A Ant1 5200 LV NT -13000.00 -2.500000 20 PASS 11A Ant1 5200 HV NT -12000.00 -2.307692 20 PASS 11A Ant1 5240 NV NT -18000.00 -3.435115 20 PASS 11A Ant1 5240 LV NT -14000.00 -2.671756 20 PASS 11A Ant1 5240 HV NT -14000.00 -2.671756 20 PASS 11A Ant1 5745 NV NT -22000.00 -3.829417 20 PASS 11A Ant1 5745 LV NT -21000.00 -3.655352 20 PASS 11A Ant1 5745 HV NT -21000.00 -3.655352 20 PASS 11A Ant1 5785 NV NT -4000.00 -0.691443 20 PASS 11A Ant1 5785 LV NT -2000.00 -0.345722 20 PASS 11A Ant1 5785 HV NT -1000.00 -0.172861 20 PASS 11A Ant1 5825 NV NT -4000.00 -0.686695 20 PASS 11A Ant1 5825 LV NT -1000.00 -0.171674 20 PASS 11A Ant1 5825 HV NT 0.00 0.000000 20 PASS 11A Ant2 5180 NV NT -2000.00 -0.386100 20 PASS 11A Ant2 5180 LV NT 2000.00 0.386100 20 PASS 11A Ant2 5180 HV NT -16000.00 -3.088803 20 PASS 11A Ant2 5200 NV NT -12000.00 -2.307692 20 PASS 11A Ant2 5200 LV NT -10000.00 -1.923077 20 PASS 11A Ant2 5200 HV NT -25000.00 -4.807692 20 PASS 11A Ant2 5240 NV NT -15000.00 -2.862595 20 PASS 11A Ant2 5240 LV NT -11000.00 -2.099237 20 PASS 11A Ant2 5240 HV NT -11000.00 -2.099237 20 PASS 11A Ant2 5745 NV NT -19000.00 -3.307224 20 PASS 11A Ant2 5745 LV NT -15000.00 -2.610966 20 PASS 11A Ant2 5745 HV NT -13000.00 -2.262837 20 PASS 11A Ant2 5785 NV NT -19000.00 -3.284356 20 PASS 11A Ant2 5785 LV NT -16000.00 -2.765774 20 PASS 11A Ant2 5785 HV NT -15000.00 -2.592913 20 PASS 11A Ant2 5825 NV NT -18000.00 -3.090129 20 PASS 11A Ant2 5825 LV NT -17000.00 -2.918455 20 PASS 11A Ant2 5825 HV NT -17000.00 -2.918455 20 PASS Report No.: PTC25082710501E-FC06 11N20 Ant1 5180 NV NT -5000.00 -0.965251 20 PASS 11N20 Ant1 5180 LV NT -2000.00 -0.386100 20 PASS 11N20 Ant1 5180 HV NT -1000.00 -0.193050 20 PASS 11N20 Ant2 5180 NV NT -1000.00 -0.193050 20 PASS 11N20 Ant2 5180 LV NT 3000.00 0.579151 20 PASS 11N20 Ant2 5180 HV NT -15000.00 -2.895753 20 PASS 11N20 Ant1 5200 NV NT -19000.00 -3.653846 20 PASS 11N20 Ant1 5200 LV NT -16000.00 -3.076923 20 PASS 11N20 Ant1 5200 HV NT -14000.00 -2.692308 20 PASS 11N20 Ant2 5200 NV NT -19000.00 -3.653846 20 PASS 11N20 Ant2 5200 LV NT -15000.00 -2.884615 20 PASS 11N20 Ant2 5200 HV NT -14000.00 -2.692308 20 PASS 11N20 Ant1 5240 NV NT -14000.00 -2.671756 20 PASS 11N20 Ant1 5240 LV NT -14000.00 -2.671756 20 PASS 11N20 Ant1 5240 HV NT -14000.00 -2.671756 20 PASS 11N20 Ant2 5240 NV NT -17000.00 -3.244275 20 PASS 11N20 Ant2 5240 LV NT -15000.00 -2.862595 20 PASS 11N20 Ant2 5240 HV NT -14000.00 -2.671756 20 PASS 11N20 Ant1 5745 NV NT -3000.00 -0.522193 20 PASS 11N20 Ant1 5745 LV NT -1000.00 -0.174064 20 PASS 11N20 Ant1 5745 HV NT -1000.00 -0.174064 20 PASS 11N20 Ant2 5745 NV NT -4000.00 -0.696258 20 PASS 11N20 Ant2 5745 LV NT 0.00 0.000000 20 PASS 11N20 Ant2 5745 HV NT 2000.00 0.348129 20 PASS 11N20 Ant1 5785 NV NT -21000.00 -3.630078 20 PASS 11N20 Ant1 5785 LV NT -19000.00 -3.284356 20 PASS 11N20 Ant1 5785 HV NT -20000.00 -3.457217 20 PASS 11N20 Ant2 5785 NV NT -3000.00 -0.518583 20 PASS 11N20 Ant2 5785 LV NT 0.00 0.000000 20 PASS 11N20 Ant2 5785 HV NT 1000.00 0.172861 20 PASS 11N20 Ant1 5825 NV NT -2000.00 -0.343348 20 PASS 11N20 Ant1 5825 LV NT 0.00 0.000000 20 PASS 11N20 Ant1 5825 HV NT 1000.00 0.171674 20 PASS 11N20 Ant2 5825 NV NT -2000.00 -0.343348 20 PASS 11N20 Ant2 5825 LV NT 0.00 0.000000 20 PASS 11N20 Ant2 5825 HV NT 1000.00 0.171674 20 PASS 11N40 Ant1 5190 NV NT -3000.00 -0.578035 20 PASS 11N40 Ant1 5190 LV NT 0.00 0.000000 20 PASS 11N40 Ant1 5190 HV NT 2000.00 0.385356 20 PASS 11N40 Ant2 5190 NV NT 2000.00 0.385356 20 PASS 11N40 Ant2 5190 LV NT -15000.00 -2.890173 20 PASS 11N40 Ant2 5190 HV NT -14000.00 -2.697495 20 PASS 11N40 Ant1 5230 NV NT -15000.00 -2.868069 20 PASS Report No.: PTC25082710501E-FC06 11N40 Ant1 5230 LV NT -13000.00 -2.485660 20 PASS 11N40 Ant1 5230 HV NT -12000.00 -2.294455 20 PASS 11N40 Ant2 5230 NV NT -11000.00 -2.103250 20 PAS…

Text truncated - open the document above for the full version.

Report No.: PTC25082710501E-FC06 11AC80-Ant2-5210-PASS 11AC80-Ant1-5775-PASS Report No.: PTC25082710501E-FC06 11AC80-Ant2-5775-PASS Report No.: PTC25082710501E-FC06 Appendix E: Band edge measurements Test Result B1 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -38.53 ≤-27 PASS 11A Ant1 High 5240 -37.87 ≤-27 PASS 11A Ant2 Low 5180 -38.44 ≤-27 PASS 11A Ant2 High 5240 -38.18 ≤-27 PASS 11N20 Ant1 Low 5180 -37.71 ≤-27 PASS 11N20 Ant2 Low 5180 -37.98 ≤-27 PASS 11N20 Ant1 High 5240 -37.59 ≤-27 PASS 11N20 Ant2 High 5240 -37.17 ≤-27 PASS 11N40 Ant1 Low 5190 -37.89 ≤-27 PASS 11N40 Ant2 Low 5190 -38.01 ≤-27 PASS 11N40 Ant1 High 5230 -37.89 ≤-27 PASS 11N40 Ant2 High 5230 -37.76 ≤-27 PASS 11AC20 Ant1 Low 5180 -38.33 ≤-27 PASS 11AC20 Ant2 Low 5180 -37.92 ≤-27 PASS 11AC20 Ant1 High 5240 -38.02 ≤-27 PASS 11AC20 Ant2 High 5240 -37.96 ≤-27 PASS 11AC40 Ant1 Low 5190 -38.08 ≤-27 PASS 11AC40 Ant2 Low 5190 -37.84 ≤-27 PASS 11AC40 Ant1 High 5230 -37.54 ≤-27 PASS 11AC40 Ant2 High 5230 -37.61 ≤-27 PASS 11AC80 Ant1 Low 5210 -38.14 ≤-27 PASS 11AC80 Ant1 High 5210 -37.59 ≤-27 PASS 11AC80 Ant2 Low 5210 -38.22 ≤-27 PASS 11AC80 Ant2 High 5210 -38.22 ≤-27 PASS Test Result B4 TestMode Antenna ChName Frequency[ MHz] FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5720~5725 -40.28 ≤26.83 PASS 11A Ant1 Low 5745 5700~5720 -40.56 ≤14.50 PASS 11A Ant1 Low 5745 5650~5700 -40.65 ≤-16.23 PASS 11A Ant1 Low 5745 5760~5650 -42.21 ≤-27 PASS 11A Ant1 High 5825 5850~5855 -39 ≤18.56 PASS 11A Ant1 High 5825 5855~5875 -38.53 ≤10.10 PASS 11A Ant1 High 5825 5875~5925 -38.87 ≤0.32 PASS 11A Ant1 High 5825 5925~5935 -39.84 ≤-27 PASS 11A Ant2 Low 5745 5720~5725 -40.83 ≤20.54 PASS Report No.: PTC25082710501E-FC06 11A Ant2 Low 5745 5700~5720 -40.01 ≤13.79 PASS 11A Ant2 Low 5745 5650~5700 -40.28 ≤-25.93 PASS 11A Ant2 Low 5745 5760~5650 -41.3 ≤-27 PASS 11A Ant2 High 5825 5850~5855 -39.69 ≤21.03 PASS 11A Ant2 High 5825 5855~5875 -38.78 ≤15.50 PASS 11A Ant2 High 5825 5875~5925 -38.75 ≤7.81 PASS 11A Ant2 High 5825 5925~5935 -38.67 ≤-27 PASS 11N20 Ant1 Low 5745 5720~5725 -40.1 ≤22.90 PASS 11N20 Ant1 Low 5745 5700~5720 -39.86 ≤12.15 PASS 11N20 Ant1 Low 5745 5650~5700 -40.16 ≤-7.64 PASS 11N20 Ant1 Low 5745 5760~5650 -39.6 ≤-27 PASS 11N20 Ant2 Low 5745 5720~5725 -41.21 ≤26.30 PASS 11N20 Ant2 Low 5745 5700~5720 -40.12 ≤12.12 PASS 11N20 Ant2 Low 5745 5650~5700 -40.53 ≤-23.47 PASS 11N20 Ant2 Low 5745 5760~5650 -41.37 ≤-27 PASS 11N20 Ant1 High 5825 5850~5855 -38.9 ≤17.33 PASS 11N20 Ant1 High 5825 5855~5875 -38.57 ≤10.78 PASS 11N20 Ant1 High 5825 5875~5925 -37.76 ≤-20.96 PASS 11N20 Ant1 High 5825 5925~5935 -38.66 ≤-27 PASS 11N20 Ant2 High 5825 5850~5855 -39.24 ≤19.80 PASS 11N20 Ant2 High 5825 5855~5875 -38.63 ≤11.04 PASS 11N20 Ant2 High 5825 5875~5925 -38.42 ≤-11.27 PASS 11N20 Ant2 High 5825 5925~5935 -39.5 ≤-27 PASS 11N40 Ant1 Low 5755 5720~5725 -40.43 ≤15.74 PASS 11N40 Ant1 Low 5755 5700~5720 -39.66 ≤13.08 PASS 11N40 Ant1 Low 5755 5650~5700 -40.05 ≤7.96 PASS 11N40 Ant1 Low 5755 5780~5650 -40.45 ≤-27 PASS 11N40 Ant2 Low 5755 5720~5725 -40.71 ≤22.20 PASS 11N40 Ant2 Low 5755 5700~5720 -39.73 ≤15.13 PASS 11N40 Ant2 Low 5755 5650~5700 -40.74 ≤5.46 PASS 11N40 Ant2 Low 5755 5780~5650 -41.41 ≤-27 PASS 11N40 Ant1 High 5795 5850~5855 -39.23 ≤19.80 PASS 11N40 Ant1 High 5795 5855~5875 -38.69 ≤10.36 PASS 11N40 Ant1 High 5795 5875~5925 -38.22 ≤-11.05 PASS 11N40 Ant1 High 5795 5925~5935 -38.68 ≤-27 PASS 11N40 Ant2 High 5795 5850~5855 -39.13 ≤16.03 PASS 11N40 Ant2 High 5795 5855~5875 -38.83 ≤10.18 PASS 11N40 Ant2 High 5795 5875~5925 -38.54 ≤1.53 PASS 11N40 Ant2 High 5795 5925~5935 -38.7 ≤-27 PASS 11AC20 Ant1 Low 5745 5720~5725 -40.43 ≤26.57 PASS 11AC20 Ant1 Low 5745 5700~5720 -39.37 ≤14.50 PASS 11AC20 Ant1 Low 5745 5650~5700 -39.63 ≤6.66 PASS 11AC20 Ant1 Low 5745 5760~5650 -41.36 ≤-27 PASS Report No.: PTC25082710501E-FC06 11AC20 Ant2 Low 5745 5720~5725 -40.49 ≤25.78 PASS 11AC20 Ant2 Low 5745 5700~5720 -39.87 ≤15.24 PASS 11AC20 Ant2 Low 5745 5650~5700 -39.42 ≤9.38 PASS 11AC20 Ant2 Low 5745 5760~5650 -41.23 ≤-27 PASS 11AC20 Ant1 High 5825 5850~5855 -39.04 ≤17.03 PASS 11AC20 Ant1 High 5825 5855~5875 -38.97 ≤10.40 PASS 11AC20 Ant1 High 5825 5875~5925 -37.57 ≤-22.06 PASS 11AC20 Ant1 High 5825 5925~5935 -38.86 ≤-27 PASS 11AC20 Ant2 High 5825 5850~5855 -39.04 ≤15.79 PASS 11AC20 Ant2 High 5825 5855~5875 -38.73 ≤10.97 PASS 11AC20 Ant2 High 5825 5875~5925 -38.68 ≤-0.68 PASS 11AC20 Ant2 High 5825 5925~5935 -39.69 ≤-27 PASS 11AC40 Ant1 Low 5755 5720~5725 -40.71 ≤20.05 PASS 11AC40 Ant1 Low 5755 5700~5720 -40.25 ≤10.74 PASS 11AC40 Ant1 Low 5755 5650~5700 -40.53 ≤5.86 PASS 11AC40 Ant1 Low 5755 5780~5650 -41.55 ≤-27 PASS 11AC40 Ant2 Low 5755 5720~5725 -39.97 ≤26.20 PASS 11AC40 Ant2 Low 5755 5700~5720 -40.03 ≤13.35 PASS 11AC40 Ant2 Low 5755 5650~5700 -40.8 ≤0.47 PASS 11AC40 Ant2 Low 5755 5780~5650 -41.93 ≤-27 PASS 11AC40 Ant1 High 5795 5850~5855 -39.46 ≤16.03 PASS 11AC40 Ant1 High 5795 5855~5875 -38.93 ≤11.93 PASS 11AC40 Ant1 High 5795 5875~5925 -37.77 ≤0.43 PASS 11AC40 Ant1 High 5795 5925~5935 -38.57 ≤-27 PASS 11AC40 Ant2 High 5795 5850~5855 -38.78 ≤16.03 PASS 11AC40 Ant2 High 5795 5855~5875 -39.39 ≤11.38 PASS 11AC40 Ant2 High 5795 5875~5925 -37.78 ≤-13.25 PASS 11AC40 Ant2 High 5795 5925~5935 -39.38 ≤-27 PASS 11AC80 Ant1 Low 5775 5720~5725 -40.33 ≤23.77 PASS 11AC80 Ant1 Low 5775 5700~5720 -39.51 ≤13.31 PASS 11AC80 Ant1 Low 5775 5650~5700 -40.15 ≤-8.79 PASS 11AC80 Ant1 Low 5775 5800~5650 -40.07 ≤-27 PASS 11AC80 Ant1 High 5775 5850~5855 -39.58 ≤17.90 PASS 11AC80 Ant1 High 5775 5855~5875 -39.31 ≤11.32 PASS 11AC80 Ant1 High 5775 5875~5925 -38.13 ≤-12.31 PASS 11AC80 Ant1 High 5775 5925~5935 -39.71 ≤-27 PASS 11AC80 Ant2 Low 5775 5720~5725 -40.17 ≤21.65 PASS 11AC80 Ant2 Low 5775 5700~5720 -40.24 ≤15.30 PASS 11AC80 Ant2 Low 5775 5650~5700 -40.29 ≤4.74 PASS 11AC80 Ant2 Low 5775 5800~5650 -41.45 ≤-27 PASS 11AC80 Ant2 High 5775 5850~5855 -38.21 ≤17.90 PASS 11AC80 Ant2 High 5775 5855~5875 -38.32 ≤10.18 PASS 11AC80 Ant2 High 5775 5875~5925 -…

Text truncated - open the document above for the full version.

Report No.: PTC25082710501E-FC06 11N40-Ant2-5795-PASS 11AC20-Ant1-5745-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant2-5745-PASS 11AC20-Ant1-5785-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant2-5785-PASS 11AC20-Ant1-5825-PASS Report No.: PTC25082710501E-FC06 11AC20-Ant2-5825-PASS 11AC40-Ant1-5755-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant2-5755-PASS 11AC40-Ant1-5795-PASS Report No.: PTC25082710501E-FC06 11AC40-Ant2-5795-PASS 11AC80-Ant1-5775-PASS Report No.: PTC25082710501E-FC06 11AC80-Ant2-5775-PASS Report No.: PTC25082710501E-FC06 Appendix B: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 0.15 0.20 75.00 11A Ant1 5200 0.14 0.19 73.68 11A Ant1 5240 0.15 0.19 78.95 11A Ant1 5745 0.15 0.20 75.00 11A Ant1 5785 0.15 0.20 75.00 11A Ant1 5825 0.15 0.20 75.00 11A Ant2 5180 0.15 0.20 75.00 11A Ant2 5200 0.15 0.20 75.00 11A Ant2 5240 0.15 0.19 78.95 11A Ant2 5745 0.15 0.20 75.00 11A Ant2 5785 0.15 0.20 75.00 11A Ant2 5825 0.15 0.20 75.00 11N20 Ant1 5180 0.32 0.37 86.49 11N20 Ant2 5180 0.31 0.36 86.11 11N20 Ant1 5200 0.31 0.36 86.11 11N20 Ant2 5200 0.31 0.36 86.11 11N20 Ant1 5240 0.31 0.36 86.11 11N20 Ant2 5240 0.31 0.36 86.11 11N20 Ant1 5745 0.31 0.36 86.11 11N20 Ant2 5745 0.31 0.36 86.11 11N20 Ant1 5785 0.31 0.36 86.11 11N20 Ant2 5785 0.32 0.37 86.49 11N20 Ant1 5825 0.31 0.36 86.11 11N20 Ant2 5825 0.31 0.36 86.11 11N40 Ant1 5190 0.32 0.38 84.21 11N40 Ant2 5190 0.32 0.37 86.49 11N40 Ant1 5230 0.32 0.37 86.49 11N40 Ant2 5230 0.32 0.37 86.49 11N40 Ant1 5755 0.32 0.37 86.49 11N40 Ant2 5755 0.32 0.37 86.49 11N40 Ant1 5795 0.32 0.37 86.49 11N40 Ant2 5795 0.32 0.37 86.49 11AC20 Ant1 5180 0.28 0.33 84.85 11AC20 Ant2 5180 0.28 0.33 84.85 11AC20 Ant1 5200 0.28 0.33 84.85 11AC20 Ant2 5200 0.28 0.33 84.85 11AC20 Ant1 5240 0.28 0.33 84.85 Report No.: PTC25082710501E-FC06 11AC20 Ant2 5240 0.28 0.33 84.85 11AC20 Ant1 5745 0.28 0.33 84.85 11AC20 Ant2 5745 0.28 0.33 84.85 11AC20 Ant1 5785 0.28 0.33 84.85 11AC20 Ant2 5785 0.28 0.33 84.85 11AC20 Ant1 5825 0.28 0.33 84.85 11AC20 Ant2 5825 0.28 0.33 84.85 11AC40 Ant1 5190 0.28 0.33 84.85 11AC40 Ant2 5190 0.28 0.34 82.35 11AC40 Ant1 5230 0.28 0.33 84.85 11AC40 Ant2 5230 0.28 0.33 84.85 11AC40 Ant1 5755 0.28 0.33 84.85 11AC40 Ant2 5755 0.28 0.33 84.85 11AC40 Ant1 5795 0.28 0.33 84.85 11AC40 Ant2 5795 0.28 0.33 84.85 11AC80 Ant1 5210 0.28 0.33 84.85 11AC80 Ant2 5210 0.28 0.34 82.35 11AC80 Ant1 5775 0.28 0.33 84.85 11AC80 Ant2 5775 0.28 0.34 82.35 Report No.: PTC25082710501E-FC06 Test Graphs NTNV-11A-Ant1-5180 NTNV-11A-Ant1-5200 NTNV-11A-Ant1-5240 Report No.: PTC25082710501E-FC06 NTNV-11A-Ant1-5745 NTNV-11A-Ant1-5785 Report No.: PTC25082710501E-FC06 NTNV-11A-Ant1-5825 NTNV-11A-Ant2-5180 Report No.: PTC25082710501E-FC06 NTNV-11A-Ant2-5200 NTNV-11A-Ant2-5240 Report No.: PTC25082710501E-FC06 NTNV-11A-Ant2-5745 NTNV-11A-Ant2-5785 Report No.: PTC25082710501E-FC06 NTNV-11A-Ant2-5825 NTNV-11N20-Ant1-5180 Report No.: PTC25082710501E-FC06 NTNV-11N20-Ant2-5180 NTNV-11N20-Ant1-5200 Report No.: PTC25082710501E-FC06 NTNV-11N20-Ant2-5200 NTNV-11N20-Ant1-5240 Report No.: PTC25082710501E-FC06 NTNV-11N20-Ant2-5240 NTNV-11N20-Ant1-5745 Report No.: PTC25082710501E-FC06 NTNV-11N20-Ant2-5745 NTNV-11N20-Ant1-5785 Report No.: PTC25082710501E-FC06 NTNV-11N20-Ant2-5785 NTNV-11N20-Ant1-5825 Report No.: PTC25082710501E-FC06 NTNV-11N20-Ant2-5825 NTNV-11N40-Ant1-5190 Report No.: PTC25082710501E-FC06 NTNV-11N40-Ant2-5190 NTNV-11N40-Ant1-5230 Report No.: PTC25082710501E-FC06 NTNV-11N40-Ant2-5230 NTNV-11N40-Ant1-5755 Report No.: PTC25082710501E-FC06 NTNV-11N40-Ant2-5755 NTNV-11N40-Ant1-5795 Report No.: PTC25082710501E-FC06 NTNV-11N40-Ant2-5795 NTNV-11AC20-Ant1-5180 Report No.: PTC25082710501E-FC06 NTNV-11AC20-Ant2-5180 NTNV-11AC20-Ant1-5200 Report No.: PTC25082710501E-FC06 NTNV-11AC20-Ant2-5200 NTNV-11AC20-Ant1-5240 Report No.: PTC25082710501E-FC06 NTNV-11AC20-Ant2-5240 NTNV-11AC20-Ant1-5745 Report No.: PTC25082710501E-FC06 NTNV-11AC20-Ant2-5745 NTNV-11AC20-Ant1-5785 Report No.: PTC25082710501E-FC06 NTNV-11AC20-Ant2-5785 NTNV-11AC20-Ant1-5825 Report No.: PTC25082710501E-FC06 NTNV-11AC20-Ant2-5825 NTNV-11AC40-Ant1-5190 Report No.: PTC25082710501E-FC06 NTNV-11AC40-Ant2-5190 NTNV-11AC40-Ant1-5230 Report No.: PTC25082710501E-FC06 NTNV-11AC40-Ant2-5230 NTNV-11AC40-Ant1-5755 Report No.: PTC25082710501E-FC06 NTNV-11AC40-Ant2-5755 NTNV-11AC40-Ant1-5795 Report No.: PTC25082710501E-FC06 NTNV-11AC40-Ant2-5795 NTNV-11AC80-Ant1-5210 Report No.: PTC25082710501E-FC06 NTNV-11AC80-Ant2-5210 NTNV-11AC80-Ant1-5775 Report No.: PTC25082710501E-FC06 NTNV-11AC80-Ant2-5775 Report No.: PTC25082710501E-FC06 Appendix C: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[MHz] Set Power TPC Mode Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 --- NA 8.36 75.00 1.25 9.61 ≤23.98 PASS 11A Ant1 5200 --- NA 8.21 73.68 1.33 9.54 ≤23.98 PASS 11A Ant1 5240 --- NA 9.87 78.95 1.03 10.90 ≤23.98 PASS 11A Ant1 5745 --- NA 7.32 75.00 1.25 8.57 ≤30.00 PASS 11A Ant1 5785 --- NA 9.28 75.00 1.25 10.53 ≤30.00 PASS 11A Ant1 5825 --- NA 9.01 75.00 1.25 10.26 ≤30.00 PASS 11A Ant2 5180 --- NA 8.00 75.00 1.25 9.25 ≤23.98 PASS 11A Ant2 5200 --- NA 7.78 75.00 1.25 9.03 ≤23.98 PASS 11A Ant2 5240 --- NA 8.81 78.95 1.03 9.84 ≤23.98 PASS 11A Ant2 5745 --- NA 7.91 75.00 1.25 9.16 ≤30.00 PASS 11A Ant2 5785 --- NA 8.29 75.00 1.25 9.54 ≤30.00 PASS 11A Ant2 5825 --- NA 8.18 75.00 1.25 9.43 ≤30.00 PASS 11N20 Ant1 5180 --- NA 4.75 86.49 0.63 5.38 ≤23.98 PASS 11N20 Ant2 5180 --- NA 4.96 86.11 0.65 5.61 ≤23.98 PASS 11N20MIMO total 5180 --- NA --- --- --- 8.51 ≤23.96 PASS 11N20 Ant1 5200 --- NA 5.61 86.11 0.65 6.26 ≤23.98 PASS 11N20 Ant2 5200 --- NA 5.84 86.11 0.65 6.49 ≤23.98 PASS 11N20MIMO total 5200 --- NA --- --- --- 9.39 ≤23.96 PASS 11N20 Ant1 5240 --- NA 6.43 86.11 0.65 7.08 ≤23.98 PASS Report No.: PTC25082710501E-FC06 11N20 Ant2 5240 --- NA 6.99 86.11 0.65 7.64 ≤23.98 PASS 11N20MI…

Text truncated - open the document above for the full version.

Report No.: PTC25082710501E-FC06 Applicant: DTC IP Holdings, LLC Case No. : PTC25082710501 EUT： Interactive Flat Panel Model： TM65 Ambient Condition: 25 °C, 45 %RH, 101.325 kPa Test Date: / Test Engineer: Jack zhou Report No.: PTC25082710501E-FC06 Contents Appendix A1: Emission Bandwidth ........................................................................................... 3 Test Result ....................................................................................................................... 3 Test Graphs ..................................................................................................................... 5 Appendix A2: Occupied channel bandwidth ........................................................................... 33 Test Result ..................................................................................................................... 33 Test Graphs ................................................................................................................... 35 Appendix A3: Min emission bandwidth .................................................................................. 63 Test Result B4 ............................................................................................................... 63 Test Graphs B4 ............................................................................................................. 64 Appendix B: Duty Cycle ........................................................................................................... 78 Test Result ..................................................................................................................... 78 Test Graphs ................................................................................................................... 80 Appendix C: Maximum conducted output power ................................................................. 108 Test Result Channel Power....................................................................................... 108 Appendix D: Maximum power spectral density .................................................................... 112 Test Result ................................................................................................................... 112 Test Graphs ................................................................................................................. 114 Appendix E: Band edge measurements ................................................................................ 142 Test Result B1 ............................................................................................................. 142 Test Result B4 ............................................................................................................. 142 Test Graphs B1 ........................................................................................................... 146 Test Graphs B4 ........................................................................................................... 158 Appendix F: Conducted Spurious Emission ........................................................................... 170 Test Result ................................................................................................................... 170 Test Graphs ................................................................................................................. 173 Appendix G: Frequency Stability ........................................................................................... 229 Test Result ................................................................................................................... 229 Report No.: PTC25082710501E-FC06 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 22.760 5169.200 5191.960 --- --- 11A Ant1 5200 23.040 5188.720 5211.760 --- --- 11A Ant1 5240 23.040 5228.680 5251.720 --- --- 11A Ant1 5745 22.480 5734.240 5756.720 --- --- 11A Ant1 5785 23.040 5773.720 5796.760 --- --- 11A Ant1 5825 22.800 5813.480 5836.280 --- --- 11A Ant2 5180 23.280 5168.520 5191.800 --- --- 11A Ant2 5200 22.840 5188.480 5211.320 --- --- 11A Ant2 5240 22.920 5228.800 5251.720 --- --- 11A Ant2 5745 21.880 5734.200 5756.080 --- --- 11A Ant2 5785 23.240 5773.280 5796.520 --- --- 11A Ant2 5825 23.280 5813.560 5836.840 --- --- 11N20 Ant1 5180 23.000 5168.880 5191.880 --- --- 11N20 Ant2 5180 23.280 5168.320 5191.600 --- --- 11N20 Ant1 5200 23.680 5188.240 5211.920 --- --- 11N20 Ant2 5200 23.040 5188.720 5211.760 --- --- 11N20 Ant1 5240 23.400 5228.160 5251.560 --- --- 11N20 Ant2 5240 23.520 5228.480 5252.000 --- --- 11N20 Ant1 5745 23.040 5733.360 5756.400 --- --- 11N20 Ant2 5745 22.600 5733.760 5756.360 --- --- 11N20 Ant1 5785 23.240 5773.680 5796.920 --- --- 11N20 Ant2 5785 23.600 5773.160 5796.760 --- --- 11N20 Ant1 5825 23.640 5813.400 5837.040 --- --- 11N20 Ant2 5825 23.800 5813.400 5837.200 --- --- 11N40 Ant1 5190 42.640 5169.520 5212.160 --- --- 11N40 Ant2 5190 43.680 5168.480 5212.160 --- --- 11N40 Ant1 5230 43.040 5208.720 5251.760 --- --- 11N40 Ant2 5230 43.440 5209.360 5252.800 --- --- 11N40 Ant1 5755 42.720 5733.960 5776.680 --- --- 11N40 Ant2 5755 41.440 5734.840 5776.280 --- --- 11N40 Ant1 5795 42.640 5773.480 5816.120 --- --- 11N40 Ant2 5795 41.680 5774.280 5815.960 --- --- 11AC20 Ant1 5180 23.240 5168.480 5191.720 --- --- 11AC20 Ant2 5180 22.880 5168.600 5191.480 --- --- 11AC20 Ant1 5200 24.080 5187.920 5212.000 --- --- Report No.: PTC25082710501E-FC06 11AC20 Ant2 5200 23.120 5188.440 5211.560 --- --- 11AC20 Ant1 5240 23.200 5228.440 5251.640 --- --- 11AC20 Ant2 5240 23.360 5228.080 5251.440 --- --- 11AC20 Ant1 5745 23.240 5733.600 5756.840 --- --- 11AC20 Ant2 5745 22.880 5733.480 5756.360 --- --- 11AC20 Ant1 5785 22.600 5773.840 5796.440 --- --- 11AC20…

Text truncated - open the document above for the full version.
