2BBL5-MA01Music Streamer

mini-i
Pro
4说明书文字稿
⚠

图红色带框文字不用翻译，仅作注释用
⻩色为改动的中文
User
Manual
(Draft)
一.
包装清单

Packling
list
图 1.主机 Product
2.遥控器 Remote
control
3.快速指南、保修卡等印刷品 Quick
start
guide,
warranty
card

二.
部件与名称

Parts
and
names
1.顶部
Top
图 a.开机/待机按键
Power
on/Standby
连接电源后按此按键开机，⻓按2秒进入待机，每次连接电源后的首次开机大约需要30秒。
开机状态下单次按下此按键激活静音，再次按下解除静音。 After
connecting
to
the
power
supply,
press
this
button
to
turn
on
the
unit,
hold
the
button
for
two
seconds
to
enter
standby.
It
takes
about
30
seconds
for
the
first
start
up
after
connecting
to
the
power
supply
each
time.
When
the
device
is
working,
press
this
button
to
mute,
press
again
to
unmute.
2.前面
Front
a.耳机插孔 Headphone
jack
6.35mm插孔用于连接单端耳机，4.4mm插孔用于连接平衡耳机。
The
6.35
mm
headphone
jack
is
for
single-ended
headphones,
the
4.4
mm
headphone
jack
is
for
balanced
headphones.
b.显示屏
LCD
screen
c.音量按键 Volume
key
单次触摸上下箭头按键逐级调整音量。 Tap
on
the
arrow
keys
to
change
the
volume
step
by
step.
⻓按上下箭头按键2秒快速调整音量。
Hold
on
the
arrow
keys
to

2.显示屏
LCD
screen
a.主屏信息 图 ▪ 媒体和音频信息 ▪ Media
and
audio
information
包括曲目的图片、曲目名称、艺人、播放时间、音频格式、采样率、滤波器状态等。 Including
album
art,
track
title,
artist,
duration,
audio
format,
sampling
rate
of
the
track
and
the
filter
type
being
used.
◦ 状态栏 Status
包括时间、网络状态等。 Including
status
of
clock,
network
connection,
USB
storage,
NAS
and
Async/Sync
mode.
◦ 输入源 Input
channel
当前选择的输入源名称。 The
name
of
selected
input
channel.
◦ 输出和音量 Output
channel
and
volume
当前的输出方式和音量等级。 The
selected
output
channel
and
volume
level.
b.触屏操作
Operation
of
touch
screen
图 ▪ 从左向右滑动呼出快捷按键⻚面。 Swipe
right
to
open
the
shortcut
page.
▪ 从右向左滑动呼出菜单⻚面。 Swipe
left
to
open
menu.
3.后面
Rear
图 a.模拟输出 Analog
output
使用RCA或者XLR线缆连接至有源音箱或者功率放大器。
Connect
to
active
speakers
or
amplifiers
through
RCA
or
XLR
cables.
b.模拟输入
Analog
input
使用RCA线缆连接至唱机或带有模拟输出的设备。
Connect
to
vinyl
turntables
or
devices
with
analog
outputs
through
RCA
cabels.
c.光纤、同轴输入 Optical
&
Coaxial
input
使用光纤或同轴线缆连接具有S/PDIF信号输出功能的前端设备。
Connect
to
front-end
devices
with
S/PDIF
signal
outputs
through
optical
or
coaxial
cables.
d.HDMI
ARC
HDMI
ARC
使用HDMI线缆与带有音频回传功能的电视连接。
Connect
to
TVs
with
ARC
(Audio
Return
Channel)
functionalities
through
HDMI
cables.
e.USB音频
USB
Audio
使用USB
B型线缆或USB
C型线缆与计算机、手机、平板电脑连接作为外部音频播放设备。
h.重置按键
Reset
button
当主机系统出现异常时通过此按键重置系统至初始状态，一般情况下无需操作此按键，需要在 矩声服务人员指导下操作。 Only
use
this
button
when
the
unit
works
incorrectly,
the
unit
can
be
reset
to
factory
state.
Please
operate
under
the
instructions
by
service
team
from
Matrix
Audio.
i.以太网 Ethernet
连接至路由器的局域网接口，最高支持千兆标准的以太网传输。 Connect
to
LAN
port
of
the
network
router,
the
connection
supports
up
to
Gigabit
Ethernet
transmission.
k.电源输入 AC
Input
本机适应AC100-240V电压范围，确保输入的电源在范围内。
This
unit
adapts
to
AC100-240V
power
voltage
range
.
Please
make
sure
to
use
the
product
in
the
power
voltage
range
mentioned
above.
请您务必使用带有接地端子的三芯电源线，并保证地线可靠连接，否则本机外壳可能会有轻微 带电的触感，若需本机完全断开电源请拔下电源插头。 Please
use
the
power
cable
which
includes
an
earth
wire.
Please
ensure
you
have
a
reliable
earth
wire
connection.
Otherwise,
the
casing
of
the
unit
may
have
a
slightly
charged
touch.
If
you
need
the
unit
to
be
turned
off
completely,
please
unplug
the
power
cable.
4.遥控器
Remote
Control
图 a.待机/开机
Power
on/Standby
b.暗光模式
Dimmer
d.输入
Input
channels
(some
are
reserved)
e.静音/解除静音
Mute/Unmute
按下静音，再次按下解除静音，静音状态按音量+/-键也可以解除静音。
Press
to
mute,
press
again
to
unmute.
You
also
can
unmute
by
pressing
the
volume
+/-
buttons
in
mute
state.
f.音量 Volume

g.滤波器 Filters
循环切换当前播放的音频格式支持的滤波器类型。 Switch
the
corresponding
filter
types
applied
to
the
current
playing
audio
format
in
a
loop.
i.播放控制区 Playback
control
area
在选择到被支持的通道下可对播放功能进行控制。 When
the
input
channel
supports,
the
playback
can
be
controlled
by
these
buttons.
图反面开盖图 遥控器使用一只CR2032纽扣电池，按照箭头方向滑动后盖打开电池仓，安装电池时请注意极性。
Slide
in
the
direction
of
the
arrow
to
open
the
battery
holder.
Please
pay
attention
to
the
polarity
when
installing
the
batteries.
操作遥控器请将其指向主机，遥控距离约为8米，遥控器电池即将耗尽时主机屏幕会显示更换电池 提示。 Point
the
remote
control
to
the
element
device
when
using
it,
the
operating
distance
is
about
8
meters.
When
the
battery
is
low,
the
LED
indicator
on
the
remote
control
flashes
red,
there
will
also
be
a
notification
showing
on
the
device
screen.
若同一环境下存在多台矩声设备，为防止一个遥控器同时控制多台设备，此遥控器具有5组地址 码，在主机设置项内可操作与遥控器的地址码匹配，在主机上进入下图所示界面，按照屏幕提示操 作。 If
there
are
more
than
one
Matrix
Audio
device
in
a
single
environment,
in
order
to
prevent
1
remote
control
from
controlling
multiple
devices
at
the
same
time,
we
preset
5
address
codes
in
the
remote
control,
these
address
codes
can
be
configured
in
the
Settings
menu
showing
below,
and
follow
the
instructions
on
the
screen.
设置中“遥控器”图标选中的图 三.
使用前的操作
Operations
before
using
1.连接网络
Connect
to
Network
◦ 有线连接 LAN
请使用以太网电缆将本机连接到路由器的局域网接口，建议将您的路由器设置为DHCP
（动态 主机配置协议）服务器，该功能将自动分配局域网中设备的IP
地址。进入本机设置菜单中“网 络设置”，选择为“有线网络”，您也可以手动设置各项网络参数，连接成功后主屏状态栏将 显示有线网络图标。 Connect
the
product
to
the
LAN
port
of
the
network
router
through
an
Ethernet
cable.
It
is
recommended
to
set
up
the
router
as
a
DHCP
server,
the
unit
will
be
assigned
an
IP
address
automatically.
Select
"LAN"
in
option
Network
in
Settings
menu,
you
can
configure
the
network
specs
manually,
after
joining
the
network,
there
will
be
an
Ethernet
icon
shown
in
the
status
bar.
As
shown
below:

◦ Wi-Fi连接
Wi-Fi
进入本机设置菜单中“网络设置”，选择为“无线网络”，待搜索无线网络完成后，选择需要 连接的SSID并输入密码，连接成功后主屏状态栏将显示无线网络信号图标，本机支持 2.4GHz/5GHz双频网络。
Enter
Settings
menu
-
Network
-
Wi-Fi,
after
the
network
scanning
complete,
choose
the
SSID
of
your
network
and
enter
the
passwords,
there
will
be
a
wireless
connection
icon
shown
in
the
status
bar
after
connected.
The
element
devices
support
2.4GHz/5GHz
wireless
network.

当连接的有线网络或无线网络未接入互联网时，主屏状态栏将显示图标。 When
the
connection
has
no
Internet
access,
there
will
be
a




icon
in
the
status
bar,
as
shown
below:

2.MA
Remote
App
◦ 为您的平板电脑或手机下载安装MA
Remote
App
Install
MA
Remote
App
for
your
iPad,
iPhone
or
Android
phone.
苹果、谷歌商店二维码
图
◦ 打开App，按照添加设备向导中的提示将设备添加到MA
Remote
App。
Open
the
app,
follow
the
instructi…

Text truncated - open the document above for the full version.

(Matrix Electronic Technology Co., LTD) (2023.06.20) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BBL5‐MA01) [Matrix Electronic Technology Co., LTD ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Tao Yang (Matrix Electronic Technology Co., LTD) (2023.06.20) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BBL5‐MA01) [Matrix Electronic Technology Co., LTD ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Tao Yang

Matrix Electronic Technology Co., LTD Agent Authorization Letter 2023-06-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Tao Yang Position: Certification Engineer Company Name: Matrix Electronic Technology Co., LTD Address: Room 801 Block B, #111 Fengcheng 5th Road Xi'an Shaanxi China Tel / Fax +8613389298588 / 029-86211122 E-Mail: [email protected]

Matrix Electronic Technology Co., LTD Long Term Confidentiality Request Letter 2023-06-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2BBL5-MA01) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: Tao Yang Position: Certification Engineer Company Name: Matrix Electronic Technology Co., LTD Address: Room 801 Block B, #111 Fengcheng 5th Road Xi'an Shaanxi China Tel / Fax +8613389298588 / 029-86211122 E-Mail: [email protected]

Model difference letter 2023.06.20 Dear MET Reviewer, This is a new Application fromMatrix Electronic Technology Co., LTD Model No.:elementS,elementS2,elementX2Pure,elementX2, element X2S, element X3, element M2, element M2S, element M3, element i2, element i2S, element i3, mini-i 4,mini-i Pro 4 Usemini-i Pro 4for all tests . Only difference in model names Thank you for your cooperation! Yours sincerely, Signatory: Name:Tao Yang Position:Certification Engineer Company Name: Matrix Electronic Technology Co., LTD Address:Room 801 Block B, #111 Fengcheng 5th Road Xi'an Shaanxi China Tel / Fax+8613389298588 /029-86211122 E-Mail:[email protected]

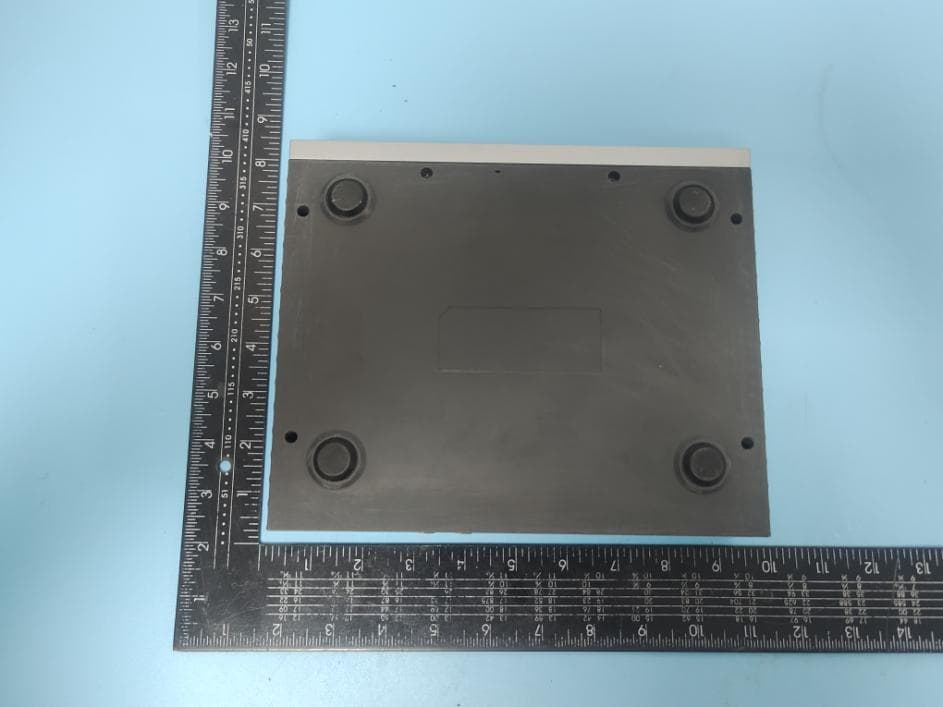

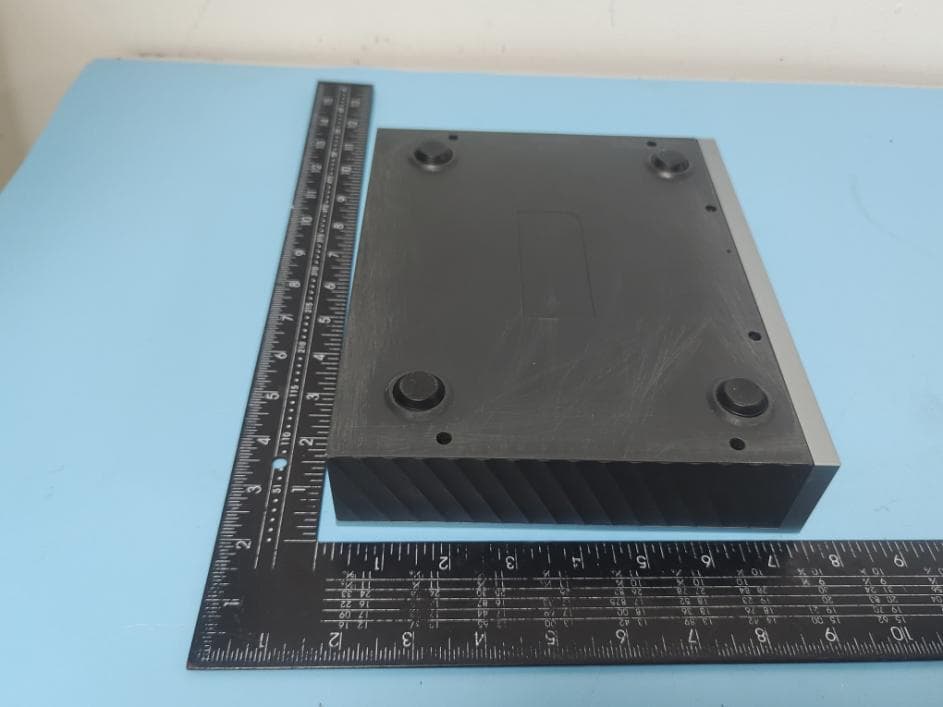

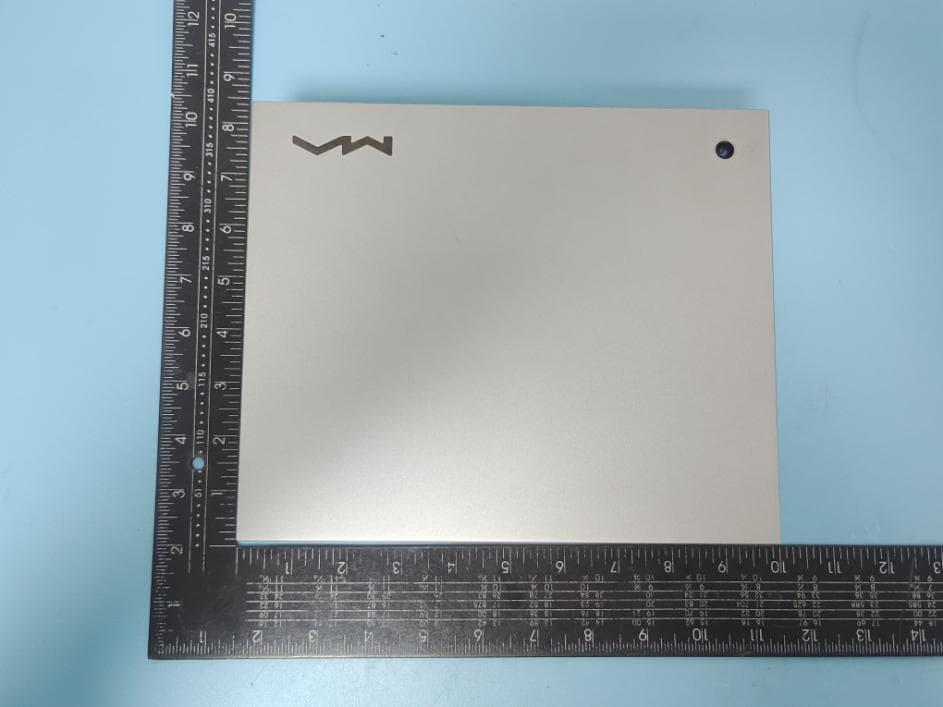

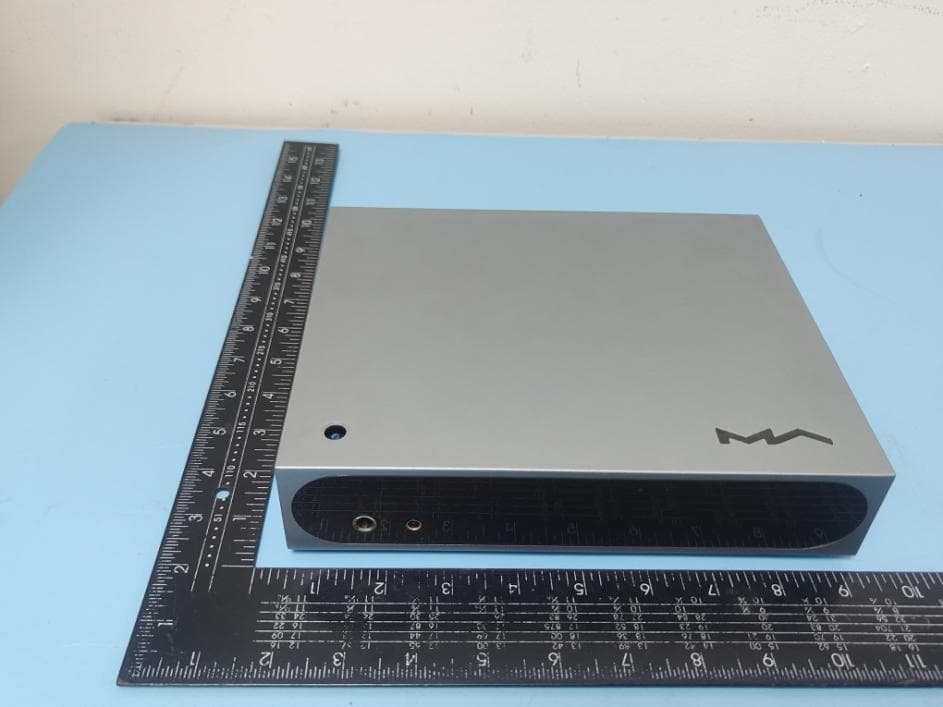

Model No.: mini-i Pro 4 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: mini-i Pro 4 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: mini-i Pro 4 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: mini-i Pro 4

Label: Product name: Music Streamer Product model: mini‐i Pro 4 FCC ID: 2BBL5‐MA01 Manufacturer :Matrix Electronic Technology Co., LTD Label location Size:50mm*30mm

Model No.: mini-i Pro 4 Page 1 of 4 INTERNAL PHOTO OF SAMPLE INTERNAL PHOTO OF SAMPLE PCB Model No.: mini-i Pro 4 Page 2 of 4 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Model No.: mini-i Pro 4 Page 3 of 4 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB WIFI Antenna Model No.: mini-i Pro 4 Page 4 of 4 INTERNAL PHOTO OF SAMPLE PCB

Shenzhen Most Technology Service Co., Ltd. East A, 1 floor of New Aolin Factory buiding, Langshan Erlu, North District, Hi-tech Industry Park, Nanshan,Shenzhen,Guangdong,China RF Exposure Evaluation Report Report Reference No. ..................... : FCC ID.. .......................................... : MTEB23060046-H 2BBL5-MA01 Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : Jun.06,2023 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Matrix Electronic Technology Co., LTD Address ............................................ : Room 801 Block B, #111 Fengcheng 5th Road Xi'an, Shaanxi, China Test specification/ Standard ..........: 47 CFR Part 1.1307;47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Music Streamer Trade Mark ....................................... : Matrix Audio Manufacturer .................................... : Matrix Electronic Technology Co., LTD Model/Type reference....................... : mini-i Pro 4 Listed Models .................................. : element S, element S2, element X2 Pure, element X2, element X2S, element X3, element M2, element M2S, element M3, element i2, element i2S, element i3, mini-i 4 Modulation Type ............................... : CCK/DSSS/ OFDM OFDM Operation Frequency ........................ : From 2412 - 2462MHz From 5180MHz-5240MHz Hardware Version .............................. V1.5 Software Version ............................... 1.0.1 build008 Rating ............................................... : 100V-240V~ 50/60Hz, 100W Result................................................ : PASS Report No.: MTEB23060046-H Page 2 of 7 T E S T R E P O R T Equipment under Test : Music Streamer Model /Type : mini-i Pro 4 Listed Models element S, element S2, element X2 Pure, element X2, element X2S, element X3, element M2, element M2S, element M3, element i2, element i2S, element i3, mini-i 4 Remark Difference in model names Applicant : Matrix Electronic Technology Co., LTD Address : Room 801 Block B, #111 Fengcheng 5th Road Xi'an, Shaanxi, China Manufacturer : Matrix Electronic Technology Co., LTD Address : Room 801 Block B, #111 Fengcheng 5th Road Xi'an, Shaanxi, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB23060046-H Page 3 of 7 1. Revision History Revision Issue Date Revisions Revised By 00 2023-06-06 Initial Issue Alisa Luo Report No.: MTEB23060046-H Page 4 of 7 2. SAR Evaluation 2.1 RF Exposure Compliance Requirement 2.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 2.1.2 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: MTEB23060046-H Page 5 of 7 2.1.3 EUT RF Exposure WIFI and BT do not support simultaneous transmission. Antenna Gain: 3.14dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.4 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: WIFI 2.4G 802.11b Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 17.37 17.37±1 18.37 Middle(2437MHz) 18.42 18.42±1 19.42 Highest(2462MHz) 15.98 15.98±1 16.98 802.11g Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 19.51 19.51±1 20.51 Middle(2437MHz) 17.59 17.59±1 18.59 Highest(2462MHz) 16.90 16.90±1 17.9 802.11n(H20) Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 19.36 19.36±1 20.36 Middle(2437MHz) 19.89 19.89±1 20.89 Highest(2462MHz) 17.04 17.04±1 18.04 802.11n(H40) Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2422MHz) 17.80 17.80±1 18.8 Middle(2437MHz) 19.53 19.53±1 20.53 Highest(2452MHz) 17.70 17.70±1 18.7 Report No.: MTEB23060046-…

Text truncated - open the document above for the full version.

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID. ........................................... : MTEB23060046 –R1 2BBL5-MA01 Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : Jun.06,2023 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Matrix Electronic Technology Co., LTD Address ............................................ : Room 801 Block B, #111 Fengcheng 5th Road Xi'an, Shaanxi, China Test specification ...........................: Standard ........................................... : FCC Part 15 Subpart E 15.407 Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Music Streamer Trade Mark ....................................... : Matrix Audio Manufacturer ................................... : Matrix Electronic Technology Co., LTD Model/Type reference....................... : mini-i Pro 4 Listed Models .................................. : element S, element S2, element X2 Pure, element X2, element X2S, element X3, element M2, element M2S, element M3, element i2, element i2S, element i3, mini-i 4 Ratings ............................................. : 100V-240V~ 50/60Hz, 100W Modulation ....................................... : OFDM Frequency .......................................... From 5180MHz-5240MHz Hardware version ............................. : V1.5 Software version .............................. : 1.0.1 build008 Result................................................ : PASS Report No.: MTEB23060046 –R1 Page 2 of 53 T E S T R E P O R T Equipment under Test : Music Streamer Model /Type : mini-i Pro 4 Listed Models element S, element S2, element X2 Pure, element X2, element X2S, element X3, element M2, element M2S, element M3, element i2, element i2S, element i3, mini-i 4 Remark Difference in model names Applicant : Matrix Electronic Technology Co., LTD Address : Room 801 Block B, #111 Fengcheng 5th Road Xi'an, Shaanxi, China Manufacturer : Matrix Electronic Technology Co., LTD Address : Room 801 Block B, #111 Fengcheng 5th Road Xi'an, Shaanxi, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB23060046 –R1 Page 3 of 53 Contents 1 REVISION HISTORY ................................................................ 4 2 TEST STANDARDS .................................................................. 5 3 SUMMARY ............................................................................. 6 3.1 General Remarks 6 3.2 Product Description 6 3.3 Equipment Under Test 6 3.4 Short description of the Equipment under Test (EUT) 6 3.5 EUT operation mode 7 3.6 Block Diagram of Test Setup 7 3.1 Test Item (Equipment Under Test) Description* 7 3.2 Auxiliary Equipment (AE) Description 7 3.3 Antenna Information* 7 3.4 Related Submittal(s) / Grant (s) 7 3.5 Modifications 8 4 TEST ENVIRONMENT ............................................................... 9 4.1 Address of the test laboratory 9 4.2 Test Facility 9 4.3 Environmental conditions 9 4.4 Test Description 10 4.5 Statement of the measurement uncertainty 10 4.6 Equipments Used during the Test 11 5 TEST CONDITIONS AND RESULTS ............................................ 12 5.1 AC Power Conducted Emission 12 5.2 Radiated Emissions 15 5.3 Conduction spurious emission 22 5.4 Maximum Conducted Average Output Power 23 5.5 Power Spectral Density 24 5.6 Emission Bandwidth (26dBm Bandwidth) 25 5.7 Minimum Emission Bandwidth (6dBm Bandwidth) 26 5.8 Frequency Stability 27 5.9 Duty Cycle Information 28 6 TEST SETUP PHOTOS OF THE EUT .......................................... 29 7 PHOTOS OF THE EUT ............................................................. 30 Report No.: MTEB23060046 –R1 Page 4 of 53 1 Revision History Revision Issue Date Revisions Revised By 00 2023-06-06 Initial Issue Alisa Luo Report No.: MTEB23060046 –R1 Page 5 of 53 2 TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15 Subpart E —Unlicensed National Information Infrastructure Devices ANSI C63.10-2013 : American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02: General UNII Test Procedures New Rules v01r02 Report No.: MTEB23060046 –R1 Page 6 of 53 3 SUMMARY 3.1 General Remarks Date of receipt of test sample : Jun.01,2023 Testing commenced on : Jun.02,2023 Testing concluded on : Jun.06,2023 3.2 Product Description Product Description: Music Streamer Model: mini-i Pro 4 Power supply: 100V-240V~ 50/60Hz, 100W Testing sample ID： MTYP01707 WIFI Supported type: 20MHz system 40MHz system 80MHz system 160MHz system 802.11a 802.11n 802.11n N/A N/A Operation frequency: 5180MHz-5240MHz5190MHz-5230MHzN/A N/A Modulation: OFDM OFDM N/A N/A Antenna type: FPC antenna Antenna gain: 3.91dBi 3.3 Equipment Under Test Power supply system utilised P…

Text truncated - open the document above for the full version.

Shenzhen Yangyue Electronic Communication Technology Co., Ltd 地址:东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 - 1 - SPECIFICATION FOR APPROVAL Customer Name 仁测 Product name WIFI 2.4G/5G 天线 Product number Prepared ByTony-Men Checked By Approved By Apply Date 2023 年 3 月 10 日 CUSTOMER SIGNATURE PreparedByCheckedByApprovedBy PLEASE RETURN TO US ONE COPY OF”SPECIFICATION FOR APPROVAL”WITH YOUR APPROVED SIGNATURES. Shenzhen Yangyue Electronic Communication Technology Co., Ltd 地址 :东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 - 2 - 频率范围 Frequency range 2400 ~ 2500 MHz 5150~5850MHz 增益 Gain 3.14dBi@2400 ~ 2500 MHz 3.91dBi@5150 ~ 5850 MHz 驻波比系数VSWR<2 .0 输入阻抗 Input Impedance50 ± 5 （Ω） 极化方式Polarization垂直极化Vertical Polarization 半功率波束（3dB） HPW180°H-plane 120°E-plane Shenzhen Yangyue Electronic Communication Technology Co., Ltd地址: 东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 - 3 - Revision History 1 Technical Summary This report summarizes the electrical results of the proposed antenna to support the 2.4GHz/5.8GHZ antenna program. We test the antenna with the latest version handset. And it seems to be acceptable. 2 General Description 2.1 Components/Part revisions VSWR: Voltage Standing Wave Rate. 3 Mechanical Description 4 Electrical Performance 4.1 Set-up 4.1.1VSWR VSWR measurements (S11) were performed using anAgilent 8753D NetworkAnalyzer and the previously described test fixture. Coaxial chokes were used to mitigate surface currents on the outside of the cabling. The testing was performed in free space. 4.1.2 Gain & Radiation Patterns The gain of the antenna was measured in the Lxc’s anechoic chamber. Coaxial chokes on the feed cable were used to mitigate surface currents. The chamber provides less than – 30 dB reflectivity from 300 MHz through 6 GHz and an 18” diameter spherical quite zone. The measurement results are calibrated using both dipole and leaky wave horn standards. 4.1.3 Matching Circuit Description No changed.. DateRevisionDescription of Changes 2022-11-10 RA Measured with 2.4GHz/5.8GHZ antenna sample. Shenzhen Yangyue Electronic Communication Technology Co., Ltd 地址:东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 - 4 - 5. Antenna - Radiation Pattern Test Data Shenzhen Yangyue Electronic Communication Technology Co., Ltd地址: 东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 - 5 - XYXZYZ Shenzhen Yangyue Electronic Communication Technology Co., Ltd地址: 东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 - 6 - ShenzhenYangyueElectronicCommunicationTechnologyCo.,Ltd 地址:东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 -7- XYXZYZ ShenzhenYangyueElectronicCommunicationTechnologyCo.,Ltd 地址:东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 -8- 6.Plots VSWR 注：驻波系数的标准值 注：回损的标准值 ShenzhenYangyueElectronicCommunicationTechnologyCo.,Ltd 地址:东莞市虎门镇大宁社区浦江路2号创富赢家产业园A栋6楼 -9- 3.史密斯图 ShenzhenYangyueElectronicCommunicationTechnologyCo., Ltd 地址:东莞市虎门镇大宁社区浦江路2 号创富赢家产业园A 栋 6 楼 - 10 - 6. Mechanicaldrawing

Model No.: mini-i Pro 4 CE TEST SETUP RE TEST SETUP Model No.: mini-i Pro 4 RE TEST SETUP
