2BBLE-UGB-260Wpower supply

1. Product Overview 1-1Introduction 1-2Accessories 2. Appearance Description 2-1 Technical Parameters 2-2 Protection 2-3 Material 2-4 Appearance and Interface 3. Operation Instructions Thank you for choosing USB-C PD+QC3.0 Charger. Please read carefully our User Manual before using it, if you have any problem when using, please contact our customer service, we'll solve it as soon as possible. And any suggestion warm welcomed. 1.Product Overview 1-1 Introduction 1.260W 5 port GaN Power Charger 2.USB-C1 Output: 3.3V-21V/5A or 5V/3A or 9V/3A or 12V/3A or 15V/3A or 20V/5A or 28V/5A(140W Max) 3. USB-C2 Output: 3.3V-21V/5A or 5V/3A or 9V/3A or 12V/3A or 15V/3A or 20V/5A(100W Max) 4.USB-C3 Output: 3.3V-21V/5A or 5V/3A or 9V/3A or 12V/3A or 15V/3A or 20V/5A(100W Max) 5.USB-A1 Output: 4.5V/5A or 5V/4.5A or 5V/3A or 9V/2A or 12V/1.5A(22.5W Max) 6.USB-A2 Output: 4.5V/5A or 5V/4.5A or 5V/3A or 9V/2A or 12V/1.5A(22.5W Max) USB-C2+USB-C3 Output: 45W+45W USB-A1+USB-A2 Output: 12W+12W Total Output: 260W Max Wireless Output: 15W, 10W, 7.5W, 5W 7.Full speed charging 5 devices at the same time conversion rate. 9.elegant, durable, heat eliminable. 10.Over-load, Over-voltage, over-current and short circuit protection. 11.Compact and unique appearance design by our own, without any gap. 12.Guaranteed Safety: Premium materials and built-in fail-safes keep you and your device protected against shorts. User Manual Model: 868D,818H,UGB-260W,UGB-160W 260W 5 Ports PD+QC3.0 Charger 2-3 Material Plastic Housing: PC+Fireproof material 2-4 Appearance and Interface USB-C1 Output: 3.3V-21V/5A or 5V/3A or 9V/3A or 12V/3A or 15V/3A or 20V/5A or 28V/5A(140W Max) USB-C2/C3 Output: 3.3V-21V/5A or 5V/3A or 9V/3A or 12V/3A or 15V/3A or 20V/5A(100W Max) USB-A Output: 4.5V/5A or 5V/4.5A or 5V/3A or 9V/2A or 12V/1.5A(22.5W Max) wireless Output: 15W, 10W, 7.5W, 5W Connect to alternating current, could charge AC cable 3. Operation Instruction As above picture showed, connect to alternating current AC 100-240V , then 260W 5 ports GaN Power Charger will work. Our item is suitable to use in AC 100-240V constant alternating current, if higher or lower voltage is unsuitable 2. Appearance Description 2-1 Technical Parameters Input Voltage: 100-240V~ 50/60Hz USB-C1 Output: 3.3V-21V/5A or 5V/3A or 9V/3A or 12V/3A or 15V/3A or 20V/5A or 28V/5A(140W Max) USB-C2 Output: 3.3V-21V/5A or 5V/3A or 9V/3A or 12V/3A or 15V/3A or 20V/5A(100W Max) USB-C3 Output: 3.3V-21V/5A or 5V/3A or 9V/3A or 12V/3A or 15V/3A or 20V/5A(100W Max) USB-A1 Output: 4.5V/5A or 5V/4.5A or 5V/3A or 9V/2A or 12V/1.5A(22.5W Max) USB-C2+USB-C3 Output: 45W+45W USB-A1+USB-A2 Output: 12W+12W Total Output: 260W Max Wireless Output: 15W, 10W, 7.5W, 5W 2-2 Protection Output Short Circuit Protect: on short circuit protection situation, our item will stop charging to protect devices Over Voltage Protection: protection system will be started 1-2 Accessories 260W 5 port GaN Power Charger 1EA AC Cable (1M) 1EA Color box 1EA User Manual 1EA 260W FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. responsible for compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The distance between user and products should be no less than 20cm

COMPANY LETTERHEAD Covered Equipment Certification Attestation Letter 10/7/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakla nd Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BBLE-UGB-260W ShenZhen Ugoodbuy Technology limited (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List , the applicant should include an explanation on why the equipment is not “covered” equipment. ShenZhen Ugoodbuy Technology limited (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Gary Gan Title: Manager Company Name: ShenZhen Ugoodbuy Technology limited Date: 10/7/2023

ShenZhen Ugoodbuy Technology limited * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 10/7/2023 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BBLE-UGB-260W FRN of Grantee: 0033866872 Per section 2.911(d)(7) of the FCC rules, ShenZhen Ugoodbuy Technology limited. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Stariver Consulting Company FCC Registration Number (FRN): 0033400433 U.S. Company Address: 2363 James St #1098 Syracuse, NY 13206, USA Agent Name: Chong He Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Gary Gan Title: Manager Company Name: ShenZhen Ugoodbuy Technology limited Date: 10/7/2023 Agent Signed: Signed: Printed name: Chong He Title: Manager Company Name: Stariver Consulting Company Date: 10/11/2023

DATE: 2023-10-07 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint DONGGUAN SHUOXIN ELECTRONIC TECHNOLOGY CO., LTD. Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China (Name of Agent company name and address) to actas our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agentsigns the application for certification on our behalf, Iacknowledge that all responsibility for complying with the terms and conditions for certification, still resides with ShenZhen Ugoodbuy Technology limited.; Floor 4 , Trade Plaza NO.1, China South CityPinghu Town,Longgang District, Shenzhen China. <Signature> Name: Gary Gan Title: Manager Applicant Company: ShenZhen Ugoodbuy Technology limited

DATE : 2023-10-07 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BBLE-UGB-260W Product Name: power supply Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Gary Gan Title: Manager Applicant Company: ShenZhen Ugoodbuy Technology limited

ShenZhen Ugoodbuy Technology limited Model Declaration letter We hereby declares: Product name: power supply Model: 868D,818H,UGB-260W,UGB-160W Trade Mark: All model’s the function, appearance, software, electric circuit, PCB layout and interior structure are the same except model name. The different models are designed for marketing. Company name: ShenZhen Ugoodbuy Technology limited Company address: Floor 4 , Trade Plaza NO.1, China South CityPinghu Town, Longgang District, Shenzhen China Place, Date, Signature: 2023.10.07 Name: Gary Gan

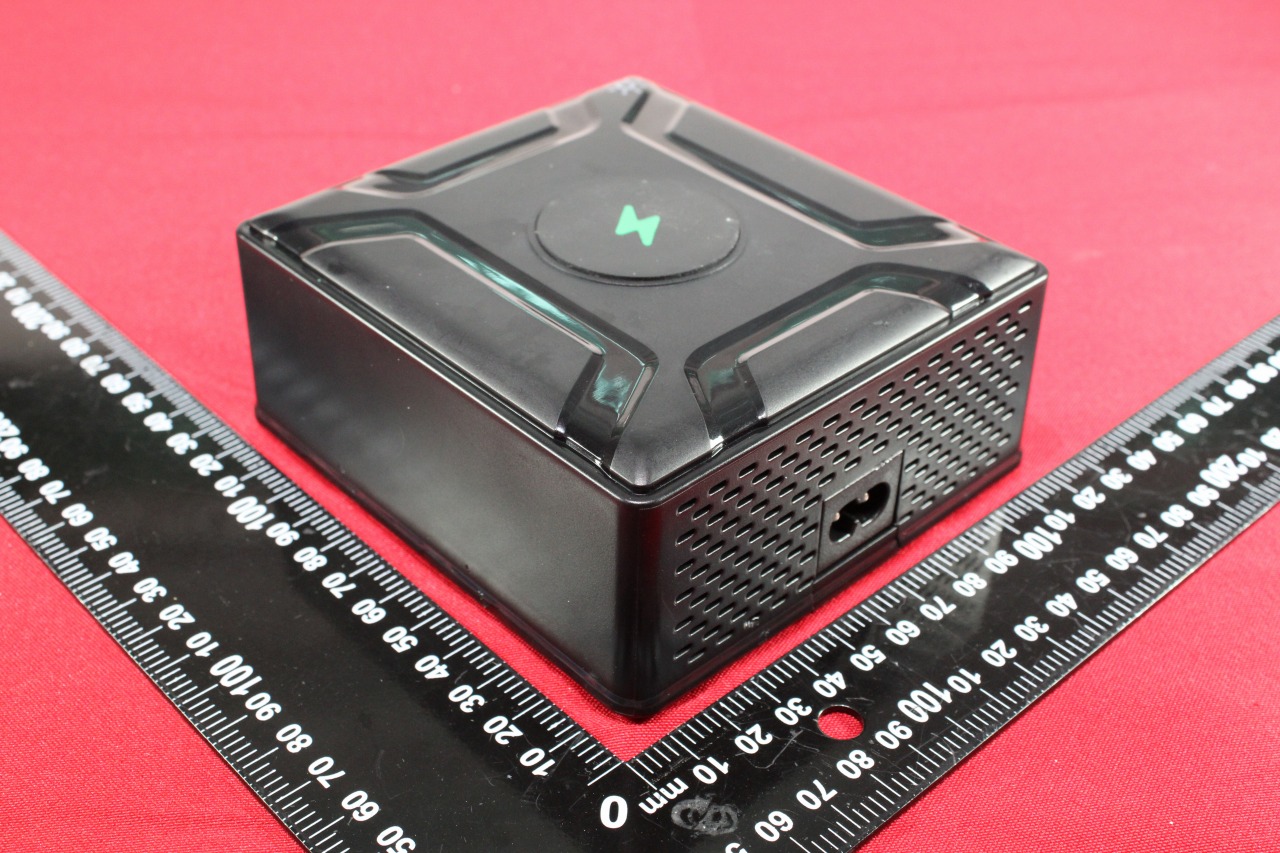

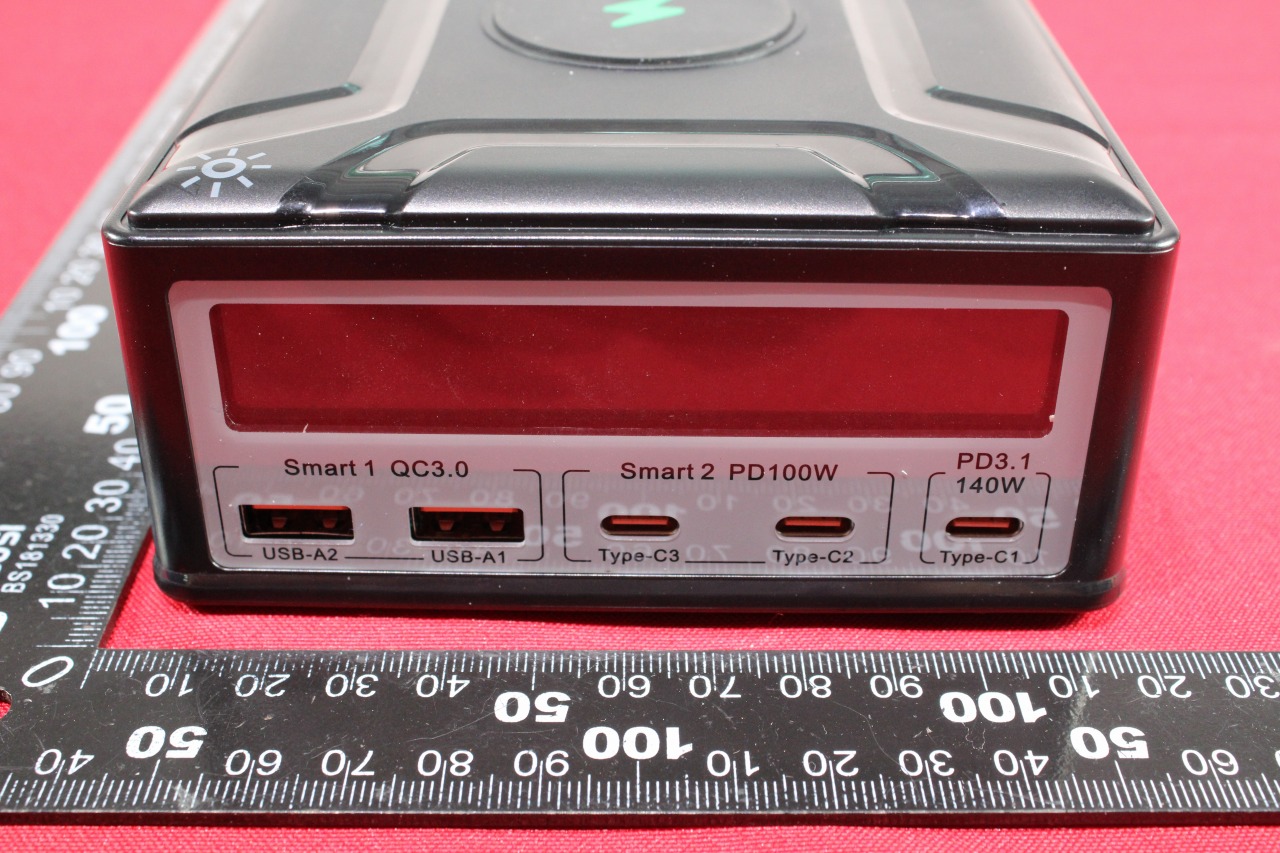

1 / 2 External photos 2 / 2 END

Label Location silk-screen Label Location

1 / 4 Internal photos 2 / 4 3 / 4 4 / 4 ----------------------- BLANK BELOW -------------------------

Report No.: 23EFSS05050 04051 Page 1 / 7 RF EXPOSURE REPORT FCC ID: 2BBLE-UGB-260W Report Reference No. ...................... : 23EFSS05050 04051 Date Sample(s) Received ................ : 2023-05-15 Date of Tested .................................. : From 2023-05-15 to 2023-06-06 Date of issue .................................... : 2023-06-06 Applicant’s name .............................. : ShenZhen Ugoodbuy Technology limited Address ............................................ : Floor 4 , Trade Plaza NO.1, China South CityPinghu Town, Longgang District, Shenzhen China Manufacturer .................................... : ShenZhen Ugoodbuy Technology limited Equipment ........................................ : power supply Trade Mark ....................................... : Ugoodbuy Model .............................................. : 868D,818H,UGB-260W,UGB-160W Ratings ............................................. : Input: AC 100V-240V 3A Max Wireless Output: 15W max Testing Laboratory............................ : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ............................................ : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China According ......................................... : FCC CFR 47 part1,1.1310 KDB680106 D01v03R01 Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 23EFSS05050 04051 Page 2 / 7 1,GENERAL DESCRIPTION OF EUT Equipment power supply Brand Name Ugoodbuy Test Model UGB-260W Series Model 868D,818H,UGB-260W,UGB-160W Model Difference(s) The differences between models are the same except for the differences in model name. Hardware Version V1.0 Software Version V1.0 PowerSource Input: AC 100V-240V 3A Max Operation Frequency 110.5kHz-205kHz Modulation Technology FSK Antenna Information Antenna Type:Coil Maximum Peak Gain: 0dBi Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A UGB-260W Coil N/A 0 1.1, MEASUREMENT UNCERTAINTY Test Item Uncertainty H-filed ±1.3μT E-filed ±12% Report No.: 23EFSS05050 04051 Page 3 / 7 2, MAXIMUM PERMISSIBLE EXPOSURE 2.1 EPUITMENT LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Electromagnetic field strength analyzer Narda ELT-400 L-0019 2023.11.23 2 Three-dimensional omnidirectional electric and magnetic field combo probe Narda ELT N/A 2023.11.23 2.2 MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Exposure Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310, 680106 D01 RF Exposure Wireless Charging Apps v03 Note 3: Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Note 4: The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Report No.: 23EFSS05050 04051 Page 4 / 7 2.3 TEST PROCEDURE a. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 20 cm (Top) and 15cm (Edge). E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 20 cm(Top) and 15cm(Edge) measured from the center of the probe(s) to the edge of the device. The test system was pre-tested based on the consideration of all possible combinations of EUT operation mode. Pretest Mode Description Mode 1 Wirless Charging Following mode(s) as (were) found to be the worst case(s) and selected for the final test. Final Test Mode Description Mode 1 Wirless Charging Report No.: 23EFSS05050 04051 Page 5 / 7 2.4 TEST SETUP 2.5 SUPPORT UNITS Item Equipment Brand Model No. Series No. AE1 Intelligent wireless charging full function test module YBZ QI TI 1000MA / 2.6 TEST RESULTS The EUT does comply with item 5 KDB680106 D01 v03. (1) Power transfer frequency is less than 1 MHz (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Report No.: 23EFSS05050 04051 Page 6 / 7 2.7 MAXIMUM PERMISSIBLE EXPOSURE Maximum Permissible Exposure Charging Separation Probe from EUT Side E-field (V/m) H-field (A/m) < 1% Battery 15cm Front 5.123 0.125 < 1% Battery 15cm Rear 5.546 0.131 < 1% Battery 15cm Left 5.381 0.128 < 1% Battery 15cm Right 5.754 0.126 < 1% Battery 20cm Top 5.356 0.139 Limit 614 1.63 Margin Limit (%) 0.87% 8.53% Maximum Permissible Exposure Charging Separation Probe from EUT Side E-field (V/m) H-field (A/m) 50% Battery 15cm Front 5.382 0.136 50% Battery 15cm Rear 5.164 0.158 50% Battery 15cm Left 5.156 0.141 50% Battery 15cm Right 5.239 0.167 50% Battery 20cm Top 5.376 0.126 Limit 614 1.63 Margin Limit (%) 0.88% 7.73% Maximum Permissible Exposure Charging Separation Probe from EUT Side E-field (V/m) H-field (A/m) ＞99% Battery 15cm Front 5.365 0.132 ＞99% Battery 15cm Rear 5.582 0.123 ＞99% Battery 15cm Left 5.763 0.168 ＞99% Battery 15cm Right 5.264 0.161 ＞99% Battery 20cm Top 5.366 0.158 Limit 614 …

Text truncated - open the document above for the full version.

东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD 承 认 书 客户名称(CUSTOMER): 客户料号(PART NO.): 品 名(DESCRIPTION): 规格(SPECIFICATION): 东莞市石碣镇新风西路107号 电话：0769-86016320 传真：0769-86372427 第 1 页 共 2 页 日 期(DATE): 19x19,0.08×105P丝包线，磁边起60MM 20230614 SPECIFICATION FOR APPROVEAL 本司确认（TRX APPROVAL） 制作 审核 客户确认（CUSTOMER APPROVAL） 确认结果(Result): 合格不合格 其它 承认日期 工程 批准 承认日期 曾小仙 邱志辉 20230614 线圈+磁片 HHW 838W HHW0-Y19×19-60-FR F 48.0±1.5 C D G H E 50.0±1.0 0.8±0.2 产品型号: SPECIFICATION 二、原理图（schematic diagram:） 拟制/日期PREPARED BY/DATE 审核/日期CHECKED BY/DATE 东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD DESC Rev:A 版本 Customer: Date: Description: 一、尺寸DIMENSION:(mm) A B C D E F G I 注: 三、绕线参数(WindingSpecification:) 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 四、电气特性 ELECTRICAL CHARACTERISTICS: 温度 TEMPERATURE:25±10°C,湿度 RELATIVE HUMIDITY:65±20% 序号 NO. 客户/日期CUSTOMEU/DATE 端子 TERMINAL 项目 ITEM 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 2 3 4 IND. IND. Q值 DCR 20230614 19.0±1.0 19.0±1.0 1 0.08×105P丝包线 12TS 逆时针 1.线圈贴G50*0.8硬磁 2.线圈出线位置缠8MM 高温胶带 3.磁片贴白色带耳朵双 面胶 4.线圈不可松线 J K L 60.0±2.0 M N O P 10uH±10%加磁片 100KHz/1.0V SHDA 1062 H 线圈+磁片 48.0±1.5 2-4 HHW0-Y19×19-60-FR HHW 838W A B

Report No.: 23EFSS05050 04041 Page 1 of 22 FCC Radio Test Report FCC ID: 2BBLE-UGB-260W The report concerns: Original Grant Report Reference No. ....................... : 23EFSS05050 04041 Date Sample(s) Received ................. : 2023-05-15 Date of Tested ................................... : From 2023-05-15 to 2023-06-06 Date of issue ..................................... : 2023-06-06 Testing Laboratory ............................ : DongGuanShuoXin Electronic Technology Co., Ltd. Address ............................................. : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name .............................. : ShenZhen Ugoodbuy Technology limited Address ............................................. : Floor 4 , Trade Plaza NO.1, China South CityPinghu Town, Longgang District, Shenzhen China Manufacturer ..................................... : ShenZhen Ugoodbuy Technology limited Equipment ......................................... : power supply Trade Mark........................................ : Ugoodbuy Model .............................................. : 868D,818H,UGB-260W,UGB-160W Ratings .............................................. : Input: AC 100V-240V 3A Max Wireless Output: 15W max Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 23EFSS05050 04041 Page 2 of 22 Table of Contents Page 1 . TEST REPORT DECLARE 3 2 . SUMMARY OF TEST RESULTS 4 2.1 MEASUREMENT UNCERTAINTY 5 3 . GENERAL INFORMATION 6 3.1 GENERAL DESCRIPTION OF EUT 6 3.2 DESCRIPTION OF TEST MODES 7 3.3 BLOCKDIAGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED 8 3.4 SUPPORT UNITS 8 3.5 TEST ENVIRONMENT CONDITIONS 8 4 .AC POWER LINE CONDUCTED EMISSIONS TEST 9 4.1 LIMIT 9 4.2 TEST PROCEDURE 9 4.3 MEASUREMENT INSTRUMENTS LIST 9 4.4 TESTSETUP 10 4.5 EUT OPERATING CONDITIONS 10 4.6 TEST RESULTS 11 5 . RADIATED EMISSION TEST 13 5.1 LIMIT 13 5.2 TEST PROCEDURE 14 5.3 MEASUREMENT INSTRUMENTS LIST 15 5.4 TESTSETUP 15 5.5 EUT OPERATING CONDITIONS 16 5.6 TEST RESULT- 9KHZ TO 30MHZ 17 5.7 TEST RESULT- 30MHZ TO 1000MHZ 19 6 .20DB BANDWIDTH TEST 21 6.1 LIMIT 21 6.2 TEST PROCEDURE AND SETTING 21 6.3 MEASUREMENT INSTRUMENTS LIST 21 6.4 TEST SETUP 21 6.5 EUT OPERATION CONDITIONS 21 6.6 TESTRESULTS 22 Report No.: 23EFSS05050 04041 Page 3 of 22 1. TEST REPORT DECLARE Applicant ShenZhen Ugoodbuy Technology limited Address Floor 4 , Trade Plaza NO.1, China South CityPinghu Town, Longgang District, Shenzhen China Manufacturer ShenZhen Ugoodbuy Technology limited Address Floor 4 , Trade Plaza NO.1, China South CityPinghu Town, Longgang District, Shenzhen China Factory ShenZhen Ugoodbuy Technology limited Address Floor 4 , Trade Plaza NO.1, China South CityPinghu Town, Longgang District, Shenzhen China Equipment Name power supply Model No. 868D,818H,UGB-260W,UGB-160W Trade Mark Ugoodbuy Standard FCC Part15, Subpart C We Declare: The equipment described above is tested by DongGuan ShuoXin Electronic Technology Co., Ltd(ATT). and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuan ShuoXin Electronic Technology Co., Ltd.(ATT) is assumed of full responsibility for the accuracy and completeness of these tests. ATT is not responsible for the sampling stage, so the results only apply to the sample as received. ATT's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. ATT shall have no liability for any declarations, inferences or generalizations drawn by the client or others from ATT issued reports. Report No.: 23EFSS05050 04041 Page 4 of 22 2. SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 - AC Power Line Conducted Emissions PA SS ------ 15.209(a) - Radiated Emissions PA SS ------ 15.203 - Antenna Requirement PA SS Note(2) 15.215 - 20dB Bandwidth PA SS Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient tocomply with the provisions of 15.203. Report No.: 23EFSS05050 04041 Page 5 of 22 2.1MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conductionemission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Polarize: H) Uncertainty for Radiation Emission test (200MHz-1GHz) 6.10 dB (Polarize: V) 5.08 dB (Polarize: H) Uncertainty for Radiation Emission test (1GHz-6GHz) 5.01 dB (Polarize: V) 5.01 dB (Polarize: H) Uncertainty for Radiation Emission test (6GHz-18GHz) 5.26 dB (Polarize: V) 5.26 dB (Polarize: H) Uncertainty for Radiation Emission test (18GHz-40GHz) 5.06 dB (Polarize: V) 5.06 dB (Polarize: H) Uncertainty for radio frequency ±0.048kHz Uncertainty for conducted RF Power ±0.32dB Note: This uncertainty represents an expanded uncertainty expressed at approximately the 95%confidence level using a coverage factor of k=2. Report No.: 23EFSS05050 04041 Page 6 of 22 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment power supply Test Model UGB-260W Brand Name Ugoodbuy Series Model 868D,818H,UGB-260W,UGB-160W Model Difference(s) The differences between models are the same except for the differences in model name. Hardware Version V1.0 Software Version V1.0 PowerSource Input: AC 100V-240V 3A Max Operation Frequency 110.5kHz-205kHz Modulation Technology FSK Antenna Information Antenna Type:Coil Maximum Peak Gain: 0dBi Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. Report No.: 23EFSS05050 04041 Page 7 of 22 3.2DESCR…

Text truncated - open the document above for the full version.

1 / 2 Test Setup 9kHz-30MHz Below 1GHz 2 / 2 Conducted Emission END
