2BBLIOW234SUUNTO RUN

產品功能通用介紹 1主要交互框架類Mainuserexperienceinteractionframeworkclass 1.1按鍵Button A錶盤頁面Watchfacepage UI 介紹Introduction 點擊上按鍵：打開運動準備頁面，並定位到上一次運動的設置 Clickthetopbutton:Opentheexercisepreparationpageandlocatethesettingsofthelastexercise. 點擊下按鍵，觸發Back。所以，在錶盤頁面，該按鍵沒有實際效果。 ClickthebottombuttontotriggerBack.Therefore,onthewatchfacepage,thisbuttonhasnoactualeffect. 長按上按鍵或者下按鍵：打開用戶設置好的快捷應用 Longpresstopbuttonorbottombutton:Openthequickapplicationsetbytheuser 點擊表冠：打開運動列表頁面。 ClicktheCrown:Opentheexerciselistpage. 長按表冠：打開設置頁面。LongpresstheCrown:OpentheSettingspage. 滾動表冠：打開miniwigets列表並支持迴圈滾動。 Scrollcrown:Opensthelistofminiwigetsandsupportsloopscrolling. B非錶盤頁面Notinwatchfacepage UI 介紹Introduction --長按上按鍵：無特殊說明時，一般無功能 Longpressthetopbutton:Generallynofunctionwhenthereisnospecialinstruction —短按上按鍵：若有定義則執行對應功能；無特殊說明，則無功能 Clickthetopbutton:ifthereisadefinition,thecorrespondingfunctionisexecuted. Ifthereisnospecialdescription,thereisnofunction. — 短按表冠：確認 / 選擇 / 進入下一級頁面——視頁面規則而定 Clickthecrown:Confirm/Select/Enterthenextpage-dependingonthepagerules —短按下按鍵：無特殊定義時，短按為返回上一頁 Clickthebottombutton:ifthereisnospecialdefinition,shortPressreturnstothe previouspage -- 長按下按鍵：無特殊定義時，長按為回到錶盤頁 Longpressbottombutton:whenthereisnospecialdefinition,longpressistoreturn tothewatchfacepage C 特殊說明 Specialdescription ●關機狀態下，長按表冠5秒可以開機。 ●Inthepoweroffstate,pressthecrownfor5secondstostartthemachine. ● 開機狀態下，長按上按鍵 10 秒執行強制重啟的命令。 ●Inthepoweronstate,pressthetopbuttonfor10secondstoexecutetheforcedrestartcommand. 1.2錶盤Watchface UI 介紹Introduction 錶盤是手錶最常用的功能。錶盤除了幫助用戶提供當前的時刻資訊外，還可以為用戶提供更多的關鍵數據的資訊，如電量、日落、 步數等。 不同的錶盤有不同的數據模組可以定制，也有不同的主題色可以定制。用戶可以在“設置”中對錶盤進行個性化的定制。 另外，錶盤支持始終顯示，可以全天候進行顯示。 Thewatchfaceisthemostcommonlyusedfunctionofawatch.Inadditiontohelpingusersprovidethecurrentmomentinformation,the watchfacecanalsoprovideuserswithmorekeydatainformation,suchasbattery,sunset,steps,andsoon. Differentwatchfaceshavedifferentdatamodulesthatcanbecustomized,andtherearedifferentthemecolorsthatcanbecustomized. Userscancustomizethewatchfaceinthe"Settings". Inaddition,thewatchfacesupportsalwaysondisplay. 用戶可以在“設置”中選擇自己喜歡的錶盤，並選擇自己喜歡的主題色，還可以定義錶盤中的數據模組具體展示什麼內容。 Userscanchoosethewatchfacetheylikeandthethemecolortheylikeinthe"Settings",andcanalsodefinewhatthedatamoduleinthewatchfacedisplays. 選擇喜歡的錶盤 Selectthewatchfaceyoulike 選擇主題色Selectathemecolor定義數據模組Definedatamodules 數據模組示例Datamodulesdemo 特別的，當用戶將運動、導航或者音樂置於後臺運行或進行充電時，在錶盤上會有圖示提示。 Inparticular,whentheuserputssports,navigationormusicinthebackgroundtorunorcharge,therewillbeaniconpromptonthewatchface. 1.3小組件列表Widgetslist UI 介紹 Introduction Widgetlist的進入方式： 1 、在錶盤頁，通過表冠的上下旋轉進入 widgetlist 2、在錶盤頁，上下滑動螢幕進入 Widgetlist 作為一個循環的列表。 Widgetslist 可以展示很多應用程式的精簡的入口，以便於用戶可以通過輕輕一瞥來快速獲取到對應功能的關鍵 數據指標。這樣，用戶就不用進入應用中去查看對應的數據指標了，大大提升了流覽的效率。 需要注意，並非所有的應用都具有小組件的形態，比如“查找手機”、“手電筒”等功能型的應用。 Widgetslist的編輯方式： 用戶在 Widgetslist 頁面短按上按鍵可進入編輯頁面，選擇需要展示的 Widgets 。注意，列表最多展示 7 個小 組件，最少展示1個小組件（控制面板）。 所有應用的入口： Widgets列表的最下方的入口可以打開所有應用的列表。 注：運動功能不在該列表中展示。支付寶的支付功能僅中國大陸版中可見。 Thewaytoenterthewidgetlist: 1.Whenonthewatchfacepage,enterthewidgetlistbyrotatingthecrownupanddown 2.Whenonthewatchfacepage,slidethescreenupanddowntoenterthislist. Thewidgetlistisacircularlist. Widgetslistprovidesasimplifiedentryformanyapplications,sothatuserscanquicklyobtainthekeydataindicators ofthecorrespondingfunctionbyaglance.Inthisway,usersdonothavetogototheapplicationtoviewthe correspondingdataindicators,greatlyimprovingthebrowsingefficiency. Itshouldbenotedthatnotallapplicationshavetheformofwidgets,suchas"Findmyphone"and"Flashlight". Widgetslisteditingmethod: Userscanentertheeditingpagebypressingthetopbuttononthewidgetslistpageandselectthewidgetstobe displayed.Notethatthelistdisplaysamaximumofsevenwidgetsandaminimumofonewidget(controlpanel). Entryforallapplications: TheentryatthebottomoftheWidgetslistopensalistofallapplications. Note:Thesportfunctionisnotdisplayedinthislist.ThepaymentfunctionofAlipayisonlyavailableinmainland China. 1.4App列表AppList UI 介紹Introduction 通過 WidgetsList 的列表打開“全部應用”頁面，會看到手錶內所有的應用程式。分別為 訓練類的應用： ●訓練量 恢復 ●進展 ●運動記錄 ●測評實驗室 戶外類的應用： ●日與月 ●指南針 ●海拔和氣壓 ●導航 通用類的應用： ●步數與卡路里 ●心率 ●血氧 ●睡眠 ●呼吸 ●天氣 ●鬧鐘 ●碼錶 ●媒體播放器 ●通知 ●手電筒 ●查找手機 ●支付寶 ●設置 注：運動功能不在該列表中展示。支付寶的支付功能僅中國大陸版中可見。 Openthe"AllApps"pagethroughthebottomofthewidgetslist,andyouwillseealltheapplicationsinthewatch. Theyare: Trainingtype: ●Trainingvolume ●Recovery ●Progress ●Logbook ●Evaluationlab Outdoortype: ●Sun&moon ●Compass ●Alti&baro ●Navigation Generaltype: ●Steps&calories ●Heartrate ●Bloodoxygen ●Sleep ●Breathe ●Weather ●Alarmclock ●Stopwatch ●Mediaplayer ●Notification ●Flashlight ●Findmyphone ●Alipay ●Settings Note:Thesportfunctionisnotdisplayedinthislist.ThepaymentfunctionofAlipayisonlyavailableinmainland China. 2關鍵設置項Keysettingsclass 2.1通用設置Generalsettings UI 介紹 Introduction 在“關於”中，用戶可以查看手錶的基礎資訊，如型號資訊、認證資訊、電子標籤等。 ●在“軟體更新”中，用戶可以在連接App的情況下升級到最新的軟體系統版本。 ●在“時間 / 日期”中，用戶可以根據自己的需求調整手錶的時刻。 ●在“語言”中，用戶可以切換自己熟悉的語言，目前我們支持的語言有： ○英語、簡體中文、繁體中文、捷克語、丹麥語、德語、希臘語、西班牙語、芬蘭語、法語、義大利語、日語、 朝鮮語、荷蘭語、挪威語、波蘭語、葡萄牙語、俄語、瑞典語、土耳其語、希伯來語、泰語、越南語。 ●在“單位系統”中，用戶可以選擇是公制單位還是英制單位。 ●在“個人”中，用戶可以更改自己的性別、年齡、體重、身高數據。我們建議用戶填寫真實的數據，因為這 樣會讓我們輸出的諸如 VO2Max 等訓練效果數據更加準確。 ●“省電模式”可以幫助用戶臨時調整手錶的功能策略，來達到降低耗電的目的。在該模式下，震動基本會全 部被遮罩，全天心率測量的頻率也會降低，螢幕的亮度也會變低，抬腕喚醒和始終顯示也會被臨時關閉。 ●“恢復出廠設置”會清空手表的所有數據，軟體恢復成全新的狀態。 ●●“重啟”可以實現重啟功能；“關機”可以實現關機功能，用戶可以通過長按表冠再次開機。 ●In"About",userscanviewthebasicinformationofthewatch,suchasmodelinformation,certification information,etc. ●In"SoftwareUpdate",userscanupgradetothelatestsoftwaresystemversionwhileconnectingtotheApp. ●Inthe"Time/Date",userscanadjustthetimeofthewatchaccordingtotheirneeds. ●In"Language",userscanswitchtheirownfamiliarlanguage,currentlywesupportthelanguageare: ○English,SimplifiedChinese,TraditionalChinese,Czech,Danish,German,Greek,Spanish,Finnish,French, Italian,Japanese,Korean,Dutch,Norwegian,Polish,Portuguese,Russian,Swedish,Turkish,Hebrew,Thai, Vietnamese. ●Inthe"UnitSystem",userscanchoosebetweenmetricorimperialunits. ●In"Personal",userscanchangetheirgender,age,weight,heightdata.Werecommendthatusersfillinrealdata, asthiswillmakeouroutp…

Text truncated - open the document above for the full version.

SUUNTORunSafetyRegulatory Title SUUNTORun Model:OW234 Safetymatters. Productsafety&regulatoryinformation SAFETYANDREGULATORYINFORMATION SAFETYANDREGULATORYINFORMATION INTENDEDUSE SuuntoRunisasportswatchthattracksyourmovementandothermetrics,suchasheartrateand calories.SuuntoRunisonlyforrecreationaluseandnotmeantformedicalpurposesofanykind. OPTICALHEARTRATE Opticalheartratemeasurementfromthewristisaneasyandconvenientwaytotrackyourheartrate. Bestresultsforheartratemeasurementmaybeaectedbythefollowingfactors: •Thewatchmustbeworndirectlyagainstyourskin.Noclothing,howeverthin,canbebetweenthe sensorandyourskin. •Thewatchmayneedtobehigheronyourarmthanwherewatchesarenormallyworn.Thesensor readsbloodflflowthroughtissue.Themoretissueitcanread,thebetter. •Armmovementsandflflexingmuscles,suchasgrippingatennisracket,canchangetheaccuracyofthe sensorreadings. •Whenyourheartrateislow,thesensormaynotbeabletoprovidestablereadings.Ashortwarmupof afewminutesbeforeyoustarttherecordinghelps. •Skinpigmentationandtattoosblocklightandpreventreliablereadingsfromtheopticalsensor. •Theopticalsensormaynotprovideaccurateheartratereadingsforswimmingandfreedivingactivities. •Forhigheraccuracyandquickerresponsestochangesinyourheartrate,werecommendusinga compatiblechestheartratesensorsuchasSuuntoSmartSensor. WARNING:Theopticalheartratefeaturemaynotbeaccurateforeveryuserduringeveryactivity. Opticalheartratemayalsobeaectedbyanindividual’suniqueanatomyandskinpigmentation.Your actualheartratemaybehigherorlowerthantheopticalsensorreading. WARNING:Onlyforrecreationaluse;theopticalheartratefeatureisnotformedicaluse. SAFETY WARNING:Alwaysconsultadoctorbeforebeginningatrainingprogram.Overexertionmaycause seriousinjury. WARNING:Allergicreactionorskinirritationsmayoccurwhenproductsareincontactwithskin,even thoughourproductscomplywithindustrystandards.Insuchevent,stopuseimmediatelyandconsulta doctor. DEVICEINFO Tocheckthehardware,softwareandcertificationdetailsofyourwatch,completethefollowingsteps: Whenonthewatchface: 1.LongpressthemiddlebuttontoenterSettings. 2.PressthemiddlebuttontoenterGeneral. 3.PressthemiddlebuttonagaintoopenAboutwhereyoufinddeviceinformationande-labels. OPERATINGCONDITIONS •Altituderange:0to10000m/0to30000ftabovesealevel •Operatingandstoragetemperature(abovesealevel):-20°Cto+55°C/-4°Fto+131°F NOTE:Donotleavethewatchindirectsunlight! •Recommendedchargingtemperature:0°Cto+45°C/+32°Fto+113°F •Waterresistance:50m/164ft/5bar WARNING:Donotexposethedevicetotemperaturesaboveorbelowthegivenlimits,otherwiseit mightgetdamagedoryoumightbeexposedtosafetyrisk. BATTERY •Type:rechargeableLithium-ionbattery •Batteryvoltage:3.87Vdc •Charging:USB5Vdc,0.5A HANDLINGGUIDELINESANDMAINTENANCE DonottrytoopenorrepairyourSuuntodevicebyyourself.Ifyouareexperiencingproblemswiththe device,pleasecontactyournearestauthorizedSuuntoservicecenter. WARNING:ENSURETHEWATERRESISTANCEOFTHEDEVICE!Moistureinsidethedevicemay seriouslydamagetheunit.OnlyanauthorizedSuuntoservicecentershoulddoserviceactivities. NOTE:DonotleaveyourSuuntodeviceimmersedinwater(forrinsing). WARNING:UseonlyoriginalSuuntoaccessories–damagecausedbynon-originalaccessoriesisnot coveredbywarranty. CE Hereby,SuuntoSportsTechnology(Dongguan)Co.,Ltd.,declaresthattheradioequipmenttypeOW234 isincompliancewithDirective2014/53/EU.ThefulltextoftheEUdeclarationofconformityisavailableat thefollowinginternetaddress:suunto.com/EUconformity. UKRADIOEQUIPMENTREGULATION Hereby,SuuntoSportsTechnology(Dongguan)Co.,Ltd.,declaresthattheradioequipmenttypeOW234 isincompliancewithRadioEquipmentRegulations2017.ThefulltextoftheUKdeclarationofconformity isavailableatthefollowinginternetaddress:suunto.com/UKconformity. UKImporter: TDSynnexUK Maplewood,CrockfordLane, ChinehamPark,Basingstoke HampshireRG248YB UnitedKingdom Foralluptodateproductsupportrelatedinformationandinquiries,visitsuunto.com/support. •Productname:SUUNTORUN •Modelno.:OW234 •BluetoothLE: •Frequencyband:2402–2480MHz •Maximumoutputpower:10dBm •Range:~10m •GNSSreceiver: •Frequencyband:L1:1559–1610MHz,L5:1164–1215MHz FCC（USA） Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’s authoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. Thistransmittermustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaortransmitter. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto Part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterference inaresidentialinstallation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergy,andifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: –Reorientorrelocatethereceivingantenna. –Increasetheseparationbetweentheequipmentandreceiver. –Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. – Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeusedinportable exposureconditionwithoutrestriction. ISEDREGULATORYCOMPLIANCE（CANADA） Thisdevicecontainslicence-exempttransmitter(s)/receiver(s)thatcomplywithInnovation,ScienceandEconomicDevelopment Canada’slicence-exemptRSS(s).Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseinterference. (2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice. L'émetteur/récepteurexemptdelicencecontenudansleprésentappareilestconformeaux CNRd'Innov…

Text truncated - open the document above for the full version.

Rev2/17/2023 SuuntoSportsTechnology(Dongguan)Co.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024/5/21 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2BBLIOW234 SuuntoSportsTechnology(Dongguan)Co.,Ltd(“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Sincerely, Signature: Printedname:EuniceLai

Rev2/17/2023 SuuntoSportsTechnology(Dongguan)Co.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024/5/21 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2BBLIOW234 SuuntoSportsTechnology(Dongguan)Co.,Ltd(“theapplicant”)certifiesthat,asofthedateofthefiling oftheapplication,theapplicantisnotidentifiedontheCoveredList(asaspecificallynamedentityor anyofitssubsidiariesoraffiliates)asanentityproducing“covered”equipment. Sincerely, Signature: Printedname:EuniceLai

Rev11/20/07 SuuntoSportsTechnology(Dongguan)Co.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2BBLIOW234 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName (BlockDiagram,Schematics,Operational Description) (BlockDiagram.pdf,Schematics.pdf, OperationalDescription.pdf) Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequestthat theinformationattachedtothisapplicationbetemporarilyconfidentialfor180daysasoutlined below: ExhibitTypeFileName // Sincerely, Signature: printedname:EuniceLai Date:2024/5/21

M:\MasterDocuments\TEMPLATES\POA_Letter.doc SuuntoSportsTechnology(Dongguan)Co.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Date:2024/5/21 SUBJECT:FCCApplicationfor(FCCID:2BBLIOW234) ToWhomItMayConcern: We,theundersigned,herebyauthorizeLitingNongatCentreTestingInternationalGroup Co.,Ltd/BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,China onourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment. AnyandallactscarriedoutbyLitingNongatCentreTestingInternationalGroupCo.,Ltd /BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,Chinaonour behalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Signature: printedname:EuniceLai

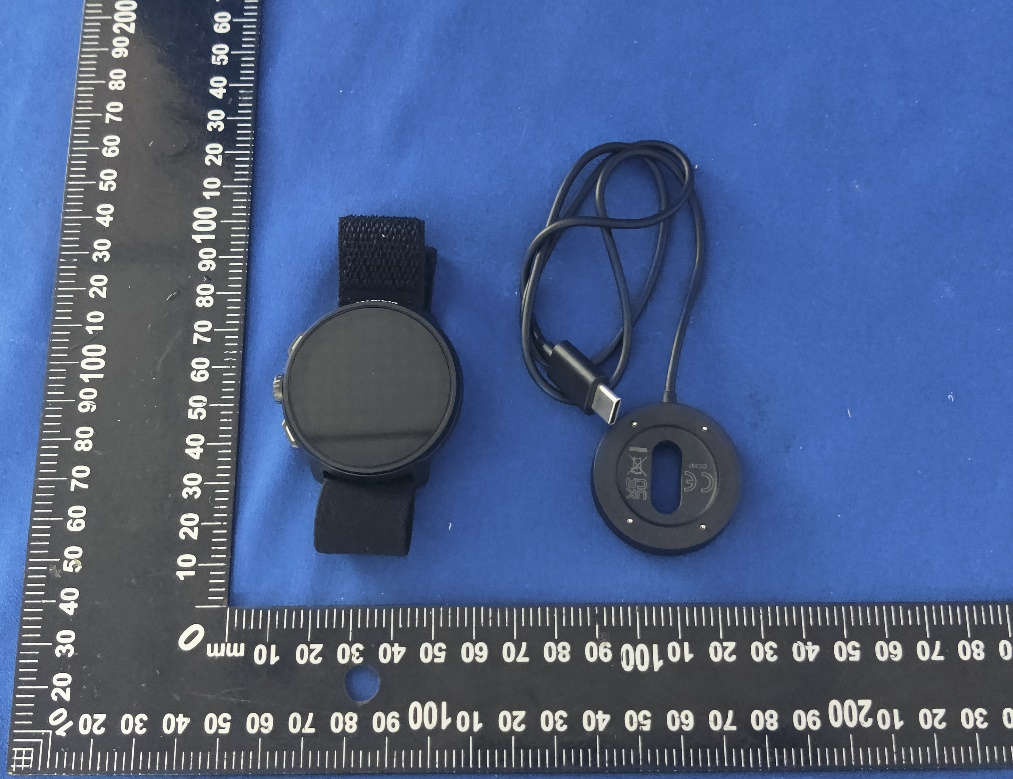

ReportNo.:EED32Q80224401Page 35 of 44 8PHOTOGRAPHSOFEUTConstructionalDetails ViewofProduct-01 ViewofProduct-02 ReportNo.:EED32Q80224401Page 36 of 44 ViewofProduct-03 ViewofProduct-04 ReportNo.:EED32Q80224401Page 37 of 44 ViewofProduct-05 ViewofProduct-06 ReportNo.:EED32Q80224401Page 38 of 44 ViewofProduct-07

DEVICEINFO Tocheckthehardware,softwareandcertificationdetailsofyourwatch, completethefollowingsteps: Whenonthewatchface: 1.LongpressthemiddlebuttontoenterSettings. 2.PressthemiddlebuttontoenterGeneral. 3.PressthemiddlebuttonagaintoopenAboutwhereyoufinddevice informationande-labels.

ReportNo.:EED32Q80224401Page 38 of 44 ViewofProduct-07 ViewofProduct-08 ReportNo.:EED32Q80224401Page 39 of 44 ViewofProduct-09 ViewofProduct-10 ReportNo.:EED32Q80224401Page 40 of 44 ViewofProduct-11 ViewofProduct-12 ReportNo.:EED32Q80224401Page 41 of 44 ViewofProduct-13 ViewofProduct-14 ReportNo.:EED32Q80224401Page 42 of 44 ViewofProduct-15 ViewofProduct-16 ReportNo.:EED32Q80224401Page 43 of 44 ViewofProduct-17 ViewofProduct-18 ReportNo.:EED32Q80224401Page 44 of 44 ViewofProduct-19 ViewofProduct-20 Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,theresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofCTI,thisreportcan’tbereproduced exceptinfull. ***EndofReport***

Report No. : EED32Q80224403Page 1 of 6 RF Exposure Evaluation Report Product:SUUNTO RUN Trade mark:SUUNTO Model/Type reference:OW234 Serial Number:N/A Report Number:EED32Q80224403 FCC ID:2BBLIOW234 Date of Issue:Jul. 26, 2024 Test Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091(mobile devices) 47 CFR Part 2.1093(portable devices) KDB 447498 D01 General RF Exposure Guidance v06 Test result:PASS Prepared for: Suunto Sports Technology(Dongguan)Co., Ltd. Room 108, No. 5, Longxi Road, Nancheng Street, Dongguan City, Guangdong Province, China Prepared by: Centre Testing International Group Co., Ltd. Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Compiled by:Reviewed by: Frazer LiTom Chen Approved by:Date:Jul. 26, 2024 Aaron Ma Check No.:5432290224 Report No. : EED32Q80224403Page 2 of 6 1 Contents Page 1 CONTENTS........................................................................................................................................................................ 2 2 GENERAL INFORMATION..............................................................................................................................................3 2.1 C LIENTINFORMATION................................................................................................................................................... 3 2.2 G ENERALDESCRIPTION OFEUT...................................................................................................................................3 2.3 P RODUCTSPECIFICATION SUBJECTIVE TO THIS STANDARD...........................................................................................3 2.4 T EST LOCATION.............................................................................................................................................................4 2.5 D EVIATION FROMSTANDARDS......................................................................................................................................4 2.6 A BNORMALITIES FROMSTANDARDCONDITIONS..........................................................................................................4 2.7 O THERINFORMATIONREQUESTED BY THECUSTOMER................................................................................................4 3 SAR EVALUATION...........................................................................................................................................................5 3.1 RF EXPOSURECOMPLIANCEREQUIREMENT.................................................................................................................5 3.1.1 Standard Requirement......................................................................................................................................5 3.1.2 Limits....................................................................................................................................................................5 3.1.3 T estProcedure....................................................................................................................................................5 3.1.4 EUT RF Exposure Evaluation..........................................................................................................................6 Report No. : EED32Q80224403Page 3 of 6 2 General Information 2.1 Client Information Applicant:Suunto Sports Technology(Dongguan)Co., Ltd. Address of Applicant:Room 108, No. 5, Longxi Road, Nancheng Street, Dongguan City, Guangdong Province, China Manufacturer:Suunto Sports Technology(Dongguan)Co., Ltd. Address of Manufacturer:Room 108, No. 5, Longxi Road, Nancheng Street, Dongguan City, Guangdong Province, China Factory:Suunto Sports Technology(Dongguan)Co., Ltd. Address of Factory:Room 108, No. 5, Longxi Road, Nancheng Street, Dongguan City, Guangdong Province, China 2.2 General Description of EUT Product Name: SUUNTO RUN Model No.(EUT): OW234 Trade Mark: SUUNTO 2.3 Product Specification subjective to this standard Frequency Range:2402MHz~2480MHz Test Power Grade:Default (manufacturer declare ) Test Software of EUT:BQB.exe (manufacturer declare) Antenna Type: PCB antenna Antenna Gain: -4.74dBi Power Supply: Battery:DC 3.87V Test Voltage: DC 3.87V Sample Received Date: Apr. 26, 2024 Sample tested Date: Apr. 26, 2024 to Jul. 26, 2024 Remark: Company Name and Address shown on Report, the sample(s) and sample Information was/ were provided by the applicant who should be responsible for the authenticity which CTI hasn’t verified. Report No. : EED32Q80224403Page 4 of 6 2.4 Test Location All tests were performed at: Centre Testing International Group Co., Ltd Building C, Hongwei Industrial Park Block 70, Bao'an District, Shenzhen, China Telephone: +86 (0) 755 33683668 Fax:+86 (0) 755 33683385 No tests were sub-contracted. FCC Designation No.: CN1164 2.5 Deviation from Standards None. 2.6 Abnormalities from Standard Conditions None. 2.7 Other Information Requested by the Customer None. Report No. : EED32Q80224403Page 5 of 6 3 SAR Evaluation 3.1 RF Exposure Compliance Requirement 3.1.1Standard Requirement According to KDB 447498 D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 3.1.2Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the neares…

Text truncated - open the document above for the full version.

GPS L1/L5： Support band：1176.45MHz( L5)、1575.42MHz( L1) BT2.4G: Support band：2400-2500MHz Suunto smart watch antenna gain report Antenna manufacturer：Huizhou speed wireless technology co.,ltd. Address：No. 138, Huize Avenue, Dongjiang Hi-Tech Industrial Park, Zhongkai Hi-Tech Zone, Huizhou GPSL1/L5 Antenna Frequency：1176MHz/1575MHz Antenna Type：FPC+metal frame Metal Frame GND GPS L1/L5 Feeding Antenna Type： FPC Size GPSL1/L5 Antenna Frequency：1176MHz/1575MHz BT antenna frequency：2400-2500mhz Antenna Type： PCB antenna Bluetooth antenna GPS Efficiency and Gain BT Efficiency and Gain

ReportNo.:EED32Q80224401Page 1 of 34 Appendix:BluetoothLE ReportNo.:EED32Q80224401Page 2 of 34 Contents DutyCycle..................................................................................................................................................................................................3 MaximumPeakConductedOutputPower..................................................................................................................................................7 -6dBBandwidth........................................................................................................................................................................................11 OccupiedChannelBandwidth..................................................................................................................................................................15 MaximumPowerSpectralDensityLevel..................................................................................................................................................19 BandEdge................................................................................................................................................................................................23 ConductedRFSpuriousEmission............................................................................................................................................................28 ReportNo.:EED32Q80224401Page 3 of 34 DutyCycle ConditionModeFrequency(MHz)AntennaDutyCycle(%)DutyCycleCorrectionFactor(dB)1/T(kHz) NVNTBLE1M2402Ant170.401.522.27 NVNTBLE1M2440Ant170.401.522.27 NVNTBLE1M2480Ant170.401.522.27 NVNTBLE2M2402Ant141.443.833.86 NVNTBLE2M2440Ant141.443.833.86 NVNTBLE2M2480Ant141.443.833.86 Note:DutyCycleCorrectionFactor(dB)=-10*lgDutyCycle; ReportNo.:EED32Q80224401Page 4 of 34 TestGraphs DutyCycleNVNTBLE1M2402MHzAnt1 DutyCycleNVNTBLE1M2440MHzAnt1 ReportNo.:EED32Q80224401Page 5 of 34 DutyCycleNVNTBLE1M2480MHzAnt1 DutyCycleNVNTBLE2M2402MHzAnt1 ReportNo.:EED32Q80224401Page 6 of 34 DutyCycleNVNTBLE2M2440MHzAnt1 DutyCycleNVNTBLE2M2480MHzAnt1 ReportNo.:EED32Q80224401Page 7 of 34 MaximumPeakConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedPower (dBm) Limit (dBm) Verdict NVNTBLE1M2402Ant13.1030Pass NVNTBLE1M2440Ant14.1630Pass NVNTBLE1M2480Ant15.2930Pass NVNTBLE2M2402Ant13.0430Pass NVNTBLE2M2440Ant14.2730Pass NVNTBLE2M2480Ant1 5.47 30Pass ReportNo.:EED32Q80224401Page 8 of 34 TestGraphs PeakPowerNVNTBLE1M2402MHzAnt1 PeakPowerNVNTBLE1M2440MHzAnt1 ReportNo.:EED32Q80224401Page 9 of 34 PeakPowerNVNTBLE1M2480MHzAnt1 PeakPowerNVNTBLE2M2402MHzAnt1 ReportNo.:EED32Q80224401Page 10 of 34 PeakPowerNVNTBLE2M2440MHzAnt1 PeakPowerNVNTBLE2M2480MHzAnt1 ReportNo.:EED32Q80224401Page 11 of 34 -6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.6600.5Pass NVNTBLE1M2440Ant10.6590.5Pass NVNTBLE1M2480Ant10.6600.5Pass NVNTBLE2M2402Ant11.1370.5Pass NVNTBLE2M2440Ant11.1350.5Pass NVNTBLE2M2480Ant11.1340.5Pass ReportNo.:EED32Q80224401Page 12 of 34 TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 ReportNo.:EED32Q80224401Page 13 of 34 -6dBBandwidthNVNTBLE1M2480MHzAnt1 -6dBBandwidthNVNTBLE2M2402MHzAnt1 ReportNo.:EED32Q80224401Page 14 of 34 -6dBBandwidthNVNTBLE2M2440MHzAnt1 -6dBBandwidthNVNTBLE2M2480MHzAnt1 ReportNo.:EED32Q80224401Page 15 of 34 OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTBLE1M2402Ant11.004 NVNTBLE1M2440Ant11.005 NVNTBLE1M2480Ant11.004 NVNTBLE2M2402Ant11.996 NVNTBLE2M2440Ant11.993 NVNTBLE2M2480Ant11.993 ReportNo.:EED32Q80224401Page 16 of 34 TestGraphs OBWNVNTBLE1M2402MHzAnt1 OBWNVNTBLE1M2440MHzAnt1 ReportNo.:EED32Q80224401Page 17 of 34 OBWNVNTBLE1M2480MHzAnt1 OBWNVNTBLE2M2402MHzAnt1 ReportNo.:EED32Q80224401Page 18 of 34 OBWNVNTBLE2M2440MHzAnt1 OBWNVNTBLE2M2480MHzAnt1 ReportNo.:EED32Q80224401Page 19 of 34 MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTBLE1M2402Ant1-8.688Pass NVNTBLE1M2440Ant1-7.868Pass NVNTBLE1M2480Ant1-6.348Pass NVNTBLE2M2402Ant1-8.968Pass NVNTBLE2M2440Ant1-7.878Pass NVNTBLE2M2480Ant1-6.358Pass ReportNo.:EED32Q80224401Page 20 of 34 TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 ReportNo.:EED32Q80224401Page 21 of 34 PSDNVNTBLE1M2480MHzAnt1 PSDNVNTBLE2M2402MHzAnt1 ReportNo.:EED32Q80224401Page 22 of 34 PSDNVNTBLE2M2440MHzAnt1 PSDNVNTBLE2M2480MHzAnt1 ReportNo.:EED32Q80224401Page 23 of 34 BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-48.67-20Pass NVNTBLE1M2480Ant1-52.04-20Pass NVNTBLE2M2402Ant1-49.17-20Pass NVNTBLE2M2480Ant1-51.95-20Pass ReportNo.:EED32Q80224401Page 24 of 34 TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission ReportNo.:EED32Q80224401Page 25 of 34 BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission ReportNo.:EED32Q80224401Page 26 of 34 BandEdgeNVNTBLE2M2402MHzAnt1Ref BandEdgeNVNTBLE2M2402MHzAnt1Emission ReportNo.:EED32Q80224401Page 27 of 34 BandEdgeNVNTBLE2M2480MHzAnt1Ref BandEdgeNVNTBLE2M2480MHzAnt1Emission ReportNo.:EED32Q80224401Page 28 of 34 ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-51.98-20Pass NVNTBLE1M2440Ant1-53.21-20Pass NVNTBLE1M2480Ant1-54.69-20Pass NVNTBLE2M2402Ant1-52.20-20Pass NVNTBLE2M2440Ant1-53.73-20Pass NVNTBLE2M2480Ant1-55.06-20Pass ReportNo.:EED32Q80224401Page 29 of 34 TestGraphs Tx.SpuriousNVNTBLE1M2402MHzAnt1Ref Tx.SpuriousNVNTBLE1M2402MHzAnt1Emission ReportNo.:EED32Q80224401Page 30 of 34 Tx.SpuriousNVNTBLE1M2440MHzAnt1Ref Tx.SpuriousNVNTBLE1M2440MHzAnt1Emission ReportNo.:EED32Q80224401Page 31 of 34 Tx.SpuriousNVNTBLE1M2480MHzAnt1Ref Tx.SpuriousNVNTBLE1M2480MHzAnt1Emission ReportNo.:EED32Q80224401Page 32 of 34 Tx.SpuriousNVNTBLE2M2402MHzAnt1Ref Tx.SpuriousNVNTBLE2M2402MHzAnt1Emission ReportNo.:EED32Q80224401Page 33 of 34 Tx.SpuriousNVNTBLE2…

Text truncated - open the document above for the full version.

Report No. : EED32Q80224401Page 1 of 44 TEST REPORT Product:SUUNTO RUN Trade mark:SUUNTO Model/Type reference:OW234 Serial Number:N/A Report Number:EED32Q80224401 FCC ID:2BBLIOW234 Date of Issue:Jul. 26, 2024 Test Standards: 47 CFR Part 15 Subpart C Test result:PASS Prepared for: Suunto Sports Technology(Dongguan)Co., Ltd. Room 108, No. 5, Longxi Road, Nancheng Street, Dongguan City, Guangdong Province, China Prepared by: Centre Testing International Group Co., Ltd. Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Compiled by:Reviewed by: Frazer LiTom Chen Approved by:Date:Jul. 26, 2024 Aaron Ma Check No.:5432290224 Report No. : EED32Q80224401Page 2 of 44 1 Content 1 CONTENT............................................................................................................................................................................2 2 TEST SUMMARY..................…

Text truncated - open the document above for the full version.
