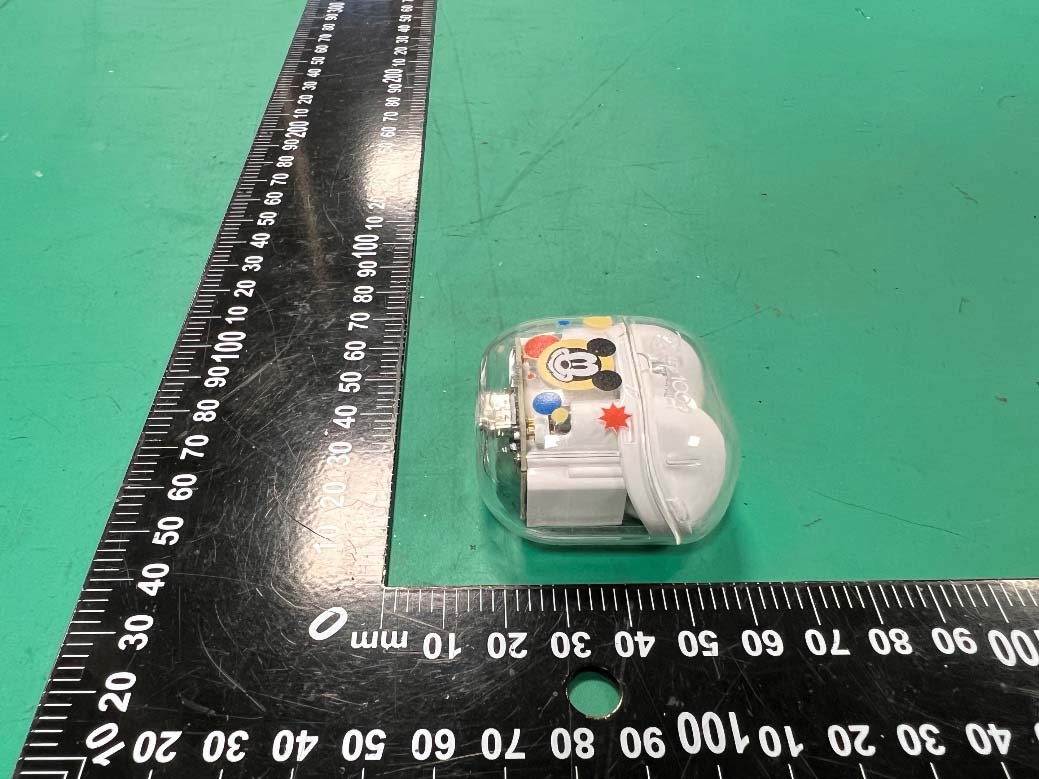

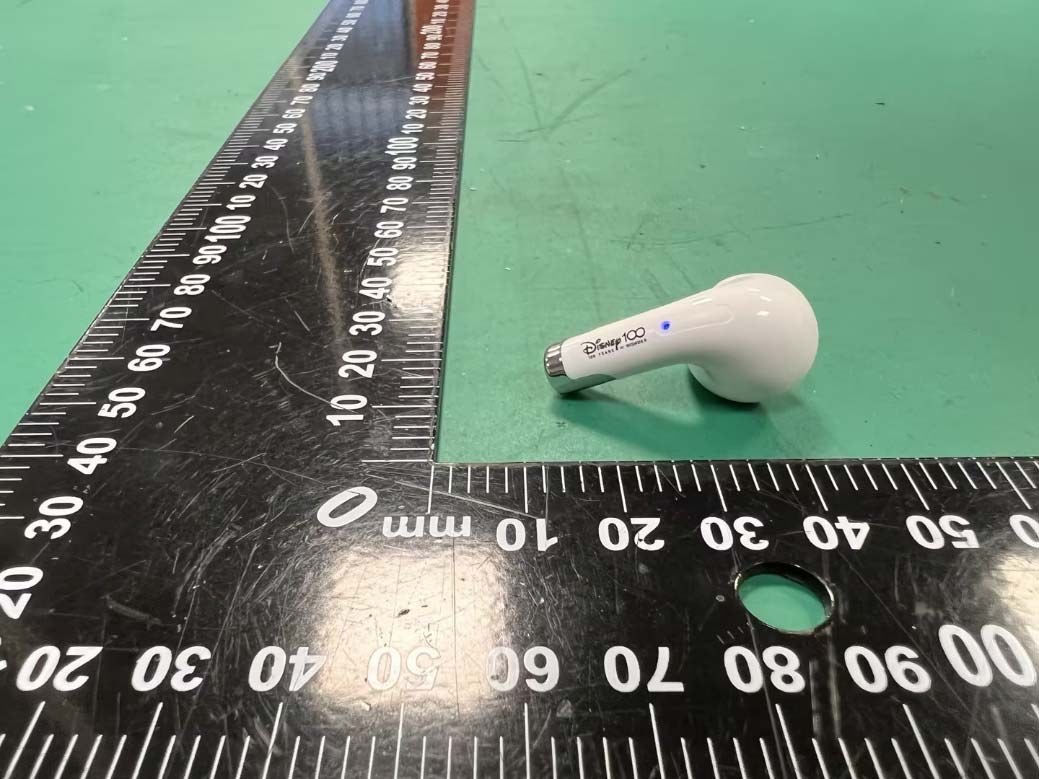

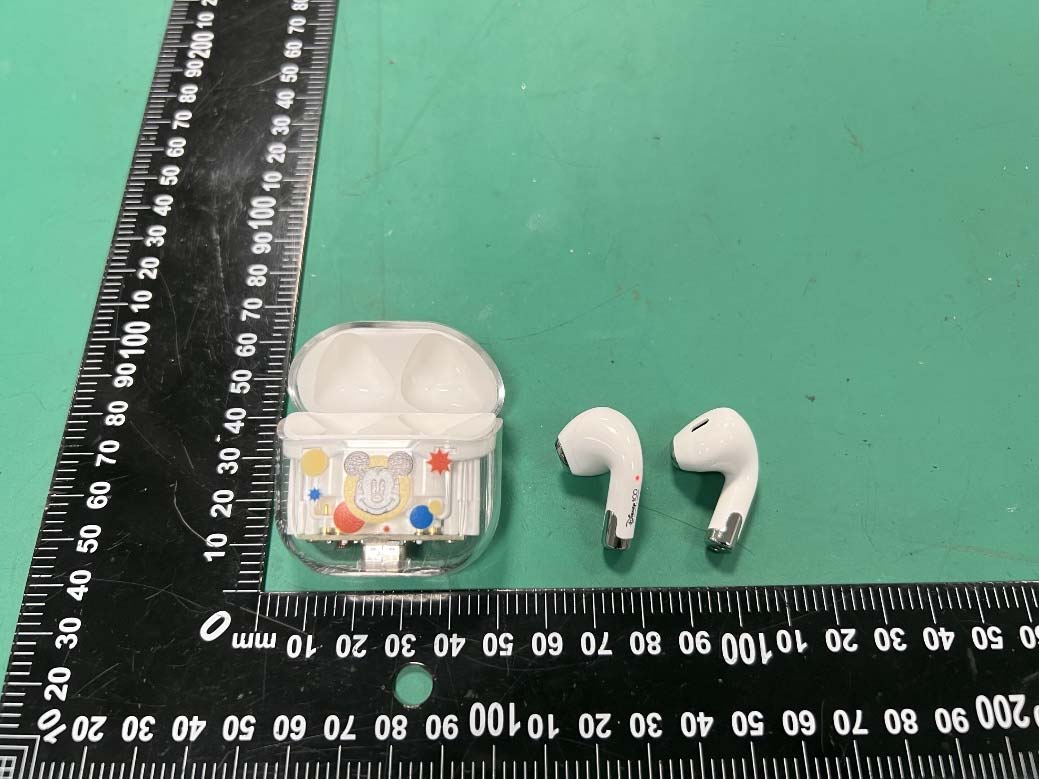

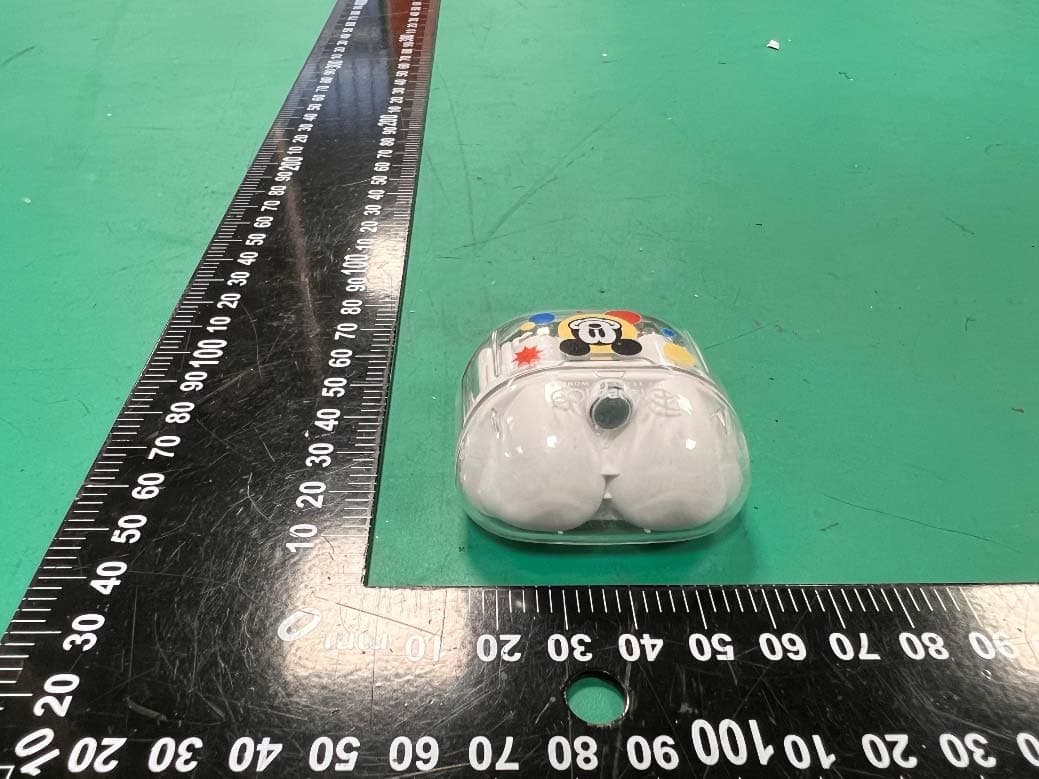

FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Photo 7 Appearance of EUT

FCC ID: 2BBLO-YB065 TB-RF-074-1.0 AppendixI Label FCC ID: 2BBLO-YB065 Model: YB065 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 8 Internal of EUT Photo 9 Appearance of PCB & Battery FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Photo 10 Appearance of PCB & Battery Photo 11 Appearance of PCB & Battery Antenna FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Photo 12 Appearance of PCB& Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202305-0272-2 Page: 1 of 3 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID:2BBLO-YB065 1. Client Information Applicant : Guangdong Baoli Electronic Co., Ltd. Address : 3F, Building 6, Donghua Manufacturing Park, No.57 Jinshan Road, Chashan, Dongguan City, Guangdong Province, China Manufacturer : Guangdong Baoli Electronic Co., Ltd. Address : 3F, Building 6, Donghua Manufacturing Park, No.57 Jinshan Road, Chashan, Dongguan City, Guangdong Province, China 2. General Description of EUT EUT Name : MINISO DISNEY 100 CELEBRATION COLLECTION TWS EARPHONES Model(s) No. : YB065, AC6973D4 Model Difference : All these models are identical in the same PCB, layout and electrical circuit, The only difference is appearance and color. Product Description : Operation Frequency: Bluetooth V5.3: 2402MHz~2480MHz Bluetooth 5.3(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.3: 79 channels Bluetooth 5.3(BLE):40 channels Antenna Gain: 1.75dBi Ceramic Antenna Modulation Type: GFSK, Pi/4-DQPSK Bluetooth LE:1/2Mbps Bit Rate of Transmitter: 1/2Mbps Power Supply (Charging Box) : DC 3.7V by 230mAh Rechargeable Li-ion battery Power Supply (Earphone) : DC 3.7V by 30mAh Rechargeable Li-ion battery Software Version : SDKV235 Hardware Version : HF-5666-73-V1 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202305-0272-2 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Summary simultaneous transmission for SAR Exclusion The SAR exemption limits outlined in clause 4.3.2(b) of KDB 447498 have been derived based on an approximate SAR value of 0.4 W/kg using half-wave dipole antennas Footnote 1. As such, when simultaneous transmitter SAR evaluations include transmitters that have been exempt from routine SAR evaluation, the SAR must be estimating based on the ratio between the maximum tune-up tolerance limit of the transmitter that has been exempt and the exemption limit at the specific distance and frequency for that transmitter. This ratio must be multiplied by 0.4 W/kg(2.0 W/kg for controlled use and 1.0 W/kg for limb worn devices) in order to calculate the estimated SAR level. The estimate SAR value is calculated based the following equation: (maximum power level including tune-up tolerance for transmitter A / maximum power level of exemption at the same frequency and distance) * 0.4W/kg The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. Report No.: TBR-C-202305-0272-2 Page: 3 of 3 TB-RF-074-1.0 3. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 2.021 2±1 3 1.995 0.618 3.0 2.441 2.142 2±1 3 1.995 0.623 3.0 2.480 1.904 2±1 3 1.995 0.628 3.0 Bluetooth Mode (Pi/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 2.836 3±1 4 2.512 0.779 3.0 2.441 3.041 3±1 4 2.512 0.785 3.0 2.480 2.825 3±1 4 2.512 0.791 3.0 Bluetooth LE Mode(1Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 1.408 1±1 2 1.585 0.491 3.0 2.440 1.543 2±1 3 1.995 0.623 3.0 2.480 1.438 1±1 2 1.585 0.499 3.0 Bluetooth LE Mode(2Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 1.72 2±1 3 1.995 0.618 3.0 2.440 2.051 2±1 3 1.995 0.623 3.0 2.480 1.76 2±1 3 1.995 0.628 3.0 Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

܍ ᇡ ਜ SPECIFICATION FOR APPROVAL ࠼ЊӜᆀ CUSTOMER Ǻ  ࠼Њ਑ဦ CUSTOMER’S P/N Ǻ ਑ဦ PART NUMBER Ǻ WAN3216F245H08 ೕ਱ DESCRIPTION Ǻ Chip Antenna 3216 L Ant 2.45G Type H08 ҁހ VERSION Ǻ V1.4 Вය ISSUE DATE Ǻ 2020/05/20 !࠼Њ!!܍ᇡ!  π ํา ೽ Ƭ ܍ ᇡ  ዴ ᇡ   ᇙ բ  ƒ›‡›•‘‘™ ࿤၈ࣽިמҽԖज़Ϧљ! OneWave Electronic Co., Ltd. ͳͳʹ͸ͳѠчѱч׫୔ҥфຉ262ဦͳኴ! ͳ ǡ‘Ǥͳͷͳǡ‹ ‘‰–”‡‡–ǡ‡‹–‘—‹•–”‹…–ǡ ƒ‹’‡‹‹–›ͳͳʹ͸ͳǡƒ‹™ƒ ႝ၉: ȋͲʹȌʹ ͅͻ ͅǦʹʹʹͲ ǣΪ ͅ ͅ͸ʹʹ ͅͻ ͅǦʹʹʹͲ ໺੿: ȋͲʹȌʹ ͅͻ ͅǦͷͲͷͷ ǣΪ ͅ ͅ͸ʹʹ ͅͻ ͅǦͷͲͷͷ 2/12 ONEWAVE TECHNOLOGY CO., LTD. 3216 Chip antenna For Bluetooth / WLAN Applications Dimension (mm) L 3.23 ± 0.20 W 1.66 ± 0.20 T 0.45 ± 0.20 P/N: WAN3216F245H08 3/12 ONEWAVE TECHNOLOGY CO., LTD. Part Number Information WAN 3216 F 245 H 08 A B C D E F A Product Series Antenna B Dimension L x W 3.2 x 1.6mm (±0.2mm) C Material High K material D Working Frequency 2.4 ~ 2.5GHz E Feeding mode PIFA & Single Feeding F Antenna type Type = 08 1. Electrical Specification Remark : Bandwidth & Peak Gain was measured under evaluation board of next page Specification Part Number WAN3216F245H08 Central Frequency 2450 MHz Bandwidth 120 (Min.) MHz Return Loss -6.5 (Max) dB Peak Gain 1.75 dBi Impedance 50 Ohm Operating Temperature -40焍+110 ɗ Maximum Power 4 W Resistance to Soldering Heats 10 ( @ 260ɗ) sec. Polarization Linear Azimuth Beamwidth Omni-directional Termination Ni / Au (Leadless) 4/12 ONEWAVE TECHNOLOGY CO., LTD. 2. Recommended PCB Pattern Evaluation Board Dimension 2 nd Evaluation Board Dimension Suggested Matching Circuit 慵慵天屯妲 : ⋡惵⃫ẞ⺢嬘ἧ䓐䱦㸾⹎檀䘬暣デ±0.1~0.3nHˣ暣⭡±0.1pF 5/12 ONEWAVE TECHNOLOGY CO., LTD. Layout Dimensions in Clearance area( Size=5.9*5.0mm) FootPrint (Unit : mm) ‹ 2 nd Layout Dimensions in Clearance area( Size=8.0*3.0mm) Matching Circuitġ 50 ohm transmission Lineġ 6/12 ONEWAVE TECHNOLOGY CO., LTD. 3. Measurement Results Return Loss 7/12 ONEWAVE TECHNOLOGY CO., LTD. 3D Radiation Pattern 2D Radiation Pattern @2400MHz @2450MHz @2500MHz śśġ ŚŚġġ řřġ 8/12 ONEWAVE TECHNOLOGY CO., LTD. Efficiency Peak Gain Directivity 2400MHz 81.46% 1.67 dBi 2.56 dBi 2450MHz 84.75% 1.75 dBi 2.46 dBi 2500MHz 82.68% 1.70 dBi 2.52 dBi Chamber Coordinate System 9/12 ONEWAVE TECHNOLOGY CO., LTD. 4.Reliability and Test Condictions ITEM REQUIREMENTS TEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No v isible mechanical damage Pre-heating temperature:150ɗ/60sec. Solder temperature:230 Ʋ5ɗ Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% 10Ʋ0.5 sec. 60sec TEMP (ɗ) 150ɗ 260°C Pre-heating temperature:150ɗ/60sec. Solder temperature:260 Ʋ5ɗ Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damage The device should be reflow sold ered(230²5ɗ for 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with -ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% Phase Temperature(ɗ) Time(min) 1 +110±5ɗ 30±3 2 Room Temperature Within 3sec 3 -40±2ɗ 30±3 4 Room Temperature Within 3sec +110ɗ=>30±3min -40ɗ=>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: +110±5ɗ Duration: 1000Ʋ12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature:-40±5ɗ Duration: 1000Ʋ12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 40±2ɗ Humidity: 90% to 95% RH Duration: 1000Ʋ12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. 4²1 sec. 60sec TEMP (ɗ) 150ɗ 230濎 10/12 ONEWAVE TECHNOLOGY CO., LTD. 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ɄPreheat circuit and products to 150ɗ ɄNever contact the ceramic with the iron tip ɄUse a 20 watt soldering iron with tip diameter of 1.0mm Ʉ280ɗ tip temperature (max) Ʉ1.0mm tip diameter (max) ɄLimit soldering time to 3 sec. SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) 60~120 s 10s max. 30~60s 250~260 230 180 150 TIME(sec.) Reflow Soldering SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) within 3s Gradual cooling 150 TIME(sec.) Iron Soldering Over 60s 350 300 11/12 ONEWAVE TECHNOLOGY CO., LTD. 6.Packaging Information Tape Specification: Reel Specification: (7’’, Φ180 mm) Tape Width(mm) A(mm) B(mm) C(mm) D(mm) Chip/Reel(pcs) 8 9.0±0.5 60±2 13.5±0.5 178±2 3000 12/12 ONEWAVE TECHNOLOGY CO., LTD. 7.Storage and Transportation Information Storage Conditions To maintain the solderability of terminal electrodes: 1.…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 1 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: MINISO DISNEY 100 CELEBRATION COLLECTION TWS EARPHONES Test Model: YB065 Sample ID: RW-C-202305-0272-2-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 3.7V Test Engineer: Huang jian ping Note: For a more detailed features description, please refer to the report TBR-C-202305-0272-3 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 2 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Contents 1. Duty Cycle ............................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ..................................................................................................................................................... 7 3. -6dB Bandwidth ..................................................................................................................................................................................... 11 4. Occupied Channel Bandwidth ............................................................................................................................................................. 15 5. Maximum Power Spectral Density Level ............................................................................................................................................ 19 6. Band Edge ............................................................................................................................................................................................. 23 7. Conducted RF Spurious Emission ...................................................................................................................................................... 28 8. Restrict Band ......................................................................................................................................................................................... 35 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 3 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 85.6 0.68 0.47 NVNT BLE 1Mbps 2440 Ant1 85.6 0.68 0.47 NVNT BLE 1Mbps 2480 Ant1 85.2 0.7 0.47 NVNT BLE 2Mbps 2402 Ant1 43.2 3.65 0.93 NVNT BLE 2Mbps 2440 Ant1 43.6 3.61 0.92 NVNT BLE 2Mbps 2480 Ant1 43.2 3.65 0.93 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 4 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 5 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 6 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 7 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 1.408 0.68 2.088 30 Pass NVNT BLE 1Mbps 2440 Ant1 1.543 0.68 2.223 30 Pass NVNT BLE 1Mbps 2480 Ant1 1.438 0.7 2.138 30 Pass NVNT BLE 2Mbps 2402 Ant1 1.72 3.65 5.37 30 Pass NVNT BLE 2Mbps 2440 Ant1 2.051 3.61 5.661 30 Pass NVNT BLE 2Mbps 2480 Ant1 1.76 3.65 5.41 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 8 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 9 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 Page: 10 of 39 FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0272-3 …

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202305-0272-3 Page: 1 of 39 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2BBLO-YB065 Report No. : TBR-C-202305-0272-3 Applicant : Guangdong Baoli Electronic Co., Ltd. Equipment Under Test (EUT) EUT Name : MINISO DISNEY 100 CELEBRATION COLLECTION TWS EARPHONES Model No. : YB065 Series Model No. : AC6973D4 Brand Name : JL Sample ID : RW-C-202305-0272-2-1# & RW-C-202305-0272-2-2# Receipt Date : 2023-06-02 Test Date : 2023-06-02 to 2023-06-17 Issue Date : 2023-06-17 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202305-0272-3 Page: 2 of 39 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 8 1.5 Description of Test Mode .................................................................................................... 8 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION ....................................................................................................... 14 5.1 Test Standard and Limit .................................................................................................... 14 5.2 Test Setup ........................................................................................................................... 14 5.3 Test Procedure ................................................................................................................... 14 5.4 Deviation From Test Standard ......................................................................................... 15 5.5 EUT Operating Mode ........................................................................................................ 15 5.6 Test Data ............................................................................................................................. 15 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 16 6.1 Test Standard and Limit .................................................................................................... 16 6.2 Test Setup ........................................................................................................................... 18 6.3 Test Procedure ................................................................................................................... 19 6.4 Deviation From Test Standard ......................................................................................... 20 6.5 EUT Operating Mode ........................................................................................................ 20 6.6 Test Data ............................................................................................................................. 20 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 21 7.1 Test Standard and Limit .................................................................................................... 21 7.2 Test Setup ........................................................................................................................... 21 7.3 Test Procedure ................................................................................................................... 22 Report No.: TBR-C-202305-0272-3 Page: 3 of 39 TB-RF-074-1.0 7.4 Deviation From Test Standard ......................................................................................... 24 7.5 EUT Operating Mode ........................................................................................................ 24 7.6 Test Data ............................................................................................................................. 24 8. BANDWIDTH TEST ................................................................................................................. 25 8.1 Test St…

Text truncated - open the document above for the full version.

FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2BBLO-YB065 TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
