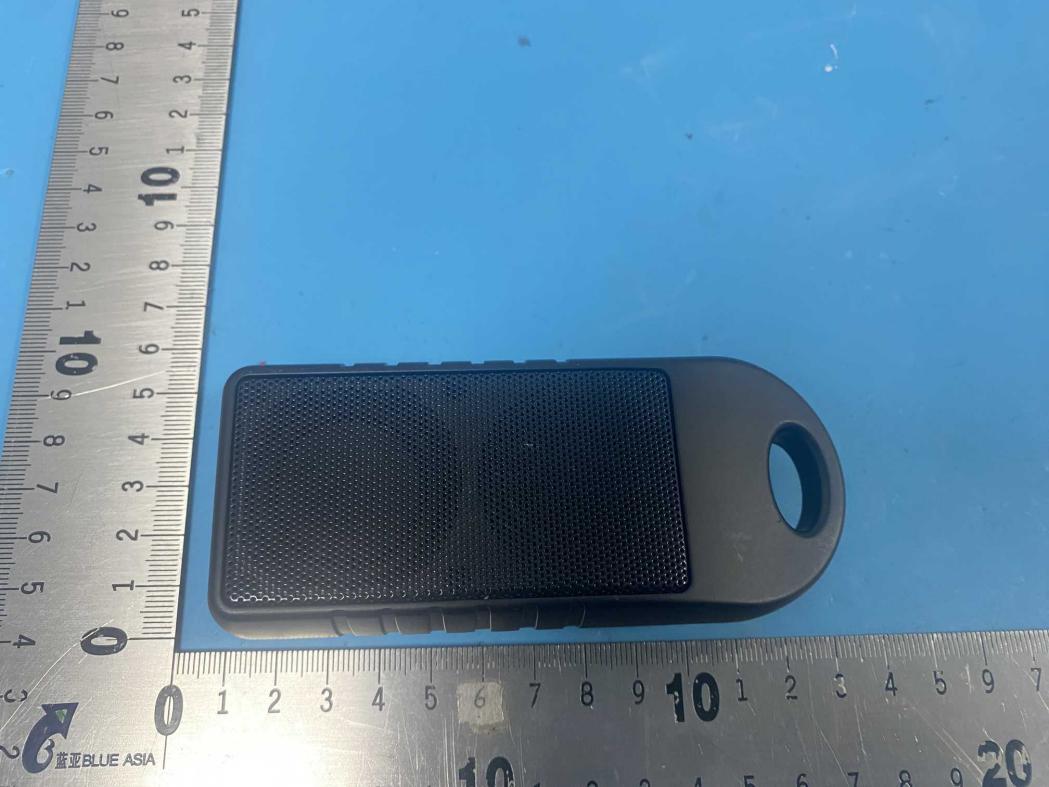

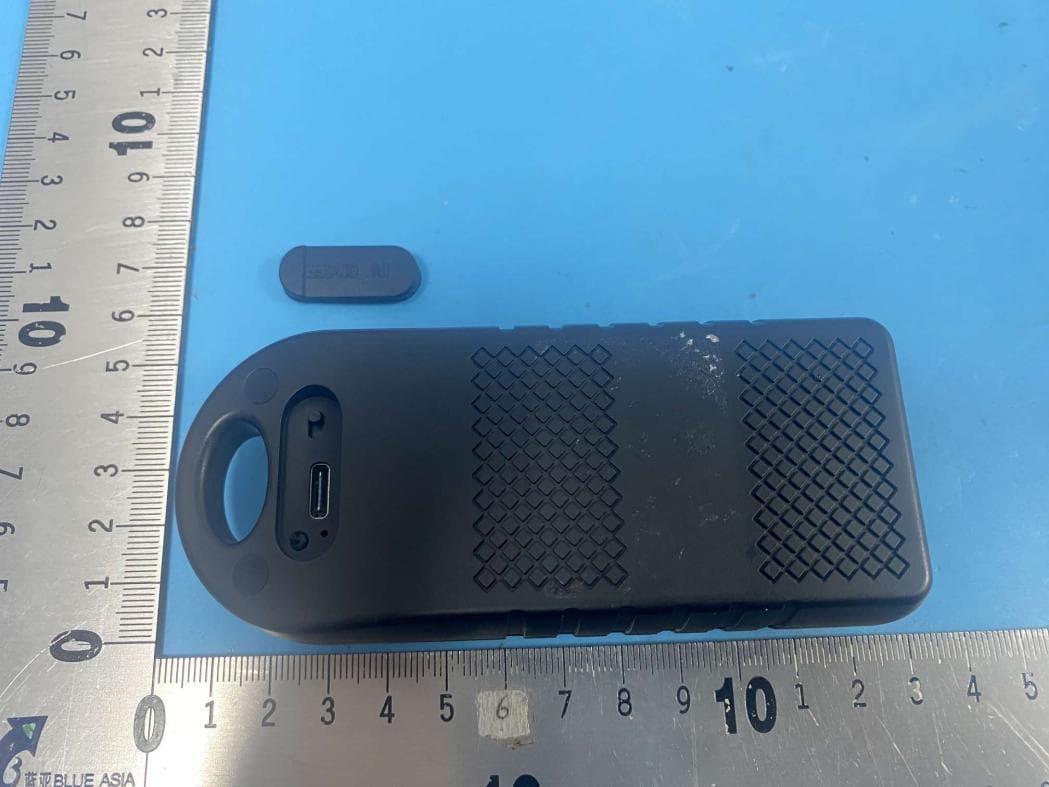

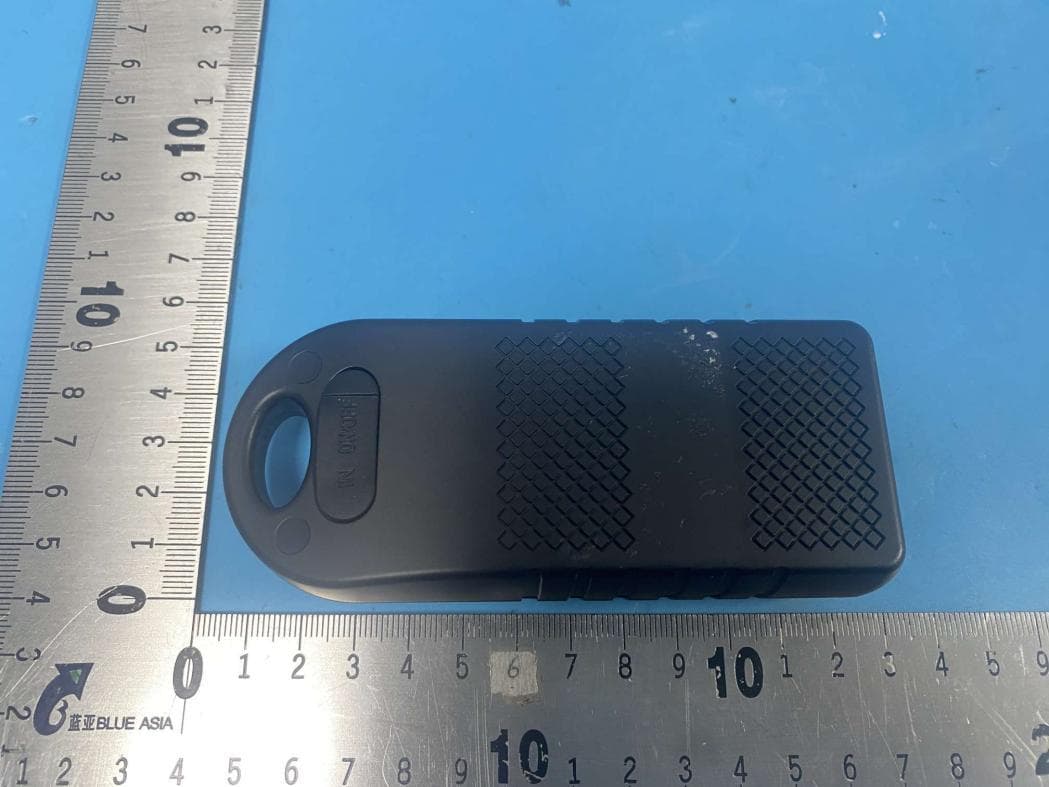

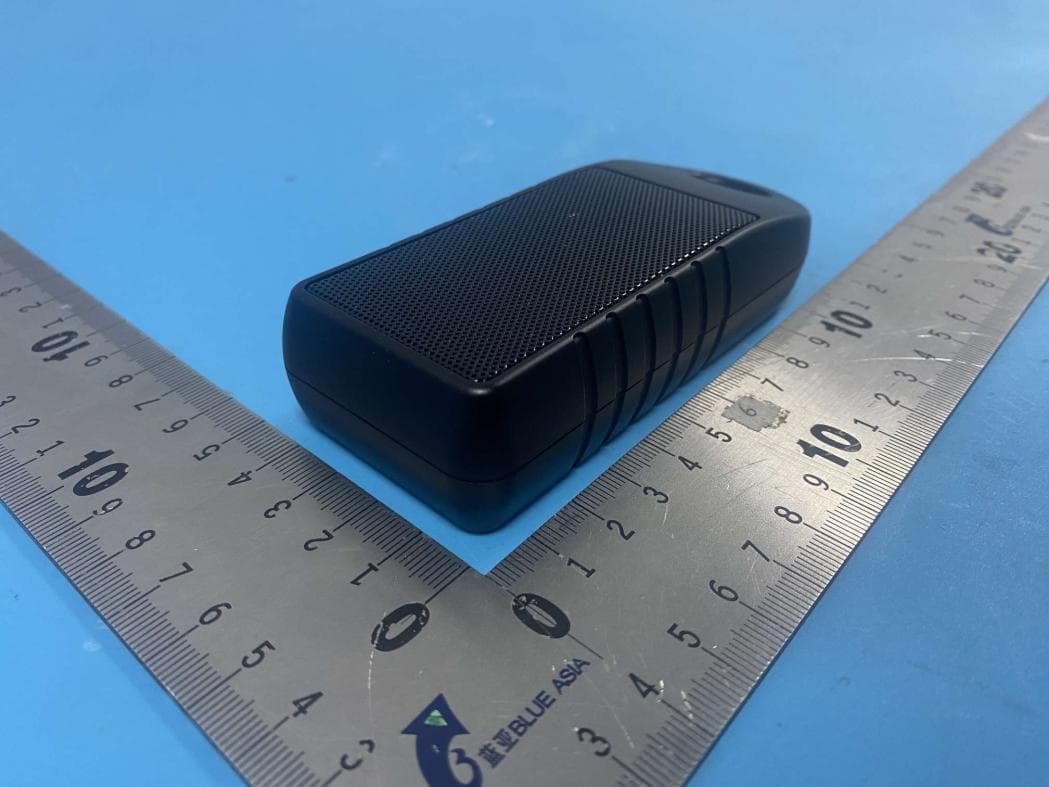

2BBM5-SP2315AOutdoor Carabiner Bluetooth Speaker

the speaker the speaker the speaker the speaker 25170 25170 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. FCC statement If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. speaker speaker speaker speaker speaker.

Huizhou CCA Industrial Co.,LTD Covered Equipment Certification Attestation Letter DATE：2023/7/20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.:Safety engineer FCC ID:2BBM5-SP2315A Huizhou CCA Industrial Co.,LTD. (“the applicant”) certifies that the equipment for which authorization is sought is n ot “covered” equipment prohibited fro m receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the currentCovered List , the applicant should include an explanation on why the equipment is not “covered” equipment. Huizhou CCA Industrial Co.,LTD. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: P rinted name: chengjun zou Title:Safety engineer Company Name: Huizhou CCA Industrial Co.,LTD Date: 2023/7/20

AttestationStatements (date)2023/7/20 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID2BBM5-SP2315A) (Huizhou CCA Industrial Co.,LTD ), the undersigned, hereby authorize (Baihetian Innovative Solutions) to act as our designated U.S. agent for service of process, (Huizhou CCA Industrial Co.,LTD) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Baihetian Innovative Solutions) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name:Huizhou CCA Industrial Co.,LTD Contact Name:chengjun zou Address:1st-4th Floor,Building A,No.122,Hongchuan Avenue North,Tongqiao,Zhongkai state,Huizhou city Telephone No: 13728863519 Email: [email protected] Signature [name] U.S.AgentInformation: CompanyName:Baihetian Innovative Solutions Address:6837 Chase Rd Dearborn, MI 48126 FRN:0033401605 ContactName:Kenneth Young TelephoneNo:313-395-3113 Email:[email protected] Signature [name] FRN: 0033880188

DATE:June25.2023 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application.For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that allresponsibility for complying with the terms and conditions for certification, still resides with Huizhou CCA Industrial Co.,LTD / 1st-4th Floor,Building A,No.122,Hongchuan Avenue North,Tongqiao,Zhongkai state,Huizhou city (Applicant Name and address) <Signature> Name ： chengjun zou Title ： Safety engineer Applicant Company ： Huizhou CCA Industrial Co.,LTD

DATE：2023-07-20 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCCID:2BBM5-SP2315A Product Name: Outdoor Carabiner Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) •Schematics •Block diagram •Operation description These materials contain trade s ecrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：chengjun zou Title：Safety engineer Applicant Company：Huizhou CCA Industrial Co.,LTD

ModelNo.: SP-2315A

Logo color:Cool Gray 7 C Shell color:Black Shell Size:120x50x27mm logo Size:29.2x13mm FrontSide Made in China Outdoor Carabiner Bluetooth Speaker Battery: 3.7V 400mAh 589973 / Aug 2023 FCC ID: 2BBM5-SP2315A Speaker Power: 3W Model: SP-2315Altem no.: 25170 Input: 5V 1A 29.2mm 13mm

ModelNo.: SP-2315A

RF Exposureevaluation FCCID ： 2BBM5-SP2315A Accordingto 447498D04InterimGeneralRF ExposureGuidancev01 Ant gain = -0.58 dBi Max Output power =-5.815Bm @ BR @ 2402MHz ERP = -5.815dBm-0.58dBi-2.15=-8.5452dBm So worse case ： 10^-0.5815=0.262mW < 2.79 mW Comply with RF exposure exemption limit.

Page 1 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] FCCPart15CTESTREPORT ProductName: OutdoorCarabinerBluetoothSpeaker BrandMark: N/A ModelNo.: SP-2315A ExtensionModel: 25170 FCCID: 2BBM5-SP2315A ReportNumber: BLA-EMC-202307-A0602 DateofSampleReceipt: 2023/7/6 DateofTest: 2023/7/7to2023/7/19 DateofIssue: 2023/7/19 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: HuizhouCCAIndustrialCo.,LTD 1st-4thFloor,BuildingA,No.122,Hongchuan AvenueNorth,Tongqiao,Zhongkaistate, Huizhoucity Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2023/7/19 ReportNo.:BLA-EMC-202307-A0602 Page 2 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002023/7/19Original ReportNo.:BLA-EMC-202307-A0602 Page 3 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY..............................................................................................................................................6 2GENERALINFORMATION...............................................................................................................................7 3GENERALDESCRIPTIONOFE.U.T................................................................................................................7 4TESTENVIRONMENT......................................................................................................................................8 5TESTMODE......................................................................................................................................................8 6MEASUREMENTUNCERTAINTY....................................................................................................................8 7DESCRIPTIONOFSUPPORTUNIT................................................................................................................9 8LABORATORYLOCATION..............................................................................................................................9 9TESTINSTRUMENTSLIST............................................................................................................................10 10DWELLTIME.................................................................................................................................................12 10.1LIMITS......................................................................................................................................................................12 10.2BLOCKDIAGRAMOFTESTSETUP............................................................................................................................12 10.3TESTDATA..................................................................................................................................................................13 11HOPPINGCHANNELNUMBER...................................................................................................................14 11.1LIMITS......................................................................................................................................................................14 11.2BLOCKDIAGRAMOFTESTSETUP............................................................................................................................14 11.3TESTDATA..................................................................................................................................................................14 12CARRIERFREQUENCIESSEPARATION...................................................................................................15 12.1LIMITS......................................................................................................................................................................15 12.2BLOCKDIAGRAMOFTESTSETUP............................................................................................................................15 12.3TESTDATA..................................................................................................................................................................15 1320DBBANDWIDTH.......................................................................................................................................16 13.1BLOCKDIAGRAMOFTESTSETUP............................................................................................................................16 13.2TESTDATA..................................................................................................................................................................16 14CONDUCTEDPEAKOUTPUTPOWER......................................................................................................17 14.1LIMITS......................................................................................................................................................................17 14.2BLOCKDIAGRAMOFTESTSETUP............................................................................................................................17 14.3TESTDATA..................................................................................................................................................................18 15CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ).........................................................19 ReportNo.:BLA-EMC-202307-A0602 Page 4 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15.1LIMITS....................…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202307-A0602 Page 41 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 18ANTENNAREQUIREMENT TestStandard47CFRPart15,SubpartC15.247 TestMethodN/A 18.1CONCLUSION StandardRequirement: Anintentionalradiatorshallbedesignedtoensurethatnoantennaotherthanthatfurnished bytheresponsiblepartyshallbeusedwiththedevice.Theuseofaantennathatusesa uniquecouplingtotheintentionalradiator,themanufacturermaydesigntheunit permanentlyattachedantennaorofansothatabrokenantennacanbereplacedbythe user,buttheuseofastandardantennajackorelectricalconnectorisprohibited. EUTAntenna: TheantennaisintegratedonthemainPCBandnoconsiderationofreplacement.Thebest casegainoftheantennais-0.58dBi. ReportNo.:BLA-EMC-202307-A0602 Page 42 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 19CONDUCTEDSPURIOUSEMISSIONS TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section7.8.6&Section11.11 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterCharlie Temperature25°C Humidity60% 19.1LIMITS Limit: Inany100kHzbandwidthoutsidethefrequencybandinwhichthespread spectrumordigitallymodulatedintentionalradiatorisoperating,theradio frequencypowerthatisproducedbytheintentionalradiatorshallbeatleast20dB belowthatinthe100kHzbandwidthwithinthebandthatcontainsthehighest levelofthedesiredpower,basedoneitheranRFconductedoraradiated measurement,providedthetransmitterdemonstratescompliancewiththepeak conductedpowerlimits.Ifthetransmittercomplieswiththeconductedpower limitsbasedontheuseofRMSaveragingoveratimeinterval,aspermittedunder paragraph(b)(3)ofthissection,theattenuationrequiredunderthisparagraphshall be30dBinsteadof20dB.Attenuationbelowthegenerallimitsspecifiedin §15.209(a)isnotrequired.Inaddition,radiatedemissionswhichfallinthe restrictedbands,asdefinedin§15.205(a),mustalsocomplywiththeradiated emissionlimitsspecifiedin§15.209(a)(see§15.205(c)). 19.2BLOCKDIAGRAMOFTESTSETUP ReportNo.:BLA-EMC-202307-A0602 Page 43 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 19.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202307-A0602 Page 44 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 20CONDUCTEDBANDEDGESMEASUREMENT TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section7.8.8&Section11.13.3.2 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterCharlie Temperature25°C Humidity60% 20.1LIMITS Limit: Inany100kHzbandwidthoutsidethefrequencybandinwhichthespread spectrumordigitallymodulatedintentionalradiatorisoperating,theradio frequencypowerthatisproducedbytheintentionalradiatorshallbeatleast20dB belowthatinthe100kHzbandwidthwithinthebandthatcontainsthehighest levelofthedesiredpower,basedoneitheranRFconductedoraradiated measurement,providedthetransmitterdemonstratescompliancewiththepeak conductedpowerlimits.Ifthetransmittercomplieswiththeconductedpower limitsbasedontheuseofRMSaveragingoveratimeinterval,aspermittedunder paragraph(b)(3)ofthissection,theattenuationrequiredunderthisparagraphshall be30dBinsteadof20dB.Attenuationbelowthegenerallimitsspecifiedin §15.209(a)isnotrequired.Inaddition,radiatedemissionswhichfallinthe restrictedbands,asdefinedin§15.205(a),mustalsocomplywiththeradiated emissionlimitsspecifiedin§15.209(a)(see§15.205(c)). 20.2BLOCKDIAGRAMOFTESTSETUP ReportNo.:BLA-EMC-202307-A0602 Page 45 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 20.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202307-A0602 Page 46 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21APPENDIX Appendix1 21.1MAXIMUMCONDUCTEDOUTPUTPOWER ConditionModeFrequency (MHz) AntennaConductedPower (dBm) Limit (dBm) Verdict NVNT1-DH12402Ant1-5.81521Pass NVNT1-DH12441Ant1-6.00721Pass NVNT1-DH12480Ant1-6.79521Pass NVNT2-DH12402Ant1-7.00121Pass NVNT2-DH12441Ant1-7.12921Pass NVNT2-DH12480Ant1-8.10321Pass NVNT3-DH12402Ant1-6.37321Pass NVNT3-DH12441Ant1-6.58521Pass NVNT3-DH12480Ant1-7.38121Pass PowerNVNT1-DH12402MHzAnt1 PowerNVNT1-DH12441MHzAnt1 ReportNo.:BLA-EMC-202307-A0602 Page 47 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNT1-DH12480MHzAnt1 PowerNVNT2-DH12402MHzAnt1 ReportNo.:BLA-EMC-202307-A0602 Page 48 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNT2-DH12441MHzAnt1 PowerNVNT2-DH12480MHzAnt1 ReportNo.:BLA-EMC-202307-A0602 Page 49 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNT3-DH12402MHzAnt1 PowerNVNT3-DH12441MHzAnt1 ReportNo.:BLA-EMC-202307-A0602 Page 50 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNT3-DH12480MHzAnt1 ReportNo.:BLA-EMC-202307-A0602 Page 51 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.2-20DBBANDWIDTH ConditionModeFrequency (MHz) Antenna-20dBBandwidth (MHz) Limit-20dB Bandwidth(MHz) Verdict NVNT1-DH12402Ant10.8690Pass NVNT1-DH12441Ant10.8660Pass NVNT1-DH12480Ant10.8690Pass NVNT2-DH12402Ant11.2590Pass NVNT2-DH12441Ant11.2630Pass NVNT2-DH12480Ant11.2590Pass NVNT3-DH12402Ant11.2450Pass NVNT3-DH12441Ant11.2450Pass NVNT3-DH12480Ant11.2190Pass -20dBBandwidthNVNT1-DH12402MHzAnt1 -20dBBandwidthNVNT1-DH12441MHzAnt1 ReportNo.:BLA-EMC-202307-A0602 Page 52 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -20dBBandwidthNVNT1-DH12480MHzAnt1 -20dBBandwidthNVNT2-DH12402MHzAnt1 ReportNo.:BLA-EMC-202307-A0602 Page 53 of 99 BlueA…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202307-A0602 Page 21 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15.4TESTDATA [TestMode:TXmode];[Line:Nutral];[Power:120V/60Hz] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 22 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmode];[Line:Line];[Power:120V/60Hz] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 23 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 16RADIATEDSPURIOUSEMISSIONS TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section6.4,6.5,6.6 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterCharlie Temperature25°C Humidity60% 16.1LIMITS Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above9605003 Remark:Theemissionlimitsshownintheabovetablearebasedonmeasurementsemployinga CISPRquasi-peakdetectorexceptforthefrequencybands9-90kHz,110-490kHzandabove1000 MHz.Radiatedemissionlimitsinthesethreebandsarebasedonmeasurementsemployingan averagedetector,thepeakfieldstrengthofanyemissionshallnotexceedthemaximumpermitted averagelimitsspecifiedabovebymorethan20dBunderanyconditionofmodulation. ReportNo.:BLA-EMC-202307-A0602 Page 24 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 16.2BLOCKDIAGRAMOFTESTSETUP 16.3PROCEDURE a.Forbelow1GHz,theEUTwasplacedonthetopofarotatingtable0.8metersabovethegroundata3 or10metersemi-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionofthe highestradiation. b.Forabove1GHz,theEUTwasplacedonthetopofarotatingtable1.5metersabovethegroundata3 meterfully-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionofthehighest radiation. c.TheEUTwasset3or10metersawayfromtheinterference-receivingantenna,whichwasmountedon thetopofavariable-heightantennatower. d.Theantennaheightisvariedfromonemetertofourmetersabovethegroundtodeterminethe maximumvalueofthefieldstrength.Bothhorizontalandverticalpolarizationsoftheantennaaresetto makethemeasurement. e.Foreachsuspectedemission,theEUTwasarrangedtoitsworstcaseandthentheantennawastuned toheightsfrom1meterto4meters(forthetestfrequencyofbelow30MHz,theantennawastunedto heights1meter)andtherotatabletablewasturnedfrom0degreesto360degreestofindthemaximum reading. f.Thetest-receiversystemwassettoPeakDetectFunctionandSpecifiedBandwidthwithMaximumHold Mode. g.IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthelimitspecified,thentesting couldbestoppedandthepeakvaluesoftheEUTwouldbereported.Otherwisetheemissionsthatdidnot have10dBmarginwouldbere-testedonebyoneusingpeak,quasi-peakoraveragemethodasspecified andthenreportedinadatasheet. ReportNo.:BLA-EMC-202307-A0602 Page 25 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] h.TesttheEUTinthelowestchannel,themiddlechannel,theHighestchannel. i.TheradiationmeasurementsareperformedinX,Y,ZaxispositioningforTransmittingmode,andfound theXaxispositioningwhichitistheworstcase. j.Repeataboveproceduresuntilallfrequenciesmeasuredwascomplete. Remark: 1)Foremissionbelow1GHz,throughpre-scanfoundtheworstcaseisthelowestchannel.Onlytheworst caseisrecordedinthereport. 2)ThefieldstrengthiscalculatedbyaddingtheAntennaFactor,CableFactor&Preamplifier.Thebasic equationwithasamplecalculationisasfollows: FinalTestLevel=ReceiverReading+AntennaFactor+CableFactor-PreamplifierFactor 3)Scanfrom9kHzto25GHz,thedisturbanceabove12.75GHzandbelow30MHzwasverylow.The pointsmarkedonaboveplotsarethehighestemissionscouldbefoundwhentesting,soonlyabove pointshadbeendisplayed.Theamplitudeofspuriousemissionsfromtheradiatorwhichareattenuated morethan20dBbelowthelimitneednotbereported.fundamentalfrequencyisblockedbyfilter,and onlyspuriousemissionisshown. 4)Forfrequenciesabove1GHz,thefieldstrengthlimitsarebasedonaveragelimits.However,thepeak fieldstrengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecifiedaboveby morethan20dBunderanyconditionofmodulation.Fortheemissionswhosepeaklevelislowerthanthe averagelimit,onlythepeakmeasurementisshowninthereport. ReportNo.:BLA-EMC-202307-A0602 Page 26 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 16.4TESTDATA Below1GHz [TestMode:TX];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 27 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TX];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 28 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Above1GHz [TestMode:TXlowestchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 29 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXlowestchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 30 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmiddlechannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 31 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmiddlechannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 32 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighestchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202307-A0602 Page 33 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202307-A0602 Page 61 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.4BANDEDGE ConditionModeFrequency (MHz) AntennaHopping Mode MaxValue (dBc) Limit (dBc) Verdict NVNT1-DH12402Ant1No-Hopping-49.71-20Pass NVNT1-DH12480Ant1No-Hopping-46.81-20Pass NVNT2-DH12402Ant1No-Hopping-42.58-20Pass NVNT2-DH12480Ant1No-Hopping-44.42-20Pass NVNT3-DH12402Ant1No-Hopping-45.07-20Pass NVNT3-DH12480Ant1No-Hopping-44.44-20Pass BandEdgeNVNT1-DH12402MHzAnt1No-HoppingRef BandEdgeNVNT1-DH12402MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 62 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT1-DH12480MHzAnt1No-HoppingRef BandEdgeNVNT1-DH12480MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 63 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT2-DH12402MHzAnt1No-HoppingRef BandEdgeNVNT2-DH12402MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 64 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT2-DH12480MHzAnt1No-HoppingRef BandEdgeNVNT2-DH12480MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 65 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT3-DH12402MHzAnt1No-HoppingRef BandEdgeNVNT3-DH12402MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 66 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT3-DH12480MHzAnt1No-HoppingRef BandEdgeNVNT3-DH12480MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 67 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202307-A0602 Page 68 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.5BANDEDGE(HOPPING) ConditionModeFrequency (MHz) AntennaHopping Mode MaxValue (dBc) Limit (dBc) Verdict NVNT1-DH12402Ant1Hopping-48.48-20Pass NVNT1-DH12480Ant1Hopping-46.76-20Pass NVNT2-DH12402Ant1Hopping-45.7-20Pass NVNT2-DH12480Ant1Hopping-50.1-20Pass NVNT3-DH12402Ant1Hopping-52.45-20Pass NVNT3-DH12480Ant1Hopping-50.22-20Pass BandEdge(Hopping)NVNT1-DH12402MHzAnt1HoppingRef BandEdge(Hopping)NVNT1-DH12402MHzAnt1HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 69 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT1-DH12480MHzAnt1HoppingRef BandEdge(Hopping)NVNT1-DH12480MHzAnt1HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 70 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT2-DH12402MHzAnt1HoppingRef BandEdge(Hopping)NVNT2-DH12402MHzAnt1HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 71 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT2-DH12480MHzAnt1HoppingRef BandEdge(Hopping)NVNT2-DH12480MHzAnt1HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 72 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT3-DH12402MHzAnt1HoppingRef BandEdge(Hopping)NVNT3-DH12402MHzAnt1HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 73 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT3-DH12480MHzAnt1HoppingRef BandEdge(Hopping)NVNT3-DH12480MHzAnt1HoppingEmission ReportNo.:BLA-EMC-202307-A0602 Page 74 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202307-A0602 Page 75 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.6CONDUCTEDRFSPURIOUSEMISSION ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNT1-DH12402Ant1-38.85-20Pass NVNT1-DH12441Ant1-39.04-20Pass NVNT1-DH12480Ant1-37.31-20Pass NVNT2-DH12402Ant1-35.16-20Pass NVNT2-DH12441Ant1-33.89-20Pass NVNT2-DH12480Ant1-34.48-20Pass NVNT3-DH12402Ant1-34.8-20Pass NVNT3-DH12441Ant1-35.79-20Pass NVNT3-DH12480Ant1-34.58-20Pass Tx.SpuriousNVNT1-DH12402MHzAnt1Ref Tx.SpuriousNVNT1-DH12402MHzAnt1Emission ReportNo.:BLA-EMC-202307-A0602 Page 76 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT1-DH12441MHzAnt1Ref Tx.SpuriousNVNT1-DH12441MHzAnt1Emission ReportNo.:BLA-EMC-202307-A0602 Page 77 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT1-DH12480MHzAnt1Ref Tx.SpuriousNVNT1-DH12480MHzAnt1Emission ReportNo.:BLA-EMC-202307-A0602 Page 78 of 99 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT2-DH12402MHzAnt1Ref Tx.SpuriousNVNT2-DH12402MHzAnt1Emission ReportNo.:BLA-EMC-202307-A0…
