2BBMD-ABXYLUTE1Handheld Game Console

abxylute Handheld Game Console User Manual Front view Back view Joystick calibration Additional information about the console button tips https://abxylute.com/pages/button-tips Charge your abxylute Please use the original charging cable *Using a charging head with a power greater than 20W is NOT recommended as it may not be able to charge. Getting started Cloud Gaming Remote Play https://abxylute.com/pages/cloud-gaming-gate https://abxylute.com/pages/remote-play-gate Warranty policy Products purchased from authorized abxylute retailers are entitled to a limited warranty. Excluded from warranty coverage are items with limited lifespans and subject to normal wear and tear, such as batteries, joysticks, and buttons. For more detailed information on the scope and duration of this limited warranty, please visit https://abxylute.com/ pages/warranty-policy If you encounter any issues, please contact [email protected] and we will do our best to assist you as soon as possible. Join our community for more fun · Exclusive news/updates · Tutorial and tips on abxylute · Connect with other users and our team · Discount, community game contest and more! https://abxylute.com/pages/social-media FCC Caution： Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The SAR was tested for the device in the body worn mode. And it can meet the SAR limit of FCC.

Shanghai ABXY Tech Co., Ltd. Address: 5F, Building 11, No.6055 Jinhai Highway, Fengxian District, Shanghai, China Tel.: +8618510624392 Fax: 0755-23744535 E-mail: [email protected] Date: 2023-07-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attestation letter Dear Sir or Madam, We, Shanghai ABXY Tech Co., Ltd., declare that our product name: Handheld Game Console(model number: Abxylute_one, FCC ID: 2BBMD-ABXYLUTE1), only supports these functions for marketing purpose, as below: BDR/EDR, BLE 1M/2M, 2.4G WIFI ( 2412-2462MHz), 5G WIFI(5150-5250MHz&5725-5850MHz) Other functions and bands have been shielded by manufacturer though software and the end user can not have the capability to activate those functions. Sincerely, Signature: Name: Linxuan An Title: Product Manager

Shanghai ABXY Tech Co., Ltd. Attestation Letter Date: 06/26/2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2BBMD-ABXYLUTE1 Shanghai ABXY Tech Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Name: Linxuan An Title: Product Manager Address: 5F, Building 11, No.6055 Jinhai Highway, Fengxian District, Shanghai, China Tel.: +8618510624392 Fax: 0755-23744535 E-mail: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter

U.S. AGENT LETTER OF ATTESTATION Date: 2023-04-11 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BBMD-ABXYLUTE1 Shanghai ABXY Tech Co., Ltd. (“the Applicant”) certifies that, as of the date of the filing of the application, ProGears Technology Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Shanghai ABXY Tech Co., Ltd. (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. ProGears Technology Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: ProGears Technology Inc. Address: 100 N Howard St Ste R, Spokane, WA 99201 - 0508, United States FRN: 0033794850 Tel.: +1(949)-490-9063 Email: [email protected] Signed by (printed name): Linxuan AN Signature: Applicant: Shanghai ABXY Tech Co., Ltd. Address: 5F, Building 11, No.6055 Jinhai Highway, Fengxian District, Shanghai FRN: 0033866732 Tel: +86 18510624392 Email: [email protected] Signed by (printed name): Linxuan AN Signature:

Shanghai ABXY Tech Co., Ltd. Address: 5F, Building 11, No.6055 Jinhai Highway, Fengxian District, Shanghai, China Tel.: +8618510624392 Fax: 0755-23744535 E-mail: [email protected] FCC Authorization Date: 2023-07-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Shanghai ABXY Tech Co., Ltd. hereby authorize Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, Shanghai ABXY Tech Co., Ltd. the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature Name: Linxuan An Title: Product Manager QA-FR-170-B

Shanghai ABXY Tech Co., Ltd. Address: 5F, Building 11, No.6055 Jinhai Highway, Fengxian District, Shanghai, China Tel.: +8618510624392 Fax: 0755-23744535 E- mail: [email protected] FCC Confidential Authorization Date: 2023-07-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BBMD-ABXYLUTE1 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shanghai ABXY Tech Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Name: Linxuan An Title: Product Manager • SOFTWARE SECURITY DESCRIPTION

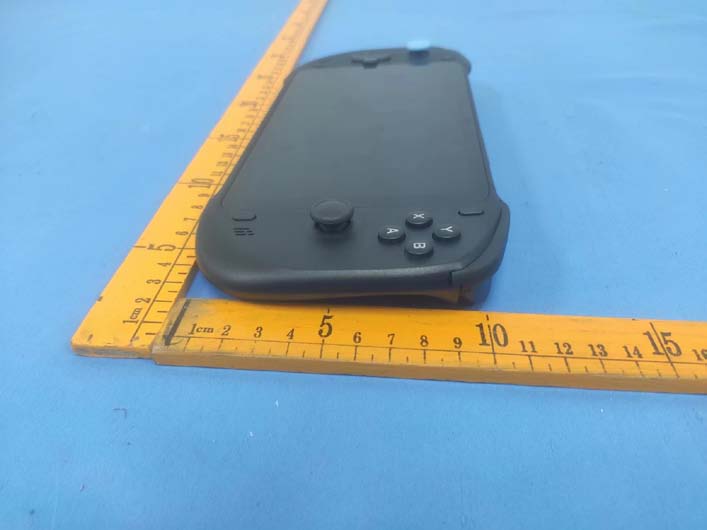

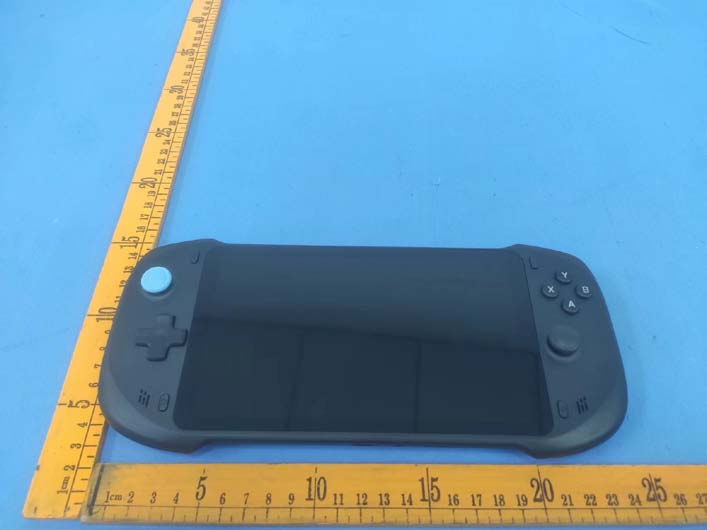

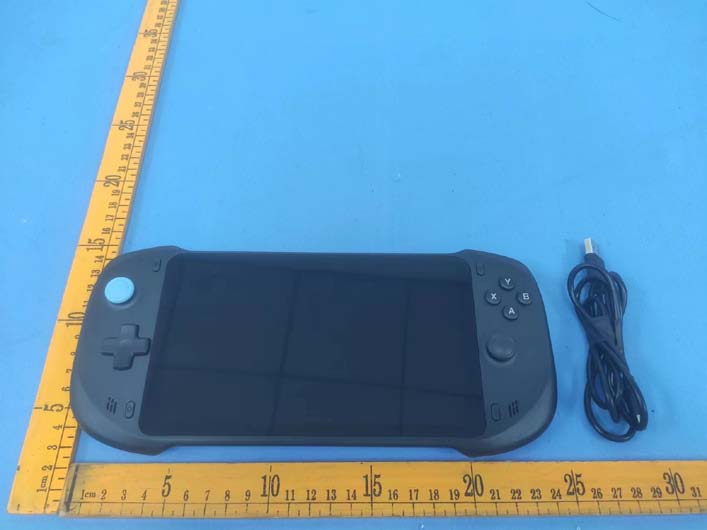

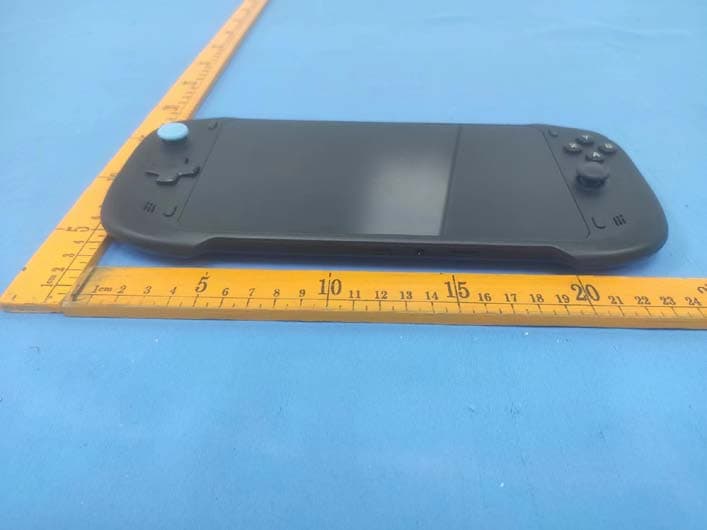

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF EXHIBITA‐FCC ID LABEL AND LOCATION FCC ID Label The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the time purchase (Labeling requirements per 2.295)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 1 of 10 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 2 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 3 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 4 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 5 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 6 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 7 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 8 of 10 WIFI ANT1 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 9 of 10 WIFI ANT2 BT ANT Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Internal Photos Page 10 of 10 Battery Label

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 11 of 63 FCC-RF FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Test Result: For worst case: Mode Frequency (MHz) Maximum Tune-up power Calculated Distance (mm) Calculated Value Threshold (1-g SAR) SAR Test Exclusion (dBm) (mW) BT 2402-2480 8.0 6.31 5 2.0 3.0 Yes Result: No Standalone SAR test is required

深圳勤新科技有限公司 Antenna Test Report Model/ Customer M3539 Date：2023-05-20 PM: huangwen bo（15981667202） 深圳勤新科技有限公司 •The antenna test uses an ETS test system in a microwave anechoic chamber ，The dimensions of The dimensions of the darkroom :7m x 4m x 3m ，Frequency range 700MHz--- 6GHz. •S11 Test use Agilent E5071B network analyzer Testing Environment microwave anechoic chambe Agilent E5071B network analyzer 深圳勤新科技有限公司 Model:M3539 BAND: 2.4G/5.8GWiFi+BT Project Description 深圳勤新科技有限公司 Photo： 深圳勤新科技有限公司 VSWR: 深圳勤新科技有限公司 Free Space Test Report: CHannelTRPTIS 2.4G 802.11B- 11Mbps 114.54-80.1 715.33-79.3 1315.17-80.9 5G 802.11A- 54Mbps 3615.34-71.3 14914.24-70.5 16515.74-71.6 深圳勤新科技有限公司 Free Space Test Report: CHannelTRPTIS 2.4G 802.11G- 54Mbps 113.26-66.6 712.54-67.5 1313.51-67.5 2.4G 802.11N- MCS7 112.74-64.4 713.44-64.3 1313.65-64.2 深圳勤新科技有限公司 Free Space Test Report: CHannelTRPTIS BT 06.92-87.4 397.05-88.4 787.31-88.3 深圳勤新科技有限公司 Free Space Test Report BT FreqEffiGain (MHz)(%)(dBi) 240040.241.36 241040.81.42 242040.141.57 243041.621.56 244042.311.63 245041.511.44 246040.011.46 247041.181.69 2480391.62 249039.211.72 250038.081.52 深圳勤新科技有限公司 Free Space Test Report 深圳勤新科技有限公司 Free Space Test Report 5.8GWiFi1 深圳勤新科技有限公司 Free Space Test Report 5.8GWiFi2 深圳勤新科技有限公司 Antenna shape： BT a ntenna WIFI-1 antenna WIFI-2 antenna

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503290 Web: www.atc-lab.com Version 7: 2023-01-30 Page 1 of 63 FCC-RF TEST REPORT Applicant Name : Shanghai ABXY Tech Co., Ltd. Address : 5F, Building 11, No.6055 Jinhai Highway, Fengxian District, Shanghai Report Number : RA230523-28733E-RF-00A FCC ID: 2BBMD-ABXYLUTE1 Test Standard (s) FCC PART 15.247 Sample Description Product Type: Handheld Game Console Model No.: abxylute_one Trade Mark: Date Received: 2023-05-23 Date of Test: 2023-06-03 to 2023-06-13 Report Date: 2023-06-15 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Roger.Ling Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 2 of 63 FCC-RF TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE .................................................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST RESULT: ............................................................................................................................................................ 11 FCC §15.203-ANTENNA REQUIREMENT ............................................................................................................. 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a)-AC LINE CONDUCTED EMISSIONS ........................................................................................ 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP .................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 41 of 63 FCC-RF FCC §15.247(a) (1) (iii)-TIME OF OCCUPANCY (DWELL TIME) Applicable Standard Frequency hopping systems in the 2400-2483.5 MHz shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. Test Procedure According to ANSI C63.10-2013, section 7.8.4 1. The EUT was worked in channel hopping. 2. Set the RBW to: 1MHz. 3. Set the VBW ≥ 3×RBW. 4. Set the span to 0Hz. 5. Detector = peak. 6. Sweep time = auto couple. 7. Trace mode = max hold. 8. Allow trace to fully stabilize. 9. Recorded the time of single pulses Test Data Environmental Conditions Temperature: 26°C Relative Humidity: 46% ATM Pressure: 101.0kPa The testing was performed by Matt Liang on 2023-06-13. EUT operation mode: Transmitting Test Result: Compliant. Please refer to the below table and plots: Test Mode Antenna Channel Burst Width [ms] Total Hops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.376 320 0.120 ≤0.4 PASS DH3 Ant1 Hop 1.625 170 0.276 ≤0.4 PASS DH5 Ant1 Hop 2.867 130 0.373 ≤0.4 PASS 2DH1 Ant1 Hop 0.385 330 0.127 ≤0.4 PASS 2DH3 Ant1 Hop 1.629 170 0.277 ≤0.4 PASS 2DH5 Ant1 Hop 2.870 100 0.287 ≤0.4 PASS 3DH1 Ant1 Hop 0.385 320 0.123 ≤0.4 PASS 3DH3 Ant1 Hop 1.629 190 0.310 ≤0.4 PASS 3DH5 Ant1 Hop 2.873 130 0.373 ≤0.4 PASS Note 1: A period time=0.4*79=31.6(s), Result=Burst Width*Total Hops Note 2: Total Hops =Hopping Number in 3.16s*10 Note 3: Hoping Number in 3.16s=Total of highest signals in 3.16s (Second high signals were other channel) Spectrum Analyzer EUT Open Switch and Control Unit Attenuator Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 42 of 63 FCC-RF DH1_Ant1_Hop DH1_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 43 of 63 FCC-RF DH3_Ant1_Hop DH3_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 44 of 63 FCC-RF DH5_Ant1_Hop DH5_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 45 of 63 FCC-RF 2DH1_Ant1_Hop 2DH1_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 46 of 63 FCC-RF 2DH3_Ant1_Hop 2DH3_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 47 of 63 FCC-RF 2DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 48 of 63 FCC-RF 3DH1_Ant1_Hop 3DH1_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 49 of 63 FCC-RF 3DH3_Ant1_Hop 3DH3_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 50 of 63 FCC-RF 3DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 51 of 63 FCC-RF FCC §15.247(b) (1)-PEAK OUTPUT POWER MEASUREMENT Applicable Standard According to §15.247(b) (1), for frequency hopping systems operating in the 2400–2483.5 MHz band employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt. And for all other frequency hopping systems in the 2400–2483.5 MHz band: 0.125 watts. Test Procedure According to ANSI C63.10-2013, section 7.8.5 1. Place the EUT on a bench and set in TX mode. 2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to one test equipment. 3. Add a correction factor to the display. Test Data Environmental Conditions Temperature: 26°C Relative Humidity: 46% ATM Pressure: 101.0kPa The testing was performed by Matt Liang on 2023-06-13. EUT operation mode: Transmitting Test Result: Compliant. Please refer to the below table and plots: Test Mode Antenna Channel Conducted Peak Output Power [dBm] Limit[dBm] Verdict DH5 Ant1 2402 5.75 ≤20.97 PASS 2441 5.63 ≤20.97 PASS 2480 5.17 ≤20.97 PASS 2DH5 Ant1 2402 7.64 ≤20.97 PASS 2441 7.50 ≤20.97 PASS 2480 7.01 ≤20.97 PASS 3DH5 Ant1 2402 7.67 ≤20.97 PASS 2441 7.48 ≤20.97 PASS 2480 7.04 ≤20.97 PASS Spectrum Analyzer EUT Open Switch and Control Unit Attenuator Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 52 of 63 FCC-RF DH5_Ant1_2402 DH5_Ant1_2441 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 53 of 63 FCC-RF DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 54 of 63 FCC-RF 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 55 of 63 FCC-RF 3DH5_Ant1_2402 3DH5_Ant1_2441 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 56 of 63 FCC-RF 3DH5_Ant1_2480 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230523-28733E-RF-00A Version 7: 2023-01-30 Page 57 of 63 FCC-RF FCC §15.247(d)- BAND EDGES TESTING Applicable Standard In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted pow…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Test Photos Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: RA230523-28733E-RF Test Photos Page 2 of 2 Radiated Spurious Emissions Test View (Below 1GHz) Radiated Spurious Emissions Test View (Above 1GHz)
