2BBN3-MWRA37VRemote Control

User Manual DOC NO. PC-SPE-230113001 VERSION A2 DATE 2023-04-27 Attachment附件1： Remote control specification遥控器规格 1.Outline structure drawing外形结构图 2.Key and light display按键和灯显 No编号 Remote control instructions遥控器说明 Remarks备注 1 Key LED按键指示灯 Red indicator light红色指示灯 2 H gear/H档 High gear高档 100% heating mode 100%加热模式 3 M gear/M档 Middle gear中档 66% heating mode 66%加热模式 4 L gear/L档 Low gear低档 33% heating mode 33%加热模式 5 Off/开关键 Power switch电源开关 3.Instructions for use使用说明 3.1 Pairing method配对方法： Press the power button for 10S, LED1 and LED2 blink at 1HZ, press any key of the remote control for pairing within 30S, LED1 and LED2 will be extinguished after pairing, and exit automatically after 30S without pairing； 电源按键长按10S，LED1和LED2进行1HZ的闪烁，30S内按遥控器任意键可进行配对，配对成功后LED1和LED2 熄灭，无配对30S后自动退出； 3.2 When you press H/M/L gear respectively with the remote control button, the corresponding LED gear lights up. 30S, the load is not connected, and the LED light goes out 遥控器按键分别按下H/M/L档位时，LED对应档位灯亮， 30S未连接负载，LED灯熄灭； 3.3 Code clearing method清码方法： Press the power button for 10S, LED1 and LED2 perform 1HZ flash mode for 10 times, the code is cleared successfully, and the LED lamp will automatically turn off. 电源按键长按10S后，LED1和LED2进行1HZ的快闪模式10次后，清码成功，LED灯自动熄灭； 4.Transmission distance传输距离 Transmission distance between the remote control and the power supply: ≥10 M 遥控器和电源之间的传输距离：≥10米 按键指示灯Key LED 开关键/Off 高档/H gear 中档/M gear 低档/L gear User Manual DOC NO. PC-SPE-230113001 VERSION A2 DATE 2023-04-27 FCC Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has evaluated to meet general RF exposure requirement. The device can be used be in portable exposure without restriction. IC Statement This device complies with Industry Canada licenseexempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement The device has evaluated to meet general RF exposure requirement. The device can be used be in portable exposure without restriction. Ce produit est conforme à la limite d’exposition aux IC RF fixée pour un environnement non contrôlé et est sû r pour l’exploitation prévue, comme décrit dans le présent manuel

AsiaSocksInc 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:AsiaSocksInc Address:No.2386,2392HuqingpingRoad,XujingTown,QingpuDistrict,Shanghai ProductName:RemoteControl FCCID:2BBN3-MWRA37V Model(s):MWRA37V 2.911(d)(5)(i)EquipmentType We,[AsiaSocksInc](“theapplicant”)certifythattheequipmentforwhichauthorizationissought throughcertificationisnot: Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules. Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:Date:2023.07.25 TitleandCompanyname:Manager/AsiaSocksInc NOTE1 “CoveredList ” ;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

AsiaSocksInc 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:AsiaSocksInc Address:No.2386,2392HuqingpingRoad,XujingTown,QingpuDistrict,Shanghai ProductName:RemoteControl FCCID:2BBN3-MWRA37V Model(s):MWRA37V 2.911(d)(5)(ii)Applicantfiling We,[AsiaSocksInc](“theapplicant”)certifythat,asofthedateofthefilingoftheapplication,the applicantisisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,establishedpursuantto§1.50002of thischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:Date:2023.07.25 TitleandCompanyname:Manager/AsiaSocksInc NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList ” ;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

AsiaSocksInc AgentAuthorization Company:AsiaSocksInc Address:No.2386,2392HuqingpingRoad,XujingTown,QingpuDistrict,Shanghai ProductName:RemoteControl ModelNumber(s):MWRA37V ProductDescription:RemoteControl WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2023.07.25 Name:JohnsonXu Title:Manager Company:AsiaSocksInc

AsiaSocksInc OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023.07.25 Subject;RequestforConfidentiality FCCID:2BBN3-MWRA37V ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:JohnsonXu Title:Manager

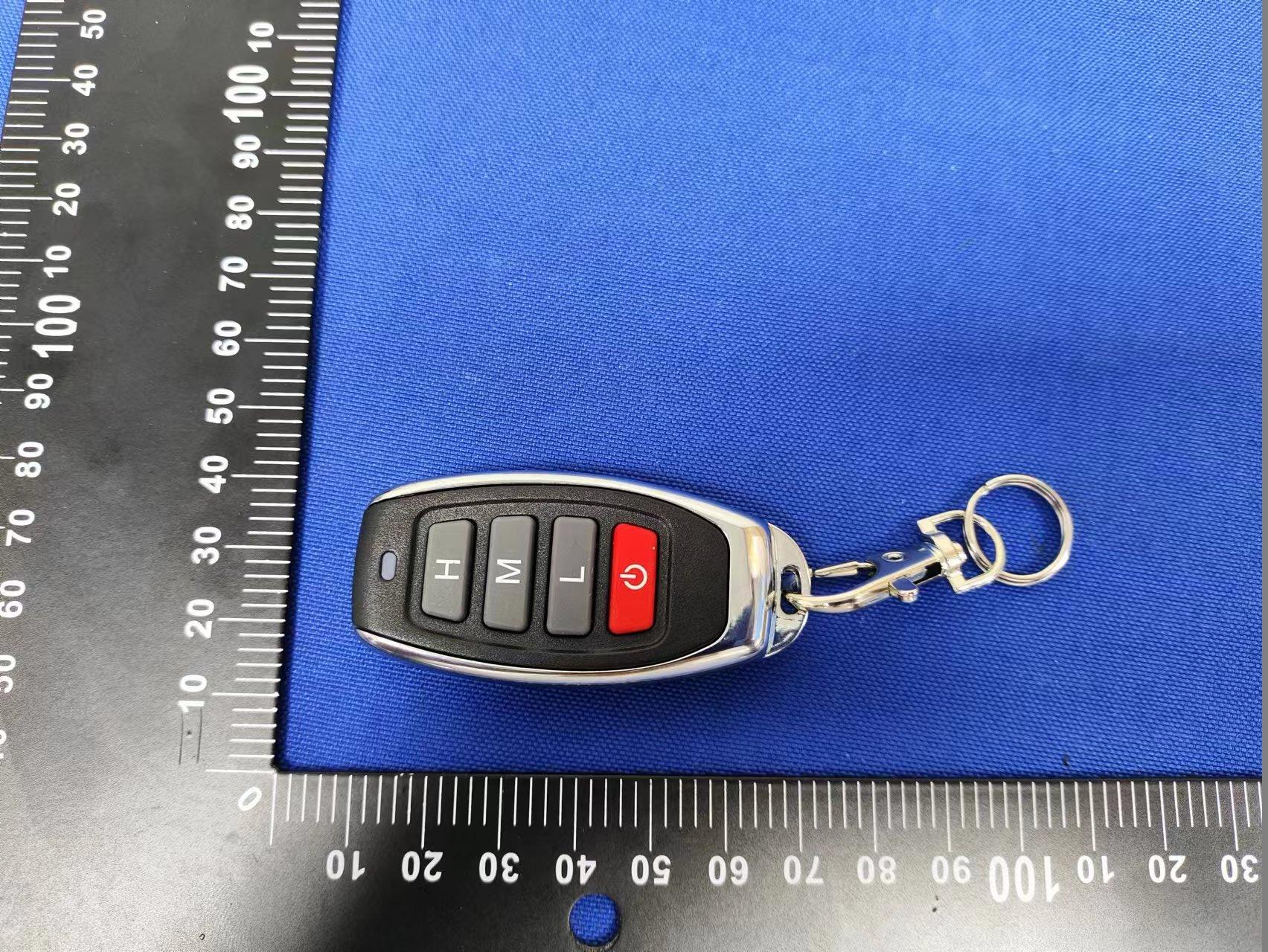

ExternalPhotos

Lable: FCCID:2BBN3-MWRA37V IC:30753-MWRA37V Model:MWRA37V Input:DC3VMadeinChina

InternalPhotos antenna

FCCID:2BBN3-MWRA37V RFExposureEvaluation AccordingtoKDB447498D01V06andpart2.1093 ， Unlessspecificallyrequiredbythe publishedRFexposureKDBprocedures,standalone1-gheadorbodyand10-gextremity SARevaluationforgeneralpopulationexposureconditions,bymeasurementornumerical simulation,isnotrequiredwhenthecorrespondingSARTestExclusionThreshold condition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison EIRP=E Meas +20log(d Meas )-104.7 EIRPistheequivalentisotropicallyradiatedpower,indBm E Meas isthefieldstrengthoftheemissionatthemeasurementdistance,indBμV/m d Meas isthemeasurementdistance,inm Here, For433.92MHz Fieldstrength (dBuV/m) EIRP (dBm) Maxtune-up (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds limit 65.78 -29.420.00114343350.0013.0 SoaSARtestisnotrequired

ReportNo. : RFI-LAB-RF-20 21 06-F02 QP030-E41 Page 1 of 10 TestingReport Customer Name: Asia Socks Inc Product Name: Remote Control Sample Model: ANT1 Reference Standard: GB/T 9410-2008; ANSI/IEEE Std 149-1979 Issue Date: 2021.6.10 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202106-F02 QP030-E41 Page2of10 Version VersionNo.DateDescriptionFormulateApproval A02021.6.10Forthefirsttime,formulateAmandaEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple....................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement...............................................................................................................................4 2.SampleInformation..........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4DUTsetupphotooffreespaceOTAtesting.........................................................................7 3.TestResults.......................................................................................................................................8 3.1Teststandard..........................................................................................................................8 3.2Testuncertainty.....................................................................................................................8 3.3Testdata.................................................................................................................................8 3.3.1Typicalfreespaceefficiencyandgain.......................................................................8 3.3.2Typicalfreespaceradiationpattern...........................................................................9 （Thefollowingisblank）..............................................................................................................10 ReportNo.:RFI-LAB-RF-202106-F02 QP030-E41 Page3of10 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRoad,BaoanDistrict,Shenzhen Tel 13682621346 E-mail [email protected] Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202106-F02 QP030-E41 Page4of10 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2021.3.152023.3.14 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2021.4.262022.4.25 1.4Testenvironment Temperature 24.1°C Humidity 59%RH Pressure 100.07kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202106-F02 QP030-E41 Page5of10 2.SampleInformation 2.1Clientinformation Name TMTAutomationInc. Address No.61,Aly.24,Ln.284,WuxingSt.,XinyiDist.,TaipeiCity110,Taiwan Contacts Mr.Li Tel 0769-87182258 E-mail [email protected] 2.2DescriptionofEUT(S) ProductName Wirelessdoorsensor SampleModel SN1 Size / SerialNo. / TestItem Antennagain;Efficiency;Radiationpattern FrequencyRange 433MHz ReceivedDate 2021.6.9 TestDate 2021.6.9 Remark ThelengthoftheRFcableis30mm ReportNo. : RFI-LAB-RF-20 21 06-F02 QP030-E41 Page 6 of 10 2.3EUTappearance ReportNo. : RFI-LAB-RF-20 21 06-F02 QP030-E41 Page 7 of 10 2.4DUTsetupphotoof freespaceOTAtesting Planform Report No.: RFI-LAB-RF-202106-F02 QP030-E41 Page 8 of 10 3.Test Results 3.1 Test standard NameParameterMethodStandard no. Mobile communication antenna Antenna gain Generic specification for antennas used in the mobile communications GB/T 9410-2008 Radiation pattern Antenna Radiation efficiency IEEE Standard Test Procedures for Antennas ANSI/IEEE Std 149-1979 Gain and directivity 3.2 Test uncertainty The uncertainty was calculated on the basis of the GUM published by ISO, using the inclusion factor of K=2 and the 95% confidence level to express the extended uncertainty. ItemUncertainty VSWR ± 0.3 Antenna gain±1dB Radiation efficiency±10% 3.3 Test data 3.3.1 Typical free space efficiency and gain Frequency/MHz 428429430431432433434435436437438 Peak Gain/dBi -21.08-21.01-20.97-20.84-20.72-20.59-20.53-20.41-20.13-19.94-19.86 Efficiency/% -0.41-0.42-0.43-0.44-0.11 0 -0.47-0.48-0.50-0.51-0.53 ReportNo.:RFI-LAB-RF-202106-F02 QP030-E41 Page9of10 3.3.2Typicalfreespaceradiationpattern (1)X-ZPlane: (2)Y-ZPlane: ReportNo.:RFI-LAB-RF-202106-F02 QP030-E41 Page10of10 (3)X-YPlane: (4)TypicalFreeSpace3DRadiationPatternat433MHz: -------------------------------------------------End---------…
