DULCOLEVEL Radar Level Sensor North America www.prominent.com Original Operating Instructions Radar Level Sensor DULCOLEVEL..................................2 Sonde de Contrôle de Niveau Radar DULCOLEVEL...... 19 EN | FR 2 EN Content For safe operation, observe the information in the "Safety" chapter and the handling instructions in these operating instructions. Personnel Requirements All work or actions on the device should only be carried out by qualified, trained personnel. The personnel must meet the following requirements: „Personnel has been authorized by the manufacturer. „Personnel is familiar with national regulations. „The operating instructions have been read and un- derstood. Intended Use The Radar Level Sensor DULCOLEVEL is intended for commercial and industrial measurement of all types of process chemicals and liquids in plastic tanks using radar technology. The measurement is made from the outside vertically to the medium with a maximum permis- sible deviation of +/- 4°. The sensor is not approved for use in hazardous areas, for flammable or radioactive liquids. The sensor is not intended for outdoor use. Content Safety .....................................................................2 Scope of Delivery ....................................................4 Technical Data ........................................................5 DULCONNEX Blue App ..........................................6 Overview ................................................................6 Function .................................................................7 Application Options ................................................8 LED Status .............................................................9 Mounting ..............................................................10 Electrical Installation .............................................11 Initial Startup ........................................................12 Configuration ........................................................14 Operation .............................................................15 Cleaning & Maintenance .......................................15 Troubleshooting ....................................................16 ISED and FCC ......................................................17 Safety 3 EN Safety Repairing The sensor must not be opened. „Follow the instructions in the troubleshooting chapter. „If repair is necessary, contact ProMinent service. Notes on Radar Frequencies Observe the national and regional regulations for the use of radar frequencies. The sensor is certified according to FCC/IC. Further infor- mation can be found on the nameplate, see page 7. Disposal This device is marked in accordance with the European Directive 2012/19/EU on waste electronic and electronic equipment (WEEE). The directive provides the framework for valid take-back and recycling of waste equipment. The sensor is made of recyclable materials. Therefore, take it to a specialized recycling company for disposal. Observe the applicable national and regional regulations. Foreseeable Misapplication Only use the sensor in accordance with its intended use. Application-specific hazards may occur if used improperly. General Safety instructions The sensor corresponds to the state of the art in com- pliance with the usual regulations and guidelines. It may only be operated in a technically perfect and operational- ly safe condition. When used with a pump, additionally observe the safety instructions in the original operating instructions of the pump. For use in a plant: If the radar sensor is integrated in a plant where a rest- oration of the power supply after failure or a disturbance of the power supply may lead to dangerous situations, a device shall be provided in the plant to prevent this. Modifications to the Device Unauthorized conversions or modifications are expressly prohibited and can lead to inforeseeable dangers. „For safety reasons, only the accessories specified by the manufacturer may be used. „If modifications are necessary, contact ProMinent service, see "Troubleshooting" on page 16. 4 EN 4 Check the scope of delivery: „Sensor „Plug-in power supply (part no. 1121352) or PLC connection cable (part no. 1022537) „Optional accessories e. g. mounting plate (part no. 1119041) „Documentation Optional accessories for your sensor can be found in the ProMinent WebShop* or ordered from your local sales person. Screws for the mounting holes are not included in the scope of delivery. Use screws with a diameter ≤ 5 mm or ≤ M5. * The WebShop is only available in selected countries. Please check your local ProMinent website to see if there is one available in your country. Scope of Delivery Operating Instruction 5 EN Technical Data Maximum angle+/- 4° Measuring range0.1-15 m Measurement accuracy+/- 5 mm Electrical connection18-30 VDC 1.8 W max 0.1 A Note: Power is supplied via a 100-240 V plug-in power supply unit (24 V supply voltage) or via the PLC (24 V DC voltage SELV) Degree of protectionProtection against contact and moisture in accordance with IP 66 (EN 60529) and NEMA-4X/indoor (NEMA 250) if powercable or 0/4-20mA cable is connected properly. Degree of pollution2 Power supply Overvoltage category II Heightmax. 2,000 m (ASL) Ambient humiditymax. 95 % Temperatures Storage temperature-10 °C to +50 °C Environmental temperature-10 °C to +45 °C Note: The sensor is not intended for outdoor use. Operational temperature+1 °C to 45 °C Signal mA output0/4-20 mA galvanically isolated, max. load 450 Ω. Range adjustable via Bluetooth® with DULCONNEX Blue app. 6 EN 1 Power connection Alternatively connection cable to PLC. 2 Radar sensor 3 Alignment bracket for mounting with strap 4 Status LED 5 Nameplate 6 Mounting holes (e. g. for mounting with plate) DULCONNEX Blue AppOverview 4 6 2 5 1 3 About the App When you open the app, the dash- board appears. At the bottom of the screen you will find the most import- ant sections: „Devices Overview …

Text truncated - open the document above for the full version.

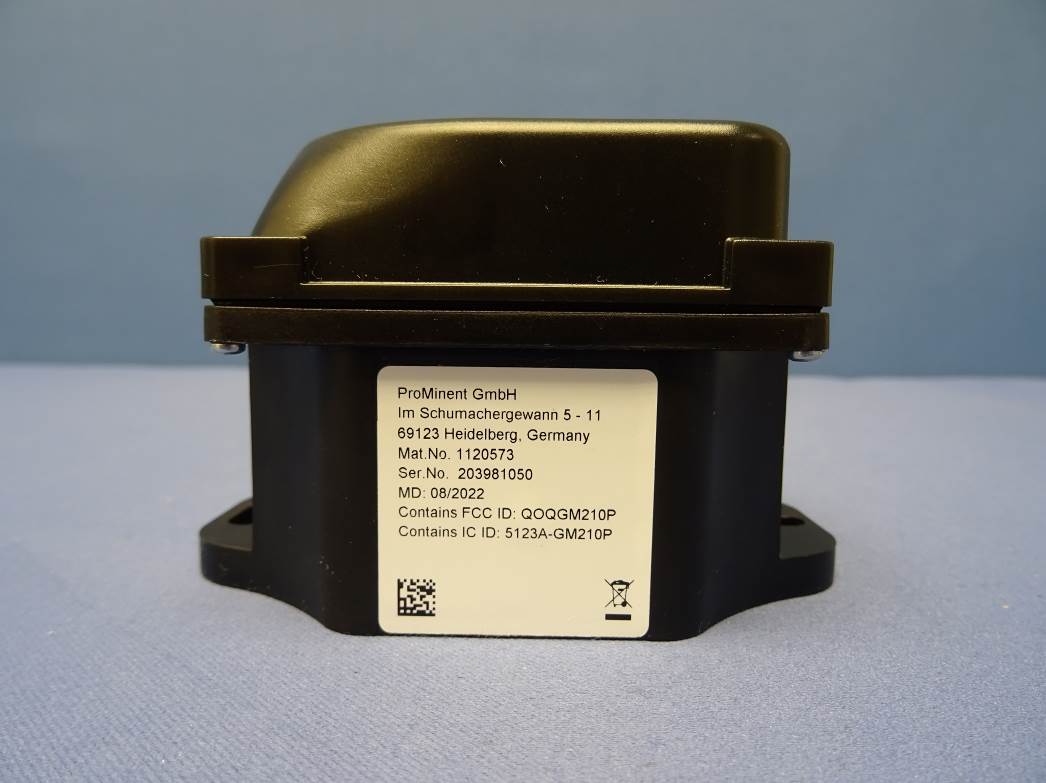

Page 1 of 4 Report No. REP006186 Attachment to test report IEC 61010-1: Photos Front view of DulcoLevel Sensor. Back view of DulcoLevel Sensor. (The marking plate on this picture is not valid. The valid marking plate is available in the IEC61010-1 report) Page 2 of 4 Report No. REP006186 Attachment to test report IEC 61010-1: Photos Side view of Sensor Side view of Sensor Top view of Sensor Bottom view of Sensor

Label design: Label location:

Label design: Label location:

Label design: Label location:

Page 3 of 4 Report No. REP006186 Attachment to test report IEC 61010-1: Photos Internal view of Sensor. Side view of the two internal PCB Page 4 of 4 Report No. REP006186 Attachment to test report IEC 61010-1: Photos Top view of internal PCB Bottom view of internal PCB Side view input Jack Bottom view Input Jack Related equipment placement and details Bluetooth Low Energy and ZigBee wireless radio module Model (HVIN): BGM210P22A FCC ID: QOQGM210P IC: 5123A-GM210P

DULCOLEVEL Technical description Mitteilung: 20226 erstellt: Ludwig geprüft: Machauer geändert: X Seite 1 von 5 Dokument: TN 1120573-TB - 01 (Dulcolevel).docx Datum: 2023-08-22 Uhrzeit: 11:48 Vorlage: PM-VTB-2013_01.01 Pr o Minent ® ProMinent GmbH, P.O. Box 10 17 60, D-69007 Heidelberg - Germany 1. OPERATIONAL DESCRIPTION .................................................................................. 2 1.1. General ................................................................................................................................................. 2 1.1. Operation overview ............................................................................................................................. 2 1.2. Block diagram of DULCOLEVEL ........................................................................................................ 2 1.3. Technical specifications ..................................................................................................................... 4 1.4. Antenna characteristics ...................................................................................................................... 5 DULCOLEVEL Technical description Mitteilung: 20226 erstellt: Ludwig geprüft: Machauer geändert: X Seite 2 von 5 Dokument: TN 1120573-TB - 01 (Dulcolevel).docx Datum: 2023-08-22 Uhrzeit: 11:48 Vorlage: PM-VTB-2013_01.01 Pr o Minent ® ProMinent GmbH, P.O. Box 10 17 60, D-69007 Heidelberg - Germany 1. Operational description 1.1. General The DULCOLEVEL is a FMCW radar system operating in the maximum frequency range from 77 to 81 GHz (W-band). It is intended to measure the distance to, or the level of, liquids or solids in tanks or enclosed containers or in open systems like bunkers or open containers on stock piles. The DULCOLEVEL is delivered with fixed lens antenna, which is part of the housing. The device has to be mounted above the solids or liquids to be measured. The antenna is pointing downwards to the surface of the solids or liquids. 1.1. Operation overview The DULCOLEVEL generates an RF signal with a max. sweep from 77 up to 81 GHz. By means of the antenna this signal is sent from top of a tank or container downwards and is reflected by the liquid or solid surface in it. The reflected signal is received again by the antenna and analyzed in the system. The propagation delay of the RF signal is proportional to the distance of the radar system to the liquid or solid surface and is measured by the DULCOLEVEL. The measured value is converted into a constant current on the current output and is also trans- ferred via the Bluetooth interface. An NFC interface is used to read basic device parameters (e.g. series number) and to simplify Bluetooth pairing. 1.2. Block diagram of DULCOLEVEL The electronic control can be split into three main parts: the sensor part with the RF generation, the Bluetooth unit and the converter part which are located on two different PCBs. Converter part Sensor PCB Bluetooth module Power Management Current output EMC filter Power supply System Control Current Output RF generation 80 GHz MMIC Antenna LPR Modbus Stack 24V / GND NFC MCU Signal Evaluation RF Control Bluetooth Stack Modbus Stack Figure 1: Block diagram DULCOLEVEL DULCOLEVEL Technical description Mitteilung: 20226 erstellt: Ludwig geprüft: Machauer geändert: X Seite 3 von 5 Dokument: TN 1120573-TB - 01 (Dulcolevel).docx Datum: 2023-08-22 Uhrzeit: 11:48 Vorlage: PM-VTB-2013_01.01 Pr o Minent ® ProMinent GmbH, P.O. Box 10 17 60, D-69007 Heidelberg - Germany The converter part contains the power supply, EMC filtering, current output as well as NFC and Bluetooth interface. The Bluetooth module is used as central MCU controlling the interfacing for the whole system. Furthermore, it is used for communication with the sensor part and to perform power management. The connection to the control system is a two wire 4 to 20 mA current output. The liquid level is mapped to a dedicated current value between 4 and 20 mA. The current is measured by the con- trol system on customer side and remapped to the liquid level. Another communication type is the Bluetooth interface. With a pre-certified Bluetooth module, which is populated on the converter part of the device it is possible to receive or transmit measure- ment and configuration data for the MCU from and to mobile devices, respectively. The NFC interface is used for transmitting basic device data (e. g. series number) to an NFC coun- terpart. Furthermore, it can be used to simplify and speed up the Bluetooth connection process. The sensor part comprises the RF generation and an MCU responsible for RF control, signal eval- uation and sensor converter communication via Modbus protocol. The RF generation is done by an mmWave integrated chip (MMIC) based on FMCW technique ca- pable of operating in the frequency range 77 to 81 GHz. The MCU triggers an RF sweep of 342 μs up to 2 times per second. Output power at the antenna port is typically 0 dBm. The RF signal sent out by the antenna is reflected at the surface of the liquid or solid, received again by the antenna and fed to the RF input of the MMIC. Due to the frequency sweep and the propagation delay of the reflected signal, the actual frequency of the LO input of the integrated mixer is lower than the reflected signal frequency at the RF input. The difference frequency of the IF signal of the integrated mixer is proportional to the delay of the reflected signal and to the distance of the reflection, respectively. The IF signal frequency is in the range of 175 kHz up to 15 MHz. This signal is sampled by an A/D converter integrated in the MMIC. On the sampled data an FFT is performed. Determination of the frequency of the IF signal is done on the sensor MCU. With the known dimensions of the tank or container the sensor MCU calculates the liquid or solid level in the tank or container. The antenna is constructed in a two-step approach: First the TX output signal is fed into a …

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC and RSS-102 Annex C – MPE Exemption; Date: May 2021 C h o o s e S c a n d i n a v i a n t r u s t RADIO MPE TEST REPORT Type of assessment: MPE Exemption report Manufacturer: Equipment description: ProMinent GmbH Radar level sensor Hardware Version Identification Number (HVIN): Product Marketing Name (PMN): 1120573 DulcoLevel FCC identifier: ISED certification number: FCC ID: 2BBPH-1120573 IC: 30005-1120573 Contains FCC identifier: Contains ISED certification number: FCC ID: QOQGM210P IC: 5123A-GM210P Specification:  FCC 47 CFR Part 1 Subpart I, §§1.1307, 1.1310  FCC 47 CFR Part 2 Subpart J, §2.1091  FCC KDB 447498 D01 General RF Exposure Guidance v06  ISED Canada RSS-102 Issue 5 Amendment 1, (February 2021) Declaration of RF exposure compliance for exemption from routine evaluation limits RSS-102 Annex C - Attestation: I attest that the radiocommunication apparatus meets the exemption from the routine evaluation limits in Section 2.5 of RSS-102 standard; that the Technical Brief was prepared, and the information contained therein is correct; that the device evaluation was performed or supervised by me; that applicable measurement methods and evaluation methodologies have been followed; and that the device meets the SAR and/or RF field strength limits of RSS-102. Date of issue: August 22, 2023 Andrey Adelberg, Senior EMC/RF Specialist Prepared by Signature www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC and RSS-102 Annex C – MPE Exemption; Date: May 2021 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Section 1: MPE exemption calculation www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC and RSS-102 Annex C – MPE Exemption; Date: May 2021 Evaluation summary 1.1 MPE exemption for standalone transmission 1.1.1 References, definitions and limits FCC §2.1091(c) (1) Mobile devices that operate in the Commercial Mobile Radio Services pursuant to part 20 of this chapter; the Cellular Radiotelephone Service pursuant to part 22 of this chapter; the Personal Communications Services pursuant to part 24 of this chapter; the Satellite Communications Services pursuant to part 25 of this chapter; the Miscellaneous Wireless Communications Services pursuant to part 27 of this chapter; the Upper Microwave Flexible Use Service pursuant to part 30 of this chapter; the Maritime Services (ship earth station devices only) pursuant to part 80 of this chapter; the Specialized Mobile Radio Service, and the 3650 MHz Wireless Broadband Service pursuant to part 90 of this chapter; the 76–81 GHz Band Radar Service pursuant to part 95 of this chapter; and the Citizens Broadband Radio Service pursuant to part 96 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if: (i) They operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or (ii) They operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. (2) Unlicensed personal communications service devices, unlicensed millimeter-wave devices, and unlicensed NII devices authorized under §§15.255(f), 15.257(g), 15.319(i), and 15.407(f) of this chapter are also subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if their ERP is 3 watts or more or if they meet the definition of a portable device as specified in §2.1093(b) requiring evaluation under the provisions of that section. (3) All other mobile and unlicensed transmitting devices are categorically exclu…

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC 15.256 and RSS-211; Date: October 2022 C h o o s e S c a n d i n a v i a n t r u s t RADIO TEST REPORT – 465448-1TRFWL Type of assessment: Final product testing Applicant: Description of product: ProMinent GmbH Radar level sensor Model (HVIN): Product marketing name (PMN): 1120573 DulcoLevel FCC identifier: ISED certification number: FCC ID: 2BBPH-1120573 IC: 30005-1120573 Specifications:  FCC 47 CFR Part 15 Subpart C, §15.256  RSS-211, Issue 1, March 2015 Date of issue: August 31, 2023 Fahar Abdul Sukkoor, EMC/RF Specialist Tested by Andrey Adelberg, Senior EMC/RF Specialist Reviewed by Signature Report reference ID: 465448-1TRFWL Page 2 of 27 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 465448-1TRFWL Page 3 of 27 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Model variant declaration ........................................................................................................................................................................................ 5 2.4 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Measurement uncertainty .................................................................................................................................................................. 7 4.1 Unc…

Text truncated - open the document above for the full version.

DulcoLevel – IO-board PN 734883 Ersteller Author Harald Rauh, KDPL Datum Date 2023_10_06 ProMinent GmbH, Im Schuhmachergewann 5-11, 69123 Heidelberg – Germany 1. Blue Tooth Low Energy Module – Antenna Specifications Bluetooth-Module BGM210 with Antenna DulcoLevel – IO-board PN 734883 Ersteller Author Harald Rauh, KDPL Datum Date 2023_10_06 ProMinent GmbH, Im Schuhmachergewann 5-11, 69123 Heidelberg – Germany Specifications taken from: SILICONLABS BGM210P Wireless Gecko Bluetooth Module Data Sheet V1.3
