2BBRL-SME12Silicone Wireless Mouse

Silicone Wireless Mouse User Manual - A 2-button Touchpad scrollwireless optical mouse, rugged and waterproof, made of silicone - 2.4 GHz digital radio frequency technology - Automatic synchronization between Mouse and receiver - Working distance up to 10 meters (30 feet) - Rubberized surface provides comfort to user - Precise and smooth cursor movement, superior performance - 1000 dpi optical sensor with 3,000 frames/second scan rat - Compatibility: Microsoft® Windows® 10, 8, 7, Vista® & XP - Interface: Nano USB receiver - Power: 2 x AAA alkaline battery - Protection level: IP65 Step 1: Find the mini receiver, which is at the bottom of the mouse. Step 2: Install two AAA Alkaline battery (No. 7) into the battery compartment, close the battery cover, and lock the battery cover with the accompanying screws, Step 3: Insert the mini receiver into the USB port of the computer. Step 3: Multiple clicks of the left and right mouse buttons. Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However. there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help NOTE: This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter

Chaptertype Keyboards Inc. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Chaptertype Keyboards Inc. Address: 1048 Serpentine Ln, Ste 310, Pleasanton, California, 94566, United States Product Name: Silicone Wireless Mouse FCCID: 2BBRL-SME12 Model(s): SME12 2.911(d)(5)(ii) Applicant filing We, [Chaptertype Keyboards Inc.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Chong Lim Date: Jun. 28, 2023 Title: President Company name: Chaptertype Keyboards Inc. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Chaptertype Keyboards Inc. Section 2.911(d)(7) USA Agent for Service of Process Company name: Chaptertype Keyboards Inc. Address: 1048 Serpentine Ln, Ste 310, Pleasanton, California, 94566, United States Product Name: Silicone Wireless Mouse FCCID: 2BBRL-SME12 Model(s): SME12 2.911(d)(7) USA Designated Agent for Service of Process We, [Chaptertype Keyboards Inc.] (“the applicant”) designate [Chaptertype Keyboards Inc.] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent:We acknowledgeour consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledgeour acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation:We acknowledgeourobligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email addressfor no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. 2.911 (d)(7)USA Agent v1.4 Chaptertype Keyboards Inc. USA Agent Company name: Chaptertype Keyboards Inc. USA Address: 1048 Serpentine Ln, Ste 310, Pleasanton, California, 94566, United States FRN Number: 0033911876 Contact Name: Chong Lim Telephone No: 1-833-686-1055 Email: [email protected] Applicant Company name: Chaptertype Keyboards Inc. Address: 1048 Serpentine Ln, Ste 310, Pleasanton, California, 94566, United States FCC Grantee Code: 2BBRL Contact Name: Chong Lim Telephone No: 1-833-686-1055 Email: [email protected] Signature: Title: President Signature: Title: President Date: Jun. 19, 2023Date: Jun. 19, 2023 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against- national-security-threats-to-the-communications-supply-chain-through-the 2.911 (d)(7)USA Agent v1.4

Chaptertype Keyboards Inc. Agent Authorization Company: Chaptertype Keyboards Inc. Address: 1048 Serpentine Ln, Ste 310, Pleasanton, California, 94566, United States Product Name: Silicone Wireless Mouse Model Number(s): SME12 Product Description: Silicone Wireless Mouse We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 28, 2023 Name: Chong Lim Title: President Company: Chaptertype Keyboards Inc.

Chaptertype Keyboards Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 28, 2023 Subject; Request for Confidentiality FCC ID: 2BBRL-SME12 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Chong Lim Title: President

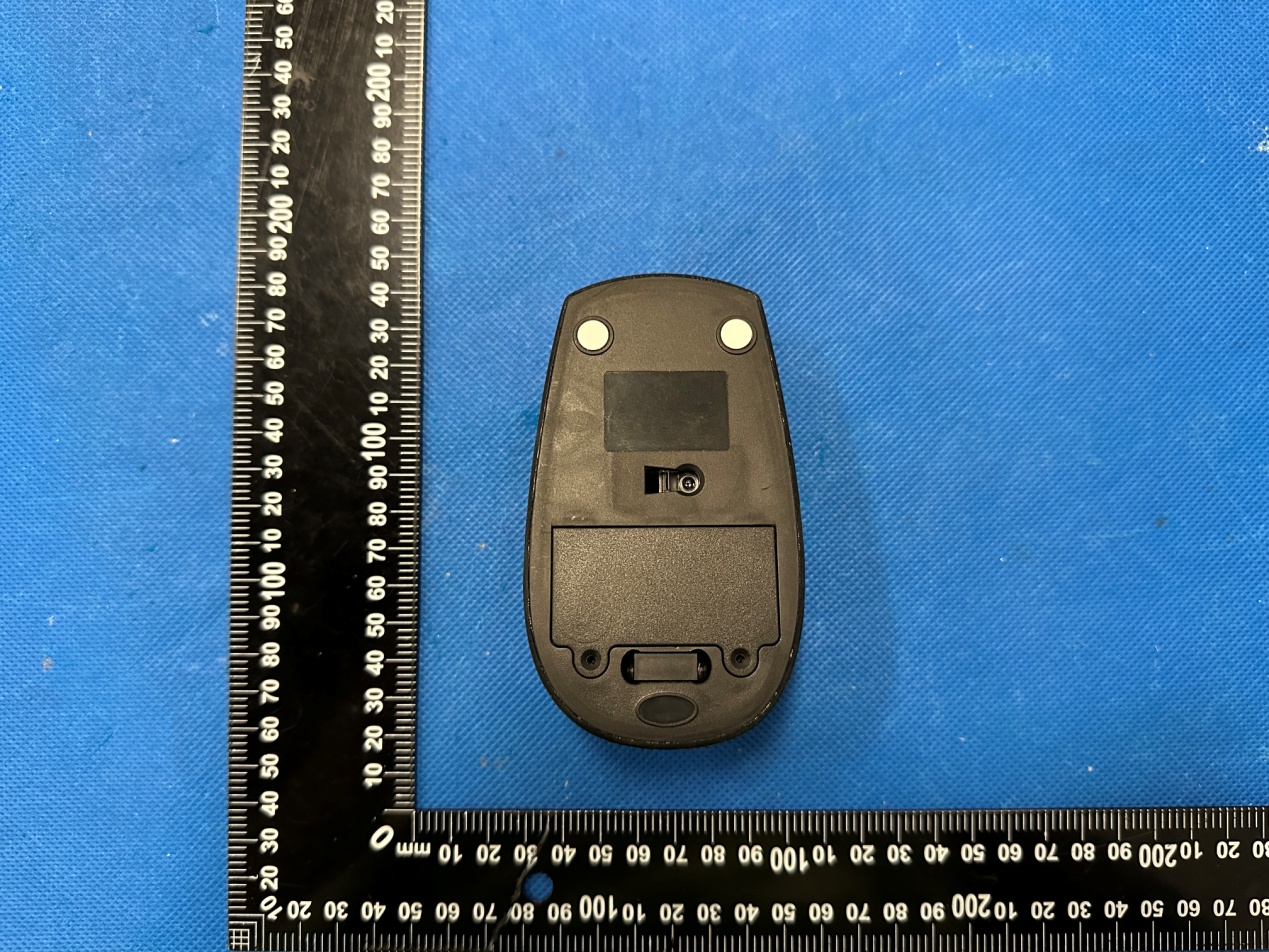

Annex A External Photos Report No.: HK2306052295-E Page 1 of 3 Report No.: HK2306052295-E Page 2 of 3 Report No.: HK2306052295-E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm label location FCC ID: 2BBRL-SME12

Annex B Internal Photo Report No.: HK2306052295-E Page 1 of 3 Report No.: HK2306052295-E Page 2 of 3 Antenna Report No.: HK2306052295-E Page 3 of 3

FCC RF Exposure EUT Description: Silicone Wireless Mouse Model No.: SME12 FCC ID: 2BBRL‐SME12 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2477MHz: EIRP(dBm)=101.57(dBuV/m)-95.3=6.27(dBm) Frequency (MHz) Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separatio n distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2477 6.27 6±1 7/5.01 5 1.57759 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2306052295‐E, antenna gain=2.34dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 1.57759 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

ITEM SPEC. Ante nna Type Type_2_single wiggle Center Frequency 2407 MHz 2442 MHz 2477 MHz 2.34 dBi 2.07dBi 1.45 dBi MA X. GAIN 2.3 4 dBi Pola rization H orizontal Azi muth Beam PatternOmni-directional Im pedance 50 Ω An tenna Length 3. 1cm Antenna Specification Spe cifications S ummary Ante nna An tenna Photo & Length (mm) Te st Address 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Tai wan Te st Date 2009-04 -14 Te st Instru ment vect or network analyzer - R&S ZVB20 Average Gain(dBi) : -2.48 Mini mum Gain(dBi): -55.18 1. Main antenna : 2407 MHz 1.1 Horizontal Frequency(MHZ): 2407 Antenna Polarity: Horizontal Maximum Value(dBi): 2. 34 Average Gain(dBi) : -8.98 Mini mum Gain(dBi): -62.3 1.2 Vertical Frequency(MHZ): 2407 Antenna Polarity: Vertical Maximum Value(dBi): -4.51 Average Gain(dBi) : -2.54 Mini mum Gain(dBi): -66.98 2. Main antenna : 2442 MHz 2.1 Horizontal Frequency(MHZ): 2442 Antenna Polarity: Horizontal Maximum Value(dBi): 2.07 Average Gain(dBi) : -8.81 Mini mum Gain(dBi): -51.4 2.2 Vertical Frequency(MHZ): 2442 Antenna Polarity: Vertical Maximum Value(dBi): -4.29 Average Gain(dBi) : -3.34 Mini mum Gain(dBi): -53.4 2. Main antenna : 2477 MHz 2.1 Horizontal Frequency(MHZ): 2477 Antenna Polarity: Horizontal Maximum Value(dBi): 1.45 2.2 Vertical Frequency(MHZ): 2477 Antenna Polarity: Vertical Maximum Value(dBi): -4.95 Average Gain(dBi) : -9.06 Minimum Gain(dBi): -60.00

Page 1 of 26 Report No.: HK2306052295-E FCC Test Report Test report On Behalf of Chaptertype Keyboards Inc. For Silicone Wireless Mouse Model No.: SME12 FCC ID: 2BBRL-SME12 Prepared For : Chaptertype Keyboards Inc. 1048 Serpentine Ln, Ste 310, Pleasanton, California, 94566, United States Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jun. 05, 2023 ~ Jun. 12, 2023 Date of Report: Jun. 12, 2023 Report Number: HK2306052295-E Page 2 of 26 Report No.: HK2306052295-E TEST RESULT CERTIFICATION Applicant’s name ................. : Chaptertype Keyboards Inc. Address ................................. : 1048 Serpentine Ln, Ste 310, Pleasanton, California, 94566, United States Manufacture's Name ............ : Jinghong Industrial (HK) Co., Limited. Address ................................. : 1st & 2nd Floor, Block 25, Chentian Industrial Zone, Xixiang, Baoan, Shenzhen, China Product description Trade Mark: DSI Product name ........................... : Silicone Wireless Mouse Model and/or type reference : SME12 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Jun. 05, 2023 ~ Jun. 12, 2023 Date of Issue ........................................... : Jun. 12, 2023 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 26 Report No.: HK2306052295-E Table of Contents Page 1 . Test Summary 5 1.1 . Test Procedures and Results 5 1.2 . Information of the Test Laboratory 5 1.3 . Measurement Uncertainty 5 2 . General Information 6 2.1 . General Description of EUT 6 2.2 . Operation of EUT During Testing 7 2.3 . Description of Test Setup 8 2.4 . Measurement Instruments List 9 3 . Conducted Emissions Test 10 3.1. Conducted Power Line Emission Limit 10 3.2. Test Setup 10 3.3. Test Procedure 10 3.4. Test Result 11 4. Radiated Emission Test 12 4.1. Radiation Limit 12 4.2. Test Setup 12 4.3. Test Procedure 13 4.4. Test Result 13 5. Band Edge 19 5.1. Limits 19 5.2. Test Procedure 19 5.3. Test Result 20 6. Occupied Bandwidth Measurement 22 6.1. Test Setup 22 6.2. Test Procedure 22 6.3. Measurement Equipment Used 22 6.4. Test Result 22 7. Antenna Requirement 24 8. Photograph of Test 25 9. Photos of the EUT 26 Page 4 of 26 Report No.: HK2306052295-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Jun. 12, 2023 Jason Zhou Page 5 of 26 Report No.: HK2306052295-E 1. Test Summary 1.1. Test Procedures and Results DESCRIPTION OF TEST SECTION NUMBER RESULT CONDUCTED EMISSIONS TEST 15.207 N/A RADIATED EMISSION TEST 15.249(a)/15.209 COMPLIANT BAND EDGE 15.249(d)/15.205 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT 1.2. Information of the Test Laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Testing Laboratory Authorization： A2LA Accreditation Code is 4781.01. FCC Designation Number is CN1229. Canada IC CAB identifier is CN0045. CNAS Registration Number is L9589. 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.90dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 6 of 26 Report No.: HK2306052295-E 2. General Information 2.1. General Description of EUT Equipment: Silicone Wireless Mouse Model Name: SME12 Series Model: N/A Model Difference: N/A FCC ID: 2BBRL-SME12 Antenna Type: PCB Antenna Antenna Gain: 2.34dBi Operation frequency: 2407-2477MHz Number of Channels: 16CH Modulation Type: GFSK Power Source: DC 3V from battery Power Rating: DC 3V from battery Page 7 of 26 Report No.: HK2306052295-E 2.1.1. Carrier Frequency of Channels Channel Frequency (MHz) 1 2407 2 2408 3 2410 4 2414 5 2421 6 2428 7 2435 8 2437 9 2440 10 2441 11 2442 12 2449 13 2455 14 2467 15 2468 16 2477 2.2. Operation of EUT During Testing Operating Mode The mode is used: Transmitting mode Low Channel: 2407MHz Middle Channel: 2442MHz High Channel: 2477MHz Page 8 of 26 Report No.: HK2306052295-E 2.3. Description of Test Setup Operation of EUT during radiation below 1GHz testing: AC Plug Operation of EUT during radiation above 1GHz testing: Laptop information Model: TP00018A Input: 20V, 3.25~4.5A The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position. Laptop Adapter EUT EUT Page 9 of 26 Report No.: HK2306052295-E 2.4. Measurement Instruments List Item Equipment Manufacturer Model No. Serial No. La…

Text truncated - open the document above for the full version.

Model: SME12 Radiated Emissions
