2BBRR-LJ-S803-in-1 wireless charging stand

Wireless charging position for Samsung Watch Galaxy Watch Active スマホインジケータランプ AirPodsインジケータランプ iWatchインジケータランプ Galaxy Watch Active 2/3/4 Samsung Watch: Galaxy Watch Series(Active,Active 2,Watch 3, Watch 4). FCC Statement This device complies with part 15 of the FCC Rules. Operation is Subject To the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not explicitly approved by the party responsible for compliance could void the user's authority to operate this equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and candidate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. ISED Statement This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: ● This device may not cause interference; and ● This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: ● l’appareil ne doit pas produire de brouillage; ● l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 10 cm surrounding the device and 10 cm above the top surface of the device must be respected. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contr ô lé. au cours de l'opération de l'appareil sur une distance de 10 cm autour de l'appareil et de 10 cm au - dessus de la surface supérieure de l'appareil doit être respecté. PMN: 3-in-1 wireless charging stand

Zero Pole (Dongguan)IntelligentTechnologyCo., Ltd Theinformationprovidedin thisletteris basedon thereferencedrulepartsof Title47 of theCFRas wellas KDB986446D01. Anexpirationdateforthisletterdoesnotexist.In casetheU.S.agentchanges,thegranteeis obligatedto notifytheFCCwithin30 daysvia thegrantingTCB. FederalCommunicationsCommission Authorizationand EvaluationDivision EquipmentAuthorizationBranch 7435 OaklandMills Road Columbia,MD 21046 6/25/23 U.S. AgentDesignation Zero Pole (Dongguan)IntelligentTechnologyCo., Ltd acknowledgestheir consentfor the following contactlocatedin the UnitedStatesto act as their agent for serviceof processfor the equipmentfor which authorizationis sought(FCC ID: 2BBRR -LJ-S 80): Nameand companyof U.S. agent:Tim Payne,FCC US Agent,LLC PhysicalU.S. addressof agent:3722 IllinoisAvenue,Saint Charles,IL, 60174,USA FRN of U.S. agent:0033402884 Email addressof U.S. agent:[email protected] FCC US Agent,LLCacknowledgestheir obligationto acceptserviceof processon behalfof Zero Pole (Dongguan)IntelligentTechnologyCo., Ltd Zero Pole (Dongguan)IntelligentTechnologyCo., Ltd with the FRN 0033912254acceptsits obligation to maintainan agent for serviceof processin the UnitedStatesfor no less than one year after either the granteehas permanentlyterminatedall marketingand importationof the applicableequipment withinthe U.S., or the conclusionof any Commission-relatedadministrativeor judicialproceeding involvingthe equipment,whicheveris later. By signingthis form, we confirmthe aboveand that we are awareof the applicationrequirements listed under § 2.911(d)(7). Sincerely, Signature YuyuanHe executivedirector Zero Pole (Dongguan)IntelligentTechnologyCo., Ltd Signature Tim Payne Manager FCC US Agent,LLC 48_[model] US_Agent_2.911(d)(7)-U, V04

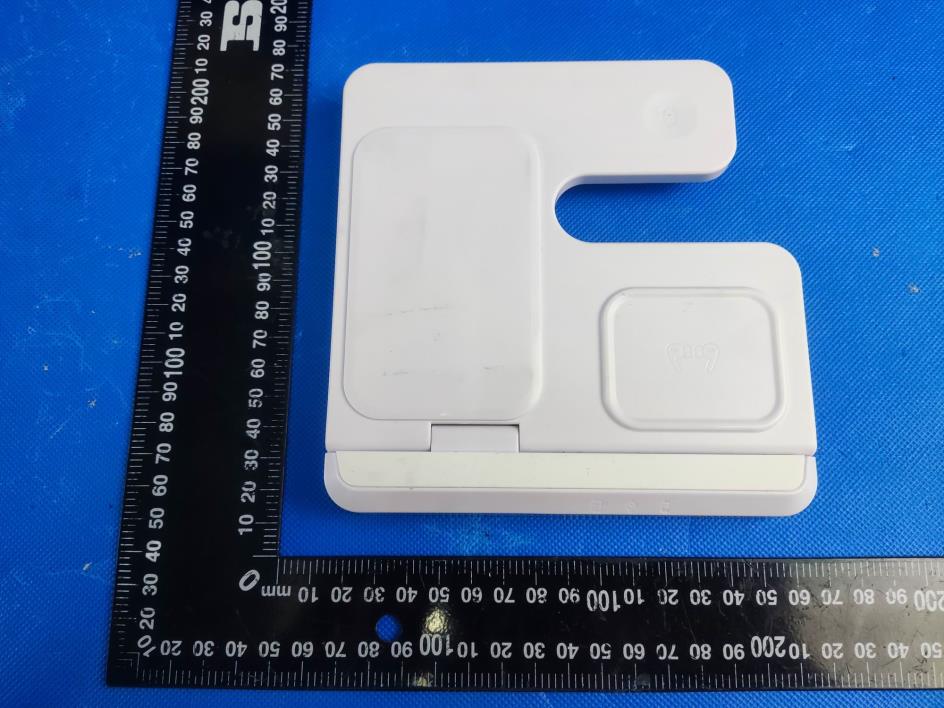

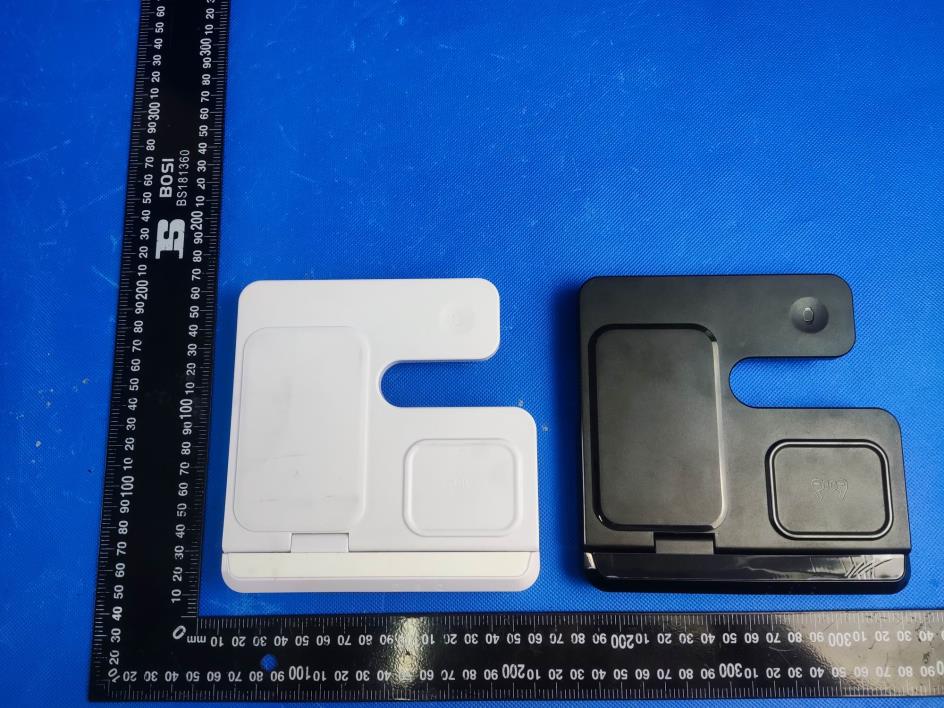

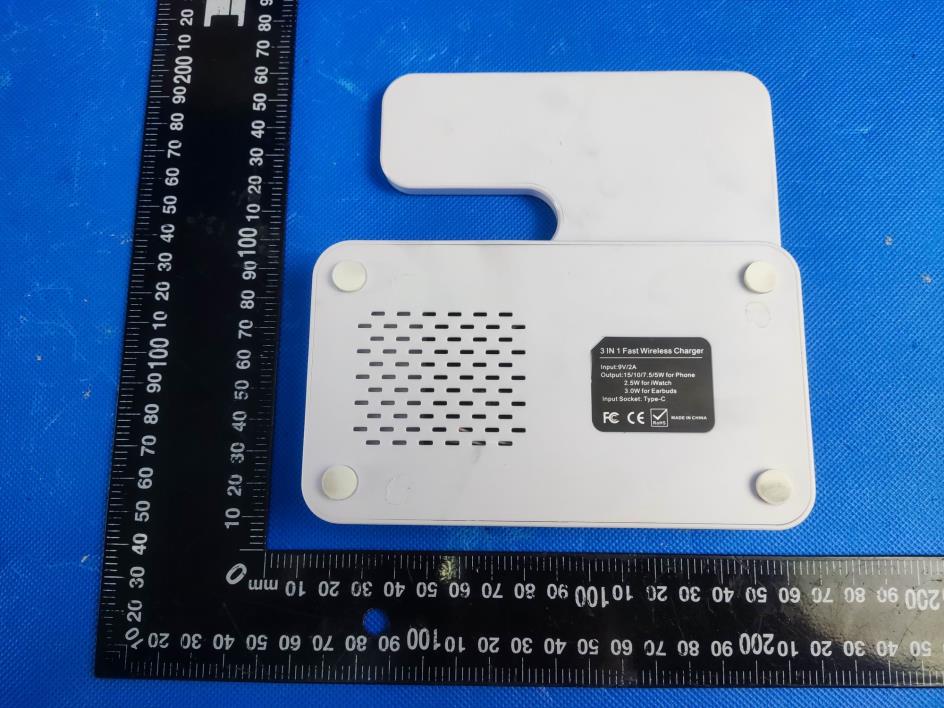

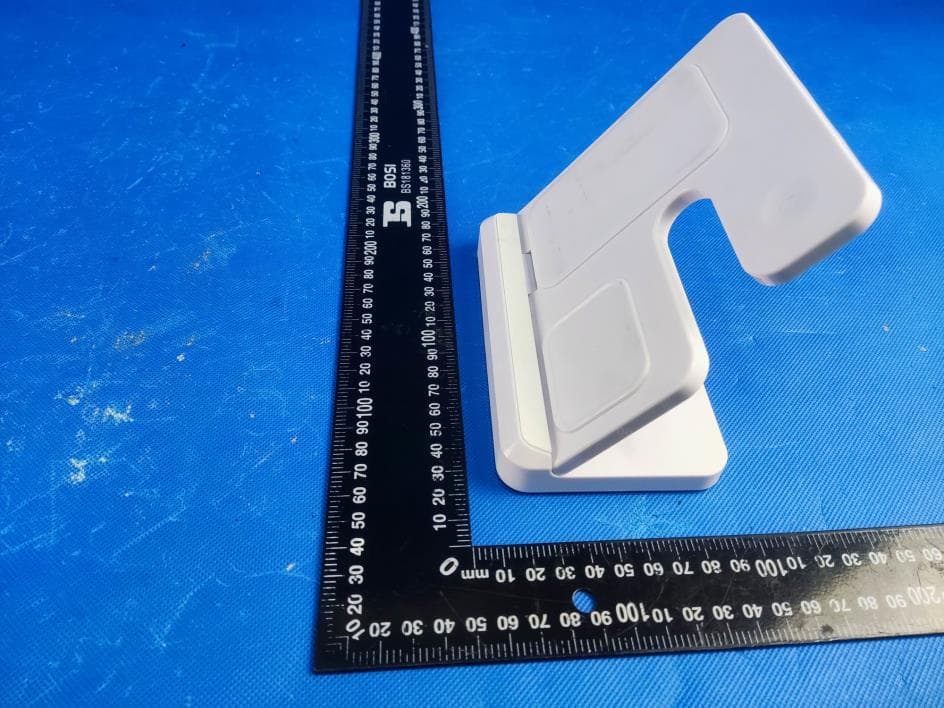

Page 1 of 5 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 5 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 ---The End---

Label Product Name: 3-in-1 wireless charging stand Model/HVIN: LJ-S80 IC：30850-LJS80 FCC ID: 2BBRR-LJ-S80 This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 6 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 6 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 6 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Antenna Page 4 of 6 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Antenna Page 5 of 6 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 6 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 ------End------ Antenna

Page 1 of 7 FCC ID: 2BBRR-LJ-S80 RF Exposure Evaluation 1 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 2 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 7 FCC ID: 2BBRR-LJ-S80 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Test Mode Description Mode 1 AC Adapter + EUT + Mobile phone+ Earphone+ Watch Record Mode 2 AC Adapter + EUT + Mobile phone+ Earphone Pre-tested Mode 3 AC Adapter + EUT + Mobile phone+Watch Pre-tested Mode 4 AC Adapter + EUT + Earphone +Watch Pre-tested Mode 5 AC Adapter + EUT + Mobile phone Pre-tested Mode 6 AC Adapter + EUT + Earphone Pre-tested Mode 7 AC Adapter + EUT + Watch Pre-tested Mode 8 Test the EUT in idle mode. Pre-tested Note: 1. All test modes were pre-tested, but we only recorded the worst case in this report. 2. Unfolded and folded mode were tested, but we only recorded the worst case. Page 3 of 7 FCC ID: 2BBRR-LJ-S80 6 Peripheral List 7 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Electric and Magnetic Field Analyzer Narda EHP-200A 180ZX10505 21.06.2021 20.06.2023 8 Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Unit Test mode TM1 Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (V/m) Limits (V/m) Unfolded mode Folded Mode V/m Phone port 90.16 101.32 95.41 94.63 89.35 307 614 V/m Earphone port 83.69 82.75 81.56 83.91 83.01 307 614 V/m Watch port 62.37 66.92 62.37 63.76 64.59 307 614 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Unit Test mode TM1 Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (A/m) Limits (A/m) Unfolded mode Folded Mode A/m Phone port 0.234 0.245 0.209 0.221 0.230 0.815 1.63 A/m Earphone port 0.195 0.187 0.193 0.187 0.189 0.815 1.63 A/m Watch port 0.162 0.160 0.159 0.161 0.158 0.815 1.63 N o. Equipment Manufacturer Model No. Serial No. Power cord signal cable 1 Adapter XIAOMI MDY-10-EH N/A N/A N/A 2 Mobile lphone XIAOMI MI 11 N/A N/A N/A 3 Airpod Apple Airpod 3 N/A N/A N/A 4 Watch Apple S6 N/A N/A N/A Page 4 of 7 FCC ID: 2BBRR-LJ-S80 H-Filed Strength at 20 cm from the top of the EUT (A/m) Unit Test mode TM1 Test Position E 50% Limits (A/m) Limits (A/m) Folded Mode A/m Phone port 0.214 0.815 1.63 A/m Earphone port 0.180 0.815 1.63 A/m Watch port 0.157 0.815 1.63 Note: All test modes were pre-tested, but we only recorded the worst case in this report. Page 5 of 7 FCC ID: 2BBRR-LJ-S80 9 Test Setup photo Test Position A-15cm from the edge of EUT to the geometric center of the probe Test Position B-15cm from the edge of EUT to the geometric center of the probe Page 6 of 7 FCC ID: 2BBRR-LJ-S80 Test Position C-15cm from the edge of EUT to the geometric center of the probe Test Position D-15cm from the edge of EUT to the geometric center of the probe Page 7 of 7 FCC ID: 2BBRR-LJ-S80 Test Position E-15cm from the edge of EUT to the geometric center of the probe Test Position E-20cm from the edge of EUT to the geometric center of the probe ***End of report***

Page 1 of 26 Report No.: AIT23060505FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Zero Pole (Dongguan) Intelligent Technology Co., Ltd Applicant add.: Room 301, 3rd Floor, Building 1, No. 5 Diwei Road, Chang'an Town, Dongguan City, Guangdong Province Manufacturer: Zero Pole (Dongguan) Intelligent Technology Co., Ltd Manufacturer add.: Room 301, 3rd Floor, Building 1, No. 5 Diwei Road, Chang'an Town, Dongguan City, Guangdong Province Product Information: Product Name: 3-in-1 wireless charging stand Model No.: LJ-S80,LJ-S90,LJ-S60,LJ-S68,LJ-S89,LJ-S88,LJ-S96 Brand Name: N/A FCC ID: 2BBRR-LJ-S80 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: June 05, 2023 Date of Test: June 05, 2023~ June 12, 2023 Date of Issue: June 13, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 26 Report No.: AIT23060505FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3 TEST PROCEDURE ........................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD .....…

Text truncated - open the document above for the full version.

Zero Pole (Dongguan) Intelligent Technology Co., Ltd 1. Antenna1 Description: Antenna type: loop coil Antenna Manufacturer: Zero Pole (Dongguan) Intelligent Technology Co., Ltd Model:AC10010-BL antenna Antenna Gain(Peak): 0 dBi Frequency range:110kHz-205kHz 2. Antenna1 Photo: Zero Pole (Dongguan) Intelligent Technology Co., Ltd 3. Antenna2 Description: Antenna type: loop coil Antenna Manufacturer: Zero Pole (Dongguan) Intelligent Technology Co., Ltd Model:AC10012-BL antenna Antenna Gain(Peak): 0 dBi Frequency range:110kHz-205kHz 4. Antenna2 Photo: Antennaφ=25mm Zero Pole (Dongguan) Intelligent Technology Co., Ltd 5. Antenna3 Description: Antenna type: loop coil Antenna Manufacturer: Zero Pole (Dongguan) Intelligent Technology Co., Ltd Model:AC10013-BL antenna Antenna Gain(Peak): 0 dBi Frequency range:300kHz-350kHz 6. Antenna3 Photo: Antennaφ=12mm

Page 1 of 2 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2BBRR-LJ-S80 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission ------End------
