2BBSD-M1Smart Camera

6.Litokam Kundenbetreuung Weitere Fragen zu Installationen und Nutzung? Benötigen Sie weitere Hilfe? Folgen Sie uns auf@Litokam Garantiebedingunge (Bitte kontaktieren Sie uns, um den Garantieservice zu aktivieren) Schauen Sie sich die FAQs an und führen Sie das Video an Littlelf Smart App oder auf der offiziellen Website von Litokam. (Scannen Sie den Code auf der rechten Seite) Wir bieten einen zeitnahen Online-Kundenservice per APP/ Website um GMT+8,00:00-02:00/9:30-12:00/13:30-24:00. 1. 30-tägige Rückgaberichtlinie und 12-monatige Gewährleistung. 2. Professioneller technischer Support auf Lebenszeit von Litokam. Litokam 2.Was ist in der Box 1 x Kurzanleitung1 x Litokam Kamera 1 x Netzteil 4 x Schrauben Statusleuchte Mikrofon Objektiv Sprecher 163x159mm 2. Micro SD card storage 5.Frequently Asked Questions Q1: How do you troubleshoot a security camera? A: The white light flashes rapidly during connections, it can be connected normally, if the light is in another abnormal state please follow these 6 quick tips to fix your security camera troubleshooting: 1). If the light is not flashing white, please try another cable and plug to check 2). Update software & firmware Or you can choose to insert a Micro SD card then turn on the Record Button to save the event recordings. 1.What’s New Chat with us: A 24/7 ONLINE CHAT function has been added to the Littlelf Smart APP. For any question, just click the “Live Chat”button to reach us, we are always here to help. 6.Litokam Customer Care More questions on installations and usage? Need more help? Follow us on: @Litokam Warranty Terms (Please contact us to activate the warranty service) Check out the FAQs and Guide Video on Littlelf Smart APP or Litokam official website. (Scan the code on the right side) We provide timely online customer service via APP/TEL/Website at PT 08:00-10:00/17:30-20:00/21:30-08:00 Littlelf Smart APP Live Chat Website: www.litokam.com Tel: US&CA Toll free +1(866)722-6296 (Mon-Sun 11:00AM-6:30PM PT) Email: [email protected] 1. 30-day return policy and 12-month limited warranty. 2. Lifetime professional tech support provided by Litokam. Littlelf Smart APP Live Chat Website: www.litokam.com Tel: US&CA Toll free +1(866)722-6296 (Mon-Sun 11:00AM-6:30PM PT) Email: [email protected] 1.Was gibt's Neues Chatten Sie mit uns: Die Littlelf Smart App wurde um eine 24/7 ONLINE CHAT Funktion erweitert. Wenn Sie Fragen haben, klicken Sie einfach auf die Schaltfläche "Live Chat", um uns zu erreichen. immer für Sie da. Cam M1 Common Functions > Gabriela Gabriela Litokam My home 2.What’s in the Box 1 x Quick Start Guide1 x Litokam Camera 1 x Power Adapter 4 x Screws 4 x Wall Anchors 1 x Pin Status Light Microphone Lens Speaker 4.Storage Methods 1. Cloud storage You can choose to subscribe to a cloud storage package by following the steps below, and then the camera will save video automatically. My home 1 2 4.Storage -Methoden 1. Wolkenspeicher Sie können ein Cloud -Speicherpaket abonnieren Durch die folgenden Schritte folgt die Kamera Videos automatisch speichern. 3.How to Set Up Step2 Power on the camera, and make sure your mobile phone is already connected to WiFi (only 2.4Ghz WiFi is supported) Step3 Open the "Littlelf Smart" APP, click "+" or "Add Device" button on the home page (Picture 1); Then click "Cam M1" (Picture 2) , please check and confirm the camera status then click " Next" (Picture 3). Step1 Download “Littlelf Smart”APP and register an account on APP via Email. 1 2 3 3.Wie stellt man das ein Schritt 2 Schalten Sie die Kamera mit und stellen Sie sicher, dass Ihr Mobiltelefon sichergestellt wird ist bereits mit WLAN verbunden (nur 2,4 GHz WLAN wird unterstützt) Schritt 3 Öffnen Sie die "Littlelf Smart" -App, klicken Sie auf "+" oder "Gerät hinzufügen" -Taste ein die Homepage (Bild 1); Klicken Sie dann bitte auf "CAM M1" (Bild 2), bitte, bitte Überprüfen Sie und bestätigen Sie den Kamera -Status und klicken Sie dann auf "Weiter" (Bild 3). Schritt 1 Laden Sie die " Littlelf Smart"APP herunter und registrieren Sie ein Konto auf der APP per E-Mail. Schritt 4 Bitte richten Sie den QR -Code auf dem Telefonbildschirm mit dem aus Kameraobjektiv zum Scannen (in einer Entfernung von 15 bis 20 cm) nach dem Hören Klicken Sie auf "Hören Sie den Piepton" (Bild 4). Schritt 5 Waiting for the network configuration to be successful, and then please start enjoying your camera(Picture 5). 1 3 Step4 Please align the QR code on the phone screen with the camera lens to scan (keep at a distance of 15-20cm), after hearing the beep, click "Hear the beep" (Picture 4). Step5 Waiting for the network configuration to be successful, and then please start enjoying your camera(Picture 5). 4 5 My home 1 Cam M1 2 Cam M1 Common Functions > Cam M1 Allgemeine Funktionen > C A Cam M1 Allgemeine Funktionen > C A 4 x Wandanker 1 x Stift 2 Cam A1 Cam M1Cam S1 2 2 Cam A1 Cam M1Cam S1 C C Cam M1 Cam M1 Bedienungsanleitung De 3). Reset to factory settings 4). Check whether the router passwordwifi password but not APP account password 5). Close to the router and ensure that the network environment has strong and stable signals. 6). Ensure that your device has been added over a Wi-Fi band of 2.4 GHz. (Check whether the 2.4 GHz band and 5GHz band share the same Wi-Fi account. If so, we recommend that you configure two accounts and switch to the 2.4 GHz band during network connection.) A: Please follow these steps 1). Click the "...." which is in the top right corner of the live video interface; 2). Select the "Settings" ; 3). Click the "Recording Settings" ; 4). Turns on the "Local Recording" Q2: How to record after inserting the SD card A: If you have inserted the micro SD card to camera, please operate as below steps: Q3: How do I have my cameras automatically record a video when motion is detected? A: To troubleshoot,please follow these steps: 1). Please switch to SD mode to check whether you can see video; 2). Please restart the router and reset the camera and reconne…

Text truncated - open the document above for the full version.

ShenzhenSkylineSmartHomeCo., Ltd Theinformationprovidedin thisletteris basedon thereferencedrulepartsof Title47 of theCFRas wellas KDB986446D01. Anexpirationdateforthisletterdoesnotexist.In casetheU.S.agentchanges,thegranteeis obligatedto notifytheFCCwithin30 daysvia thegrantingTCB. FederalCommunicationsCommission Authorizationand EvaluationDivision EquipmentAuthorizationBranch 7435 OaklandMills Road Columbia,MD 21046 7/5/23 U.S. AgentDesignation ShenzhenSkylineSmartHomeCo., Ltd acknowledgestheir consentfor the followingcontactlocated in the UnitedStatesto act as their agentfor serviceof processfor the equipmentfor which authorizationis sought(FCC ID: 2BBSD-M1 ): Nameand companyof U.S. agent:Tim Payne,FCC US Agent,LLC PhysicalU.S. addressof agent:3722 IllinoisAvenue,Saint Charles,IL, 60174,USA FRN of U.S. agent:0033402884 Email addressof U.S. agent:[email protected] FCC US Agent,LLCacknowledgestheir obligationto acceptserviceof processon behalfof ShenzhenSkylineSmartHomeCo., Ltd . ShenzhenSkylineSmartHomeCo., Ltd with the FRN 0033915091acceptsits obligationto maintain an agent for serviceof processin the UnitedStatesfor no less than one year after either the grantee has permanentlyterminatedall marketingand importationof the applicableequipmentwithin the U.S., or the conclusionof any Commission-relatedadministrativeor judicialproceedinginvolvingthe equipment,whicheveris later. By signingthis form, we confirmthe aboveand that we are awareof the applicationrequirements listed under § 2.911(d)(7). Sincerely, Signature Peter wang PM ShenzhenSkylineSmartHomeCo., Ltd Signature Tim Payne Manager FCC US Agent,LLC 48_[model] US_Agent_2.911(d)(7)-U, V04

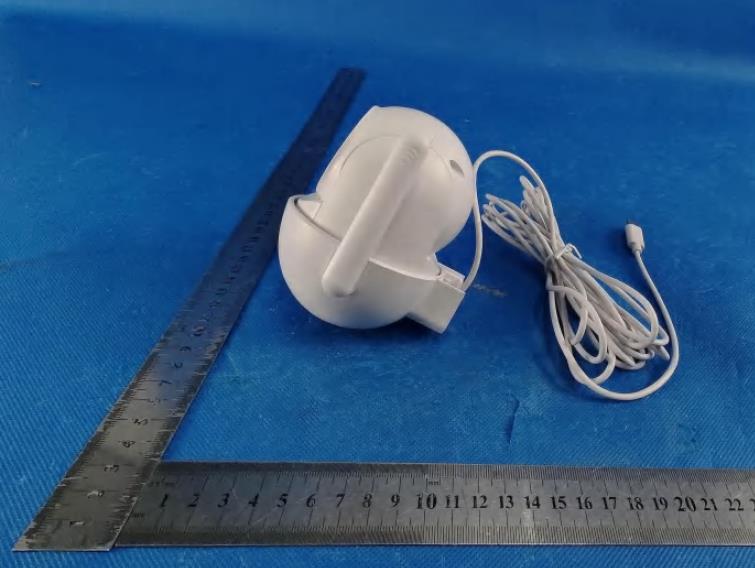

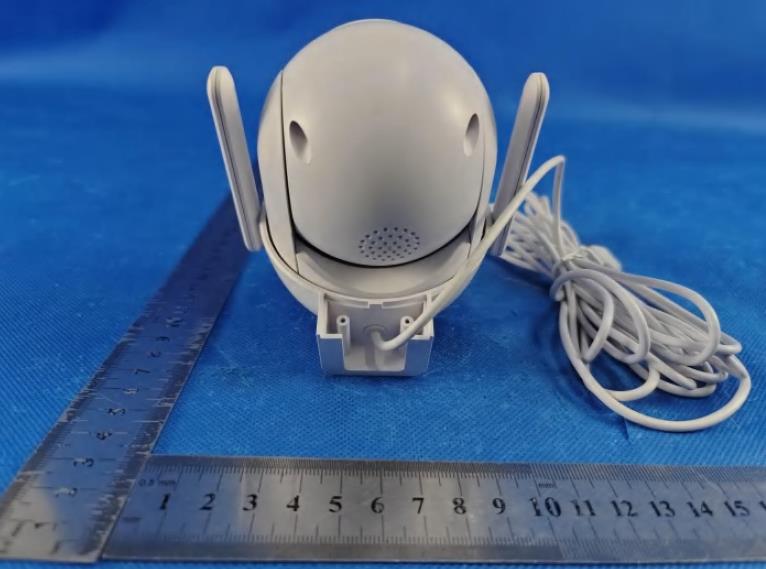

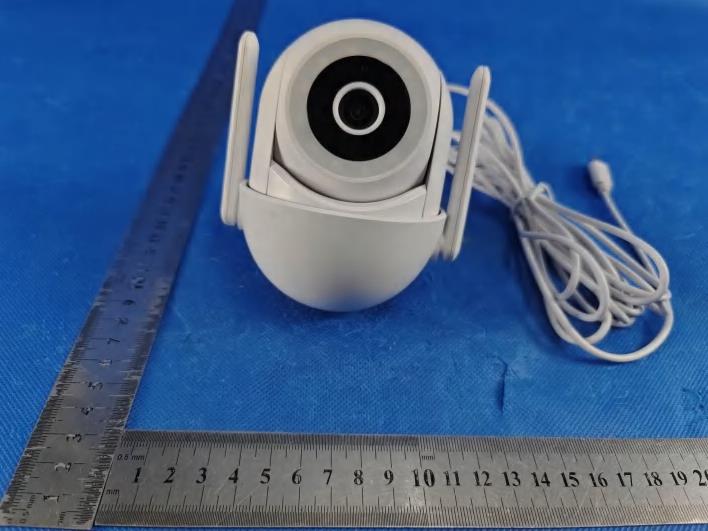

FCC ID: 2BBSD-M1 Page 1 of 4 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. External Photos Photo 1 Photo 2 FCC ID: 2BBSD-M1 Page 2 of 4 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 FCC ID: 2BBSD-M1 Page 3 of 4 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 FCC ID: 2BBSD-M1 Page 4 of 4 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 ------End------

Label FCC ID: 2BBSD-M1

FCC ID: 2BBSD-M1 Page 1 of 2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 FCC ID: 2BBSD-M1 Page 2 of 2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 ------End------ ANT.

RFExposureevaluation FCCID:2BBSD-M1 Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; AntennaNo. ModelNo. ofantenna: Typeofantenna: Gainoftheantenna (Max.) Frequencyrange: WIFI/PCBANT2.04dBifor2400-2500MHz 5.ManufacturingTolerance BT(Conducted) Frequency (MHz) 11b 241224372462 Target(dBm)13.013.013.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11g 241224372462 Target(dBm)12.012.012.0 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) 11n(HT20) 241224372462 Target(dBm)12.012.012.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT40) 242224372452 Target(dBm)12.012.012.0 Tolerance±(dB)1.01.01.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast 20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedantennais refertosection4,theRFpowerdensitycanbeobtained. ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW WIFI14.0 25.119 2.041.60 0.007993 1.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

Page 1 of 42 Report No.: AIT23061418FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: Shenzhen Skyline Smart Home Co., Ltd Applicant add.: 2 / F, Plant No. 9, Lijincheng Industrial Park, Yousong Community, Longhua Street, Longhua District, Shenzhen Manufacturer: Shenzhen Skyline Smart Home Co., Ltd Manufacturer add.: 2 / F, Plant No. 9, Lijincheng Industrial Park, Yousong Community, Longhua Street, Longhua District, Shenzhen Product Information: Product Name: Smart Camera Model No.: M1、M2、M3、M4、A1、S1、S2、S3、S4 Brand Name: Litokam FCC ID: 2BBSD-M1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: June 14, 2023 Date of Test: June 14, 2023~ June 18, 2023 Date of Issue: June 19, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC/ISED requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 42 Report No.: AIT23061418FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ......................................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................................... 5 2.1 Statement of the Measurement Uncertainty ....................................................................................... 5 2.2 Measurement Uncertainty ................................................................................................................... 5 3 TEST FACILITY .................................................................................................................................................................. 6 3.1 Deviation from standard ...................................................................................................................... 6 3.2 Abnormalities from standard conditions .............................................................................................. 6 3.3 Test Location ....................................................................................................................................... 6 4 GENERAL INFORMATION .............................................................................................................................................. 7 4.1 Test frequencies .................................................................................................................................. 8 4.2 EUT Peripheral List ............................................................................................................................. 8 4.3 Test Peripheral List ............................................................................................................................. 8 4.4 TEST METHODOLOGY ..................................................................................................................... 9 4.5 Description of Test Modes ................................................................................................................. 10 5 EQUIPMENT USED DURING TEST ............................................................................................................................. 11 6 TEST RESULTS AND MEASUREMENT DATA ......................................................................................................... 12 6.1 Antenna requirement ......................................................................................................................... 12 6.1.1 Standard requirement: ............................................................................................................ 12 6.1.2 EUT Antenna: ......................................................................................................................... 12 6.2 On Time and Duty Cycle ................................................................................................................... 13 6.2.1 Standard requirement: ............................................................................................................ 13 6.2.2 Measuring Instruments and Setting: ....................................................................................... 13 6.2.3 Test Procedures ...................................................................................................................... 13 6.2.4 Test Setup Layout ................................................................................................................... 13 6.2.5 EUT Operation during Test ..................................................................................................... 13 6.2.6 Test result ................................................................................................................................ 13 6.3 Maximum Conducted Output Peak Power Measurement ................................................................ 14 6.3.1 Standard requirement: .......................................…

Text truncated - open the document above for the full version.

深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 1 页共 7 页 总部地址：深圳市光明区马田街道油麻岗路11号宏域光明谷C栋 东莞分厂：东莞市桥头镇石水口银河三路2号英佳创产业园 杭州办事处：杭州市滨江区物联网街369号大华江虹国际创新园B栋212 绵阳办事处：四川省绵阳市高新区绵兴东路35号万向高新国际4F-34号 电话：0755-27810060传真：0755-27810057网址：www.szsyjc.com CUSTOMERNAME 客户名称 CUSTOMERP/N 客户料号 PARTNAME 品名 2.4G板载天线 P/N 料号 APPROVALREV. 版次 A0 DELIVERYDATE 送样日期 2022年01月10日 PREPAREDBY 承办 吴佳雄 CHECKEDBY 审核 方文锋 APPROVEDBY 核准 肖汉 CustomerApproved 客户承认 PreparedBy 承办 CheckedBy 审核 ApprovedBy 核准 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 2 页共 7 页 目录 1 、封面 ······································································ 1 2 、目录 ······································································ 2 3 、修订履历表 ·····························································3 4 、天线平面图 ·····························································4 5 、天线技术参数 ··························································5 6 、环境性能测试 ··························································5 7 、天线性能测试图 ·······················································6 8、2D、3D测试数据（2.4G）············································6-7 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 3 页共 7 页 修订履历表： 版本变更内容及更改原因日期发行 A/0初版发行2022年01月10日 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 4 页共 7 页 天线平面图： 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 5 页共 7 页 天线技术参数及环境测试： 电气技术参数 电性能指标ElectricalSpecifications 频率范围2400-2500MHzFrequencyRange2400-2500MHz 电压驻波比＜1.92VSWR＜1.92 输入阻抗50ΩInputImpedance50Ω 方向全向DirectionAll 增益2.04dBiGain2.04dBi 机械指标MechanicalSpecifications 接口形式OPENInputconnectorOPEN 工作温度-20°C~+70°CWorkingTemperature-20°C~+70°C 工作湿度20%~80%WorkingHumidity20%~80% 环境性能测试: 项目测试条件规格 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1.温度为-20°C～+70°C 2.相对湿度为45%-85% 3.气压为86kpa-106kpa 电气机械性能正常 高低温试验 在70°C与-20°C之间进行5次循环，然后在正常条件下 1-2H，检查外观质量。 尺寸应满足规定并应满 足于机械、电气性能 耐恒定 湿热试验 相对湿度95±3%，试验温度：40°C.持续2H作用后， 试品取出后5min之内测定电气性能，试品在正常条 件下1-2H，检查外观质量 尺寸应满足规定并应满 足于机械、电气性能 振动试验 振频范围10-55HZ，位移幅值：0.35MM，加速度幅值： 50.0M/S，扫频循环次数：30次 电气机械性能正常 跌落试验1M高空按照互相垂直的轴方向自由跌落3次电气机械性能正常 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 6 页共 7 页 天线性能测试图: 2D.3D测试数据（2.4G）: FrequencyEfficiency(%)Gain.(dBi) 2400MHz 44.361.7 2410MHz 46.951.87 2420MHz 45.271.74 2430MHz 47.351.82 2440MHz 48.161.82 2450MHz 54.12.04 2460MHz 52.321.93 2470MHz 50.711.71 2480MHz 48.421.82 2490MHz 47.11.75 2500MHz 47.971.71 深圳市英佳创电子科技有限公司 http://www.szsyjc.com 第 7 页共 7 页 Phi02D图:Phi902D图Theta902D 图 3D2400 ： 3D2450 ： 3D2500

Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061418IW1 IC: 30809-M1 Page 1 of 63 Appendix C RF Test Data for 2.4GWIFI (Conducted Measurement) Product Name: Smart Camera Trade Mark: Litokam Test Model: M1 Environmental Conditions Temperature: 25.5 C Relative Humidity: 52.4% ATM Pressure: 100.0 kPa Test Engineer: Simba Huang Supervised by: Seal Chen Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061418IW1 IC: 30809-M1 Page 2 of 63 Contents Page COVER PAGE 1 Duty Cycle....................................................................................................................................................................................... 3 1.1 Test Result .......................................................................................................................................................................... 3 1.2 Test Graphs ......................................................................................................................................................................... 4 2 Maximum Conducted Output Power .............................................................................................................................................. 10 2.1 Test Result ........................................................................................................................................................................ 10 3 -6dB Bandwidth ............................................................................................................................................................................. 11 3.1 Test Result ........................................................................................................................................................................ 11 3.2 Test Graphs ....................................................................................................................................................................... 12 4 Occupied Channel Bandwidth ....................................................................................................................................................... 18 4.1 Test Result ........................................................................................................................................................................ 18 4.2 Test Graphs ....................................................................................................................................................................... 19 5 Maximum Power Spectral Density Level ....................................................................................................................................... 25 5.1 Test Result ........................................................................................................................................................................ 25 5.2 Test Graphs ....................................................................................................................................................................... 26 6 Band Edge .................................................................................................................................................................................... 32 6.1 Test Result ........................................................................................................................................................................ 32 6.2 Test Graphs ....................................................................................................................................................................... 33 7 Conducted RF Spurious Emission ................................................................................................................................................. 41 7.1 Test Result ........................................................................................................................................................................ 41 7.2 Test Graphs ....................................................................................................................................................................... 42 8 Restrict Band ................................................................................................................................................................................ 54 8.1 Test Result ........................................................................................................................................................................ 54 8.2 Test Graphs ....................................................................................................................................................................... 56 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061418IW1 IC: 30809-M1 Page 3 of 63 1 Duty Cycle 1.1 Test Result Mode Frequency (MHz) Antenna Duty Cycle (%) 1/T (kHz) b 2412 Ant1 99.6 0.12 b 2437 Ant1 99.59 0.12 b 2462 Ant1 99.6 0.12 g 2412 Ant1 86.86 4.76 g 2437 Ant1 86.94 4.76 g 2462 Ant1 86.91 4.76 n20 2412 Ant1 87.59 4.35 n20 2437 Ant1 87.57 4.35 n20 2462 Ant1 87.59 4.17 n40 2422 Ant1 88.05 4 n40 2437 Ant1 88.02 4.17 n40 2452 Ant1 88.02 4 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061418IW1 IC: 30809-M1 Page 4 of 63 1.2 Test Graphs Test Graphs b 2412MHz Ant1 b 2437MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061418IW1 IC: 30809-M1 Page 5 of 63 Test Graphs b 2462MHz Ant1 g 2412MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061418IW1 IC: 30809-M1 Page 6 of 63 Test Graphs g 2437MHz Ant1 g 2462MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061418IW1 IC: 30809-M1 Page 7 of 63 Test Graphs n20 2412MHz Ant1 n20 2437MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061418IW1 IC: 30809-M1 Page 8 of 63 Test Graphs n20 2462MHz Ant1 n40 2422MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23061…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BBSD-M1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2BBSD-M1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission ------End------
