折纸时英文面朝上 产品伸缩充电线说明 产品参数 产品名称：伸缩折叠磁吸无线充电器 ：产品型号P15 产品材质：ABS过釉+硅胶 产品尺寸：177*80*16mm 输入：PD20W/QC3.0 手机输出:5W/7.5W/10W/15W（MAX） 手表输出:2.5W（MAX） 耳机输出：5W（MAX） 传输距离：3-8mm 兼容性：支持符合Qi标准的手机、耳机、手表 使用须知 1、产品使用时，请使用合格的PD20W或QC3.0的电源适配器和快充线，否则将影响充电 效率. 2、产品自带的充电线和产品的电源输入口，只能用其一，不可两者同时使用，即已经在使 用产品自带的充电线进行设备充电的情况下，不可将产品的电源输出口插入另外一根充电 线。 3、如果未使用产品自带的充电线进行供电，也可以使用合格的QC3.0电源适配器和快充线， 将线插在产品的电源输入口位置，即可进行设备充电. 4、无线充电器在充电过程中会存在发热现象，均属于正常情况。 包装配件 机器（内部自带充电线）*1 说明书*1 彩盒*1 使用说明书 伸缩折叠磁吸无线充电器 该产品为三合一多功能无线充电器，产品上面支持手机、智能手表、耳机三合一同时充电， 还可以为手机或其他支持Qi标准的电子设备进行无线充电，产品功能上面支持磁吸、折叠、 伸缩、支架多种方式使用和充电，产品内部自带可伸缩充电线，可以进行便捷使用。 外观说明 1、左边蓝灯常亮为产品通电状态 2、右边蓝灯呼吸为设备充电状态 3、蓝灯快速闪烁为异物检测状态 手表充电位 显示灯 TYPE-C接口 显示灯 耳机充电位 手机充电位 可伸缩式充电线 Made in china && 伸缩充电线回位键 User manual Collapsible magnetic wireless charger with retractable feature This product is a three-in-one multifunctional wireless charger that supports simultaneous charging of three devices - mobile phones, smart watches, and earphones. It also supports wireless charging for phones or other electronic devices that support the Qi standard. The product features magnetic suction, folding, extension, bracket and other ways of use and charging. The internal part of the product has a retractable charging cable for convenient use. Description of Appearance 1.The constant blue light on the left indicates that the product is powered on. Watch charging position Display light TYPE-C interface Display light Headphone charging bit Mobile phone charging position Retractable charging cable Made in china && Retractable charging cable return key 2.The blue light on the right is breathing to indicate that the device is in a charging state. 3.The rapid blinking of the blue light indicates the foreign object detection status. Product Extendable Charging Cable Instructions 1、The product comes with a built-in 1-meter retractable charging cable. 2、The charging cable can be pulled out and extended through a telescoping method. 3、The length of the charging cable can be adjusted freely for convenient use. 4、Pressing the reset button at the back of the product (as shown below) can retract the charging cable back into the product. 5、When retracting the charging cable, please hold the product with one hand and the charging cable with the other hand, and then press the reset button. (Note: Do not forcibly pull or excessively extend the cable during use.) Product parameters Product name: Extendable foldable magnetic wireless charger Product model: P15 Product material: ABS + silicone Product size: 177*80*16mm Input: PD 20W / QC3.0 Phone output: 5W/7.5W/10W/15W (MAX) Watch output: 2.5W (MAX) Headphone output: 5W (MAX) Transmission distance: 3-8mm Compatibility: Supports Qi-compatible phones, headphones, and watches Instructions for use 1.Please use a qualified PD 20W or QC3.0 power adapter and fast charging cable for the product otherwise it will affect the charging efficiency. 2.The product’s own charging cable and power input port can only be used separately, and cannot be used at the same time. That is, if you are already using the product’s own charging cable to charge the device, do not plug the product’s power output port into another charging cable. 3.If you are not using the product’s own charging cable for power supply, you can also use a qualified QC3.0 power adapter and fast charging cable. Simply plug the cable into the product’s power input port to charge the device. 4.Wireless chargers may generate heat during the charging process, which is normal. Instructions for use 1 x Machine (with built-in charging cable) 1 x User Manual 1 x Color Box 60.00 mm 80.00 mm 1、产品内部自带 1 米可伸缩充电线. 2、通过伸缩方式可以将充电线拉出来使用. 3、充电线可以任意伸缩长度，随意调节，方便使用. 4、通过按下产品背后的回位键（如下图），可以将充电线全部收纳回产品内部. 5、收纳充电线时请一手拿产品，一手拿充电线，然后按下回位键。 （提示：使用时请勿强行拉扯或者过度拉出） This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

C5266091_X24_Ed.2 1/1 ShenzhenYouweiElectronicLimited. “AttestationStatements” TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Companyname:ShenzhenYouweiElectronicLimited. Granteecode:2BBU2 FCCID:2BBU2-P15 ContactName:gulangming Address:SNo.301,FurongRoad,Gushucommunity,XixiangStreet,Bao'anDistrict,Shenzhen City TelephoneNo:18682240579 FaxNo:N/A Email:[email protected] i.[ShenzhenYouweiElectronicLimited.](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules.Theapplicantmustsignthiscertification. ii.[ShenzhenYouweiElectronicLimited.](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicant[isnot](asaspecifically namedentityoranyofitssubsidiariesoraffiliates)identifiedontheCovered Listasanentityproducing“covered”equipment.Theapplicantmustsign thiscertification. [ShenzhenYouweiElectronicLimited.](“theapplicant”)certifiesthat,asofthedate ofthefilingoftheapplication,theapplicant[isnot]identifiedontheCoveredList asanentityproducing“covered”equipment. Date:2023/07/10 Applicant’sName:gulangming Title:Manager Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

Modeldifferencedeclarationletter DifferencesDescription WeShenzhenYouweiElectronicLimited.state: Product： Wirelesscharger ModelName ： P15,P16,P17 Theaboveproductwithsamecircuit,PCBlayout,electricalparts,materialsandwiring structures,thematerialsofdecorativeaccessoriesissame,Fortheproductappearance difference,thesizeisthesame,butthecoloroftheproductisdifferent Signatory Date:07-12.2023 Name:gulangmingDate:July12.2023 Title:Manager Signatureofapplicant:

C5266091_X8_Ed.1 1/1 LetterofAuthorization ShenzhenYouweiElectronicLimited. Company:ShenzhenYouweiElectronicLimited. Address:No.301,FurongRoad,Gushucommunity,XixiangStreet, Bao'anDistrict,ShenzhenCity ProductName:Wirelesscharger ModelNumber:P15,P16,P17 FCCIdentifier:2BBU2-P15 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:gulangmingDate:2023.07.10 Title:Manager Signatureofapplicant:

C5266091_X10_Ed.2 1/1 ShenzhenYouweiElectronicLimited. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2023-07.10 Subject:RequestforConfidentiality FCCID:2BBU2-P15 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof______daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:gulangming Title:Manager 2023.07.10

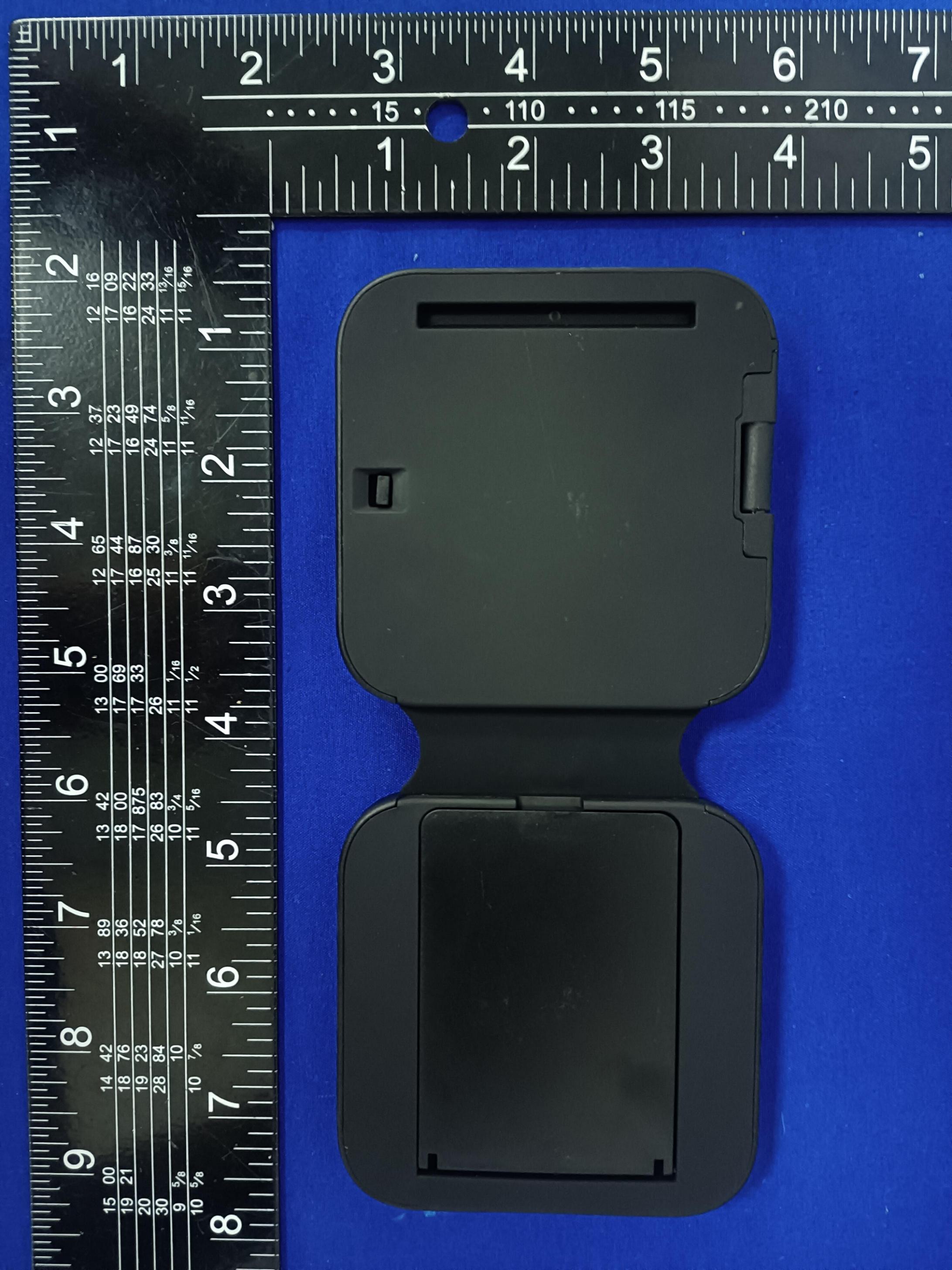

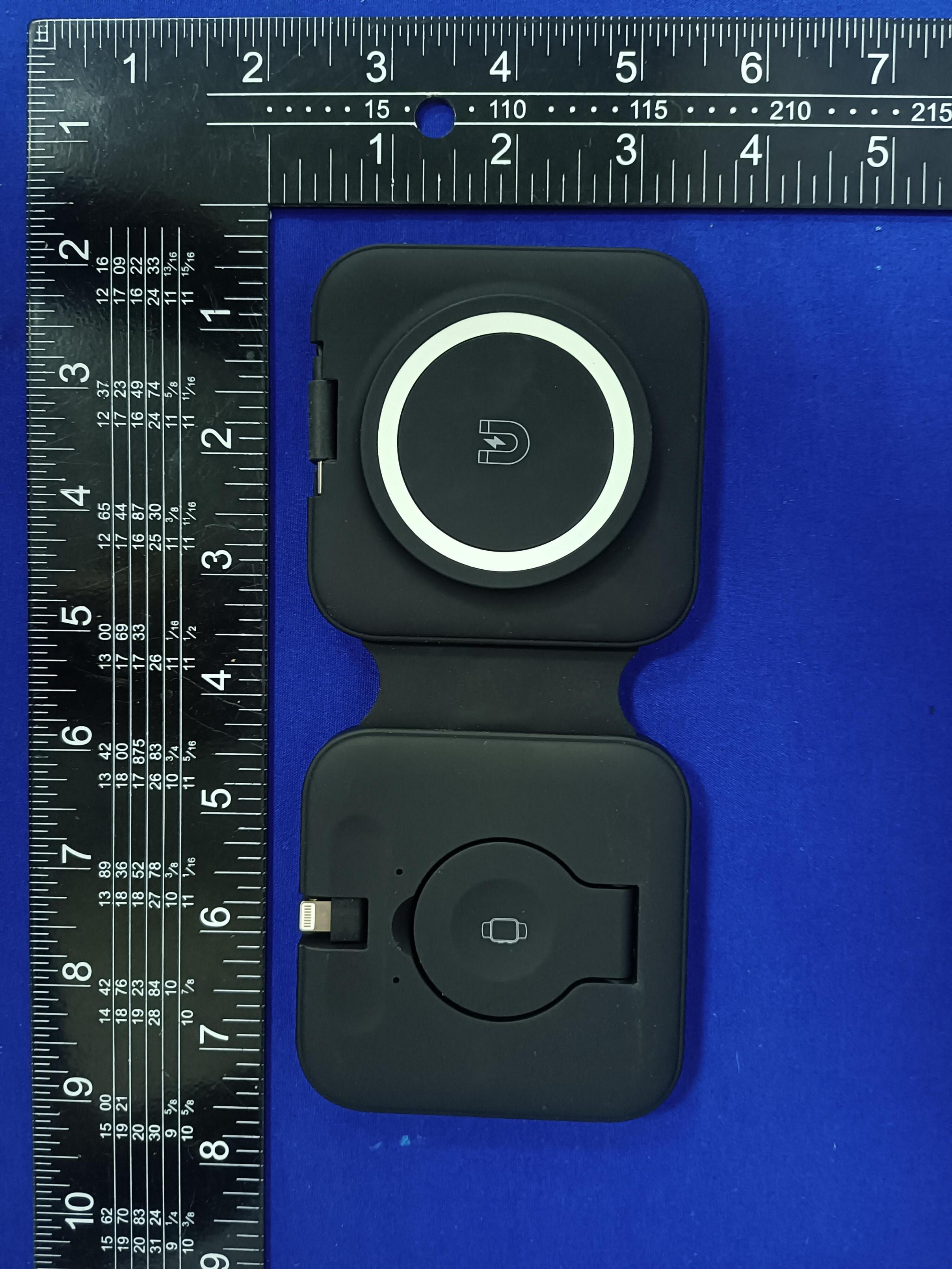

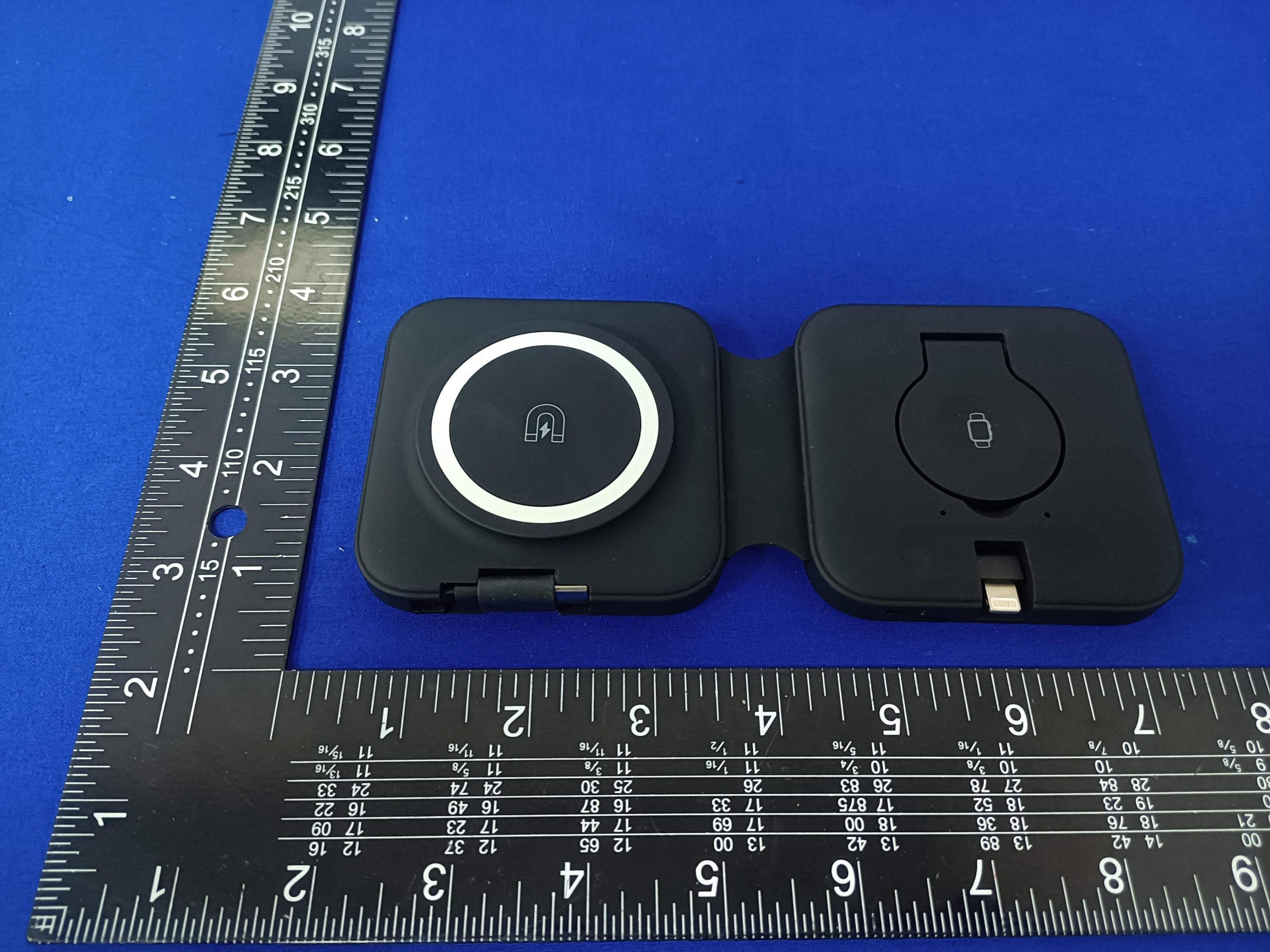

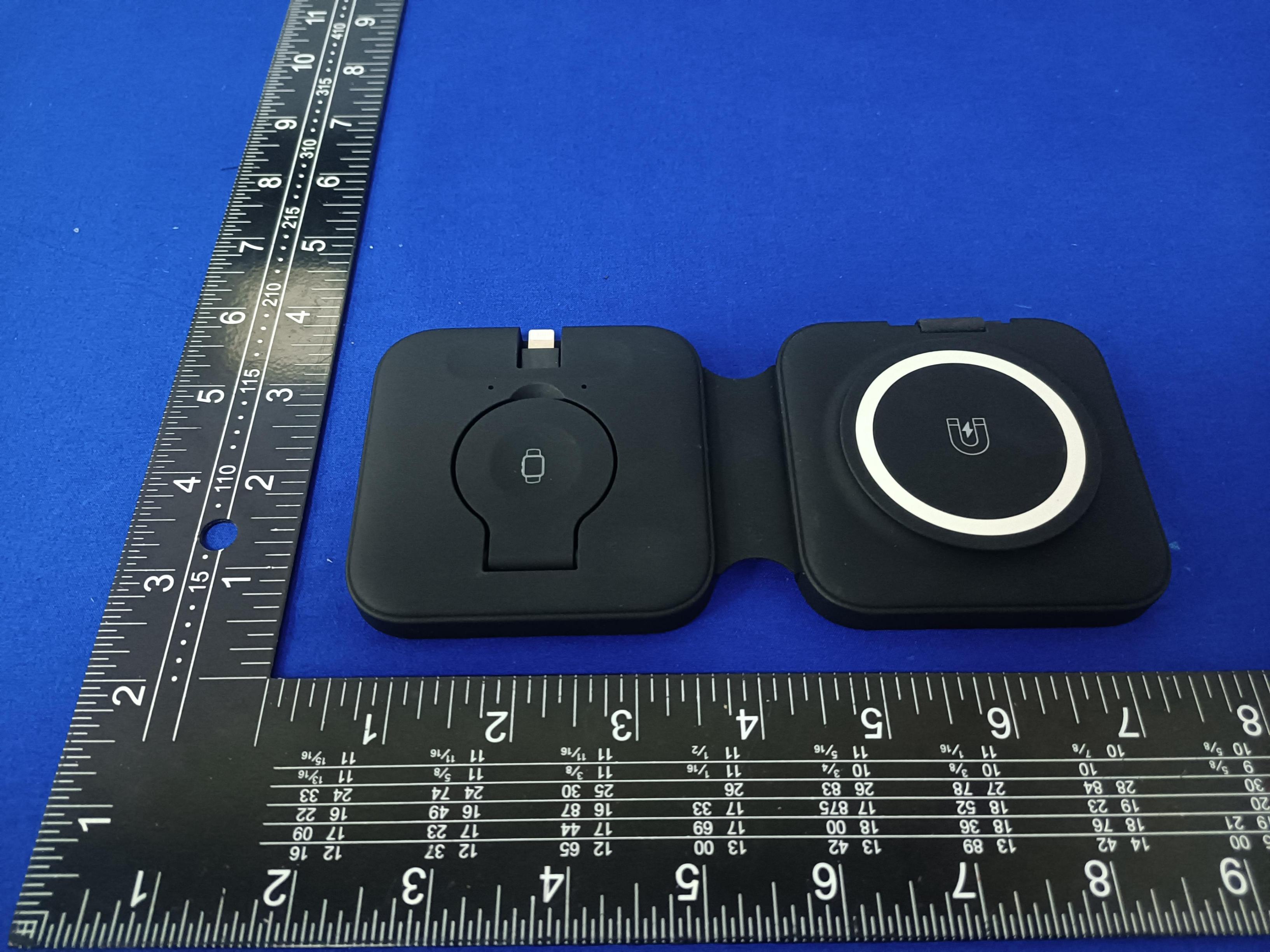

Page1of3ReportNo.:FCS202306053 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202306053 Photo3 Photo4 Page3of3ReportNo.:FCS202306053 Photo5 Photo6

LabelandLabelLocation FCCID:2BBU2-P15

Page1of2ReportNo.:FCS202306053 Internalphotos Photo1 Photo2 InductiveLoopAntenna Page2of2ReportNo.:FCS202306053 Photo3

Page1of5ReportNo.:FCS2023060535 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RFExposureEvaluation FCCID:2BBU2-P15 1MeasuringStandard KDB680106D01RFExposureWirelessChargingAppsv03r01c 2Requirements AccordingtoKDB680106clause5,b Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcluded (1)Powertransferfrequencyislessthan1MHz. --Yes,thedeviceoperatedinthefrequencyrangefrom115KHzto205KHz (2)Outputpowerfromeachprimarycoilislessthanorequalto15watts. --Yes,themaximumoutputpoweroftheprimarycoilis15W (3)Thesystemmayconsistofmorethanonesourceprimarycoils,chargingoneormoreclients.If morethanoneprimarycoliispresent,thecoilpairymaybepoweredonatthesametime. --Yes,thetransfersystemincludeshavemultipleprimarycoilsandclientsthatareabletodetectand allowcouplingbepoweredonatthesametime. (4)Clientdeviceisplaceddirectlyincontactwiththetransmitter. --Yes,Clientdeviceisplaceddirectlyincontactwiththetransmitter (5)Mobileexposureconditionsonly(portableexposureconditionsarenotcoveredbythisexclusion). --Yes (6)TheaggregateH-fieldstrengthsat15cmsurroundingthedeviceand20cmabovethetopsurface fromallsimultaneoustransmittingcoilsaredemonstratedtobelessthan50%oftheMPElimit. --Yes,theEUTfieldstrengthlevelare50%xMPElimit. 3Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhuman exposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Page2of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 4TestSetup 5TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(15cmfromallsidesand20cmfrom thetop)whichisbetweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurement ofeachpoints(A,B,C,D,E)werecompleted 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01v03r01 Remark：TheEUT’stestpositionA,B,C,DandEisvalidfortheEandHfieldmeasurements Page3of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 6. MeasurementUncertainty (95%confidencelevels,k=2) ItemUncertainty UncertaintyforH-Field2.36dB UncertaintyforE-Field2.42dB UncertaintyforconductedRFPower0.62dB Uncertaintyfortemperature0.2°C Uncertaintyforhumidity1.1% UncertaintyforDCandlowfrequencyvoltages0.06% 7.Equipmentlist TestEquipmentManufacturerModelNo.SN.Last calibration Calibrated until Electricand Magnetic field probe-Analyzer NardaEHP-200AN03565Aug30,2022Aug29,2023 Page4of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 8PlacementMode1Photo 8Testmode ModeDescription Mode1iWatch(2.5W) Mode2Phone(5W) Mode3Phone(7.5W) Mode4Phone(10W) Mode5Phone(15W) Mode6iWatch(2.5W)+Earbuds(5W)+Phone(5W) Mode7iWatch(2.5W)+Earbuds(5W)+Phone(7.5W) Mode8iWatch(2.5W)+Earbuds(5W)+Phone(10W) Mode9iWatch(2.5W)+Earbuds(5W)+Phone(15W) Mode10iWatch(2.5W)+Phone(5W) Mode11iWatch(2.5W)+Phone(7.5W) Mode12iWatch(2.5W)+Phone(10W) Mode13iWatch(2.5W)+Phone(15W) Page5of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Mode14Earbuds(5W)+Phone(5W) Mode15Earbuds(5W)+Phone(7.5W) Mode16Earbuds(5W)+Phone(10W) Mode17Earbuds(5W)+Phone(15W) Mode18iWatch(2.5W)+Earbuds(5W) Mode19iWatch(2.5W)+Earbuds(5W) Mode20iWatch(2.5W)+Earbuds(5W) Mode21iWatch(2.5W)+Earbuds(5W) 9Necessaryaccessories ItemEquipmentMfr/BrandModel/TypeNo.SerialNo.Note 1PhoneappleiPhone12N/A Thisisfortesting onlyinreport. 2EarbudsAppleAirPodsAirPods2N/A Thisisfortesting onlyinreport. 3WatchXIAOMIS1N/A Thisisfortesting onlyinreport. 4AdapterXIAOMIMDY-11-EBN/A Thisisfortesting onlyinreport. 10TestResult PlacementMode9(Worst) E-FiledStrengthat15cmfromtheedgessurroundingtheEUT(V/m) Battery power Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 1%0.115-0.2051.441.460.570.49614 50%0.115-0.2051.571.300.470.59614 95%0.115-0.2051.281.560.460.58614 Stand-by0.115-0.2051.381.270.590.58614 E-FiledStrengthat20cmfromthetopoftheEUT(V/m) Page6of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Battery power Frequency Range(MHz) Test PositionE Limits (V/m) 1%0.115-0.2051.23614 50%0.115-0.2051.29614 95%0.115-0.2051.28614 Stand-by0.115-0.2051.48614 H-FiledStrengthat15cmfromtheedgessurroundingtheEUT(A/m) Battery power Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 1%0.115-0.2050.620.600.700.611.63 50%0.115-0.2050.610.620.650.571.63 95%0.115-0.2050.600.630.570.551.63 Stand-by0.115-0.2050.580.600.640.561.63 H-FiledStrengthat20cmfromthetopoftheEUT(A/m) Battery power Frequency Range(MHz) Test PositionE Limits (A/m) 1%0.115-0.2050.441.63 50%0.115-0.2050.381.63 95%0.115-0.2050.441.63 Stand-by0.115-0.2050.541.63 Testedby:Reviewedby: ※※※※※ENDOFTHEREPORT※※※※※

承 认 书 客戶名称： 客戶料号： 我司型号： G25苹果手表硬磁线圈 送样日期： 供应方： 绘 制 审 核 批 准 客戶承认： 合 格 不 合 格 承 认 备 注 Tel: Fax: 客戶名称 我司型号 版 本 日 期 G25 A0 客戶料号 地址： 17322309262 2021.9. 30 2021年9月30日 一、 7.65X2.0±0.05 12±1 1.5±0.5 1.8±0.1 F F S S 2.3±0.5 25±0.5 21±0.5 磁铁 k 中柱高度 7.7±0.1 13.5±0.2 23.7±0.2 K J I H F E D C B A J I H F E D C B A 平面结构图： 单位:MM 二、产品参数： 脚 位 线 径 圈 数 备 注 S -- F 0.08*24P 11 热风绞合线 三、技术要求： 背后加贴直径14mm的圆双面胶，后包装 審 核 四、电性参数： 1.电感值，Q值： PIN S — F = 6.8uH ±0.2UH Q值≥35 以上电感值以铨华1062A仪器, 以10KHZ/0.3Vrms为标准或等同仪器。 Q值以铨华1062A仪器，以100KHZ/0.3Vrms为标准或等同仪器 我司型號 1.固定好线头线尾，防止线松断线等现象 2．按客户要求把过长的线头剪，镀上锡，镀锡深度统一为 1.5 ±0.5MM 3．在软磁片上点上适当的白胶，贴上线圈，过程中要保证产品表面干净整洁 4.所用磁片为带圆孔 ,无破损 5.附加工序（按客户要求）：于成品中间圆孔装上 7.65x2.0mm 的磁铁并在成品 五、材料清单： 序号 名称 材质 供应商 备 注 1 热风绞合线 0.08X24P 2 磁 片 G25 PC95材质 3 锡 高温环保 4 白 胶 BY882 5 强 磁 7.65*2.0(强 度 大 于 2800GS) 附加工序,按 客户要求 6 双 面 胶 直径14mm 审核 Page1 of3 FY- GZ001 承認書 客戶： CUSTOMER: 客戶料號： CUSTP/N: SPECIFICATIONFORAPPROVAL 深圳市欧洋电子设备科技有限公司 D.040.06/WP26线+磁片/MP-A11自粘线20.5*43，G43.6*0.65, 引线4mm，磁片背面贴白色带耳朵双面胶 亿钵料號： FINEP/N: 産品型號： DESC: 日期： DATE: 版本： Version: 0.08*24P丝包线 6.5UH10%\43.5*.20.5*0.65开槽背胶出线长4mm(正负2mm) A.0 2023/7/10 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 夏润钟梦良 FY- GZ001 FY- GZ001 Page3 of3 版本變更履歷 VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ----2023/7/10 15.95UH6.5UH 25.84UH6.45UH 35.77UH6.59UH 45.96UH6.73UH 54.0UH6.5UH 64.1UH6.45UH 75.97UH6.54UH 85.98UH6.5UH 95.89UH6.5UH 104.0UH5.4UH FY- GZ001 Fine Page 3of3 産品型號： SPECIFICATION 客戶CUST:331 DESC Φ43.5x20.5-10Ts-0.08*48P-4mm-54C 版本 Rev：A.0 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: 三、绕线参数WindingSpecification: 料号 FineP/N:FYD331003 客户料号CUSTP/N:A11 A41.7±0.5 B20 ±0.5 C1.25厚 D14mm± D24mm F43.6±0.2 G14.7±1 H 2.1-2.5 E3-4mm 注： 1.线圈贴磁片，磁片尺寸 43.5±0.2mm,, 厚度为0.65线圈出 线位置缠8mm(ref)宽度高温胶纸 1-2Ts; 2.磁片正反面贴圆形直径 43.6mm(ref)白色双面胶,内孔 20.5/8.6mm（ref），（必须加带孔 3mm双面胶）。 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1SF 丝包线0.08*24P 10TsCCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:75±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1IND.S-F 4.5u H±10%单独线圈 100KHz/1.0VLCZMETER1062B 2IND.S-F 6.5 u H±10%加磁片 100KHz/1.0VLCZMETER1062B 3DCRS-F ≤50mΩ LCZMETER502B 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 2023/7/102023/7/10

FCCTestReport ReportNo:FCS202306053W01 Issuedfor Applicant: ShenzhenYouweiElectronicLimited. Address: No.301,FurongRoad,Gushucommunity,XixiangStreet, Bao'anDistrict,ShenzhenCity ProductName: Wirelesscharger BrandName: N/A ModelName: P15 SeriesModel: P16,P17 FCCID: 2BBU2-P15 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page2of24ReportNo.:FCS202306053W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TESTRESULTCERTIFICATION Applicant’sName......................:ShenzhenYouweiElectronicLimited. Address......................................: No.301,FurongRoad,Gushucommunity,XixiangStreet,Bao'an District,ShenzhenCity Manufacture'sName ................ :ShenzhenYouweiElectronicLimited. Address......................................: No.301,FurongRoad,Gushucommunity,XixiangStreet,Bao'an District,ShenzhenCity ProductDescription ProductName ........................... :Wirelesscharger BrandName.............................:N/A ModelName .............................. :P15 SeriesModel .............................. : P16,P17 TestStandards .......................... :FCCRulesandRegulationsPart15SubpartC,Section209 TestProcedure..........................:ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest .................................. : Date(s)ofperformanceoftests . :Jun7.2023~Jun17.2023 DateofIssue ................................. :Jun20.2023 TestResult....................................:Pass Testedby: (ScottShen) Reviewedby : (DukeQian) Approvedby: (JackWang) Page3of24ReportNo.:FCS202306053W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TableofContentsPage 1.SUMMARYOFTESTRESULTS..............................................................................................5 1.1TESTFACTORY................................................................................................................6 1.2MEASUREMENTUNCERTAINTY....................................................................................6 2.GENERALINFORMATION......................................................................................................7 2.1GENERALDESCRIPTIONOFTHEEUT.........................................................................7 2.2DESCRIPTIONOFTHETESTMODES...........................................................................8 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS..................9 2.4EQUIPMENTSLIST.........................................................................................................10 3CONDUCTEDEMISSIONMEASUREMENT..........................................................................11 3.1LIMIT................................................................................................................................11 3.2TESTPROCEDURE........................................................................................................11 3.3TESTSETUP...................................................................................................................12 3.4TESTRESULTS..............................................................................................................13 4.RADIATEDEMISSIONMEASUREMENT..............................................................................15 4.1LIMIT................................................................................................................................15 4.2TESTPROCEDURE........................................................................................................16 4.3TESTSETUP...................................................................................................................17 4.4TESTRESULTS..............................................................................................................18 (30MHZ-1000MHZ)................................................................................................................19 5.20DBBANDWIDTHTEST.....................................................................................................21 5.1LIMIT................................................................................................................................21 5.2TESTPROCEDURE........................................................................................................21 5.3TESTSETUP...................................................................................................................21 5.4TESTRESULTS..............................................................................................................22 6.ANTENNAREQUIREMENT...................................................................................................24 6.1STANDARDREQUIREMENT.........................................................................................24 6.2EUTANTENNA................................................................................................................24 Page4of24ReportNo.:FCS202306053W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RevisionHistory Rev.IssueDateEffectPageContents 00Jun20.2023N/AN/A Page5of24ReportNo.:FCS202306053W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuildin…
