TechnologyChangeLife Usermanual TechnologyChangeLife 1.Functionintroduction ： 1.Mainfunctionandfeatures ： FunctionFeature SoundPrompt Lockwillpromptwithsoundwheninputwrongorcorrect password,batteryisinlowvoltage,unlockingforalongtime Lightprompt Green:correctoperation Red:wrongoperation Blue:lowvoltage White:standbystatus Lowvoltagealarm Lowvoltagealarm：Whenthebatteryvoltageislowerthan 4.6V,afterunlockingthebattery,theledblinksinblueand beepsforeighttimes.Advisedtoreplacethebatteryassoonas possible Lastunlocking：Whenthelockislowerthan4V,thelockcan onlybeunlockedforthelasttime,thatis,thelockcannotbe lockedanymoreuntiltheuserchangethebattery.  Externalpowersupply (withfrontpanel)  Whentheinternalbatteryisoutofpower,theusercanuse externalpowersupplytoprovidepowerforthelock(with frontpanel). Manageraccount（1~12） Entertheaccountwhenlogginginforthefirsttime.After logginginsuccessfully,youcannotchangetheadministrative -2- accountexceptafterinitialization. Managerpassword （4digit、0000） Managerpasswordcanbeusedtoopenthelockinemergency Useraccount（1~12） TheuseraccountcreatedthroughthemanagerAPP,and cannotbethesameasthemanageraccount. Userpassword（4） Userpasswordcanbeusedtoopenandclosethecabinet. OTP Whentheuserforgetsthepassword,hecanasktheafter-sales serviceofthemanufacturertounlockthelockthroughtheSN number.Thepasswordisaone-timeemergencypassword, whichwillbeinvalidimmediatelyafterbeingusedonce Afterusingtheonetimepassword,alluserswillbecleared, managerpasswordbacktotheinitialpassword0000, operationlogwillnotbecleared. 1.Parameter ： MaterialABS+PC+Zincalloy Powerconsumption Loadcurrent<270mA@6V Lockedrotorcurrent<350mA@6V Standbycurrent<30mA@6V Quiescentcurrent<45uA6V Workingvoltage DC6V(AA1.5×4)5# Widevoltage：4.2V~6.3V Type-Cconnector：4.2~6.3V Standbyformorethan12months Lowvoltage：4.6V+0.1V Lowvoltagelimit：Below4.2V,providethelastopen Workingenvironment Workingtemperature-20°C~+65°C Workinghumidity10%~90%RH Anti-staticAirstatic15KV -3- Touchstatic8KV 2.Operation： 1.Initializetheoperation ProjectOperation Initialization ByManagerpassword： Input“*#9#”,lockwillpromptwithsound“didi”,green lightshinesfast,Input“managerpassword#”,greenlight shinesslower,input“managerpassword#”again,lockwill promptwithsound“dididi,Resetthelocksuccessfully Restbutton:Pressingbutton“Reset”for2seconds，lock willpromptwith“dididi”andlockflashesingreen twice.Resetthelocksuccessfully OTP：input“10digitOTPpassword＋#”Resetthelock successfully Note：ByResetbuttonwillcleartheBluetoothlockconfigurationuserinformation, initializethemanagerpasswordandclearlogs,andBythemanagerpasswordandpassword OTPemergencyinitializationwillnotclearlogs. -4- 2.OTAoperation ProjectOperation OTAAPPoperation 1.,scanthepasswordanddownloadthe APP 2.Openthesoftware 3.ClickSearchfornearbydevices,andselecttheSNnumbertobe connectedfromthedevicelist(asshownbelow). Openthe“OTA” allowtoobtainthepositioning functionandenableBluetooth. -5- 4.ChooseBinfile(thefileforupdate) 5.ClickENTEROTAMODEtodeletetheoriginalapplicationand entertheOTAupgrademode 6.ClickOTAUPDATA2secondsafterstep2tostarttheupgrade -6- Updatepassword （default：5678） Note：Thedefaultupgradepasswordof APPis5678.Iftheupgradepasswordisnotchanged,youdonot needtosetit.Iftheupdatepasswordiswrong,whenclickENTER OTAMODE,youcannotdeletetheoriginalappandentertheOTA upgrademode. Note: 1.IftheBluetoothdevicecannotbesearched,restarttheBluetoothandopentheAPP searchagain 2.Exittheupgradeaftertheupgradefails,andopentheAPPagaintoentertheupgrade 3.ADMINAPP ProjectOperation Loginandopenthe1.SearchtheKERONGADMINAPPstoreandinstallit -7- lockOpenAPP---connecttheSNnumber---inputthePINpassword(on thebackoflockbody)---Inputphonenumber（input1~12digits） ---inputmanagerpassword（Originalmanagerpasswordis“0000”） ---Connectsuccessfully,andpressthescreentoopenthelock Clickthesearchdevice,andchoosetheSNnumberoflock(as below) Open“KERONGADMIN” Click"Allow"toopenthephoto functionand"allowtoobtainthe positioningfunction".Youcan searchfornearbydevices,scanthe deviceandinputtheSNnumber toconnectthemobile. -8- 4.APPoperation ProjectOperation Inputthepinpassword,such as：“2903” Inputthephonenumberor 1-12digits Inputthemanagerpassword, Originalmanagerpassword is0000 Presstheredbuttontoopen thelock -9- Introductiontothe unlockinginterface  -10- Userinformation -11- Setmenuinterface Openmethod Manu：Whenuserconnecttothelock,needtoclickthered buttononmobiletoopenthelock Auto：AstheAppconnecttothelock,theusercantouchthe paneltoopenthelock -12- Closemethod Manu：Whenopenthelock,userneedtopresstheredbutton onlocktocloseit Auto：After5seconds,thelocktonguewillstretchout RecordqueryItcancheck200records QuerylockIDQuerythelockIDwhichisconnected Adduser 1.Clickthe"+"buttonbelowtoaddperiodicusersorone-time users.Theaddeduserscanonlyloginthrough"KerongSmart CabinetLock"; 2.Periodicuser:Usedwithinacertainperiodoftime,beyond orwithinthesetperiodoftime,theusercannotloginanduse theAPPof"KerongSmartCabinetLock" 3.One-timeuser:TheusercanonlylogintheAPP"Kerong SmartCabinetLock"once,andcannotuseitagainafter exiting. Note:Thepasswordisautomaticallygeneratedbythesystem andcanbemodifiedbyAPP"KerongSmartCabinetLock".A maximumof100userscanbeadded. Deleteuser 1.Deleteasingleuser:Holddowntheuseryouwanttodelete -swiperight-clicktheredtrashcanbutton 2.Deletealluser：Click“-”，pressyes CancelalarmChooseturnonorturnoffthehookalarm DisablebuzzerChooseturnonorturnoffthebuzzer Synclock Verifytheclocktocheckwhethertheclockisnormal.Ifthe displayedclockis00:00:00,theclockhardwareisfaulty. Emergencyunlock Whentheuserforgetsthepassword,hecanasktheafter-sales serviceofthemanufacturertounlockthelockthroughtheSN numberofthelockbody.Thepasswordisaone-time emergencypassword,whichwillbecomeinvalidimmediately afterbeingusedonce ModifypasswordModifythepassword,andthepasswordshouldbe4digits Queryunlockpermission querythepasswordandvalidityperiodofanexistinguser -13- 5.UserAPP Loginin 1.Searchthe"KerongSmartCabinetLock"inAPPstore,andinstall it。 2.OpentheAPP—Clicksearchdevice—clicktheSNnumber—…

Text truncated - open the document above for the full version.

KERONG INDUSTRY (HK) CO., LIMITED 2nd Floor, 3rd Building, No.68 Tongli Road, Tongle Community, Baolong Street, Longgang District, Shenzhen, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/06/29 U.S. Agent Designation KERONG INDUSTRY (HK) CO., LIMITED acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BBU4-KR-S1090-6560): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #226 Colorado USA FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of KERONG INDUSTRY (HK) CO., LIMITED KERONG INDUSTRY (HK) CO., LIMITED with the FRN [0033947722] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Yi Liu Manager KERONG INDUSTRY (HK) CO., LIMITED Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Yi Liu/Manager Company: KERONG INDUSTRY (HK) CO., LIMITED Address: 2nd Floor, 3rd Building, No.68 Tongli Road, Tongle Community, Baolong Street, Longgang District,Shenzhen, Guangdong, China Phone: 13189709310 Fax: N/A E-Mail: [email protected]

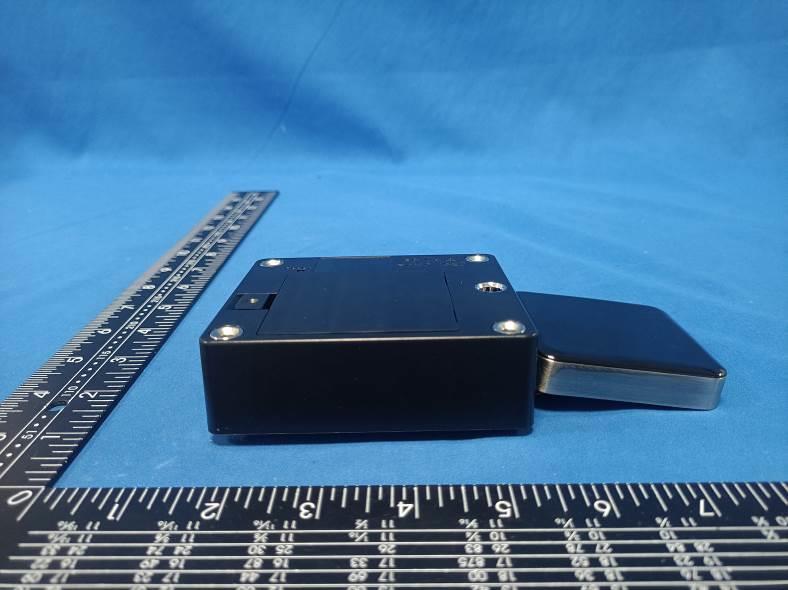

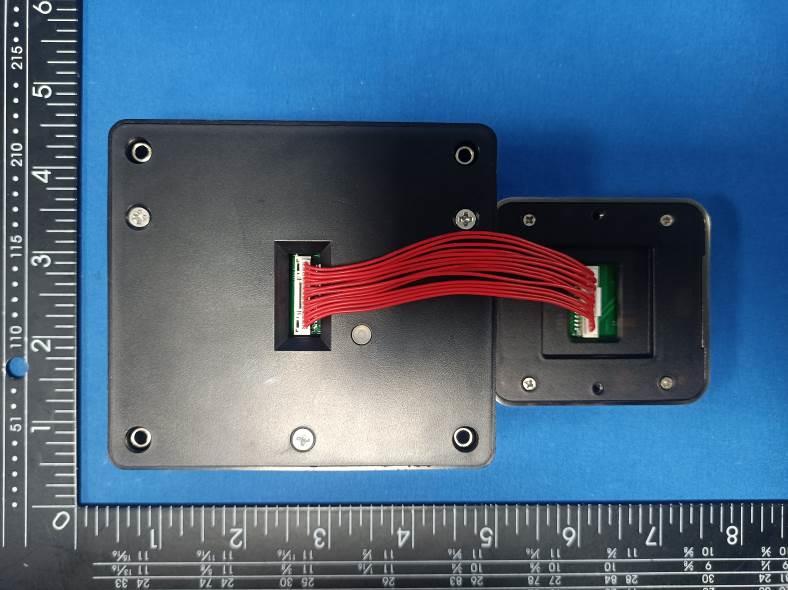

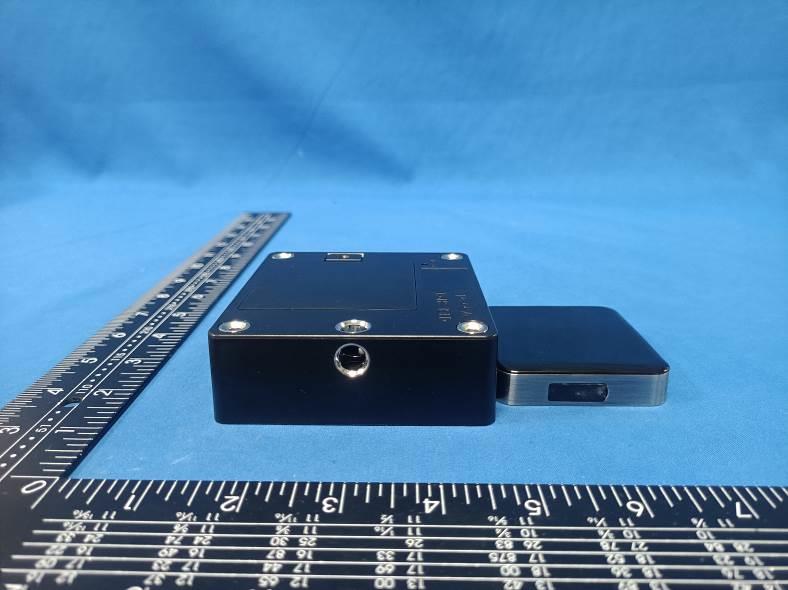

FCC ID: 2BBU4-KR-S1090-6560 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BBU4-KR-S1090-6560 Photo 4 Photo 5 Photo 6

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: KR-S1090-6560-BT FCC ID : 2BBU4-KR-S1090-6560

FCC ID: 2BBU4-KR-S1090-6560 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BBU4-KR-S1090-6560 Photo 4 Photo 5 Photo 6 FCC ID: 2BBU4-KR-S1090-6560 Photo 7 Photo 8 Photo 9 BLE PCB Antenna FCC ID: 2BBU4-KR-S1090-6560 Photo 10 Photo11 Photo12 FCC ID: 2BBU4-KR-S1090-6560 Photo13 Photo14 Photo15 FCC ID: 2BBU4-KR-S1090-6560 Photo16

RF Exposure evaluation FCC ID: 2BBU4-KR-S1090-6560 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information KR-S1090-6560-BT can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BLE / PCB antenna 0.82dBi for 2400-2500MHz; 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 3.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.82dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 5.0 3.1623 0.82 1.2078 0.0009 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model KR-S1090-6560-BT Frequency range 2400-2500MHz Manufacturer KERONG INDUSTRY (HK) CO., LIMITED ANT Peak Gain 0.82 dBi 2. Antenna Photo: Length :8.93mm Width:0.72mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
