2BBUA-CRS1GreenWave

Installation List CRS1 X1 power cable1 X1 power cable2 X1 Product Introduction power key VOL+ Play Pause power ledVOL- logo QR code interface definition power USB Installation instructions 1.Unpack the machine and fix it to the frame first 2.After installing the machine, install the power cord on the machine and install the loading cable on the vehicle 3.Installing the wire, modify the wire cover and fix it with screws spec IO bottonpower、 up 、down、Play&pause spk4Ω15W X2 USBUSB2.0-Bx1 DCIN support 24V--80V DCIN Interface Right SPK Harness ：DCIN、USB、Audio cable Left SPK Harness：Audio cable BT Support Bluetooth5.0, compatible with Bluetooth4.2 /4.0/2.1 + EDR system FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

Westgate Technology Corporation U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (Baihetian Innovative Solutions) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: June 26, 2023 Signed by (Printed Name/Title): Kenneth Young The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Westgate Technology Corporation Grantee Code: 2BBUA FCC ID: 2BBUA-CRS1 Contact Name: Alex Doaga Street Address: 110B - 8208 Swenson Way, City/Province/Zip: Delta, BC V4G 1J6, CANADA Telephone No: 604-762-5656 Email: [email protected] Applicant Signature: Date: 2023-06-26 Signed by (Printed Name/Title): Alex Doaga / Manager

Westgate Technology Corporation 2023.06.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2BBUA-CRS1 [Westgate Technology Corporation] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Alex Doaga Westgate Technology Corporation 2023.06.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for 2BBUA-CRS1 [Westgate Technology Corporation] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Alex Doaga

Westgate Technology Corporation 2023.06.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: GreenWave Trademark: N/A MODEL : CRS1 FCC ID : 2BBUA-CRS1 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Alex Doaga /Manager Contact information / address: 110B – 8208 Swenson Way, Delta, BC V4G 1J6, CANADA

Westgate Technology Corporation 2023.06.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Alex Doaga /Manager Contact information / address: 110B – 8208 Swenson Way, Delta, BC V4G 1J6, CANADA

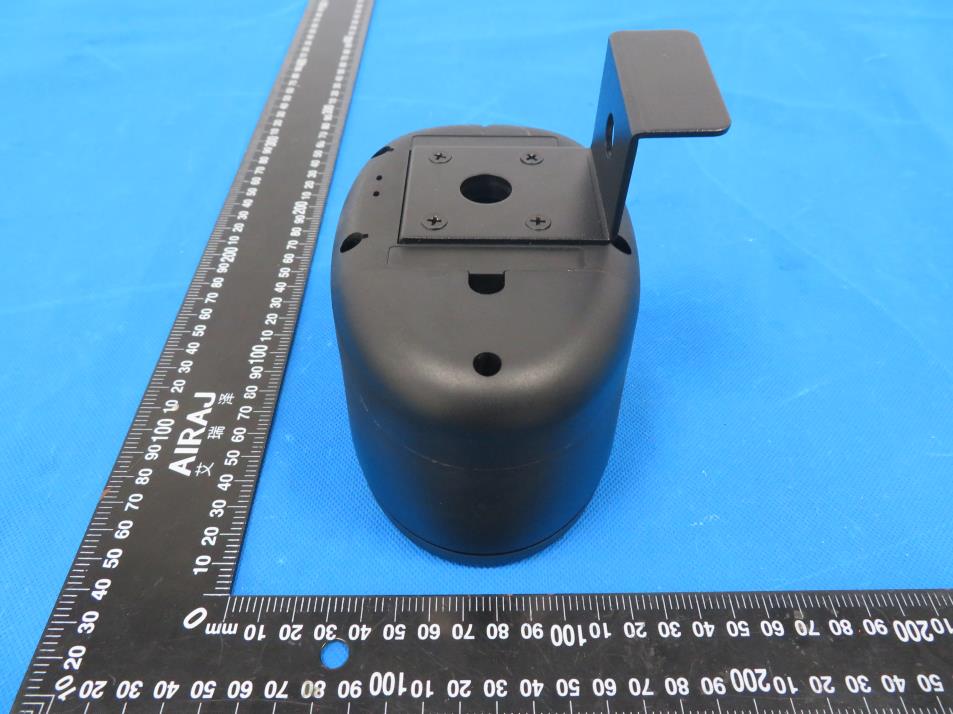

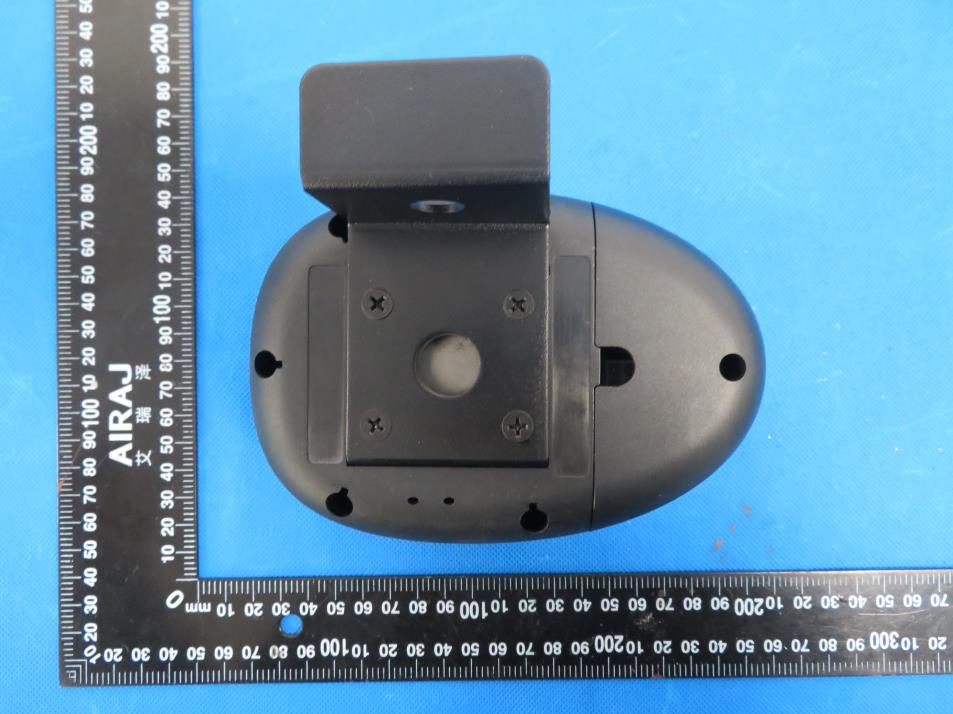

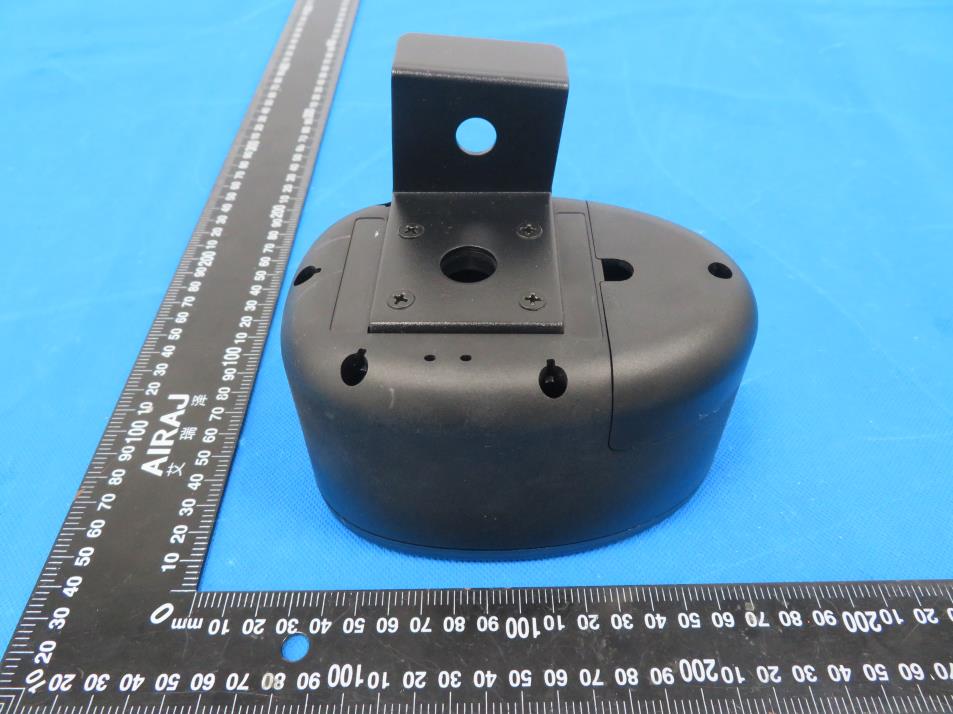

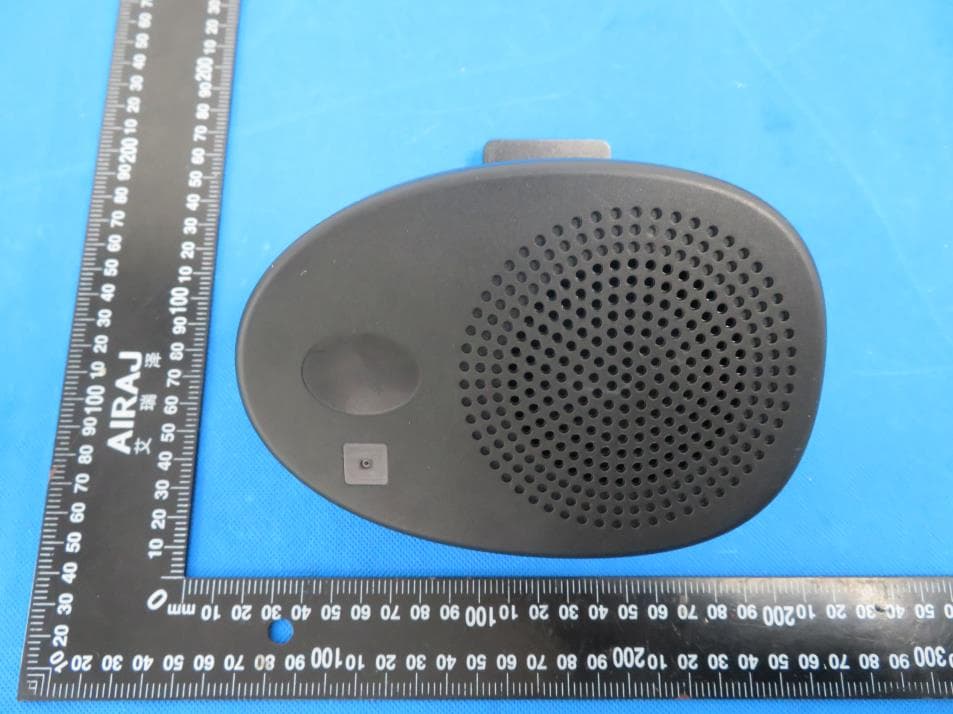

External Photos

Size:20*10mm GreenWave FCC ID: 2BBUA-CRS1 Label location

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BBUA-CRS1 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Conclusion: For the max result: 0.0004≤ 1.0, compliance with FCC's RF Exposure Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result BT 0±1 1 1.26 1.6 (2.05dBi) 0.0004 1 Pass

Manufacturer: Shenzhen Tianlian Ling Technology Co., LTDCompany address: 5D, Building L, No. 26, Lane 2, Liuxian 1st Road, District 71, Baoan District, Shenzhen Model ： CRS1-SPK-V2 Antenna specification Antenna size diagram ： Return loss： M1 2_40200( GHz 2_ M2 2_45000( GHz 1_ 9579 U - 10 • IVI .) L40L:JUI ljHZ 、 ｜－ 一－ 9 一－ 8 」一 7 』－ 6 ＼～ 」－ 5 一－ 4 ＼ 一－ 3 ＼ � 也 3/ 一－ 2 飞 也 J/ ,, � S tanding-wave ratio： Fre （ MHz ） Eff （ % ） (dB) Gain (dB) 2400 49.27 2.05 2450 43.55 1.29 2500 42.14 1.01 Efficiency/gain ： z 2400. OOOMHz E1 之0 1.0 -0 .5 -2.0 」 4.0 ← 6. 0 阳 8.0 70 2400.000MHz H 2400.000MHz E2 70 9 ’.3 0.3 ,-1 .2 -2.7 ← 4.7 』6.7 1-8.7 2450.000MHz H 10 2450.000MHz E2 9 Directional d iagram： z 9 . 1. 0 0.0 ’5 -3.0 ,-5 .0 ,-7 .0 , -9. 0 70 70 9 70 Directional diagram：

No.：BCTC/RF-EMC-007 Page: 1 of 79 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2302966577E Applicant: Westgate Technology Corporation Product Name: GreenWave Model/Type reference: CRS1 Tested Date: 2023-02-27 to 2023-04-07 Issued Date: 2023-04-07 Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 2 of 79 Edition：A.5 FCC ID: 2BBUA-CRS1 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: GreenWave Trademark: N/A Model/Type Reference: CRS1 Prepared For: Westgate Technology Corporation Address: 110B – 8208 Swenson Way, Delta, BC V4G 1J6, CANADA Manufacturer: Shenzhen Yitoadigital Technology Company.,Ltd Address: 7F-2 Unit, 2Building, Financial Base, No.8 Kefa Road, Nanshan District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-02-27 Sample tested Date: 2023-02-27 to 2023-04-07 Issue Date: 2023-04-07 Report No.: BCTC2302966577E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 3 of 79 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test procedure .................................................................................................... 17 7.4 EUT operating Conditions ................................................................................... 18 7.5 Test Result .......................................................................................................... 18 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test procedure .................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9. Spurious RF Conducted Emissions ..................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 Test Result .......................................................................................................... 28 10. 20 dB Bandwidth ...........................…

Text truncated - open the document above for the full version.

Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 59 of 79 Edition：A.5 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 60 of 79 Edition：A.5 Power NVNT 3-DH1 2480MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 61 of 79 Edition：A.5 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2401.778 2402.78 1.002 0.869 Pass NVNT 1-DH1 2440.776 2441.778 1.002 0.864 Pass NVNT 1-DH1 2478.782 2479.778 0.996 0.975 Pass NVNT 2-DH1 2401.78 2402.782 1.002 0.829 Pass NVNT 2-DH1 2440.776 2441.78 1.004 0.835 Pass NVNT 2-DH1 2478.78 2479.78 1 0.829 Pass NVNT 3-DH1 2401.778 2402.78 1.002 0.812 Pass NVNT 3-DH1 2440.776 2441.778 1.002 0.808 Pass NVNT 3-DH1 2478.782 2479.776 0.994 0.813 Pass Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 62 of 79 Edition：A.5 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 63 of 79 Edition：A.5 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 64 of 79 Edition：A.5 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 65 of 79 Edition：A.5 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 66 of 79 Edition：A.5 CFS NVNT 3-DH1 2480MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 67 of 79 Edition：A.5 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 68 of 79 Edition：A.5 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 69 of 79 Edition：A.5 Hopping No. NVNT 3-DH1 2441MHz Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 70 of 79 Edition：A.5 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). 14.4 Test Result DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time slot TX). DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time slot TX). DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark: Mkr Delta is once pulse time. Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 71 of 79 Edition：A.5 Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (s) Limit (s) Verdict NVNT 1-DH1 2441 0.349 0.112 0.4 Pass NVNT 1-DH3 2441 1.62 0.259 0.4 Pass NVNT 1-DH5 2441 2.868 0.306 0.4 Pass NVNT 2-DH1 2441 0.363 0.116 0.4 Pass NVNT 2-DH3 2441 1.632 0.261 0.4 Pass NVNT 2-DH5 2441 2.88 0.307 0.4 Pass NVNT 3-DH1 2441 0.361 0.116 0.4 Pass NVNT 3-DH3 2441 1.626 0.260 0.4 Pass NVNT 3-DH5 2441 2.877 0.307 0.4 Pass Test Graphs Dwell NVNT 1-DH1 2441MHz One Burst Report No.: BCTC2302966577E No.：BCTC/RF-EMC-007 Page: 72 of 79 Edition：A.5 Dwell NVNT 1-DH3 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz One Burst…
