2BBVA-KEYNIUSElectronic lock

Functional design battery lock (SLIM) This functional design describes the functionalities and scenario’s for the of Battery locks. There are two different Battery locks models: Pincode and RFID. Both types have Bluetooth to enable access for admin (managing lock) and for user (use). Contents 1 Model description ........................................................................................................................... 3 1.1 Functionalities Pincode: .......................................................................................................... 3 1.2 Functionalities RFID: ................................................................................................................ 3 2 Scenario’s ........................................................................................................................................ 4 2.1 Flex use (one time): ................................................................................................................. 4 2.1.1 Pincode ............................................................................................................................ 4 2.1.2 RFID ................................................................................................................................. 4 2.2 Flex use (given time): ............................................................................................................... 5 2.2.1 Pincode ............................................................................................................................ 5 2.2.2 RFID ................................................................................................................................. 6 2.3 Assigned use ............................................................................................................................ 6 3 Hardcoded functionalities ............................................................................................................... 8 3.1 Override ................................................................................................................................... 8 3.1.1 Pincode ............................................................................................................................ 8 3.1.2 RFID ................................................................................................................................. 8 3.2 Last resort use ......................................................................................................................... 8 4 Mobile app ...................................................................................................................................... 9 4.1 User ......................................................................................................................................... 9 4.2 Admin ...................................................................................................................................... 9 1 Model description 1.1 Functionalities Pincode: • Keynius design Battery lock PINCODE • Keynius Cam lock mechanism • Capacitive touch sensors • External battery pack (placed on the inside of the locker, 4X AA batteries) • At least 2 years of battery life • LED available for communication with user/admin (Bluetooth sign and Pin numbers) • Beep/buzzer available for communication with user/admin, possibility to turn on/off. • Internal USB-C connector for 1 time use (in case of dead battery) • Confirmation button (replace ‘0’) • Bluetooth to communicate with Keynius app • Override (emergency unlock) • Auto-unlock • Update firmware via Bluetooth (Mobile app) 1.2 Functionalities RFID: • Keynius design Battery lock RFID • Keynius Cam lock mechanism • Mifare card reader (13,56 MHz) • Possibility to store up to 32 cards per lock (in case of assigned use you can make a group locker) • External battery pack (placed on the inside of the locker, 4X AA batteries) • At least 2 years of battery life • LED available for communication with user/admin (Bluetooth sign, top LED) • Beep/buzzer available for communication with user/admin, possibility to turn on/off. • Internal USB-C connector for 1 time use (in case of dead battery) • Bluetooth to communicate with Keynius app • Override (emergency unlock) • Auto-unlock • Update firmware via Bluetooth (Mobile app) 2 Scenario’s 2.1 Flex use (one time): In this scenario a user will be able to claim an available locker（1. Apply offline or online? If it is offline, it is easy. If it is online, how to deal with authorization, cabinet number, lock number association and so on will need to consider With flex use, the user can only apply physically on the battery lock itself (so offline) see 2.1.1.1 ）, store belongings and then close the locker. After opening the locker is again free to claim/use for everyone. Flex use (one time) is set as a default scenario (also after factory reset). 2.1.1 Pincode After pressing every button (number) all LED’s will blink WHITE for 1 second （2. Blink 1 second is a little long, 200ms is recommended, 1 second the user experience is not good） Agreed, let’s do 200 ms instead of 1 second. and a Beep is heard. Example: Press number 1 (all LED’s will blink WHITE for 1 second and Beep is heard), press number 2 (all LED’s will blink WHITE for 1 second and Beep is heard), etc. 2.1.1.1 Claim a locker - User approaches available locker (Battery lock is available when the point of the knob is rotated to either 9 o’clock or 3 o’clock. A graphical icon of an open lock is shown). - User stores his/her belongings in locker - User closes the lockerdoor - User fills in 4 digit pincode (1st time), and presses confirmation button(3. Is there a password length requirement? 4 to 8 digits or a fixed number of 4 digit) For users lets keep a fixed of 4 numbers, for admin it can be 6 After confirmation button, all LED’s will blink GREEN 1 time. - User fills in 4 digit pincode (2nd time), and…

Text truncated - open the document above for the full version.

Keynius Co., Limited UNIT 811, BEVERLEY COMMERCIAL CENTRE, 87-105 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON HONG KONG Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/06/29 U.S. Agent Designation Keynius Co., Limited acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BBVA-KEYNIUS): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #226 Colorado USA FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Keynius Co., Limited Keynius Co., Limited with the FRN [0033947912] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Lily Liu Manager Keynius Co., Limited Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Lily Liu/Manager Company: Keynius Co., Limited Address: UNIT 811, BEVERLEY COMMERCIAL CENTRE, 87-105 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON HONG KONG China Phone: 13189709310 Fax: N/A E-Mail: [email protected]

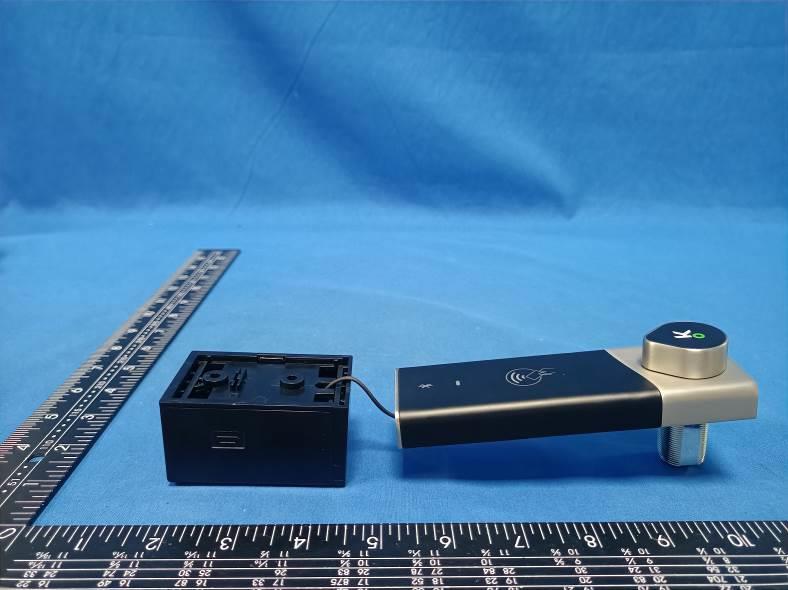

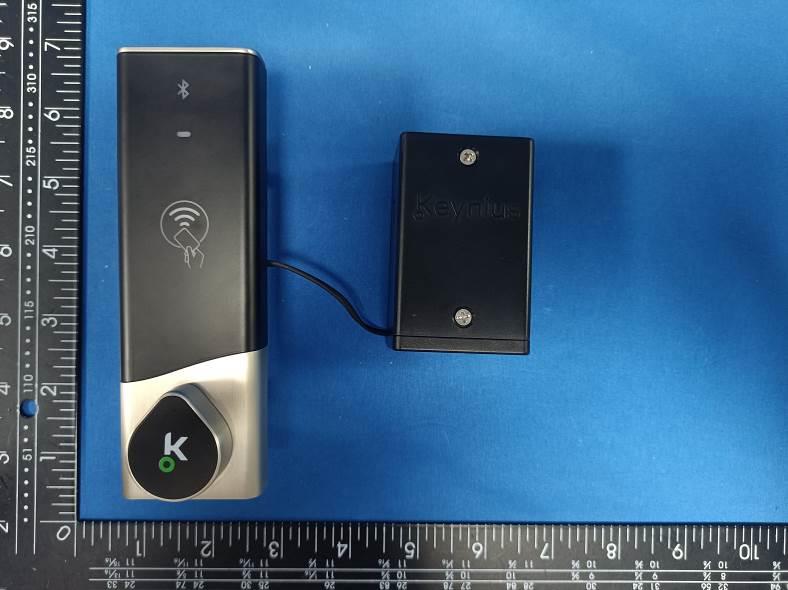

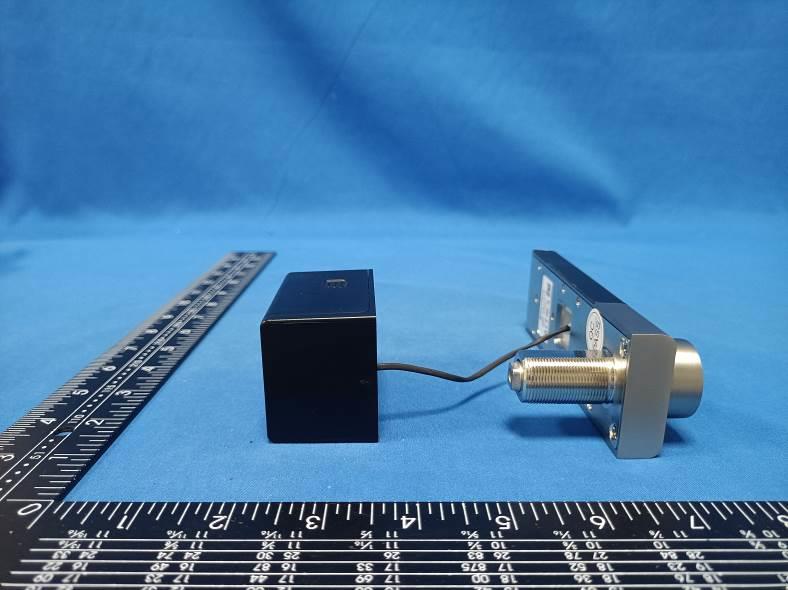

FCC ID: 2BBVA-KEYNIUS External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BBVA-KEYNIUS Photo 4 Photo 5 Photo 6

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BBVA-KEYNIUS

FCC ID: 2BBVA-KEYNIUS Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BBVA-KEYNIUS Photo 4 Photo 5 Photo 6 FCC ID: 2BBVA-KEYNIUS Photo 7 Photo 8 Photo 9 FCC ID: 2BBVA-KEYNIUS Photo 10 Photo11 Photo12 13.56Hz PCB Antenna BLE PCB Antenna FCC ID: 2BBVA-KEYNIUS Photo13 Photo14 Photo15 FCC ID: 2BBVA-KEYNIUS Photo16 Photo17 Photo18 Photo19 FCC ID: 2BBVA-KEYNIUS Photo20

RF Exposure evaluation FCC ID: 2BBVA-KEYNIUS Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information Keynius Battery Lock Leo RFID (11609001) can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BLE / PCB antenna 0.82dBi for 2400-2500MHz; NFC / PCB antenna 0.0dBi for 13.56MHz; 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 3.0 4.0 4.0 Tolerance ±(Db) 1.0 1.0 1.0 Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 13.56MHz 101.38 6.12 6.0±1 7.0 Note: EIRP=E-104.8+20logD, D=3 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is Refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (Mw/cm 2 ) MPE Limits (Mw/cm 2 ) dBm Mw BLE 5.0 3.1623 0.82 1.2078 0.0009 1.0000 NFC 7.0 5.0119 0.0 1.0000 0.0010 0.9789 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result NFC MPE (Ratio) BLE MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.001 0.0009 0.0019 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model Keynius Battery Lock Leo RFID (11609001) Frequency range 2400-2500MHz Manufacturer Keynius Co., Limited ANT Peak Gain 0.82 dBi 2. Antenna Photo: Length :9.31mm Width:0.82mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : CTA23060800102 2BBVA-KEYNIUS Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jun. 19, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Keynius Co., Limited Address ............................................ : UNIT 811, BEVERLEY COMMERCIAL CENTRE, 87-105 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON HONG KONG Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................... : Electronic lock Trade Mark ....................................... : Keynius Manufacturer .................................... : Keynius Co., Limited Model/Type reference....................... : Keynius Battery Lock Leo RFID (11609001) Listed Models .................................. : Keynius Battery Lock Leo PIN (11609000) Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 6.0V From Battery Result................................................ : PASS Report No.: CTA23060800102 Page 2 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Electronic lock Model /Type : Keynius Battery Lock Leo RFID (11609001) Listed Models : Keynius Battery Lock Leo PIN (11609000) Applicant : Keynius Co., Limited Address : UNIT 811, BEVERLEY COMMERCIAL CENTRE, 87-105 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON HONG KONG Manufacturer : Keynius Co., Limited Address : UNIT 811, BEVERLEY COMMERCIAL CENTRE, 87-105 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON HONG KONG Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23060800102 Page 3 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 11 4.3 Maximum Peak Output Power 18 4.4 Power Spectral Density 19 4.5 6dB Bandwidth 21 4.6 Out-of-band Emissions 23 4.7 Antenna Requirement 27 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 28 6 P H O T O S O F T H E E U T ............................................................. 28 Report No.: CTA23060800102 Page 4 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA23060800102 Page 5 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:cta@…
