2BBW2-CR1Call Recorder

User Guide App Download for iPhone/Android/Mac/Win Please scan the QR code to view the electronic version of the instruction manual in English 请扫描右侧二维码查看中文版电子说明书 右側のQRコードをスキャンして、日本語版の電子説明書を 表示してください 오른쪽 QR 코드를 스캔하여 한국어 전자 설명서를 확인하십시오 Scannen Sie den QR-Code auf der rechten Seite, um die deutsche elektronische Bedienungsanleitung anzuzeigen Scannez le code QR sur le côté droit pour afficher le manuel d’utilisation électronique en français Escanee el código QR en el lado derecho para ver el manual de usuario electrónico en español Pindai kode QR di sebelah kanan untuk melihat buku petunjuk elektronik dalam bahasa Indonesia Electronic User Guide WiFi Switch Record Button (long press) (long press) Charging Indicator Recording Indicator WiFi Indicator Start Recording Press and hold the Record Button for 2 seconds Attach the device to the back of your phone and it will record both parties when you make a call (note: it can record for all apps that can make calls). Press and hold the Record Button again to save the recording and the device will power off. Download App Scan the right QR code and follow the instructions to download the app. App Download for iPhone/Android/Mac/Win Press and hold the WiFi Switch on the device, then turn on your phone's WiFi, find a WiFi named“FOCASE_xxxx”, and connect to it. Connect to device WiFi Set password To access recordings, you need a password. The default is 888888.please change it in settings. If you forget, click “Restore Factory Setting” in settings to restore default. All recordings in device will be deleted. Files saved to phone will not be deleted. Store Recordings(2 methods) Method 1: In the "in device" section, click , and the files will be saved to “in phone”; iPhone users can search for “FoCase Rec” directly in Apple Store to download. Open the app and follow the page instructions. Share Recordings Swipe left on some recording file, you can see the share and delete icons, click "share" for sharing Press and hold the WiFi button again to power off. Note: 1. During connection, if “Can’t connect to internet... Switch networks?” appears, please select “No Thanks”. （For Android users） 2. During downloading recording files, please ensure that your phone is always connected to “FOCASE_xxxx” WiFi. If disconnected from “FOCASE_xxxx” WiFi, you need to reconnect it. Method 2: On PC, connect to the device’s WiFi, named FOCASE_xxxx. On PC’s browser, enter the website: https://tinyurl.com/fkkyntu9 and download the focase_app .exe tool. You can transfer the recordings from the device to PC using this tool. App Download for iPhone/Android/Mac/Win If your phone does not support "Magnetic", you can attach our magnetic sheet to the back of your phone or phone case and then attach the device to it. Important Tips! This ring helps attach the recording device The device provides its own WiFi, so you don't need to rely on your home WiFi. Additionally, WiFi is only used for transmitting recording files and is not necessary during the actual recording process. Please do not utilize Bluetooth headphones to receive calls when recording, or you will not be able to capture the voice of the other party. When recording, please turn your earphone volume to more than 70%, the higher the earphone volume, the higher the recording quality How Recording Works MEMS Microphone Vibration transmission Bone- conduction Sensor Phone Headset The person holding the phone Collect vibrations signaling from phone headset Record the voice of the person holding the phone FoCase Cube Mobile Phone Air transmission The device utilizes a dual input method featuring bone conduction sensor and MEMS microphones. The MEMS microphones record the voice of the person holding the phone Bone conduction sensor converts the vibrations from your phone’s headset sound into electrical signals. The controller then picks up and stores these signals. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Sincerely, Name/Title： CHUNHUI WANG /Manager Company: Shenzhen Kingtrun Technology Co.,Ltd Address: 3E, Unit 2, Building 5, Jindi Shangtang Road, Daling Community, Minzhi Street Longhua District, Shenzhen China Phone: 13603034005 Fax: N/A E-Mail: [email protected]

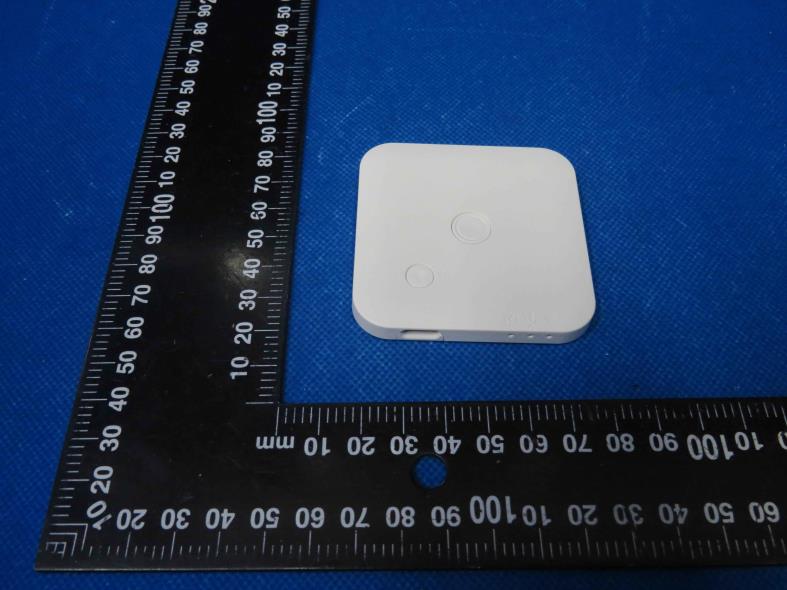

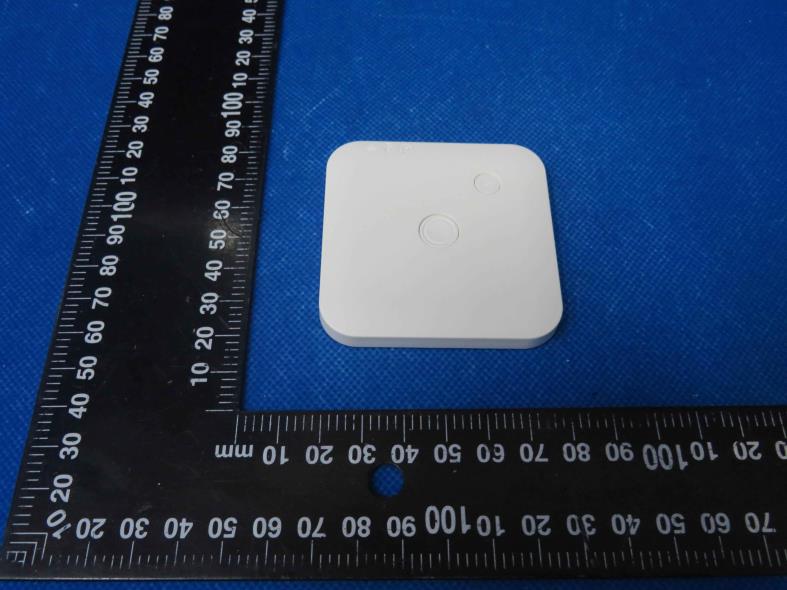

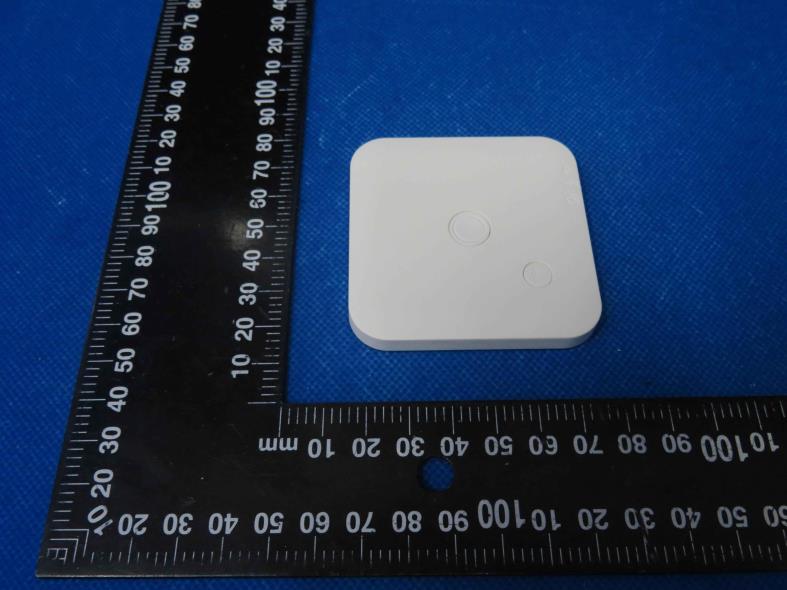

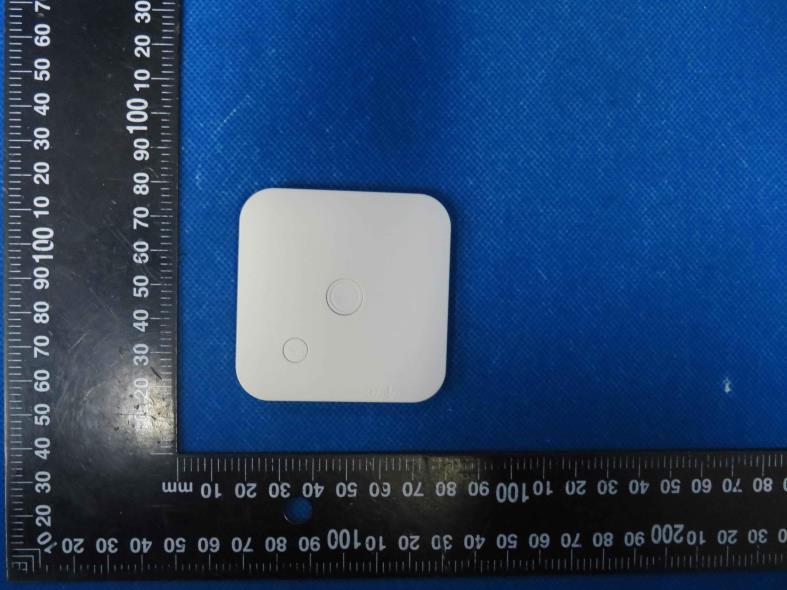

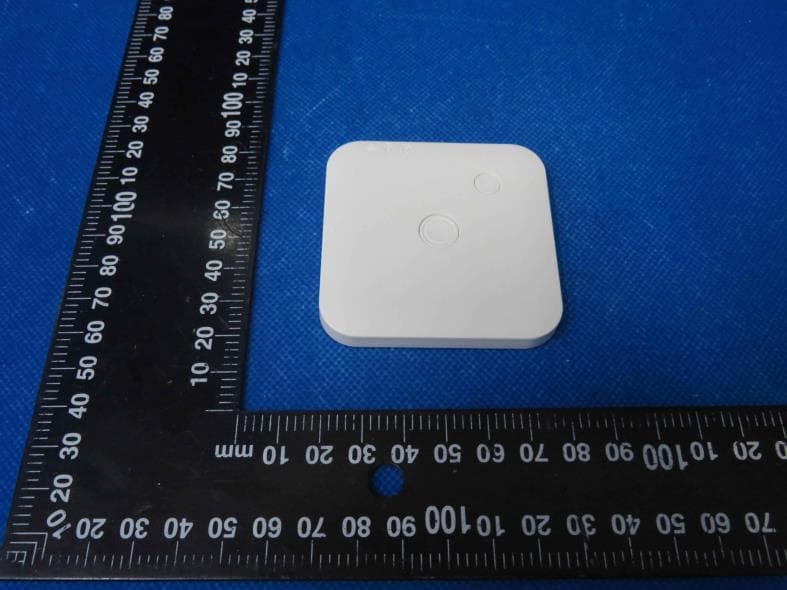

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202306425 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Call Recorde Model No.: CR1 EUT Constructional Details External Photo Report No.: HTT202306425 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202306425 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location Model No.: CR1 FCC ID : 2BBW2-CR1

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202306425 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Call Recorde Model No.: CR1 EUT Constructional Details Internal Photo Report No.: HTT202306425 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202306425 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

RF Exposure evaluation FCC ID: 2BBW2-CR1 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance BLE GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 802.11b (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 7.5 6.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 802.11g (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 7.0 6.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 802.11n(HT20) (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 7.5 6.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 802.11n(HT40) (Peak) Channel Channel 03 Channel 06 Channel 09 Target (dBm) 7.0 6.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 1.0 1.2589 0.3941<3.0 Yes 2.4GWIFI 2.450 5 8.5 7.0795 2.2162<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1 Antenna Specification Manufacture:Shenzhen Kingtrun Technology Co.,Ltd Product Name：Antenna PIFA Antenna Type：PCB Test Date：2022.06.25 Tested by：Wei Wang Antenna Test Report 2 Content 1.General Description ................................................................................. 3 2.Test Configurations .................................................................................. 4 2.1 Test Environment ............................................................................ 4 2.2 Test Equipment ............................................................................... 4 2.3 Test Principle .................................................................................. 4 3.Test Results .............................................................................................. 5 3.1 Gain and Efficiency ........................................................................ 5 3.2 Radiation Pattern ............................................................................. 6 4.Antenna Dimensions ................................................................................ 9 5.EUT Photo ............................................................................................... 9 3 1.General Description Manufacturer Shenzhen Kingtrun Technology Co.,Ltd Address 3E, Unit 2, Building 5, Jindi Shangtang Road, Daling Community, Minzhi Street, Longhua District, Shenzhen Test Location 3E, Unit 2, Building 5, Jindi Shangtang Road, Daling Community, Minzhi Street, Longhua District, Shenzhen Product Name Antenna PIFA Product model Antenna PIFA Antenna Type PCB Antenna Test Items Gain; Efficiency; Radiation Pattern Test Frequency 2400-2500MHz Test Standard ANSI/IEEE Std 149-1979 4 2.Test Configurations 2.1 Test Environment Temperature (°C) 25 Humidity (%RH) 60 Atmospheric Pressure (kPa) 100.5 2.2 Test Equipment Test System TEM 24 Multi-probe Microwave Chamber Test Instrument Agilent E5071B 2.3 Test Principle 5 3.Test Results 3.1 Gain and Efficiency Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 0.43 43.36 2410 0.69 44.72 2420 0.89 40.82 2430 0.88 44.62 2440 0.92 44.65 2450 0.91 44.23 2460 1.24 44.41 2470 1.33 45.89 2480 1.21 46.21 2490 1.20 45.76 2500 1.01 43.53 6 3.2 Radiation Pattern Phi 0 7 Phi 90 8 Theta 90 9 4.Antenna Dimensions 5. EUT Photo
