2BBYB-C1215Bluetooth Wireless Headset Hat and Gloves Set

Turn on Bluetooth on devices Bluetooth pairing 1 Turn on Bluetooth module 2 Find BT-01 and click Connect 3 Device Bluetooth BT-01 ② LED Status Light ③ Pair Play /Pause/Answer : Click Siri : Double click ④ Volume UP : Long press 2S Next song : Click ① Volume Down : Long press 2S Previous song : Click Press and Hold for 3 Seconds Turining On/Off Bluetooth module HEARING Music Answer Telephone Comfortable Keep warm Bluetooth pairing name BT-01 Music hat Bluetooth earphone（inside music hat） connect the Android Data Cable to USB charger(or computer USB port),the other end connect to the device which hide in a small hole under the bluetooth module,our device have a LED indication in the middle red light constant on shows that device is charging,Red light constant on shows that device is charging,Red light off when fullly charged. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

Attestation Statements (Jul. 05, 2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2BBYB-C1215) (Shenzhen Yiqi Network Technology Co., Ltd.), the undersigned, hereby authorize (JD AGENT INC) to act as our designated U.S. agent for service of process, (Shenzhen Yiqi Network Technology Co., Ltd.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (JD AGENT INC) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Shenzhen Yiqi Network Technology Co., Ltd. Contact Name: Niu Yi Address: Room 9A21, 9th Floor, Building 4, SEG Technology Industrial Park, No. 120, Zhenxing Road, Shenzhen, Guangdong, China Telephone No: 13538214502 Email: [email protected] U.S. Agent Information: Company Name: JD AGENT INC Address: 36-54 MAIN ST FL 3 UNIT 813 FLUSHING, NY 11354 4105 Contact Name: XURONG XU Telephone No: (347) 200-1688 Email: [email protected] FRN: 0033970591 Applicant Signature: Agent Signature: Applicant printed name: Niu Yi Agent printed name: XURONG XU

Shenzhen Yiqi Network Technology Co., Ltd. (2023.07.05) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Niu Yi Title: Legal Representative

Shenzhen Yiqi Network Technology Co., Ltd. Model Difference Data：2023.07.05 Product description: Bluetooth Wireless Headset Hat and Gloves Set Model name: Honoson-newsboy-caps-C1215, Honoson-newsboy-caps-C1893 Trade Name: N/A FCC ID: 2BBYB-C1215 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Niu Yi（Legal Representative） Contact information / address：Room 9A21, 9th Floor, Building 4, SEG Technology Industrial Park, No. 120, Zhenxing Road, Shenzhen, Guangdong, China

Shenzhen Yiqi Network Technology Co., Ltd. (2023.07.05) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Bluetooth Wireless Headset Hat and Gloves Set / Honoson-newsboy-caps-C1215, Honoson-newsboy-caps-C1893 / FCC ID: 2BBYB-C1215) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Niu Yi Title: Legal Representative

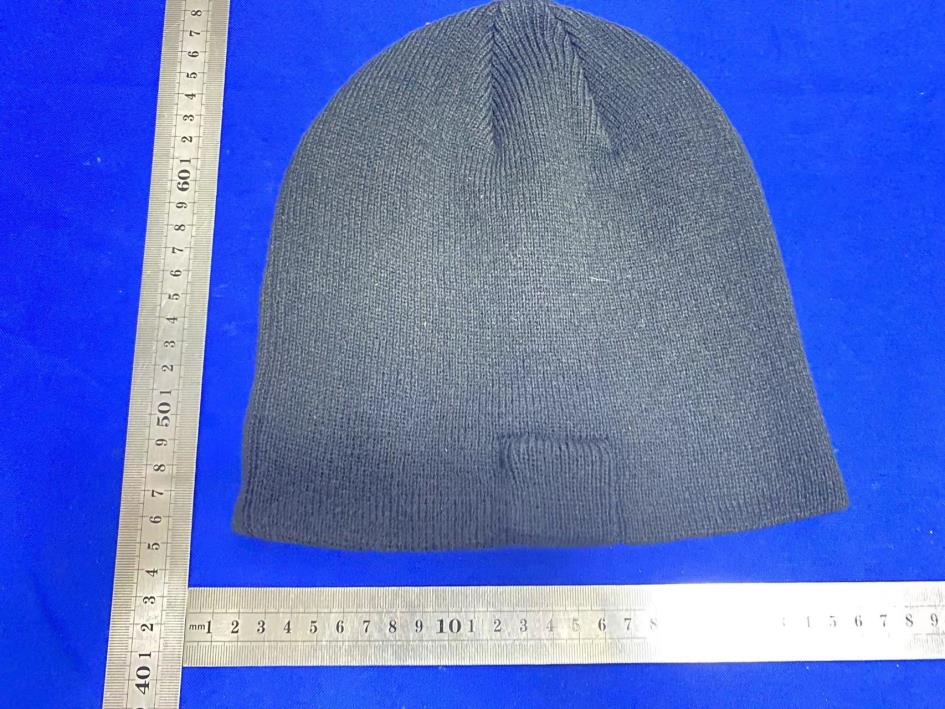

External Photos

FCC ID LABEL: Label Location: FCC ID: 2BBYB-C1215 Model No.: Honoson-newsboy-caps-C1215

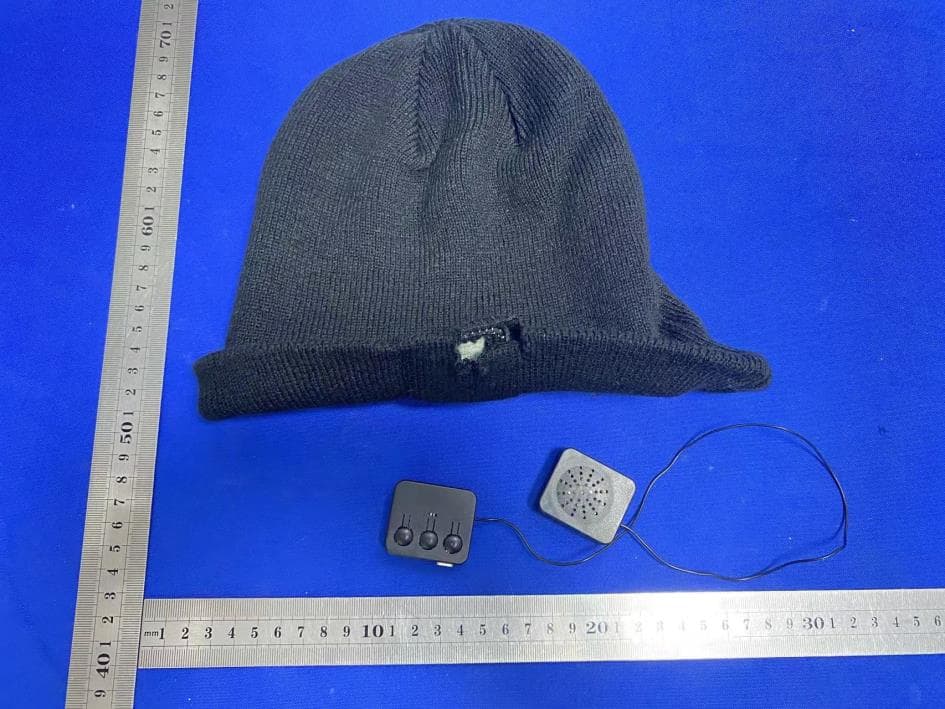

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID:2BBYB-C1215 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. EDR: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 1.179 1.31 1±1 2.00 1.58 <5 0.49127 3.00 YES 2.441 -0.631 0.86 0±1 1.00 1.26 <5 0.39338 3.00 YES 2.480 -1.429 0.72 -1±1 0.00 1.00 <5 0.31496 3.00 YES 2.402 1.711 1.48 1±1 2.00 1.58 <5 0.49127 3.00 YES 2.441 -0.105 0.98 0±1 1.00 1.26 <5 0.39338 3.00 YES 2.480 -0.787 0.83 0±1 1.00 1.26 <5 0.39651 3.00 YES 2.402 2.178 1.65 2±1 3.00 2.00 <5 0.61847 3.00 YES 2.441 0.445 1.11 0±1 1.00 1.26 <5 0.39338 3.00 YES 2.480 -0.273 0.94 0±1 1.00 1.26 <5 0.39651 3.00 YES GFSK π /4DQPSK 8DQPSK Conclusion: For the max result : 0.61847≤ FCC Limit 3.0 for 1g SAR.

Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230626049RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 58 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Bluetooth Wireless Headset Hat and Gloves Set FCC ID: 2BBYB-C1215 Trademark: N/A Model Number: Honoson-newsboy-caps-C1215, Honoson-newsboy-caps-C1893 Prepared For: Shenzhen Yiqi Network Technology Co., Ltd. Address: Room 9A21, 9th Floor, Building 4, SEG Technology Industrial Park, No. 120, Zhenxing Road, Shenzhen, Guangdong, China Manufacturer: Shenzhen Yiqi Network Technology Co., Ltd. Address: Room 9A21, 9th Floor, Building 4, SEG Technology Industrial Park, No. 120, Zhenxing Road, Shenzhen, Guangdong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: May. 26, 2023 Sample tested Date: May. 26, 2023 to Jun. 26, 2023 Issue Date: Jun. 26, 2023 Report No.: CTB230626049RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230626049RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 58 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 4 2. TEST SUMMARY ................................................................... 5 3. MEASUREMENT UNCERTAINTY ..................................................... 6 4. PRODUCT INFORMATION AND TEST SETUP .......................................... 7 4.1 Product Information .................................................................... 7 4.2 Test Setup Configuration ............................................................... 7 4.3 Support Equipment .................................................................... 7 4.4 Channel List .......................................................................... 8 4.5 Test Mode ............................................................................ 8 4.6 Test Environment ...................................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................... 9 5.1 Test Facility ........................................................................... 9 5.2 Test Instrument Used .................................................................. 9 6. AC POWER LINE CONDUCTED EMISSION ............................................ 11 6.1 Block Diagram Of Test Setup .......................................................... 11 6.2 Limit ................................................................................ 11 6.3 Test procedure ....................................................................... 11 6.4 Test Result .......................................................................... 13 7. RADIATED SPURIOUS EMISSION ................................................... 15 7.1 Block Diagram Of Test Setup .......................................................... 15 7.2 Limit ................................................................................ 15 7.3 Test procedure ....................................................................... 16 7.4 Test Result .......................................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS .......................... 26 8.1 Block Diagram Of Test Setup .......................................................... 26 8.2 Limit ................................................................................ 26 8.3 Test procedure ....................................................................... 26 8.4 Test Result .......................................................................... 27 9. COUDUCTED PEAK OUTPUT POWER ............................................... 34 9.1 Block Diagram Of Test Setup .......................................................... 34 9.2 Limit ................................................................................ 34 9.3 Test procedure ....................................................................... 34 9.4 Test Result .......................................................................... 35 10. 20DB OCCUPIED BANDWIDTH...................................................... 39 10.1 Block Diagram Of Test Setup ......................................................... 39 10.2 Limit ............................................................................... 39 10.3 Test procedure ...................................................................... 39 10.4 Test Result ......................................................................... 39 11. CARRIERFREQUENCIES SEPARATION .............................................. 43 11.1 Block Diagram Of Test Setup ......................................................... 43 11.2 Limit ............................................................................... 43 11.3 Test procedure ...................................................................... 43 11.4 Test Result ......................................................................... 43 12. HOPPING CHANNEL NUMBER ................................…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ANT SPECITEM 2.4G ANTModel Name VerticalHorizontal 2500MHz2400MHz2400MHz2500MHz2400MHz2400MHz Center Frequency -1.86-2.46-5.25-0.58-0.76-1.26 -0.58dBMAX. Gain Horizontal and VerticalPolarization Azimuth Beam Pattern Omni-directional 50 OhmImpedance 38.20mmAntenna Length Manufacture Antenna Photo & Length (mm) BLUETRUM TECHNOLOGY CO.,LTD Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Radiated Emission Below 1G Above 1G Conducted emissions
