2BBZH-BKWX12.4G Wireless Microphone transceiver

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

Guangzhou Caihui Technology Co., Ltd (December 24, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BBZH-BKWX1 [Guangzhou Caihui Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Tang hongbin Guangzhou Caihui Technology Co., Ltd (December 24, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BBZH-BKWX1 [Guangzhou Caihui Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Tang hongbin

Guangzhou Caihui Technology Co., Ltd (December 24, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (2.4G Wireless Microphone transceiver / BKW-X1, MW-20, MW-21, MW-22, MW-23, MW-24, MW-25, MW-26, MW-27, MW-28, MW-29, iW-40/ FCC ID: 2BBZH-BKWX1) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Tang hongbin Title: Manager

Guangzhou Caihui Technology Co., Ltd (December 24, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Tang hongbin Title: Manager

Guangzhou Caihui Technology Co., Ltd Model Difference Data：December 24, 2024 Product description: 2.4G Wireless Microphone transceiver Model name: BKW-X1, MW-20, MW-21, MW-22, MW-23, MW-24, MW-25, MW- 26, MW-27, MW-28, MW-29, iW-40 Trade Name: LEKATO, PogoLab, DK FCC ID: 2BBZH-BKWX1 All the model are the same circuit and RF module, only the appearance and color are different. Regards Sincerely Client’s signature : Client’s name / title : Tang hongbin（Manager） Contact information / address：Room 502, Building 1, No. 4 Shuiniu Road, Tan Village, Shijing Street, Baiyun District, Guangzhou, China

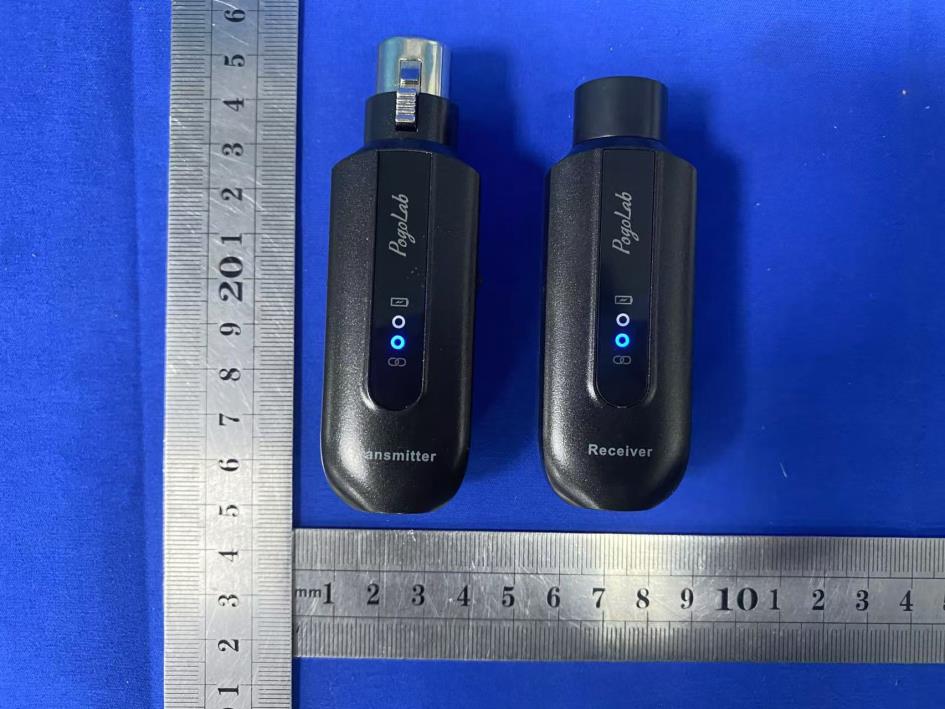

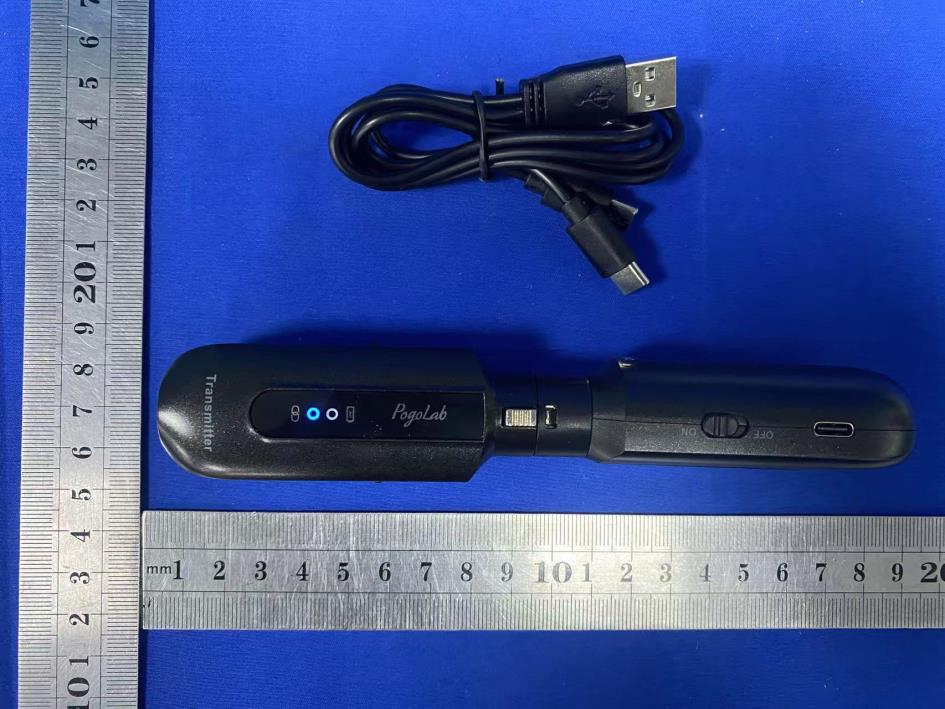

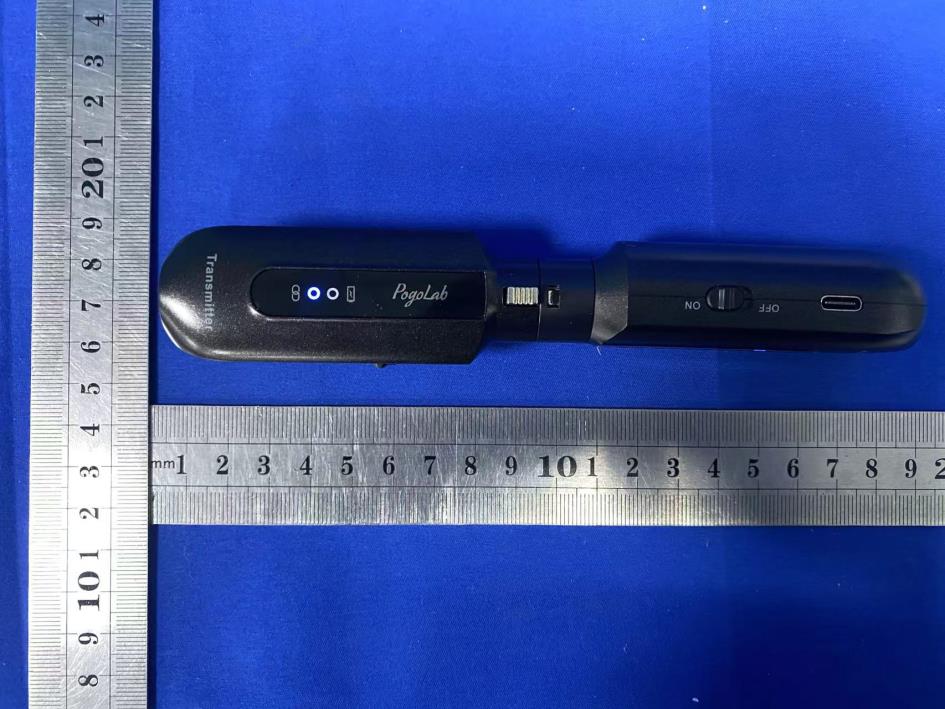

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: BKW-X1 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: Label Location: FCC ID: 2BBZH-BKWX1 Model No.: BKW-X1

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 5 Model: BKW-X1 Internal Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 5 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 5 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 5 ANT Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 5

Shenzhen CTB Testing Co., Ltd. FCC ID:2BBZH-BKWX1 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 1.703 1.48 1±1 2.00 1.58 <5 0.49127 3.00 YES 2.441 1.9 1.55 1±1 2.00 1.58 <5 0.49524 3.00 YES 2.480 -0.276 0.94 0±1 1.00 1.26 <5 0.39651 3.00 YES GFSK Conclusion: For the max result : 0.49524≤ FCC Limit 3.0 for 1g SAR.

Product specification Quick Reference Dat e Antenna module on the system board Frequency2.45GHz *1 Ant. Port Input Pwr . (dBm) 0 (Typ. BT class 2 output power) T ot. Rad. Pwr. (dBm) -2.3 (Input pwr – loss pwr) Peak EIRP(dBm ) 1.3 Directivity (dBi) 1 (all directio n antenna) Ef ficiency (dB) -2.3 (58.5%) Gain (dBi) 1 .7dBi Maxim um Power (dBm) 1.3 (XY-plane) Minim um Power (dBm) -4(XY-plane) A vg. Power (dBm) -0.5(XY-plane) Max/Min R atio (dB) 5.3(XY-plane) Max/A vg Ratio (dB) 1.8(XY-plane) Min/A vg Ratio (dB) -3.5(XY-plane) A verage Gain (dB) -0.5 (Avg Gain XY-plane) All the technical data and information contained herein are subject to change without prior notice Antenna layout on the Module board Antenna Gain Gain T able Unit in dBi @2.44GHz XY -plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module board 1.3 -0.5 1.7 -3.8 1.1 -3.0 58.5% Return Loss The Environment of Antenna Radiation Pattern 3D radiation pattern diagram XY-plane XZ-plane YZ-plane Man ufacturer: Guangzhou Caihui Technology Co., Ltd Address: Room 502, Building 1, No. 4 Shuiniu Road, Tan Village, Shijing Street, Baiyun District, Guangzhou, China

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 36 TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: 2.4G Wireless Microphone transceiver FCC ID: 2BBZH-BKWX1 Trademark: LEKATO, PogoLab, DK Model Number: BKW-X1, MW-20, MW-21, MW-22, MW-23, MW-24, MW-25, MW-26, MW-27, MW-28, MW-29, iW-40 Prepared For: Guangzhou Caihui Technology Co., Ltd Address: Room 502, Building 1, No. 4 Shuiniu Road, Tan Village, Shijing Street, Baiyun District, Guangzhou, China Manufacturer: Guangzhou Caihui Technology Co., Ltd Address: Room 502, Building 1, No. 4 Shuiniu Road, Tan Village, Shijing Street, Baiyun District, Guangzhou, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Dec. 09, 2024 Sample tested Date: Dec. 09, 2024 to Dec. 17, 2024 Issue Date: Dec. 17, 2024 Report No.: CTB24120902201RF01 Test Standards FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test Results PASS Remark: This is 2.4GHz radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB24120902201RF01 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 36 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ........................... 7 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 7 4.4 Channel List ........................................................... 7 4.5 Test Mode ............................................................. 8 4.6 Test Environment ....................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. AC POWER LINE CONDUCTED EMISSION .............................. 12 6.1 Block Diagram Of Test Setup ........................................... 12 6.2 Limit ................................................................. 12 6.3 Test procedure ........................................................ 12 6.4 Test Result ........................................................... 14 7. RADIATED SPURIOUS EMISSION ..................................... 16 7.1 Block Diagram Of Test Setup ........................................... 16 7.2 Limit ................................................................. 16 7.3 Test procedure ........................................................ 17 7.4 Test Result ........................................................... 18 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............ 25 8.1 Block Diagram Of Test Setup ........................................... 25 8.2 Limit ................................................................. 25 8.3 Test procedure ........................................................ 25 8.4 Test Result ........................................................... 26 9. COUDUCTED OUTPUT POWER ....................................... 28 9.1 Block Diagram Of Test Setup ........................................... 28 9.2 Limit ................................................................. 28 9.3 Test procedure ........................................................ 28 9.4 Test Result ........................................................... 28 10. 6DB OCCUPIED BANDWIDTH......................................... 30 10.1 Block Diagram Of Test Setup .......................................... 30 10.2 Limit ................................................................ 30 10.3 Test procedure ....................................................... 30 10.4 Test Result .......................................................... 30 11. POWER SPECTRAL DENSITY ........................................ 32 11.1 Block Diagram Of Test Setup .......................................... 32 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB24120902201RF01 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 36 11.2 Limit ................................................................ 32 11.3 Test procedure ....................................................... 32 11.4 Test Result .......................................................... 32 12. ANTENNA REQUIREMENT ........................................... 34 13. EUT TEST SETUP PHOTOGRAPHS ................................... 35 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB24120902201RF01 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 36 1. VERSION Report No. Issue Date Description Approved CTB24120902201RF01 Dec. 17, 2024 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB24120902201RF01 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 36 2. TEST SUMMARY The Product has…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 2 Model: BKW-X1 Radiated Emission Below 1G Above 1G Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 2 Conducted emissions
