2BBZQ-P7WiFi Supervisory control

P7ProductSpecifications Productschematicdiagram(for referenceonly,pleaserefertothe physicalobject) Productbrief 1.Thisproductisanoutdoormonitoringballmachinethatneedspowerconnection, simpleinstallationandreadyforinstallation; 2.coresellingpoint: 1)High-definitionpixel,withaclearanddelicateimage, 1)Wificonnection,scantheQRcodeiseasilyconnectedtothecameraandthe network,whichiseasytooperate 2)Bringahotspotconnection,nonetworkcanalsoviewandvideoplayback 3)SupportcloudstorageandlocalTFcardvideostoragetoensurethesafestorageof videodata 4)Built-inhighsensitivityMIC,andthespeaker,supporttwo-wayvoiceintercom 5)Intelligentmobiletracking 6)Areamobiledetectionandpushalarminformation 7)CloudheadsupportsthecustomizationofanyAngle,adaptedtodifferentmachine shell 8)SupporttheremotemonitoringofmobilephonesandPCclients,andviewthelive situationanytimeandanywhere 3.Applicationscenario:thedoor,theyardandallconvenientaccesstoelectricwiring. Masterprocessor SOCXM530V200 imagingsensor sensor 2million1/2.8-inchhigh-performanceCMOSsensor cameralens M12,f:4mm,F/NO.2.3,1million angleoffield H(horizontal)83degrees;V(vertical)45degrees;D(diagonal)100degrees minimal illumination Color:0.1Lux,black/white:0.01Lux audiofrequency Input/outputCanrealizetwo-wayvoiceintercom(built-inmicrophoneand speaker) Audio compression mode G.711A videofrequency Video compression H.265AIencoding,doublecodestream,AVIformat;codestream0.1M~10 Mpbsadjustable; resolution ratio Maincodestream:1920*1080@12fps;subcodestream:800* 448@12fps Imageframe rate Theframerateof1to30frames/sisadjustable Maximum imagesize 1920*1080p Nightvision lightsource 12lightsduallightsource(6infraredlights@850nm+6white lights@6500K),irradiationdistance:3-5 network Cable network rice wireless network 2.4GWIFI(IEEE802.11b/g/n),withanexternalantenna Support agreement / SupportforIP addresses / reporttothepolice Alarm detection Mobiledetection Thealarm linkage Videovideo AlarmnoticeAlarminformationpush VideostorageVideostorage LocalTFcard,upto128G;cloudstorage intelligenceIntelligentHumantracking / function CloudTerrace Cloudplatform rotationAngle H(horizontal)349degrees/sec;V(vertical)110degrees/s speed H(horizontal)30degrees/sec;V(vertical)20degrees/s joggle Ethernet nothave source 1DC5V/2Ainterface(Interfacetype35135) SDblock 1MicroSDcard(upto128GBsupported) key nothave else Thelens adjustable primelens LEDindicate / Accordingto themodeof loading wallmounting environment Dustand waterproof IP65 work environment -10°~45°C/10%~80%RH(nocondensation) Storage environment -20~60°C/0%~90%RH(nocondensation) Lightning protection grade TVS4000VLightningprotection,surgepreventionandsurgeprevention; StandardIEC61000-4-5 AppearancecolorAppearance color White+black specifications ProductSize(LWH) L×W×H=mm*mm*mm Note:thesizeofpuremanualmeasurement,therewillbean error,pleaserefertotheactualstandard! PackagingSize (LWH) L×W×H=185mm×158×113mm Note:thesizeofpuremanualmeasurement,therewillbean error,pleaserefertotheactualstandard! FCCWARNING Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)this devicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe user'sauthoritytooperatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuant toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergy and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipment doescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich thereceiverisconnected. --Consultthedealeroranexperiencedradio/TVtechnicianforhelp. TomaintaincompliancewithFCC’sRFExposureguidelines,Thisequipmentshouldbeinstalledandoperatedwith minimum20cmdistancebetweentheradiatorandyourbody:Useonlythesuppliedantenna.

(Boyi(Dongguan)IntelligentTechnologyCo.,Ltd) (July10,2023) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2BBZQ-P7) [Boyi(Dongguan)IntelligentTechnologyCo.,Ltd](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibited fromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, (Applicantsignature) (Applicantprintedname)YilongWang (Boyi(Dongguan)IntelligentTechnologyCo.,Ltd) (July10,2023) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2BBZQ-P7) [Boyi(Dongguan)IntelligentTechnologyCo.,Ltd](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicantisnotidentifiedontheCovered Listasanentityproducing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname) YilongWang

Boyi (Dongguan) Intelligent Technology Co. , Ltd (July 10, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (WiFi Supervisory control / P7 / FCC ID: 2BBZQ-P7 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Yilong Wang Title: Manager

Boyi (Dongguan) Intelligent Technology Co. , Ltd (July 10, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Yilong Wang Title: Manager

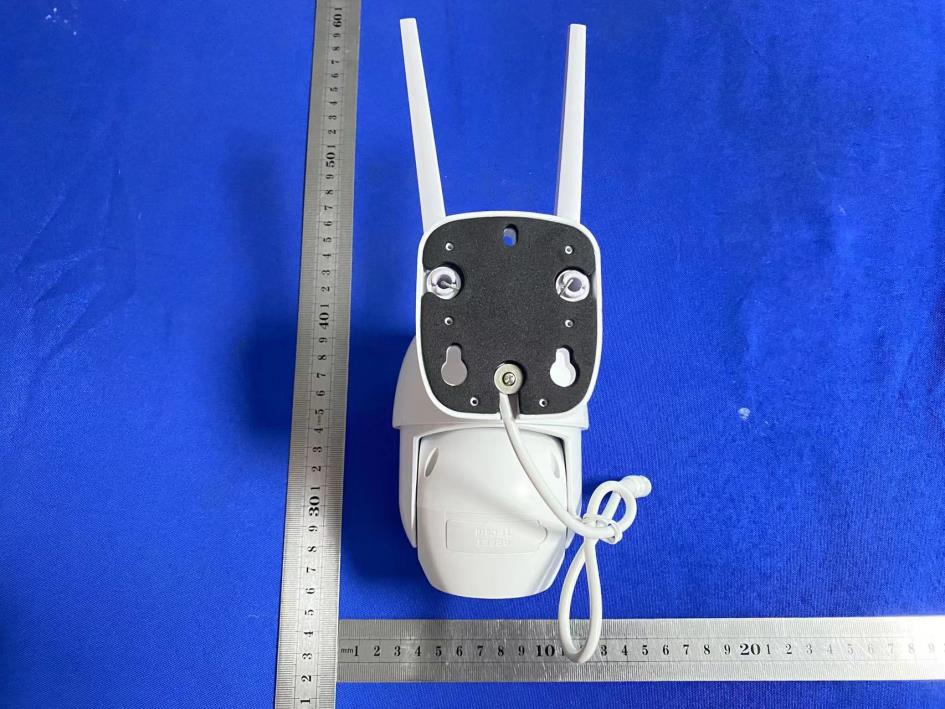

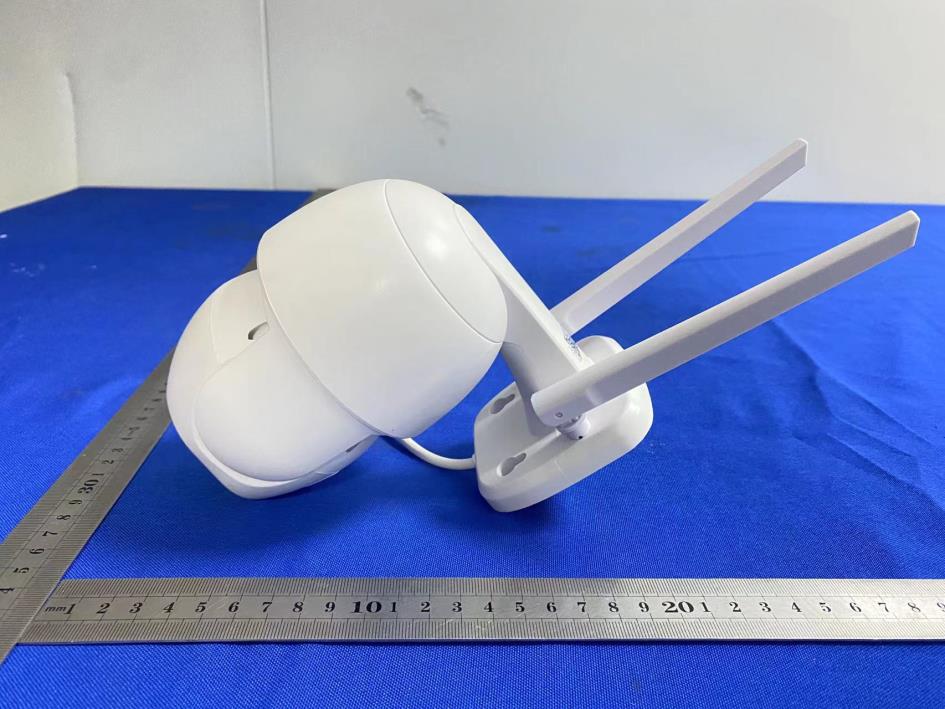

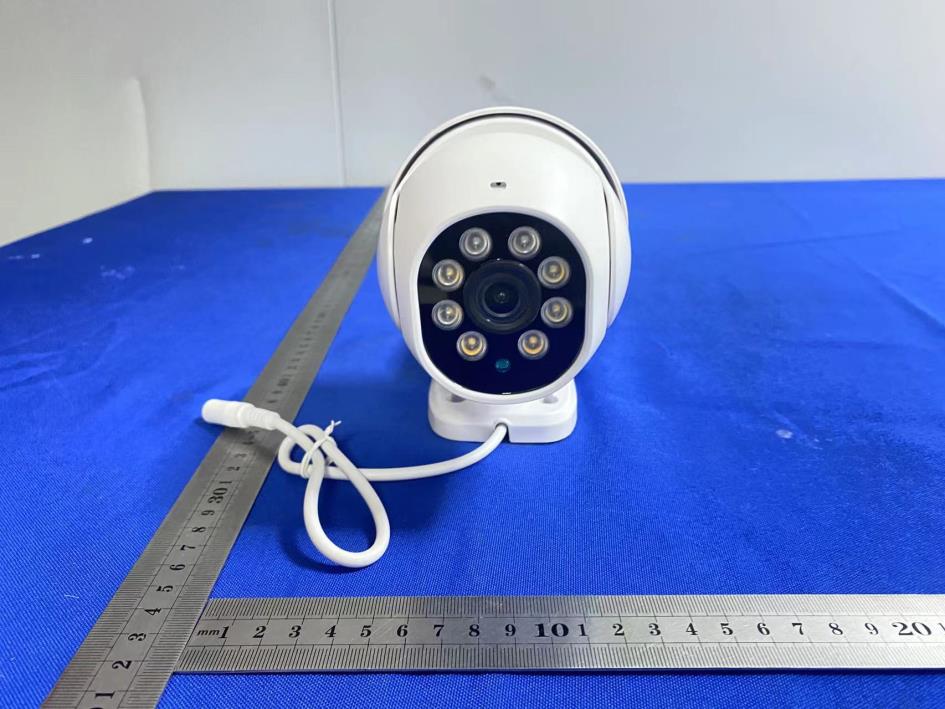

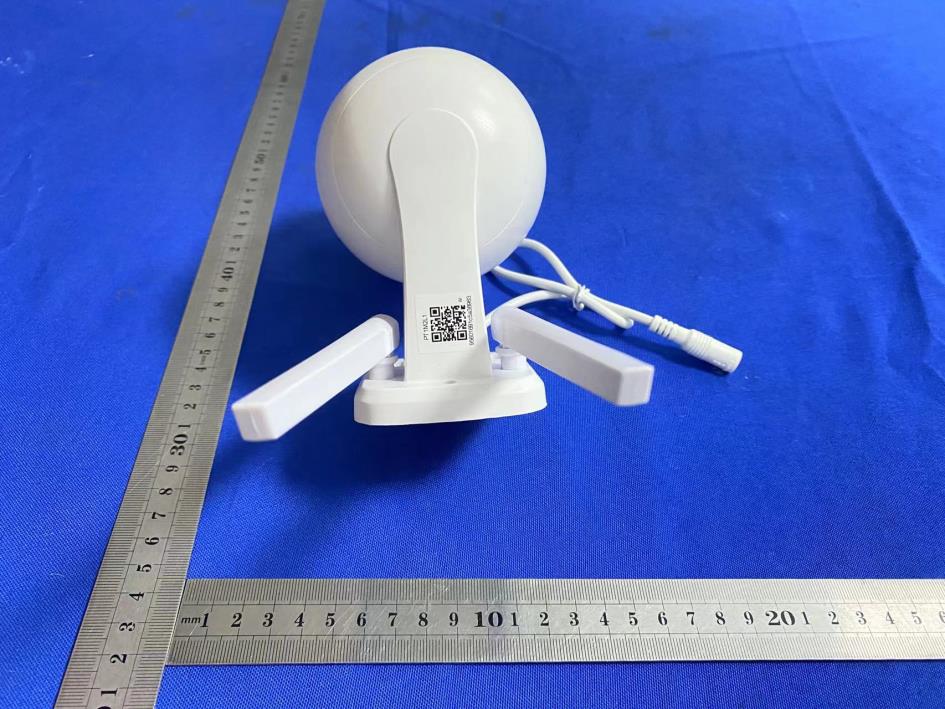

External Photos ANT

FCC ID LABEL: Label Location: FCC ID: 2BBZQ-P7 Model No.: P7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BBZQ-P7 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 2.4G WIFI 802.11b&2 412 14±1 15 31.6228 0.9397 (-0.27dBi) 0.0059 1 Pass

Summary Coil type Antenna Specification ITEM ANT SPEC Model Name SST-2400-15-21 Center Frequency Horizontal Vertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz -0.35 dBi -0.27 dBi -0.11 dBi -1.22 dBi -0.79 dBi -0.57 dBi MAX. Gain -0.11 dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 15.1cm Manufacture Boyi (Dongguan) Intelligent Technology Co. , Ltd Room 201, No. 2 & 3 Fanguayuan Road, Houjie Town, Dongguan City, Guangdong Province Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -0.35 -30.08 -7.18 2450 -0.27 -36.56 -7.48 2500 -0.11 -22.03 -6.59 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -1.22 -32.14 -12.42 2450 -0.79 -26.58 -10.47 2500 -0.57 -24.52 -9.204
