2BC27-T87Tablet PC

Acer One 8 T9-422L USER’S MANUAL Contents 1.Main introduction for tablet 1.1 Diagram for tablet complete machine........................................2 1.3 Included accessories.......................................................................3 2.Quick start 2.1 Key function....................................................................................4 2.2 Homepage interface......................................................................4 2.3 Access to application program.....................................................5 2.4 Character input..............................................................................5 3.Connection Establishment 3.1 WIFI Connection ............................................................................7 3.2 Bluetooth Connection...................................................................8 3.3 Call Function ...................................................................................9 3.4 3G Connection ................................................................................10 4.Connect the device to computer........................................................11 1 5. Troubleshooting....................................................................................13 Brief introduction for Tablet PC 1.1Diagram for tablet complete machine Functional diagram 2 1.power key2.Volume- 3.volume+ 4.Front camera 5.SIM/TF Card slot6&9. Speakers 7.Earphone port8.Type-C port 10.Back camera11.Flashlight 1 .3 Except Tablet PC, the following accessories are included: Power adaptor×1 Type-C cable×1 Earphone×1 User's manual×1 Card removal needle×1 3 Long press power key to start up. Under starting up state, long press power key to pop up shutdown option. Under starting up state, short press power key to close the screen. The main interface can display wallpaper and frequently used APP,you can move the APP to the main interface according to you preference. And you can also change wallpaper by yourself, enter setting→Wallpaper →Choose wallpaper from (live wallpapers/ photos/wallpapers )to set wallpaper of your homepage interface. 4 2. 3 Access to application program How to visit application program of tablet: 1. Swipe up on the main screen to enter the application program (As shown in Figure 2-2). 2. Select the application program you want to visit. 3. If you want to exit the program interface, press the return key to the last interface, or press the homepage key to return homepage interface directly. When you start the program or select text edit box needing to input characters or numbers, screen keyboard will show. The following input methods are provided for the keyboard to select. 1. Keyboard 2.Input method of a third party (user can install them by himself) 5 Select the input method you need to use According to presetting, tablet will display keyboard when you want to input characters. 1.Press menu key in homepage interface, then click settings,and then click system. 2. Click languages&input. 3.All of the input methods already installed on your tablet will be listed in the text setting region. 4. Select the input method you want. 1.In the character input interface, click keyboard icon under the status bar, until popping up of editing text menu. 2.Select input method you need. 6 7 :Switch input capital and small letters. :Switch number/symbol/graphic input mode. : Switch input language 3.Connection Establishment 3.1WIFI connection 1. On the home page interface, click the Select menu button to pop up Menu Settings; 2. Click Settings, and then click Network&internet; 3. Click Wi-Fi to turn on the Wi-Fi switch; 4. After turning on Wi-Fi, you can scan the found Wi-Fi network automatically from the device in the left window. 5. Select the network you want to connect to and input the password 6. Click Connect . Figure 3-1 2 8 3.2 Bluetooth Connection Application of Bluetooth (Figure 3-2) 1.click settings and then click connected devices ,open the Bluetooth device. 2.Click “Pair new device”, and then you can see the available devices ,click the device you want to connected. 3 3.Device name: you can randomly change the name of Bluetooth for your tablet by click Rename this device. 4 9 3.3 Call Function 1. Insert the SIM card in the power-on state 2. After the network logo appears, in the notification bar, you can make or receive calls. The network signal strength will be displayed in the information bar in the upper right corner. 5 3.4 4G Connection Your tablet can connect to 4G network after inserting SIM card: 1.On the homepage interface, click setting menu; 2.Click Network&internet; 3.Click mobile network to open Mobile data(Figure 3-6); 4.After opening Mobile data, you can browse web . 6 10 5.Or you can also pull down the menu at the top of the main interface to open the 4G network. As shown below: 4.Connect the device to computer 4.1Connect the device to the computer with a Type-C cable,Drop-down menu on the main interface,select “Charging this device via USB”,as shown below: 7 11 Select File transfer,and then you can transfer files between the device and the computer. 12 Figure 4-1 Figure 4-2 3.4 3G Connection Your tablet can be connected onto 3G network to connect the operation: 1.On the homepage interface, click and select the menu key and pop up the menu setting; 2.Click and select the System Setting; 3.Click data usage-> open Mobile data(Figure 3-4); 4.After opening Mobile data, you can browse web . Figure 3-4 5. Troubleshooting 5.1. Slow initial boot for tablet After system upgrade of tablet, initial boot needs installation of the pre-installed software applications, and for about 2-3 minutes, it runs faster. 5.2. Tablet can not connect to WIFI Ensure that the wireless router providing the network services works properly. Ensure the tablet and the wireless router are kept with certain distance, and between which no wall or other obstacles exist. Ensure the user name and the password are correct 5.3.Feeling hot of table…

Text truncated - open the document above for the full version.

(SHENCHUANG INDUSTRIAL (HK) LIMITED) (October 10, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2BC27-T87#) [SHENCHUANG INDUSTRIAL (HK) LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Sunny Wong / Vice general manager (SHENCHUANG INDUSTRIAL (HK) LIMITED) (October 10, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2BC27-T87#) [SHENCHUANG INDUSTRIAL (HK) LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Sunny Wong / Vice general manager

SHENCHUANG INDUSTRIAL (HK) LIMITED Agent Authorization Letter (October 10, 2023) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (BTF Testing Lab (Shenzhen) Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s name / title : Sunny Wong / Vice general manager Company Name: SHENCHUANG INDUSTRIAL (HK) LIMITED Contact information / address: [email protected] / FLAT/RM P 4/F LLADRO CENTRE,72 HOI YUEN ROAD,KWUN TONG,KOWLOON HONG KONG

SHENCHUANG INDUSTRIAL (HK) LIMITED. Long Term Confidentiality Request Letter (October 10, 2023) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Tablet PC Model No : Acer One 8 T9-422L,T87 FCC ID: 2BC27-T87 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description - BOM - Tune up procedure - NII_Software_Security_Info required to be submitted with this application be permanently withheld from public review. The above-mentioned documents belong to internal documents, is our proprietary information, that could never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, Client’s name / title : Sunny Wong / Vice general manager Company Name: SHENCHUANG INDUSTRIAL (HK) LIMITED Contact information / address: [email protected] / FLAT/RM P 4/F LLADRO CENTRE,72 HOI YUEN ROAD,KWUN TONG,KOWLOON HONG KONG

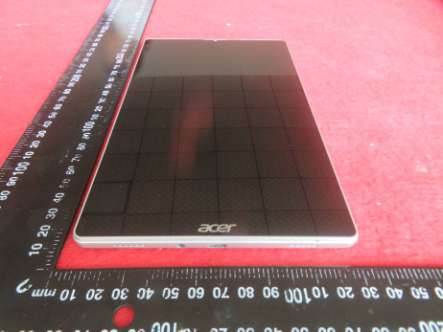

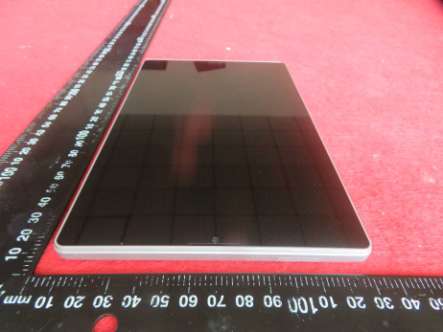

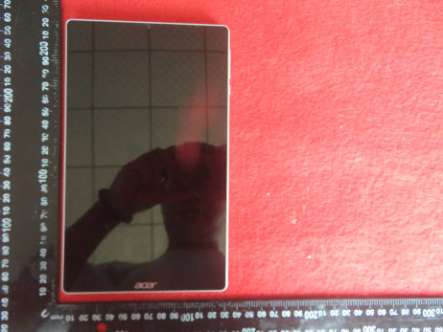

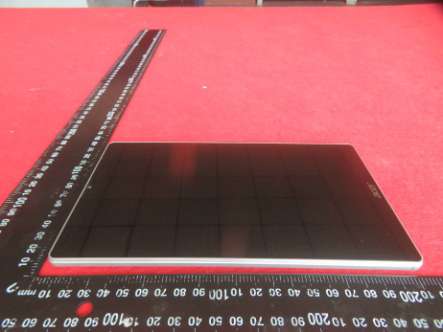

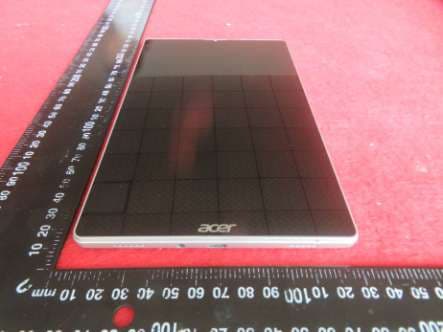

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

Label Location:

Rating label size Acer One 8 T9-422L 4G WIFI RMN: YMT9L2 FCC ID: 2BC27-T87 Acer India Private Limited Pl ease read user manual before using this tablet IS 13252 (Part 1/ IEC 60950-1 R-41088471 www.bis.gov.in 42mm :16x42mm Input: 5V 2A

Internal photograph of EUT Internal photograph of EUT BT/Wi-Fi Antenna GSM/LTE Antenna Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT

TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 1 of 70 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China SARTestReport For ApplicantName:SHENCHUANGINDUSTRIAL(HK)LIMITED Address: FLAT/RMP4/FLLADROCENTRE,72HOIYUENROAD, KWUNTONG,KOWLOONHONGKONG EUTName:TabletPC ModelNumber:AcerOne8T9-422L SeriesModelNumber:Refertosection2 IssuedBy CompanyName:BTFTestingLab(Shenzhen)Co.,Ltd. Address: F101,201and301,Building1,Block2,TantouIndustrialPark, TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen, China ReportNumber:BTF231010R00401 TestStandards: 47CFRPart2.1093IEEE1528-2013IEEEC95.1-2019 KDB447498D01KDB865664D01KDB865664D02 KDB941225D05KDB941225D06KDB248227D01 KDB616217D04KDB648474D04KDB690783D01 FCCID:2BC27-T87 TestConclusion:Pass TestDate:2023-09-17to2023-09-18 DateofIssue:2023-09-25 PreparedBy: MonicaZhou/ProjectEngineer Date:2023-09-25 ApprovedBy: Ryan.CJ/EMCManager Date:2023-09-25 Note:Allthetestresultsinthisreportonlyrelatedtothetestingsamples.Whichcanbeduplicatedcompletelyforthelegalusewithapprovalof applicant;itshallnotbereproducedexceptinfullwithoutthewrittenapprovalofBTFTestingLab(Shenzhen)Co.,Ltd.,Alltheobjectionsshouldbe raisedwithinthirtydaysfromthedateofissue.Tovalidatethereport,youcancontactus. TestReportNumber:BTF231010R00401 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 2 of 70 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China RevisionHistory VersionIssueDateRevisionsContent R_V02023-09-25Original Note:Oncetherevisionhasbeenmade,thenpreviousversionsreportsareinvalid. TestReportNumber:BTF231010R00401 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 3 of 70 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China TableofContents 1.Introduction .........................................................................................................................................................................................................................4 1.1IdentificationofTestingLaboratory......................................................................................................................................................................4 1.2IdentificationoftheResponsibleTestingLocation............................................................................................................................................4 1.3LaboratoryCondition ..............................................................................................................................................................................................4 1.4Announcement........................................................................................................................................................................................................4 2.ProductInformation ...........................................................................................................................................................................................................5 2.1ApplicationInformation...........................................................................................................................................................................................5 2.2ManufacturerInformation.......................................................................................................................................................................................5 2.3FactoryInformation .................................................................................................................................................................................................5 2.4GeneralDescriptionofEquipmentunderTest(EUT) .......................................................................................................................................5 2.5EquipmentunderTestAncillaryEquipment .......................................................................................................................................................5 2.6TechnicalInformation.............................................................................................................................................................................................5 3.SummaryofTestResults .................................................................................................................................................................................................6 3.1TestStandards ........................................................................................................................................................................................................6 3.2DeviceCategoryandSARLimit ...........................................................................................................................................................................7 3.3TestResultSummary.............................................................................................................................................................................................7 3.4TestUncertainty......................................................................................................................................................................................................8 4.MeasurementSystem .....................................................................................................................................................................................................10 4.1SpecificAbsorptionRate(SAR)Definition.................................................................................…

Text truncated - open the document above for the full version.

BTF231010R00706 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) high Limit (dBm) Verdict Band5 1.4 20407 1 #0 QPSK 24.16 37 PASS Band5 1.4 20407 1 #Mid QPSK 24.30 37 PASS Band5 1.4 20407 1 #Max QPSK 24.14 37 PASS Band5 1.4 20407 3 #0 QPSK 24.26 37 PASS Band5 1.4 20407 3 #Mid QPSK 24.23 37 PASS Band5 1.4 20407 3 #Max QPSK 24.20 37 PASS Band5 1.4 20407 6 #0 QPSK 23.14 37 PASS Band5 1.4 20407 1 #0 QAM16 23.33 37 PASS Band5 1.4 20407 1 #Mid QAM16 23.41 37 PASS Band5 1.4 20407 1 #Max QAM16 23.39 37 PASS Band5 1.4 20407 3 #0 QAM16 23.42 37 PASS Band5 1.4 20407 3 #Mid QAM16 23.43 37 PASS Band5 1.4 20407 3 #Max QAM16 23.40 37 PASS Band5 1.4 20407 6 #0 QAM16 22.31 37 PASS Band5 1.4 20525 1 #0 QPSK 24.16 37 PASS Band5 1.4 20525 1 #Mid QPSK 24.32 37 PASS Band5 1.4 20525 1 #Max QPSK 24.17 37 PASS Band5 1.4 20525 3 #0 QPSK 24.22 37 PASS Band5 1.4 20525 3 #Mid QPSK 24.20 37 PASS Band5 1.4 20525 3 #Max QPSK 24.20 37 PASS Band5 1.4 20525 6 #0 QPSK 23.23 37 PASS Band5 1.4 20525 1 #0 QAM16 23.05 37 PASS Band5 1.4 20525 1 #Mid QAM16 23.18 37 PASS Band5 1.4 20525 1 #Max QAM16 23.05 37 PASS Band5 1.4 20525 3 #0 QAM16 23.32 37 PASS Band5 1.4 20525 3 #Mid QAM16 23.31 37 PASS Band5 1.4 20525 3 #Max QAM16 23.37 37 PASS Band5 1.4 20525 6 #0 QAM16 22.36 37 PASS Band5 1.4 20643 1 #0 QPSK 24.32 37 PASS Band5 1.4 20643 1 #Mid QPSK 24.49 37 PASS Band5 1.4 20643 1 #Max QPSK 24.32 37 PASS Band5 1.4 20643 3 #0 QPSK 24.35 37 PASS Band5 1.4 20643 3 #Mid QPSK 24.29 37 PASS Band5 1.4 20643 3 #Max QPSK 24.33 37 PASS Band5 1.4 20643 6 #0 QPSK 23.34 37 PASS Band5 1.4 20643 1 #0 QAM16 23.42 37 PASS Band5 1.4 20643 1 #Mid QAM16 23.54 37 PASS Band5 1.4 20643 1 #Max QAM16 23.43 37 PASS Band5 1.4 20643 3 #0 QAM16 23.48 37 PASS Band5 1.4 20643 3 #Mid QAM16 23.49 37 PASS Band5 1.4 20643 3 #Max QAM16 23.45 37 PASS BTF231010R00706 Band5 1.4 20643 6 #0 QAM16 22.50 37 PASS Band5 3 20415 1 #0 QPSK 24.18 37 PASS Band5 3 20415 1 #Mid QPSK 24.49 37 PASS Band5 3 20415 1 #Max QPSK 24.19 37 PASS Band5 3 20415 8 #0 QPSK 23.17 37 PASS Band5 3 20415 8 #Mid QPSK 23.18 37 PASS Band5 3 20415 8 #Max QPSK 23.22 37 PASS Band5 3 20415 15 #0 QPSK 23.12 37 PASS Band5 3 20415 1 #0 QAM16 23.60 37 PASS Band5 3 20415 1 #Mid QAM16 23.88 37 PASS Band5 3 20415 1 #Max QAM16 23.59 37 PASS Band5 3 20415 8 #0 QAM16 22.23 37 PASS Band5 3 20415 8 #Mid QAM16 22.21 37 PASS Band5 3 20415 8 #Max QAM16 22.20 37 PASS Band5 3 20415 15 #0 QAM16 22.18 37 PASS Band5 3 20525 1 #0 QPSK 24.21 37 PASS Band5 3 20525 1 #Mid QPSK 24.52 37 PASS Band5 3 20525 1 #Max QPSK 24.25 37 PASS Band5 3 20525 8 #0 QPSK 23.19 37 PASS Band5 3 20525 8 #Mid QPSK 23.23 37 PASS Band5 3 20525 8 #Max QPSK 23.27 37 PASS Band5 3 20525 15 #0 QPSK 23.18 37 PASS Band5 3 20525 1 #0 QAM16 23.34 37 PASS Band5 3 20525 1 #Mid QAM16 23.62 37 PASS Band5 3 20525 1 #Max QAM16 23.37 37 PASS Band5 3 20525 8 #0 QAM16 22.18 37 PASS Band5 3 20525 8 #Mid QAM16 22.19 37 PASS Band5 3 20525 8 #Max QAM16 22.21 37 PASS Band5 3 20525 15 #0 QAM16 22.17 37 PASS Band5 3 20635 1 #0 QPSK 24.38 37 PASS Band5 3 20635 1 #Mid QPSK 24.70 37 PASS Band5 3 20635 1 #Max QPSK 24.40 37 PASS Band5 3 20635 8 #0 QPSK 23.34 37 PASS Band5 3 20635 8 #Mid QPSK 23.36 37 PASS Band5 3 20635 8 #Max QPSK 23.32 37 PASS Band5 3 20635 15 #0 QPSK 23.32 37 PASS Band5 3 20635 1 #0 QAM16 23.25 37 PASS Band5 3 20635 1 #Mid QAM16 23.60 37 PASS Band5 3 20635 1 #Max QAM16 23.19 37 PASS Band5 3 20635 8 #0 QAM16 22.30 37 PASS Band5 3 20635 8 #Mid QAM16 22.34 37 PASS Band5 3 20635 8 #Max QAM16 22.31 37 PASS Band5 3 20635 15 #0 QAM16 22.35 37 PASS Band5 5 20425 1 #0 QPSK 24.11 37 PASS BTF231010R00706 Band5 5 20425 1 #Mid QPSK 24.23 37 PASS Band5 5 20425 1 #Max QPSK 24.21 37 PASS Band5 5 20425 12 #0 QPSK 23.23 37 PASS Band5 5 20425 12 #Mid QPSK 23.21 37 PASS Band5 5 20425 12 #Max QPSK 23.10 37 PASS Band5 5 20425 25 #0 QPSK 23.18 37 PASS Band5 5 20425 1 #0 QAM16 23.57 37 PASS Band5 5 20425 1 #Mid QAM16 23.93 37 PASS Band5 5 20425 1 #Max QAM16 23.67 37 PASS Band5 5 20425 12 #0 QAM16 22.10 37 PASS Band5 5 20425 12 #Mid QAM16 22.23 37 PASS Band5 5 20425 12 #Max QAM16 22.11 37 PASS Band5 5 20425 25 #0 QAM16 22.12 37 PASS Band5 5 20525 1 #0 QPSK 24.09 37 PASS Band5 5 20525 1 #Mid QPSK 24.29 37 PASS Band5 5 20525 1 #Max QPSK 24.18 37 PASS Band5 5 20525 12 #0 QPSK 23.11 37 PASS Band5 5 20525 12 #Mid QPSK 23.25 37 PASS Band5 5 20525 12 #Max QPSK 23.26 37 PASS Band5 5 20525 25 #0 QPSK 23.23 37 PASS Band5 5 20525 1 #0 QAM16 23.38 37 PASS Band5 5 20525 1 #Mid QAM16 23.81 37 PASS Band5 5 20525 1 #Max QAM16 23.44 37 PASS Band5 5 20525 12 #0 QAM16 22.07 37 PASS Band5 5 20525 12 #Mid QAM16 22.20 37 PASS Band5 5 20525 12 #Max QAM16 22.19 37 PASS Band5 5 20525 25 #0 QAM16 22.23 37 PASS Band5 5 20625 1 #0 QPSK 24.19 37 PASS Band5 5 20625 1 #Mid QPSK 24.58 37 PASS Band5 5 20625 1 #Max QPSK 24.22 37 PASS Band5 5 20625 12 #0 QPSK 23.31 37 PASS Band5 5 20625 12 #Mid QPSK 23.37 37 PASS Band5 5 20625 12 #Max QPSK 23.31 37 PASS Band5 5 20625 25 #0 QPSK 23.32 37 PASS Band5 5 20625 1 #0 QAM16 23.53 37 PASS Band5 5 20625 1 #Mid QAM16 23.94 37 PASS Band5 5 20625 1 #Max QAM16 23.53 37 PASS Band5 5 20625 12 #0 QAM16 22.31 37 PASS Band5 5 20625 12 #Mid QAM16 22.36 37 PASS Band5 5 20625 12 #Max QAM16 22.26 37 PASS Band5 5 20625 25 #0 QAM16 22.26 37 PASS Band5 10 20450 1 #0 QPSK 24.14 37 PASS Band5 10 20450 1 #Mid QPSK 24.35 37 PASS Band5 10 20450 1 #Max QPSK 24.19 37 PASS BTF231010R00706 Band5 10 20450 25 #0 QPSK 23.33 37 PASS Band5 10 20450 25 #Mid QPSK 23.22 37 PASS Band5 10 20450 25 #Max QPSK 23.24 37 PASS Band5 10 20450 50 #0 QPSK 23.29 37 PASS Band5 10 20450 1 #0 QAM16 23.53 37 PASS Band5 10 20450 1 #Mid QAM16 23.71 37 PASS Band5 10 20450 1 #Max QAM16 23.63 37 PASS Band5 10 20450 25 #0 QAM16 22.33 37 PASS Band5 10 20450 25 #Mid QAM16 22.23 37 PASS Band5 10 20450 25 #Max QAM16 22.21 37 PASS Band5 10 20450 50 #0 QAM16 22.27 37 PASS Band5 10 20525 1 #0 QPSK 24.20 37 PASS Band5 10 20525 1 #Mid QPSK 24.29 37 PASS Band5 10 20525 1 #Max QPSK 24.31 37 PASS Band…

Text truncated - open the document above for the full version.

BTF231010R00706 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) high Limit (dBm) Verdict Band41 5 39675 1 #0 QPSK 22.14 37 PASS Band41 5 39675 1 #Mid QPSK 22.53 37 PASS Band41 5 39675 1 #Max QPSK 21.36 37 PASS Band41 5 39675 12 #0 QPSK 21.01 37 PASS Band41 5 39675 12 #Mid QPSK 21.96 37 PASS Band41 5 39675 12 #Max QPSK 22.07 37 PASS Band41 5 39675 25 #0 QPSK 21.75 37 PASS Band41 5 39675 1 #0 QAM16 22.04 37 PASS Band41 5 39675 1 #Mid QAM16 22.84 37 PASS Band41 5 39675 1 #Max QAM16 21.06 37 PASS Band41 5 39675 12 #0 QAM16 21.93 37 PASS Band41 5 39675 12 #Mid QAM16 22.85 37 PASS Band41 5 39675 12 #Max QAM16 22.98 37 PASS Band41 5 39675 25 #0 QAM16 22.66 37 PASS Band41 5 40620 1 #0 QPSK 23.02 37 PASS Band41 5 40620 1 #Mid QPSK 23.23 37 PASS Band41 5 40620 1 #Max QPSK 22.94 37 PASS Band41 5 40620 12 #0 QPSK 22.10 37 PASS Band41 5 40620 12 #Mid QPSK 22.12 37 PASS Band41 5 40620 12 #Max QPSK 22.08 37 PASS Band41 5 40620 25 #0 QPSK 22.09 37 PASS Band41 5 40620 1 #0 QAM16 22.36 37 PASS Band41 5 40620 1 #Mid QAM16 22.55 37 PASS Band41 5 40620 1 #Max QAM16 22.25 37 PASS Band41 5 40620 12 #0 QAM16 21.11 37 PASS Band41 5 40620 12 #Mid QAM16 21.14 37 PASS Band41 5 40620 12 #Max QAM16 21.08 37 PASS Band41 5 40620 25 #0 QAM16 21.02 37 PASS Band41 5 41565 1 #0 QPSK 22.58 37 PASS Band41 5 41565 1 #Mid QPSK 22.64 37 PASS Band41 5 41565 1 #Max QPSK 22.53 37 PASS Band41 5 41565 12 #0 QPSK 22.36 37 PASS Band41 5 41565 12 #Mid QPSK 22.79 37 PASS Band41 5 41565 12 #Max QPSK 22.06 37 PASS Band41 5 41565 25 #0 QPSK 22.08 37 PASS Band41 5 41565 1 #0 QAM16 21.65 37 PASS Band41 5 41565 1 #Mid QAM16 22.92 37 PASS Band41 5 41565 1 #Max QAM16 22.78 37 PASS Band41 5 41565 12 #0 QAM16 22.54 37 PASS Band41 5 41565 12 #Mid QAM16 23.06 37 PASS Band41 5 41565 12 #Max QAM16 21.39 37 PASS BTF231010R00706 Band41 5 41565 25 #0 QAM16 21.31 37 PASS Band41 10 39700 1 #0 QPSK 22.18 37 PASS Band41 10 39700 1 #Mid QPSK 21.49 37 PASS Band41 10 39700 1 #Max QPSK 22.45 37 PASS Band41 10 39700 25 #0 QPSK 23.02 37 PASS Band41 10 39700 25 #Mid QPSK 23.07 37 PASS Band41 10 39700 25 #Max QPSK 22.68 37 PASS Band41 10 39700 50 #0 QPSK 23.21 37 PASS Band41 10 39700 1 #0 QAM16 23.00 37 PASS Band41 10 39700 1 #Mid QAM16 21.44 37 PASS Band41 10 39700 1 #Max QAM16 22.09 37 PASS Band41 10 39700 25 #0 QAM16 22.04 37 PASS Band41 10 39700 25 #Mid QAM16 22.05 37 PASS Band41 10 39700 25 #Max QAM16 22.63 37 PASS Band41 10 39700 50 #0 QAM16 23.12 37 PASS Band41 10 40620 1 #0 QPSK 23.15 37 PASS Band41 10 40620 1 #Mid QPSK 23.25 37 PASS Band41 10 40620 1 #Max QPSK 23.02 37 PASS Band41 10 40620 25 #0 QPSK 22.16 37 PASS Band41 10 40620 25 #Mid QPSK 22.12 37 PASS Band41 10 40620 25 #Max QPSK 22.10 37 PASS Band41 10 40620 50 #0 QPSK 22.13 37 PASS Band41 10 40620 1 #0 QAM16 22.26 37 PASS Band41 10 40620 1 #Mid QAM16 22.37 37 PASS Band41 10 40620 1 #Max QAM16 22.10 37 PASS Band41 10 40620 25 #0 QAM16 21.16 37 PASS Band41 10 40620 25 #Mid QAM16 21.13 37 PASS Band41 10 40620 25 #Max QAM16 21.11 37 PASS Band41 10 40620 50 #0 QAM16 21.15 37 PASS Band41 10 41540 1 #0 QPSK 22.10 37 PASS Band41 10 41540 1 #Mid QPSK 22.64 37 PASS Band41 10 41540 1 #Max QPSK 21.69 37 PASS Band41 10 41540 25 #0 QPSK 20.28 37 PASS Band41 10 41540 25 #Mid QPSK 21.91 37 PASS Band41 10 41540 25 #Max QPSK 21.16 37 PASS Band41 10 41540 50 #0 QPSK 22.60 37 PASS Band41 10 41540 1 #0 QAM16 22.48 37 PASS Band41 10 41540 1 #Mid QAM16 22.77 37 PASS Band41 10 41540 1 #Max QAM16 22.84 37 PASS Band41 10 41540 25 #0 QAM16 20.29 37 PASS Band41 10 41540 25 #Mid QAM16 21.16 37 PASS Band41 10 41540 25 #Max QAM16 21.51 37 PASS Band41 10 41540 50 #0 QAM16 22.60 37 PASS Band41 15 39725 1 #0 QPSK 22.72 37 PASS BTF231010R00706 Band41 15 39725 1 #Mid QPSK 21.00 37 PASS Band41 15 39725 1 #Max QPSK 20.93 37 PASS Band41 15 39725 36 #0 QPSK 20.75 37 PASS Band41 15 39725 36 #Mid QPSK 21.91 37 PASS Band41 15 39725 36 #Max QPSK 22.23 37 PASS Band41 15 39725 75 #0 QPSK 22.00 37 PASS Band41 15 39725 1 #0 QAM16 21.50 37 PASS Band41 15 39725 1 #Mid QAM16 22.69 37 PASS Band41 15 39725 1 #Max QAM16 21.38 37 PASS Band41 15 39725 36 #0 QAM16 20.72 37 PASS Band41 15 39725 36 #Mid QAM16 21.85 37 PASS Band41 15 39725 36 #Max QAM16 23.17 37 PASS Band41 15 39725 75 #0 QAM16 23.00 37 PASS Band41 15 40620 1 #0 QPSK 23.12 37 PASS Band41 15 40620 1 #Mid QPSK 23.35 37 PASS Band41 15 40620 1 #Max QPSK 22.88 37 PASS Band41 15 40620 36 #0 QPSK 22.16 37 PASS Band41 15 40620 36 #Mid QPSK 22.15 37 PASS Band41 15 40620 36 #Max QPSK 22.14 37 PASS Band41 15 40620 75 #0 QPSK 22.13 37 PASS Band41 15 40620 1 #0 QAM16 22.24 37 PASS Band41 15 40620 1 #Mid QAM16 22.48 37 PASS Band41 15 40620 1 #Max QAM16 21.98 37 PASS Band41 15 40620 36 #0 QAM16 21.20 37 PASS Band41 15 40620 36 #Mid QAM16 21.21 37 PASS Band41 15 40620 36 #Max QAM16 21.17 37 PASS Band41 15 40620 75 #0 QAM16 21.14 37 PASS Band41 15 41515 1 #0 QPSK 22.88 37 PASS Band41 15 41515 1 #Mid QPSK 20.65 37 PASS Band41 15 41515 1 #Max QPSK 22.07 37 PASS Band41 15 41515 36 #0 QPSK 22.51 37 PASS Band41 15 41515 36 #Mid QPSK 20.60 37 PASS Band41 15 41515 36 #Max QPSK 22.05 37 PASS Band41 15 41515 75 #0 QPSK 20.70 37 PASS Band41 15 41515 1 #0 QAM16 22.01 37 PASS Band41 15 41515 1 #Mid QAM16 20.75 37 PASS Band41 15 41515 1 #Max QAM16 22.44 37 PASS Band41 15 41515 36 #0 QAM16 21.83 37 PASS Band41 15 41515 36 #Mid QAM16 20.61 37 PASS Band41 15 41515 36 #Max QAM16 21.33 37 PASS Band41 15 41515 75 #0 QAM16 20.46 37 PASS Band41 20 39750 1 #0 QPSK 22.90 37 PASS Band41 20 39750 1 #Mid QPSK 21.57 37 PASS Band41 20 39750 1 #Max QPSK 22.89 37 PASS BTF231010R00706 Band41 20 39750 50 #0 QPSK 22.52 37 PASS Band41 20 39750 50 #Mid QPSK 22.34 37 PASS Band41 20 39750 50 #Max QPSK 21.15 37 PASS Band41 20 39750 100 #0 QPSK 23.00 37 PASS Band41 20 39750 1 #0 QAM16 21.26 37 PASS Band41 20 39750 1 #Mid QAM16 22.93 37 PASS Band41 20 39750 1 #Max QAM16 22.85 37 PASS Band41 20 39750 50 #0 QAM16 22.65 37 PASS Band41 20 39750 50 #Mid QAM16 22.36 37 PASS Band41 20 39750 50 #Max QAM1…

Text truncated - open the document above for the full version.

Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 71 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China RF Test Report For Applicant Name: SHENCHUANG INDUSTRIAL (HK) LIMITED Address: FLAT/RM P 4/F LLADRO CENTRE,72 HOI YUEN ROAD,KWUN TONG,KOWLOON HONG KONG EUT Name: Tablet PC Brand Name: Acer Model Number: Acer One 8 T9-422L, T87 Series Model Number: Refer to section 2 Issued By Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Report Number: BTF231010R00706 Test Standards: FCC CFR Title 47 Part2 FCC CFR Title 47 Part22 FCC CFR Title 47 Part24 FCC CFR Title 47 Part27 FCC CFR Title 47 Part90 FCC ID: 2BC27-T87 Test Conclusion: Pass Test Date: 2023-08-23 to 2023-09-18 Date of Issue: 2023-10-10 Prepared By: Chris Liu / Project Engineer Date: 2023-10-10 Approved By: Ryan.CJ / EMC Manager Date: 2023-10-10 Note: All the test results in this report only related to the testing samples. Which can be duplicated completely for the legal use with approval of applicant; it shall not be reproduced except in full without the written approval of BTF Testing Lab (Shenzhen) Co., Ltd., All the objections should be raised within thirty days from the date of issue. To validate the report, you can contact us. Test Report Number: BTF231010R00706 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 71 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Revision History Version Issue Date Revisions Content R_V0 2023-10-10 Original Note: Once the revision has been made, then previous versions reports are invalid. Test Report Number: BTF231010R00706 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 3 of 71 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Buildin…

Text truncated - open the document above for the full version.
