2BC2W-YF-66 in 1 Wireless Charger

Important: to charge 3 devices safely and effidentty,a 9V/2.5A 12V/2A or above adapter(Qualcomm Quick Charger2.0 or 3.0)and a quick charge cable are required Otherwise,the charger may not work normally and may even get damaged Product Overview Smart watch charge area Phone charge Phone rotation angle TWS earphone charge area Type-C Port TWS earphone charge LED indicator Smart watch charge LED Phone charge LED indicator The 6-in-1 wireless charger, powered from only one outlet, can charge 3 devices simultaneously. Charge will start after you put on your smart phone, smart watch or earphone. Featuring compact design, the charger requires less storage space and brings you a well-organized charge experience.You can learn the charge progress easily by the LED indicator. The phone case thickness shall not be>(0.2inch) 6IN1 Fast Wireless Charger 1 2 3 4 8 5 6 7 USB Output Type-C Output Lightning or Type-C Output 9 10 11 10 10 11 90 .0 1 mm 9 0 . 0 0 m m LED indicator Compatible Devices Packing List Notes 1.Please keep the charger away from water or other liquid 2.If you need to clean the charger ,please make sure it is not connected power supply 3. Working environment temperature: 0-45°C. 4. Charging environment temperature shall be <55°C (<131°F) Red light is on: Standby mode or not charging Green light is on: Wireless charging Red and Green light is flash: Foreign body is detected is misaligned (charging will automatcally stop) Input:9V/2.5A,12V/2A Phone Output:15W/10W/7.5W/5W Watch Output:2.5W Earphone Output:5W Input Interface:Type-C port Transmission Distance(Phone):≤8mm Charging Efficiency>75% Product Size:163(L)X123(W)X20(H)mm Wireless Charger *1,Type-C quick charge cable*1, User manual*1 1.If you're experiencing interrupted or slow charging, check the following: (1)The back of your phone should not have any metal, pop sockets, or credit cards. (2)Put the phone in the center of the charging surface(this lets the charging coil in your phone line up with the one inside the wireless charger). (3)The wireless charging coil on Sony phones is located slightly below center. (4)Phone case thickness should be less than 5mm. (5)Check whether the adapter is QC2.0 or later version. 2.If you're failing to charge your device, please try out the following: (1).Please restart your cellphone and test with other charge cable. (2).Please check whether the indicator is on or not. (3).Please check whether the adapter is QC2.0 or later version (Output:9V/2A). Note:iPhone original adapter does not match the wireless charger. (4).Please check your phone case thickness(<=5mm). Metal ring or magnetic pad shall be removed before 3.If the adapter is OK and you have removed any potential charging obstructions, but still have charge issues,try the following: (1).Replace the charge cable. (2).Reboot your phone. (3).Unplug the adapter and re-plug it. Product Specification Troubleshooting 1.Smart Phone: Apple:iPhone14,14 Plus,14 Pro,14 Pro,14 Pro Max,13,13 Pro,13 Pro Max,13 mini, 12,12 Pro,12 Pro Max,MINI,SE,11,11 Pro,11 Pro Max,Xs,Xs Max,XR,X,8,8 Plus; Samsung:Galaxy S:22,22 5G,22+5G,22 Ultra 5G,21 5G,21+5G,21 Ultra 5G,FE 5G, 20 5G,20+5G,20 Ultra 5G,10,10+,10e,9,9+,8,8+,7,7 edge,6,6 edge,6 edge+, 6G9209,6Active;Galaxy Note:10,10e,10+,9,8,7,6,5; LG:G2(VS980,Verizon version),G3,G6,G6+,G7,G7 ThinQ,G7+ThinQ,G8,G8 ThinQ, V30,V30+,V35,V40 ThinQ,V50,V50 ThinQ,LG Lucid2 (VS870),LG Optimus F5(As870), LG Optimus Vu 3,Spectrum 2,Optimus G Pro,OptimusVull,Optimus LTE 2,etc. MOTOROLA:Droid Turbo,Droid Turbo2,Droid 5,Moto Maxx,Ultra M,Moto X Force. Huawei:P50,P50 Pro,P40 Pro,P40 Pro+,P30 Pro, Mate:40E,40 RS,40 Pro+,40 Pro,40,30E Pro,30 5G,30 Pro 5G,30,30 Pro,30 RS, 20 Pro,20 RS,RS; Xiaomi:12,12 Pro11,11 Pro,10,10 Pro,9,9Pro,Mix 3.Mix 2s; Including other devices with wireless charging receiver built-in; other some devices need to add a wireless charging receiver (Note:All devices must meet the Qi standard). 2.Smart Watch:S3,S4,S5 Apple:Watch Ultra,Series 8,Nike,Hermes,SE,S7,S3. 3.TWS bluetooth earpho: Apple AirPods 2,AirPods3,AirPods Pro. Sam sung Galaxy Buds/Buds+/Buds Pro/Buds Live; Huawei Freebuds 2/3/4i/Pro;and more TWS(with wireless charging case). 2. Put your device onto the specified area; 3.Then the charging proess will start automatically; 1.Connect the charger to a 9V/2A QC3.0 adapter through a type-C quick charge cable to switch on the power; Compatible with i Watch Ultra, Series 8,Nike, Hermes,SE,S7,S3 Compatible with Only Compatible with iPhone14,14 Plus, 14 Pro,14 Pro, 14 Pro Max Compatible with Android smart- phone Compatible with AirPods 2 AirPods 3 AirPods 2/Pro Other TWS earbuds which support wireless charging 12 Watch rotation angle 121212 Caution: Any changes or modifications to this device not explicitly approved by manufacturer could This device complies with part 15 of the FCC Rules. Operation is Subject To the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. void your authority to operate this equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and candidate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: .Reorient or relocate the receiving antenna. .Increase the separation between the equipme…

Text truncated - open the document above for the full version.

ShenzhenDonggetongTechnologyCo., LTD FederalCommunicationsCommission Authorizationand EvaluationDivision EquipmentAuthorizationBranch 7435 OaklandMills Road Columbia,MD 21046 9/27/23 U.S. AgentDesignation ShenzhenDonggetongTechnologyCo., LTDacknowledgestheir consentfor the followingcontact locatedin the UnitedStatesto act as their agent for serviceof processfor the equipmentfor whichauthorization is sought(FCC ID: 2BC2W-YF-6): Nameand companyof U.S. agent: Tim Payne,FCC US Agent,LLC PhysicalU.S. addressof agent:3722 IllinoisAvenue,Saint Charles,IL, 60174,USA FRN of U.S. agent: 0033402884 Email addressof U.S. agent: [email protected] FCC US Agent,LLCacknowledgestheir obligationto acceptserviceof processon behalfofShenzhen DonggetongTechnologyCo., LTD. ShenzhenDonggetongTechnologyCo., LTDwith theFRN0034288506acceptsits obligationto maintainan agent for serviceof processin the UnitedStatesfor no less than one year after either the granteehas permanentlyterminatedall marketingand importationof the applicableequipmentwithinthe U.S., or the conclusionof any Commission-relatedadministrativeor judicialproceedinginvolvingthe equipment,whicheveris later. By signingthis form, we confirmthe aboveand that we are awareof the applicationrequirementslisted under§ 2.911(d)(7). The informationprovidedin this letter is basedon the referencedrule parts of Title 47 of the CFR as well as KDB 986446D01. An expirationdate for this letter does not exist. In case the U.S. agent changes,the granteeis obligatedto notify the FCC within 30 days via the grantingTCB. Sincerely, Signature WenHuaZhou legal person ShenzhenDonggetongTechnologyCo., LTD Signature Tim Payne Manager FCC US Agent,LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Sincerely, Name/Title： WenHua Zhou/legal person Company: Shenzhen Donggetong Technology Co., LTD Address: 5 / F, No. 9 Furong Road, Gushu, Xixiang, Baoan District, Shenzhen China Phone: 13590193492 Fax: N/A E-Mail: [email protected]

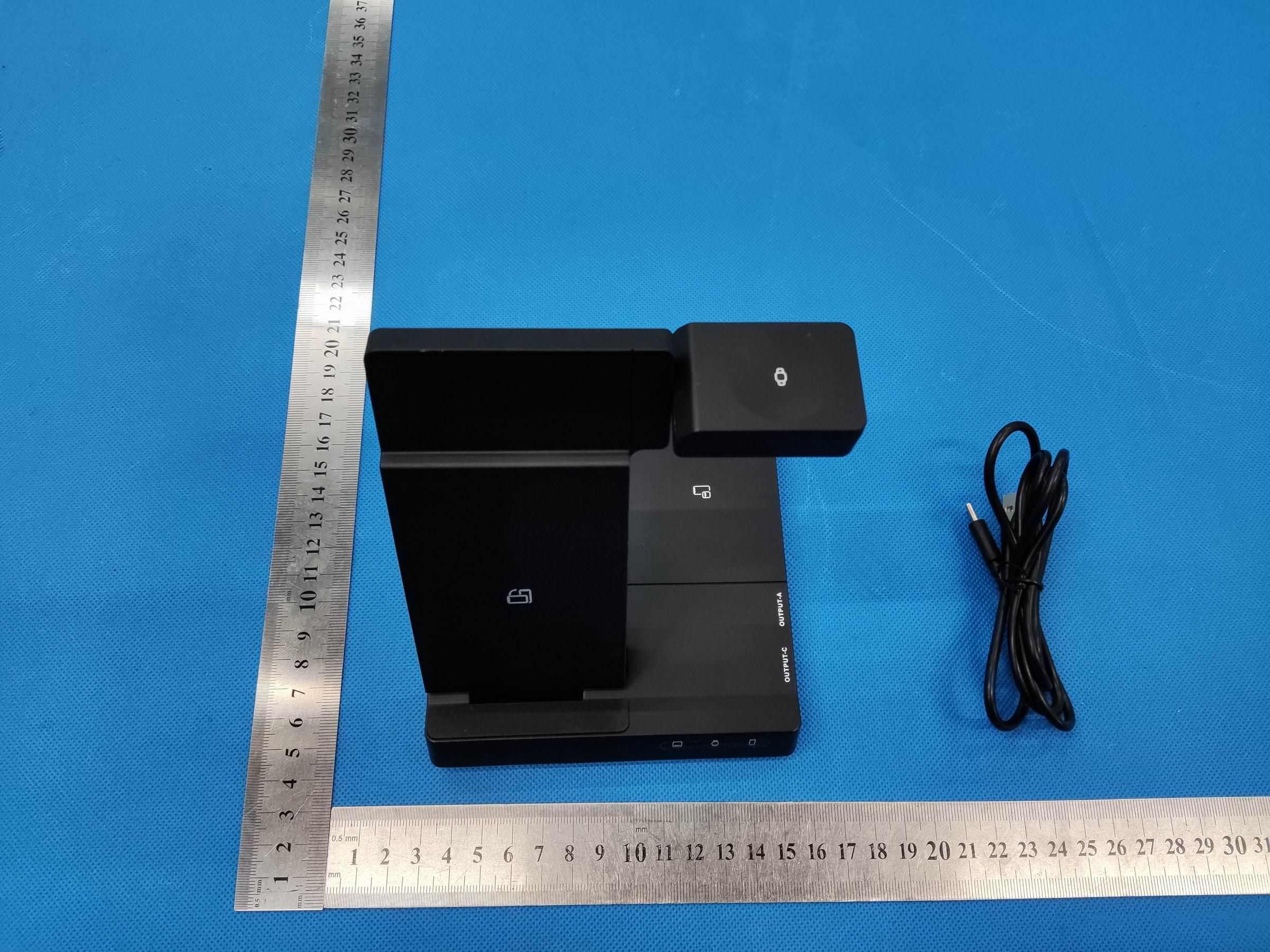

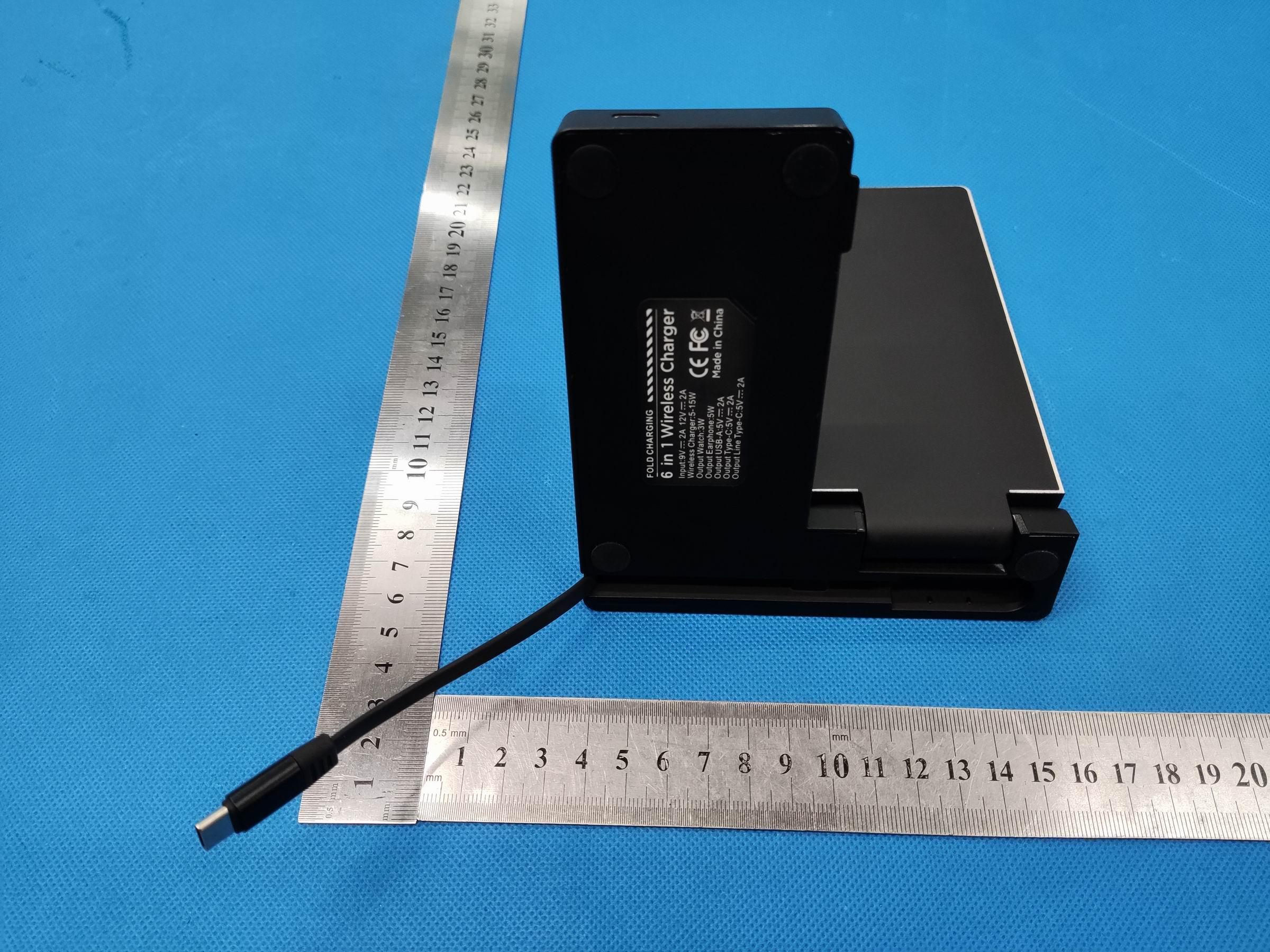

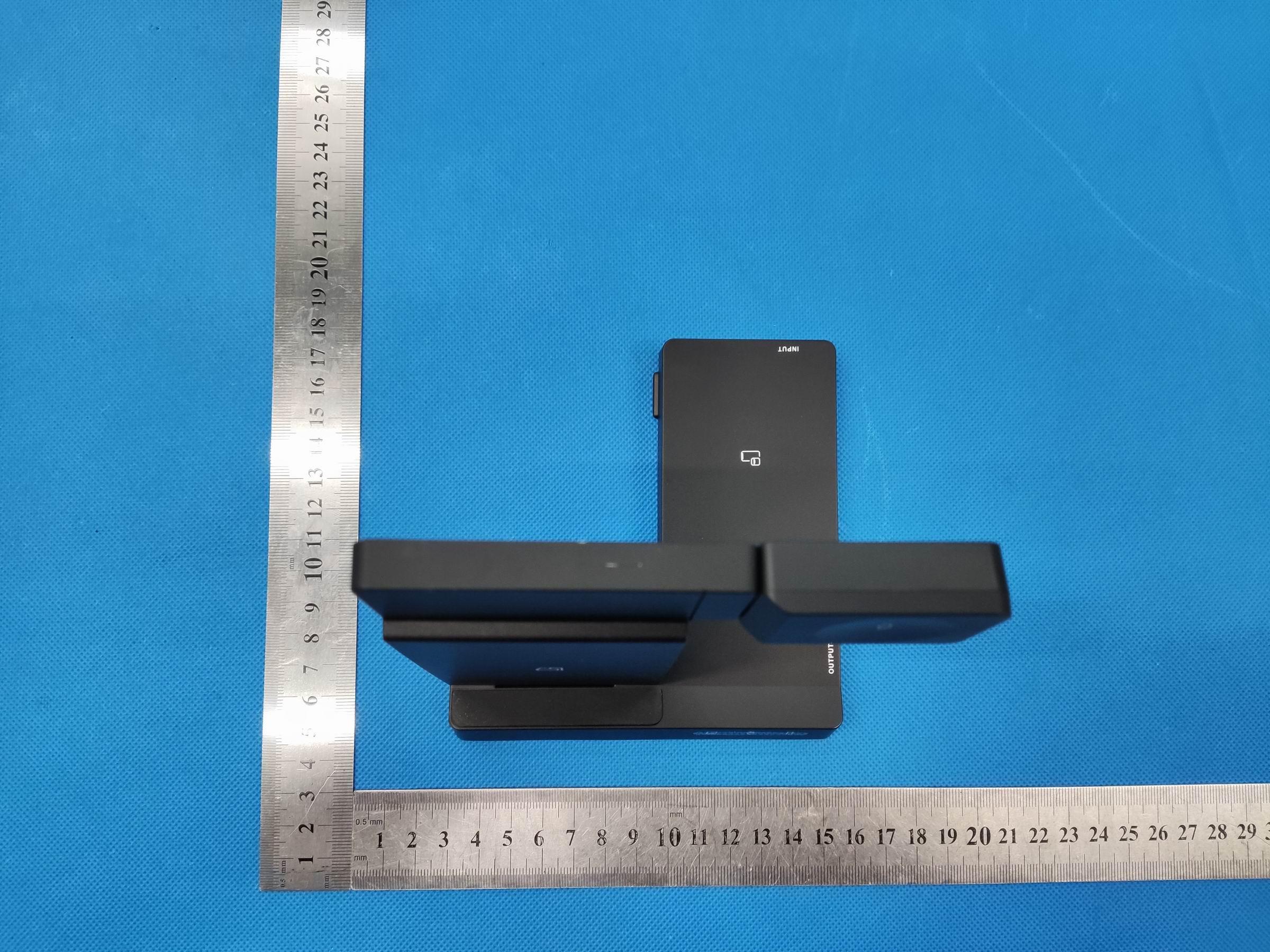

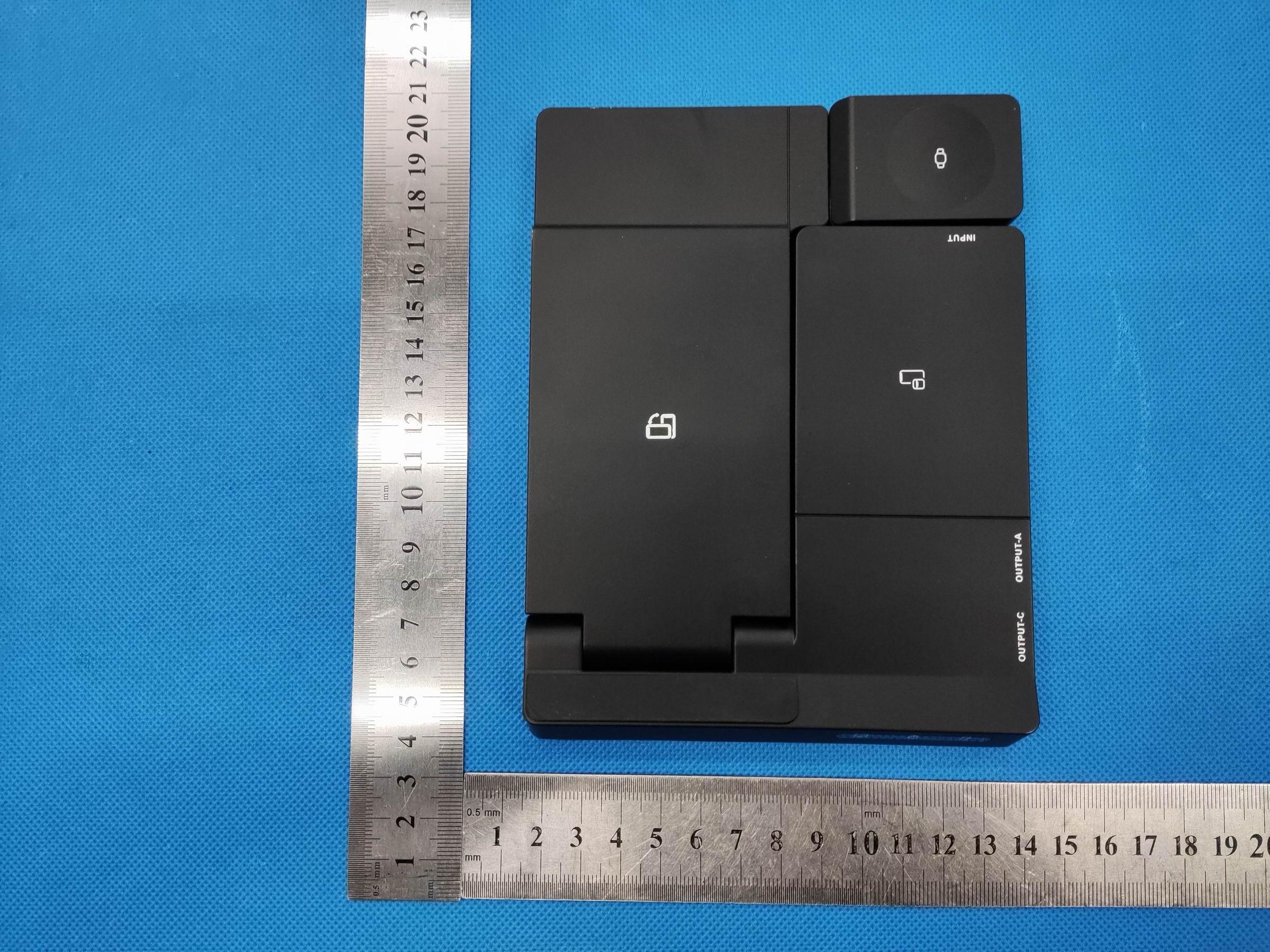

Page1of6FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. EUTConstructionalDetails ExternalEUTPhoto Photo1 Photo2 Page2of6FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of6FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of6FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 Page5of6FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 Page6of6FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo11 Photo12 ---TheEnd---

Label FCCID:2BC2W-YF-6

Page1of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. EUTConstructionalDetails InternalEUTPhoto Photo1 Photo2 Page2of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8

Page5of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 Watch Antenna Watch Antenna Page6of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo11 Photo12 Earphone Antenna Page7of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo13 Photo14 Phone Antenna Page8of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo15 Photo16

Page9of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo17 Photo18 Page10of10FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo19 ------End------

Page 1 of 7 FCCID:2BC2W-YF-6 RFExposureEvaluation 1MeasuringStandard KDB680106RFExposureWirelessChargingAppsv03r01 2Requirements Accordingtotheitem5ofKDB680106v03r01: Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcludedfrom submittinganRFexposureevaluation. (1)Powertransferfrequencyislessthan1MHz. (2)Outputpowerfromeachprimarycoilislessthanorequalto15watts. (3)Thesystemmayconsistofmorethanonesourceprimarycoils,chargingoneormoreclients.Ifmorethan oneprimarycoilispresent,thecoilpairsmaybepoweredonatthesametime. (4)Clientdeviceisplaceddirectlyincontactwiththetransmitter. (5)Mobileexposureconditionsonly(portableexposureconditionsarenotcoveredbythisexclusion). (6)TheaggregateH-fieldstrengthsanywhereatorbeyond15cmsurroundingthedevice,and20cm awayfromthesurfacefromallcoilsthatbydesigncansimultaneouslytransmit,andwhilethose coilsaresimultaneouslyenergized,aredemonstratedtobelessthan50%oftheapplicableMPE limit. Remark:Meetalltheaboverequirements. Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Page 2 of 7 FCCID:2BC2W-YF-6 3TestSetup 4TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(15cmfromallsidesand20cmfromthetop)whichis betweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementofeachpoints (A,B,C,D,E)werecompleted. 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01v03. Remark：TheEUT’stestpositionA,B,C,DandEisvalidfortheEandHfieldmeasurements. 5Descriptionofthetestmode Equipmentundertestwasoperatedduringthemeasurementunderthefollowing conditions: Test Mode Description Mode1 ACAdapter+EUT+Mobilephone+Earphone+Watch Record Mode2 ACAdapter+EUT+Mobilephone+Earphone Pre-tested Mode3 ACAdapter+EUT+Mobilephone+Watch Pre-tested Mode4 ACAdapter+EUT+Earphone+Watch Pre-tested Mode5 ACAdapter+EUT+Mobilephone Pre-tested Mode6 ACAdapter+EUT+Earphone Pre-tested Mode7 ACAdapter+EUT+Watch Pre-tested Mode8 TesttheEUTinidlemode. Pre-tested Note:1.Alltestmodeswerepre-tested,butweonlyrecordedtheworstcaseinthisreport. 2.Unfoldedandfoldedmodeweretested,butweonlyrecordedtheworstcase. Page 3 of 7 FCCID:2BC2W-YF-6 6PeripheralList 7TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) ElectricandMagnetic FieldAnalyzer NardaEHP-200A180ZX1050521.06.202220.06.2024 8TestResult E-FiledStrengthat15cmfromtheedgessurroundingtheEUT(V/m) UnitTestmodeTest Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (V/m) Limits (V/m) Unfoldedmode Folded Mode V/mTM194.47102.3395.4691.8784.52307614 H-FiledStrengthat15cmfromtheedgessurroundingtheEUT(A/m) UnitTestmodeTest Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (A/m) Limits (A/m) Unfoldedmode Folded Mode A/mTM10.2450.2030.2100.1970.2120.8151.63 N o. EquipmentManufacturerModelNo. Serial No. Powercordsignalcable 1AdapterHNTHNT-QC530N/AN/AN/A 2 Mobile lphone XIAOMIMI11N/AN/AN/A 3EarphonePocBudsK6N/AN/AN/A 4WatchAppleS6N/AN/AN/A 5 Mobile lphone VIVOIQOO11PRON/AN/AN/A Page 4 of 7 FCCID:2BC2W-YF-6 H-FiledStrengthat20cmfromthetopoftheEUT(A/m) UnitTestmodeTest PositionE 50%Limits (A/m) Limits (A/m) FoldedMode A/mTM10.2050.8151.63 Note:Alltestmodeswerepre-tested,butweonlyrecordedtheworstcaseinthisreport. Page 5 of 7 FCCID:2BC2W-YF-6 9TestSetupphoto TestPositionA-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe TestPositionB-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe Page 6 of 7 FCCID:2BC2W-YF-6 TestPositionC-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe TestPositionD-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe Page 7 of 7 FCCID:2BC2W-YF-6 TestPositionE-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe TestPositionE-20cmfromtheedgeofEUTtothegeometriccenteroftheprobe ***Endofreport***

Page1of26ReportNo.:AIT23092601FW1 DongguanYaxu(AiT)TechnologyLimited No.22,JinqianlingThirdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. FCCTESTREPORT ClientInformation: Applicant:ShenzhenDonggetongTechnologyCo.,LTD Applicantadd.:5/F,No.9FurongRoad,Gushu,Xixiang,BaoanDistrict,Shenzhen Manufacturer:ShenzhenDonggetongTechnologyCo.,LTD Manufactureradd.:5/F,No.9FurongRoad,Gushu,Xixiang,BaoanDistrict,Shenzhen ProductInformation: ProductName:6in1WirelessCharger ModelNo.:YF-6 BrandName:N/A FCCID:2BC2W-YF-6 Applicablestandards:FCCCFRTitle47Part15SubpartC PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:Sep.26,2023DateofTest:Sep.26,2023~Sep.27,2023 DateofIssue:Sep.27,2023TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: SimbaHuangSeal.chen Page2of26ReportNo.:AIT23092601FW1 DongguanYaxu(AiT)TechnologyLimited No.22,JinqianlingThirdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS............................................................................................................................................................2 2TESTSUMMARY...................................................................................................................................................5 2.1STATEMENTOFTHEMEASUREMENTUNCERTAINTY.............................................................................................5 2.2MEASUREMENTUNCERTAINTY............................................................................................................................5 3TESTFACILITY.....................................................................................................................................................6 3.1DEVIATIONFROMSTANDARD..............................................................................................................................6 3.2ABNORMALITIESFROMSTANDARDCONDITIONS...................................................................................................6 3.3TESTLOCATION.................................................................................................................................................6 4GENERALINFORMATION...................................................................................................................................7 4.1EUTTESTMODE...............................................................................................................................................8 4.2DESCRIPTIONOFTESTSETUP............................................................................................................................8 4.3PERIPHERALLIST...............................................................................................................................................9 4.4EUTPERIPHERALLIST......................................................................................................................................9 5EQUIPMENTSLISTFORALLTESTITEMS......................................................................................................10 6CONDUCTEDEMISSIONTEST.........................................................................................................................11 6.1CONDUCTEDEMISSIONMEASUREMENT................................................................................................11 6.2POWERLINECONDUCTEDEMISSIONLIMITS..........................................................................................11 6.3TESTPROCEDURE......................................................................................................................................11 6.4DEVIATIONFROMTESTSTANDARD........................................................................................................11 6.5TESTSETUP.................................................................................................................................................12 6.6EUTOPERATINGCONDITIONS..................................................................................................................12 6.7TESTRESULT..................................................................................................................................................13 7RADIATEDEMISSIONMEASUREMENT...........................................................................................................15 7.1RADIATEDEMISSIONLIMITS.............................................................................................................................15 7.2ANECHOICCHAMBERTESTSETUPDIAGRAM....................................................................................................16 7.3TESTPROCEDURE...........................................................................................................................................16 7.4DEVIATIONFROMTESTSTANDARD........................................................................................................16 7.5TESTRESULT..................................................................................................................................................17 8BANDWIDTHTEST.............................................................................................................................................21 8.1TESTPROCEDURE...............................................................................…

Text truncated - open the document above for the full version.

深圳市瑞通千业科技有限公司 客户/Ciient 名称/TYPEA11-6.3UH超薄无线充发射线圈 产品型号 ModelNO单线圈G43.5*0.8双槽有孔100长背胶 产品编号 Partnunberingsystey 客户料号 Cientp/NO 工程编号 EnginrerNO 日期 /Date2022 年 12 月 22 日 本公司工程部/ForEnginerDepartnerOnly 修改内容/RrvisedCintent认可日期/APProvedDate 编制/Prepared审核/Checked认可/Approved 万纪美万纪美刘成昭 客户认可回签 /AuthorixedSignaturureCompanyChop 工程/Enginrer认可/QCAPProved认可日期/APProved 深圳市瑞通千业科技有限公司 一、线圈工艺/WindingProcese: NO 绕组线规匝数绕线方向备注 1N12UEW-B-0.08*10512TSCCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance） 1.11L0A（单独线圈）=3.8uH±20% 1.12L0A(线圈+磁片)=6.5uH±10% 1.2Q值=50MIN 1.3直流电阻（DCR）：60mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 N O 项目材料 1WIRE￠ 0.08*24*2p2UEW- 2FERRITE 43.5*5.3*0.8L型双槽有孔铁氧体硬磁背面双面胶 3GLUE水性白胶 4SOLDERHQ-996/JS-996 5Tin千岛纯锡 6 High temperature adhesive 8MM 高温胶带 7 8 深圳市瑞通千业科技有限公司 三．电路图/CIRCUITDIAGRAM 单位：MM 四．外形图 /OUTSIDEDIAGRA 注：线圈出线位置缠绕 8MM （ ref ）高温胶纸，磁片背面贴双面背胶。 标准ABCDEFG STD 43.5 ±0.539.5± 0.5 13.9± 0.35.3 ± 0.5100 ±2 3 ±1 2.2 ±0.3 单位：MM 113-205MHz 深圳市瑞通千业科技有限公司 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特殊要求可定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit. 深圳市瑞通千业科技有限公司 六、贮存和使用条件StorageandUsecondition 6.1贮存条件Storagecondition 6.1.1建议贮存条件：温度-25°C~85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C~85°C,70%RH(Max.) 6.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeing produced. 6.2使用条件Usecondition 使用条件限制：温度=-25°C ~ 85°C,湿度≤90% Useconditionlimit:T=-25°C~85°C,RH≤90%.

深圳市瑞通千业科技有限公司 客户/Ciient 名称/TYPEA28-6.8UH无线充发射线圈 产品型号 ModelNOA28双线圈85*46*0.75厚背胶90/75MM长 产品编号 Partnunberingsystey 客户料号 Cientp/NO 工程编号 EnginrerNO 日期 /Date2023 年 5 月 8 日 本公司工程部/ForEnginerDepartnerOnly 修改内容/RrvisedCintent认可日期/APProvedDate 编制/Prepared审核/Checked认可/Approved 万纪美万纪美刘成昭 客户认可回签 /AuthorixedSignaturureCompanyChop 工程/Enginrer认可/QCAPProved认可日期/APProved 深圳市瑞通千业科技有限公司 一、线圈工艺/WindingProcese: NO 绕组线规匝数绕线方向备注 1N12UEW-B-0.08*105P9TSCCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance） 1.11L0A（单独线圈）=4.3uH±10% 1.12L0A(线圈+磁片)=6.8uH±10% 1.2Q值=80MIN 1.3直流电阻（DCR）：60mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 N O 项目材料 1WIRE￠ 0.08*105P2UEW- 2FERRITE 85*46*0.75厚磁片 3GLUE 水性白胶 4SOLDERHQ-996/JS-996 5Tin 千岛纯锡 6 High temperature adhesive 8MM高温胶带 7 8 深圳市瑞通千业科技有限公司 单位：MM 四．外形图 /OUTSIDEDIAGRA 注：线圈出线位置缠绕8MM（ref）高温胶纸，磁片背面贴双面背胶。 标准 ABCDEFGH STD 85±0.546±0.525.5±0.517±0.547±0.539±0.590/75±23±1 标准 I J STD 0.75± 0.05 3.4±0.05 单位：MM 113-205MHz 深圳市瑞通千业科技有限公司 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特殊要求可定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit. 深圳市瑞通千业科技有限公司 六、贮存和使用条件StorageandUsecondition 6.1贮存条件Storagecondition 6.1.1建议贮存条件：温度-25°C~85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C~85°C,70%RH(Max.) 6.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeing produced. 6.2使用条件Usecondition 使用条件限制：温度=-25°C ~ 85°C,湿度≤90% Useconditionlimit:T=-25°C~85°C,RH≤90%.

MomaxTechnology(HK)Ltd UnitA,4/F,CheungLungIndustrialBuilding,10CheungYeeStreet,LaiChi Kok,Kowloon,HongKong 1.AntennaDescription: 2.AntennaPhoto Antenna type: loop coil Antenna Manufacturer: Shenzhen Donggetong Technology Co., LTD Model:YF-6 antenna Antenna Gain(Peak): 0 dBi Frequency range:300kHz-350kHz :

深圳市瑞通千业科技有限公司 客户/Ciient 名称/TYPEA11-6.3UH超薄无线充发射线圈 产品型号 ModelNO单线圈G43.5*0.8双槽有孔100长背胶 产品编号 Partnunberingsystey 客户料号 Cientp/NO 工程编号 EnginrerNO 日期 /Date2022 年 12 月 22 日 本公司工程部/ForEnginerDepartnerOnly 修改内容/RrvisedCintent认可日期/APProvedDate 编制/Prepared审核/Checked认可/Approved 万纪美万纪美刘成昭 客户认可回签 /AuthorixedSignaturureCompanyChop 工程/Enginrer认可/QCAPProved认可日期/APProved 深圳市瑞通千业科技有限公司 一、线圈工艺/WindingProcese: NO 绕组线规匝数绕线方向备注 1N12UEW-B-0.08*10512TSCCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance） 1.11L0A（单独线圈）=3.8uH±20% 1.12L0A(线圈+磁片)=6.5uH±10% 1.2Q值=50MIN 1.3直流电阻（DCR）：60mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 N O 项目材料 1WIRE￠ 0.08*24*2p2UEW- 2FERRITE 43.5*5.3*0.8 N 3GLUE水性白胶 4SOLDERHQ-996/JS-999 5Tin千岛纯锡 6 High temperature adhesive 8MM 高温胶带 7 8 深圳市瑞通千业科技有限公司 三．电路图/CIRCUITDIAGRAM 单位：MM 四．外形图 /OUTSIDEDIAGRA 注：线圈出线位置缠绕 8MM （ ref ）高温胶纸，磁片背面贴双面背胶。 标准ABCDEFG STD 43.5 ±0.539.5± 0.5 13.9± 0.35.3 ± 0.5100 ±2 3 ±1 2.2 ±0.3 单位：MM 300kHz-350kHz 深圳市瑞通千业科技有限公司 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特殊要求可定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit. 深圳市瑞通千业科技有限公司 六、贮存和使用条件StorageandUsecondition 6.1贮存条件Storagecondition 6.1.1建议贮存条件：温度-25°C~85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C~85°C,70%RH(Max.) 6.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeing produced. 6.2使用条件Usecondition 使用条件限制：温度=-25°C ~ 85°C,湿度≤90% Useconditionlimit:T=-25°C~85°C,RH≤90%.

Page1of2FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TestSetupPhoto RadiatedEmission Page2of2FCCID: 2BC2W-YF-6 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ConductedEmission ------End------
