2BC3E-BK-001Cell Phone Wireless Charger

User Manual Dongguanshiyungebaozhuangcailiaoyouxiangongsi Trade: Ygebet Product Name: Cell Phone Wireless Charger Model: Wireless-BK-001 1 De v i c e La y o u t 2 S t e p s f o r u s a g e The product is a Cell Phone Wireless Charger. The device is connected to the power supply through thecharging cable, and then it can be powered on. when charging the mobile phone, place the mobile phonein the mobile phone charging area to start charging, After fully charged, simply take off the phone, during thecharging process, if you need to terminate the charging,take it directly. When charging the Apple Watch, place the iWatch flat inthe charging area to start charging the iWatch. After fullycharged, directly remove the iWatch; During the chargingprocess, if you need to terminate the charging, remove theiWatch directly. 3 P r o d u c t D e s c r i p t i o n Product Name: Cell Phone Wireless Charger Model/Type reference: Wireless-BK-001 Power supply: Input:5V 2A Output 1: 5W (Wireless phone) Output 2: 2.5W (iWatch) Operation frequency: 110KHz - 205KHz Modulation type: ASK Antenna type: Loop coil antenna FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of thedevice must be respected.

dongguanshiyungebaozhuangcailiaoyouxiangongsi Hengtang Village, No.7 Qiaoyuan Street, Dongguan City Guangdong Province, 523000, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/09/28 U.S. Agent Designation dongguanshiyungebaozhuangcailiaoyouxiangongsi acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BC3E-BK-001): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of dongguanshiyungebaozhuangcailiaoyouxiangongsi dongguanshiyungebaozhuangcailiaoyouxiangongsi with the FRN [0034288274] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Haijian Han Manager dongguanshiyungebaozhuangcailiaoyouxiangongsi Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Haijian Han/PM Company: dongguanshiyungebaozhuangcailiaoyouxiangongsi Address: Hengtang Village, No.7 Qiaoyuan Street, Dongguan City Guangdong Province China Phone: 13113111997 Fax: N/A E-Mail: [email protected]

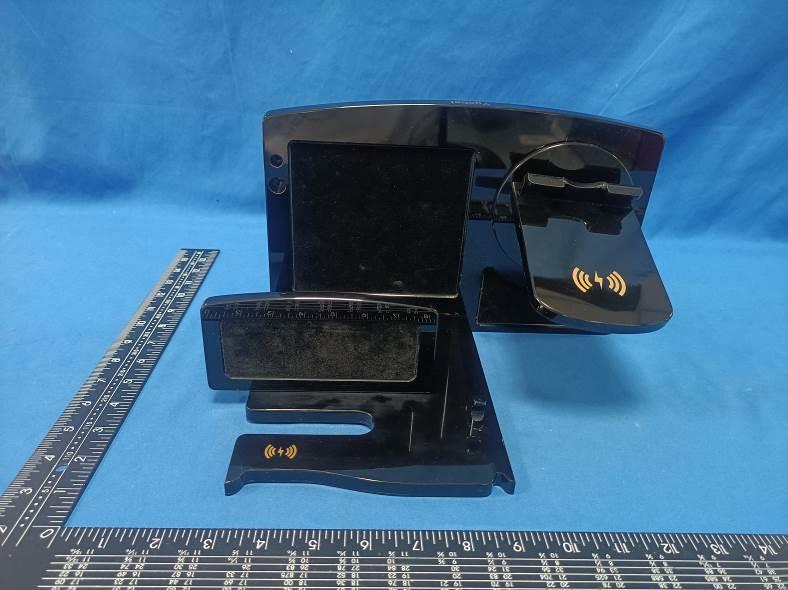

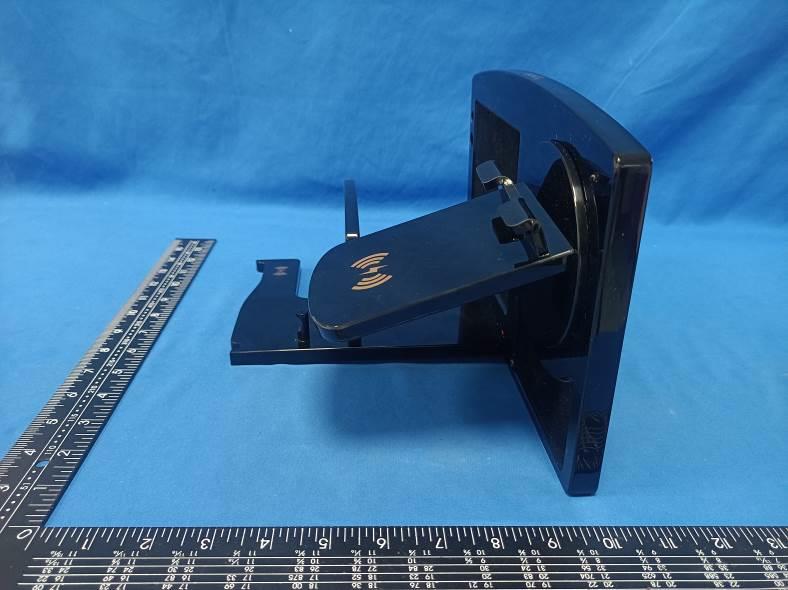

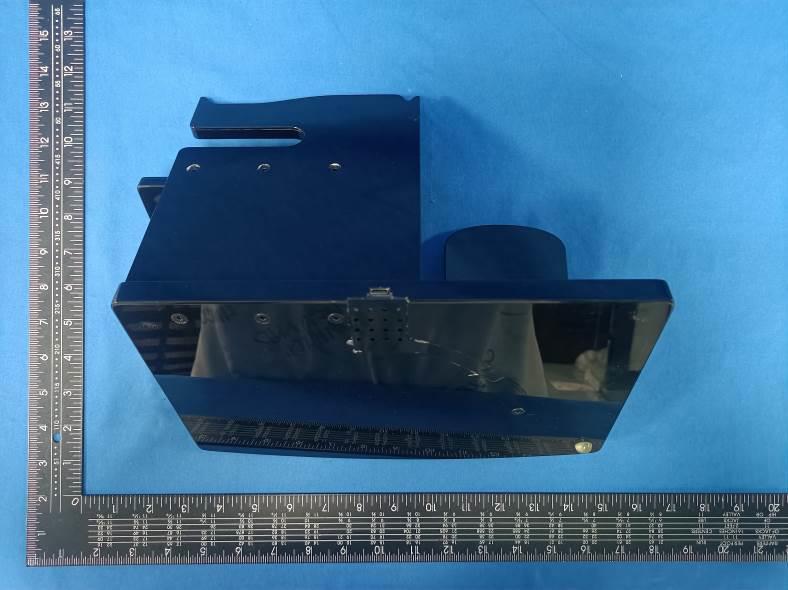

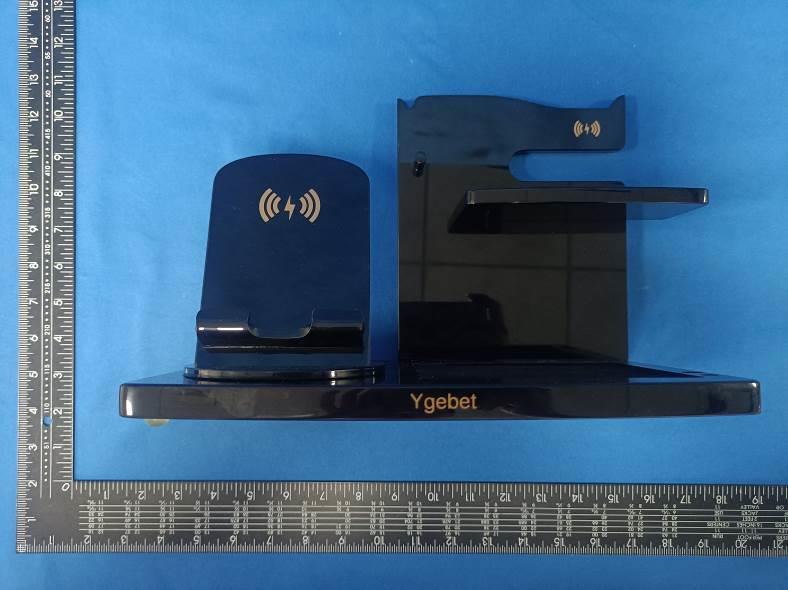

FCC ID: 2BC3E-BK-001 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BC3E-BK-001 Photo 4 Photo 5 Photo 6 FCC ID: 2BC3E-BK-001 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BC3E-BK-001

FCC ID: 2BC3E-BK-001 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BC3E-BK-001 Photo 4 Photo 5 Photo 6 \ FCC ID: 2BC3E-BK-001 Photo 7 Photo 8 Photo 9 Loop coil antenna 1 FCC ID: 2BC3E-BK-001 Photo 10 Photo 11 Photo 12 Loop coil antenna 2 FCC ID: 2BC3E-BK-001 Photo 13 Photo 14 Photo 15

Page 1 of 5 RF Exposure Evaluation FCC ID: 2BC3E-BK-001 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03 2 Requirements According to the item 5 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device,and 20 cm away from the surface from all coils that by design can simultaneously transmit,and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 5 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 110KHz~205KHz Output power from each primary coil is less than 15 watts Yes The maximum output power for each primary coil is 5W. The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Yes The transfer system includes three primary coils. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes Mobile exposure conditions only The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of Page 3 of 5 and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. the MPE limit. 6 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Test Modes: Mode 1 AC/DC Adapter (5V/2.0A) + EUT + Watch (Battery Status: <1%) Pre-Tested Mode 2 AC/DC Adapter (5V/2.0A) + EUT + Watch (Battery Status: <50%) Pre-Tested Mode 3 AC/DC Adapter (5V/2.0A) + EUT + Watch (Battery Status: 100%) Pre-Tested Mode 4 AC/DC Adapter (5V/2.0A) + EUT + Mobile phone (Battery Status: <1%) Pre-Tested Mode 5 AC/DC Adapter (5V/2.0A) + EUT + Mobile phone (Battery Status: <50%) Pre-Tested Mode 6 AC/DC Adapter (5V/2.0A) + EUT + Mobile phone (Battery Status: 100%) Pre-Tested Mode 7 AC/DC Adapter (5V/2.0A) + EUT + Watch+ Mobile phone (Battery Status: <1%) Record Mode 8 AC/DC Adapter (5V/2.0A) + EUT + Watch+ Mobile phone (Battery Status: <50%) Record Mode 9 AC/DC Adapter (5V/2.0A) + EUT + Watch+ Mobile phone (Battery Status: 100%) Record Note: All test modes were pre-tested, but we only recorded the worst case in this report. 7 Description of Support Units Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by Adapter / GS-551 Input: AC 100-240V 50/60Hz Output: DC 5V 3A, 9V 2A, 12V 1.5A SDOC Lab Page 4 of 5 8 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June 25 2023 June 24 2024 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June 25 2023 June 24 2024 9 Test Result H-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Chargin g Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% uT 0.122 0.359 0.336 0.324 0.329 0.326 -- -- 1% A/m 0.122 0.287 0.269 0.259 0.263 0.261 0.815 1.63 50% uT 0.122 0.260 0.274 0.261 0.259 0.264 -- -- 50% A/m 0.122 0.208 0.219 0.209 0.207 0.211 0.815 1.63 99% uT 0.122 0.160 0.170 0.176 0.171 0.168 -- -- 99% A/m 0.122 0.128 0.136 0.141 0.137 0.134 0.815 1.63 E-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Chargin g Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (V/m) FCC E-Field Strength 50% Limits (V/m) FCC E-Field Strength Limits (V/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% V/m 0.122 108.199 101.413 97.643 99.151 98.397 307.0 614.0 50% V/m 0.122 78.416 82.563 78.793 78.039 …
