2BC3M-ABLOYLOCKInSite Abloy Lock Module

3 cell: connect 2 pin connector 6 cell: connect 9V connector Before you begin the install process, it is CRITICAL that the Admin on your PROCELL® Insite account has set up all locations on the InSite platform BEFORE installing any devices. Be sure to confirm with your admin that all Location information has been setup before proceeding. ! QUICK-START GUIDE Assa-Abloy Vingcard Classic, Signature, and Essence models Remove the battery holder from battery cavity and replace with InSite equipped battery holder. First, open the Procell InSite sensor packaging, and add Procell batteries to the InSite battery holder. PLEASE NOTE: once you add the batteries to the holder – it begins the install process. Do not add batteries until you are ready to set up the device on the InSite App. 08 01 10 Open the app on your mobile device. 02 Name and describe your device in the “Description” field. 04 Tap ‘Register Device’. 06 Scan the PROCELL® InSite sensor QR code and enter the Device ID# 03 Select location data for your device, by selecting the correct location details from the drop- down menu. 05 On the door lock, remove the battery cavity lid. 07 Finally, replace the InSite battery holder into the cavity and securely close your device. CONGRATULATIONS! Your device has been set up and registered! Abloy Lock Module Type A Abloy Lock Module Type B © 2025 Duracell Industrial Operations, Inc. PROCELL ® InSite Quick-Start Video PROCELL ® InSite User Guide Website PROCELL ® InSite Website Assa-Abloy Vingcard Classic, Signature, and Essence models ISEDC RSS warning This device complies with Innovation, Science and Economic Development Canada Compliance licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ISEDC Radiation Exposure Statement: This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements RF de l’isedc établies pour un Environnement non contrôlé. Cet émetteur ne doit pas être co-localisés ou fonctionner en conjonction avec une autre antenne ou émetteur.Cet équipement doit être installé et utiliséavec une distance minimale de 20cm entre leradiateur & votre corps. Assa-Abloy Vingcard Classic, Signature, and Essence models FCC statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • R eorient or relocate the receiving antenna. • Increase the separ ation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ADDITIONAL RESOURCES

Duracell Industrial Operations, Inc Add: 14 Research Dr, Bethel, Connecticut, 06801,United States Tel: 203-731-6427 Fax: 203-731-6427 Email: [email protected] Attestation Letter CFR 47 §2.911(d) (5)(i)(ii) Attestation Letter Date: 2025-06-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 R ef: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: 2BC3M-ABLOYLOCK Duracell Industrial Operations, Inc (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Duracell Industrial Operations, Inc(“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Duracell Industrial Operations, Inc(“the applicant”) certifies that our product does not use Kaspersky's software information. Sincerely, Signature Printed N ame: Laura Zadrick Title:Regulatory Manager

Duracell Industrial Operations, Inc, 14 Research Drive Bethel, CT 06801 USA Tel: (203) 731-6427 Email: [email protected] Date: 2025-06-04 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S. AGENT LETTER OF ATTESTATION Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BC3M-ABLOYLOCK Duracell Industrial Operations, Inc (“the Applicant”) certifies that, as of the date of the filing of the application, Duracell Industrial Operations, Inc (U.S. agent). is our designated U.S. agent for service of process for the above referenced FCC ID. Duracell Industrial Operations, Inc (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Duracell Industrial Operations, Inc , (U.S. agent) accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Duracell Industrial Operations, Inc Address: 14 Research Dr Bethel, CT 06801, United States FRN:0034311498 Tel.: (203) 731-6427 Email: [email protected] Signed by (printed name): Ms Laura Zadrick Signature: Applicant: Duracell Industrial Operations, Inc Add: 14 Research Dr Bethel, CT 06801,United States FRN: 0034311498 Tel: (203) 731-6427 Email: [email protected] Signed by (printed name): Ms Laura Zadrick Signature:

Duracell Industrial Operations, Inc Add: 14 Research Dr, Bethel, Connecticut, 06801,United States Tel: 203-731-6427 Fax: 203-731-6427 Email: [email protected] FCC Authorization Date: 2025-06-04 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Duracell Industrial Operations, Inc, Hereby authorizes Bay Area Compliance Laboratories Corp.(Dong guan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corp.(Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until f urther written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Laura Zadrick Title:Regulatory Manager QA-FR -170-B

Duracell Industrial Operations, Inc Add: 14 Research Dr, Bethel, Connecticut, 06801,United States Tel: 203-731-6427 Fax: 203-731-6427 Email: [email protected] DECLARATION OF SIMILARITY Date: 2025-05-29 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Duracell Industrial Operations, Inc, hereby declare that the product: InSite Abloy Lock Module, FCC ID:2BC3M-ABLOYLOCK, model Abloy Lock Module Type B is electrically identical with the test model Abloy Lock Module Type A. The two model utilize identical PCB configurations incorporating RF chips, antennas, and layout designs. The differences between the two models are described as follows: Model Abloy Lock Module Type A Abloy Lock Module Type B DIFFERENCE 1: Battery Housing Configuration 3 CELL HOUSING 6 CELL HOUSING DIFFERENCE 2: Wire Assembly DIFFERENCE 3: Typical Input Voltage Requirements DC 3.3-18V (Typical: DC 4.5V from 3 CELL) DC 3.3-18V (Typical: DC 9V from 6 CELL) Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Laura Zadrick Title: Regulatory Manager

Duracell Industrial Operations, Inc Add: 14 Research Dr, Bethel, Connecticut, 06801,United States Tel: 203-731-6427 Fax: 203-731-6427 Email: [email protected] FCC Confiden tial Authorization Date: 2025-06-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BC3M-ABLOYLOCK In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Duracell Industrial Operations, Inc) hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Laura Zadrick Title:Regulatory Manager QA-FR-171-A

Duracell Industrial Operations, Inc Add: 14 Research Dr, Bethel, Connecticut, 06801,United States Tel: 203-731-6427 Fax: 203-731-6427 Email: [email protected] Date: 2025-06-04 To whom it may concern Dear Sir/Madam, We, Duracell Industrial Operations, Inc, hereby authorize Bay Area Compliance Laboratories Corp. (Dongguan) to act as a laboratory for testing and test report generation for the f ollowing project(s): (Product description: InSite Abloy Lock Module, FCC ID: 2BC3M-ABLOYLOCK, Model: Abloy Lock Module Type A, Abloy Lock Module Type B) Th e product only supports 2412-2462 MHz (802.11b/g/n ht20), the other functions were disabled to use by manufacturer in the software, the end user has no capability to activate it. Please contact me if there is need for any additional clarification or information. Sincerely, Signature: Printed Name: Laura Zadrick Title:Regulatory Manager

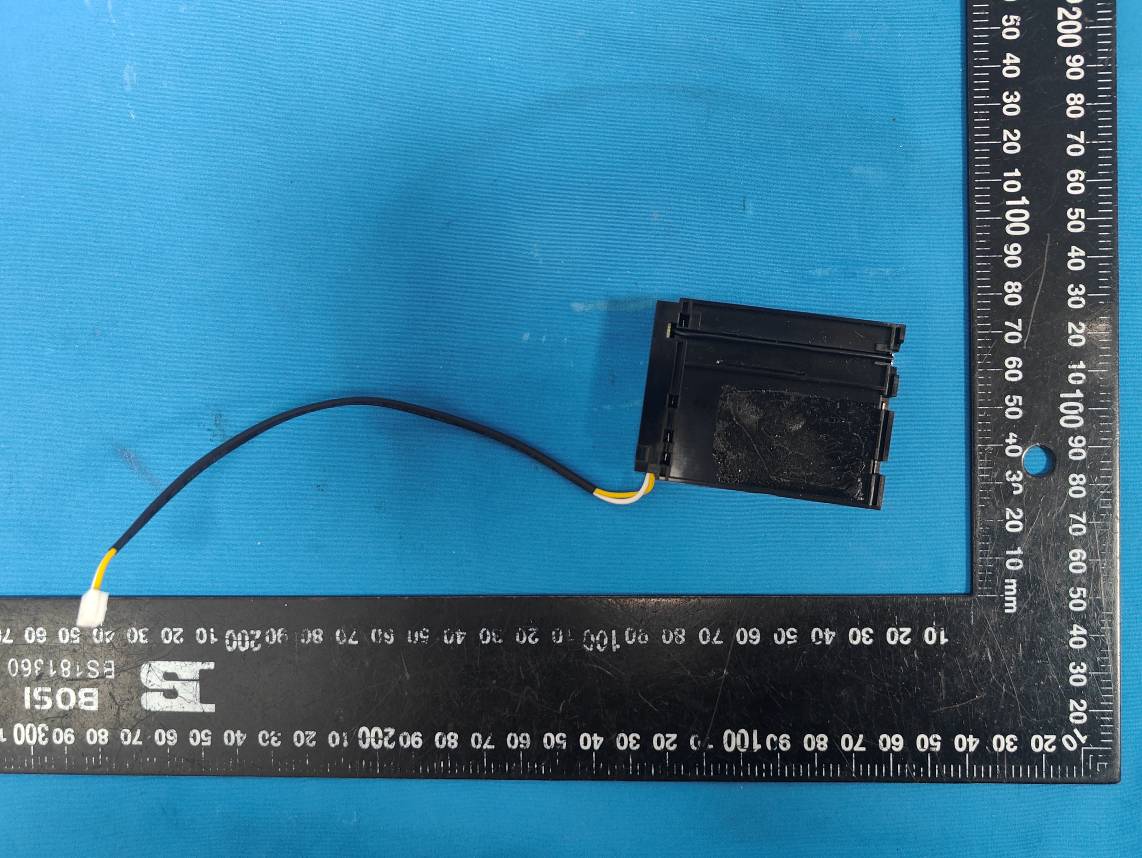

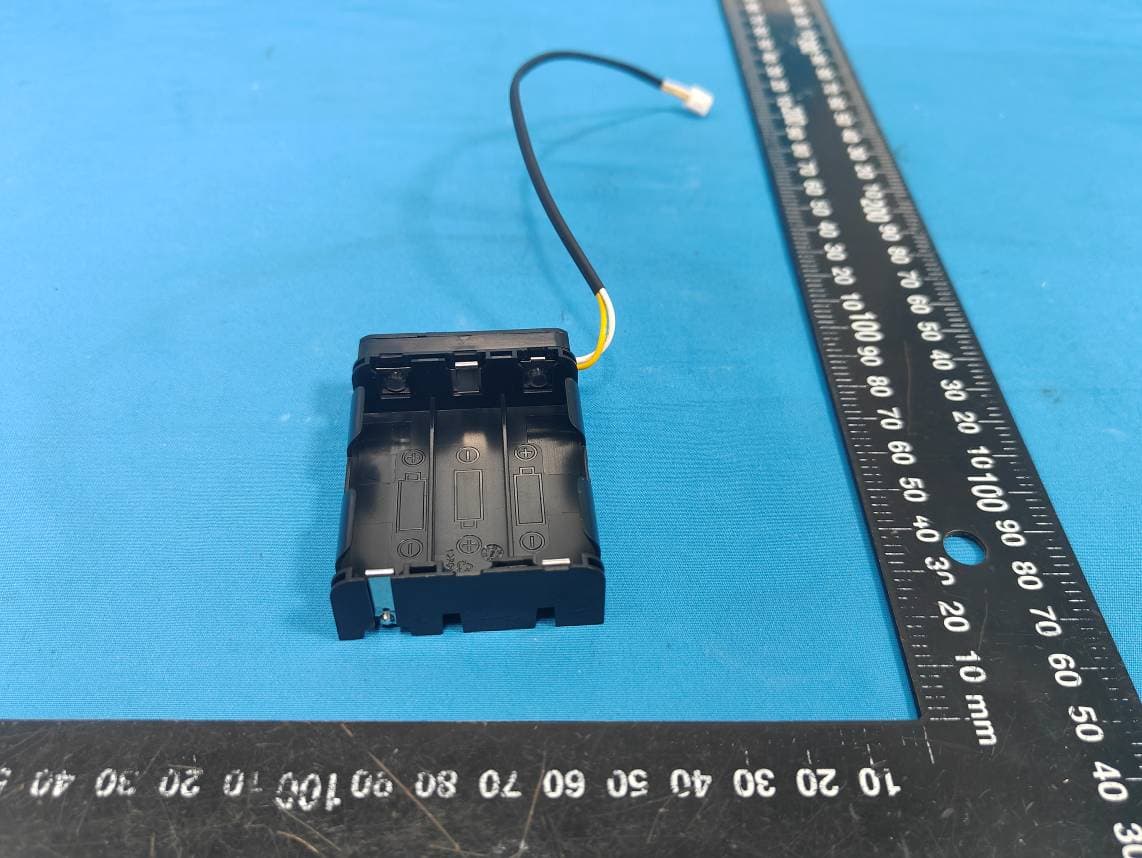

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-EXP Page 1 / 5 EUT EXTERNAL PHOTOS Model: Abloy Lock Module Type A Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-EXP Page 2 / 5 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-EXP Page 3 / 5 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-EXP Page 4 / 5 Model: Abloy Lock Module Type B Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-EXP Page 5 / 5 *****END *****

Model: Abloy Lock Module Type B FCC ID : 2BC3M-ABLOYLOCK IC : 31527-ABLOYLOCK HVIN: ABLOYLOCKB ID: SSID : SN : 0000700078 InSite-D88 DQ03232300012 5118D03101 Model: Abloy Lock Module Type A FCC ID : 2BC3M-ABLOYLOCK IC : 31527-ABLOYLOCK HVIN : ABLOYLOCK ID: SSID: SN : 0000700078 InSite-D88 DQ03232300012 5113D03101

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-INP Page 1 / 7 EUT INTERNAL PHOTOS Model: Abloy Lock Module Type A Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-INP Page 2 / 7 RF Chip Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-INP Page 3 / 7 Antenna Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-INP Page 4 / 7 Model: Abloy Lock Module Type B Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-INP Page 5 / 7 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-INP Page 6 / 7 RF Chip Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-INP Page 7 / 7 Antenna *****END *****

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502Q45736E-RF-00A Report Template Version: FCC+IC-Wi-Fi2.4-V2.0 Page 79 of 80 EXHIBIT C - RF EXPOSURE EVALUATION Maximum Permissible Exposure (MPE) Applicable Standard According to subpart §1.1310,15.247(i) systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted output power including Tune- up Tolerance ▲ Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) Wi-Fi 2412-2462 -2.41 0.574 11.0 12.59 20 0.0014 1.0 Note: The Conducted output power including Tune-up Tolerance provided by manufacturer Result: The device meets FCC MPE at 20 cm distance

TEST REPORT Applicant: Duracell Industrial Operations, Inc. Address: 14 Research Dr, Bethel, Connecticut, 06801, United States P r o d u c t N a m e : InSite Abloy Lock Module F C C I D : 2BC3M-ABLOYLOCK I C : 31527-ABLOYLOCK H V I N : ABLOYLOCKA; ABLOYLOCKB Standard(s): 47 CFR Part 15, Subpart C (15.247) RSS-247 Issue 3, August 2023 RSS-Gen, Issue 5, February 2021 Amendment 2 ANSI C63.10-2020 KDB 558074 D01 15.247 Meas Guidance v05r02 Report Number: 2502Q45736E-RF-00A Report Date: 2025/6/4 The above device has been tested and found compliant with the requirement of the relative standards by Bay Area Compliance Laboratories Corp. (Dongguan). Reviewed By: Pedro Yun Approved By: Gavin Xu Title: Project Engineer Title: RF Supervisor Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Note: The information marked ▲ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with ★. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Each test item follows the test standard(s) without deviation. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502Q45736E-RF-00A Report Template Version: FCC+IC-Wi-Fi2.4-V2.0 Page 2 of 80 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 4 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 ACCESSORY INFORMATION ................................................................................................................. 5 1.3 ANTENNA INFORMATION DETAIL▲ ................................................................................................... 5 1.4 EQUIPMENT MODIFICATIONS ............................................................................................................. 5 2. SUMMARY OF TEST RESULTS ............................................................................................ 6 3. DESCRIPTION OF TEST CONFIGURATION ..................................................................... 7 3.1 OPERATION FREQUENCY DETAIL ....................................................................................................... 7 3.2 EUT OPERATION CONDITION ............................................................................................................. 7 3.3 SUPPORT EQUIPMENT LIST AND DETAILS ......................................................................................... 7 3.4 SUPPORT CABLE LIST AND DETAILS .................................................................................................. 7 3.5 BLOCK DIAGRAM OF TEST SETUP ...................................................................................................... 8 3.6 TEST FACILITY ..................................................................................................................................... 9 3.7 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 4. REQUIREMENTS AND TEST PROCEDURES .................................................................. 10 4.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 10 4.1.1 Applicable Standard ..................................................................................................................................... 10 4.1.2 EUT Setup.................................................................................................................................................... 12 4.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 4.1.4 Test Procedure ............................................................................................................................................. 13 4.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 4.1.6 Test Result ................................................................................................................................................... 13 4.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 4.2.1 Applicable Standard ..................................................................................................................................... 14 4.2.2 EUT Setup.................................................................................................................................................... 14 4.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 4.2.4 Test Procedure ............................................................................................................................................. 16 4.2.5 Corrected Amplitude & Margin Calculation ........................................................…

Text truncated - open the document above for the full version.

1 Measurement of Antenna for RETROFIT Manufacture :Duracell Industrial Operations, Inc Address:14 Research Dr, Bethel, Con necticut, 06801,United States Antenna Model: RETROFIT Antenna Antenna Dimensions 4mm 1mm 10mm 7mm 9mm 2 1.Measurement of Reflection Coefficients and Isolation 2.Radiation Patterns and Gain 2.1. Measurement test data Freq/GHz2.42.452.5 VSWR7.248.118.80 2.2 Typical Free Space Efficiency and Gain Frequency/MHz 24002410242024302440245024602470248024902500 Peak Gain/dBi -2.41-3.80-4.00-4.36-3.85-3.96-4.39-4.91-5.09-5.02-5.37 Efficiency/% 13.63%10.03%11.70%10.90%10.10%9.88%9.09%8.37%8.21%8.09%7.57% 3 2.3 Typical Free Space Radiation Pattern (1) X-ZPlane: (2)Y-Z Plane: 4 (3)X-Y Plane： (4)Typical Free Space 3D Radiation Pattern at 2.45GHz： -------------------------------------------------End------------------------------------------------

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-00A-TSP TEST SETUP PHOTOGRAPHS Radiated Emission 9k-30MHz Parallel View for Abloy Lock Module Type A Radiated Emission 9k-30MHz Perpendicular View for Abloy Lock Module Type A Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-00A-TSP Radiated Emission 9k-30MHz Ground-Parallel View for Abloy Lock Module Type A Radiated Emission 30M-1GHz View for Abloy Lock Module Type A Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-00A-TSP Radiated Emission 9k-30MHz Parallel View for Abloy Lock Module Type B Radiated Emission 9k-30MHz Perpendicular View for Abloy Lock Module Type B Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-00A-TSP Radiated Emission 9k-30MHz Ground-Parallel View for Abloy Lock Module Type B Radiated Emission 30M-1GHz View for Abloy Lock Module Type B Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-00A-TSP Radiated Emission 1-18GHz View for Abloy Lock Module Type A Radiated Emission 18-25GHz View for Abloy Lock Module Type A Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502Q45736E-RF-00A-TSP Radiated Emission 1-18GHz View for Abloy Lock Module Type B Radiated Emission 18-25GHz View for Abloy Lock Module Type B *****END *****
