2BC3U-RN100811Wireless Network Video Recorder

NVR - User Manual 3S System Technology Inc. Wireless Kit Quick Operation Manual V1.00 Wireless Network Digital Video Recorder Quick Operation Manual NVR - User Manual 3S System Technology Inc. Version History NO Date Note Version 1 2025/09/05 First issued V1.00 NVR - User Manual 3S System Technology Inc. Contents 1. Instructions for use ................................................................................................ 4 2. Hard Disk Installation ............................................................................................. 5 3. NVR Rear Panel Description ................................................................................... 6 4. Camera ................................................................................................................... 6 5. Power Navigation. .................................................................................................. 7 6. Login ....................................................................................................................... 8 7. Network Configuration ........................................................................................... 9 8. Date and Time Configuration ............................................................................... 10 9. Disk configuration ................................................................................................ 11 10. Display resolution configuration ........................................................................ 12 11.Mobile communication ....................................................................................... 12 12.NVR-Camera Pairing ............................................................................................ 12 13.Manual recording ................................................................................................ 13 14.Playback............................................................................................................... 13 NVR - User Manual 3S System Technology Inc. 1. Instructions for use ■Note: Please read the following safety instructions carefully to avoid personal injury and to prevent damage to this product or any other devices connected to it. ■Power supply (Note: Please use the power supply included with the product or specified by the manufacturer) Do not use an unspecified power supply to operate the device. ■Do not insert any objects into the NVR's openings Do not insert any objects into the NVR's openings to avoid electric shock or other accidents. ■Do not place the device in a dusty area Do not place the device in a dusty area. ■Do not place the device in a wet or damp environment Do not place the device in a wet or damp environment, such as a basement. If the device comes into contact with water accidentally, unplug the power cord and contact your local dealer immediately. ■Keep the device surface clean and dry Use a soft damp cloth to clean the NVR's exterior (do not use liquid spray cleaners) ■If any problems are detected, do not operate If the NVR emits an unusual smell or sound, unplug the power cord and contact an authorized dealer or service center. ■Do not attempt to remove the cover Warning: Do not remove the cover of the NVR to avoid electric shock. ■Handle with care If the NVR cannot function properly due to a collision with a hard object, contact an authorized dealer for repair or replacement. ■Use a standard lithium battery (Note: Please use the included battery or the one specified by the manufacturer) If the system clock does not continue to work after the power is cut off, replace the standard 3V lithium battery on the motherboard. Warning: Before replacing the battery, turn off the NVR, or you may suffer a severe electric shock. Dispose of used batteries properly. ■Place the device in a well-ventilated area The NVR system includes an HDD, which generates a lot of heat during operation. Therefore, to cool the system during operation, do not block the ventilation openings (on the top, bottom, sides, and back). Install or place the device in a well-ventilated area. ■The included power adapter can only be used for one NVR. Do not connect more devices, or the NVR may repeatedly restart due to insufficient power. ■Protect the device from water droplets or splashes. Do not place objects containing water, such as vases, on the device. ■Warning: Do not swallow the battery, as there is a risk of chemical burns. This product contains a coin/button battery. Swallowing a coin/button battery can cause severe internal burns within 2 hours and may lead to death. NVR - User Manual 3S System Technology Inc. Keep new and used batteries away from children. If the battery compartment is not securely closed, stop using the product and keep it away from children. If you believe a battery may have been swallowed or inserted into any part of the body, seek medical help immediately. 2. Hard Disk Installation Note ： Do not install or remove the hard drive when the device power is on. Hard Disk Installation: Note: The above procedure is for reference only. The actual operation may vary depending on the NVR purchased. a)Connect the data and power cables for the two hard drives, and place the hard drive on top of the NVR box. b) Carefully flip the NVR case and secure the hard drive using 8 screws to connect it to the NVR. NVR - User Manual 3S System Technology Inc. 3. NVR Rear Panel Description 4. Camera Currently, the Neutral Halow wireless NVR H7108 is only compatible with the T40 battery- powered camera. Serial Number Physical Interface Connection Instructions 1 HDMI Interface HDMI Interface。 2 WAN Interface Router network input interface/connection to network camera interface 3 USB Interface 1 Can connect a USB mouse, and a USB flash drive can be used as a redundant hard drive for recording. 4 Power Switch Connect the 12V2A power supply. 5 Reset Button Press and hold for 10 seconds to restore to factory settings. 6 SD Card Interface SD c…

Text truncated - open the document above for the full version.

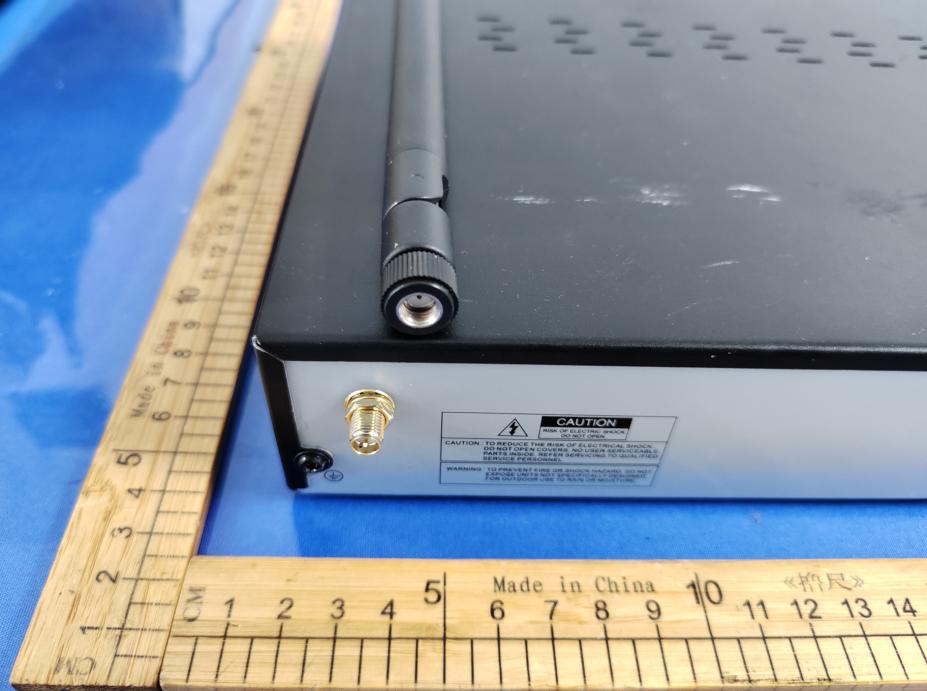

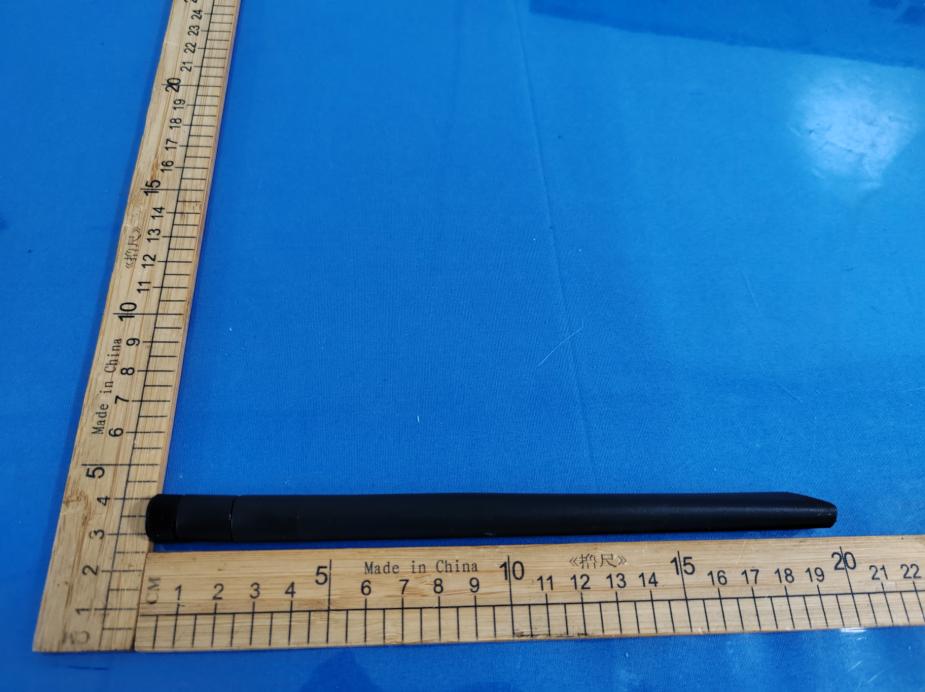

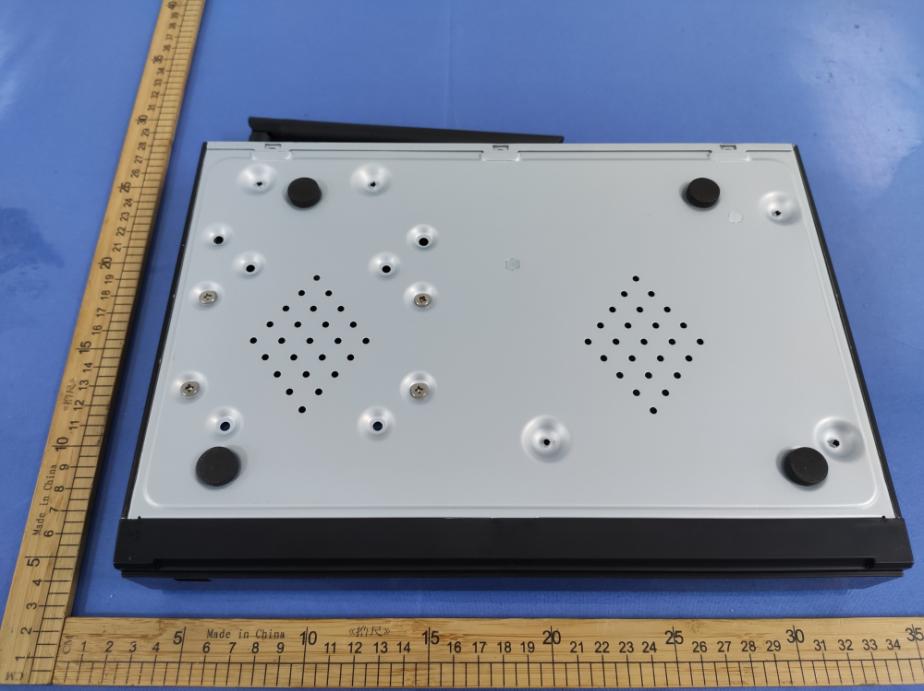

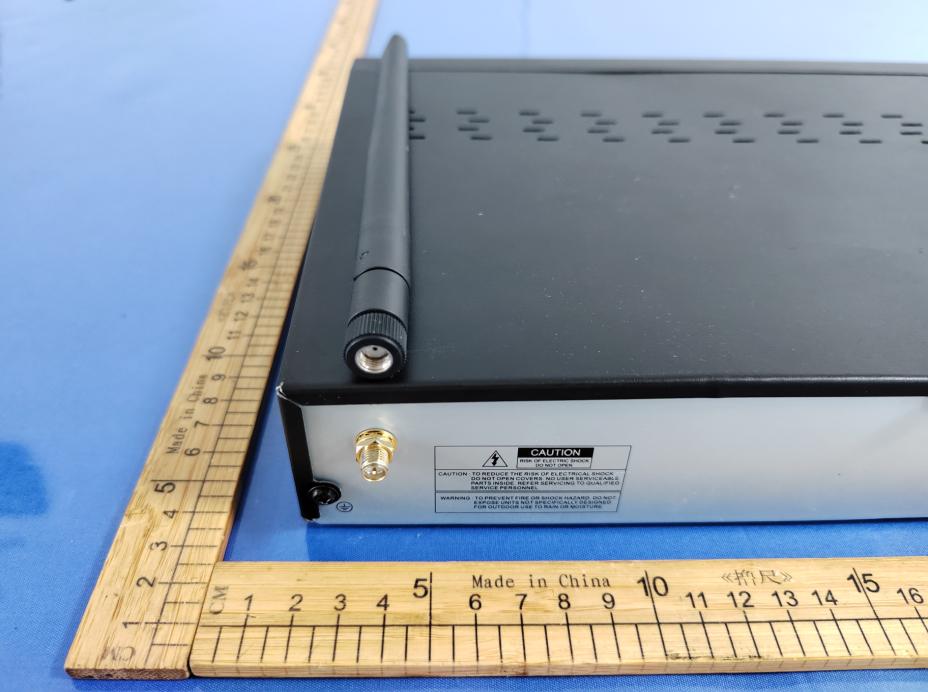

Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT External Photos External Photos Page 1 / 8 External Photos Tested Model: RN100811 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT External Photos External Photos Page 2 / 8 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT External Photos External Photos Page 3 / 8 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT External Photos External Photos Page 4 / 8 ANT Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT External Photos External Photos Page 5 / 8 Multiple Model: 1N100811 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT External Photos External Photos Page 6 / 8 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT External Photos External Photos Page 7 / 8 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT External Photos External Photos Page 8 / 8 ANT ***** END *****

Label Label Location

Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT Internal Photos Internal Photos Page 1 / 5 Internal Photos Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT Internal Photos Internal Photos Page 2 / 5 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT Internal Photos Internal Photos Page 3 / 5 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT Internal Photos Internal Photos Page 4 / 5 Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF EUT Internal Photos Internal Photos Page 5 / 5 ***** END *****

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 6 TR-4-E-R052 TEST REPORT Applicant Name : 3S System Technology Inc. Address : 6F., No.5, Lane 16, Sec. 2, Sichuan Rd. Banqiao Dist., New Taipei City ,22061 Taiwan Report Number : 2504W74883E-RF FCC ID: 2BC3U-RN100811 Test Standard (s) 47 CFR §2.1091 Sample Description Product Type: Wireless Network Video Recorder Model No.: RN100811, 1N100811 Trade Mark: N/A Date Received: 2025-09-03 Report Date: 2025-11-25 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Matt Liang Bob Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2504W74883E-RF Rev:A/4.0(2024/11/01) Page 2 of 6 TR-4-E-R052 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 3 GENERAL INFORMATION ............................................................................................................................ 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 4 OBJECTIVE ................................................................................................................................................... 4 TEST FACILITY .............................................................................................................................................. 4 RF EXPOSURE .............................................................................................................................................. 5 APPLICABLE STANDARD ................................................................................................................................. 5 RESULT ........................................................................................................................................................ 5 EXHIBIT A-EUT PHOTOGRAPHS ................................................................................................................ 6 Shenzhen Accurate Technology Co., Ltd. Report No.: 2504W74883E-RF Rev:A/4.0(2024/11/01) Page 3 of 6 TR-4-E-R052 DOCUMENT REVISION HISTORY Revision Number Report Number Description of Revision Date of Revision Rev.00 2504W74883E-RF Original Report 2025-11-25 Shenzhen Accurate Technology Co., Ltd. Report No.: 2504W74883E-RF Rev:A/4.0(2024/11/01) Page 4 of 6 TR-4-E-R052 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Product Wireless Network Video Recorder Tested Model RN100811 Multiple Model 1N100811 Model Difference # The difference between models is model name and the appearance of the LOGO. Please refer to DOS letter for details. The applicant provided model “RN100811” for testing. Voltage Range # DC 12V from adapter Frequency Range WIFI Halow 1M: 903.5-926.5MHz WIFI Halow 2M: 905-925MHz WIFI Halow 4M: 906-926MHz WIFI Halow 8M: 908-924MHz Maximum Conducted Peak Output Power 25.32dBm Modulation Technique OFDM Antenna Specification # 2.45dBi (It is provided by the applicant.) Sample Serial Number 38SK-1 (Assigned by ATC, Shenzhen) Sample/EUT Status Good condition Objective This test report is in accordance with Part 2-Subpart J, Part 15-Subparts C and Part 2-Subpart J, Radiofrequency Radiation Exposure of the Federal Communication Commission rules. The tests were performed in order to determine compliance with FCC §2.1091 rules. Test Facility The test site used by Shenzhen Accurate Technology Co., Ltd. to collect test data is located on the Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Accredited by American Association for Laboratory Accreditation (A2LA).The Certificate Number is 4297.01. Shenzhen Accurate Technology Co., Ltd. Report No.: 2504W74883E-RF Rev:A/4.0(2024/11/01) Page 5 of 6 TR-4-E-R052 RF EXPOSURE Applicable Standard According to subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Radio Frequency (MHz) Antenna Gain # Tu…

Text truncated - open the document above for the full version.

DongguanYoubi Electronics Co.,LTDHangzhouYoubige Electronics Co.,LTDShenzhenYoubi Electronics Co.,LTD Room 101,Building 2,No.9,Room 106,Building 3,Letong Science Park, Room 106, BuildingA,Xinzheng Industrial Park, Xinfa Road,Lin Village,Tangxia TownNo.500 Qiuyi Road,Binjiang District57 Liuxian Road, Bao 'an District, Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 2 / 9 承 认 书 APPROVAL SHEET 客 户 名 称 CUS TOMER NAM E: 产 品 名 称 PRO DUCT NAME: Antenna_Black WiFi Halow _2dBi_Omnidirection 50Ω_SMA _915MHz_NA_200mm 客 户 料 号 CUS TOMER P/N:1015020043 优比电子料号 Yo ubi P/N:UB02S186B3D1293AREV: B MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKED BY: Lina APPROVED BY:Changxing.Liu DATE:2024/7/16 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 3/9 ModificationHistory VersionContentRevisionIssuedbyDate AOriginalversionlina2024-5-22 BExtraplugSam2024-7-16 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 4/9 Content ltemDescription 1.-------------------------------------------------------------------ElectricalSpecification 2.---------------------------------------------------------------TestItemsandEquipment 3.---------------------------------------------------------------------------------SParameter 4.------------------------------------------------------------------------EfficiencyandGain 5.---------------------------------------------------------------------------RadiationPattern 6.-----------------------------------------------------------------MechanicalSpecification DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 5/9 1.ElectricalSpecification: 2.TestItemsandEquipment CharacteristicsSpecificationsUnit OutlineDimensions200xØ13mmmm Frequency 900-930 MHz Impedance 50 Ω VSWR ≤2.0 PolarizationLinearPolarization Gain2±0.5dBi Efficiency＞ 70 % ConnectorTypeSMA -40°C ~+85 Operatingtemperature°C StorageTemp 10°C~40°C Apparentsaltspray48/HH TestitemsTestequipment SParameter 1.ReturnLoss 2.VSWR Networkanalyzer (AgilentE5071B) Thewholemachineof Passiveparameters 1.Frequency 2.Gain 3.RadiationPattern 1.3Dmicrowavedarkroom (5m*5m*5m) 2.Networkanalyzer (AgilentE5071B) Thewholemachineof Activeparameters 1.TRP 2.TIS 1.3Dmicrowavedarkroom (5m*5m*5m) 2.Comprehensivetestinstrument (CMW500) DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 6/9 3.SParameter Frequency(MHz) 910915920930 ReturnLoss (dB) -24.65-22.01-18.42-13.80 VSWR 1.121.171.261.50 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 7/9 4.EfficiencyandGain Frequency(MHz)910915920930 Efficiency(%) 73.9874.2876.9680.06 Gain(dBi) 2.452.282.302.14 DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 8/9 5.RadiationPattern 5-1Antenna3DRadiationPattern `910MHz915MHz 920MHz930MHz DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 9/9 5-2Antenna2DRadiationPattern 910MHz915MHz 920MHz930MHz DongguanYoubiElectronicsCo.,LTDHangzhouYoubigeElectronicsCo.,LTDShenzhenYoubiElectronicsCo.,LTD Room101,Building2,No.9,Room106,Building3,LetongSciencePark,Room106,BuildingA,XinzhengIndustrialPark, XinfaRoad,LinVillage,TangxiaTownNo.500QiuyiRoad,BinjiangDistrict57LiuxianRoad,Bao'anDistrict,Shenzhen Tel:+86-769-81777126Website：www.ubuant.com 10/9 6.MechanicalSpecification:

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 102 TR-4-E-R018 TEST REPORT Applicant Name : 3S System Technology Inc. Address : 6F., No.5, Lane 16, Sec. 2, Sichuan Rd. Banqiao Dist., New Taipei City ,22061 Taiwan Report Number : 2504W74883E-RF-00A FCC ID: 2BC3U-RN100811 Test Standard (s) FCC PART 15.247 Sample Description Product Type: Wireless Network Video Recorder Model No.: RN100811, 1N100811 Trade Mark: N/A Date Received: 2025-09-03 Report Date: 2025-11-25 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Matt Liang Bob Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2504W74883E-RF-00A Rev:A/4.0(2024/11/01) Page 2 of 102 TR-4-E-R018 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 4 GENERAL INFORMATION ............................................................................................................................ 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 5 OBJECTIVE ................................................................................................................................................... 6 TEST METHODOLOGY .................................................................................................................................... 6 TEST FACILITY .............................................................................................................................................. 6 MEASUREMENT UNCERTAINTY ....................................................................................................................... 6 SYSTEM TEST CONFIGURATION ............................................................................................................... 7 EUT EXERCISE SOFTWARE AND POWER LEVEL # ............................................................................................ 7 SUMMARY OF TEST RESULTS ................................................................................................................. 11 TEST EQUIPMENT LIST ............................................................................................................................. 12 ANTENNA REQUIREMENT......................................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................... 13 ANTENNA CONNECTOR CONSTRUCTION ....................................................................................................... 13 AC LINE CONDUCTED EMISSIONS .......................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................... 14 EUT SETUP ................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ........................................................................................................................ 14 TEST PROCEDURE ...................................................................................................................................... 14 CALCULATION ............................................................................................................................................. 15 RADIATED SPURIOUS EMISSIONS .......................................................................................................... 18 APPLICABLE STANDARD ............................................................................................................................... 18 EUT SETUP ................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .................................................................................. 19 TEST PROCEDURE ...................................................................................................................................... 20 CALCULATION ............................................................................................................................................. 20 6 dB EMISSION BANDWIDTH & OCCUPIED BANDWIDTH ..................................................................... 79 APPLICABLE STANDARD ............................................................................................................................... 79 TEST PROCEDURE ...................................................................................................................................... 79 TEST DATA .................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF-00A Test Photos Test Photos Page 1 / 3 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF-00A Test Photos Test Photos Page 2 / 3 Radiated Spurious Emissions Test View (9kHz-30MHz) Radiated Spurious Emissions Test View (30MHz- 1GHz) Shenzhen Accurate Technology Co., Ltd. No.: 2504W74883E-RF-00A Test Photos Test Photos Page 3 / 3 Radiated Spurious Emissions Test View (1GHz- 10GHz) ***** END *****
