2BC4C-HTK-1632LED helmet light

全彩LED屏/自定义编辑/双排显示 3.添加设备 4.连接蓝牙设备 LED头盔屏 使用说明书 产品名称：LED头盔屏 产品型号：HTK-1632 电流电压:5V2A 输入接口：USB 电池容量：800mah 16*32显示屏 注意 右转 左转 开关 长按3秒开关机 点按模式 LED头盔屏 遥控器 开关 长按3秒开关机 短按切换动画 Type-c充电口 Type-c充电口 2、如果你没有APP Store/Google Play，请点击第三方从本地服务浏览器搜索“iPixel Pro”/或扫码下载 3.打开手机蓝牙 ① ② 注: 1:第一次打开APP,有是否允许 权限选项，请都选择允许 2:请点击“设备连接”,添加设备 3:若手机无法搜索到设备, 请检查是否打开定位! 连接 APP下载与蓝牙连接 全彩LED屏/自定义编辑 LED Helmet Screen 规格参数 功能介绍 1.手机扫描下面二维码进行下载安装或者进入Google Play/APP store搜索“iPixel Pro”进行下载 该产品配备了一块内置的可充电锂电池。关于电池使用的安全警示:切勿 拆解撞击、挤压或将其投入火中。若出现严重鼓胀情况，请勿继续使用。 切勿将其置于高温环境中。电池浸入水中后切勿继续使用! 16*32 display screen switch Press and hold for 3 seconds to power on/off. Tap briefly to switch animations. 联邦通信委员会警告 本设备符合美国联邦通信委员会（FCC）规则第 15 部分的要求。使用时须满足以下两个条件： （1）本设备不得造成有害干扰； （2）本设备必须接受所收到的任何干扰，包括可能导致其无法正常工作的干扰。 注 1：本设备已通过测试，符合美国联邦通信委员会（FCC）第 15 部分关于 B 类数字设备的 限制要求。这些限制旨在为住宅安装提供合理的防干扰保护。本设备会生成、使用并可能辐 射无线电频率能量，若未按照说明进行安装和使用，可能会对无线电通信造成有害干扰。但 无法保证在特定安装中不会发生干扰。如果本设备确实对无线电或电视接收造成有害干 扰（可通过关闭和开启设备来确定），建议用户尝试通过以下一种或多种措施来解决干扰 问题： - 重新调整或移动接收天线的方向。 - 增大设备与接收器之间的距离。 - 将设备连接到与接收器不同电路的插座上。 - 咨询经销商或有经验的无线电/电视技术人员寻求帮助。 注 ：未经负责合规的一方明确批准，对本装置所做的任何更改或修改都可能导致用户操作 设备的权限失效。 该设备已通过评估，符合一般射频辐射暴露要求。在便携式使用条件下，该设备可无限制 使用。 3. Add equipment Attention Turn Right Left Turn Switch Long press for 3 seconds to turn on/off Tap for mode selection LED Helmet Screen Remote Control Type-C charging port Type-C charging port ① ② Connect Product Parameter Product Name: LED helmet light Product Model: HTK-1632 Current voltage: 5V 2A Input interface: USB Battery capacity: 800mAh Function Introduction Downloading the App and connecting via Bluetooth 1.Scan the QR code below to download and install app with your mobile phone, or enter Google Play/App Store and search for "iPixel Pro" to download Scan the QR code and download the App 2. If you don't have the App Store/Google Play, please click on the third-party option and search for "iPixel Pro" using the local service browser, or scan the QR code to download. 3.Turn on the Bluetooth on your mobile phone. 4. Connect to Bluetooth devices Note: 1: When you first open the APP, there is an option to allow permissions. Please select "Allow" for all. 2: Please click "Device Connection" to add the device. 3: If your phone cannot detect the device, please check if the location function is enabled! FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This product is equipped with a built-in rechargeable lithium battery. Safety waming for battery usage: Do not disassemble, impact, squeeze or throw it into fire.if there is severe bulging, do not continue to use. Do not place it in a high-temperature environment.Do not use after the battery is immersed in water! User Manual Full-color LED screen / Customized editing

Rev 1/26/2023 Shenzhen shangu innovation technology co., ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 09-06-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BC4C-HTK-1632 [Shenzhen shangu innovation technology co., ltd] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Shenzhen shangu innovation technology co., ltd] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Leon LIU Rev 1/26/2023 Shenzhen shangu innovation technology co., ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 09-06-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BC4C-HTK-1632 [Shenzhen shangu innovation technology co., ltd] ce8rtifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Leon LIU

Shenzhen shangu innovation technology co., ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: September 06, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BC4C-HTK-1632 Shenzhen shangu innovation technology co., ltd (“the applicant”) certifies that, as of the date of the filing of the application, GLOBAL PRODUCT PROMOTION COMMERCE CO., LTD. (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. GLOBAL PRODUCT PROMOTION COMMERCE CO., LTD. ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: GLOBAL PRODUCT PROMOTION COMMERCE CO., LTD. FRN: 0037700671 Address: 350 NORTHERN BLVD STE 324-1331, ALBANY, NY, 12204, USA Signature: Contact Person: David Kim Tel: (949)254-2565 Email: [email protected] Applicant Company Name: Shenzhen shangu innovation technology co., ltd FRN: 0034330084 Address: West of Floor 4, Xinhui Industrial Zone, Tangtou Third Industrial Park, Tangtou Community, Shiyan Street, Baoan District, Shenzhen, 518000, China Signature: Contact Person: Leon LIU Tel: 13713682600 Email: [email protected]

Shenzhen shangu innovation technology co., ltd Date: September 06, 2026 Product Model Number: HTK-1632, HCD-1632A, HCD-1632B, HCD-1632C, HCD-1632D FCC ID: 2BC4C-HTK-1632 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Signature： By: Leon LIU Title: Manager Tel.: 13713682600 Email: [email protected] On behalf of: Shenzhen shangu innovation technology co., ltd

Shenzhen shangu innovation technology co., ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 6, 2026 Subject; Request for Confidentiality FCC ID: 2BC4C-HTK-1632 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature： By: Leon LIU Title: Manager

Shenzhen shangu innovation technology co., ltd Model Difference Statement Date: September 06, 2026 FCC ID: 2BC4C-HTK-1632 Dear Sir/Madam, Added models HCD-1632A, HCD-1632B, HCD-1632C, HCD-1632D basis of the original product HTK-1632 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Leon LIU Title: Manager Company name: Shenzhen shangu innovation technology co., ltd Address: West of Floor 4, Xinhui Industrial Zone, Tangtou Third Industrial Park, Tangtou Community, Shiyan Street, Baoan District, Shenzhen, 518000, China

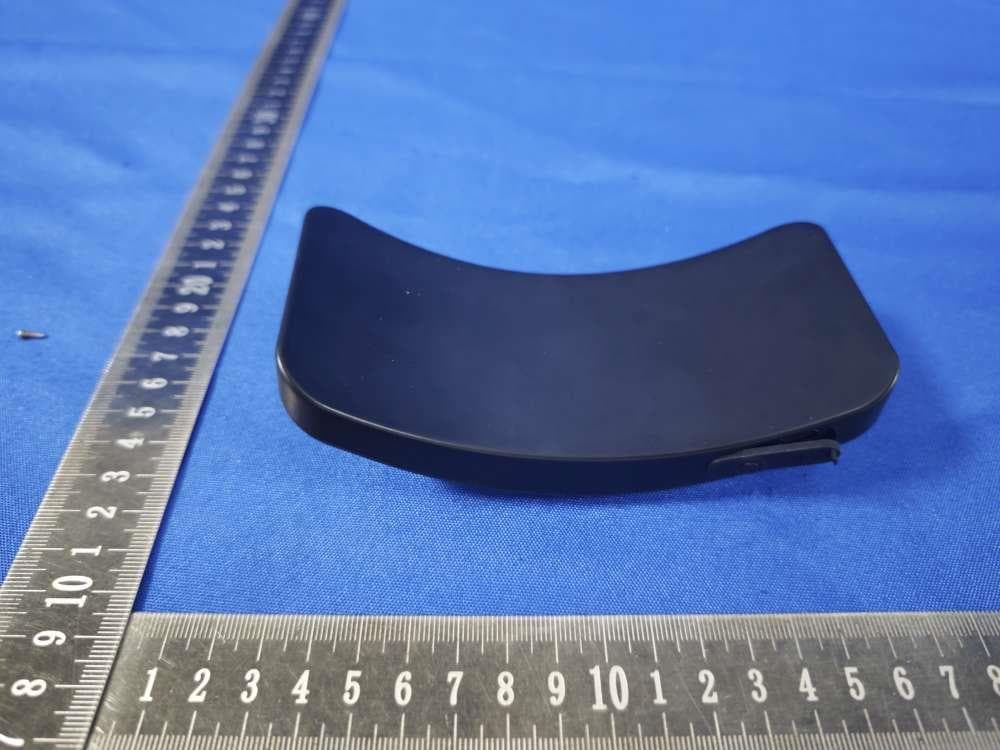

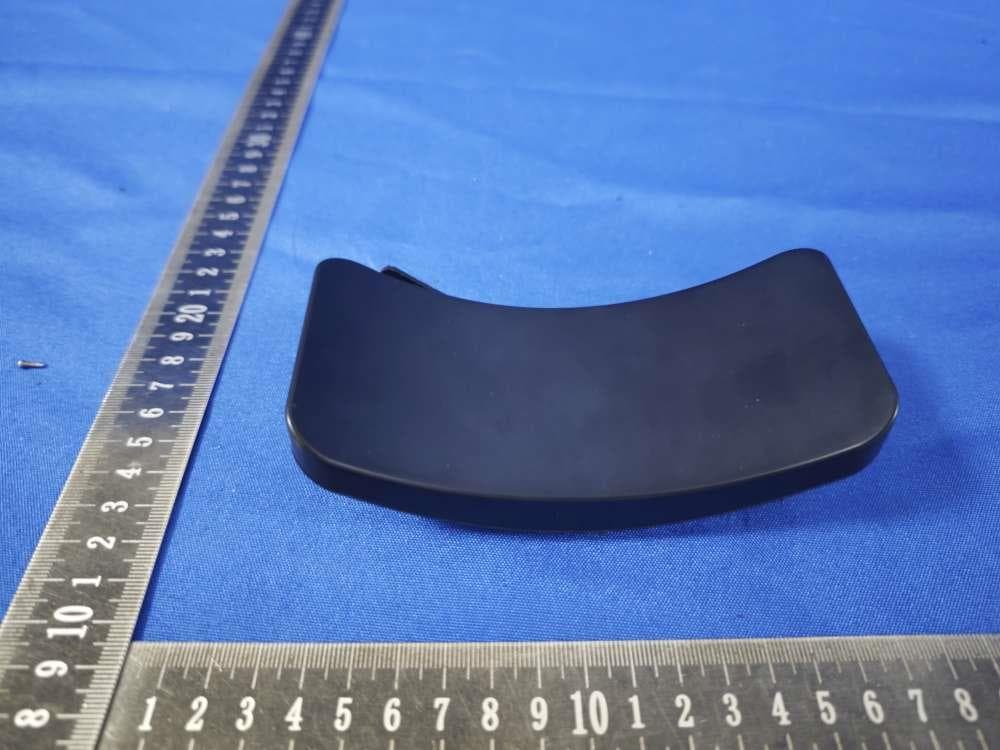

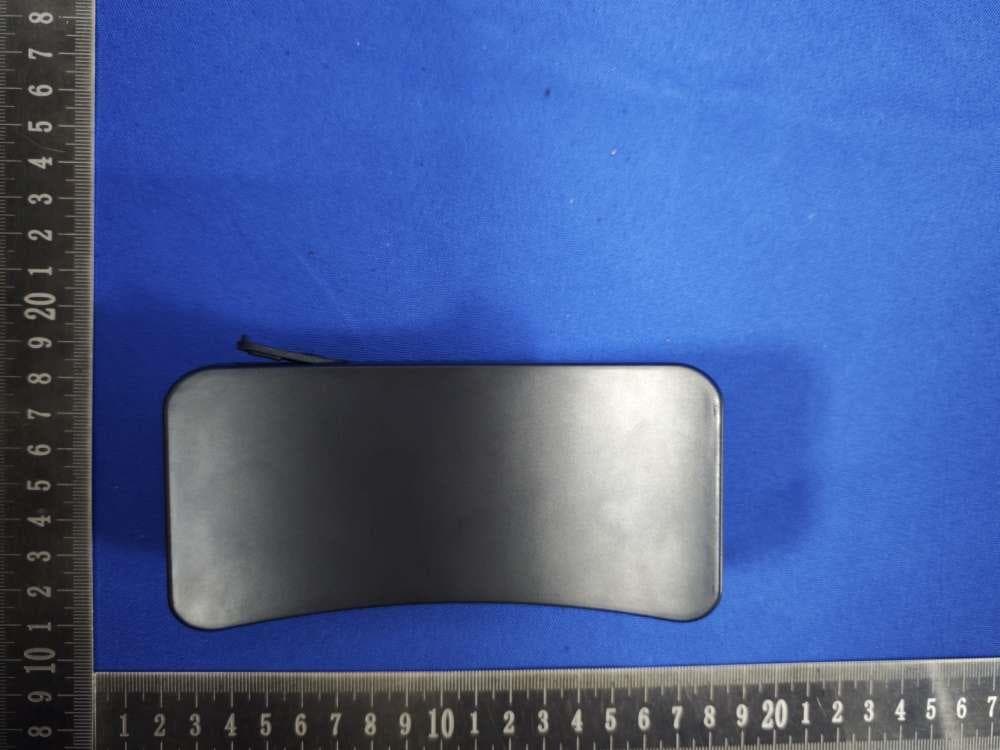

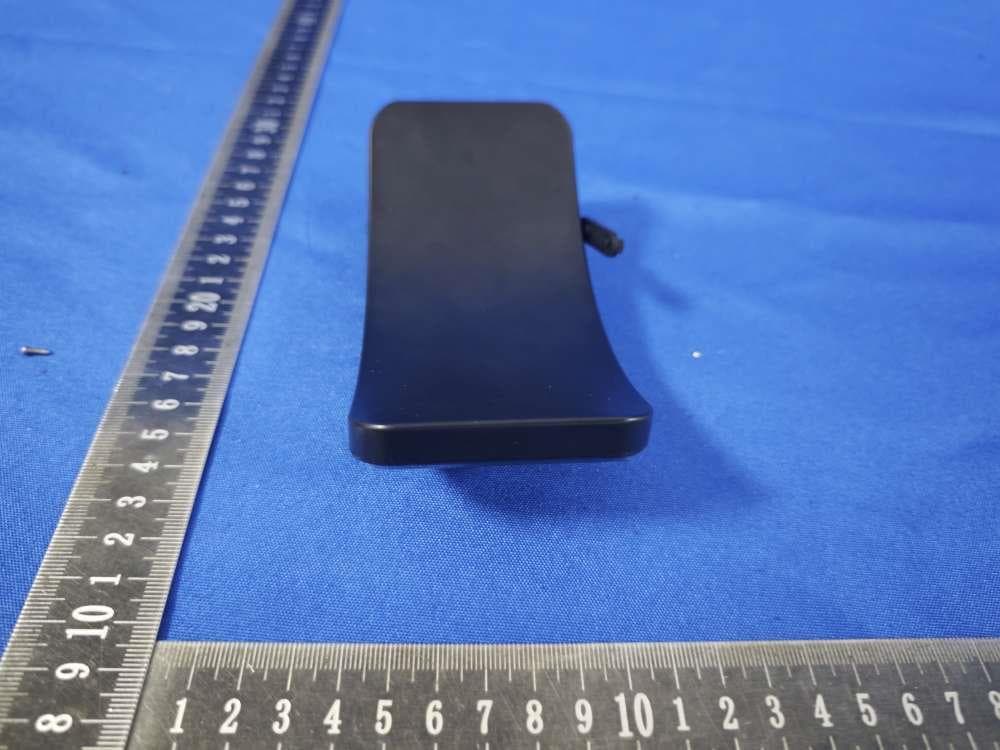

Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report Annex A. EUT External Photos Model: HTK-1632 EUT View 1 EUT View 2 Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report EUT View 7

Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report Annex D. Label and Information FCC Label Sample Label Size:1cm*0.2cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report Annex B. EUT Internal Photos Model: HTK-1632 EUT Internal View 1 EUT Internal View 2 PCB Antenna Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report EUT Internal View 3 EUT Internal View 4

FCC ID: 2BC4C-HTK-1632 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -4.72 -4(±1) -3 0.501 2480 5 0.1577 3.0 So a SAR test is not required

Project Name:Helmet light RF Engineer: Feihu Li Testing Date: 2025-3-31 FrequencyRange:WIFI/BT 2.4GHz 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd. Address：Room 602, Building B, Zhongkenuo Industrial Park, Hezhou Community, Hangcheng Sub district, Bao’an District, Shenzhen City, Guangdong Province, P.R.China Shenzhen Yangyue Electronic Communication Technology Co., Ltd. DateRevisionDescription of changes 2025-3-31TA UC Revision History 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd. 1. Basic Information NO.ITEMSDETAILS 1 工作频段 Operatingband WiFi/BT 2.4GHz 2 频率范围 Frequency range WiFi:2400~2500(MHz) 3 天线类型 Antenna Type PCB 4 PCB 5 主板版本 The mainboardversion TR2601H119-05 6 输入阻抗 InputImpedance 50 （ Ω ） 7 增益 Gain Peak Gain ： 2.0dBi (XZ-V) Average Gain ： 0.5dBi (XZ-V) 8 极化方式 Polarization Vertical polarization + Horizontal polarization RF Feihu Li ME 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd. 天线材质及实现形式 Antenna material and implementation form 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd. 2.Antenna physical object and physical dimensions Typical Electrical Characteristics 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd. Typical Radiation Patterns @ 2.45GHz XY-plane 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd. Typical Radiation Patterns @ 2.45GHz XZ-plane 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd. Typical Radiation Patterns @ 2.45GHz YZ-plane 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd. The end , thanks! 深圳市扬跃电子通信科技有限公司 Shenzhen Yangyue Electronic Communication Technology Co., Ltd.

Report No: SSP26070721-1 FCC Test Report Page 1 of 51 FCC TEST REPORT FCC ID: 2BC4C-HTK-1632 Report No. : SSP26070721-1 Applicant : Shenzhen shangu innovation technology co., ltd Product Name : LED helmet light Model Name : HTK-1632 Test Standard : FCC Part 15.247 Date of Issue : 2026-08-19 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.zrlklab.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26070721-1 FCC Test Report Page 2 of 51 Test Report Basic Information Applicant..................................: Shenzhen shangu innovation technology co., ltd Address of Applicant...............: West of Floor 4, Xinhui Industrial Zone, Tangtou Third Industrial Park, Tangtou Community, Shiyan Street, Baoan District, Shenzhen, 518000, China Manufacturer..........................: Shenzhen shangu innovation technology co., ltd Address of Manufacturer........: West of Floor 4, Xinhui Industrial Zone, Tangtou Third Industrial Park, Tangtou Community, Shiyan Street, Baoan District, Shenzhen, 518000, China Product Name.........................: LED helmet light Brand Name.............................: - Main Model..............................: HTK-1632 Series Models..........................: See section 1.1 (Page 5) Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Date of Test .............................: 2026-07-31 to 2026-08-19 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26070721-1 FCC Test Report Page 3 of 51 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Tes…

Text truncated - open the document above for the full version.

Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP26070721-1 FCC ID: 2BC4C-HTK-1632 Annex of Test Report Radiated Emission Test View Above 1GHz
