2BC4X-D600POS Terminal

TechnicalSpecs ATTENTION Warning  Readallinstructionsandsafetyinformationbeforeusetoavoidinjury. Thelimitoperatingambienttemperatureofthedevicedeclaredby themanufactureris-10~50°C.Remark:40°C(EUTpairedwith adaptermodel:PS36F090Y4000S);50°C(Otheradapterorwithout adapter).Whenthecustomerpurchasestheadapterthemselves, theyshouldselectonethatcanoperateatatemperatureofatleast 50°C. Statement Theequipmentdamagecausedbynaturaldisasters,falling,self disassemblyandnon-compliancewiththeoperationspecificationsis notcoveredbythefreewarranty. Somedetailsofthisdocumentmaybeinconsistentwiththereal objectduetotheupdateiterationoftheproduct.Pleasetakethereal objectasthestandard,andourcompanyreservestherightto interpretthisdocument. D600 QuickGuide ItemsSpecification OperatingSystemAndroid11.0go [email protected] Memory2GBRAM+8GBROM Display5”,720*1280 Camera0.3MFF Printer2inchthermalprinter CellularNetworkSupport2g/3g/4g WIFI IEEE802.11a/b/g/n/ac （ 2.4G/5G ） BluetoothVersion5.0,supportBLE PaymentNFC/ICCard/MSR Interface 2*USBType-C,1*RJ45,1*AudioJack 2*USBType-A,1*DCJack ProductDiagram NFCCardReader NFCantennalocatesatthebottomofthescreenandontheprinter cover.It’susedtosensechipandacquiredatathroughcontactless way. ICCardReader Usedforinsertingthebankchipcardandgettinginformationsecurely. Magneticstripecardreader Usedforreadingencryptinformationstoredincorrespondingcards. Camera Usedfortakingphotosandscanning1D/2Dcode. PowerButton Usedforchangetherunningstatesofdevice,suchaspressing2~3 secondstopoweron/offorscreencaptureandpressing10seconds torestartautomaticallywhendeviceiscrashed. Keypad Usedforenteringpasswordforcertainpaymentusages. CardSelectionInstruction Printerinstructions 1)Support2inchthermalpaperrollwithspecificationof57*40mm(w*φ) 2)Feedthepapercorrectlyintothepapercontainerinthedirectionas shown,andpullsomepaperoutsidethecutter; Note:Iftheprintedpaperisblank,pleasecheckwhetherthepap-erroll hasbeeninstalledinthecorrectdirection. UsingScenarios Thisparameterisusedinacertainscenario PackageList NO.ItemslistDescription 1DeviceDefault 2Charger1pcs,9V/4A 3UsermanualNeutral RadioWavesspecs RadioFrequency Max.Output Power(dBm) GSM 900MHz31.72dBm 1800MHZ28.49dBm WCDMA FDDI21.91dBm FDDVIII21.77dBm FDD FDD122.83dBm FDD322.87dBm FDD721.98dBm FDD822.11dBm FDD2022.47dBm FDD2822.39dBm TDD TDD3422.96dBm TDD3823.02dBm BT(classic)12.52dBm BLE-0.24dBm WIFI(2.4G)17.85dBm WIFl5GBand117.41dBm WIFI5GBand216.69dBm WIFI5GBand317.25dBm WIFI5GBand413.42dBm NFC 83.53dBV/m (@3m) GPS N/A RFexposurestatement RFexposureinformation:TheMaximumPermissibleExposure(MPE) levelhasbeencalculatedbasedonadistanceofd=20cmbetweenthe deviceandthehumanbody.TomaintaincompliancewithRFexposure requirement,useproductthatmaintaina20cmdistancebetweenthe deviceandhumanbody. Hereby,[MAXPAYPAZARLAMAICVEDISTICARETLIMITED SIRKETI]declaresthattheradioequipmenttype[POSTerminal]isin compliancewithDirective2014/53/EU. ThefulltextoftheEUdeclarationofconformityisavailableatthefollowing internetaddress:http://www.maxpay-co.com ManufacturerAddress：FulyaMah.BüyükdereCad.No:76,UnitNO178, 34394Mecidiyeköy.Şişli–İSTANBUL,Türkiye Cautionriskofexplosionifbatteryisreplacedbyanincorrecttype.Dispose ofusedbatteriesaccordingtotheinstructions FCCRegulations: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjectto thefollowingtwoconditions:(1)Thisdevicemaynotcauseharmful interference,and(2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation. Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimits aredesignedtoprovidereasonableprotectionagainstharmfulinterference inaresidentialinstallation.Thisequipmentgenerates,usesandcan radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordance withtheinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedby turningtheequipmentoffandon,theuserisencouragedtotrytocorrect theinterferencebyoneormoreofthefollowingmeasures: —Reorientorrelocatethereceivingantenna. —Increasetheseparationbetweentheequipmentandreceiver. —Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. —Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Changesormodificationsnotexpresslyapprovedbythemanufacturer couldvoidtheuser’sauthoritytooperatetheequipment. FCCRFRadiationExposureStatement ThisequipmentcomplieswithFCCradiationexposurelimitssetforthfor anuncontrolledenvironment.TocomplywithFCCRFExposure compliancerequirements,thisgrantisapplicabletoonlyMobile Configurations.Theantennasusedforthetransmittermustbeinstalledto provideaseparationdistanceofatleast20cmfromallpersonsandmust notbeco‐locatedoroperatinginconjunctionwithanyotherantennaor transmitter. ThisdeviceisrestrictedtoindoorusewhereoperatedintheEuropean Communityusingfrequencyin5150MHz~5350MHztoreducethe potentialforinterference.

UNITED STATES DESIGNATED AGENT LETTER Date: March 26, 2025 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: MAXPAY PAZARLAMA IC VE DIS TIC Company Name: Picus Advisors US LLC Contact Name: MOHAMMAD MAZAHERI Contact Name: Ivan Wang Address: Levent Mahallesi Comert Sokak No:1 Levent Mahallesi Comert Sokak No:1 Address: 839 FM1489 Rd., Brookshi re, TEXAS, 77423, USA City/Province/Zip: ISTANBUL, Turkey, 34330 City/Province/Zip: Brookshire, TEXAS, 77423 Telephone: +905332446976 Telephone: (713) 614-8188 Email: [email protected] Email: [email protected] FRN: 0034333393 FRN: 0034336891 Applicable Equipment: FCC ID: 2BC4X-D600 ATTN: Director of Certification: We, < MAXPAY PAZARLAMA IC VE DIS TIC > and <Picus Advisors US LLC> acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative We, < MAXPAY PAZARLAMA IC VE DIS TIC> and <PicusAdvisorsUSLLC>understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e- mail of the designated agent listed above. or judicial proceeding involving the equipment, whichever is later. Applicant MAXPAY PAZARLAMA IC VE DIS TIC U.S. designated agent Picus Advisors US LLC Name (Printed): Ivan Wang Title: CEO Signature:

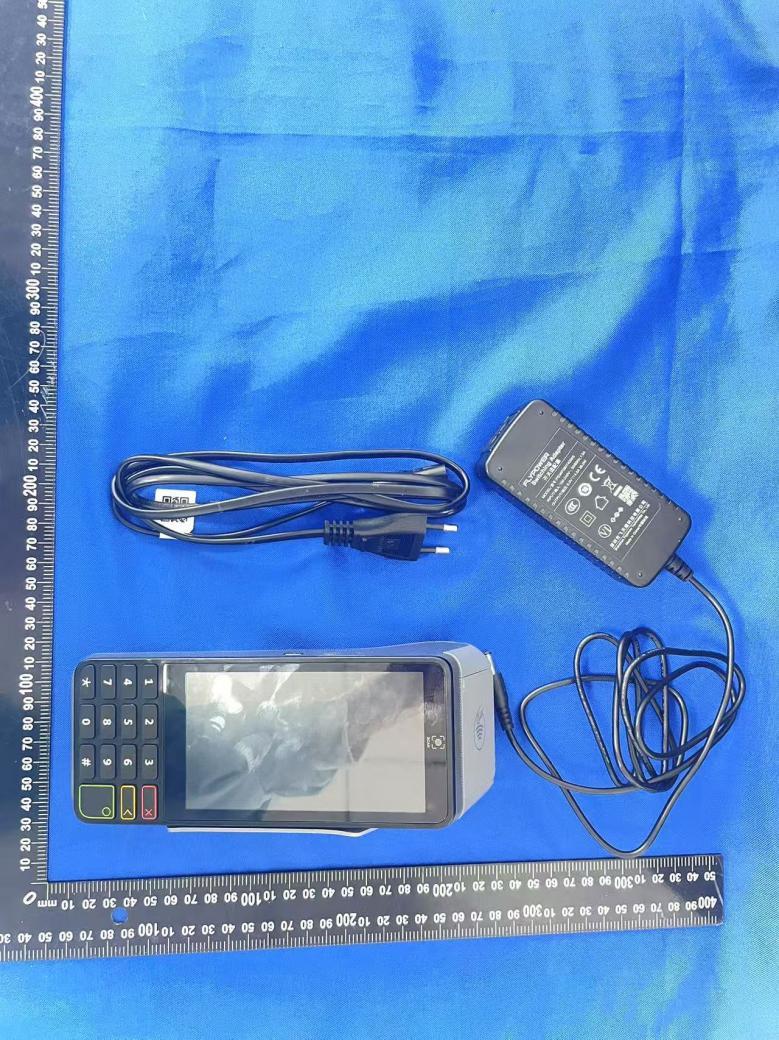

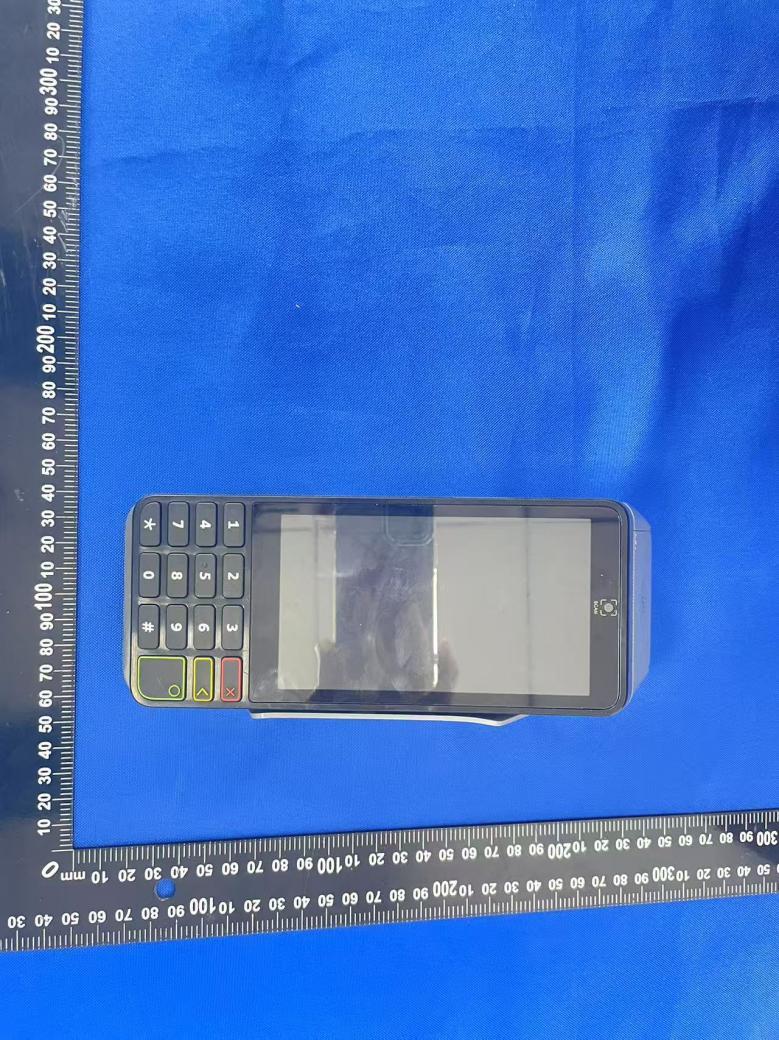

ReportNo.: BL-SH2510034 -AW 1 / 4 ANNEXCEUTEXTERNALPHOTOS FRONTVIEWOFEUT REARVIEWOFEUT NFCABT ReportNo.: BL-SH2510034 -AW 2 / 4 LEFTVIEWOFEUT RIGHTVIEWOFEUT ReportNo.: BL-SH2510034 -AW 3 / 4 TOPVIEWOFEUT BOTTOMVIEWOFEUT ReportNo.: BL-SH2510034 -AW 4 / 4 VIEWOFALLEUT --BLANKBELOW--

Model: D600 POS Terminal SN:XXXXXXXXXXXXXXX IMEI 1:XXXXXXXXXXXXXXX IMEI 2:XXXXXXXXXXXXXXX OPEN HW:XXXXXXXXX SIMSAMSD card slot inside Brand: MP Arial 5pt Arial 3.5pt Arial 3.5pt Arial 3.5pt 条码高度3mm SN,IMEI编码见生产通知单 HW见生产通知单 MAXPAY PAZARLAMA IC VE DIS TICARET LIMITED SIRKETI FCC ID2BC4X-D600 Arial 3.5pt

ReportNo.: BL-SH2510034 -AI 1 / 8 ANNEXDEUTINTERNALPHOTOS EUTUNCOVERVIEW1 EUTUNCOVERVIEW2 ReportNo.: BL-SH2510034 -AI 2 / 8 EUTUNCOVERVIEW3 EUTUNCOVERVIEW4 ReportNo.: BL-SH2510034 -AI 3 / 8 EUTUNCOVERVIEW5 EUTUNCOVERVIEW6 WIFI/GPS/BTANT ReportNo.: BL-SH2510034 -AI 4 / 8 EUTUNCOVERVIEW7 EUTUNCOVERVIEW8 2/3/4GMAINANT 2/3/4GDIVANT ReportNo.: BL-SH2510034 -AI 5 / 8 MAINBOARDTOPVIEW(WITHSHIELDING) MAINBOARDTOPVIEW(WITHOUTSHIELDING) ReportNo.: BL-SH2510034 -AI 6 / 8 MAINBOARDREARVIEW(WITHSHIELDING) MAINBOARDREARVIEW(WITHOUTSHIELDING) SECONDARYBOARD1TOPVIEW(WITHSHIELDING) ReportNo.: BL-SH2510034 -AI 7 / 8 SECONDARYBOARD1TOPVIEW(WITHOUTSHIELDING) ReportNo.: BL-SH2510034 -AI 8 / 8 SECONDARYBOARD1REARVIEW --BLANKBELOW--
