2BC6W00001Portable Power Station

PB300 1 User manual MODE NO: PB-300 PB300 2 Product Brief PB300 is powerful portable energy storage.Built in bidirectional inverter, can be directly charged with an external AC power supply, and also supports solar panel charger. And it provide not only stand USB-A output, QC USB-A 60W , USB-C PD 65W output and wireless charge, and DC, AC output and LED lamps, support pass through.Built in Bluetooth speaker, supporting mobile app control. PRODUCT FEATURES Battery Capacity 25.6V/9000mAh (230Wh) 25.6V/9000mAh Power Ports AC Outlet ◆ Dual AC outlet (US standard) ◆ 120VAC/60Hz pure sine-wave 300W Rate DC port ◆Dual 5521DC Ports and a car port, 12V 10A Max shared USB Power USB ◆ Dual Charge USB-A Port, 5/2.4A 12W Max ◆ One USB-A Ports 5 to 20V, output 60Wmax ◆ A USB-C PD Port: 5 to 20V, output 65W Charging Input For: ◆DC /Solar Input: 10-30V, 100W max, Anderson port ◆AC Input: 120V/60Hz, 300W max, AC Power port LED LAMP LED A 5W lamp Display LCD Display for Battery level in percentage LCD Display for Battery input/output power in Watt LCD Display for DC, AC, USB,wireless charge output LCD Display for Battery charge/discharge remaining time LCD Display for Bluetooth,WIFI LCD Display for Volume Button Buttons for Power on/off, AC, DC ,Volume and LAMP APP The APP interface can display information such as battery level, input/output power, volume, etc. It can also control AC, DC output, and Bluetooth audio.The WIFI module built-in 40MHz crystal oscillator. Bluetooth speaker Two 5W Bluetooth speakers。The Bluetooth module built-in 26MHz crystal oscillator. OPERATION DESCRIPTION Abbreviation Note : BL: BATTERY LEVEL LCD Display for battery level and protection 1.Display battery level from 0 to 100 as 0%-100% when input. 2.Display battery level from 0 to 100 as 0%-100% when output. BP: BATTERY POWER LCD Display PB300 3 1.Input or Output Display power from 0 to XXXX Watts 2.When output, display output is 0-XXX corresponding to 0-XXXX W display power 3. When charging and placing, the display input is 0-XXX corresponding to 0-XXXX W to display power 1.SLEEP MODE ◆ All off. No output and up to 1 hours(Can be set through the APP) 2.CHARGE MODE ◆Battery charge, BP and BL, remaining time on. DC/AC input plug-in, battery is charging，display BL,BP and remaining time BL=100% and the battery is full, stop charging and rotating. 3.OUTPUT MODE ◆One of AC/DC/USB-A/USB-C/Wireless charge output, BP and BL on. Press the Power button , turn on power Press the Power button for 2 seconds , turn off power Press the AC button, turn on AC output. Press the AC button, turn off AC output. If AC output OCP, turn off AC output and LCD display “overload” . Battery level lower than 1%, turn off AC. Press the USB button, turn on USB-A/UAB-C/Wireless output. Press the AC button, turn off USB-A/UAB-C/Wireless output. Press the DC button, turn on DC/Car port output. Press the DC button , turn on DC/Car port output. 10 minutes without operation, LCD off. Battery level drops to 0%, wait for 15 seconds, then go to SLEEP Mode. No any loading after 1 hours, SLEEP MODE 4.Light MODE Press LAMP button, Open the lamp, Click to switch brightness to 100%, 50%, SOS,turn off mode. Press LAMP button, the lamp off. 5.Connect Bluetooth Press Bluetooth button for 2 seconds ,the Bluetooth Rematch The Bluetooth name is PB-300 6.APP operation The device name is PB-300 Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

SUMEC Hardware & Tools.Co., Ltd. Date: 2024-03-01 Declaration Letter about Limited Use To whom it may concern, WE (SUMEC Hardware & Tools.Co., Ltd.) HEREBY DECLARED THAT Our product Product Description: Power Station Model No: PB-300 FCC ID: 2BC6W00001 The BLE function integrated in RF module ESP32-C3-WROOM-02 in this device has been disabled by software. Any modification will be highlighted on the release letter, and the impact analysis will also have a review. Verification procedure and verification results will be performed based on the release letter and impact analysis report. Name (Printed): Yuqing Yu Signature: Title: Engineer On behalf of Company: SUMEC Hardware & Tools.Co., Ltd. Telephone: 025-58638321

Applicant Declaration QSF27-14-04 Rev 1.1 Jan 17, 2024 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name SUMEC Hardware & Tools.Co., Ltd. Address No.1 Xinghuo Road, Jiangbei New Area, Nanjing, Jiangsu, China FRN 0034351684 Grantee Code 2BC6W FCC ID 2BC6W00001 Authorized Contact Name Yuqing Yu Contact Email [email protected] Contact Phone 025-58638321 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List [SUMEC Hardware & Tools.Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [SUMEC Hardware & Tools.Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2024/03/01 Print Name: Yuqing Yu Title: Engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Cover Letter for Wireless Charger Date:2024-03-01 Dear Sir/Madam, There’s a Portable Power Station, that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below Wireless Charger with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2) requirements. Applicant: SUMEC Hardware & Tools.Co., Ltd. Product Description: Portable Power Station Model No: PB-300 FCC ID: 2BC6W00001 Requirement Technical Result 1) The power transfer frequency is below 1 MHz. 110-205KHz Complied 2) The output power from each transmitting element (e.g., coil) is less than or equal to 15 watts. 15W Complied 3) A client device providing the maximum permitted load is placed in physical contact with the transmitter Placed directly in transmitter Complied 4) Only § 2.1091-Mobile exposure conditions apply Refer to MPE report Complied 5) The E-field and H-field strengths, at and beyond 20 cm surrounding the device surface, are demonstrated to be less than 50% of the applicable MPE limit, per KDB 447498, Table 1. These measurements shall be taken along the principal axes of the device, with one axis oriented along the direction of the estimated maximum field strength, and for three points per axis or until a 1/d (inverse distance from the emitter structure) field strength decay is observed. Symmetry considerations may be used for test reduction purposes. The device shall be operated in documented worst-case compliance scenarios (i.e., the ones that lead to the maximum field components), and while all the radiating structures (e.g., coils or antennas) that by design can simultaneously transmit are energized at their nominal maximum power. Refer to MPE report Complied 6) For systems with more than one radiating structure, the conditions specified in (5) must be met when the system is fully loaded (i.e., clients absorbing maximum power available), and with all the radiating structures operating at maximum power at the same time, as per design conditions. If the design allows one or more radiating structures to be powered at a higher level while other radiating structures are not powered, then those cases must be tested as well. For instance, a device may use three RF coils powered at 5 W, or one coil powered at 15 W: in this case, both scenarios shall be tested. Single coils Complied Sincerely, Signature: Printed Name: Yuqing Yu Position/Title: Engineer

SUMEC Hardware & Tools.Co., Ltd. Date: 2024-03-01 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2BC6W00001 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with SUMEC Hardware & Tools.Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Yuqing Yu Title: Engineer Signature: On behalf of Company: SUMEC Hardware & Tools.Co., Ltd. Telephone: 025-58638321

SUMEC Hardware & Tools.Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: SUMEC Hardware & Tools.Co., Ltd. No.1 Xinghuo Road, Jiangbei New Area, Nanjing, Jiangsu, China Regarding: Confidentiality Request regarding application for FCC ID: 2BC6W00001 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Yuqing Yu Title: Engineer Company Name: SUMEC Hardware & Tools.Co., Ltd.

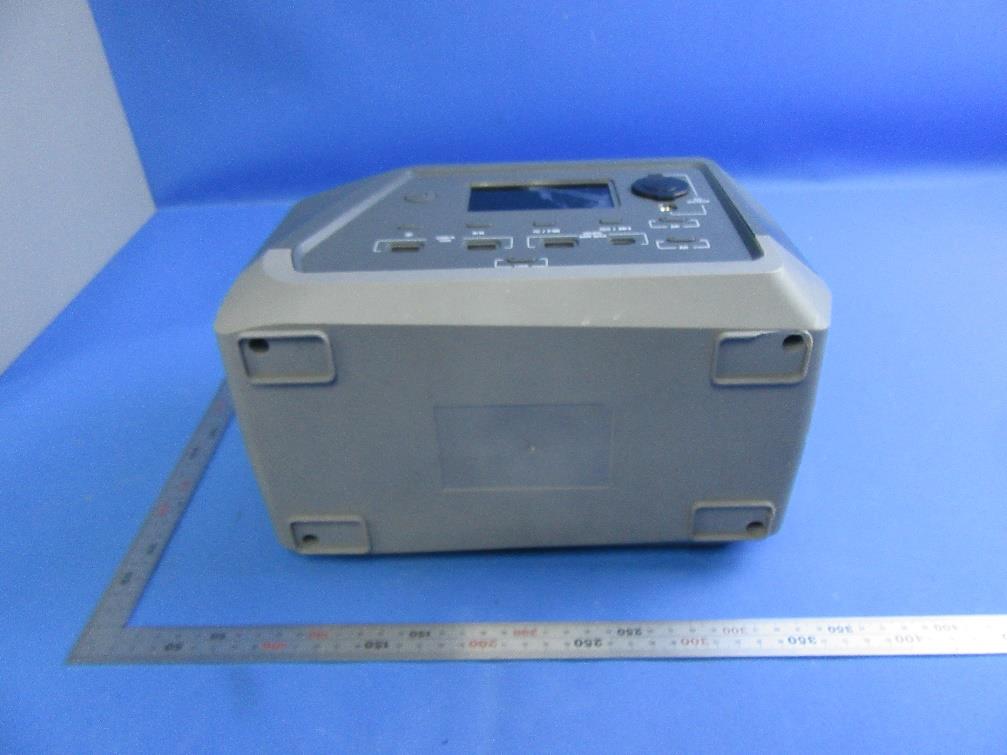

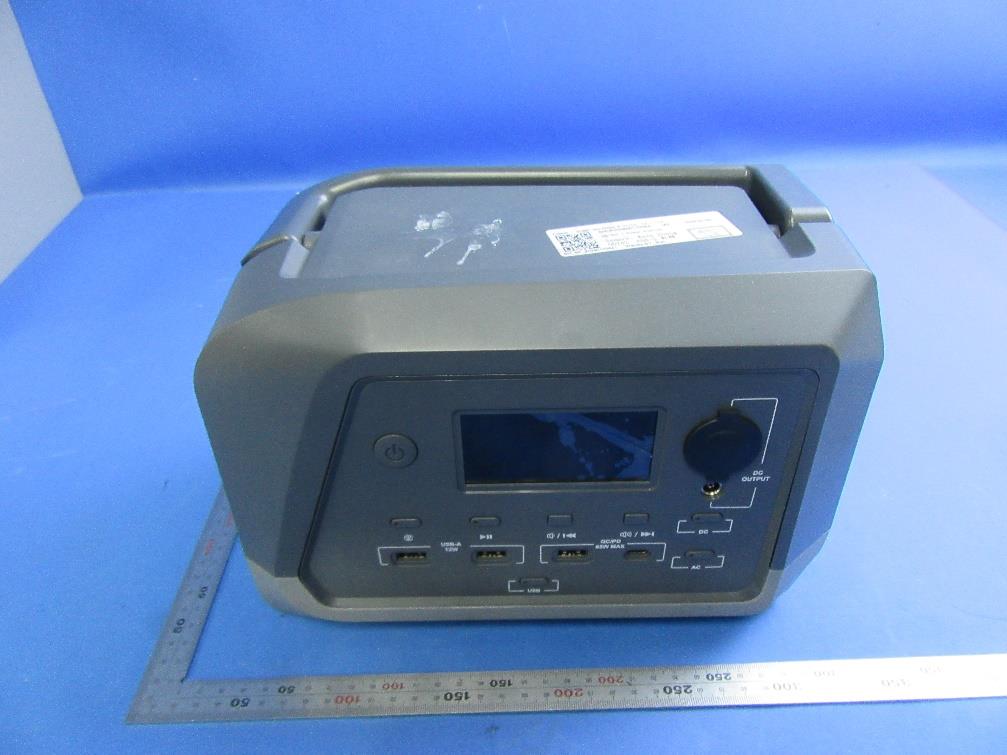

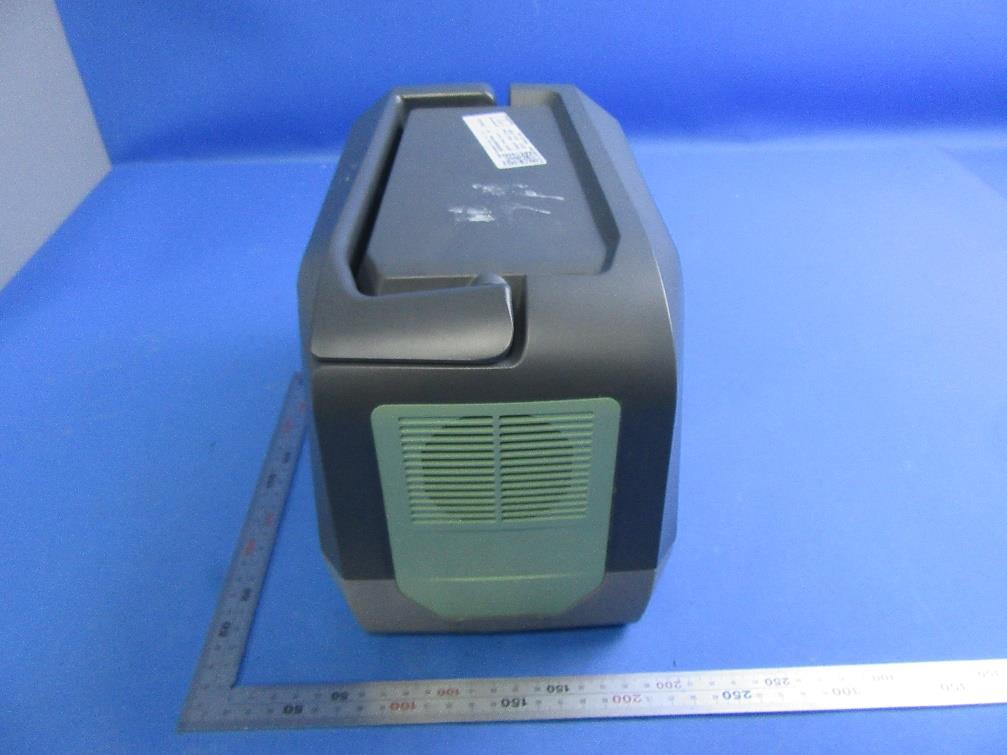

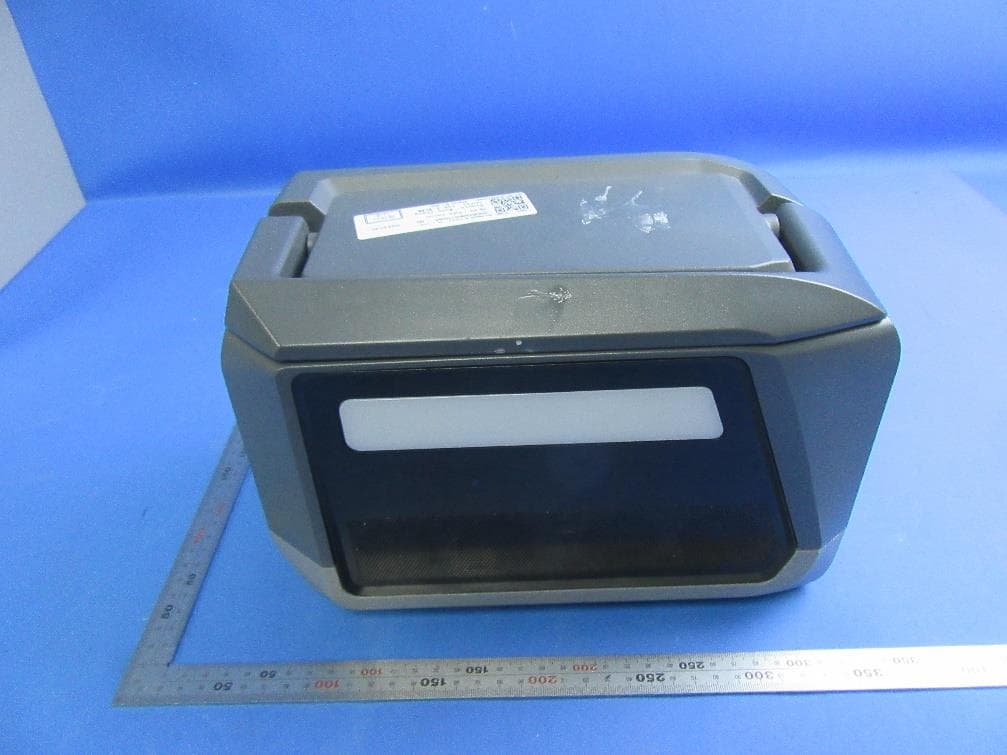

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 External Photos for SHCR2308001701BA SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4

Portable Power Station Station D'alimentation Portable PB-300 Battery type / Type de batterie: Lithium iron phosphate / Phosphate de fer au lithium Capacity / Capacité: 25.6 V d.c., 230 Wh DCInput / Entrée CC: 10~30 V d.c. / 100 W Max. AC Input / Entrée CA: 120 V~ 60 Hz , 7 A Max. Output 1 / Sortie 1: 1 x Car cigarette / Cigarette de voiture + 1 x DC5521 - 12 V d.c., 10 A Max. Output 2 / Sortie 2: USB C - 1 xPD 65 W (5 V d.c./9 V d.c./12 V d.c./15 V d.c. 3 A,20 V d.c. 3.25 A) USB A - 2 x 5 V d.c., 2.4 A ; Output 3 / Sortie 3: 2 x AC 120 V~ 60 Hz; Continuous / Continu-300 W Peak /Crete: 600 W Output 4 / Sortie 4: 1 x Wireless charge / Recharge sans fil 15 W Output wave / Onde de sortie: Sine wave / Onde sinusoidale Discharging temperature / Température de décharge: 14°F~104°F(-10°C~40°C) Recharging temperature / Température de recharge: 32°F~104°F(0°C~40°C) 1-866-902-9690(US) 1-833-818-4111(CA) lmported by Merotec Inc. 3655 Kennesaw North Industrial Parkway, Kennesaw,GA 30144 Made in China 1 x 5 V d.c. / 9 V d.c. / 12 V d.c. / 15 V d.c. / 20 V d.c., 3 A CAUTION: Le dispositif n'est pas destiné à être utilisé dans un atelier de réparation commercial.MISE EN GARDE : MISE EN GARDE : CAUTION: MISE EN GARDE : CAUTION: Risk of Electric Shock. Never use portable power pack to supply power tools to cut or access live parts or live wirings. Risque de décharge électrique. N’utilisez jamais de bloc d’alimentation portable pour fournir des outils électriques pour couper ou accéder à des pièces sous tension ou à des câblages en direct. DANGER: DANGER : CAUTION: MISE EN GARDE : 800626 This devices is intended for dry location use only, not for damp or wet use. Cet appareil est destiné à une utilisation dans un endroit sec uniquement, et non à une utilisation humide ou mouillée. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received ,including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC. Le fonctionnement est soumis aux deux conditions suivantes: 1) Cet appareil ne doit pas causer d'interférences nuisibles, et 2) cet appareil doit accepter toute interférence reçue, y compris les interférences susceptibles de provoquer un fonctionnement indésirable. SAN # 05731COAP011 Serial # 010HR0100001 Risk of Electric Shock. Connect only to properly grounded outlets. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. Risque de décharge électrique. Brancher l'unité uniquement à des prises de courant correctement mises à la masse. Ne pas retirer le couvercle. Aucune pièce réparable par l'utilisateur à l'intérieur. Référez-vous à un personnel de service qualifié. Risk of Injury To Persons. Do not use this product if the power cord or the battery cables are damaged in any way. Risque de blessure aux personnes. Ne pas utiliser ce produit si le cordon d'alimentation u les câbles de batterie sont endommagés de quelque façon. This device is not intended for use in a commercial repair facility. FCC ID: 2BC6W00001 IC : 31387-00001 Contains FCC ID: 2AOO6-WLT3266 and 2AC7Z-ESPC3WROOM Contains IC :26141-WLT3266 and 21098-ESPC3WROOM

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 16 Internal Photos for SHCR2308001701BA SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 16 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 16 WPC Antenna SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 16 BT&BLE Antenna SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 9 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 10 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 11 of 16 WIFI Antenna SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 12 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 13 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 14 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 15 of 16 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 16 of 16

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170103 Page: 1 of 8 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Member of the SGS Group (SGS SA) 1 Cover Page RF Exposure Evaluation Report Application No.: SHCR2308001701BA FCC ID: 2BC6W00001 Applicant: SUMEC Hardware & Tools.Co., Ltd. Address of Applicant: No.1 Xinghuo Road, Jiangbei New Area Nanjing Jiangsu P.R.China Manufacturer: SUMEC Hardware & Tools.Co., Ltd. Address of Manufacturer: No.1 Xinghuo Road, Jiangbei New Area Nanjing Jiangsu P.R.China Factory: Xuzhou Hengyuan Electrical Appliances Co.,Ltd. Address of Factory: No.47, Zhujiang Road, National High-Tech Zone, Xuzhou City, Jiangsu Province, China Equipment Under Test (EUT): EUT Name: Portable Power Station Model No.: PB-300 Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2023-08-28 Date of Test: 2023-09-12 to 2024-01-29 Date of Issue: 2024-02-27 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170103 Page: 2 of 8 Revision Record Version Description Date Remark 00 Original 2024-02-27 / Authorized for issue by: Tested By Wade Zhang/Project Engineer Approved By Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170103 Page: 3 of 8 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION........................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 4 3.2 TECHNICAL SPECIFICATIONS ......................................................................................................................... 4 3.3 TEST LOCATION ............................................................................................................................................. 5 3.4 TEST FACILITY .............................................................................................................................................. 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ................................................................................ 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ........................................................................................................................ 7 5.2 RF EXPOSURE CALCULATION ........................................................................................................................ 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170103 Page: 4 of 8 3 General Information 3.1 General Description of E.U.T. Power supply: AC 120V 60Hz 100W Max / DC 10-30V, 100W Max Battery Capacity: 230Wh(25.6V DC) Lithium iron phosphate Wireless Charging: 15W 3.2 Technical Specifications WPC Operation frequency: 110kHz to 205kHz Modulation type: Load modulation Antenna type: Inductive Loop Coil Antenna BT (For WLT3266) Operation Frequency: 2402MHz to 2480MHz Modulation Type: GFSK, pi/4DQPSK, 8DPSK Number of Channels: 79 Channel Spacing: 1MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum (FHSS) Antenna Type: PCB Antenna Antenna Gain: 3dBi (Provided by manufacturer) BLE (For WLT3266) Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.0 LE Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: PCB Antenna Antenna Gain: 3dBi (Provided by manufacturer) 2.4GHz WiFi (For ESP32-C3-WROOM-02) Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz;802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK);802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11;802.11n(HT40):7 Channel Spacing: 5MHz Antenna Type: PCB Antenna Antenna Gain: 3.26dBi (Provided by manufacturer) Antenna Number: 1 Date Rate: 802.11b:1/2/5.5./11Mbps 80…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170102 Page: 1 of 13 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Member of the SGS Group (SGS SA) RF Exposure Evaluation Report Application No.: SHCR2308001701BA FCC ID: 2BC6W00001 Applicant: SUMEC Hardware & Tools.Co., Ltd. Address of Applicant: No.1 Xinghuo Road, Jiangbei New Area Nanjing Jiangsu P.R.China Manufacturer: SUMEC Hardware & Tools.Co., Ltd. Address of Manufacturer: No.1 Xinghuo Road, Jiangbei New Area Nanjing Jiangsu P.R.China Factory: Xuzhou Hengyuan Electrical Appliances Co.,Ltd. Address of Factory: No.47, Zhujiang Road, National High-Tech Zone, Xuzhou City, Jiangsu Province, China Equipment Under Test (EUT): EUT Name: Portable Power Station Model No.: PB-300 Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 FCC Rules 47 CFR §2.1091 KDB 680106 D01 RF Exposure Wireless Charging Apps v04 Date of Receipt: 2023-08-28 Date of Test: 2023-09-12 to 2024-01-29 Date of Issue: 2024-02-27 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170102 Page: 2 of 13 Revision Record Version Description Date Remark 00 Original 2024-02-27 / Authorized for issue by: Tested By Wade Zhang/Project Engineer Approved By Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170102 Page: 3 of 13 2 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 Contents .................................................................................................................................................... 3 3 General Information .................................................................................................................................. 4 3.1 Details of E.U.T. ...................................................................................................................................... 4 3.2 Description of Support Units ................................................................................................................... 4 3.3 Test Location ........................................................................................................................................... 5 3.4 Test Facility ............................................................................................................................................. 5 3.5 Deviation from Standards ........................................................................................................................ 5 3.6 Abnormalities from Standard Conditions ................................................................................................ 5 4 Equipments Used during Test ................................................................................................................. 6 5 Test Results ............................................................................................................................................... 7 5.1 RF Exposure test..................................................................................................................................... 7 5.2 E.U.T. Operation ..................................................................................................................................... 8 6 Test Photo ............................................................................................................................................... 11 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170102 Page: 4 of 13 3 General Information 3.1 Details of E.U.T. Power supply: AC 120V 60Hz 100W Max / DC 10-30V, 100W Max Battery Capacity: 230Wh(25.6V DC) Lithium iron phosphate Wireless Charging: 15W Operation frequency: 110kHz to 205kHz Modulation type: Load modulation Antenna type: Inductive Loop Coil Antenna 3.2 Description of Support Units Description Manufacturer Model No. Serial No. Wireless Load N/A N/A N/A Mobilephone XIAOMI MI 13 / SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SHEM-TRF-001 Rev. 02 Sep01, 2023 Report No.: SHCR230800170102 Page: 5 of 13 3.3 Test Location All tests were performed …

Text truncated - open the document above for the full version.
