2BC85-TRANSMITTERTransmitter Kit v2

Teslogic Inc.
Transmitter Kit v2 - FCC ID 2BC85-TRANSMITTER - Teslogic Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 13, 2023
Application Purpose
Original Equipment
Date of Application
Nov 13, 2023
Equipment Note
Transmitter Kit v2
Frequency Range
2402.00000000 - 2480.00000000
Company
Teslogic Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Teslogic Transmitter Kit v2 For Model 3 (21+) / Y (all) User’s Manual Introduction Thank you for choosing the Teslogic Wireless Transmitter Kit for Tesla Cars. This innovative kit allows you to seamlessly connect your Tesla car's CAN buses to your mobile app, transforming your smartphone into a powerful car instrument cluster. With the Teslogic Kit, you can access real-time vehicle data, monitor performance, and stay connected with your Tesla like never before. By following the comprehensive instructions provided in this manual, you will learn how to install the Teslogic Wireless Transmitter, connect it to your car's data system, and effortlessly integrate it with your mobile app. With the Teslogic Kit, you can enjoy a personalized and enhanced driving experience, having instant access to crucial information right at your fingertips. The Teslogic Kit includes a range of high-quality components designed to ensure a seamless installation process. From the wireless transmitter device and connection wiring to the magnet phone holder and plastic tool for disassembling car interior parts, every component has been thoughtfully crafted to provide you with a user-friendly experience. We are excited to have you join the Teslogic community and experience the convenience and functionality of our wireless transmitter kit. Let's begin the journey of transforming your phone into a powerful car instrument cluster with the Teslogic Kit for Tesla Cars. Terms of Use Please review these Terms of Use attentively before utilizing the Product. Your utilization of this Product is contingent upon your complete and unambiguous approval of these Terms of Use. Should you disagree with or decline any of the stipulations, kindly refrain from using the Product. Your engagement with the Product signifies your comprehensive acceptance of these Terms of Use in their entirety. Within the context of these Terms of Use, the terms "we" or "us" refer to Teslogic, encompassing its parent companies, affiliates, subsidiaries, directors, managers, employees, or agents. Acknowledgment of Risk: Your acceptance of risk. Your utilization of this Product is entirely at your own risk. Presenting information on the Product while operating a vehicle could potentially divert the attention of certain drivers. If you feel that this Product diverts your focus away from the road ahead, cease using it promptly. Adherence to Traffic Regulations: It is imperative that you consistently dedicate your full attention to road safety and adhere to all traffic laws and regulations. Please be aware that the data presented on the Product may not be entirely accurate, up-to-date, or comprehensive. Caution: In the unfortunate event of an accident, the impact experienced by your vehicle could potentially result in your smartphone forcibly moving and making contact with either your person or the occupants of your vehicle, potentially leading to personal injuries for you or your passengers. Please take note that the Product's cradle may not provide adequate restraint to prevent your smartphone from sliding or shifting during such an incident. Caution: When employing the Product alongside your smartphone, there is a potential risk of overheating, shutdown, breakage, cracking, data loss, or other forms of damage to your smartphone. By utilizing the Product, you accept the responsibility and potential consequences of smartphone damage. We do not bear liability for any harm inflicted upon your smartphone due to your use of the Product. Exclusion of Specific Damages: Your utilization of the Product is conducted entirely at your own risk. If you find any dissatisfaction with the Product's performance in any manner, your only recourse is to cease using it. Under no circumstances will we assume liability for any form of damages (including, but not limited to, incidental, exemplary, and consequential damages, lost profits, or damages arising from data loss or business interruption) stemming from the utilization or inability to utilize the Product. This holds true regardless of whether such claims are based on warranty, contract, tort, or any other legal framework, and regardless of our awareness of the potential for such damages. It is important to note that certain states may not permit the exclusion or restriction of incidental or consequential damages, potentially affecting the applicability of the aforementioned limitation or exclusion to your situation. Data for Statistical Analysis: The App exclusively transmits depersonalized data for statistical purposes. This data is utilized to enhance the App's functionality and user experience. We do not collect or transmit personally identifiable information. Your privacy and data security are paramount to us. Intellectual Property: All intellectual property rights related to the App, including but not limited to copyrights, trademarks, and patents, are owned by Teslogic. Users are granted a limited, non-exclusive, and non-transferable license to use the App solely for its intended purposes. Any reproduction, distribution, modification, or unauthorized use of the App's intellectual property is strictly prohibited. Users must respect and adhere to the intellectual property rights associated with the App. Disclaimer of Endorsement: Any user-generated content, opinions, or reviews expressed within the App do not necessarily reflect the views or endorsements of Teslogic. We do not endorse or guarantee the accuracy, reliability, or quality of user-contributed content. Users are solely responsible for their statements, and any reliance on such content is at their own risk. We encourage users to exercise discretion and critical judgment when evaluating information or advice provided by other users within the App. Securing Injunctions: You consent to the understanding that any violation or potential violation of these Terms of Use on your part would result in us suffering irreparable harm, for which monetary compensation would be…

Text truncated - open the document above for the full version.

Attestation Statements

TeslogicInc. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 10/20/23 U.S.AgentDesignation TeslogicInc.acknowledgestheirconsentforthefollowingcontactlocatedintheUnitedStatestoactas theiragentforserviceofprocessfortheequipmentforwhichauthorizationissought(FCCID:2BC85- TRANSMITTER): NameandcompanyofU.S.agent:TeslogicInc. PhysicalU.S.addressofagent:2093PhiladelphiaPike#3248Claymont,DE19703,USA FRNofU.S.agent:0034372045 EmailaddressofU.S.agent:[email protected] TeslogicInc.acknowledgestheirobligationtoacceptserviceofprocessonbehalfofTeslogicInc. TeslogicInc.withtheFRN0034372045acceptsitsobligationtomaintainanagentforserviceof processintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanentlyterminatedall marketingandimportationoftheapplicableequipmentwithintheU.S.,ortheconclusionofanyCommission- relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature ZykovVasily Manager TeslogicInc. Signature ZykovVasily Manager TeslogicInc. 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

Cover Letter(s)

Sincerely, Name/Title: Zykov Vasily/Manager Company: Teslogic Inc. Address: 2093 Philadelphia Pike #3248 Claymont, DE 19703, USA Phone: +1(415)659-9216 Fax: N/A E-Mail: [email protected]

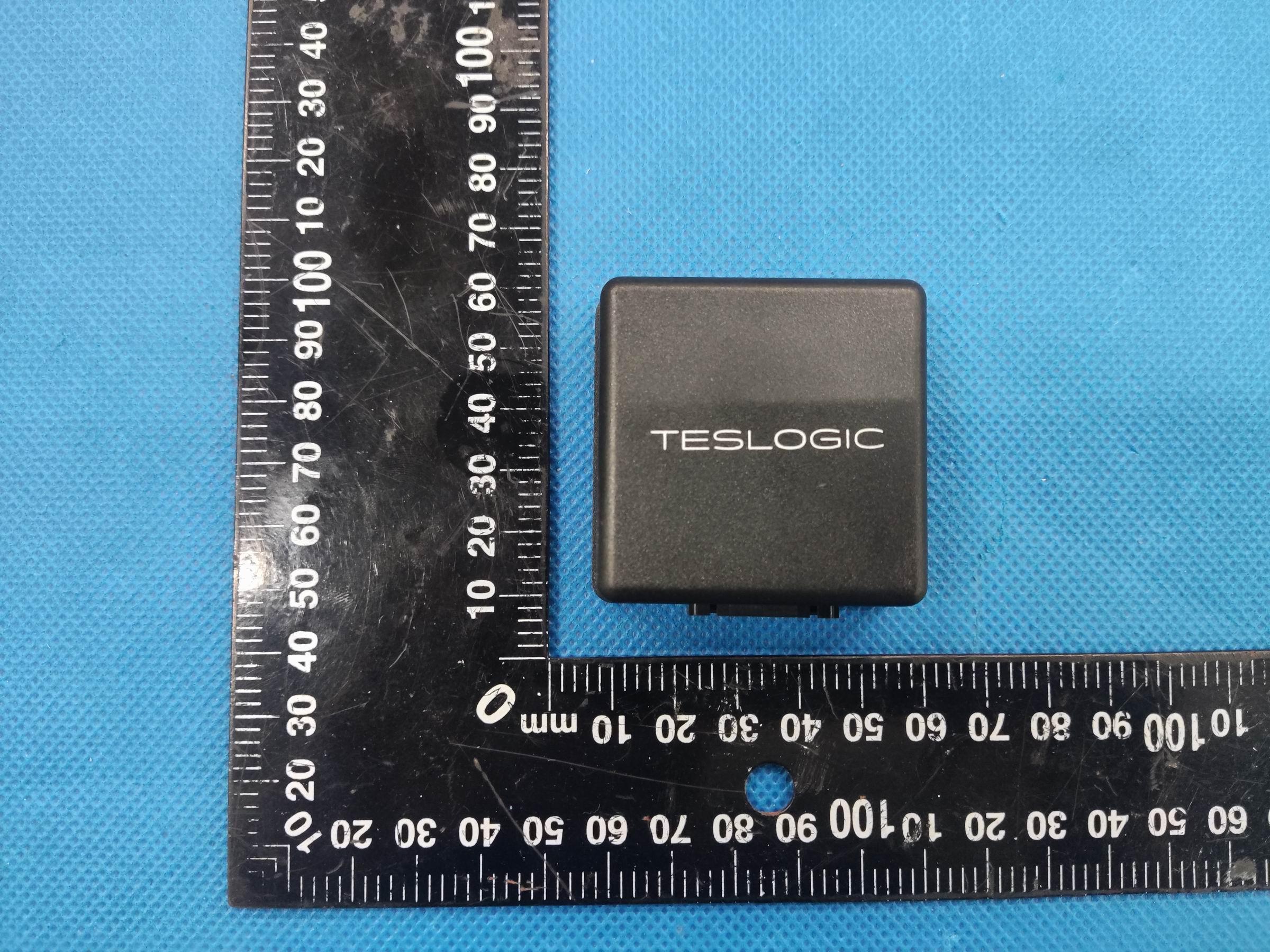

External Photos

Page1of4FCCID: 2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos Photo1 Photo2 Page2of4FCCID: 2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of4FCCID: 2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of4FCCID: 2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 ------End------

ID Label/Location Info

Label FCCID:2BC85-TRANSMITTER

Internal Photos

Page1of4FCCID: 2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. InternalPhotos Photo1 Photo2 Page2of4FCCID: 2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Antenna Page3of4FCCID: 2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of4FCCID: 2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 ------End------

RF Exposure Info

RFExposureevaluation FCCID:2BC85-TRANSMITTER Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:PortableDevice 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Antenna ModelNo. ofantenna: Typeofantenna:Gainoftheantenna(Max.)Frequencyrange: BLE/ChipantennaAntenna:1.5dBiFor2.4G 5.ManufacturingTolerance BLE(Conducted) Frequency (MHz) GFSK1Mbps 240224402480 Target(dBm)777 Tolerance ± (dB)1.01.01.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast 20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedantennais refertosection4,theRFpowerdensitycanbeobtained. ANT1 ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW BLE8.06.311.51.413 0.00177 1.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

Test Report

Page1of34ReportNo.:AIT23100806FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant: TeslogicInc. Applicantadd.:2093PhiladelphiaPike#3248Claymont,DE19703,UnitedStates Manufacturer:ChengduEbyteElectronicTechnologyCo.,Ltd Manufactureradd.: BuildingB5,MouldIndustrialPark,#199XiQuAve,Chengdu,Sichuan,China ProductInformation: ProductName:TransmitterKitv2 ModelNo.:TransmitterKitv2forModel3('21+)/Highland/Y(All) BrandName: FCCID: 2BC85-TRANSMITTER Applicablestandards: FCCCFRTitle47Part15SubpartCSection15.247 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:Oct.08,2023DateofTest:Oct.08,2023~Oct.10,2023 DateofIssue:Oct.11,2023TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthetest resultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditis applicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: SimbaHuangSeal.chen Page2of34ReportNo.:AIT23100806FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS......................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................4 2.1StatementoftheMeasurementUncertainty................................................................................4 2.2MeasurementUncertainty............................................................................................................4 3TESTFACILITY..............................................................................................................................................................5 3.1Deviationfromstandard...............................................................................................................5 3.2Abnormalitiesfromstandardconditions.......................................................................................5 3.3TestLocation.................................................................................................................................5 4GENERALINFORMATION...........................................................................................................................................6 4.1Testfrequencies............................................................................................................................7 4.2EUTPeripheralList.......................................................................................................................7 4.3TestPeripheralList.......................................................................................................................7 4.4TESTMETHODOLOGY...............................................................................................................8 4.5DescriptionofTestModes............................................................................................................9 5EQUIPMENTUSEDDURINGTEST.........................................................................................................................10 6TESTRESULTSANDMEASUREMENTDATA.....................................................................................................11 6.1Antennarequirement..................................................................................................................11 6.2OnTimeandDutyCycle............................................................................................................12 6.3MaximumConductedOutputPeakPowerMeasurement.........................................................13 6.46dBSpectrumBandwidthMeasurement..................................................................................15 6.5PowerSpectralDensity..............................................................................................................16 6.6ConductedSpuriousEmissionsandBandEdgesTest.............................................................18 6.7Restrict-bandBand-edgeMeasurements..................................................................................20 6.8RadiatedEmissionsMeasurement............................................................................................20 6.9ConductedEmissions.................................................................................................................33 7TESTSETUPPHOTOGRAPHSOFEUT.................................................................................................................34 8EXTERNALPHOTOGRAPHSOFEUT....................................................................................................................34 9INTERNALPHOTOGRAPHSOFEUT.....................................................................................................................34 Page3of34ReportNo.:AIT23100806FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. REPORTREVISERECORD Report Version ReviseTimeIssuedDateValidVersionNotes V1.0/Oct.11,2023ValidInitialrelease Page4of34ReportNo.:AIT23100806FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 2TestSummary TestItemSectioninCFR47Result Antennarequirement§15.203Pass OnTimeandDutyCycle// MaximumConductedPeakOutput Powe…

Text truncated - open the document above for the full version.

Test Report

Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: [email protected] Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Multilayer Chip Antenna – SLDA Series Operating Temp. : -40°C~+85°C FEATURES APPLICATIONS PRODUCT IDENTIFICATION SHAPE AND LAND PATTERN Type: Dimensions (mm) Type:SLDA21-2R450G-S1TF Land Pattern (mm) ● Light weight, compact ● Wide bandwidth, low cost ● Bluetooth, Wireless LAN, Mobile TV ● Built-in antenna with high gain ● Home RF system, etc. -2R800G ③ -S1 T F ④ ⑤ ⑥ SLDA ① 31 ② ① Type SLDA Multilayer Chip Antenna ② External Dimensions (L×W) (mm) 31 3.2×1.6 52 5.2×2.1 62 6.0×2.0 72 7.0×2.0 81 8.0×1.0 92 9.0×2.0 ③ Center Frequency Example Nominal Value 2R800G 2800.0MHz 2R450G 2450.0MHz ④ Series Code S1, 01, etc. ⑤ Packing T Tape & Reel ⑥ Hazardous Substance Free Products F E E F G Chip Land pattern Solder-resist H E J Land Solder-resist I G F ● Frequency Range: 2400-2500MHz Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: [email protected] Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 SHAPE AND DIMENSIONS Series A B C D E F G H I J SLDA31 3.2±0.2 1.6±0.2 1.2±0.2 0.5±0.2 1.6±0.2 0.8±0.2 0.8±0.2 2.2±0.2 1.4 1.6±0.2 SLDA52 5.2±0.2 2.1±0.2 1.0±0.2 0.5±0.2 2.3±0.2 1.5±0.2 1.0±0.2 4.0±0.2 1.4 2.3±0.2 SLDA62 6.0±0.2 2.0±0.2 1.0±0.2 0.5±0.2 2.2±0.2 1.5±0.2 1.0±0.2 5.0±0.2 1.4 2.2±0.2 SLDA72 7.0±0.2 2.0±0.2 1.0±0.2 0.5±0.2 2.2±0.2 1.5±0.2 1.0±0.2 6.0±0.2 1.4 2.2±0.2 SLDA81 8.0±0.2 1.0±0.2 1.0±0.2 0.5±0.2 1.5±0.2 1.5±0.2 1.0±0.2 7.0±0.2 1.4 1.5±0.2 SLDA92 9.0±0.2 2.0±0.2 1.0±0.2 0.5±0.2 2.2±0.2 1.5±0.2 1.0±0.2 8.0±0.2 1.4 2.2±0.2 TERINAL-CONFIGURATION EVALUATION BOARD APPLICATION GUIDE Matching Circuit No. Terminal Name No. Terminal Name (1) Feeding Point (2) NC (1) (2) Top view Bottom view SMT connector or cable You can connect it to VNA. SMT No ground area Chip antenna Ground area Via Layout pad Antenna Diplexer LNA Balance-Filter BPF Coupler PA LPF BALUN Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: [email protected] Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 SPECIFICATIONS SLDA31 TYPE Part Number Band Width Peak Gain Average Gain VSWR Impedance Power Capacity MHz V-XZ V-XZ In BW Ω W SLDA31-2R800G-S1TF ≥100 -1dBi Typ1.5dBi Typ.. <2 50 3 SLDA31-2R400G-S1TF ≥100 2.5dB @( XZ-total) -1.5dB @( XZ-total) <2 50 2 SLDA31-2R450G-S2TF ≥100 2.5dBi @( XZ-total) 0.5dBi @( XZ-total) <2 50 2 SLDA52 TYPE Part Number Band Width Peak Gain Average Gain VSWR Impedance Power Capacity MHz V-XZ V-XZ In BW Ω W SLDA52-2R510G-S1TF ≥200 2.5dBi Typ. 0.5dBi Typ. <2 50 SLDA52-2R540G-S1TF ≥200 2.5dBi Typ. 0.5dBi Typ. <2 50 SLDA62 TYPE Part Number Band Width Peak Gain Average Gain VSWR Impedance Power Capacity MHz V-XZ V-XZ In BW Ω W SLDA62-2R640G-01TF ≥200 2.6dBi Typ. 0.7dBi Typ. <2 50 3 SLDA72 TYPE Part Number Band Width Peak Gain Average Gain VSWR Impedance Power Capacity MHz V-XZ V-XZ In BW Ω W SLDA72-2R470G-S1TF ≥200 2.7dBi Typ. 1.0dBi Typ. <2 50 3 SLDA81 TYPE Part Number Band Width Peak Gain Average Gain VSWR Impedance Power Capacity MHz V-XZ V-XZ In BW Ω W SLDA81-3R010G-S1TF ≥200 2.0dBi Typ. 0.5dBi Typ. <2 50 3 SLDA92 TYPE Part Number Band Width Peak Gain Average Gain VSWR Impedance Power Capacity MHz V-XZ V-XZ In BW Ω W SLDA92-2R660G-S1TF ≥200 3.0dBi Typ. 1.0dBi Typ. <2 50 3 ※Frequency will be changed with layout of PCB. Please contact us for appropriate design. RETURN LOSS SLDA31-2R800G-S1TF SLDA31-2R400G-S1TF Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: [email protected] Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 RETURN LOSS SLDA31-2R450G-S2TF SLDA52-2R510G-S1TF SLDA52-2R540G-S1TF SLDA62-2R640G-01TF SLDA72-2R470G-S1TF SLDA81-3R010G-S1TF SLDA92-2R660G-S1TF Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: [email protected] Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15

Test Report

DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 1 of 24 AppendixB RFTestDataforBT(BLE)(ConductedMeasurement) ProductName:TransmitterKitv2 TradeMark: TestModel:TransmitterKitv2forModel3('21+)/Highland/Y(All) EnvironmentalConditions Temperature: 25.5  C RelativeHumidity:52.2% ATMPressure:100.0kPa TestEngineer:SimbaHuang Supervisedby:SealChen DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 2 of 24 Contents Page COVERPAGE 1DutyCycle........................................................................................................................................................................................3 1.1TestResult............................................................................................................................................................................3 1.2TestGraphs...........................................................................................................................................................................4 2MaximumConductedOutputPower.................................................................................................................................................6 2.1TestResult............................................................................................................................................................................6 2.2TestGraphs...........................................................................................................................................................................7 3-6dBBandwidth.................................................................................................................................................................................9 3.1TestResult............................................................................................................................................................................9 3.2TestGraphs.........................................................................................................................................................................10 4MaximumPowerSpectralDensityLevel.........................................................................................................................................12 4.1TestResult..........................................................................................................................................................................12 4.2TestGraphs.........................................................................................................................................................................13 5BandEdge......................................................................................................................................................................................15 5.1TestResult..........................................................................................................................................................................15 5.2TestGraphs.........................................................................................................................................................................16 6ConductedRFSpuriousEmission..................................................................................................................................................18 6.1TestResult..........................................................................................................................................................................18 6.2TestGraphs.........................................................................................................................................................................19 7RestrictBand..................................................................................................................................................................................22 7.1TestResult..........................................................................................................................................................................22 7.2TestGraphs.........................................................................................................................................................................23 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 3 of 24 1DutyCycle 1.1 TestResult ModeFrequency(MHz)DutyCycle(%)1/T(kHz) BLE1M240264.82.5 BLE1M2440642.56 BLE1M2480642.56 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 4 of 24 1.2 TestGraphs TestGraphs BLE1M2402MHz BLE1M2440MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 5 of 24 BLE1M2480MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 6 of 24 2MaximumConductedOutputPower 2.1 TestResult ModeFrequency(MHz)ConductedPower (dBm) Limit(dBm)Verdict BLE1M24026.2930Pass BLE1M24407.0230Pass BLE1M24806.9930Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 7 of 24 2.2 TestGraphs TestGraphs BLE1M2402MHz BLE1M2440MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 8 of 24 BLE1M2480MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 9 of 24 3-6dBBandwidth 3.1 TestResult ModeFrequency(MHz)-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict BLE1M24020.6410.5Pass BLE1M24400.6840.5Pass BLE1M24800.6910.5Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 10 of 24 3.2 TestGraphs TestGraphs BLE1M2402MHz BLE1M2440MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER Page 11 of 24 BLE1M2480MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23100806FW1 FCCID:2BC85-TRANSMITTER…

Text truncated - open the document above for the full version.

Test Setup Photos

Page1of1FCCID:2BC85-TRANSMITTER DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TestSetupPhoto RadiatedEmission ------End------

Contact Information

Applicant

Zykov Vasily(Manager)
[email protected]+1(415)659-9216Fax: +1(415)659-9216

Test Firm

Dongguan Yaxu (AiT) Technology LimitedCoin Tang
[email protected]+86 0769-82020499-21

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz5.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
