2BC8M-LEO1LEO wearable sensor

ResMed Inc
LEO wearable sensor - FCC ID 2BC8M-LEO1 - ResMed Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 21, 2023
Application Purpose
Original Equipment
Date of Application
Dec 21, 2023
Equipment Note
LEO wearable sensor
Frequency Range
2402.00000000 - 2480.00000000
Company
ResMed Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Leo User Guide i ENGLISH Contents Welcome ........................................................................................................................................... 1 Indications for use............................................................................................................................. 1 Contraindications .............................................................................................................................. 1 Intended use and principles of operation ........................................................................................ 1 Heart rate monitoring ..................................................................................................... 1 Respiration rate monitoring ............................................................................................ 1 Body posture ................................................................................................................. 1 About the Leo system .......................................................................................................... 3 Setting up Leo ................................................................................................................................... 4 Install the Leo mobile app .................................................................................................... 4 Create an account on the Leo mobile app ...................................................................... 5 Set up a PIN as a login method ...................................................................................... 5 Charge the sensor patch ...................................................................................................... 6 Pair the sensor patch with the mobile app ........................................................................... 7 Product setup ....................................................................................................................... 7 Identify the Leo mobile app version ..................................................................................... 8 Applying the sensor patch ................................................................................................................ 9 Identify the sensor patch location on the body. .............................................................. 9 Stick adhesive to the sensor patch ................................................................................. 9 Attach the sensor patch with adhesive to the chest ..................................................... 10 Remove the label from adhesive .................................................................................. 10 Using Leo ........................................................................................................................................ 11 Connect the sensor patch to the mobile application ..................................................... 11 Start recording ............................................................................................................. 11 Daily activities .............................................................................................................. 11 Stop recording ............................................................................................................. 12 Data download ............................................................................................................. 12 Removing the sensor patch ............................................................................................................ 13 Remove the sensor patch from the skin ...................................................................... 13 Remove the adhesive from the sensor patch ............................................................... 14 Clinician use only ............................................................................................................................ 15 Using the Leo data report ................................................................................................... 15 Troubleshooting guide ................................................................................................................... 16 Technical specifications .................................................................................................................. 16 Performance specifications ................................................................................................ 16 Sensor patch and mobile app specificaions ........................................................................ 16 Sensor patch storage and operating conditions .................................................................. 16 Service life ......................................................................................................................... 17 Symbol descriptions ....................................................................................................................... 17 Compliance information ................................................................................................................. 18 Servicing, maintenance, cleaning, and disposal ............................................................................ 18 Quality of service ............................................................................................................................ 19 Electromagnetic compatibility ........................................................................................................ 19 Mobile application security ............................................................................................................ 21 Support information ....................................................................................................................... 21 Support contact information ..................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

EMC Technologies Pty. Ltd. ABN 82 057 105 549 Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel: +61 3 9365 1000 Sydney Unit 3/87 Station Road Seven Hills, NSW 2147 Tel: +61 2 9624 2777 Email: [email protected] Web: www.emctech.com.au EMC Technologies Pty Ltd, 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au To Federal Communications Commission Attention: Certification Officer EMCT Ref: M2308006 Date: October 30, 2023 Subject: Resmed Inc Request for Original Certification (FCC ID: 2BC8M-LEO1) Product Name: LEO Model: 22601 FCC ID: 2BC8M-LEO1 Radio: STMicroelectronics BLUENRG-2 Bluetooth Low Energy Frequency Band: 2400 – 2483.5 MHz Antenna: Ceramic Chip Antenna, 2.4 GHz TDK Max gain: 1.6 dBi Description: Leo wearable sensor. Please Note: Permanent Confidentiality: Application includes request for permanent confidentiality – Operational Description, Block Diagram, Schematics Short-Term Confidentiality: Application includes request for short-term confidentiality – 180 days Internal Photos, External Photos, Test Setup Photos, User Manual Agent: EMC Technologies is acting as agent for Resmed Inc in this application. Regards _____________ Shabbir Ahmed CEO EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, VIC 3042 Australia Ph: +61 3 9365 1000 www.emctech.com.au

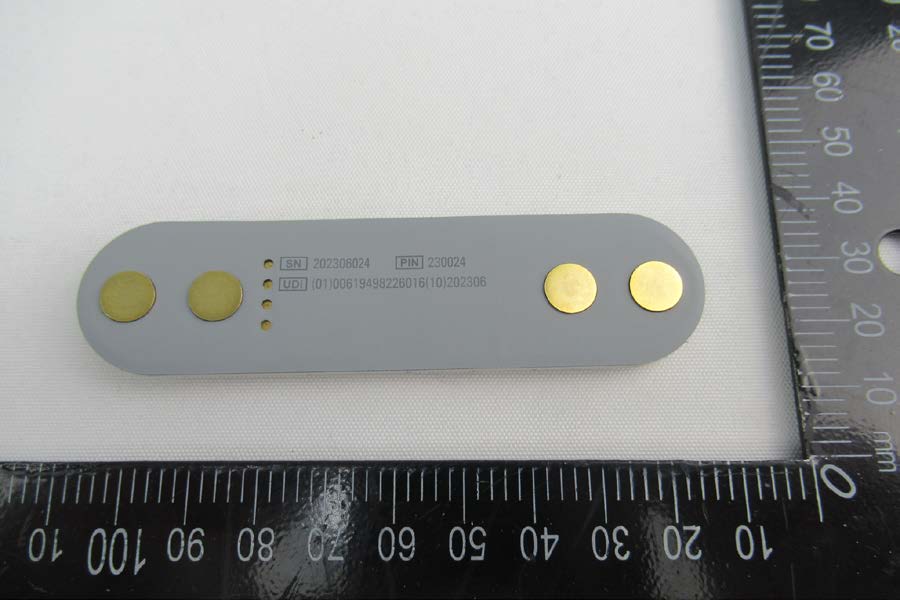

External Photos

FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – EXTERNAL FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – EXTERNAL FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au EST SAMPLE PHOTOS – EXTERNAL

ID Label/Location Info

Title: Leo FCC Labelling Project/Product Leo Page 2 of 3 1. Purpose This document captures the FCC mandated ID, labels, warnings and notices for Leo device. 2. FCC ID Laser etched physical label with FCC ID is to be put on each Leo device, see Fig 1. Figure 1. Physical FCC ID laser etched on each device Physical printed label with FCC ID to be put on each individual Leo sensor kit’s package Page 3 of 3 Figure 2 Printed physical package label with FCC ID 3. Labels, Warnings, Notices FCC ID is placed on the Device as per the updated device label (Figure 1) and we also have the FCC Statement in the User Guide. The user guide will be provided in the device packaging. 47 CFR 15.105(b) requirements Leo sensor patch is a specialized medical digital prescription-only device and therefore per 47 CFR 15.105(c) and per 47 CFR 15.103(e) provisions of 47 CFR 15.105(b) do not apply.

Internal Photos

FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – INTERNAL FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – INTERNAL FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – INTERNAL FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – INTERNAL

RF Exposure Info

Page 1 of 9 EMC Technologies Pty. Ltd. ABN 82 057 105 549 Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel: +61 3 9365 1000 Sydney Unit 3/87 Station Road Seven Hills, NSW 2147 Tel: +61 2 9624 2777 Email: [email protected] Web: www.emctech.com.au Accredited for compliance with ISO/IEC 17020. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, medical testing, calibration, inspection and proficiency testing scheme providers reports. Except for the Certificate of Compliance, this document must only be reproduced in full. FCC SAR EXEMPTION REPORT REPORT NUMBER: M2308006-2 TEST STANDARD: FCC KDB 447498 D01 CUSTOMER: RESMED INC DEVICE: LEO MODEL: 22601 DATE OF ISSUE: 13 NOVEMBER 2023 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. Page 2 of 9 Report No. M2308006-2 Except for the Certificate of Compliance, this document must only be reproduced in full. REVISION TABLE Version Sec/Para Changed Change Made Date 1 Initial issue of document 13/11/2023 Page 3 of 9 Report No. M2308006-2 Except for the Certificate of Compliance, this document must only be reproduced in full. CONTENTS Introduction ......................................................................................................................... 5 1.1 Laboratory Overview .................................................................................................. 5 1.2 Test Laboratory/Accreditations .................................................................................. 5 Device Details..................................................................................................................... 5 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and ≤50mm ................... 6 Uncertainty ......................................................................................................................... 7 ASsumptions in this Assessment ....................................................................................... 7 EVALUATION RESULT ..................................................................................................... 8 Appendix A ......................................................................................................................... 9 Page 4 of 9 Report No. M2308006-2 Except for the Certificate of Compliance, this document must only be reproduced in full. FCC SAR EXEMPTION REPORT Device: Leo Model Number: 22601 Hardware Version: Leo Flex v3.0 FCC ID: FCC ID: 2BC8M-LEO1 Tested for: Resmed Inc Address: 9001 Spectrum Center Blvd, San Diego California United States 92123 Contact: Ryan Kirkpatrick Phone: (619) 436-6399 Email: [email protected] Standards: FCC KDB 447498 D01 General RF Exposure Guidance v6 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. Result: Based on an assessment of the documentation provided the Leo, model 22601 exempted from SAR evaluation. Refer to Report M2308006-2 for full details Issue Date: 13 November 2023 Assessment Engineer: Ashish Nath Authorised Signatory: Shabbir Ahmed Technical Director Issued by: EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 E-mail: [email protected] Web: www.emctech.com.au Page 5 of 9 Report No. M2308006-2 Except for the Certificate of Compliance, this document must only be reproduced in full. INTRODUCTION The transmitter was assessed against FCC KDB 447498 D01 General RF Exposure Guidance v6. This report shows the SAR exclusion on the Leo, Model 22601, in accordance with FCC KDB 447498 D01 clause 4.3.1, The test sample and the device information were provided by the Client. 1.1 Laboratory Overview EMC Technologies Pty. Ltd. is an independently owned Australian company that is NATA accredited to ISO 17025 for both testing and calibration and ISO 17020 for Inspection. – Accreditation Number 5292. 1.2 Test Laboratory/Accreditations Inspection was performed at EMC Technologies' laboratory in Keilor Park, Victoria Australia. Table 1-1 : Accreditations for Conformity Assessment Country/Region Body Australia/New Zealand NATA Accreditation Number: 5292 Europe European Union Notified Body Number: 0819 USA FCC Designation Number: AU0001 (Melb) Canada ISED Canada Company Number: 3569B(Melb) Japan VCCI Company Number: 785 Taiwan BSMI Lab Code SL2-IN-E-5001R DEVICE DETAILS (Information supplied by the Client) The Leo, model 22601 is a medical monitoring wearable patch. Manufacturer: ResMed Pty Ltd Test Sample: Leo Model Number: 22601 Distance from the human body in normal use: Portable Transmit parameters are shown below: Table 2-1 : Transmitter Parameters Transmitter #1 Wireless Interface: STMicroelectronics BLUENRG-2 BLE Operating Frequency: 2402-2480 MHz Max. RF Output Power Level: 3.01 dBm (1.9999 mW) Antenna Type: Ceramic Chip Antenna ANT016008LCS2442MA1 Max Antenna gain: 1.6dBi Page 6 of 9 Report No. M2308006-2 Except for the Certificate of Compliance, this document must only be reproduced in full. SAR TEST EXCLUSION THRESHOLD FOR 100 MHZ TO 6 GHZ AND ≤50MM Table1: SAR test exclusion threshold 100 MHz- 6GHz The 1-g Body SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: max. power of channel, including tuneup tolerance (mW) min. test separation distance (mm) ∗ � 푓푓 ( 퐺퐺퐺퐺퐺퐺 ) ≤3. 0 Where: • f(GHz) is the RF channel transmit frequency in GHz. • Power and distance are rounded to the…

Text truncated - open the document above for the full version.

Test Report

September 2016 Multilayer Antenna For 2400-2484MHz ANT016008LCS2442MA1 1.6x0.8mm [EIA 0603]* * Dimensions Code JIS[EIA] RF Components RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary Multilayer Antenna For 2400-2484MHz SHAPES AND DIMENSIONS RECOMMENDED LAND PATTERNSOLDER RESIST PATTERN ANT016008LCS2442MA1 Conformity to RoHS Directive 1.60±0.10 ( 0.1 ) ( 0.1 ) 0.40max. 0.80±0.10 0.63±0.10 0.215±0.100.25±0.10 0.20±0.10 Dimensions in mm [Top view] [Bottom view] 1 Radiator electrode 2 Dummy pad 3 Dummy pad 4 Feed point 5 Dummy pad 6 Dummy pad Terminal functions ( 1 ) ( 4 ) ( 5 )( 6 ) ( 2 )( 3 ) Dimensions in mm 0.7 3 0. 8 0 0.60 0.90 1.60 0.21 Dimensions in mm 0.7 3 0.60 0.90 1.53 0.11 RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary ANT016008LCS2442MA1 EVALUATION BOARD Measurement condition for Radiation Pattern PCB size : 50mm x 10mm x 1mm Antenna area : 5 x 3 mm Ft-1 Mt 6.2pF 0. 8pF Component P/N Mt ANT016008LCS2442MA1Ft-1 Z Y X Er θ Eθ Eø ø Chip antenna PCB RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary ANT016008LCS2442MA1 ELECTRICAL CHARACTERISTICS This is typical antenna performance with the standard PCB. TEMPERATURE RANGE FREQUENCY CHARACTERISTICS EFFICIENCY AND VSWR • Tested antenna has been soldered. Evaluation board size is 50x20x1 mm. Item Frequency Range (MHz) Min.Typ.Max. VSWR2400 to 2484—1.603.0 PolarizationLinear PCB size (mm)5020 Antenna keep-out area (mm)53 Characteristic Impedance ()50 (Nominal) Operating temperatureStorage temperature °C°C –40 to +85–40 to +85 –10 –9 –8 –6 –7 –3 –4 –1 –5 –2 0 Efficiency ( dB ) 1 11 10 9 8 7 6 5 4 3 2 VSWR Frequency ( GHz ) 2.3002.4002.5002.600 Efficiency Spec ( VSWR ) VSWR RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary ANT016008LCS2442MA1 RADIATION PATTERNS 2.4GHz BAND • Tested antenna has been soldered. Evaluation board size is 50×20×1 mm. 270 ̊90 ̊ 0 ̊ X Y Z 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Horizontal polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –21.5 –16.9 –46.0 2442 –21.5 –18.5 –40.8 2484 –21.3 –17.2 –36.4 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 0.0 1.3 –2.4 2442 0.3 1.6 –2.2 2484 –0.2 1.2 –3.0 2400MHz 2442MHz 2484MHz 270 ̊ 90 ̊ 0 ̊ Y X Z 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Horizontal polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –2.9 1.3 –21.5 2442 –2.6 1.6 –21.9 2484 –3.1 1.2 –23.6 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –50 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –24.1 –20.2 –39.2 2442 –24.7 –19.1 –46.1 2484 –24.8 –21.5 –34.9 2400MHz 2442MHz 2484MHz 270 ̊ 90 ̊ 0 ̊ Y Z X 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Horizontal polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –3.1 0.2 –29.8 2442 –2.7 0.6 –28.5 2484 –3.2 0.1 –31.3 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –12.2 –8.0 –31.2 2442 –11.8 –7.5 –30.5 2484 –12.3 –8.2 –35.8 2400MHz 2442MHz 2484MHz RF Components • All specifications are subject to change without notice. • Bef ore using these products, be sure to request the delivery specifications. RECOMMENDED REFLOW PROFILE  t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. Preheating Soldering Critical zone (T3 to T4)Peak Temp.TimeTemp.TimeTemp.Time T1T2t1T3t2T4t3  150°C200°C60 to 120sec217°C60 to 120sec240 to 260°C30sec max. t3 t1 Preheating t2 Soldering T3T3 T4 T2 T1 t: Time T: Temperature Peak 6°C/sec or lower 3°C/sec or lower RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary ANT016008LCS2442MA1 PACKAGING STYLE REEL DIMENSIONS TAPE DIMENSIONS PACKAGE QUANTITY Dimensions in mm ABCDEFGHJKt 0.97±0.05 1.8±0.058.0±0.23.5±0.05 1.75±0.14.0±0.12.0±0.054.0±0.1 1.5+0.1/-0 0.55max. 0.25±0.05 Standard package quantity (pieces/reel) 4,000 2.0±0.5 ø21±0.8 Dimensions in mm 13.0±1.0 9.0 +1.0 –0.0 ø180 +0 –1.5 ø13±0.2 ø 60 +1.0–0.0 C D t K E H F G J B A Material of carrier the tape: PS RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applica…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 33 EMC Technologies Pty. Ltd. ABN 82 057 105 549 Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel: +61 3 9365 1000 Sydney Unit 3/87 Station Road Seven Hills, NSW 2147 Tel: +61 2 9624 2777 Email: [email protected] Web: www.emctech.com.au Accredited for compliance with ISO/IEC 17025 – Testing. The results of tests, calibration and/or measurements included in this document are traceable to Australian/national standards. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, medical testing, calibration and inspection reports. This document shall not be reproduced except in full. RADIO TEST REPORT REPORT NUMBER: M2308006-1 TEST STANDARD: FCC PART 15 SUBPART C SECTION 15.247 CLIENT: RESMED INC DEVICE: LEO MODEL: 22601 FCC ID: 2BC8M-LEO1 DATE OF ISSUE: 13 NOVEMBER 2023 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. Page 2 of 33 Report No. M2308006-1 This document shall not be reproduced except in full. REVISION TABLE Version Sec/Para Changed Change Made Date 1 Initial issue of document 13/11/2023 Page 3 of 33 Report No. M2308006-1 This document shall not be reproduced except in full. CONTENTS 1 Test Summary .................................................................................................................... 7 2 Test Facility ........................................................................................................................ 7 2.1 General ...................................................................................................................... 7 2.2 Test Laboratory/Accreditations .................................................................................. 7 3 Test Equipment Calibration ................................................................................................ 8 4 Measurement Uncertainty .................................................................................................. 8 5 Device Details..................................................................................................................... 9 5.1 EUT (Transmitter) Details .......................................................................................... 9 5.2 EUT (Host) Details ..................................................................................................... 9 5.3 Test Configuration ..................................................................................................... 9 5.4 Modifications .............................................................................................................. 9 5.5 Deviations from the Standard .................................................................................... 9 6 Results .............................................................................................................................. 10 6.1 §15.203/ RSS-Gen 6.8 Antenna Requirement ........................................................ 10 6.2 §15.205 Restricted Bands of Operation .................................................................. 10 6.3 §15.207 Conducted Limits ....................................................................................... 10 6.4 §15.209 Radiated Emission Limits; General Requirements .................................... 10 6.5 §15.247(a)(2) 6 dB bandwidth ................................................................................. 10 6.5.1 Test Procedure .................................................................................................... 10 6.5.2 Limits .................................................................................................................... 10 6.5.3 Results ................................................................................................................. 10 6.6 §15.247(b)(3) Peak Output Power ........................................................................... 12 6.6.1 Test Procedure .................................................................................................... 12 6.6.2 Limits .................................................................................................................... 12 6.6.3 Results ................................................................................................................. 12 6.7 §15.247(d) Out-of-Band/Spurious Emissions .......................................................... 14 6.7.1 Test procedure ..................................................................................................... 14 6.7.2 Evaluation of field strength .................................................................................. 15 6.7.3 Limits .................................................................................................................... 15 6.7.4 Transmitter Spurious Emissions: 9 kHz to 30 MHz ............................................. 15 6.7.5 Transmitter Spurious Emissions: 30 - 1000 MHz ................................................ 17 6.7.6 Transmitter Spurious Emissions: 1 - 18 GHz ...................................................... 19 6.7.7 Transmitter Spurious Emissions: 18 – 26 GHz .................................................... 25 6.8 §15.247(d) Band Edge Emission Measurements .................................................... 28 6.9 §15.247(e) Power Spectral Density ......................................................................... 30 6.9.1 Test procedure ...................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS FCC ID: 2BC8M-LEO1 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SETUP PHOTOS

Contact Information

Applicant

Ryan Kirkpatrick
[email protected]+1 (619) 436 6399Fax: +1 (858) 836-5501

Test Firm

EMC Technologies Pty. Ltd.Shabbir Ahmed
[email protected]61393651000Fax: 61393317455

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.90 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted.
