Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

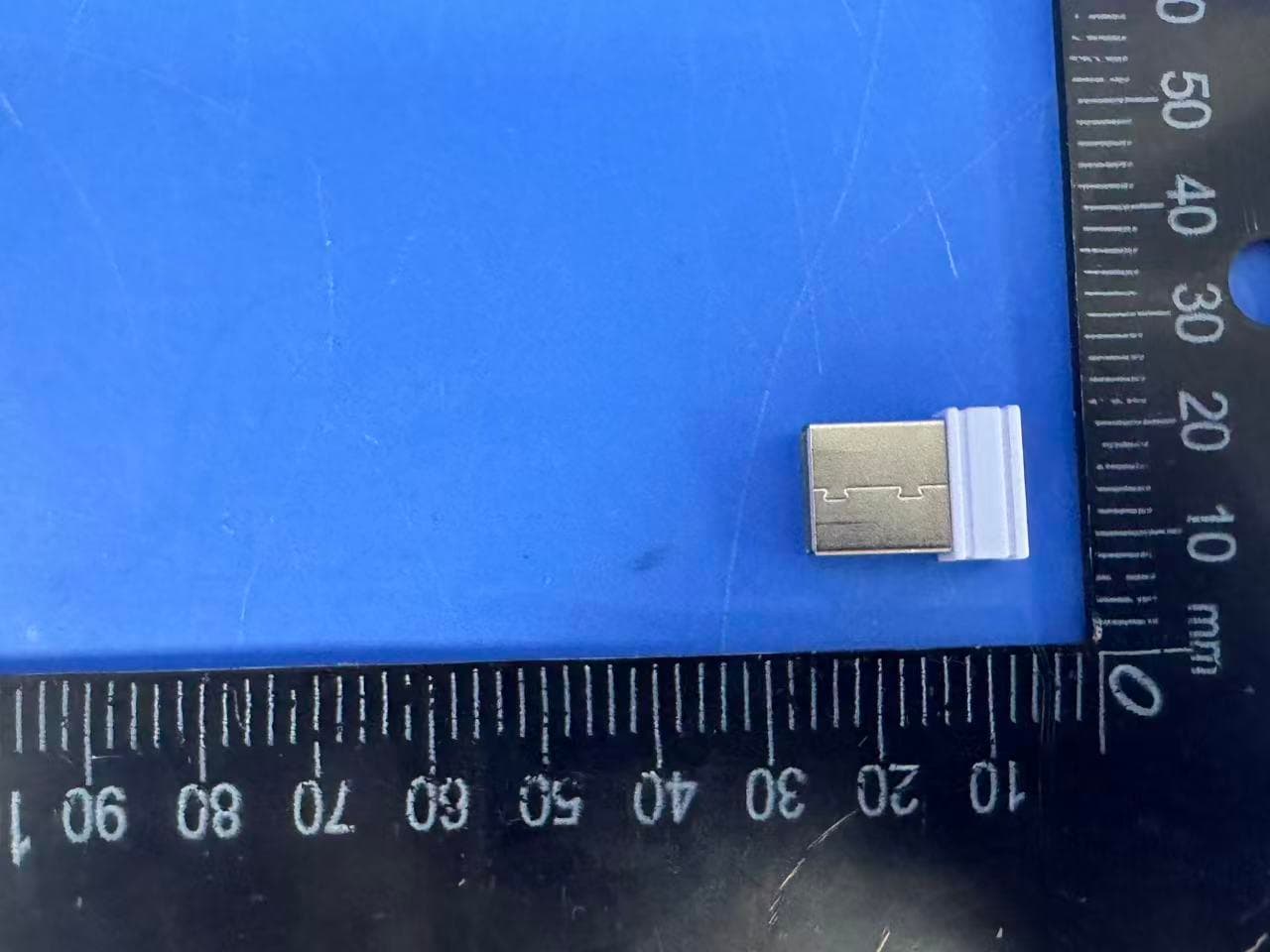

Page 1 of 3 Report No.: LGT26F234 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 3 Report No.: LGT26F234 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 3 Report No.: LGT26F234 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6
Label Size: 6*12mm FCC ID: 2BC9Z002-80-D
Page 1 of 3 Report No.: LGT26F234 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 ANT Page 2 of 3 Report No.: LGT26F234 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 3 Report No.: LGT26F234 Appendix - Internal Photographs of EUT Constructional Details Photo 5
The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: Dongle Model Number: CORE-002-80Dongle FCC ID: 2BC9Z002-80-D Issued For : HUIZHOU LJ TECH LTD No.9, Building D3, Taihong Industrial Park, No.3 Longshan Sixth Road.Daya Bay, Huizhou China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26F234HA01 Sample Received Date: Jun. 30, 2026 Date of Test: Jun. 30, 2026 ~ Jul. 23, 2026 Date of Issue: Jul. 23, 2026 Report No.: LGT26F234HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: HUIZHOU LJ TECH LTD Address: No.9, Building D3, Taihong Industrial Park, No.3 Longshan Sixth Road.Daya Bay, Huizhou China Manufacturer: HUIZHOU LJ TECH LTD Address: No.9, Building D3, Taihong Industrial Park, No.3 Longshan Sixth Road.Daya Bay, Huizhou China Product Name: Dongle Trademark: N/A Model Number: CORE-002-80Dongle Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Chris Chen Engineer Technical Director Report No.: LGT26F234HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Report No.: LGT26F234HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 Jul. 23, 2026 Initial Issue Report No.: LGT26F234HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Dongle Test Model Number: CORE-002-80Dongle Series Number: N/A Model Difference: N/A Frequency Bands: Bluetooth 2402-2480MHz 2.4G 2402~2480 MHz Rating: Input: DC 5V 30mA Hardware Version: N/A Software Version: V114 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26F234HA01 Page 6 of 8 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT26F234HA01 Page 7 of 8 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT26F234HA01 Page 8 of 8 2.3 TEST RESULT Turn up Result Mode Turn up Power BLE 1M-GFSK 0±1dBm BLE 2M-GFSK 0±1dBm 2.4G -1±1dBm Note: 2.4G dBm=dBuv/[email protected] The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BLE 2402 1.00 1.26 0.390 3 0.130 Pass 2.4G 2480 0.00 1.00 0.315 3 0.105 Pass Note: 1. The Maximum Power Density is less than the limit, complies with the exemption requirements. ※※※※※END OF THE REPORT※※※※※
On-board Antenna Datasheet 1. On-board antenna detailed size specifications: 2. Features ·Ultra-small size:2.8*8.9mm ·50 ohm impedance ·Maximum gain: 2.3dBi ·Operates in the 2.4GHz band · Manufacture : Nanjing Qinheng Microelectronics Co., Ltd Address: No. 18, Ningshuang Road, Nanjing City, Jiangsu Province · QinHeng Science and Technology Park 3. Antenna S parameter 10dB operating bandwidth: 156MH Center band S11:[email protected] 4. Antenna gain 2.4GHz: Maximum gain of 2dBi E-Side: · Antenna Tybe: PCB Antenna Model: CORE-002-80Dongle H-side: 2.44GHz: Maximum gain of 2.3dBi E-side H-side: 2.48GHz:Maximumgain2dBi E-Side: H-side:
The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 56 RF TEST REPORT Product Name: Dongle Model Number: CORE-002-80Dongle FCC ID: 2BC9Z002-80-D Issued For : HUIZHOU LJ TECH LTD No.9, Building D3, Taihong Industrial Park, No.3 Longshan Sixth Road.Daya Bay, Huizhou China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26F234RF01 Sample Received Date: Jun. 30, 2026 Date of Test: Jun. 30, 2026 ~ Jul. 23, 2026 Date of Issue: Jul. 23, 2026 Report No.: LGT26F234RF01 Page 2 of 56 TEST REPORT CERTIFICATION Applicant: HUIZHOU LJ TECH LTD Address: No.9, Building D3, Taihong Industrial Park, No.3 Longshan Sixth Road.Daya Bay, Huizhou China Manufacturer: HUIZHOU LJ TECH LTD Address: No.9, Building D3, Taihong Industrial Park, No.3 Longshan Sixth Road.Daya Bay, Huizhou China Product Name: Dongle Trademark: N/A Model Number: CORE-002-80Dongle Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 PASS Prepared by: Approved by: Chris Chen Vita Li Engineer Technical Director Report No.: LGT26F234RF01 Page 3 of 56 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 9 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 EQUIPMENTS LIST 11 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 TEST PROCEDURE 14 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 3.5 TEST RESULTS 15 4. RADIATED EMISSION MEASUREMENT 17 4.1 RADIATED EMISSION LIMITS 17 4.2 TEST PROCEDURE 19 4.3 TEST SETUP 19 4.4 EUT OPERATING CONDITIONS 20 4.5 FIELD STRENGTH CALCULATION 20 4.6 TEST RESULTS (BAND EDGE REQUIREMENTS) 25 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 27 5.1 LIMIT 27 5.2 TEST PROCEDURE 27 5.3 TEST SETUP 27 5.4 EUT OPERATION CONDITIONS 27 5.5 TEST RESULTS 27 6. POWER SPECTRAL DENSITY TEST 28 6.1 LIMIT 28 6.2 TEST PROCEDURE 28 6.3 TEST SETUP 28 6.4 EUT OPERATION CONDITIONS 28 Report No.: LGT26F234RF01 Page 4 of 56 6.5 TEST RESULTS 28 7. BANDWIDTH TEST 29 7.1 LIMIT 29 7.2 TEST PROCEDURE 29 7.3 TEST SETUP 29 7.4 EUT OPERATION CONDITIONS 29 7.5 TEST RESULTS 29 8. PEAK OUTPUT POWER TEST 30 8.1 LIMIT 30 8.2 TEST PROCEDURE 30 8.3 TEST SETUP 30 8.4 EUT OPERATION CONDITIONS 30 8.5 TEST RESULTS 30 9. ANTENNA REQUIREMENT 31 9.1 STANDARD REQUIREMENT 31 9.2 EUT ANTENNA 31 APPENDIX I - TEST RESULTS 32 DUTY CYCLE 32 MAXIMUM PEAK CONDUCTED OUTPUT POWER 35 -6DB BANDWIDTH 38 OCCUPIED CHANNEL BANDWIDTH 41 MAXIMUM POWER SPECTRAL DENSITY LEVEL 44 BAND EDGE 47 CONDUCTED RF SPURIOUS EMISSION 51 APPENDIX II - MEASUREMENT PHOTOS 56 Report No.: LGT26F234RF01 Page 5 of 56 Revision History Rev. Issue Date Revisions 00 Jul. 23, 2026 Initial Issue Report No.: LGT26F234RF01 Page 6 of 56 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 Part 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024. Report No.: LGT26F234RF01 Page 7 of 56 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 All Emissions, Radiated (18GHz-40GHz) ±4.31dB 10 Temperature ±0.5°C 11 Humidity ±2% 12 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26F234RF01 Page 8 of 56 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Dongle Test Model Number: CORE-002-80Dongle Series Number: N/A Model Difference: N/A Product Description: Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology: BLE Bluetooth Configuration: BLE (1M PHY, 2M PHY) Number Of Channel: 40 Antenna Designation: PCB Antenna Gain (dBi) 2.3 Channel List: Please refer to the Note 3. Rating: Input: DC 5V Hardware Version: N/A Software Version: V114 Connecting I/O Port(s): Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the m…
Text truncated - open the document above for the full version.
Page 1 of 2 Report No.: LGT26F234 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT26F234 Set-up for Conducted Emission
