2BCB5-030Bluetooth leather case keyboard

1 2 Thanks For Your Purchase We are a professional manufacturer of keyboards & cases for many years. And the best after- sales service team is always online for you, please let us know if any problems with the product, and we will help you with the best solution. Also, if you think we’ve done a good job, could you PLEASE share with us your feelings on Amazon? Thank you so much for your support! If any problems or suggestions, please contact us at any time. Contact: Amazon Account - Order - Seller - Contact us Contact: [email protected] 3 Table of Contents Box Contents and Product Overview...........................................................................................4 Pairing Instructions ......................................................................................................................5 Function Keys ..............................................................................................................................5 Input Method Switching ...............................................................................................................8 Indicator Description ....................................................................................................................8 Charging Instructions ...................................................................................................................9 Troubleshooting ...........................................................................................................................10 Specifications ...............................................................................................................................13 Usage Tips ...................................................................................................................................13 Questions & Answers...................................................................................................................14 Contact Us ...................................................................................................................................14 4 Box Contents and Product Overview 1.iPad holder 2.Protective case 3.Shortcut keys 4.Keyboard 5.Bluetooth connect button 6.On/off switch 7.Type-C charging port 8.Power LED: Power indicator 9.Charge LED: Charging indicator 10.WIFI LED: Bluetooth status light 11.CAPS LED: Caps lock indicator 12. Charge Cable Features: The keyboard will enter into sleeping mode if there is no action in 15 minutes. 11109 8 56 7 1 2 3 4 12 5 Pairing Instructions The keyboard links to your tablet via a Bluetooth connection. The first time you use the keyboard, pair it with your tablet first! Connect the keyboard with your tablet according to the right graphic instruction as below: 1) Tum on the keyboard: Push the power switch button to ON position to turn on the keyboard, then press and hold the "connect button for 3 seconds until the WIFI blue light flashes. 2) On your tablet: Make sure your tablet's Bluetooth feature is on. Select Settings > Bluetooth > On, select "Bluetooth 3.0 Keyboard" from the Devices menu, and click it to Connect. 3) Select application system: Note: A fter connection, the WIFI status light will turn off. Then you need to switch the keyboard to the corresponding tablet system. After pairing for the first time, your device will connect to the keyboard automatically when opening the keyboard. IOS System: Fn+IOS; Android System; Fn+ Android; Windows System: Fn+Windows For example: Conversion to IOS system 1 6 Function Keys Backlight adjustment(optional): Adjust three modes: press once to turn on the light, press twice to turn on the seven-color breathing light cycle mode, press three times to turn off the light. Adjusting colorful light colors. Optional G RB - + Cut Tr ack + - Fn+ 7 Installation and Removal I nstallation: Open the protective case, make sure the edge of your iPad is aligned with the iPad holder and push down. Removal: 1) R emoving back protective piece, Hold tablet on both sides (picture) gently push back cover of the tablet with the thumb (back piece held in place by two tabs.) 2) P roceed to 'peel" cover away from the tablet. 3) T ake the tablet out. 4) T ake the tablet upwards. 8 Input Method Switching I OS: Control+ Space. Android: Control+ Shift. Windows: Control+ Shift. Indicator Description Power LED: When the keyboard is turned on, this LED will turn on as blue, then turn off automatically after 1-2Sec.. Charge LED: The Charge LED blinks red as the battery needs to be charged. The Charge LED will show a solid red light while the keyboard is charging, and it will go out when the keyboard is fully charged. WIFI: The status light blinks blue to indicate that the keyboard is discoverable, ready for pairing with your tablet, and the WIFI LED goes out automatically after the connection done. CAPS LED: When this LED is on as blue, which means the keyboard is locked in uppercase. 9 Charging Instructions 1)For the first time of use the keyboard, charge it for at least 6 hours. In the future use, when the battery is low, please charge it for at least 2 hours when charging. 2) The Charge LED blinks red as the battery needs to be charged. The Charge LED will show a solid red light while the keyboard is charging. Charge the battery until the Charge LED light turns off. 3)Please connect the charging cable to the keyboard correctly as shown below. Ty p e - C USB 10 Troubleshooting 1)What should I do if the Bluetooth keyboard fails to connect or fails to pair? IOS System: 1.Turn off Bluetooth in the tablet settings, then turn off the tablet and keyboard; 2.T hen furn on the tablet to start (the keyboard does not need to be turned on at this time); 3. O n your tablet, check that Bluetooth is turned ON. Select Bluetooth, locate "Bluetooth keyboard" in the Devices list, and remove it. ( Click the "i" symbol, and select "Forget this Device".); 4. Turn Bluetooth OFF, and then back on. "Bluetooth keyboard should NOT be…

Text truncated - open the document above for the full version.

SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD Building 61, Changxing Industrial City, Changzhen Village, Yutang Street, Guangming District, Shenzhen City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/08/02 U.S. Agent Designation SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BCB5-030): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD with the FRN [0034073809] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Xu Lijuan Manager SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Xu Lijuan/Manager Company: SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD Address: Building 61, Changxing Industrial City, Changzhen Village, Yutang Street, Guangming District,Shenzhen City, Guangdong Province China Phone: 13620214161 Fax: N/A E-Mail: [email protected]

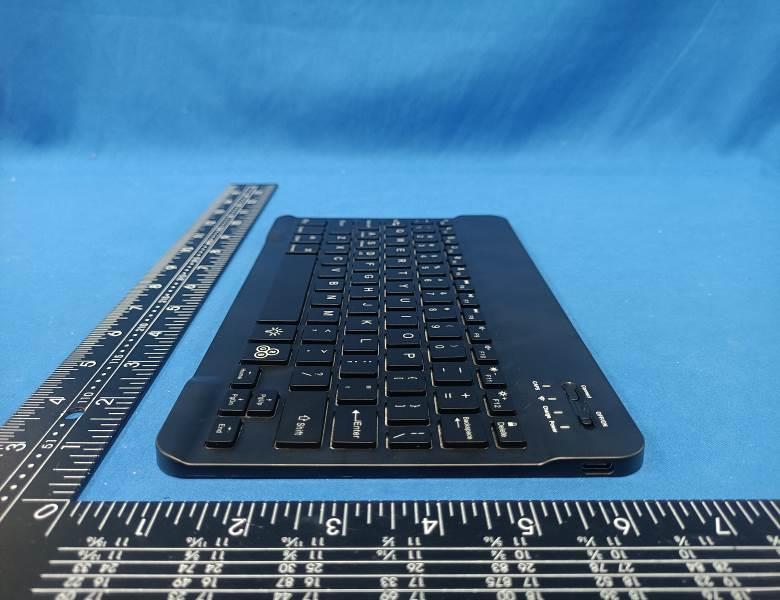

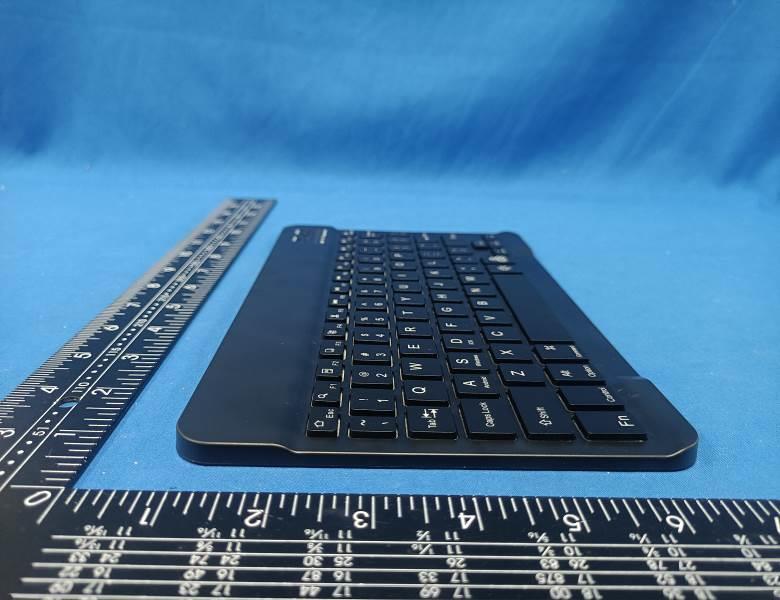

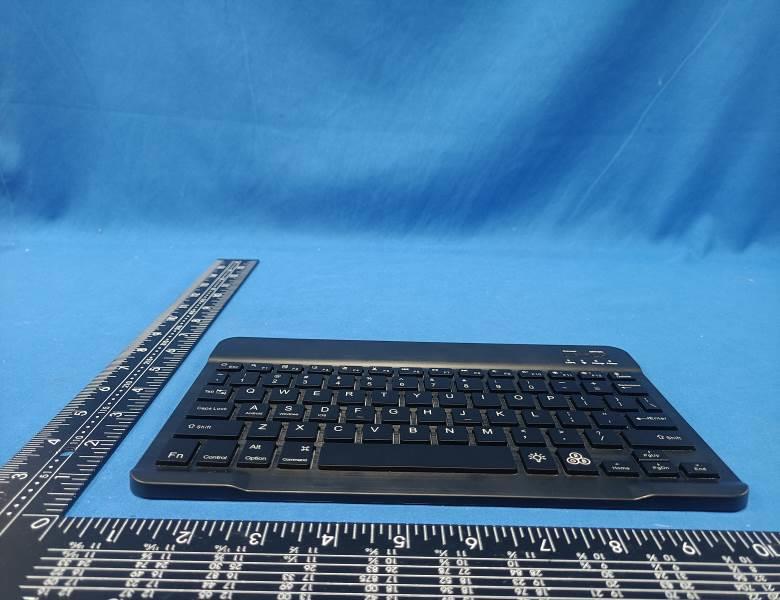

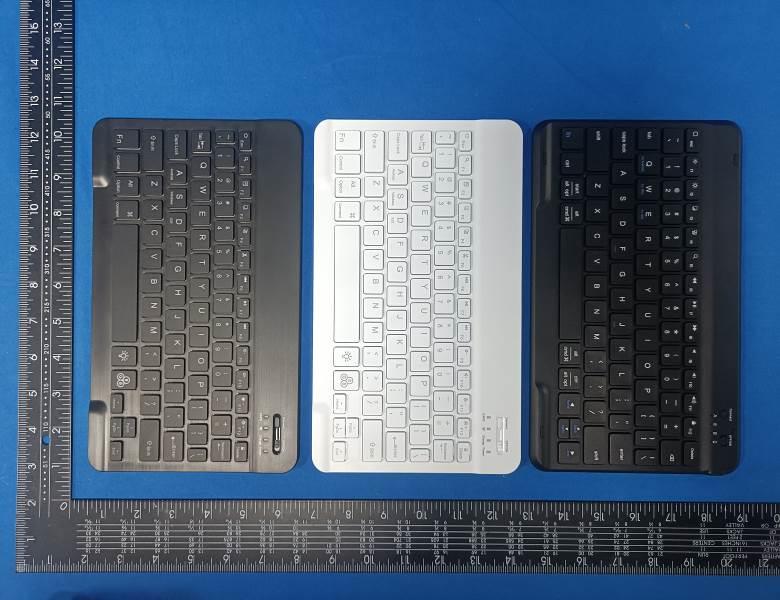

FCC ID: 2BCB5-030 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BCB5-030 Photo 4 Photo 5 Photo 6 FCC ID: 2BCB5-030 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BCB5-030

FCC ID: 2BCB5-030 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BCB5-030 Photo 4 Photo 5 Photo 6 BLE PCB Antenna

RF Exposure evaluation FCC ID: 2BCB5-030 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 3.0 1.9953 0.6246<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

 Normal Module Wiggle antenna design specification: This Wiggle antenna is used in normal module with whole layout board which size is 13mm*18mm and thickness is 1.0mm（FR4） 3-1 Normal Module Wiggle Antenna The performance of S11 as blow show and the working frequency band cover 2.4G ISM . 3-2 Normal Module Wiggle S11 performance The gain of this antenna 2D and 3D as blow show and the maximum gain is about 1.5dB. 3-3 Normal Module Wiggle gain

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA23072500101 2BCB5-030 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jul. 31, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD Address ............................................ : Building 61, Changxing Industrial City, Changzhen Village, Yutang Street, Guangming District, Shenzhen City, Guangdong Province, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Bluetooth leather case keyboard Trade Mark ....................................... : N/A Manufacturer .................................... : SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD Model/Type reference....................... : 030 Listed Models .................................. : 1203, 1805, 1222, 1333, 1419, 1519, 1669, 1799, 1999, HB-028, HB-033, HB-030, HB-098 Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From Battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA23072500101 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth leather case keyboard Model /Type : 030 Listed Models : 1203, 1805, 1222, 1333, 1419, 1519, 1669, 1799, 1999, HB-028, HB-033, HB-030, HB-098 Applicant : SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD Address : Building 61, Changxing Industrial City, Changzhen Village, Yutang Street, Guangming District, Shenzhen City, Guangdong Province, China Manufacturer : SHENZHEN SENYUANXIANG TECHNOLOGY CO., LTD Address : Building 61, Changxing Industrial City, Changzhen Village, Yutang Street, Guangming District, Shenzhen City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23072500101 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: CTA23072500101 Page 4 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Sys…

Text truncated - open the document above for the full version.

FCC ID: 2BCB5-030 Test Setup Photos of the EUT
