2BCCA-ANGEL0G1RM1Angel Eye

User Setup Guide For additional help or feedback visit aiwave.care/help Recycling the Products Properly In some areas, the disposal of specific electronic devices is regulated. Make sure you dispose of or recycle the products in accordance with your local laws and regulations. Product Specifications Model No.: ANGEL0G1RM1 Input: DC 5V min 2A power supply, USB-C. Power adapter input: 100-240V AC 50/60Hz Embedded lithium battery 3.7V 170mAh. This backup battery operations are limited below 32°F (0 °C). Operating temperature: -13°F to 130°F (-25°C to 55°C) Storage temperature: -4F (-20°C) to 140F (60°C) (with packaging, no operation, 48 hours) Connectivity: Wi-Fi 2.4GHz/5GHz; Bluetooth Low Energy Additional Information To review the Terms of Use, Limited Warranty, instructions for using the device, Customer Service contact information, and other applicable terms and device information at aiwave.care [email protected] Or chat us on Skype: aiwave_care Use Responsibly. Read all instructions and safety information before use. FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK, OR OTHER INJURY OR DAMAGE. Visit www.aiwave.care to get know more about our protection plans. Version 1.0.0 Last update made 12/2023 1. Find a place for your Angel 1.Avoid placing this product near a heat source and large metal objects. 2.If you plan to mount the Safe Lock using a driller, be sure the wall area is far enough from the electrical wires in the wall. 3.Make sure your device is positioned close enough to an electric outlet for the length of the included USB cable. 4.For outdoor use, you must use only waterproof outdoor electric outlets! 5.Make sure the device sensing angles cover your operations area, and blind spots are outside of this region. See sensing angles as follows: Please follow this drawing to find the best possible place to get the best system performance: You must avoid all metal components in a radius of 16in (40 cm) from the Angel device. The device can see through thin, non-metal objects, but avoiding any object in front of the product is recommended to get the best performance and high reliability. 47-60 in (120-150cm) Vertical sensing angle ~150 deg Horizontal sensing angle ~150 deg 2. Install your Angel Please check your local regulations, as your country may require licensed electricians to perform wiring and installation. Place the AiWave Safe Lock on the wall or stick the device on a wall by using strong tape. 1. Use a tissue to remove dust from your wall. 2. Peel off a release liner from the device side and stick the sticker to your device. 3. Peel off a release liner and stick the device to a wall. 4. Verify if your device is placed strong enough. In case of peeling off or dropping, or if you do feel the placement is insecure, consider using Smart Lock instead of sticker. Plug the USB power cable into your device. If installing by a sticker To a wall 2. Install your Angel To mount the Safe Lock, you need: •M6 drill (select a type depending on your surface) and electric driller, •Cross-head screwdriver, •Pencil and spirit level (you can use spirit level app on your phone instead). 1. Use a spirit level to level the safe lock and mark three screw holes on a wall under the Safe Lock with a pencil. Drill three holes in a marked position using an M6 drill. 2. In the drilled holes, insert raw plugs and screw the Safe Lock according to the image. Use the attached set of hardware. Use the Safe Lock’s wings to place a spirit level on it. 3. Insert your Angel device into the slots on the Safe Lock (rotated around 30-40 deg angle as shown on the image). The USB cable must be connected before. 4. Rotate the device in a clockwise direction to left the device in a vertical position. Once the vertical position has been reached, the lock will be activated. Please note, that releasing the lock requires a special tool inserted from the top of the device. 5. Power up the device. You should notice sound or light activity on it. If installing by AiWave Safe Lock 3. Connect your Angel Download and install the AiWave app: search for "AiWave" in the Apple App Store or Google Play. Open the app and follow the instructions to create your account. As a default user, you grant system administrator privileges that cannot be moved to another account. After account and location setup, select Add New Device in the Menu. Wait until searching finished. The app finds all available AiWave devices in its range (therefore, searching must be repeated nearby of the device that has not been added the first time). To locate a specify device, tap it on the found devices list. Select all your devices on the list and press continue button to chose correct Wi-Fi network and enter network password(capitalization matters). Once you add all your device, double-check if any of the devices are still available to configure. In case of insufficient range, you have to relocate the device or add Wi-Fi signal extender. Download and install the AiWave app. Press here to setup all devices separately to assign its name, room location and teach it. Press to add more devices. Check device status (green, yellow, or red) and resolve all problems. Your device type, name, and ID are displayed here. To fully set up each device, you have to name it, select the room where it is located, and calibrate it by teaching. The device property window provides sound and light locating and muting buzzer notifications (leaving severe alarms always on). 4. Teach your Angel To precisely detect what is happening inside your room, you need to conduct a short teaching process of each device separately, one by one. To reduce the risk of unsuccessful teaching, only one person should be moving within the sensing area of all already set up devices. Go to your devices list and start teaching all of them. Then, follow the application screen to determine the room perimeter, outside windows, and doors. Once finished, you will see the teaching resul…

Text truncated - open the document above for the full version.

AiWave Technologies 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: AiWave Technologies Address: ul. Niska 3, 27-200 Starachowice Poland Product Name: Angel Eye FCC ID: 2BCCA-ANGEL0G1RM1 Model(s): ANGEL0G1RM1 2.911(d)(5)(i) Equipment Type We, AiWave Technologies (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Robert Jaszczyk Date: 2/5/2024 Title and Company name: Founder & CEO / AiWave Technologies NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

AiWave Technologies 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: AiWave Technologies Address: ul. Niska 3, 27-200 Starachowice Poland Product Name: Angel Eye FCC ID: 2BCCA-ANGEL0G1RM1 Model(s): ANGEL0G1RM1 2.911(d)(5)(ii) Applicant filing We, AiWave Technologies (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Robert Jaszczyk Date: 2/5/2024 Title and Company name: Founder & CEO / AiWave Technologies NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- communications-supply-chain-through-the

AiWave Technologies 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: February 5, 2024 Subject: Request for Confidentiality FCC ID: 2BCCA-ANGEL0G1RM1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No PAG Checklist ☒ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Robert Jaszczyk Title: Founder & CEO Company: AiWave Technologies

AiWave Technologies Date: 2/5/2024 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: FCC PAG Checklist for Part 15.255 Rules FCC ID: 2BCCA-ANGEL0G1RM1 To Whom It May Concern: 388624 D02 Pre-Approval Guidance List v18r05 RDR255 - For field disturbance sensors and/or radar devices under Section 15.255 as amendment by FCC 23-35 effective August 30th, 2023, the PAG shall include a detailed explanation in accordance with guidance presented at the TCB Workshop October 25, 2023 in Part 15.255 Rules Amendment presentation slides 9 – 12. Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) 1) Identify the specific rule section under which certification is being sought ☒Yes §15.255(c)(2) &§15.255(c)(2)(v) 2) Describe the radar modulation (e.g., pulsed, FMCW, other) ☒Yes The modulation is FMCW. 3) State the intended use case(s), e.g., unmanned aircraft, indoor or outdoor, vehicular in-cabin, etc. ☒Yes The EUT is for indoor use. 4) If applying under §15.255(c)(2): –Describe how conducted output power is determined ☒Yes The conducted output power were calculated from the subtraction from maximum antenna gain declared by manufacturer from the EIRP. 5) If applying under §15.255(c)(2)(v) for operation in the 60.0-61.5 GHz ISM band –Demonstrate that the transmitter occupied bandwidth (OBW) is wholly contained within the 61.0- 61.5 GHz band ☒Yes Refer to page 7 of KSZ2023053101J04_FDS_Appendix 6) If applying under §15.255(b)(3) for operation onboard unmanned aircraft –Show that the transmitter OBW is contained within the 60-64 GHz band segment –Describe how altitude restriction will be satisfied –Provide time domain data that demonstrates compliance to the off-time requirement ☒No The EUT is not applicable for the specific rule. 7) If applying under §15.255(c)(2)(i) for operation over 57.0-59.4 GHz –Show that the transmitter OBW is contained within the 57.0-59.4 GHz band segment –State whether usage will be limited to outdoor or indoor only, and if so, describe how will such limitations be ensured ☒No The EUT is not applicable for the specific rule. 8) If applying under §15.255(c)(2)(ii) for operation over 57.0-61.56 GHz –Show that the transmitter OBW is contained within the 57.0-61.56 GHz band segment ☒No The EUT is not applicable for the specific rule. 9) If applying under §15.255(c)(2)(iii)(A) for operation over 57.0-64.0 GHz –Show that transmitter OBW is contained within 57-64 GHz band segment –Demonstrate with time domain data plots that the off-time requirement is satisfied ☒No The EUT is not applicable for the specific rule. 10) If applying under §15.255(c)(2)(iii)(B) for operation over 57.0-64.0 GHz –Show that transmitter OBW is contained within 57-64 GHz band segment –Explain how ‘fixed’ requirement is satisfied and maintained (if applicable) –Explain the intended vehicle application and how the device will be limited to vehicular use (if applicable) –Demonstrate with time domain data plots that the specified off-time requirement has been satisfied ☒No The EUT is not applicable for the specific rule. 11) If applying under §15.255(c)(3) for pulsed radar operation over 57-64 GHz –Show that transmitter OBW is contained within 57-64 GHz –Specify the maximum pulse duration and provide supporting time domain data –Provide time domain data plot that demonstrates the maximum duty cycle in any 3 μs time window ☒No The EUT is not applicable for the specific rule. Sincerely, Signature: Name: Robert Jaszczyk Title: Founder & CEO Company: AiWave Technologies

AiWave Technologies Company name: AiWave Technologies Address: ul. Niska 3, 27-200 Starachowice Poland Product Name: Angel Eye FCC ID: 2BCCA-ANGEL0G1RM1 Model(s): ANGEL0G1RM1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2/5/2024 Name: Robert Jaszczyk Title: Founder & CEO Company: AiWave Technologies

Global Market Access Service >> www.kmolab.com FCC_PAG Checklist_2BCCA-ANGEL0G1RM1_reply letter_20240311 Page 1 of 4 Date: March 11, 2024 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: FCC PAG Checklist for Part 15.255 Rules FCC ID: 2BCCA-ANGEL0G1RM1 To Whom It May Concern: FCC comments: 1. What do you mean by “Except fixed field disturbance sensors at 61-61.5GHz, 10dBm(peak)”? Which FCC provision/Rule you are employing? KMO reply: a. The mean for fixed field disturbance sensors other than those operating under the provisions of paragraph (c)(2) of this section, and short-range devices for interactive motion sensing, the peak transmitter conducted output power shall not exceed −10 dBm and the peak EIRP level shall not exceed 10 dBm. b. For this EUT, the FCC provision/Rule is 15.255(c)(2)(v) for frequency range 61.0–61.5 GHz and FCC provision/Rule is 15.255(c)(2) for except frequency range 61.0–61.5 GHz, 2. Please clarify about the Occupied Bandwidth: 2.1 What do the Mask D1 and D2 indicate? (Test Mode 1) KMO reply: D2 line indicates the highest level, D1 line indicates the 6dB offset below D2. It shows reference only. 2.2 Are there 2 OBW within a spectrum (D1 and D2) in Test Mode 1? KMO reply: No. This is working pattern from the EUT. 2.3 What is the difference between Test Mode 1 and Test Mode 2? KMO reply: The two different scripts of Test Mode 1 and Test Mode 2 were provided by manufacturer corresponding to each occupied bandwidth tested: 3300MHz and 300MHz 2.4 Function Result is missing for some. KMO reply: Yes, compared to the table of 99% Occupied Bandwidth, the Function Result of 6dB Bandwidth is missing some. But the missing data is already rendered in the plot by the D2 parameter. We have updated the plot as below. 2.5 It looks too noisy. KMO reply: We have updated the plot as below: Global Market Access Service >> www.kmolab.com FCC_PAG Checklist_2BCCA-ANGEL0G1RM1_reply letter_20240311 Page 2 of 4 ☒Test Mode 1 6dBc Bandwidth ☒Test Mode 1 99% Occupied Bandwidth Date: 2.MAR.2024 19:41:08 Date: 2.MAR.2024 19:36:27 Global Market Access Service >> www.kmolab.com FCC_PAG Checklist_2BCCA-ANGEL0G1RM1_reply letter_20240311 Page 3 of 4 ☒Test Mode 2 6dBc Bandwidth ☒Test Mode 2 99% Occupied Bandwidth Global Market Access Service >> www.kmolab.com FCC_PAG Checklist_2BCCA-ANGEL0G1RM1_reply letter_20240311 Page 4 of 4 3. Have you considered the recent TCB Workshop presentation and KDB Pub. 364244 Meas 15.255 Radars DR01- 45264 on this subject? KMO reply: Because the above document was not released during the testing period, the test report did not refer to KDB Pub. 364244 Meas 15.255 Radars DR01-45264. We will use it in the future. ***Please use C63.2020 for the future as opposed toC63.2013.***

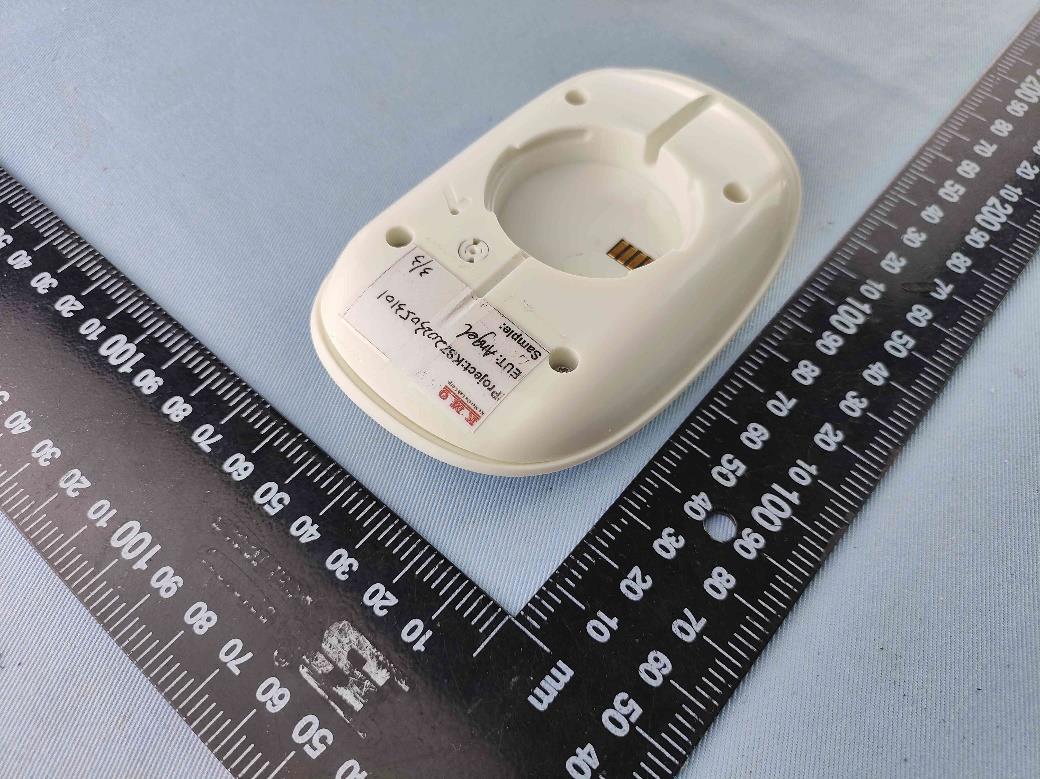

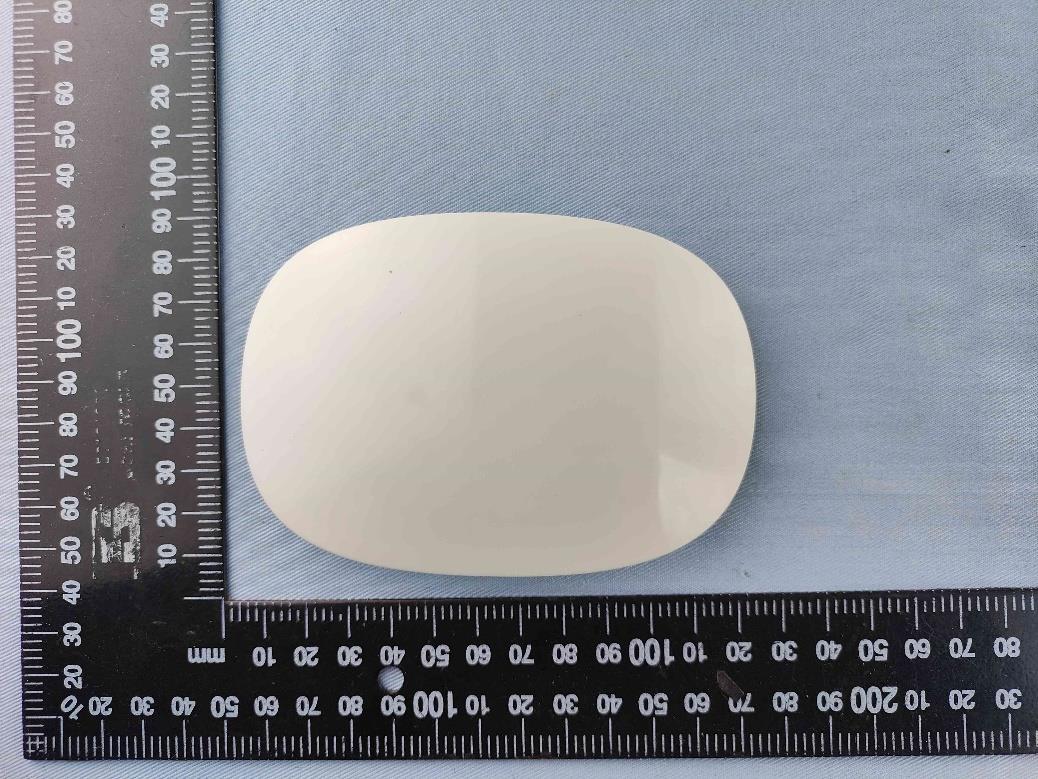

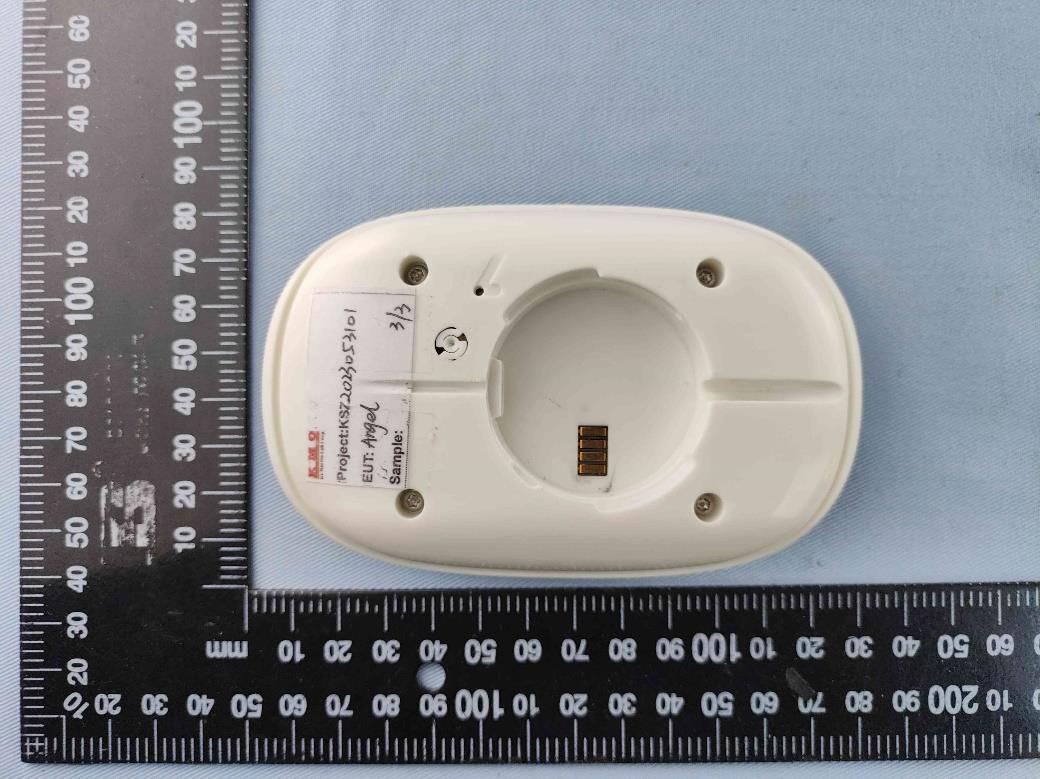

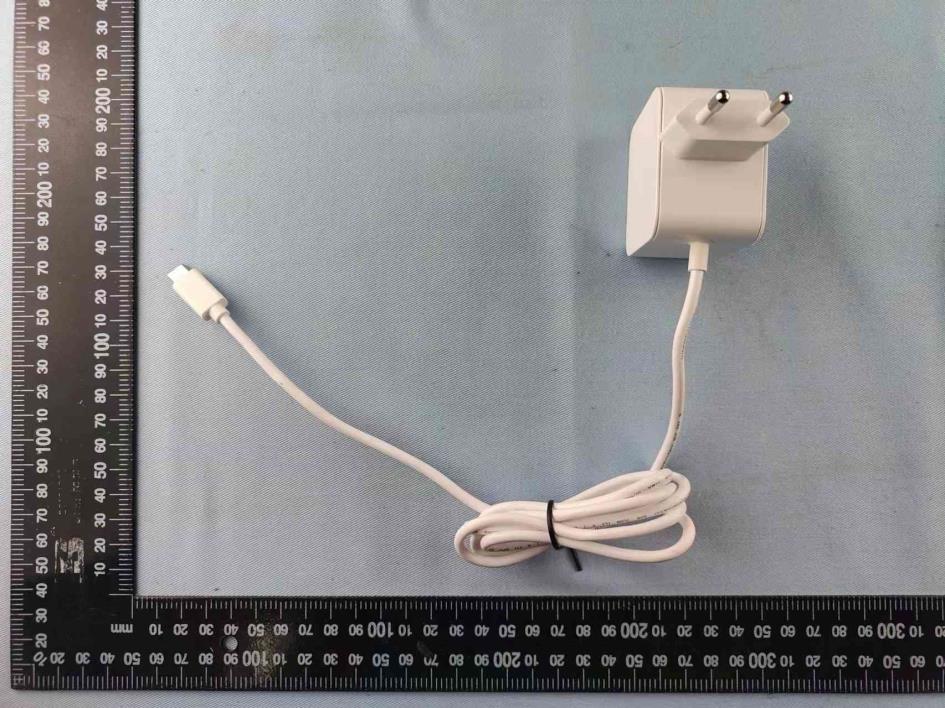

Global Market Access Service >> www.kmolab.com External Photos_2BCCA-ANGEL0G1RM1 Page 1 of 4 EUT top side view EUT top side view Global Market Access Service >> www.kmolab.com External Photos_2BCCA-ANGEL0G1RM1 Page 2 of 4 EUT bottom side view EUT bottom side view Global Market Access Service >> www.kmolab.com External Photos_2BCCA-ANGEL0G1RM1 Page 3 of 4 EUT interface view Global Market Access Service >> www.kmolab.com External Photos_2BCCA-ANGEL0G1RM1 Page 4 of 4 Adapter top view Adapter side view

Global Market Access Service >> www.kmolab.com FCC_ID_Label Locations_2BCCA-ANGEL0G1RM1 Page 1 of 1 ID Label & Location Info The following note shall be conspicuously placed in the users manual: “Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.” The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT

Global Market Access Service >> www.kmolab.com Internal Photos_2BCCA-ANGEL0G1RM1 Page 1 of 5 EUT inside whole view EUT inside whole view Global Market Access Service >> www.kmolab.com Internal Photos_2BCCA-ANGEL0G1RM1 Page 2 of 5 1#Board component side view 1#Board layout side view Global Market Access Service >> www.kmolab.com Internal Photos_2BCCA-ANGEL0G1RM1 Page 3 of 5 2#Board component side view 2#Board layout side view Global Market Access Service >> www.kmolab.com Internal Photos_2BCCA-ANGEL0G1RM1 Page 4 of 5 3#Board component side view 3#Board layout side view Global Market Access Service >> www.kmolab.com Internal Photos_2BCCA-ANGEL0G1RM1 Page 5 of 5 Battery top view Battery side view

www.kmolab.com The test report consists 7 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. RF Exposure Evaluation Report Under: 47 CFR Part 2.1091 & Part 15.255(g) KDB 447498 D01 Interim General RF Exposure Guidance v06 Prepared for: AiWave Technologies ul. Niska 3, 27-200 Starachowice Poland FCC ID: 2BCCA-ANGEL0G1RM1 EUT: Angel Eye Model: ANGEL0G1RM1 December 11, 2023 Issue Date: Original Report Report Type: Prepared by: Jacky Huang / Engineer Reviewed & Approved by: Apollo Liu / Manager ©2023 Ke Mei Ou Laboratory Co., Ltd. Global Market Access Service >> www.kmolab.com KMO MPE Report Page 2 of 7 Report #: KSZ2023053101J04_FDS_MPE Table of Contents 1. General Information ........................................................................................................................................................ 4 1. 1 Notes .......................................................................................................................................................................... 4 1. 2 Testing Laboratory ...................................................................................................................................................... 4 1. 3 Details of Applicant .................................................................................................................................................... 4 1. 41. 4 Application Details ................................................................................................................................................ 4 1. 5 Details of Manufacturer............................................................................................................................................... 4 1. 6 Test Item ..................................................................................................................................................................... 4 1. 7 Applicable Standards ................................................................................................................................................... 5 2. Technical Test .................................................................................................................................................................. 6 2. 1 Summary of Test Results ............................................................................................................................................. 6 3. EUT Modifications .......................................................................................................................................................... 6 4. FCC Maximum Permissible Exposure (MPE) ................................................................................................................ 7 4. 1 Limit of MPE.............................................................................................................................................................. 7 4. 2 RF Exposure Requirements ......................................................................................................................................... 7 4. 3 Conclusion.................................................................................................................................................................. 7 Global Market Access Service >> www.kmolab.com KMO MPE Report Page 3 of 7 Report #: KSZ2023053101J04_FDS_MPE Report Revision History Report # Version Description Issued Date KSZ2023053101J04_DXX_MPE Rev.01 Initial issue of report December 11, 2023 Global Market Access Service >> www.kmolab.com KMO MPE Report Page 4 of 7 Report #: KSZ2023053101J04_FDS_MPE 1. General Information 1. 1 Notes The test results of this report relate exclusively to the test item specified in 1.6. The Ke Mei Ou Laboratory does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Ke Mei Ou Laboratory. 1. 2 Testing Laboratory Test Firm Name: Ke Mei Ou Lab Co., Ltd. Test Firm Address: 2013-2016, 20th Floor, Business Center, Jiahui Xin Cheng, No 3027, Shen Nan Road, Fu Tian, Shen Zhen, Guang Dong, P. R. China FCC Designation Number: CN1532 Test Firm Registration Number: 344480 Internet: www.kmolab.com Email: [email protected] ANSI-ASQ National Accreditation Board/ACLASS ISO/IEC 17025 Accredited Lab for telecommunication standards. The Registration Number is AT- 1532. The testing quality system meets with ISO/IEC-17025 requirements, This approval results is accepted by MRA of ILAC. 1. 3 Details of Applicant Name AiWave Technologies Address ul. Niska 3, 27-200 Starachowice Poland 1. 41. 4 Application Details Date of Receipt of Application : May 31, 2023 Date of Receipt of Test Item : October 13, 2023 Date of Test : October 13, 2023 ~ December 11, 2023 1. 5 Details of Manufacturer Name AiWave Technologies Address ul. Niska 3, 27-200 Starachowice Poland 1. 6 Test Item EUT Feature EUT Description: Angel Eye Brand Name: N/A Basic Mode: ANGEL0G1RM1 Family Model: N/A HW Version: 1.3 SW Version: 1.0 Equipment Class: ☒DXX-Part 15 Low Power Communication Device Transmitter EUT Stage: ☒Identical Prototype Note: The above EUT’s information was declared by manufacturer. Please refer to the specifications or user’s manual for more detailed description. Additional Information Standard Product Specification Tx/Rx Frequency Range ☒57-71GHz Number of Channels Channel Frequency (GHz) BW (MHz) ☒ 1 57-64 3300 ☒ 2 61-61.5 300 ☒ 3 57-64 1300 ☒ 4 57-64 5100 Antenna Type / Gain Chain Number A…

Text truncated - open the document above for the full version.

ANGEL0G1RM1 Antenna FCC ID: 2BCCA-ANGEL0G1RM1 1. Antenna dimensions 2. Antenna radiation pattern and gain Antenna peak gain: 5 dBi. 2.1. Elevation. 2.2. Azimuth.

www.kmolab.com The test report consists 33 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC ID TEST REPORT Under: FCC 15 Subpart C, Paragraph 15.255 Operation within the band ☒57-71GHz ☒FDS - Part 15 Field Disturbance Sensor Prepared for: AiWave Technologies ul. Niska 3, 27-200 Starachowice Poland FCC ID: 2BCCA-ANGEL0G1RM1 EUT: Angel Eye Model: ANGEL0G1RM1 December 11, 2023 Issue Date: Original Report Report Type: Prepared by: Jacky Huang / Engineer Reviewed & Approved by: Apollo Liu / Manager ©2023 Ke Mei Ou Laboratory Co., Ltd. Global Market Access Service >> www.kmolab.com KMO FCC ID Report Page 2 of 33 Report #: KSZ2023053101J04 Table of Contents 1. General Information ........................................................................................................................................................ 4 1. 1 Notes .......................................................................................................................................................................... 4 1. 2 Testing Laboratory ...................................................................................................................................................... 4 1. 3 Details of Applicant .................................................................................................................................................... 4 1. 41. 4 Application Details ................................................................................................................................................ 4 1. 5 Details of Manufacturer............................................................................................................................................... 4 1. 6 Test Item ..................................................................................................................................................................... 4 1. 7 Applicable Standards ................................................................................................................................................... 5 2. Technical Test .................................................................................................................................................................. 6 2. 1 Summary of Test Results ............................................................................................................................................. 6 2. 2 Antenna Requirement .................................................................................................................................................. 6 2. 3 Measurement Uncertainty............................................................................................................................................ 6 2. 4 Test Configuration ...................................................................................................................................................... 7 3. EUT Modifications .........................................................................................................................................................11 4. Conducted Power Line Test ...........................................................................................................................................12 4. 1 Test Equipment ..........................................................................................................................................................12 4. 2 Test Procedure ...........................................................................................................................................................12 4. 3 Test Setup ..................................................................................................................................................................12 4. 4 Configuration of the EUT ...........................................................................................................................................13 4. 5 EUT Operating Condition...........................................................................................................................................13 4. 6 Conducted Power Line Emission Limits ........................................…

Text truncated - open the document above for the full version.
