2BCCJ-DSBT-SPK006Bluetooth Speaker

FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Attestation Statements Date: 2026-06-15 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for(FCC ID: 2BCCJ-DSBT-SPK006) Daiso Industries Co., Ltd., the undersigned, hereby authorize HOPEK CORPORATION INC to act as our designated agent for service of process, Daiso Industries Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. HOPEK CORPORATION INC accepts the responsibility to act as designated agent for service of process. Applicant Information： Company name: Daiso Industries Co., Ltd. Contact Name: Nozomi Matsunobu Address: 1-4-14 Saijoyoshiyukihigashi, Higashihiroshima-shi, Hiroshima Japan Telephone No: +81-82-420-0100 Email: [email protected] FRN: 0034077610 Signature: Nozomi Matsunobu Agent Information: Company Name: HOPEK CORPORATION INC Address:16755 Coyote Bush Dr Unit 84, San Diego, CA 92127 United States FRN: 0034562900 Contact Name: Yangyang Xu Telephone No: 561-875-9826 Email: [email protected] Signature: Yangyang Xu

Rev 1/26/2023 Daiso Industries Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-15-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID:2BCCJ-DSBT-SPK006 [Daiso Industries Co., Ltd.) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Daiso Industries Co., Ltd.)certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). √ Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID:2BCCJ-DSBT-SPK006 [Daiso Industries Co., Ltd.]certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) Nozomi Matsunobu

Daiso Industries Co., Ltd. Date：06-15-2026 Product Model Number:DS BT-SPK 006 FCC ID:2BCCJ-DSBT-SPK006 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Nozomi Matsunobu Contact Listed on FCC Wesbite Title: Chief Email: [email protected] Telephone: +81-82-420-0100 On behalf of: Daiso Industries Co., Ltd.

Daiso Industries Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 17, 2026 Subject; Request for Confidentiality FCC ID:2BCCJ-DSBT-SPK006 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. √ Schematic Diagram √ Block Diagram Parts List √ Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Nozomi Matsunobu Title:Chief

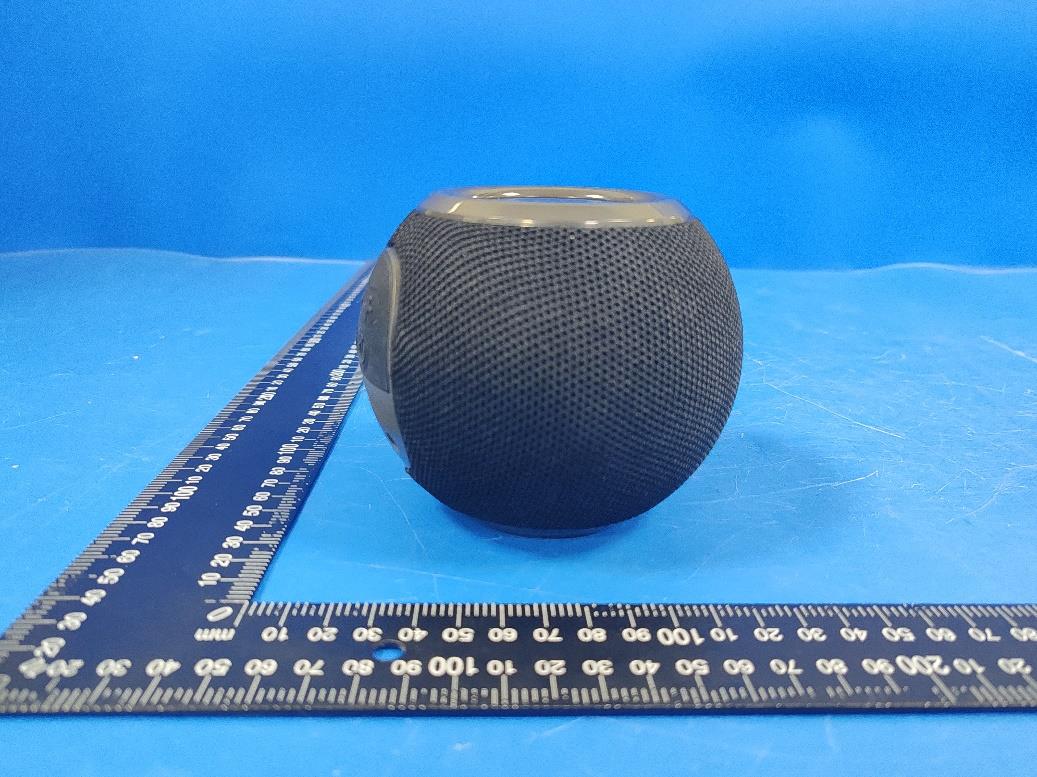

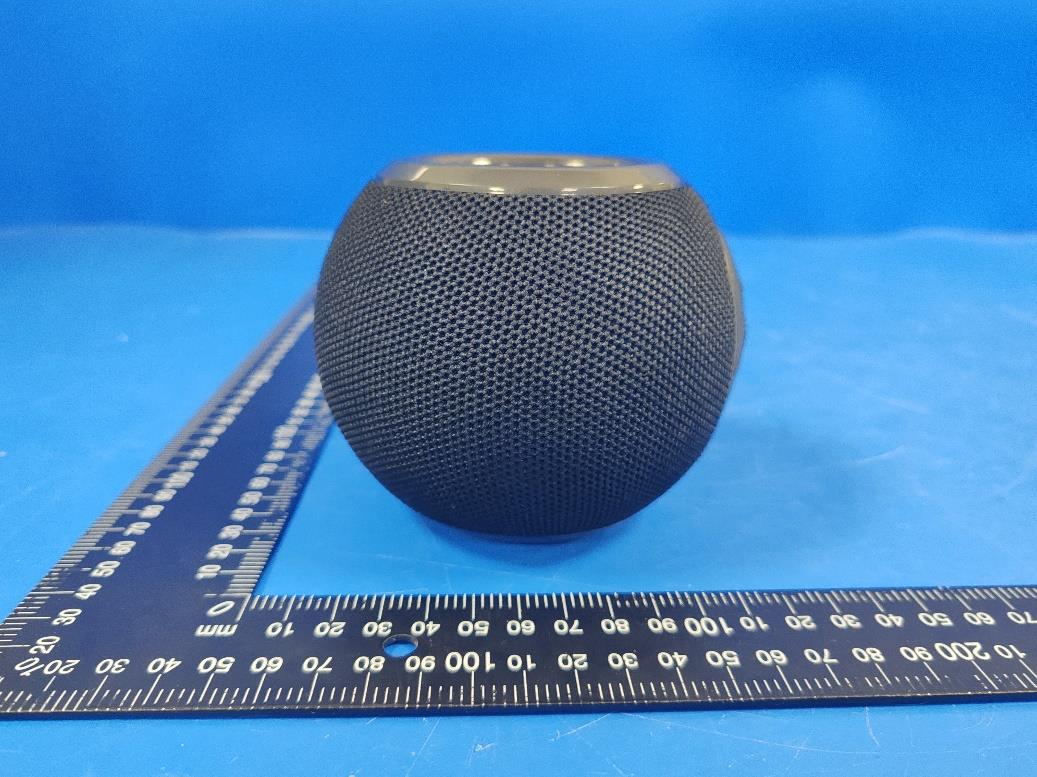

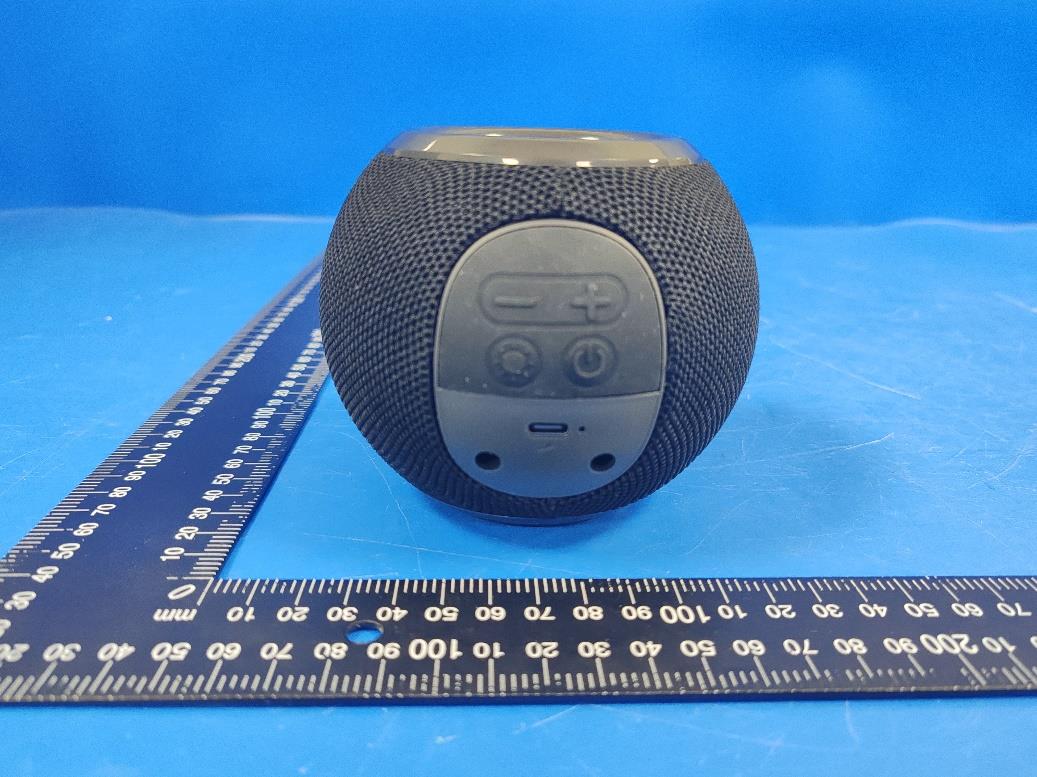

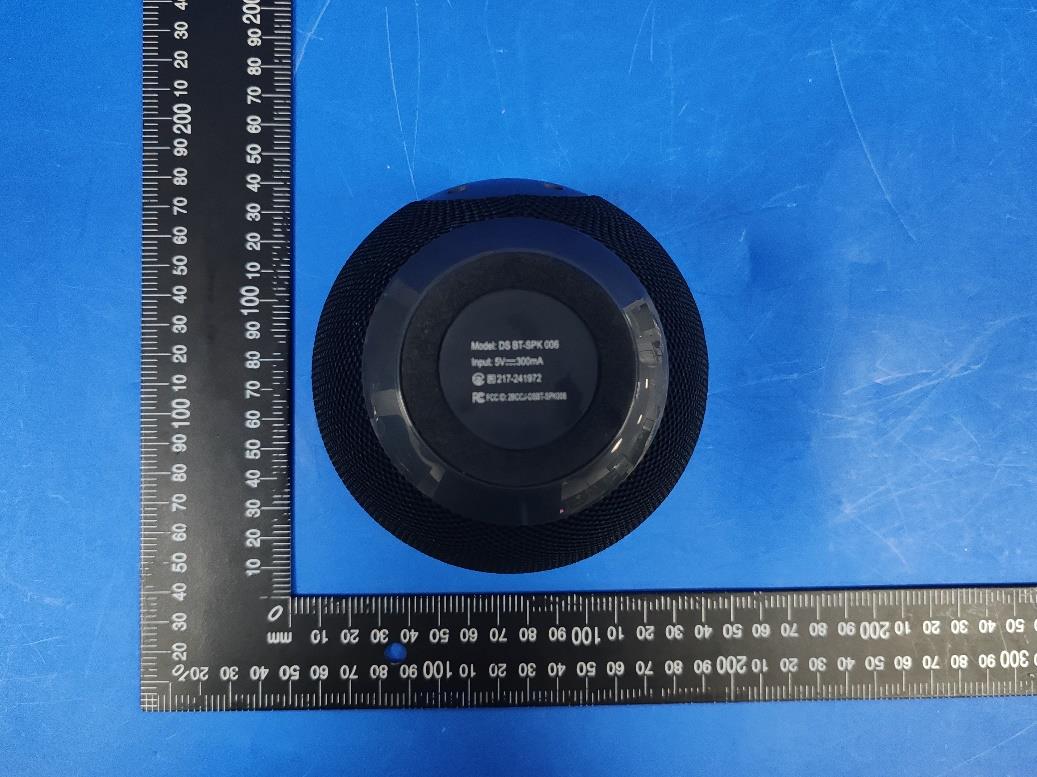

Page 1 of 4 Report No.: LGT26E224 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 4 Report No.: LGT26E224 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 4 Report No.: LGT26E224 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 4 Report No.: LGT26E224 Appendix - External Photographs of EUT Constructional Details Photo 7

Label Size: 35*60mm

Page 1 of 5 Report No.: LGT26E224 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 5 Report No.: LGT26E224 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 ANT Page 3 of 5 Report No.: LGT26E224 Appendix - Internal Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 5 Report No.: LGT26E224 Appendix - Internal Photographs of EUT Constructional Details Photo 7 Photo 8 Page 5 of 5 Report No.: LGT26E224 Appendix - Internal Photographs of EUT Constructional Details Photo 9

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: Bluetooth Speaker Model Number: DS BT-SPK 006 FCC ID: 2BCCJ-DSBT-SPK006 Issued For : Daiso Industries Co., Ltd. 1-4-14 Saijoyoshiyukihigashi, Higashihiroshima-shi, Hiroshima Japan Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26E224HA01 Sample Received Date: May 29, 2026 Date of Test: May 29, 2026 ~ June 08, 2026 Date of Issue: June 08, 2026 Report No.: LGT26E224HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: Daiso Industries Co., Ltd. Address: 1-4-14 Saijoyoshiyukihigashi, Higashihiroshima-shi, Hiroshima Japan Manufacturer: Virtuous Electronics Co., Ltd Address: Jimadi Industrial Zone, Luoyang Town, Boluo Country, Huizhou City, Guangdong Province, China Product Name: Bluetooth Speaker Trademark: DAISO Model Number: DS BT-SPK 006 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26E224HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Report No.: LGT26E224HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 June 08, 2026 Initial Issue Report No.: LGT26E224HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Bluetooth Speaker Test Model Number: DS BT-SPK 006 Series Number: N/A Model Difference: N/A Frequency Bands: Bluetooth 2402-2480MHz Rating: Input: DC 5V 300mA Battery: Capacity: 300mAh Rated Voltage: 3.7V Hardware Version: N/A Software Version: N/A 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26E224HA01 Page 6 of 8 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT26E224HA01 Page 7 of 8 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT26E224HA01 Page 8 of 8 2.3 TEST RESULT Turn up Result Mode Turn up Power BT-GFSK 1±1dBm BT-π/4-DQPSK 3±1dBm BT-8DPSK 3±1dBm BLE 1M-GFSK 1±1dBm The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BT 2402 4.00 2.51 0.779 3 0.260 Pass BLE 2402 2.00 1.58 0.491 3 0.164 Pass Note: 1. The Maximum Power Density is less than the limit, complies with the exemption requirements. ※※※※※END OF THE REPORT※※※※※

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Type PCB Antenna Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Address: No. 333, Kexing Road, Xiangzhou District, Zhuhai City Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 80 RF TEST REPORT Product Name: Bluetooth Speaker Model Number: DS BT-SPK 006 FCC ID: 2BCCJ-DSBT-SPK006 Issued For : Daiso Industries Co., Ltd. 1-4-14 Saijoyoshiyukihigashi, Higashihiroshima-shi, Hiroshima Japan Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26E224RF01 Sample Received Date: May 29, 2026 Date of Test: May 29, 2026 ~ June 08, 2026 Date of Issue: June 08, 2026 Report No.: LGT26E224RF01 Page 2 of 80 TEST REPORT CERTIFICATION Applicant: Daiso Industries Co., Ltd. Address: 1-4-14 Saijoyoshiyukihigashi, Higashihiroshima-shi, Hiroshima Japan Manufacturer: Virtuous Electronics Co., Ltd Address: Jimadi Industrial Zone, Luoyang Town, Boluo Country, Huizhou City, Guangdong Province, China Product Name: Bluetooth Speaker Trademark: DAISO Model Number: DS BT-SPK 006 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 + COR.1-2023 PASS Prepared by: Approved by: Chris Chen Vita Li Engineer Technical Director Report No.: LGT26E224RF01 Page 3 of 80 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 30 4.1 LIMIT 30 4.2 TEST PROCEDURE 30 4.3 TEST SETUP 30 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 31 5. NUMBER OF HOPPING CHANNEL 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. AVERAGE TIME OF OCCUPANCY 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. HOPPING CHANNEL SEPARATION MEASUREMEN 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 Report No.: LGT26E224RF01 Page 4 of 80 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. BANDWIDTH TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. OUTPUT POWER TEST 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 TEST SETUP 36 9.4 EUT OPERATION CONDITIONS 36 9.5 TEST RESULTS 36 10. ANTENNA REQUIREMENT 37 10.1 STANDARD REQUIREMENT 37 10.2 EUT ANTENNA 37 APPENDIX I - TEST RESULTS 38 DUTY CYCLE 38 MAXIMUM PEAK CONDUCTED OUTPUT POWER 42 -20DB BANDWIDTH 46 OCCUPIED CHANNEL BANDWIDTH 50 CARRIER FREQUENCIES SEPARATION 54 BAND EDGE 58 BAND EDGE(HOPPING) 63 CONDUCTED RF SPURIOUS EMISSION 68 NUMBER OF HOPPING CHANNEL 75 DWELL TIME 77 APPENDIX II - MEASUREMENT PHOTOS 80 Report No.: LGT26E224RF01 Page 5 of 80 Revision History Rev. Issue Date Revisions 00 June 08, 2026 Initial Issue Report No.: LGT26E224RF01 Page 6 of 80 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020 + COR.1-2023. Report No.: LGT26E224RF01 Page 7 of 80 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26E224RF01 Page 8 of 80 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Bluetooth Speaker Test Model Number: DS BT-SPK 006 Series Number: N/A Model Difference: N/A Channel List: Please refer to the Note 3. Bluetooth: Frequency:2402 – 2480 MHz Modulation: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8DPSK(3Mbps) Antenna Type: PCB Antenna Antenna Gain: -0.58dBi Rating: Input: DC 5V 300mA Battery: Capacity: 300mAh Rated Voltage: 3.7V Hardware Version: N/A Software Version: N/A Connecting I/O Port(s): Please refer to the Note 1. No…

Text truncated - open the document above for the full version.

Report No.: LGT26E224RF01 Page 57 of 80 CFS NVNT 3-DH5 2402MHz CFS NVNT 3-DH5 2441MHz CFS NVNT 3-DH5 2480MHz Report No.: LGT26E224RF01 Page 58 of 80 Band Edge Condition Mode Frequency (MHz) Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 No-Hopping -47.1 -20 Pass NVNT 1-DH5 2480 No-Hopping -56.08 -20 Pass NVNT 2-DH5 2402 No-Hopping -44.89 -20 Pass NVNT 2-DH5 2480 No-Hopping -46.44 -20 Pass NVNT 3-DH5 2402 No-Hopping -47.02 -20 Pass NVNT 3-DH5 2480 No-Hopping -54.36 -20 Pass Report No.: LGT26E224RF01 Page 59 of 80 Test Graphs Band Edge NVNT 1-DH5 2402MHz No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz No-Hopping Emission Band Edge NVNT 1-DH5 2480MHz No-Hopping Ref Report No.: LGT26E224RF01 Page 60 of 80 Band Edge NVNT 1-DH5 2480MHz No-Hopping Emission Band Edge NVNT 2-DH5 2402MHz No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz No-Hopping Emission Report No.: LGT26E224RF01 Page 61 of 80 Band Edge NVNT 2-DH5 2480MHz No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz No-Hopping Emission Band Edge NVNT 3-DH5 2402MHz No-Hopping Ref Report No.: LGT26E224RF01 Page 62 of 80 Band Edge NVNT 3-DH5 2402MHz No-Hopping Emission Band Edge NVNT 3-DH5 2480MHz No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz No-Hopping Emission Report No.: LGT26E224RF01 Page 63 of 80 Band Edge(Hopping) Condition Mode Frequency (MHz) Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Hopping -47.09 -20 Pass NVNT 1-DH5 2480 Hopping -43.18 -20 Pass NVNT 2-DH5 2402 Hopping -46.84 -20 Pass NVNT 2-DH5 2480 Hopping -43.81 -20 Pass NVNT 3-DH5 2402 Hopping -46.15 -20 Pass NVNT 3-DH5 2480 Hopping -43.28 -20 Pass Report No.: LGT26E224RF01 Page 64 of 80 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2480MHz Hopping Ref Report No.: LGT26E224RF01 Page 65 of 80 Band Edge(Hopping) NVNT 1-DH5 2480MHz Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2402MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Hopping Emission Report No.: LGT26E224RF01 Page 66 of 80 Band Edge(Hopping) NVNT 2-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2402MHz Hopping Ref Report No.: LGT26E224RF01 Page 67 of 80 Band Edge(Hopping) NVNT 3-DH5 2402MHz Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Hopping Emission Report No.: LGT26E224RF01 Page 68 of 80 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 -34.26 -20 Pass NVNT 1-DH5 2441 -34.43 -20 Pass NVNT 1-DH5 2480 -35.57 -20 Pass NVNT 2-DH5 2402 -36.84 -20 Pass NVNT 2-DH5 2441 -35.84 -20 Pass NVNT 2-DH5 2480 -35.81 -20 Pass NVNT 3-DH5 2402 -33.48 -20 Pass NVNT 3-DH5 2441 -33.58 -20 Pass NVNT 3-DH5 2480 -34.89 -20 Pass Report No.: LGT26E224RF01 Page 69 of 80 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ref Tx. Spurious NVNT 1-DH5 2402MHz Emission Tx. Spurious NVNT 1-DH5 2441MHz Ref Report No.: LGT26E224RF01 Page 70 of 80 Tx. Spurious NVNT 1-DH5 2441MHz Emission Tx. Spurious NVNT 1-DH5 2480MHz Ref Tx. Spurious NVNT 1-DH5 2480MHz Emission Report No.: LGT26E224RF01 Page 71 of 80 Tx. Spurious NVNT 2-DH5 2402MHz Ref Tx. Spurious NVNT 2-DH5 2402MHz Emission Tx. Spurious NVNT 2-DH5 2441MHz Ref Report No.: LGT26E224RF01 Page 72 of 80 Tx. Spurious NVNT 2-DH5 2441MHz Emission Tx. Spurious NVNT 2-DH5 2480MHz Ref Tx. Spurious NVNT 2-DH5 2480MHz Emission Report No.: LGT26E224RF01 Page 73 of 80 Tx. Spurious NVNT 3-DH5 2402MHz Ref Tx. Spurious NVNT 3-DH5 2402MHz Emission Tx. Spurious NVNT 3-DH5 2441MHz Ref Report No.: LGT26E224RF01 Page 74 of 80 Tx. Spurious NVNT 3-DH5 2441MHz Emission Tx. Spurious NVNT 3-DH5 2480MHz Ref Tx. Spurious NVNT 3-DH5 2480MHz Emission Report No.: LGT26E224RF01 Page 75 of 80 Number of Hopping Channel Condition Mode Hopping Number Limit Verdict NVNT 1-DH5 79 15 Pass NVNT 2-DH5 79 15 Pass NVNT 3-DH5 79 15 Pass Report No.: LGT26E224RF01 Page 76 of 80 Test Graphs Hopping No. NVNT 1-DH5 2441MHz Hopping No. NVNT 2-DH5 2441MHz Hopping No. NVNT 3-DH5 2441MHz Report No.: LGT26E224RF01 Page 77 of 80 Dwell Time Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH5 2441 2.905 290.5 100 31600 400 Pass NVNT 2-DH5 2441 2.913 302.952 104 31600 400 Pass NVNT 3-DH5 2441 2.912 270.816 93 31600 400 Pass Report No.: LGT26E224RF01 Page 78 of 80 Test Graphs Dwell NVNT 1-DH5 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz Accumulated Dwell NVNT 2-DH5 2441MHz One Burst Report No.: LGT26E224RF01 Page 79 of 80 Dwell NVNT 2-DH5 2441MHz Accumulated Dwell NVNT 3-DH5 2441MHz One Burst Dwell NVNT 3-DH5 2441MHz Accumulated Report No.: LGT26E224RF01 Page 80 of 80 APPENDIX II - MEASUREMENT PHOTOS Note: Please see the attached RF_Test Setup photos for FCC ID. ※※※※※END OF THE REPORT※※※※※

Page 1 of 2 Report No.: LGT26E224 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT26E224 Set-up for Conducted Emission
