2BCDT-L-WP-05A4Magnetic wireless power bank

1 23 4 5 0％-25％ 25％-50％ 50％-75％ 75％-100％ (L-WP-05A4) Product manual Type-C输入 Thank you for choosing our Magnetic Wireless Powerbank, Please read this manual carefully and keep it safe for future use. Product description 2. The power indicator light glows white in charging mode In order to make the power display more accurate, it is recommended to charge and discharge the device twice. Device connected to power 1. Connect the Type-C interface of the device to the power adapter. For a better experience, please use a power adapter of 20W or higher. Charge your phone wirelessly Put the device on the back of the phone, it can automatically absorb and wirelessly charge the phone When wireless charging, the wireless charging indicator is always on; after detaching from the phone, the wireless charging indicator flashes slowly for 10 seconds and then goes off; when the wireless charging area of the device touches a metal foreign object, the wireless charging indicator flashes quickly Charge your phone wired Use the charging cable to connect the magnetic wireless charging power bank and your mobile phone to charge your mobile phone. Charging Precautions Safety Precautions Store this product in a cool dry place. Do not store this product in a high temperature or humid environment. The operating temperature should be between 0°C and 40°C (32°F and 104°F). If this product needs service or repair, please contact qualified repair personnel. Incorrect reassembly may result in a fire or risk of personal injury. The product may generate heat during charging,which is a normal phenomenon and there is nothing to worry about. Do not expose this product to heat or fire. Do not use harmful chemicals or detergents to clean this product. Improper use, dropping or excessive force may cause damage to this product. Do not use an adapter less than 5W.For better performance, it is recommended to use an adapter above 20W. Wireless charging is more convenient, but limited by the current wireless charging technology,the charging speed will be slower than wired charging. High temperatures will decrease charging speed and limit power, which is a physical phenomena for all chargers. It is recommended to use it below 25 for better performance. Both the phone case and the distance between phone and charger will affect charging speed,which is decreased by distance augment. Model:L-WP-05A4 94×63×11.3mm ≈120G (NW) ≥75% ≤3-6mm Capacity: 5000mAh/3.85V/19.25Wh Type-C input: Wireless output: Transmission distance: Charging effiiciency: Size: Weight: 5V3A; 9V2.2A; 12V1.67A 5V2A; 9V2.2A; 12V1.67A 5W7.5W10W15W Rated capacity: 3000mAh(5V-2A) Standard accessories Specification Applicable equipment Applicable devices for wireless charging Applicable devices for magnetic wireless charging Iphone 12/13/14 series and above models and all Apple Watch series Samsung S9 Plus/S10/S10 Plus/Note 10/Note 10 Plus and above models Huawei P30 Pro/Mate 30/Mate 30 Pro/P40 Pro and above models Iphone 8/Iphone 8Plus/Iphone X/Iphone XS Max/Xr/11/11 Pro /11 Pro Max and above Type-C Output: C to C charging cableProduct manual Magnetic Wireless Powerbank 1. Magnetic wireless charging area2. Wireless charging indicator light 3. Battery indicator light 5. USB-C interface 4. Power button Magnetic Wireless Powerbank Type-C输出 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates,uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shen Zhen Loowoko Technology Limited 4F, E building, Jin Bao Bao lndustry Dis, No 2 North Part, Shang Xue lndustry City, Long Gang, shenzhen, guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/11/24 U.S. Agent Designation Shen Zhen Loowoko Technology Limited acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BCDT-L-WP-05A4): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shen Zhen Loowoko Technology Limited Shen Zhen Loowoko Technology Limited with the FRN [0034086272] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Xiao jun Manager Shen Zhen Loowoko Technology Limited Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Xiao jun/Manager Company: Shen Zhen Loowoko Technology Limited Address: 4F, E building, Jin Bao Bao lndustry Dis, No 2 North Part, Shang Xue lndustry City,Long Gang, shenzhen, guangdong China Phone: 18682390843 Fax: N/A E-Mail: [email protected]

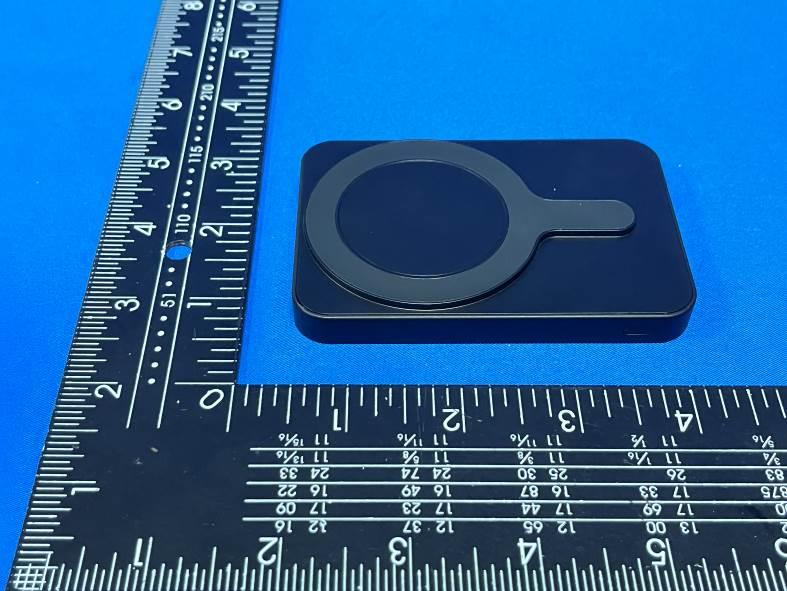

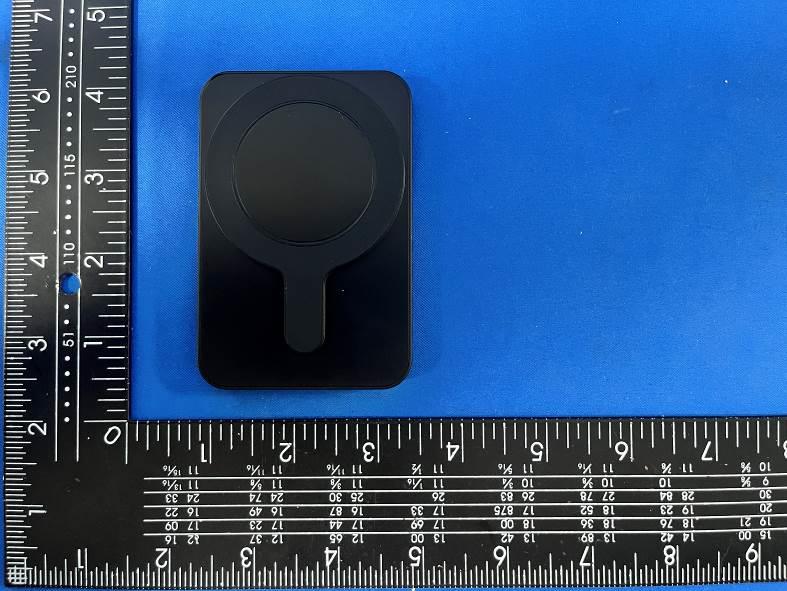

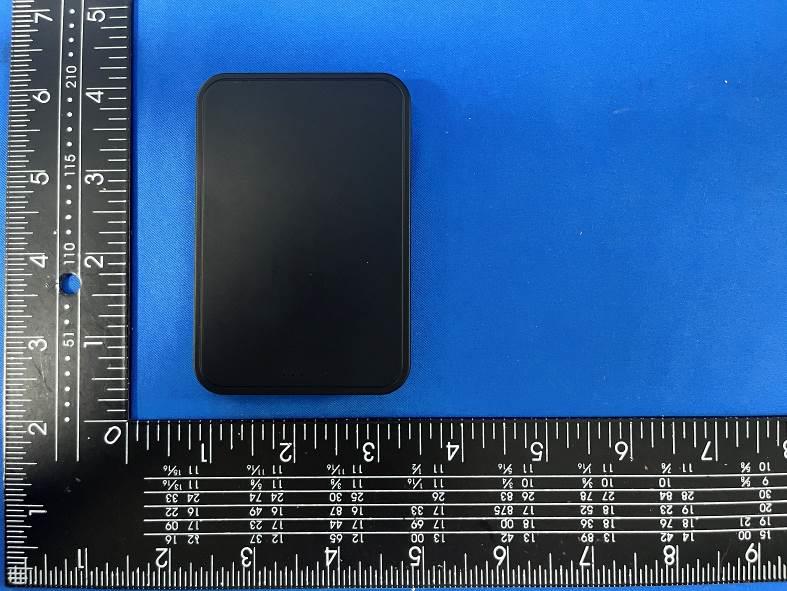

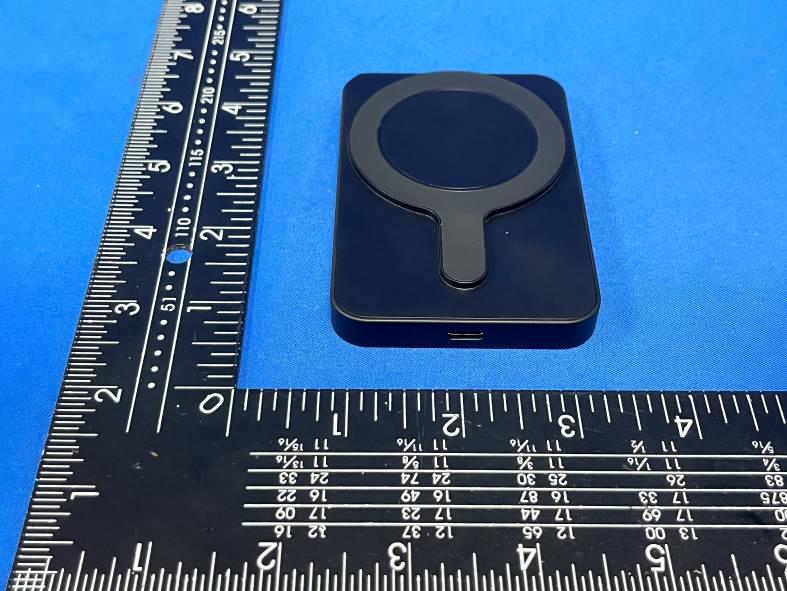

FCC ID: 2BCDT-L-WP-05A4 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BCDT-L-WP-05A4 Photo 4 Photo 5 Photo 6

Label and Location Size: L: 2.0cm*W: 0.5cm Label and Location FCC ID : 2BCDT-L-WP-05A4

FCC ID: 2BCDT-L-WP-05A4 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 Loop coil antenna FCC ID: 2BCDT-L-WP-05A4 Photo 4 Photo 5 Photo 6 FCC ID: 2BCDT-L-WP-05A4 Photo 7 Photo 8

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID............................................. : CTA23111400402 2BCDT-L-WP-05A4 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 20, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shen Zhen Loowoko Technology Limited Address............................................ : 4F, E building, Jin Bao Bao lndustry Dis, No 2 North Part, Shang Xue lndustry City, Long Gang, shenzhen, guangdong, China Test specification ........................... : FCC CFR 47 PART 1, § 1.1310 Standard ........................................... : KDB 680106 D01 Wireless Power Transfer v04 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Magnetic wireless power bank Trade Mark ....................................... : Loowoko Manufacturer .................................... : Shen Zhen Loowoko Technology Limited Model/Type reference ...................... : L-WP-05A4 Listed Models .................................. : N/A Modulation Type ............................... : ASK Operation Frequency ........................ : From 110KHz~205KHz Rating ............................................... : DC 3.85V From battery Wireless output: 5W/7.5W/10W/15W TYPE-C output: 5V 2A, 9V 2.22A, 12V 1.67A TYPE-C intput: 5V 3A, 9V 2.22A, 12V 1.67A Result ............................................... : PASS Report No.: CTA23111400402 Page 2 of 12 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Magnetic wireless power bank Model /Type : L-WP-05A4 Listed Models : N/A Applicant : Shen Zhen Loowoko Technology Limited Address : 4F, E building, Jin Bao Bao lndustry Dis, No 2 North Part, Shang Xue lndustry City, Long Gang, shenzhen, guangdong, China Manufacturer : Shen Zhen Loowoko Technology Limited Address : 4F, E building, Jin Bao Bao lndustry Dis, No 2 North Part, Shang Xue lndustry City, Long Gang, shenzhen, guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23111400402 Page 3 of 12 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 5 2.4 Special Accessories 5 2.5 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 3.4 Equipments Used during the Test 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Test setup 7 4.3 Test Procedures 9 4.4 Equipment Approval Considerations of KDB 680106 D01v04 9 4.5 Test results 10 4.6 Conclusion 11 5 P H O T O G R A P H S O F T H E TE S T S E T U P 12 Report No.: CTA23111400402 Page 4 of 12 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: 680106 D01 Wireless Power Transfer v04: EQUIPMENT AUTHORIZATION OF WIRELESS POWER TRANSFER DEVICES. Report No.: CTA23111400402 Page 5 of 12 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Nov. 14, 2023 Testing commenced on : Nov. 14, 2023 Testing concluded on : Nov. 20, 2023 2.2 Product Description Product Name: Magnetic wireless power bank Model/Type reference: L-WP-05A4 Hardware version: V1.0 Software version: V1.0 Test samples ID: CTA231114004-1# (Engineer sample), CTA231114004-2# (Normal sample) Power Supply: DC 3.85V From battery Wireless output: 5W/7.5W/10W/15W TYPE-C output: 5V 2A, 9V 2.22A, 12V 1.67A TYPE-C intput: 5V 3A, 9V 2.22A, 12V 1.67A Adapter information (Auxiliary test supplied by test Lab: Input: AC 100-240V 50/60Hz Output: DC 5V …
