2BCFY-ERO1XPROFiber Mesh

Varnishing(双面过光油) ERO1X PRO 614000005390

C566091_X23_Ed2 1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: TECHNITY SOLUTIONS USA INC FRN: 0028473106 Contact Name: Jerry Kao Address: 155 FEDERAL ST STE 700 BOSTON, MA 02110 Telephone：+1(905) 948-8828 Email: [email protected] This letter is to confirm that the US Agent for Service of Process accepts responsibility to act as a local representative on behalf of Heights Telecom T LTD The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: Heights Telecom T LTD Product Description: Fiber Mesh Grantee code: 2BCFY FCC ID: 2BCFY-ERO1XPRO Contact Name: Mr Gadi Malka Address: Ha-Sakhlav,6 Irus HaMerkaz 7680900 Israel Telephone No: 0543136366 Email: [email protected] FRN: 0034107490 The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/10/13 Applicant’s Name: Heights Telecom T LTD US Agent’s Name: TECHNITY SOLUTIONS USA INC Title: CEO Title: Director Signature Signature

C5266091_X8_Ed.1 1/1 Letter of Authorization Heights Telecom T LTD Company: Heights Telecom T LTD Address: Ha-Sakhlav,6 Irus HaMerkaz 7680900 Israel Product Name: Fiber Mesh Model Number: ERO1X PRO FCC Identifier: 2BCFY-ERO1XPRO We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Mr Gadi Malka Date: October 13 th ,2023 Title: CEO Signature of applicant:

C5266091_X10_Ed.2 1/1 Heights Telecom T LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: October 13th,2023 Subject: Request for Confidentiality FCC ID: 2BCFY-ERO1XPRO To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☒ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☒ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Mr Gadi Malka Title: CEO

C5266091_X13_Ed.1 1/1 Heights Telecom T LTD FCC Software Configuration Control Declaration Date: October 13 th , 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: ERO1X PRO FCC ID: 2BCFY-ERO1XPRO Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant Name: Mr Gadi Malka Title: CEO

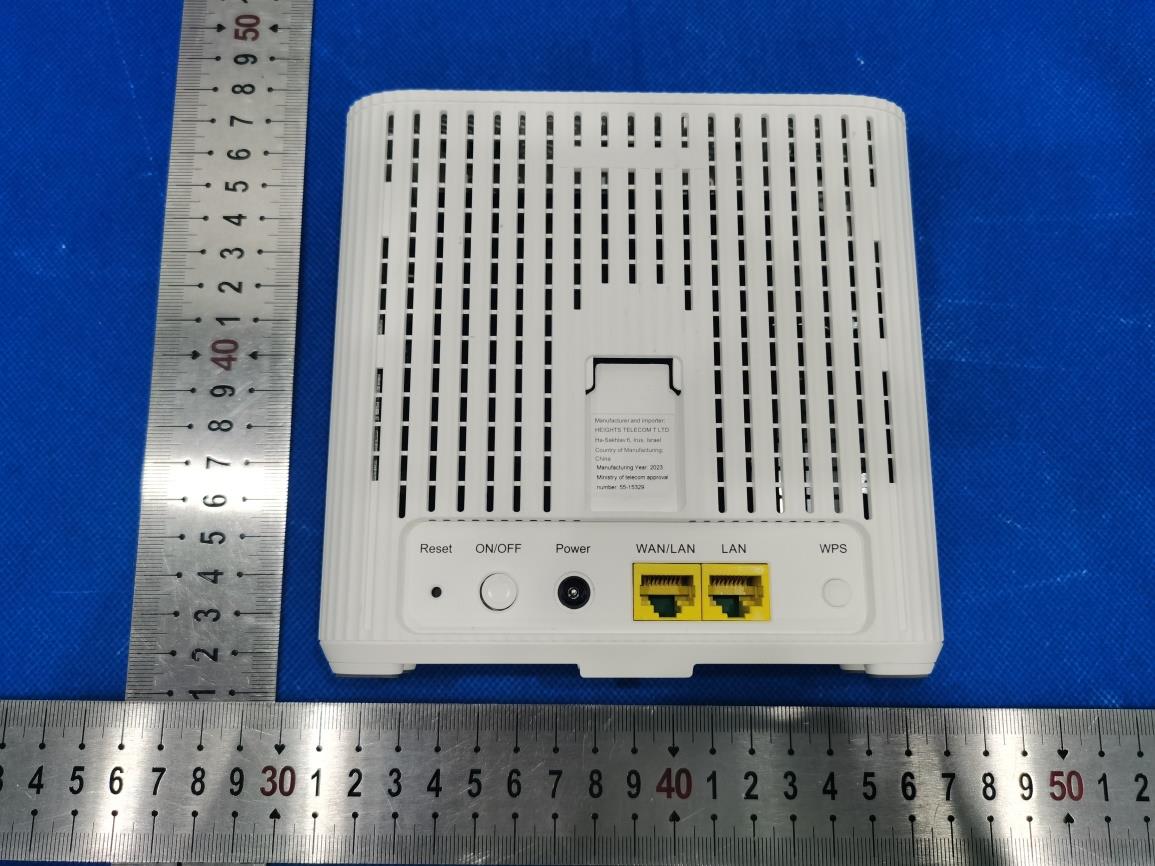

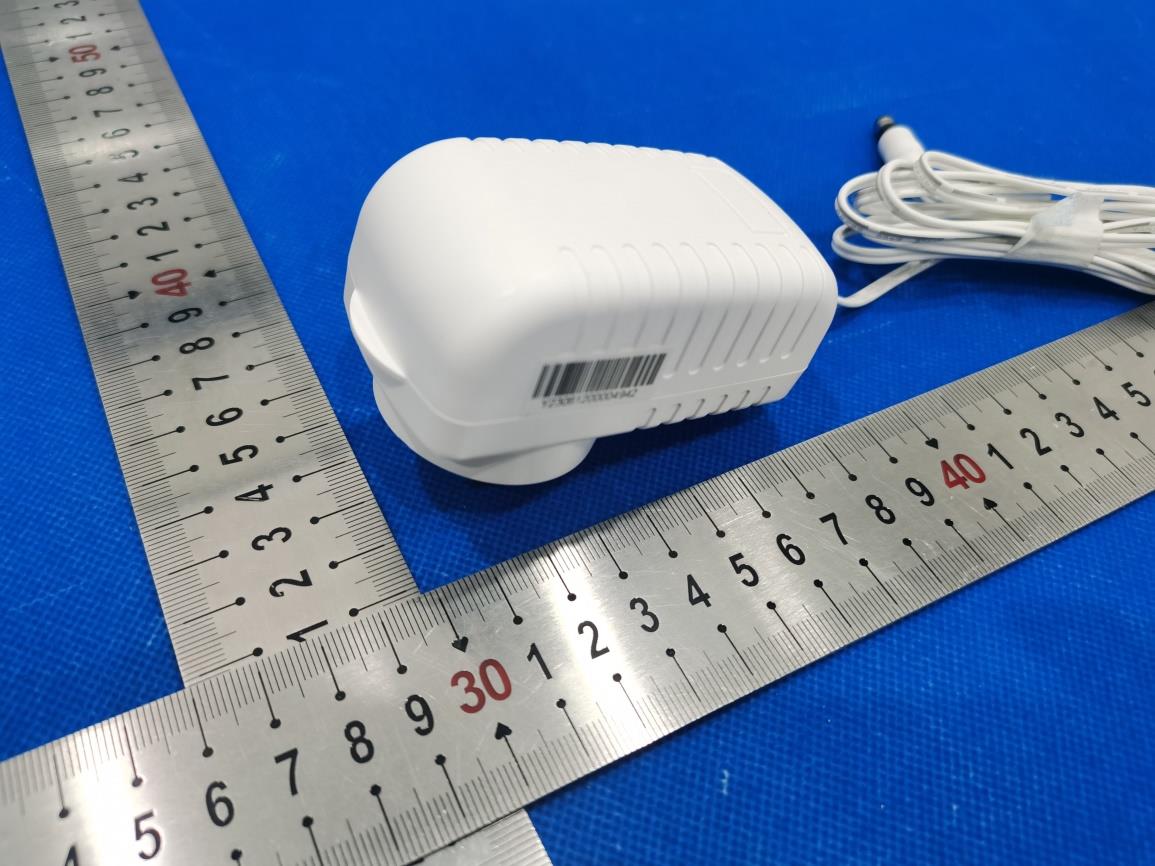

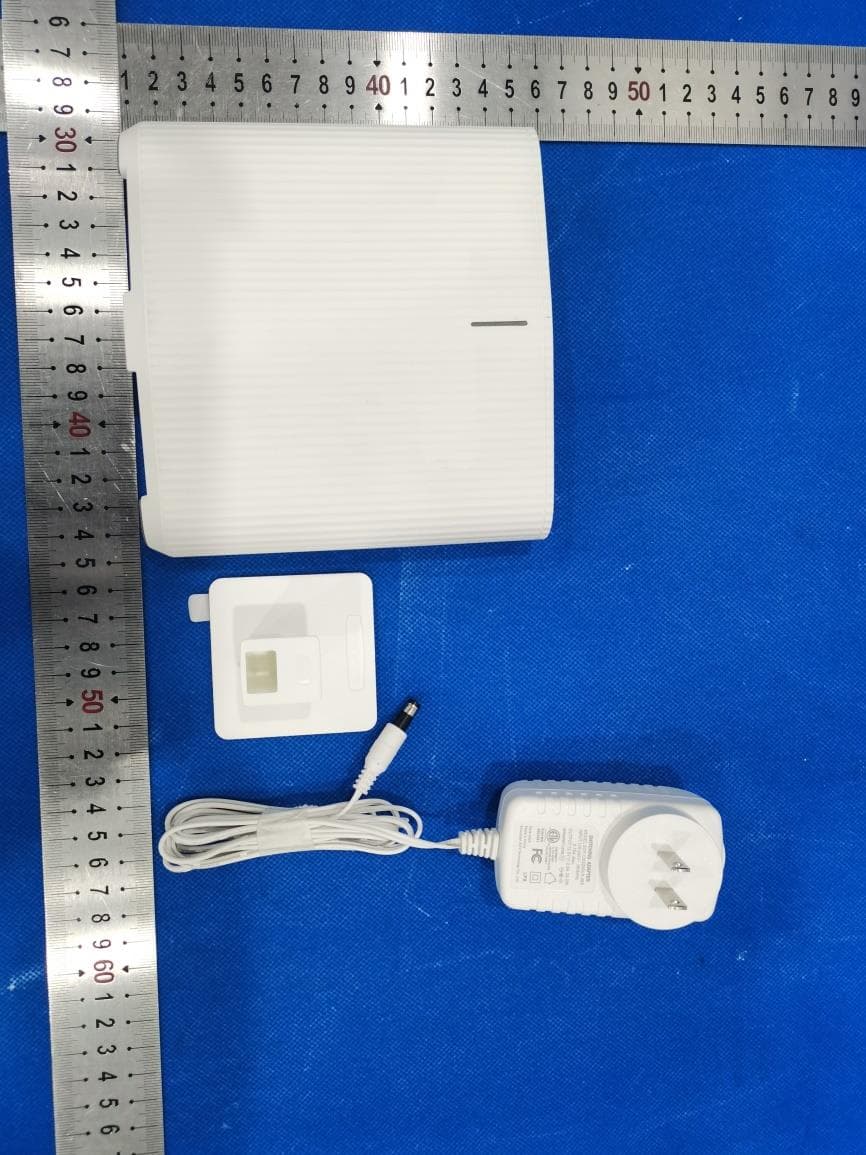

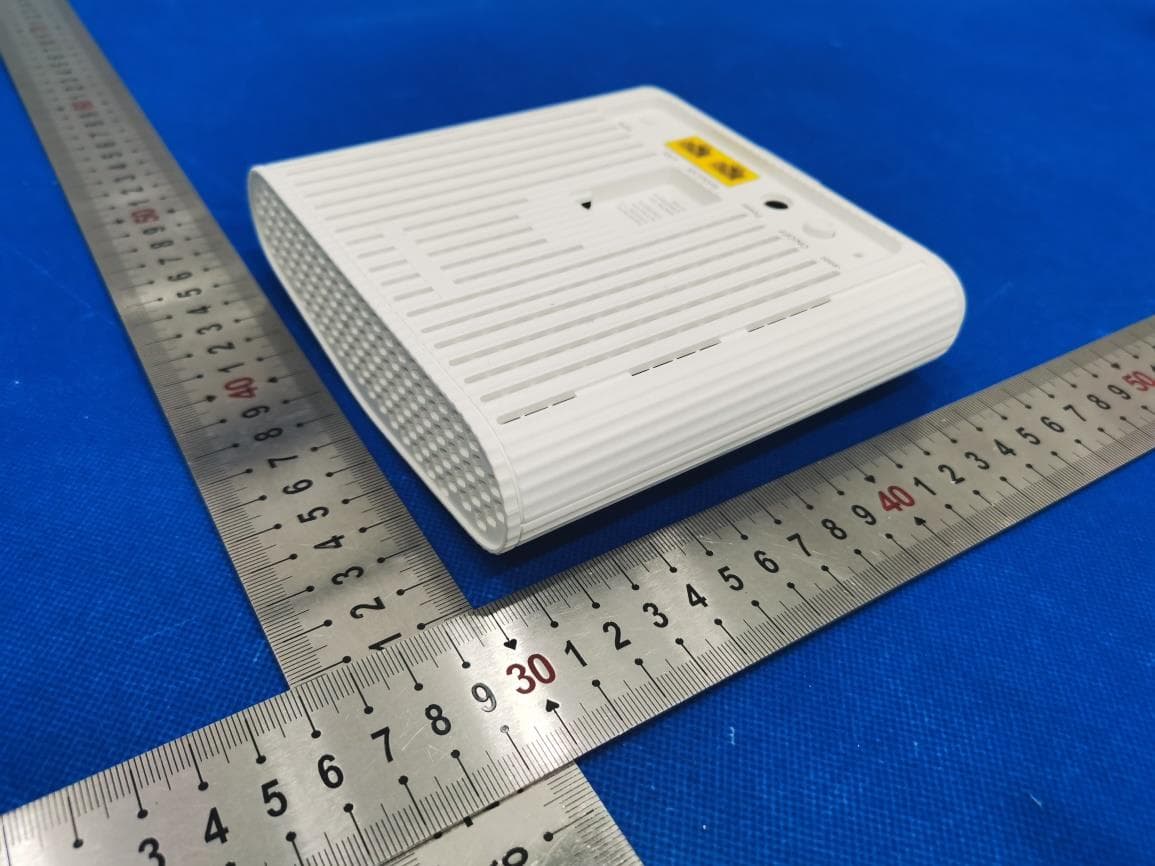

Page 1 of 7 FCC ID: 2BCFY- ERO1XPRO APPENDIX 2 PHOTOS OF EUT1 EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 7 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 3 of 7 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 4 of 7 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 5 of 7 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 6 of 7 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 7 of 7 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo

1 2 3 4 A B C D 56 1 2 3 4 56 A B C D Editor Description Remark Date 1:1 对应标识标贴料号: 611000020856 FONT: Arial 6PT 2.以下内容由工厂在供应商印刷的基础上打印 条码要求手机及条码枪均可扫描 条码扫描显示冒号后内容(不含冒号后空格），如 S/N: HTINYYXXXXXX， 扫码显示 HTINYYXXXXXX。 MAC: XXXXXXXXXXXX 位数及内容由装备软件生成，条码房维护取用Heights MAC地址段（取条码数据MAC生成内容） MAC: XXXXXXXXXXXX Model name: ERO1X PRO Web GUI: 192.168.0.10 Access username: Admin Password: xxxxxx S/N: HTINYYXXXXXX S/N规则改为如下： S/N: HTINYYXXXXXX HTIN：固定值 YY ：生产年后2位，例如2022取22 XXXXXX：6位，16进制生产流水号，0-9，A-F（不能重复， 每个PO都不可以重复，条码房需要像客供MAC一样做好记录，每个PO连续生成） 1. 黑色印刷，无边框，R0.5 (Black printing，no frame,R0.5) 2.材料: 50#亮白压花格底PET,UV油墨，背胶 (Material: 50# bright white embossing PET,with UV ink,adhesive) 2.4 mm 15.5 mm 0 -0.2 0 -0.2 101.5 mm device label 1 SSID: HTmeshXXXX SSID Password: xxxxxxxx Tested To Comply With FCC Standards This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,including interference that may cause undesired operation 2BCFY-ERO1XPRO FCC ID: 1 2 3 4 A B C D 56 1 2 3 4 56 A B C D Editor Description Remark Date 1:1 对应标识标贴料号: 611000020857 2.以下内容由工厂在供应商印刷的基础上打印 其余为标注字体： Arial 4PT 0 -0.2 0-0.2 1.以下由供应商印刷 条码要求手机及条码枪均可扫描 Manufacturer and importer: HEIGHTS TELECOM T LTD Ha-Sakhlav 6, Irus Ministry of telecom approval number: 55-XXXXX Year of manufacturing: 202X 生产年，例如2022 由产品经理提供 number: 55-XXXXX Year of Manufacturing: 202X 0 -0.2 0-0.2 1. 黑色印刷，无边框，R0.2 (Black printing，no frame,R0.2) 2.材料: 50#亮白压花格底PET,UV油墨，背胶 (Material: 50# bright white embossing PET,with UV ink,adhesive) 19.5 mm 19.5 mm 19.5 mm 19.5 mm 2.2 mm Device label 2 Tested To Comply With FCC Standards This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,including interference that may cause undesired operation

Label position for ERO1X PRO

Page 1 of 11 FCC ID: 2BCFY- ERO1XPRO APPENDIX 2 PHOTOS OF EUT INTERNAL PHOTOS EUT Photo EUT Photo 2.4G&5GHz WIFI ANT1 2.4G&5GHz WIFI ANT4 5GHz WIFI ANT2 5GHz WIFI ANT3 Page 2 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 3 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 4 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 5 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 6 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo 5GHz WIFI ANT 3 5GHz WIFI ANT 2 2.4G&5GHz WIFI ANT 1 2.4G&5GHz WIFI ANT 4 Page 7 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 8 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 9 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo Page 10 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo EUT Photo 2.4&5GHz WIFI ANT1 2.4&5GHz WIFI ANT4 5GHz WIFI ANT4 5GHz WIFI ANT3 Page 11 of 11 FCC ID: 2BCFY- ERO1XPRO EUT Photo

Page 1 of 9 Report No.: RF230906019-01-004 FCC RF EXPOSURE REPORT FCC ID: 2BCFY-ERO1XPRO Test Report No...........: RF230906019-01-004 Product(s) Name.........: Fiber Mesh Model(s)....................: ERO1X PRO Trade Mark................: N/A Applicant...................: Heights Telecom T LTD Address....................: Ha-Sakhlav 6, Irus, 7680900, Israel Receipt Date..............: 2023.09.07 Test Date...................: 2023.09.14~2023.10.12 Issued Date................: 2023.10.13 Standards..................: FCC Guidelines for Human Exposure IEEE C95.1 FCC Title 47 Part 2.1091 KDB 447498 D01 General RF Exposure Guidance v06 Testing Laboratory......: Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By: Checked By: Approved By: Black ding Tim zhang Misue Su Page 2 of 9 Report No.: RF230906019-01-004 History of this test report Original Report Issue Date: 2023.10.13 ● No additional attachment ○ Additional attachments were issued following record Attachment No. Issue Date Description Page 3 of 9 Report No.: RF230906019-01-004 1. TEST LOCATION Company: Shenzhen Haiyun Standard Technical CO., Ltd. Address: No. 110-113, 115, 116, Block B, Jinyuan Business Building, Bao'an District, Shenzhen, China CNAS Registration Number: CNAS L18252 CAB identifier CN0145 A2LA Certificate Number 6823.01 Telephone: 0755-26024411 Page 4 of 9 Report No.: RF230906019-01-004 2. GENERAL INFORMATION 2.1 APPLICANT Heights Telecom T LTD Ha-Sakhlav,6 Irus HaMerkaz 7680900 Israel 2.2 MANUFACTURER Heights Telecom T LTD Ha-Sakhlav,6 Irus HaMerkaz 7680900 Israel 2.3 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST Equipment Name Fiber Mesh Test Model No. ERO1X PRO Trademark N/A Power Supply 12.0V2.0 A Adapter information Model No.: SOY-1200200US-063 Input: 100-240V~, 50-60Hz, 0.75A Max. Output: 12.0 V 2.0 A 24W Hardware Version -- Software Version -- Operating Temperature 0°C-45°C EUT Stage ○ Product Unit ●Final-Sample Operating Band 2400MHz ~ 2483.5MHz 5150MHz ~5250MHz 5250MHz ~5350MHz 5470MHz ~5725MHz 5725MHz ~5850MHz Product Type 2.4GHz: IEEE 802.11b: WLAN (2TX, 2RX) IEEE 802.11b: WLAN (2TX, 2RX) IEEE 802.11g: WLAN (2TX, 2RX) IEEE 802.11n: WLAN (2TX, 2RX) IEEE 802.11ax: WLAN (2TX, 2RX) 5GHz: IEEE 802.11a: WLAN (2TX, 2RX) IEEE 802.11n: WLAN (2TX, 2RX) IEEE 802.11ac: WLAN (2TX, 2RX) IEEE 802.11ax: WLAN (2TX, 2RX) Nominal Bandwidth 20MHz / 40MHz / 80MHz/ 160MHz Modulation IEEE 802.11b: DSSS (DBPSK/DQPSK/CCK) IEEE 802.11g: OFDM (BPSK/QPSK/16QAM/64QAM) IEEE 802.11a: OFDM (BPSK / QPSK / 16QAM / 64QAM) IEEE 802.11n: OFDM (BPSK / QPSK / 16QAM / 64QAM) IEEE 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) IEEE 802.11ax: OFDMA (BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM) Page 5 of 9 Report No.: RF230906019-01-004 3. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For 2.4GWiFi Ant . Antenna Type Connector Gain (dBi) 1 Internal N/A 3.92 4 Internal N/A 3.61 Transmit Operating Mode Directional Gain (dBi) Power spectral density Power 802.11b 2TX With Beamforming 5.55 5.55 802.11g 2TX With Beamforming 5.55 5.55 802.11n(HT20MHz) 2TX With Beamforming 5.55 5.55 802.11n(HT40MHz) 2TX With Beamforming 5.55 5.55 802.11ax(HE20MHz) 2TX With Beamforming 5.55 5.55 802.11ax(HE40MHz) 2TX With Beamforming 5.55 5.55 Note: Ant gain provided by the manufacturer，for details about the antenna, refer to the file: ERO1X PRO V3-Antenna passive pretest report. With Beamforming Mode If all antennas have the same gain, G ANT Directional gain = G ANT + 10 log(N ANT /N SS ) dBi, where N SS = the number of independent spatial streams of data and G ANT is the antenna gain in dBi. If antenna gains are not equal and each transmit antenna is driven by only one spatial stream, directional gain may be calculated by either of the following two formulas. Directional gain = G ANT MAX + 10 log(N ANT /N SS ) dBi, where N SS = the number of independent spatial streams of data and G ANT MAX is the gain of the antenna having the highest gain (in dBi). Or Page 6 of 9 Report No.: RF230906019-01-004 EUT with the lowest possible N SS =1 Ant gain provided by the manufacturer. For 5GWiFi Antenna gain(dBi) Frequency (MHz) 5150~5350 5470~5725 5725~5850 ANT1 3.98 3.99 3.76 ANT2 4.01 4.12 3.97 ANT3 3.58 3.66 3.44 ANT4 3.78 3.48 3.48 Transmit Operating Mode Frequency （MHz） Directional Gain (dBi) Power spectral density Power 802.11a/802.11n(HT20MHz)/ 802.11n(HT40MHz)/ 802.11n(HT40MHz) 802.11ac(VHT20MHz)/ 802.11ac(VHT40MHz)/ 802.11ac(VHT80MHz)/ 802.11ac(VHT160MHz)/ 802.11ax(HE20MHz)/ 802.11ax(HE40MHz)/ 802.11ax(HE80MHz)/ 802.11ax(HE160MHz) 4TX With Beamforming 5150~5350 6.94 6.94 5470~5725 6.91 6.91 5725~5850 6.96 6.96 Note: Ant gain provided by the manufacturer，for details about the antenna, refer to the file: ERO1X PRO V3-Antenna passive pretest report. Page 7 of 9 Report No.: RF230906019-01-004 With Beamforming Mode If all antennas have the same gain, G ANT Directional gain = G ANT + 10 log(N ANT /N SS ) dBi, where N SS = the number of independent spatial streams of data and G ANT is the antenna gain in dBi. If antenna gains are not equal and each transmit antenna is driven by only one spatial stream, directional gain may be calculated by either of the following two formulas. Directional gain = G ANT MAX + 10 log(N ANT /N SS ) dBi, where N SS = the number of independent spatial streams of data and G ANT MAX is the gain of the antenna having the highest gain (in dBi). Or EUT with the lowest possible N SS =1 Ant gain provided by the manufacturer. Page 8 of 9 Report No.: RF230906019-01-004 1. TEST RESULTS Worst case as below: For 2.4GHz: IEEE 802.11b_ Beamforming _2437MHz Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Tune up Power (dBm) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result…

Text truncated - open the document above for the full version.

ERO1X PRO V3 -Antenna passive pretest report V1.2 Date: Wen 2023-10-20 Copyright 2023,T&W, Inc., All Rights Reserved Report version update resume NO.Modify descriptionModifierDate V1.0Initial issueWen2021.1.18 V1.1Increase combination gainWen2023.9.13 V1.2Added antenna manufacturer, antenna model, size diagramWen2023.10.20 Content ◆ Purpose & Environment ◆DUT Antenna ◆Return Loss and Isolation ◆2D/3D Radiation pattern ◆Efficiency and Peak Gain ◆ Summary PROPRIETARY AND CONFIDENTIAL 3 page Purpose & Environment Purpose •Meet the electrical performance index ; •Confirm the antenna scheme to meet the design requirements; Environment •Test Condition: the network analyzer(E5071C) and SATIMO microwave anechoic chamber •Passive measurement results are presented PROPRIETARY AND CONFIDENTIAL 4 page DUT Antenna PROPRIETARY AND CONFIDENTIAL 5 page NO. FrequencyPolarization ANT1 2.4GHz-2.5GHz 5.15GHz-5.85GHz Linear polarization ANT25.15GHz-5.85GHz ANT35.15GHz-5.85GHz ANT4 2.4GHz-2.5GHz 5.15GHz-5.85GHz ANT2 ANT3 ANT4 ANT1 Antenna manufacturer : Dongguan City XinshengElectronics Co.,Ltd, Manufacturer address: No.6 Village, DatanlangDistrict, Dalingshan, Dongguan, Guangdong, China. Antenna product model : EmP323h-B-I100(G) /EmP323g-B-I70(W) /EmP209-B-I90(R)/EmP208-B-I70(B) DUT Antenna Antenna dimension: (Remark: for EmP323h-B-I100(G) the RF cable is 100mm) ANT1 DUT Antenna (Unit:mm) Antenna dimension: (Remark: for EmP208-B-I70(B),the RF cable is 70mm) ANT2 DUT Antenna (Unit:mm) Antenna dimension: (Remark: for EmP209-B-I90(R) the RF cable is 90mm) ANT3 DUT Antenna (Unit:mm) Antenna dimension: (Remark: for EmP323g-B-I70(W) the RF cable is 70mm) ANT4 DUT Antenna (Unit:mm) Return Loss and Isolation Test Condition The network Analyzer PROPRIETARY AND CONFIDENTIAL 11 page ANT1 Return Loss PROPRIETARY AND CONFIDENTIAL 12 page ANT2 Return Loss PROPRIETARY AND CONFIDENTIAL 13 page ANT3 Return Loss PROPRIETARY AND CONFIDENTIAL 14 page ANT4 Return Loss PROPRIETARY AND CONFIDENTIAL 15 page ANT1&ANT2 PROPRIETARY AND CONFIDENTIAL 16 page Isolation ANT1&ANT3 PROPRIETARY AND CONFIDENTIAL 17 page Isolation ANT1&ANT4 PROPRIETARY AND CONFIDENTIAL 18 page Isolation ANT2&ANT3 PROPRIETARY AND CONFIDENTIAL 19 page Isolation ANT2&ANT4 PROPRIETARY AND CONFIDENTIAL 20 page Isolation ANT3&ANT4 PROPRIETARY AND CONFIDENTIAL 21 page Isolation ReturnlossIsolation Frequency (GHz) 2.4-2.5GHz5.15-5.85GHz2.4-2.5GHz5.15-5.85GHz ANT1 <-11dB<-13dB <-20dB ANT2 NA<-15dB ANT3NA <-15dB ANT4<-11dB <-15dB Return Loss and Isolation Test results PROPRIETARY AND CONFIDENTIAL 22 page 2D/3D Radiation pattern Microwave anechoic chamber Test Condition PROPRIETARY AND CONFIDENTIAL 23 page E1（Phi=0） Y Z X E1（Phi=90） H（Theta=90 ） 2D/3D Radiation pattern PROPRIETARY AND CONFIDENTIAL 24 page ANT1 2.4G Y Z Z X Y X Y Z X E1（Phi=0） Y Z X E1（Phi=90） H（Theta=90 ） 2D/3D Radiation pattern PROPRIETARY AND CONFIDENTIAL 25 page ANT4 2.4G Y Z Z X Y X Y Z X E1（Phi=0） Y Z X E1（Phi=90） H（Theta=90 ） 2D/3D Radiation pattern PROPRIETARY AND CONFIDENTIAL 26 page ANT1 2.4G Y Z Z X Y X Y Z X E1（Phi=0） Y Z X E1（Phi=90） H（Theta=90 ） 2D/3D Radiation pattern PROPRIETARY AND CONFIDENTIAL 27 page ANT2 5G Y Z Z X Y X Y Z X E1（Phi=0） Y Z X E1（Phi=90） H（Theta=90 ） 2D/3D Radiation pattern PROPRIETARY AND CONFIDENTIAL 28 page ANT3 2.4G Y Z Z X Y X Y Z X E1（Phi=0） E1（Phi=90） H（Theta=90 ） 2D/3D Radiation pattern PROPRIETARY AND CONFIDENTIAL 29 page 5G Y Z Z X Y X Y Z X Y X ANT4 Test results Efficiency and Peak Gain（1） FrequencyE Total. dB(dB)Efficiency( %) ANT1 2.4GHz3.79 70.25 2.5GHz3.92 72.86 5.15GHz3.39 72.28 5.85GHz3.23 74.08 ANT2 5.15GHz3.23 70.34 5.85GHz3.69 74.32 ANT3 5.15GHz3.13 69.89 5.85GHz3.34 76.27 ANT4 2.4GHz3.05 69.93 2.5GHz3.18 70.21 5.15GHz3.33 71.02 5.85GHz3.45 73.17 PROPRIETARY AND CONFIDENTIAL 30 page Based on the above data analysis, the antenna performance meets the design requirements. Test results Used for FCC and CE certification Efficiency and Peak Gain(2) PROPRIETARY AND CONFIDENTIAL 31 page Frequency (GHz)2.400 2.412 2.422 2.437 2.452 2.462 2.500 Peak Gain (dBi) ANT13.793.76 3.72 3.71 3.66 3.73 3.92 ANT43.05 3.49 3.52 3.61 3.47 3.26 3.18 Directional Gain (dBi) 1S2T 5.41 5.27 5.19 5.45 5.55 5.33 5.44 2S2T2.53 2.61 2.85 2.73 2.75 2.61 2.70 Frequency (GHz)5.15 5.185.195.255.315.32 5.55.515.7455.7555.85 Peak Gain (dBi) ANT13.393.533.553.753.923.98 3.993.973.763.573.23 ANT23.233.483.623.743.934.01 4.123.963.973.743.69 ANT33.133.193.273.433.343.58 3.663.583.443.413.34 ANT43.333.453.693.783.673.56 3.483.433.483.413.45 Directional Gain(dBi) 1S4T 6.826.946.886.876.936.82 6.916.836.946.966.88 4S4T2.262.152.292.142.052.29 2.032.172.072.191.97 Directional gain = 10 log[(10 G1 phi/10 + 10 G2 phi/10 + ... + 10 GN phi/10 ) /N ANT +(10 G1 theta/10 + 10 G2 theta/10 + ... + 10 GN theta/10 ) /N ANT ] dBi Directional gain = 10 log[(10 G1 phi/20 + 10 G2 phi/20 + ... + 10 GN phi/20 ) 2 /N ANT +(10 G1 theta/20 + 10 G2 theta/20 + ... + 10 GN theta/20 ) 2 /N ANT ] dBi 1、Correlated Directional Gain 2、Uncorrelated Directional Gain Thanks!

HY-47 CFR FCC part 15E Ver.1.0 Page 185 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5190 11N40MIMO_Ant1_5230 HY-47 CFR FCC part 15E Ver.1.0 Page 186 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5230 11N40MIMO_Ant3_5230 HY-47 CFR FCC part 15E Ver.1.0 Page 187 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5230 11N40MIMO_Ant1_5270 HY-47 CFR FCC part 15E Ver.1.0 Page 188 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5270 11N40MIMO_Ant3_5270 HY-47 CFR FCC part 15E Ver.1.0 Page 189 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5270 11N40MIMO_Ant1_5310 HY-47 CFR FCC part 15E Ver.1.0 Page 190 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5310 11N40MIMO_Ant3_5310 HY-47 CFR FCC part 15E Ver.1.0 Page 191 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5310 11N40MIMO_Ant1_5510 HY-47 CFR FCC part 15E Ver.1.0 Page 192 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5510 11N40MIMO_Ant3_5510 HY-47 CFR FCC part 15E Ver.1.0 Page 193 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5510 11N40MIMO_Ant1_5550 HY-47 CFR FCC part 15E Ver.1.0 Page 194 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5550 11N40MIMO_Ant3_5550 HY-47 CFR FCC part 15E Ver.1.0 Page 195 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5550 11N40MIMO_Ant1_5670 HY-47 CFR FCC part 15E Ver.1.0 Page 196 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5670 11N40MIMO_Ant3_5670 HY-47 CFR FCC part 15E Ver.1.0 Page 197 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5670 11N40MIMO_Ant1_5710 HY-47 CFR FCC part 15E Ver.1.0 Page 198 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5710 11N40MIMO_Ant3_5710 HY-47 CFR FCC part 15E Ver.1.0 Page 199 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5710 11N40MIMO_Ant1_5755 HY-47 CFR FCC part 15E Ver.1.0 Page 200 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5755 11N40MIMO_Ant3_5755 HY-47 CFR FCC part 15E Ver.1.0 Page 201 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5755 11N40MIMO_Ant1_5795 HY-47 CFR FCC part 15E Ver.1.0 Page 202 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant2_5795 11N40MIMO_Ant3_5795 HY-47 CFR FCC part 15E Ver.1.0 Page 203 / 733 Report No.: RF230906019-01-003 11N40MIMO_Ant4_5795 11AC80MIMO_Ant1_5210 HY-47 CFR FCC part 15E Ver.1.0 Page 204 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant2_5210 11AC80MIMO_Ant3_5210 HY-47 CFR FCC part 15E Ver.1.0 Page 205 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant4_5210 11AC80MIMO_Ant1_5290 HY-47 CFR FCC part 15E Ver.1.0 Page 206 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant2_5290 11AC80MIMO_Ant3_5290 HY-47 CFR FCC part 15E Ver.1.0 Page 207 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant4_5290 11AC80MIMO_Ant1_5530 HY-47 CFR FCC part 15E Ver.1.0 Page 208 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant2_5530 11AC80MIMO_Ant3_5530 HY-47 CFR FCC part 15E Ver.1.0 Page 209 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant4_5530 11AC80MIMO_Ant1_5610 HY-47 CFR FCC part 15E Ver.1.0 Page 210 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant2_5610 11AC80MIMO_Ant3_5610 HY-47 CFR FCC part 15E Ver.1.0 Page 211 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant4_5610 11AC80MIMO_Ant1_5690 HY-47 CFR FCC part 15E Ver.1.0 Page 212 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant2_5690 11AC80MIMO_Ant3_5690 HY-47 CFR FCC part 15E Ver.1.0 Page 213 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant4_5690 11AC80MIMO_Ant1_5775 HY-47 CFR FCC part 15E Ver.1.0 Page 214 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant2_5775 11AC80MIMO_Ant3_5775 HY-47 CFR FCC part 15E Ver.1.0 Page 215 / 733 Report No.: RF230906019-01-003 11AC80MIMO_Ant4_5775 11AC160MIMO_Ant1_5250 HY-47 CFR FCC part 15E Ver.1.0 Page 216 / 733 Report No.: RF230906019-01-003 11AC160MIMO_Ant2_5250 11AC160MIMO_Ant3_5250 HY-47 CFR FCC part 15E Ver.1.0 Page 217 / 733 Report No.: RF230906019-01-003 11AC160MIMO_Ant4_5250 11AC160MIMO_Ant1_5570 HY-47 CFR FCC part 15E Ver.1.0 Page 218 / 733 Report No.: RF230906019-01-003 11AC160MIMO_Ant2_5570 11AC160MIMO_Ant3_5570 HY-47 CFR FCC part 15E Ver.1.0 Page 219 / 733 Report No.: RF230906019-01-003 11AC160MIMO_Ant4_5570 11AX20MIMO_Ant1_5180 HY-47 CFR FCC part 15E Ver.1.0 Page 220 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant2_5180 11AX20MIMO_Ant3_5180 HY-47 CFR FCC part 15E Ver.1.0 Page 221 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant4_5180 11AX20MIMO_Ant1_5200 HY-47 CFR FCC part 15E Ver.1.0 Page 222 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant2_5200 11AX20MIMO_Ant3_5200 HY-47 CFR FCC part 15E Ver.1.0 Page 223 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant4_5200 11AX20MIMO_Ant1_5240 HY-47 CFR FCC part 15E Ver.1.0 Page 224 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant2_5240 11AX20MIMO_Ant3_5240 HY-47 CFR FCC part 15E Ver.1.0 Page 225 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant4_5240 11AX20MIMO_Ant1_5260 HY-47 CFR FCC part 15E Ver.1.0 Page 226 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant2_5260 11AX20MIMO_Ant3_5260 HY-47 CFR FCC part 15E Ver.1.0 Page 227 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant4_5260 11AX20MIMO_Ant1_5300 HY-47 CFR FCC part 15E Ver.1.0 Page 228 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant2_5300 11AX20MIMO_Ant3_5300 HY-47 CFR FCC part 15E Ver.1.0 Page 229 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant4_5300 11AX20MIMO_Ant1_5320 HY-47 CFR FCC part 15E Ver.1.0 Page 230 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant2_5320 11AX20MIMO_Ant3_5320 HY-47 CFR FCC part 15E Ver.1.0 Page 231 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant4_5320 11AX20MIMO_Ant1_5500 HY-47 CFR FCC part 15E Ver.1.0 Page 232 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant2_5500 11AX20MIMO_Ant3_5500 HY-47 CFR FCC part 15E Ver.1.0 Page 233 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant4_5500 11AX20MIMO_Ant1_5580 HY-47 CFR FCC part 15E Ver.1.0 Page 234 / 733 Report No.: RF230906019-01-003 11AX20MIMO_Ant2_5580 11AX20MIMO_Ant3_5580

HY-47 CFR FCC part 15E Ver.1.0 Page 258 / 733 Report No.: RF230906019-01-003 11AX40MIMO_Ant2_5670 11AX40MIMO_Ant3_5670 HY-47 CFR FCC part 15E Ver.1.0 Page 259 / 733 Report No.: RF230906019-01-003 11AX40MIMO_Ant4_5670 11AX40MIMO_Ant1_5710 HY-47 CFR FCC part 15E Ver.1.0 Page 260 / 733 Report No.: RF230906019-01-003 11AX40MIMO_Ant2_5710 11AX40MIMO_Ant3_5710 HY-47 CFR FCC part 15E Ver.1.0 Page 261 / 733 Report No.: RF230906019-01-003 11AX40MIMO_Ant4_5710 11AX40MIMO_Ant1_5755 HY-47 CFR FCC part 15E Ver.1.0 Page 262 / 733 Report No.: RF230906019-01-003 11AX40MIMO_Ant2_5755 11AX40MIMO_Ant3_5755 HY-47 CFR FCC part 15E Ver.1.0 Page 263 / 733 Report No.: RF230906019-01-003 11AX40MIMO_Ant4_5755 11AX40MIMO_Ant1_5795 HY-47 CFR FCC part 15E Ver.1.0 Page 264 / 733 Report No.: RF230906019-01-003 11AX40MIMO_Ant2_5795 11AX40MIMO_Ant3_5795 HY-47 CFR FCC part 15E Ver.1.0 Page 265 / 733 Report No.: RF230906019-01-003 11AX40MIMO_Ant4_5795 11AX80MIMO_Ant1_5210 HY-47 CFR FCC part 15E Ver.1.0 Page 266 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant2_5210 11AX80MIMO_Ant3_5210 HY-47 CFR FCC part 15E Ver.1.0 Page 267 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant4_5210 11AX80MIMO_Ant1_5290 HY-47 CFR FCC part 15E Ver.1.0 Page 268 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant2_5290 11AX80MIMO_Ant3_5290 HY-47 CFR FCC part 15E Ver.1.0 Page 269 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant4_5290 11AX80MIMO_Ant1_5530 HY-47 CFR FCC part 15E Ver.1.0 Page 270 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant2_5530 11AX80MIMO_Ant3_5530 HY-47 CFR FCC part 15E Ver.1.0 Page 271 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant4_5530 11AX80MIMO_Ant1_5610 HY-47 CFR FCC part 15E Ver.1.0 Page 272 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant2_5610 11AX80MIMO_Ant3_5610 HY-47 CFR FCC part 15E Ver.1.0 Page 273 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant4_5610 11AX80MIMO_Ant1_5690 HY-47 CFR FCC part 15E Ver.1.0 Page 274 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant2_5690 11AX80MIMO_Ant3_5690 HY-47 CFR FCC part 15E Ver.1.0 Page 275 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant4_5690 11AX80MIMO_Ant1_5775 HY-47 CFR FCC part 15E Ver.1.0 Page 276 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant2_5775 11AX80MIMO_Ant3_5775 HY-47 CFR FCC part 15E Ver.1.0 Page 277 / 733 Report No.: RF230906019-01-003 11AX80MIMO_Ant4_5775 11AX160MIMO_Ant1_5250 HY-47 CFR FCC part 15E Ver.1.0 Page 278 / 733 Report No.: RF230906019-01-003 11AX160MIMO_Ant2_5250 11AX160MIMO_Ant3_5250 HY-47 CFR FCC part 15E Ver.1.0 Page 279 / 733 Report No.: RF230906019-01-003 11AX160MIMO_Ant4_5250 11AX160MIMO_Ant1_5570 HY-47 CFR FCC part 15E Ver.1.0 Page 280 / 733 Report No.: RF230906019-01-003 11AX160MIMO_Ant2_5570 11AX160MIMO_Ant3_5570 HY-47 CFR FCC part 15E Ver.1.0 Page 281 / 733 Report No.: RF230906019-01-003 11AX160MIMO_Ant4_5570 HY-47 CFR FCC part 15E Ver.1.0 Page 282 / 733 Report No.: RF230906019-01-003 Occupied channel bandwidth TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A-MIMO Ant1 5180 17.287 5171.2959 5188.5829 --- --- Ant2 5180 17.326 5171.2906 5188.6166 --- --- Ant3 5180 17.403 5171.2065 5188.6095 --- --- Ant4 5180 17.499 5171.2193 5188.7183 --- --- Ant1 5200 17.274 5191.3103 5208.5843 --- --- Ant2 5200 17.395 5191.2498 5208.6448 --- --- Ant3 5200 17.439 5191.2332 5208.6722 --- --- Ant4 5200 17.517 5191.2020 5208.7190 --- --- Ant1 5240 17.281 5231.2827 5248.5637 --- --- Ant2 5240 17.329 5231.3058 5248.6348 --- --- Ant3 5240 17.427 5231.2500 5248.6770 --- --- Ant4 5240 17.550 5231.1413 5248.6913 --- --- Ant1 5260 17.215 5251.3587 5268.5737 --- --- Ant2 5260 17.306 5251.3343 5268.6403 --- --- Ant3 5260 17.412 5251.2306 5268.6426 --- --- Ant4 5260 17.457 5251.1968 5268.6538 --- --- Ant1 5300 17.212 5291.3568 5308.5688 --- --- Ant2 5300 17.270 5291.3472 5308.6172 --- --- Ant3 5300 17.332 5291.2788 5308.6108 --- --- Ant4 5300 17.441 5291.1978 5308.6388 --- --- Ant1 5320 17.186 5311.3343 5328.5203 --- --- Ant2 5320 17.311 5311.3010 5328.6120 --- --- Ant3 5320 17.371 5311.2558 5328.6268 --- --- Ant4 5320 17.489 5311.1703 5328.6593 --- --- Ant1 5500 17.284 5491.2869 5508.5709 --- --- Ant2 5500 17.267 5491.3317 5508.5987 --- --- Ant3 5500 17.377 5491.2590 5508.6360 --- --- Ant4 5500 17.586 5491.1617 5508.7477 --- --- Ant1 5580 17.176 5571.3878 5588…
