2BCGV0041Phone Grip Outdoor Magnetic Bluetooth Speaker

USER MANUAL What’s in the box? 1. Speaker*1 2. Type-C cable*1 Overview 1. Next track/ Vol+ 2. Power ON/OFF/Play/Pause/Answer/End/Reject call 3. LED Indicator 4. Previous track / Vol – 5. Type-C port 6. Magnet 7. Phone holder Operation Instructions 1. Power On: Long press the power button to turn on the speaker, you will hear a tone. 2. Pairing: Once speaker is turned on, open your mobile device, search the wireless devices, and select wireless ID ‘Phone Grip Speaker’, It will pair automatically. 3. Play/Pause/Answer/End/Reject call: Short press the button to play or pause the music in paly music mode. When call is incoming, short press the button to answer the call, short press again to end call, long press the button to reject the call. 4. Next track/Vol+: Long press to next track, short press to increase volume 5. Previous track/Vol -: Long press to last track, short press to decrease volume 6. Charging: Use the Type-C cable included to connect the speaker to a computer or adaptor, the LED indicator will illuminate a solid red. When the speaker is fully charged, the red LED will be turned off. 7. Power Off: Long press the power button to turn off the speaker. 8. Magnet: the speaker can be attracted on iron surface with magnet Caution: 1. Please enjoy music with an appropriate volume, which will avoid to damage your hearing and sound system. 2. Please avoid exposure, rain, water droplets, avoid prolonged exposure to high temperature, high humidity environment. 3. During use, please make it away from heat, high pressure, and prevent children from playing with this product. Specifications: 1. Model: SL605 2. Item: 7195-77BK 3. Input: DC 5V/1A 4. Speaker output power: 5W 5. Frequency Response: 80Hz-18KHz 6. Battery capacity: 3.7V/1800mAh, 6.66Wh MADE IN CHINA FCC ID: 2BCGV0041 IC: 31955-00014 HVIN:014 1 2 3 7 4 5 6 4. Please use the power which meets the requirements. 5. Do not drop or bump and applied heavy pressure to avoid damage to the product. • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.L’appareil ne doit pas produire de brouillage; 2.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.Portable L'appareil a été évalué pour répondre aux exigences générales en matière d'exposition aux RF. L'appareil peut être utilisé dans des conditions d'exposition portables sans restriction. IC Caution: ICES-003 CLASS B NOTICE-AVIS NMB-003,CLASSE B This Class B digital apparatus complies with Canadian ICES-003 Cet appareil numérique de la classe B est conforme à la normeNMB-003 du Canada. - French: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, - English: This device contains licence-exempt transmitter(s)/receiver (s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interference. 2.This device must accept any interference, including interference that may cause undesired operation of the device. 110mm 80mm 240mm

Rev1/26/2023 (NINGBOCSTARIMPRINTE-COMMERCECO.,LTD.) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:12-08-2025 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID：2BCGV0041 [NINGBOCSTARIMPRINTE-COMMERCECO.,LTD.](“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. [NINGBOCSTARIMPRINTE-COMMERCECO.,LTD.](“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtdoesnotincludecybersecurityoranti-virussoftwareproducedorprovided byKasperskyLab,Inc.oranyofitssuccessorsandassignees,includingequipmentwithintegrated KasperskyLab,Inc.(oranyofitssuccessorsandassignees)cybersecurityoranti-virussoftwarepursuant toDA-24-886andKDB986446D01CoveredEquipmentGuidancesectionB(2a). Deviceisinherentlycompliantbasedonhardwarelimitationsorsoftwarecontrols. or ASoftwareBillofMaterials(SBOM)isprovidedtotheTCBforreview,and Theend-userorthirdpartiescannotinstalladditionalsoftwareonthisdevice. Sincerely, (Applicantsignature) (FosterLi) Rev1/26/2023 (NINGBOCSTARIMPRINTE-COMMERCECO.,LTD.) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:12-08-2025 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID：2BCGV0041 [NINGBOCSTARIMPRINTE-COMMERCECO.,LTD.](“theapplicant”)certifiesthat,asofthedateofthe filingoftheapplication,theapplicantisnotidentifiedontheCoveredList(asaspecificallynamedentity oranyofitssubsidiariesoraffiliates)asanentityproducing“covered” equipment. Sincerely, (Applicantsignature) (FosterLi)

2.911 (d)(7)USA Agent v1.2 Section 2.911(d)(7) USA Agent for Service of Process Company name: NINGBO CSTAR IMPRINT E-COMMERCE CO., LTD. Address: B46, BUILDING B, INDUSTRIAL BLOCK, QIAOTOUHU STREET, NINGHAI COUNTY, NINGBO CITY, ZHEJIANG PROVINCE, CHINA GC: 2BCGV FRN: 0034122457 2.911(d)(7) USA Designated Agent for Service of Process We, [NINGBO CSTAR IMPRINT E-COMMERCE CO., LTD.] (“the applicant”) designate [PROSTOCK LLC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: PROSTOCK LLC Address: 10 Pines Lake Drive East Wayne, NJ.07470, USA FRN：0033411935 Contact Name: Marc Puglisi Telephone No: 973-865-8262 Email: [email protected] Applicant Company name: NINGBO CSTAR IMPRINT E-COMMERCE CO., LTD. Address: B46, BUILDING B, INDUSTRIAL BLOCK, QIAOTOUHU STREET, NINGHAI COUNTY, NINGBO CITY, ZHEJIANG PROVINCE, CHINA Contact Name: Foster Li Telephone No: +86-755-29063393 Email: [email protected] Signature: Title: General Manager Signature: Title: Compliance Manager 2.911 (d)(7)USA Agent v1.2 Date: Date April 29, 2025 : NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through- April 29, 2025 the

NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Date:12-08-2025 SUBJECT:FCCID:2BCGV0041 ToWhomItMayConcern: I,theundersigned,herebystatesthisequipmenthasbeentestedandfoundtocomply withthelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules,and willapplytheSupplier'sDeclarationofConformityproceduretotheclassB computerperipheralportionofthiscompositedevice.IunderstandthefollowingFCC requirements: 1.DevicessubjecttotheSDoCprocedurearerequiredtobetestedtoshow compliancewiththeFCCtechnicalregulationsbyarecognizedaccreditedtesting laboratory.ThetestinglaboratorymustbeaccreditedbyaCommissionapproved accreditationbodyordesignatedunderthetermsofagovernment-to-government MutualRecognitionAgreement(MRA).Alistingofthoseaccreditedtesting laboratoriesthathavebeenrecognizedbytheCommissionispublishedontheFCC Webpage:https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm(Selectthe "accredited"optiontosearchforFCCrecognizedaccreditedtestfirms.) 2.Pt2.1077containsthelistofinformationthatmustbeincludedintheSupplier's DeclarationofConformity,whichmustbesuppliedwitheachproductsold.The SDoCcomplianceinfoshallbeincludedintheUser’sManualorasaseparate sheet.Theinfomustcontainthename,address,andphonenumberofthe responsibleparty,whichmustbelocatedwithintheUnitedStates.Accordingto 2.909(b),theresponsiblepartyiseithertheManufactureroriftheproductis importedtheImporter. Regards, NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. ------------------------------- （ FosterLi ）

NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. Rev11/20/07 FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2BCGV0041 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram Schematics OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,Wealsorequestingthe commissiontograntshort-termconfidentialityrequestonthefollowingattachmentsuntil180 daysaftertheGrantDateofEquipmentAuthorizations. ExhibitTypeFileName Sincerely, FosterLi 12-08-2025

NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. Declarationonmodeldifference Wetheundersignedherebyconfirmthatthesemodelsareidentical,andallmodelshavethesame RFmodule,PCBlayout,Antenna,schematicsandcomponent.Onlydifferentonmodelnumber. ProductionnameTrademarkFCCModelno. PhoneGripOutdoor MagneticBluetooth Speaker N/A2BCGV0041SL605,7195-77,7195-77BK Confirmedby: FosterLi NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. 12-08-2025

NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Date:12-08-2025 SUBJECT:FCCApplicationforFCCID:2BCGV0041 ToWhomItMayConcern: We,theundersigned,herebyauthorizeSamLv.atEMTEK(DONGGUAN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(DONGGUAN)CO.,LTD.onourbehalfshallhave thesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Sincerely, FosterLi 12-08-2025

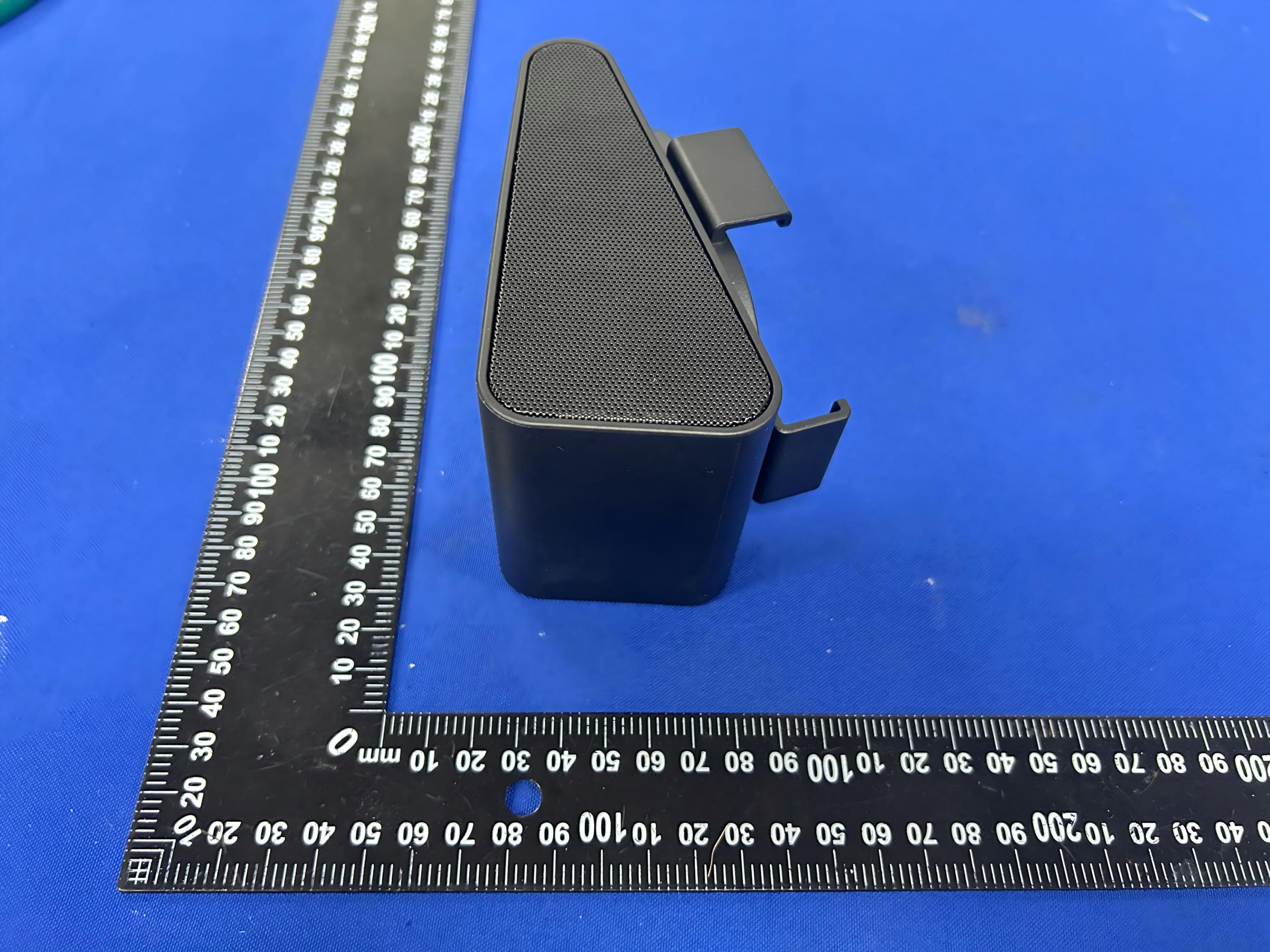

ReportNo.ENS2511100181W013Page1of5Ver.1.0 FCCID:2BCGV0041 ReportNo.ENS2511100181W013Page2of5Ver.1.0 ReportNo.ENS2511100181W013Page3of5Ver.1.0 ReportNo.ENS2511100181W013Page4of5Ver.1.0 ReportNo.ENS2511100181W013Page5of5Ver.1.0

26 mm 55.0 mm 15.0 mm 15.0 mm Phone Grip Outdoor Magnetic Bluetooth Speaker Item: 7195-77BK, Model: SL605 PO: 01001763 Frequency response: 80Hz~18KHz Battery capacity: 3.7V / 1800mAh, 6.66Wh BT model n#: JL AC6965E4 Input: 5V1A HVIN: 014 Speaker output power: 5W FCC ID: 2BCGV0041 IC: 31955-00014 Leedsworld, Inc. Made in China Phone Grip Outdoor Magnetic Bluetooth Speaker Item: 7195-77BK, Model: SL605 PO: 01001763 Frequency response: 80Hz~18KHz Battery capacity: 3.7V / 1800mAh, 6.66Wh BT model n#: JL AC6965E4 Input: 5V1A HVIN: 014 Speaker output power: 5W FCC ID: 2BCGV0041 IC: 31955-00014 Leedsworld, Inc. Made in China FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including interference that may cause undesired operation. Warning: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ReportNo.ENS2511100181W013Page1of3Ver.1.0 FCCID:2BCGV0041 ReportNo.ENS2511100181W013Page2of3Ver.1.0 BTANT ReportNo.ENS2511100181W013Page3of3Ver.1.0

ReportNo.ENS2511100181W01302RPage1of7Ver.1.0 $二维码$ TESTREPORT ProductName： PhoneGripOutdoorMagneticBluetooth Speaker ModelNumber：SL605,7195-77,7195-77BK FCCID ： 2BCGV0041 Preparedfor:NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. Address:B46,BUILDINGB,INDUSTRIALBLOCK,QIAOTOUHU STREET,NINGHAICOUNTY,NINGBOCITY,ZHEJIANG PROVINCE Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Building69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China TEL:(0755)26954280 FAX:(0755)26954282 ReportNumber:ENS2511100181W01302R Dateofsamplereceipt:Nov10,2025 Date(s)ofTests:Nov10,2025toDec02,2025 Dateofissue:Dec02,2025 ReportNo.ENS2511100181W01302RPage2of7Ver.1.0 TableofContents 1.TESTRESULTCERTIFICATION...............................................................................................................................................3 2.EUTSPECIFICATION.................................................................................................................................................................5 3.TESTREQUIREMENT................................................................................................................................................................6 4.MEASUREMENTRESULT.........................................................................................................................................................7 ReportNo.ENS2511100181W01302RPage3of7Ver.1.0 1.TESTRESULTCERTIFICATION Applicant:NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. Address: B46,BUILDINGB,INDUSTRIALBLOCK,QIAOTOUHUSTREET,NINGHAI COUNTY,NINGBOCITY,ZHEJIANGPROVINCE Manufacturer:NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. Address: B46,BUILDINGB,INDUSTRIALBLOCK,QIAOTOUHUSTREET,NINGHAI COUNTY,NINGBOCITY,ZHEJIANGPROVINCE EUT:PhoneGripOutdoorMagneticBluetoothSpeaker ModelName:SL605,7195-77,7195-77BK Trademark:N/A MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT §15.247(i),§2.1093 PASS TheaboveequipmentwastestedbyEMTEK(SHENZHEN)CO.,LTD.Thetestdata,dataevaluation,test procedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththeprocedures giveninANSIC63.10(2020)andtheenergyemittedbythesampleEUTtestedasdescribedinthisreportisin compliancewiththerequirementsofFCCRulesFCC§15.247(i),§2.1093. Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport DateofTest:Nov10,2025toDec02,2025 Preparedby: UnaYu/Editor Reviewer: JoeXia/Supervisor Approve&AuthorizedSigner:LisaWang/Manager ReportNo.ENS2511100181W01302RPage4of7Ver.1.0 ModifiedHistory VersionReportNo.RevisionDateSummary ENS2511100181W01302R/OriginalReport ReportNo.ENS2511100181W01302RPage5of7Ver.1.0 2. EUTSpecification CharacteristicsDescription Product:PhoneGripOutdoorMagneticBluetoothSpeaker ModelNumber: SL605,7195-77,7195-77BK Allproductsareidenticalexceptthemodelnumber.HereweselectedSL605 forallthetest. Sample:1# DataRate: 1MbpsforGFSKmodulation 2Mbpsforπ/4-DQPSKmodulation 3Mbpsfor8DPSKmodulation Modulation: GFSK,π/4-DQPSK,8DPSK OperatingFrequency Range(s): 2402-2480MHz NumberofChannels: 79channels TransmitPowerMax: -0.53dBm(0.000885W) AntennaGain:2.338dBi Powersupply: DC5VfromUSB DC3.7Vfrombattery Evaluationapplied:MPEEvaluation SAREvaluation ReportNo.ENS2511100181W01302RPage6of7Ver.1.0 3. TestRequirement SAREvaluation Accordingto447498D01V06,systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,usingmeasurementsorcomputer simulation.WhenroutineSARevaluationisnotrequired,portabletransmitterswithoutputpowergreaterthan theapplicablelowthresholdrequireSARevaluationtoqualityforTCBapproval. OneantennaisavailablefortheEUT.Theminimumseparationdistanceis5mm. ReportNo.ENS2511100181W01302RPage7of7Ver.1.0 4. MeasurementResult Antennagain:2.338dBi Transmit Frequency (MHz) Mode Measured Power (dBm) EIRP (dBm) Tuneup Power (dBm) Maxtune uppower (dBm) Calculation Result Calculation threshold(1 -gSAR) 2402GFSK-1.570.768 0±11 0.39023 2441GFSK-1.810.5280±110.39343 2480GFSK-1.670.6680±110.39653 2402Π/4-DQPSK-0.901.4381±120.49133 2441Π/4-DQPSK-1.181.1581±120.49523 2480Π/4-DQPSK-1.061.2781±120.49923 2402 8DPSK -0.531.8082±130.61853 2441 8DPSK -0.731.6081±120.49523 2480 8DPSK -0.711.6281±120.49923 AccordingtoKDB447498D01V06,nostand-alonerequiredforBTantenna,andnosimultaneousSAR measurementisrequired. ***EndofReport***

2.4G-2.48GInverted FAntenna Specification SPECIFICATIONS Frequency（MHz）2400-2480 PeakGain（dBi）2.338 AverageGain（dBi）＞-5.5 VSWR＜3.2 Impedance（Ω）50Ω AntennaTypePlannarInvertedFAntennaonboard PolarizationLinear ManufactureZHUHAIJIELITECHNOLOGYCO.,LTD Address: No.333KexingRoad,NanpingSciencePark,XiangzhouDistrict, Zhuhai TestequipmentHWA-TECH AntennaPhoto&Length(mm) Antenna passive S-parameters: Frequency（MHz Antenna efficiency and gain ： ）Gain（dBi）Effciency（%）AverageGain（dBi）Efficiency（dB） 24002.33859.39%-2.915-2.263 24101.60349.11%-3.883-3.088 24201.29546.04%-4.014-3.369 24300.38836.89%-4.91-4.331 24400.18734.00%-5.276-4.685 24500.0231.71%-5.431-4.988 24600.50734.88%-5.02-4.575 24700.29131.89%-5.323-4.963 24800.42932.89%-5.195-4.83 Average0.7839.64%-4.66-4.12 Peak2.33859.39%-2.915-2.263 2400MHz 2D-Theta Pattern 2400MHz 2D-Phi Pattern 2400MHz3D-TotalPattern

ReportNo.ENS2511100181W01301RPage1of73Ver.1.0 TESTREPORT ProductName ： PhoneGripOutdoorMagneticBluetooth Speaker ModelNumber：SL605,7195-77,7195-77BK FCCID：2BCGV0041 Preparedfor:NINGBOCSTARIMPRINTE-COMMERCECO.,LTD. Address:B46,BUILDINGB,INDUSTRIALBLOCK,QIAOTOUHU STREET,NINGHAICOUNTY,NINGBOCITY,ZHEJIANG PROVINCE Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Building69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China TEL:(0755)26954280 FAX:(0755)26954282 ReportNumber:ENS2511100181W01301R Dateofsamplereceipt:Nov10,2025 Date(s)ofTests:Nov10,2025toDec02,2025 Dateofissue:Dec02,2025 $ 二维码 $ ReportNo.ENS2511100181W01301RPage2of73Ver.1.0 TableofContents 1TESTRESULTCERTIFICATION..................................................................................................................................................3 2EUTTECHNICALDESCRIPTION.................................................................................................................................................5 3SUMMARYOFTESTRESULT.....................................................................................................................................................6 4TESTMETHODOLOGY.................................................................................................................................................................7 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS......................................................................................................7 4.2MEASUREMENTEQUIPMENTUSED..................................................................................................................................7 4.3DESCRIPTIONOFTESTMODES..........................................................................................................................................8 5FACILITIESANDACCREDITATIONS........................................................................................................................................9 5.1FACILITIES..............................................................................................................................................................................9 5.2EQUIPMENT............................................................................................................................................................................9 5.3LABORATORYACCREDITATIONSANDLISTINGS.........................................................................................................9 6TESTSYSTEMUNCERTAINTY.................................................................................................................................................10 7SETUPOFEQUIPMENTUNDERTEST.....................................................................................................................................11 7.1RADIOFREQUENCYTESTSETUP1.................................................................................................................................11 7.2RADIOFREQUENCYTESTSETUP2.................................................................................................................................11 7.3CONDUCTEDEMISSIONTESTSETUP.............................................................................................................................13 7.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM.............................................................................................14 7.5SUPPORTEQUIPMENT........................................................................................................................................................14 8FREQUENCYHOPPINGSYSTEMREQUIREMENTS...............................................................................................................15 8.1StandardApplicable.................................................................................................................................................................15 8.2EUTPseudorandomFrequencyHoppingSequence................................................................................................................15 8.3EqualHoppingFrequencyUse................................................................................................................................................16 8.4FrequencyHoppingSystem.....................................................................................................................................................16 9TESTREQUIREMENTS...............................................................................................................................................................17 9.120DB&99%BANDWIDTH.....................................................................................................................................................17 9.2CARRIERFREQUENCYSEPARATION..............................................................................................................................28 9.3NUMBEROFHOPPINGFREQUENCIES............................................................................................................................31 9.4AVERAGETIMEOFOCCUPANCY(DWELLTIME)........................................................................................................34 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER.........................................................................................................44 9.6CONDUCTEDSUPRIOUSEMISSION.................................................................................................................................50 9.7RADIATEDSPURIOUSEMISSION.....................................................................................................................................60 9.8CONDUCTEDEMISSIONTEST...........................................................................................................................................69 9.9ANTENNAAPPLICATION.......................................................................…

Text truncated - open the document above for the full version.

ReportNo.ENS2511100181W01301RPage40of73Ver.1.0 2DH5-Ant1-Hop-PASS ReportNo.ENS2511100181W01301RPage41of73Ver.1.0 3DH1-Ant1-Hop-PASS ReportNo.ENS2511100181W01301RPage42of73Ver.1.0 3DH3-Ant1-Hop-PASS ReportNo.ENS2511100181W01301RPage43of73Ver.1.0 3DH5-Ant1-Hop-PASS ReportNo.ENS2511100181W01301RPage44of73Ver.1.0 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER 9.5.1ApplicableStandard AccordingtoFCCPart15.247(b)(1)andKDB558074D0115.247MEASGUIDANCEv05r02 AccordingtoICRSS-247.5.4andRSS-Gen6.12 9.5.2ConformanceLimit ThemaxForfrequencyhoppingsystemsoperatinginthe2400-2483.5MHzbandemployingatleast75 non-overlappinghoppingchannels:1watt.Forallotherfrequencyhoppingsystemsinthe2400-2483.5MHzband: 0.125watts. 9.5.3TestConfiguration Testaccordingtoclause7.1radiofrequencytestsetup1 9.5.4TestProcedure Asanalternativetoapeakpowermeasurement,compliancewiththelimitcanbebasedonameasurementofthe maximumconductedoutputpower. Usethefollowingspectrumanalyzersettings: SetSpan=approximately5timesthe20dBbandwidth,centeredonahoppingchannel(about8MHz) SetRBW>the20dBbandwidthoftheemissionbeingmeasured(about3MHz) SetVBW  RBW SetSweep=auto SetDetectorfunction=peak SetTrace=maxhold Allowthetracetostabilize.Usethemarker-to-peakfunctiontosetthemarkertothepeakoftheemissionto determinethepeakamplitudelevel. TestResults Temperature: 25 ̊ C RelativeHumidity:45% ATMPressure:1011mbar Note:N/A Test Mode AntennaFrequency[MHz] ConductedPeak Powert[dBm] Conducted Limit[dBm] Verdict DH5Ant12402-1.57≤20.97PASS DH5Ant12441-1.81≤20.97PASS DH5Ant12480-1.67≤20.97PASS 2DH5Ant12402-0.90≤20.97PASS 2DH5Ant12441-1.18≤20.97PASS 2DH5Ant12480-1.06≤20.97PASS 3DH5Ant12402-0.53≤20.97PASS 3DH5Ant12441-0.73≤20.97PASS 3DH5Ant12480-0.71≤20.97PASS ReportNo.ENS2511100181W01301RPage45of73Ver.1.0 DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS ReportNo.ENS2511100181W01301RPage46of73Ver.1.0 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS ReportNo.ENS2511100181W01301RPage47of73Ver.1.0 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS ReportNo.ENS2511100181W01301RPage48of73Ver.1.0 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS ReportNo.ENS2511100181W01301RPage49of73Ver.1.0 3DH5-Ant1-2480-PASS ReportNo.ENS2511100181W01301RPage50of73Ver.1.0 9.6CONDUCTEDSUPRIOUSEMISSION 9.6.1ApplicableStandard AccordingtoFCCPart15.247(d)andKDB558074D0115.247MEASGUIDANCEv05r02 AccordingtoICRSS-2475.5 9.6.2ConformanceLimit Inany100kHzbandwidthoutsidethefrequencybandinwhichthespreadspectrumintentionalradiatoris operating,theradiofrequencypowerthatisproducedbytheintentionalradiatorshallbeatleast20dBbelowthat inthe100kHzbandwidthwithinthebandthatcontainsthehighestlevelofthedesiredpower,basedoneitheran RFconducted,providedthetransmitterdemonstratescompliancewiththepeakconductedpowerlimits. 9.6.3TestConfiguration Testaccordingtoclause7.1radiofrequencytestsetup1 9.6.4TestProcedure Thetransmitteroutput(antennaport)wasconnectedtothespectrumanalyzer Referencelevelmeasurement Establishareferencelevelbyusingthefollowingprocedure: SetinstrumentcenterfrequencytoDSSchannelcenterfrequency. SetSpan=approximately5timesthe20dBbandwidth,centeredonahoppingchannel. SettheRBW=100kHz.SettheVBW≥3xRBW. SetDetector=peak.SetSweeptime=autocouple. SetTracemode=maxhold.Allowtracetofullystabilize. UsethepeakmarkerfunctiontodeterminethemaximumMaximumconducetedlevel. Notethatthechannelfoundtocontainthemaximumconducetedlevelcanbeusedtoestablishthereference level. Band-edgemeasurement Usethefollowingspectrumanalyzersettings: Span=wideenoughtocapturethepeakleveloftheemissionoperatingonthechannelclosesttotheband-edge, aswellasanymodulationproductswhichfalloutsideoftheauthorizedbandofoperation SetRBW  1%ofthespan=100kHzSetVBW  3xRBW SetSweep=autoSetDetectorfunction=peakSetTrace=maxhold Allowthetracetostabilize.Setthemarkerontheemissionatthebandedge,oronthehighestmodulation productoutsideoftheband,ifthislevelisgreaterthanthatatthebandedge.Enablethemarker-deltafunction, thenusethemarker-to-peakfunctiontomovethemarkertothepeakofthein-bandemission.Themarker-delta valuenowdisplayedmustcomplywiththelimitspecifiedinthisSection. Now,usingthesameinstrumentsettings,enablethehoppingfunctionoftheEUT.Allowthetracetostabilize. Followthesameprocedurelistedabovetodetermineifanyspuriousemissionscause…
