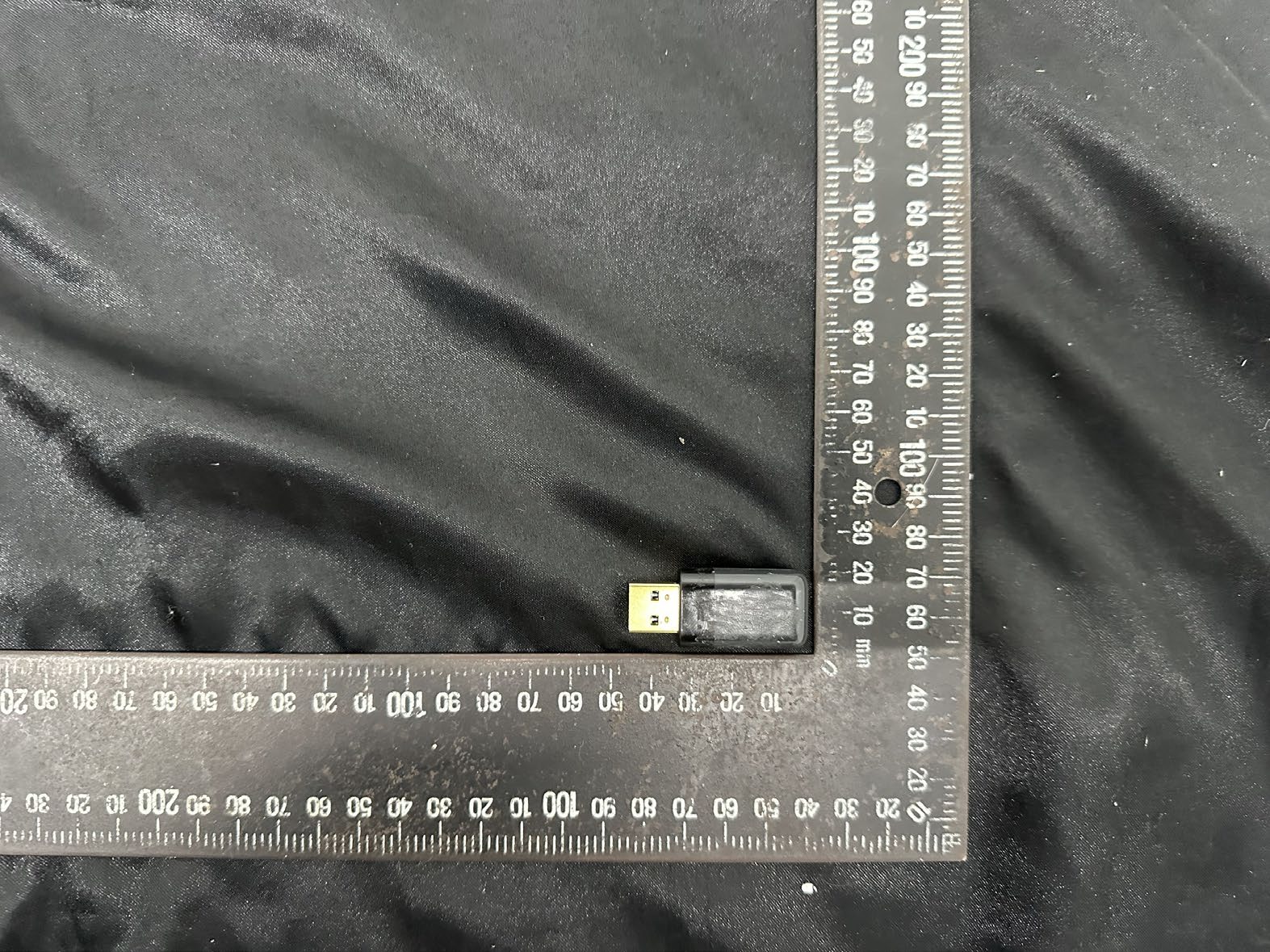

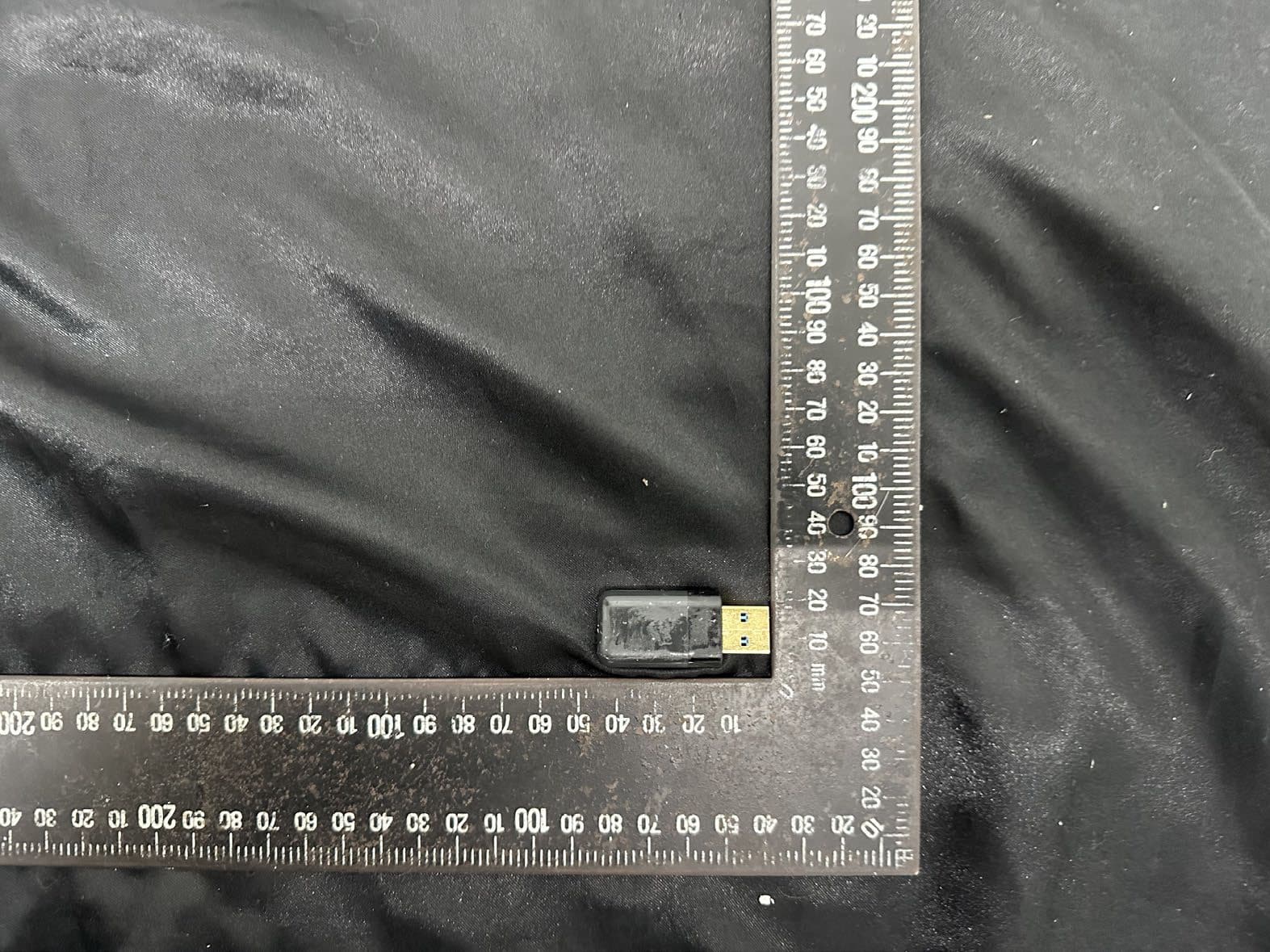

2BCGWTX23UAX1800 Mini Wi-Fi 6 Wireless USB Adapter

© 2025 TP-Link 1900000130 REV1.0.0 User Guide AX1800 Mini Wi-Fi 6 Wireless USB Adapter Archer TX23U Contents About This Guide 1 Chapter 1 Get to Know About Your Adapter 3 1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1. 2. LED Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Chapter 2 Use the Adapter 5 2. 1. Install Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2. 2. Join a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2. 3. Uninstall Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Appendix: Troubleshooting 7 1 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide instructs you on quick installation, and this guide provides the product overview and detailed instructions for each steps. When using this guide, please notice that features available of the adapter may vary by model and software version. It may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience. Conventions In this guide, the following conventions are used: Convention Description Underlined Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section. Teal Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons, etc. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. Specifications are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders. All rights reserved. †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. ‡Use of Wi-Fi 6 and other features, including OFDMA and MU-MIMO, require your APs to also support the corresponding features. §Use of WPA3 requires APs to also support the corresponding feature. △To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check full list of supported OS in the download center at tp- link.com/download-center. 2 More Info • The latest driver can be found at Download Center at https://www.tp-link.com/support. • The Quick Installation Guide can be found where you find this guide or inside the package of the router. • Specifications can be found on the product page at https://www.tp-link.com. • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support. Chapter 1 Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status 4 Chapter 1 Get to Know about Your Adapter 1 1 Product Overview The latest Wi-Fi 6 standard guarantees extreme speeds, ultra-low latency, and uninterrupted connections. Archer TX23U arms your PC with Wi-Fi 6 to ensure powerful, continuous signal reception, unlocking your Wi-Fi 6 router’s full potential. † • Boosted Throughput with MU-MIMO - Works with MU-MIMO routers, which provide simultaneous data streams, boosting throughput and efficiency. ‡ • Super Speed USB 3.0 - Experience blazing-fast data transfers with USB 3.0 — the latest USB connectivity standard which is 10x faster than USB 2.0. • Boost Wi-Fi Reception Range - Works with MU-MIMO routers, which provide simultaneous data streams, boosting throughput and efficiency. ‡ 1 2 LED Status You can check the adapter’s working status by following the LED explanation table. Status Indication OnThe driver has been installed successfully. Off The driver is not installed. The adapter is not detected. Tips: If the LED is off, try these troubleshooting tips: 1. Check if the adapter is recognized and enabled or not. Refer to Appendix: Troubleshooting for detailed instructions. 2. Remove and reinsert the adapter. 3. Reinstall the software, if necessary. Chapter 2 Use the Adapter This chapter introduces how to install your adapter’s driver, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the installation process. This chapter includes the following sections: • Install Driver • Join a Wireless Network • Uninstall Driver 6 Chapter 2 Use the Adapter 2 1 Install Driver 1 Insert the adapter into a USB port on your computer. 2 Go to My Computer or This PC. 3 Double click the TP-Link Disk then run SetupInstall.exe to install driver Note: 1. If you cannot find the setup program, please download the driver at www.tp-link.com/support. 2. If an unknown publisher message pops up, select Yes to continue. 3. If Windows User Account Control requires admin credentials, type user name and password of your Windows administrator account. 2 2 Join a Wireless Network You can join a wireless network via Windows built-in wireless utility. Follow the instructions below to use your computer system’s built-in wireless utility: 1 Click the network icon on the taskbar (the icon might look like one of these: , , , or ). 2 Select the Wi-Fi network you want to join, and click Connect. Enter the netwo…

Text truncated - open the document above for the full version.

Report No.: BTL-FCC SAR-1-2501G018_Appendix D. Page 1 of 1 Appendix D. Photographs of the Test Set-Up Photo 1: Vertical Front_5mm Photo 2: Vertical Back_5mm Photo 3: Horizontal Up_5mm Photo 4: Horizontal Down_5mm Photo 5: Top Side_5mm

Appendix No.: TP-2501G018-1 APPENDIX-TEST PHOTOS Project No.: 2501G018 Page 1 of 4 AC Power Line Conducted Emissions Appendix No.: TP-2501G018-1 APPENDIX-TEST PHOTOS Project No.: 2501G018 Page 2 of 4 Radiated Emissions-30 MHz to 1000 MHz Appendix No.: TP-2501G018-1 APPENDIX-TEST PHOTOS Project No.: 2501G018 Page 3 of 4 Radiated Emissions-Above 1000 MHz Appendix No.: TP-2501G018-1 APPENDIX-TEST PHOTOS Project No.: 2501G018 Page 4 of 4 Radiated Emissions-Above 18GHz

Report No.: BTL-FCCP-3-2501G018 Project No.: 2501G018 Page 1 of 22 Report Version: R00 FCC DFS Test Report FCC ID: 2BCGWTX23U Report No. : BTL-FCCP-3-2501G018 Equipment : AX1800 Mini Wi-Fi 6 Wireless USB Adapter Test Model : Archer TX23U Brand Name : tp-link Applicant : TP-LINK CORPORATION PTE. LTD Address : 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Manufacturer : TP-LINK CORPORATION PTE. LTD Address : 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Radio Function : WLAN 5GHz (UNII-2A, UNII-2C) FCC Rule Part(s) : FCC CFR Title 47, Part 15, Subpart E (15.407) Date of Receipt : 2025/2/5 Date of Test : 2025/2/10~2025/4/1 Issued Date : 2025/6/3 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Poken Huang, Engineer Approved by : Peter Chen, Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-3-2501G018 Project No.: 2501G018 Page 2 of 22 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-2501G018 Project No.: 2501G018 Page 3 of 22 Report Version: R00 Table of Contents Page REVISION HISTORY 4 1 . APPLICABLE STANDARDS 5 2 . SUMMARY OF TEST RESULTS 5 3 . TEST FACILITY 5 4 . TEST ENVIRONMENT CONDITIONS 5 5 . GENERAL INFORMATION 6 5.1 GENERAL DESCRIPTION OF EUT 6 5.2 MAXIMUM OUTPUT POWER AND E.I.R.P. 9 5.3 DESCRIPTION OF TEST MODES 10 6 . U-NII DFS RULE REQUIREMENTS 11 6.1 WORKING MODES AND REQUIRED TEST ITEMS 11 6.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 12 7 . MEASUREMENT INSTRUMENTS LIST 13 8 . DYNAMIC FREQUENCY SELECTION (DFS) 14 8.1 DFS MEASUREMENT SYSTEM 14 8.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL 16 8.3 DEVIATION FROM TEST STANDARD 16 9 . TEST RESULTS 17 9.1 SUMMARY OF DFS TEST RESULT 17 9.2 DFS DETECTION THRESHOLD 18 9.3 CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME 19 9.4 NON-OCCUPANCY PERIOD 21 10 . EUT TEST PHOTO 22 11 . EUT PHOTO 22 Report No.: BTL-FCCP-3-2501G018 Project No.: 2501G018 Page 4 of 22 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-3-2501G018 R00 Original Report. 2025/6/3 Valid Report No.: BTL-FCCP-3-2501G018 Project No.: 2501G018 Page 5 of 22 Report Version: R00 1. APPLICABLE STANDARDS According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart E Standard(s) Section Test Item Test Result Judgment Remark FCC 15.407(h) Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) ------ PASS ------ 3. TEST FACILITY The test facilities used to collect the test data in this report: No.64, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan The test sites and facilities are covered under FCC RN: 674415 and DN: TW0659. ☒ TR01 4. TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Test Voltage Tested By Dynamic Frequency Selection (DFS) 25°C 45% AC 110V/60Hz Cheng Tsai Report No.: BTL-FCCP-3-2501G018 Project No.: 2501G018 Page 6 of 22 Report Version: R00 5. GENERAL INFORMATION 5.1 GENERAL DESCRIPTION OF EUT Equipment AX1800 Mini Wi-Fi 6 Wireless USB Adapter Brand Name tp-link Test Model Archer TX23U Series Model N/A Model Difference(s) N/A Software Version REV1.0 Hardware Version REV1.0 Power Source Supplied from USB port. Power Rating DC 5V Operation Frequency Band(s) UNII-2A: 5250 MHz ~ 5350 MHz UNII-2C: 5470 MHz ~ 5725 MHz Modulation Type IEEE 802.11a/n/ac: OFDM IEEE 802.11ax: OFDMA Bit Rate of Transmitter IEEE 802.11a: 54/48/36/24/18/12/9/6 Mbps IEEE 802.11n: up to 300 Mbps IEEE 802.11ac: up to 866.7 Mbps IEEE 802.11ax: up to 1201 Mbps Operating Mode(s) Master Client device without radar detection Client device with radar detection Maximum Output Power _UNII-2A IEEE 802.11ax(HE20): 16.08 dBm (0.0406 W) Maximum Output Power _UNII-2C IEEE 802.11ax(HE20): 15.30 dBm (0.0339 W) Report No.: BTL-FCCP-3-2501G018 Project No.: 2501G018 Page 7 of 22 Re…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 320 of 361 Report Version: R00 Test Mode UNII-2A_A Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 -1.28 1.14 -0.14 11.00 Complies 60 5300 -4.46 1.14 -3.32 11.00 Complies 64 5320 -7.35 1.14 -6.21 11.00 Complies CH52 CH60 CH64 Test Mode UNII-2A_A Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 -2.42 1.14 -1.28 11.00 Complies 60 5300 -5.92 1.14 -4.78 11.00 Complies 64 5320 -8.42 1.14 -7.28 11.00 Complies CH52 CH60 CH64 Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 321 of 361 Report Version: R00 Test Mode UNII-2A_A Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 2.34 11.00 Complies 60 5300 -0.97 11.00 Complies 64 5320 -3.70 11.00 Complies Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 322 of 361 Report Version: R00 Test Mode UNII-2A_AC(VHT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 -1.73 1.29 -0.44 11.00 Complies 60 5300 -2.08 1.29 -0.79 11.00 Complies 64 5320 -8.68 1.29 -7.39 11.00 Complies CH52 CH60 CH64 Test Mode UNII-2A_AC(VHT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 -2.54 1.29 -1.25 11.00 Complies 60 5300 -3.18 1.29 -1.89 11.00 Complies 64 5320 -9.90 1.29 -8.61 11.00 Complies CH52 CH60 CH64 Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 323 of 361 Report Version: R00 Test Mode UNII-2A_AC(VHT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 2.18 11.00 Complies 60 5300 1.70 11.00 Complies 64 5320 -4.95 11.00 Complies Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 324 of 361 Report Version: R00 Test Mode UNII-2A_AC(VHT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 -5.24 0.81 -4.43 11.00 Complies 62 5310 -4.80 0.81 -3.99 11.00 Complies CH54 CH62 Test Mode UNII-2A_AC(VHT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 -5.82 0.81 -5.01 11.00 Complies 62 5310 -5.43 0.81 -4.62 11.00 Complies CH54 CH62 Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 325 of 361 Report Version: R00 Test Mode UNII-2A_AC(VHT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 -1.70 11.00 Complies 62 5310 -1.28 11.00 Complies Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 326 of 361 Report Version: R00 Test Mode UNII-2A_AC(VHT80) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 58 5290 -8.79 1.63 -7.16 11.00 Complies CH58 Test Mode UNII-2A_AC(VHT80) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 58 5290 -8.72 1.63 -7.09 11.00 Complies CH58 Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 327 of 361 Report Version: R00 Te s t Mode UNII-2A_AC(VHT80) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 58 5290 -4.12 11.00 Complies Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 328 of 361 Report Version: R00 Test Mode UNII-2A_AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 -3.36 1.50 -1.86 11.00 Complies 60 5300 -4.02 1.50 -2.52 11.00 Complies 64 5320 -11.42 1.50 -9.92 11.00 Complies CH52 CH60 CH64 Test Mode UNII-2A_AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 -3.43 1.50 -1.93 11.00 Complies 60 5300 -3.90 1.50 -2.40 11.00 Complies 64 5320 -11.39 1.50 -9.89 11.00 Complies CH52 CH60 CH64 Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 329 of 361 Report Version: R00 Test Mode UNII-2A_AX(HE20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 52 5260 1.12 11.00 Complies 60 5300 0.56 11.00 Complies 64 5320 -6.89 11.00 Complies Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 330 of 361 Report Version: R00 Test Mode UNII-2A_AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 -6.68 1.58 -5.10 11.00 Complies 62 5310 -6.47 1.58 -4.89 11.00 Complies CH54 CH62 Test Mode UNII-2A_AX(HE40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 -5.47 1.58 -3.89 11.00 Complies 62 5310 -6.00 1.58 -4.42 11.00 Complies CH54 CH62 Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 331 of 361 Report Version: R00 Test Mode UNII-2A_AX(HE40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 -1.45 11.00 Complies 62 5310 -1.64 11.00 Complies Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 332 of 361 Report Version: R00 Test Mode UNII-2A_AX(HE80) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 58 5290 -9.27 1.71 -7.56 11.00 Complies CH58 Test Mode UNII-…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 260 of 361 Report Version: R00 CH144 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 261 of 361 Report Version: R00 Test Mode UNII-2C_AC(VHT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 102 5510 56.400 40.200 110 5550 54.398 42.200 134 5670 53.590 41.000 142 5710 46.199 38.600 CH102 CH110 CH134 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 262 of 361 Report Version: R00 CH142 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 263 of 361 Report Version: R00 Test Mode UNII-2C_AC(VHT80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 106 5530 155.186 83.600 122 5610 175.586 85.600 138 5690 170.400 78.800 CH106 CH122 CH138 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 264 of 361 Report Version: R00 Test Mode UNII-2C_AX(HE20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 100 5500 36.090 19.600 116 5580 36.999 20.200 140 5700 35.750 19.600 144 5720 28.290 19.400 CH100 CH116 CH140 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 265 of 361 Report Version: R00 CH144 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 266 of 361 Report Version: R00 Test Mode UNII-2C_AX(HE40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 102 5510 55.599 39.200 110 5550 54.797 39.800 134 5670 52.790 39.800 142 5710 52.608 39.400 CH102 CH110 CH134 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 267 of 361 Report Version: R00 CH142 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 268 of 361 Report Version: R00 Test Mode UNII-2C_AX(HE80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 106 5530 122.392 78.000 122 5610 143.592 78.800 138 5690 132.390 78.400 CH106 CH122 CH138 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 269 of 361 Report Version: R00 Test Mode UNII-3_A Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 16.350 17.700 0.5 Complies 157 5785 16.189 17.900 0.5 Complies 165 5825 16.350 17.800 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 270 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 17.399 18.800 0.5 Complies 157 5785 17.650 18.800 0.5 Complies 165 5825 17.650 18.600 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 271 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 36.409 38.400 0.5 Complies 159 5795 36.500 37.800 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 272 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 75.800 77.200 0.5 Complies CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 273 of 361 Report Version: R00 Test Mode UNII-3_AX(HE20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 18.790 19.400 0.5 Complies 157 5785 18.800 19.400 0.5 Complies 165 5825 19.050 19.400 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 274 of 361 Report Version: R00 Test Mode UNII-3_AX(HE40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 37.800 39.000 0.5 Complies 159 5795 38.300 38.800 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 275 of 361 Report Version: R00 Te s t Mode UNII-3_AX(HE80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 76.390 77.600 0.5 Complies CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 276 of 361 Report Version: R00 APPENDIX E - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 277 of 361 Report Version: R00 Test Mode UNII-1_A Mode_Ant. 1 Test Date 2025/4/1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 11.83 1.14 12.97 30.00 1.0000 Complies 40 5200 11.71 1.14 12.85 30.00 1.0000 Complies 48 5240 11.67 1.14 12.81 30.00 1.0000 Complies Test Mode UNII-1_A Mode_Ant. 2 Test Date 2025/4/1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 11.69 1.14 12.83 30.00 1.0000 Complies 40 5200 11.67 1.14 12.81 30.00 1.0000 Complies 48 5240 11.30 1.14 12.44 30.00 1.0000 Complies Test Mode UNII-1_A Mode_Total Te s t Date 2025/4/1 Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 15.92 30.00 1.0000 Complies 40 5200 15.84 30.00 1.0000 Complies 48 5240 15.64 30.00 1.0000 Complies Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 278 of 361 Report Version: R00 Test Mode UNII-1_AC(VHT20) …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 185 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Polarization Vertical Test Frequency 5745 MHz Test Date 2025/2/19 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 186 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Polarization Vertical Test Frequency 5745 MHz Test Date 2025/2/20 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 187 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Polarization Horizontal Test Frequency 5745 MHz Test Date 2025/2/20 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 188 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Polarization Vertical Test Frequency 5785 MHz Test Date 2025/2/20 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 189 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Polarization Horizontal Test Frequency 5785 MHz Test Date 2025/2/20 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 190 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Polarization Vertical Test Frequency 5825 MHz Test Date 2025/2/19 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 191 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Polarization Vertical Test Frequency 5825 MHz Test Date 2025/2/20 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 192 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT20) Mode Polarization Horizontal Test Frequency 5825 MHz Test Date 2025/2/20 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 193 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT40) Mode Polarization Vertical Test Frequency 5755 MHz Test Date 2025/2/19 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 194 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT40) Mode Polarization Vertical Test Frequency 5755 MHz Test Date 2025/2/21 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 195 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT40) Mode Polarization Horizontal Test Frequency 5755 MHz Test Date 2025/2/21 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 196 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT40) Mode Polarization Vertical Test Frequency 5795 MHz Test Date 2025/2/19 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 197 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT40) Mode Polarization Vertical Test Frequency 5795 MHz Test Date 2025/2/21 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 198 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT40) Mode Polarization Horizontal Test Frequency 5795 MHz Test Date 2025/2/21 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 199 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT80) Mode Polarization Vertical Test Frequency 5775 MHz Test Date 2025/2/20 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 200 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT80) Mode Polarization Vertical Test Frequency 5775 MHz Test Date 2025/2/21 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 201 of 361 Report Version: R00 Test Mode UNII-3_AC(VHT80) Mode Polarization Horizontal Test Frequency 5775 MHz Test Date 2025/2/21 REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2501G018 Project No.: 2501G018 Page 202 of 361 Report Version: R00 Test Mode U…

Text truncated - open the document above for the full version.
