2BCGY-SH05BTBluetooth Rechargeable Digital Torque Wrench

V2023/09 藍芽充電傳輸型數位扭力扳手 Bluetooth Rechargeable Digital Torque Wrench 中文 P. 2 產品概述 P. 2 產品特色 P. 2 產品技術規格 P. 6 充電電池技術規格 P. 7 使用前注意事項 P. 8 產品功能 P. 9 保養及注意事項 P. 14 English P. 19 Product Overview P. 19 Product Features P. 19 Technical Specifications P. 24 Battery Technical Data P. 25 Precautions before Use P. 26 Product Functions P. 27 Maintenance and Precautions P. 33 1 軟體安裝及APP安裝說明 Software and APP installation instructions 請掃描 QR Code開啟觀看安裝說明文件。 Please scan the QR code to view the installation instructions. 2 中文 親愛的客戶： 我們非常感謝您購買藍芽充電傳輸型數位扭 力扳手與對本產品的支持。為了讓您完全享 有產品的優點， 請在調整任何設定前先閱讀 下列指示，並保 存本手冊，以供日後參照。 1. 產品概述 由於扭力量測校驗需要做嚴格的認證，儀器本身包 括溫度、精確度與解析度，更需要具有抗干擾能力 (ESD與EMI)，這些除了周邊零件的特性需要達到 規格要求之外，更需要量測晶片的規格能符合要 求。因此，如果能夠簡化周邊的被動元件，這時又 能夠準確的量測出扭力值，不單是能夠節省成本， 相對可以提高維修及組裝品質，更可以降低受用物 件之損壞率。 2. 產品特色 簡易多功能操作，具有防震、預設扭力值、單位切 換、模式切換、記憶儲存、數字遞增 & 遞減、省 電模式、LED 燈號、響聲警示、震動警示等。 2.1 數位扭力值、角度值顯示 2.2 LCD背光顯示 2.3 順時針及逆時針皆可操作 扭力精度：請參閱產品包裝內之校驗報告 角度精度： ±2 ̊(角度系列) 2.4 可儲存30組設定值 2.5 省電模式(2分鐘進入省電模式) 2.6 具有蜂鳴、震動及LED燈號警示功能 2.7 低電壓偵測 2.8 四種扭力單位，可供選擇切換 Nm、Kg.cm、lb-ft、lb-in 2.9 內建 3.7V 16650 1600mAh 鋰電池 ( 2.10 通用型 Type C 充電連接埠 2.11 過電壓充電保護、過電流充電保護、過 載保護、過放保護 3 中文 各部件功能及名稱 4 中文 扳手種類 Ⓐ雙向棘輪頭 Ⓑ釋放鈕 Ⓒ正反轉方向撥片 Ⓓ棘輪扭力方頭 Ⓔ可調整頭部 Ⓕ頭部拆換卡榫 5 中文 面板 充電孔 ① 電源及清除按鍵 ② 記憶選擇按鍵 ③ 單位選擇按鍵 ④ 模式選擇 ⑤ 向上按鍵 ⑥ 向下按鍵 ⑦ 扭力值顯示 ⑧ F/K/A ( 追隨/峰值/角度 ) (A 角度系列) ⑨ 單位顯示 ⑩ 電池壽命顯示 ⑪ 百分比顯示 ⑫ 記憶組數顯示 6 中文 3. 產品技術規格 4. 產品充電技術規格 ※ *1 扭力精度說明：請參閱產品包裝內之校驗報告 ※ *2 角度精度說明：角度在每秒45°的速度轉90°下測量之精度 扭力精確度 請參閱產品包裝內之校驗報告 角度精確度 ±2°(角度模式) 最大可測得角度 360°(角度模式) 設定值儲存容量 30組 LED警示燈 2 LED(1 GREEN + 1 RED ) 震動警示 有(達設定值90%開始動作) 操作模式 Peak hold(K) / Track(F) / Angle(A) 單位選擇 Nm, lb-in, lb-ft, kg.cm 操作溫度 0°C~60°C 儲存溫度 -20°C~70°C 濕度 Up to 90%non-condensing 摔落測試 1m 振動測試 10G 壽命測試 10000 cycle 環境測試 Pass 電磁相容測試 Pass 工作海拔高度(m) 2000公尺以下 *1 *2 充電輸入電壓 5V ⎓ 1A 充電方式 USB 充電 (Type-C) 充電時間 90~120 分 使用時間 8~10 小時 內��重 �� IC電路 提供過壓充電、過壓放電、過流充電、 過熱過載、短路等保護 7 中文 4.1 充電電池技術規格 4.2 藍芽與傳輸技術規格 型號名稱 16650 標稱電壓 3.7V 標稱容量 1600mAh 內阻 <60 mΩ 電池尺寸 L (without cable) : 68.3±0.5mm L (with cable) : 69.8±1mm D : 16.7±0.5mm WL : 60±5mm Wire# : 1571/26# Connector 1.25-2P 正向 使用環境 ( 溫度 ) 充電 :10°C ~ 45°C 放電 :-10°C ~ 60°C 貯存 : -20°C ~ 25°C (< 1 年 ) -20°C ~ 40°C (< 3 個月 ) -20°C ~ 50°C (< 1 個月 ) 使用環境 ( 濕度 ) 工作 : 20% ~ 85%RH ( 無冷凝 ) 貯存 : 40% ~ 85%RH ( 無冷凝 ) 摔落測試 1m 振動測試 10Hz → 55Hz → 10Hz / 0.8mm 壽命測試 電池標準充放電 300 次循環後高於容量 80% 環境測試 Pass 電磁相容測試 Pass 名稱 Bluetooth® Rechargeable Digital Torque Wrench 型號 SH-CBTA,SH-CBTQ,SH-CBTI SH-CBIA,SH-CBTF,SH-CBFA FCC ID 2BCGY-SH05BT 無線傳輸介面 Bluetooth 4.2 2402~2480MHz 廠商 SUNHENG TECHNOLOGY CO., LTD. SUNHENG ELECTRONICS LTD. 8 中文 5. 使用前注意事項 5.1 充電系列 5.1.1 打開USB 孔蓋。 5.1.2 接上充電線。 ( 請使用5V/1A 電源供應器 和電源線給產品充電。 過壓將導致裝置無 法正常使用。 ) 5.1.3 關機時充電，紅色LED 亮起，充飽後綠 燈亮起。 充電狀態電池格數需依序顯示，直到完成充電， 充電完成綠燈保持，電池格數保持，直到拔出充 電線。 5.1.4 扳手使用中進行充電, 充電狀態電池格數 需依序顯示。 5.2 低電壓通知 如果系統偵測電池電壓過低時，螢幕右上角會出現 電池符號，並在數秒之後關機。 ※ 第一次使用 , 請先充飽電 充電示意圖 9 中文 6. 產品功能 共有六顆按鍵，表示符號分別如下： 6.1開關機及歸零 開機：按下C鍵開機，背光亮LCD文字全閃，由 左至右顯示0000後，進入操作模式。 ▶角度系列 將扳手水平靜置，按下 C鍵開機，背光亮LCD文 字全閃，由左至右顯示0000後，扳手自動偵測是 否有達到靜置狀態，如未靜置，LCD由左至右持 續顯示0000，直到扳手完全靜置為止後，四個0 同時顯示三次，進入操作模式。 第一次使用產品時，進入操作模式時，顯示該產 品最大操作值，單位預設為Nm，顯示記憶為第一 組，模式為保持模式K，百分比位置顯示0%，電 池刻度依當時偵測到的電壓值顯示該電池刻度(30 組設定值記憶、預設值皆相同)。 關機：長按C鍵3秒關機。 歸零：開機狀態下按下 C鍵歸零。 按鍵名稱按鍵功能說明 C開關機及歸零 U/S單位選擇 M記憶選擇 F/K/A 設定值模式選擇 A 模式角度系列 ▲數字遞增選擇(UP) ▼ 數字遞減選擇(DOWN) 10 中文 6.2 單位切換/選擇 國際標準公制為Nm，公制為Kg.cm，英制為 lb-in及lb-ft等4種，每按下一次U/S鍵單位便切 換，順序為Nm、Kg.cm、lb-in、lb-ft；預設單位 為Nm。 ▶扭力單位換算對照表： 6.3 設定值記憶功能 所有的設定值記憶組別，第一次預設值皆為範圍 最小值，記憶選擇方式，按下M鍵後M-01最右 邊數值開始閃爍，即進入選擇模式，使用▲(UP) / ▼(DOWN) 選擇記憶組別，亦可持續按住連續遞 增/減，選擇完畢後再按M鍵確認，停止閃爍即 離開選擇模式。 6.4 追隨模式F/ 保持模式K/ 角度模式A (角度系列) ▶追隨模式： 數值選定後(假設選50Nm)，扳手施力時數值由 最小值往上遞增，當施力者施力，所顯示的值會依 施力者的力度不同產生改變，用力就遞增，放鬆遞 減，拿起或完全放鬆，顯示值將跳回50Nm。 ▶保持模式： (第一次開機預設為保持模式) 數值選定後(假設選50Nm)，扳手施力時數值由 最小值往上遞增，當施力者施力，所顯示的值會依 施力者的力度不同產生改變，完全停止施力後，顯 示值為最後的扭力值，閃爍10秒之後(此時任何 動作及按鈕皆無效)，自動回到設選數值，或按C 鍵可以回到設選數值，亦可直接施力後，重新由最 小值往上遞增量測扭力值。 lb-inlb-ftNmKg.cm 1 lb-in10.0830.1131.152 1 lb-ft1211.35613.83 1 Nm8.8510.737110.2 1 kg.cm0.8680.0720.0981 11 中文 ▶角度模式(角度系列)： 數值選定後(假設選50°)，扳手施力時數值由0° 往上遞增，當施力者施力，所顯示的值會依施力者 的角度不同產生改變，完全停止施力後，顯示值為 最後的角度值及扭力值，角度值及扭力值交互顯 示，閃爍10秒之後(此時任何動作及按鈕皆無效)， 自動回到設選數值，或按C鍵可以回到設選數值， 亦可直接施力後，重新由0°往上遞增量測角度值。 6.5 量測範圍數值選擇 在無施力量測或是設定值記憶選擇之下，數值皆可 選擇，任何模式下完成施力測試後，皆會回到顯示 選取的數值。 6.6 ▲(UP) / ▼(DOWN)選擇 ▲(UP)鍵時，按一下由最右邊數值開始遞增，持 續按住連續遞增；▼(DOWN)鍵，按一下由最右 邊數值開始遞減，持續按住連續遞減。 6.7 LED燈 & 蜂鳴器 LED燈在每個按鍵按下時綠燈亮且皆有嗶聲。 ▶追隨模式下，LED燈兩顆分別為綠色、紅色， 假設當設定的扭力值為20Nm時，使用者開始 施力，數值由0000開始變化數值到達設定值的 80%，此時綠燈亮起開始閃爍，蜂鳴器開始發生聲 音，當施力者扭力越接近該設定數值時，綠燈閃爍 越快，蜂鳴聲越快，當數值達到設定值 ≥100%時 綠燈與紅燈恆亮，蜂鳴聲保持聲響，施力放鬆則遞 減。 ▶保持模式下，同追隨模式，但施力者完全停止施 力後，LED燈及蜂鳴聲停止。 12 中文 ▶角度模式(角度系列)下LED燈兩顆分別為綠 色、紅色，假設當設定的角度值為20°時，使用者 開始施力，數值由0°開始變化數值到達設定值的 80%，此時綠燈亮起開始閃爍，蜂鳴器開始發生聲 音，當施力者角度越接近該設定數值時，綠燈閃爍 越快，蜂鳴聲越快，當數值達到設定值 ≥100%時 綠燈與紅燈恆亮，蜂鳴聲保持聲響，施力者完全停 止施力後，LED燈及蜂鳴聲停止。 6.8 震動警示功能 假設當設定的扭力值為20Nm時，使用者開始施 力，數值由0000開始變化數值到達設定值90%， 此時震動警示開啟，施力放鬆低於設定值90%則 關閉震動。 ▶角度模式(角度系列)下震動警示功能自動關閉。 6.9 LCD百分比%數顯示 一般顯示為0% ▶追隨模式下，使用者設定值為50Nm，開始施力 由0Nm至25Nm時，顯示為50%，以此類推， 放鬆後扭力值遞減，直到完全放鬆，跳回扭力設定 畫面。 ▶保持模式下，效果同追隨模式，但完全停止施 力後，顯示值為最後的扭力值 %數，最高顯示 100%。 ▶角度模式(角度系列)下，使用者設定值為 50°，開始施力由0°至25°時，顯示為50%，以此 類推，完全停止施力後，顯示值為最後的角度值% 數，最高顯示100%。 6.10 低電壓顯示 LCD 電池標記顯示有四個刻度 , 當電壓過低剩下 一格時任何功能皆停止，電池標記閃爍 5 秒後自 動關機。 13 中文 6.11 重置記憶功能 按住C鍵 + ▼(DOWN)鍵，五秒後，所有記憶數 值將回到出廠預設值。 6.12背光開關 按下C 鍵 + ▲(UP)鍵，背光ON/OFF，預設為 ON。 6.13 歸零重置 使用產品前都要按C鍵，可確保精準數據。勿在 施力狀態下按下C鍵，將會產生錯誤的初始值。 6.14 省電裝置 無操作時，2分鐘後進入省電模式，按C鍵喚醒。 6.15 精確度保護警示 為確保扭力扳手精確度，在任何模式下施力，造成 產品扭力超過該扭力扳手扭力範圍值，進而損壞喪 失扭力扳手精度，操作時，如到達該扳手扭力之最 大量程，扳手將發出三長二短警示音， LED紅、 綠警示燈亮起，請立即停止使用，以確保維護產品 扭力精度。 6.16 過載警示 開機或歸零時若畫面持續出現 110%，表示施力超 過最大標準值 110%，可能會造成本品損壞喪失精 準度。 正常 過載 14 中文 7. 保養及注意事項 7.1 請勿使用有機溶劑清潔本品，如酒精或 是油漆稀釋劑。 7.2 請勿將本品靠近磁性物體。 7.3 請勿重壓LCD螢幕。 7.4 請勿將本品當作敲擊工具使用。 7.5 請勿使用榔頭敲擊本品。 7.6 使用超過扭力最大標準值可能會造成 本品損壞喪失精準度。 (超過最大扭力值110%) 7.7 請勿在靠近水的地方使用本品。 7.8 若不慎弄溼，請立即用乾布擦拭乾淨。 7.9 請勿將本品放置在高溫、高濕或是太陽 直射之處。 7.10 請勿將本品暴露充滿灰塵或風沙的環境 下，如此可能造成裝置嚴重損壞。 7.11 請勿將本品劇烈搖晃或將扳手重摔落地 上。 7.12 請將使用完之電池丟棄在指定回收處。 請勿將電池至入火中。 7.13 使用本品前請詳閱操作手冊並依照手冊 流程進行操作。 7.14 關機狀態下禁止使用。 7.15 請勿將手把外加延長桿使用。例如：鐵 管或塑料管。 7.16 在施加扭力時，請勿按任何按鍵。 7.17 請勿在通電的物品上使用本品 15 中文 ※使用方法 ■數位扭力扳手 扳手握柄使用示意圖 P. S：完成開機程序前(請參照6.1說明)，請勿 施力於扭力扳手。 ■充電電池使用相關訊息 1. 若螢幕畫面無法顯示…

Text truncated - open the document above for the full version.

Hualing Dong, President

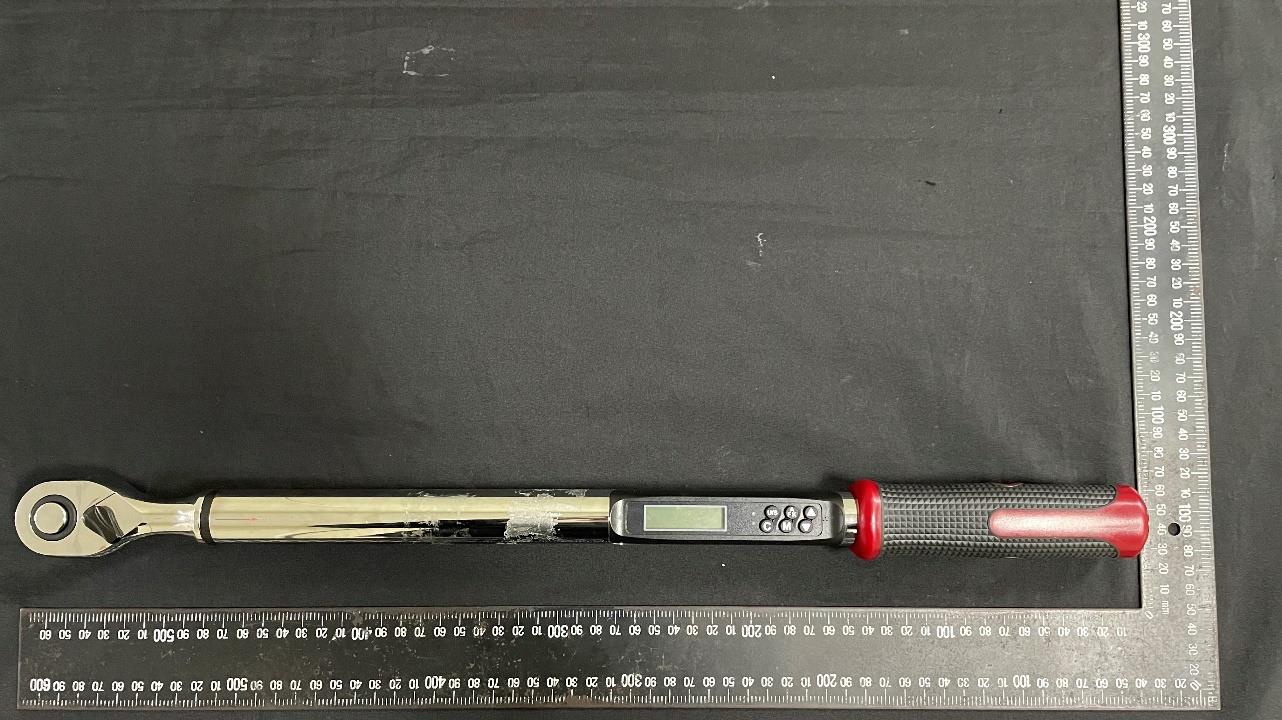

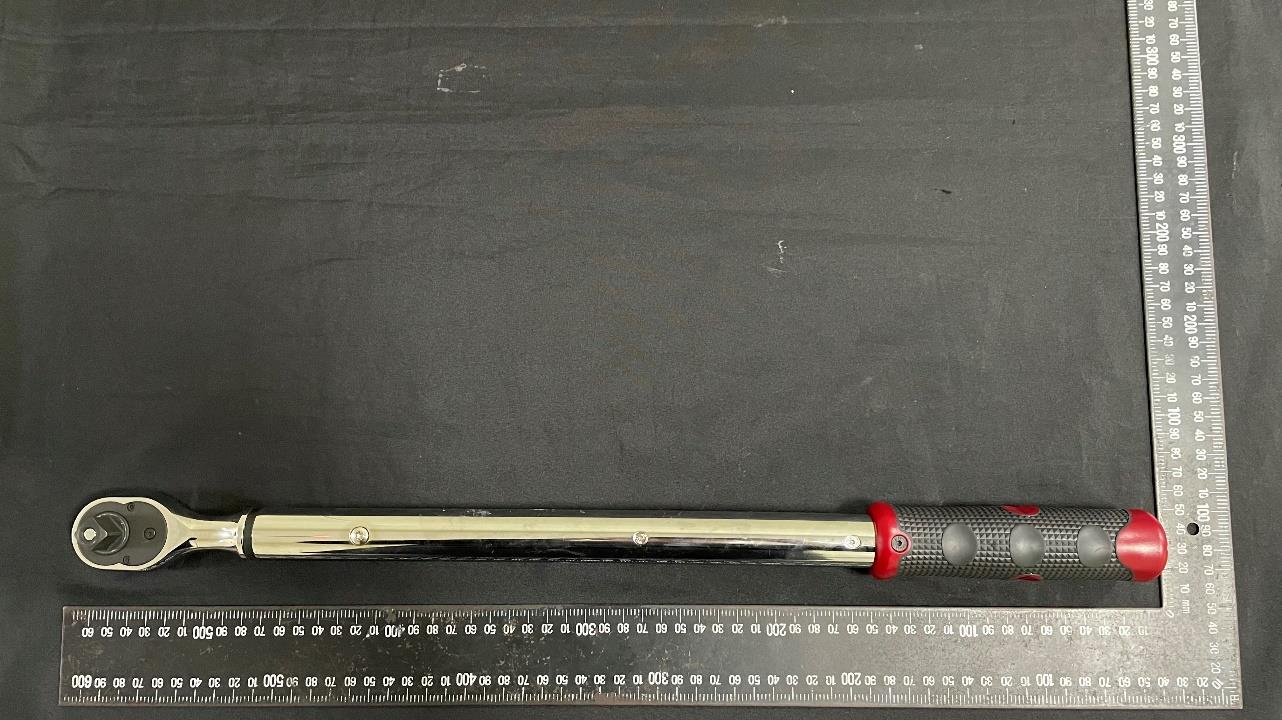

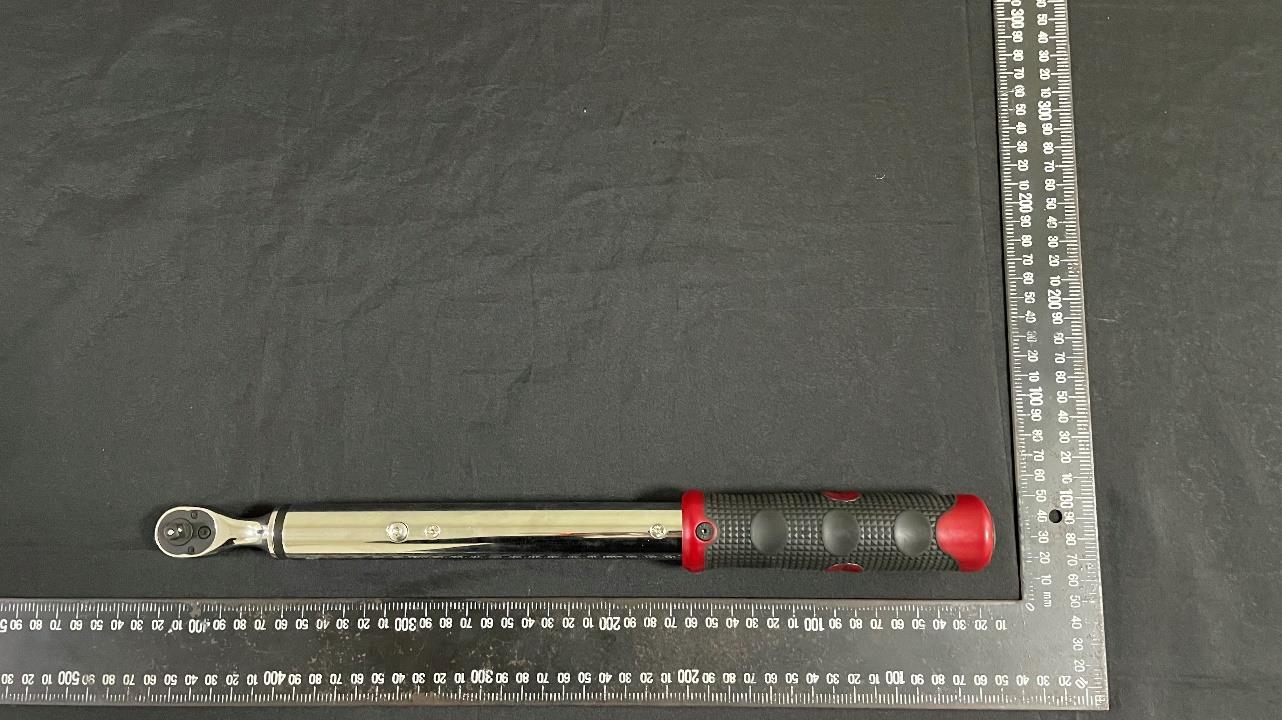

Appendix No.: EP-2309T063-1 APPENDIX-EUT PHOTOS Project No.: 2309T063 Page 1 of 16 Long ver. Appendix No.: EP-2309T063-1 APPENDIX-EUT PHOTOS Project No.: 2309T063 Page 2 of 16 Appendix No.: EP-2309T063-1 APPENDIX-EUT PHOTOS Project No.: 2309T063 Page 3 of 16 Appendix No.: EP-2309T063-1 APPENDIX-EUT PHOTOS Project No.: 2309T063 Page 4 of 16 Appendix No.: EP-2309T063-1 APPENDIX-EUT PHOTOS Project No.: 2309T063 Page 5 of 16 Short ver. Appendix No.: EP-2309T063-1 APPENDIX-EUT PHOTOS Project No.: 2309T063 Page 6 of 16 Appendix No.: EP-2309T063-1 APPENDIX-EUT PHOTOS Project No.: 2309T063 Page 7 of 16 Appendix No.: EP-2309T063-1 APPENDIX-EUT PHOTOS Project No.: 2309T063 Page 8 of 16
