Whisker™ | 1080 West Entrance Dr. Auburn Hills, MI 48326 | www.whisker.com Applicant: Automated Pet Care Products, LLC dba Whisker FCC ID: 2BCHY-LR5PRO Product Name: Litter-robot 5 Pro Model Number(s): LR5P-0101, LR5P-0301 Date: January 29, 2026 Subject: Declaration of U-NII Client Device Operation Without Radar Detection Capability To Whom It May Concern, This letter is provided in support of the FCC certification application for the above- referenced U-NII client device and is submitted in accordance with the FCC guidance document “U-NII Client Devices without Radar Detection Capability” dated August 22, 2016. Device Classification and Operational Description The device identified above is classified as a U-NII client device and does not incorporate radar detection (DFS) capability. In compliance with FCC requirements for operation on DFS frequencies, the following declarations are made: • The device does not perform radar detection and does not independently initiate transmissions on DFS-restricted channels. • The device operates only under the control of a DFS-capable master device (e.g., an access point) that performs all required radar detection and channel selection functions. • The device relies entirely on the master device to: o Select the operating channel o Monitor for radar signals o Initiate channel changes when radar is detected Control and Compliance Mechanisms • The client device cannot transmit on DFS frequencies unless it has first received enabling instructions from a DFS-compliant master device. Whisker™ | 1080 West Entrance Dr. Auburn Hills, MI 48326 | www.whisker.com • The device ceases transmission immediately upon loss of control communication with the master device. • The device does not provide any user-accessible or software-configurable means to override DFS control or independently select DFS channels. Software and Firmware Considerations • There are no software, firmware, or hardware configurations available to the end user or professional installer that would enable radar detection or autonomous DFS operation. • Any firmware updates applicable to RF operation do not alter the DFS client- only behavior described in this declaration. Conclusion Based on the design and operational characteristics described above, the device fully complies with FCC requirements for U-NII client devices without radar detection capability and meets the conditions outlined in the August 22, 2016 FCC guidance. If additional information or clarification is required, please do not hesitate to contact the undersigned. Sincerely, Name: Craig Simdon Title: Director of Quality Company: Automated Pet Care Products, LLC dba Whisker Address: 1080 W Entrance Drive, Auburn Hills, MI 48326 Phone: 877-250-7729 Email: [email protected]

LR5P-0301 LR5P-0101 The Serial Number stickers are printed on a sticker that contains a pressure sensitive adhesive. The sticker is then manually attached to the outer housing of the device. The operator uses their hand to apply the pressure to achieve the bond between the sticker and housing of the device.

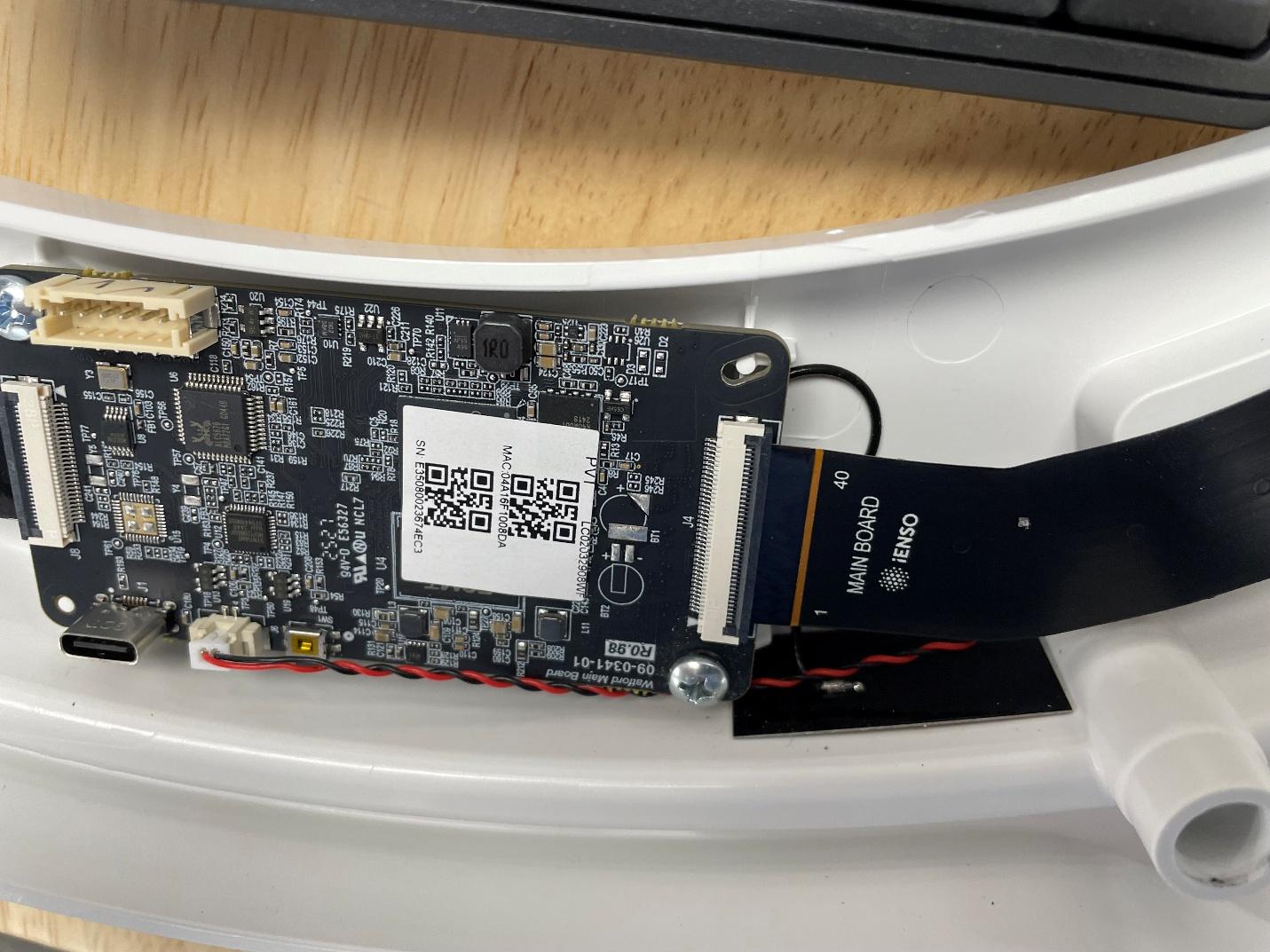

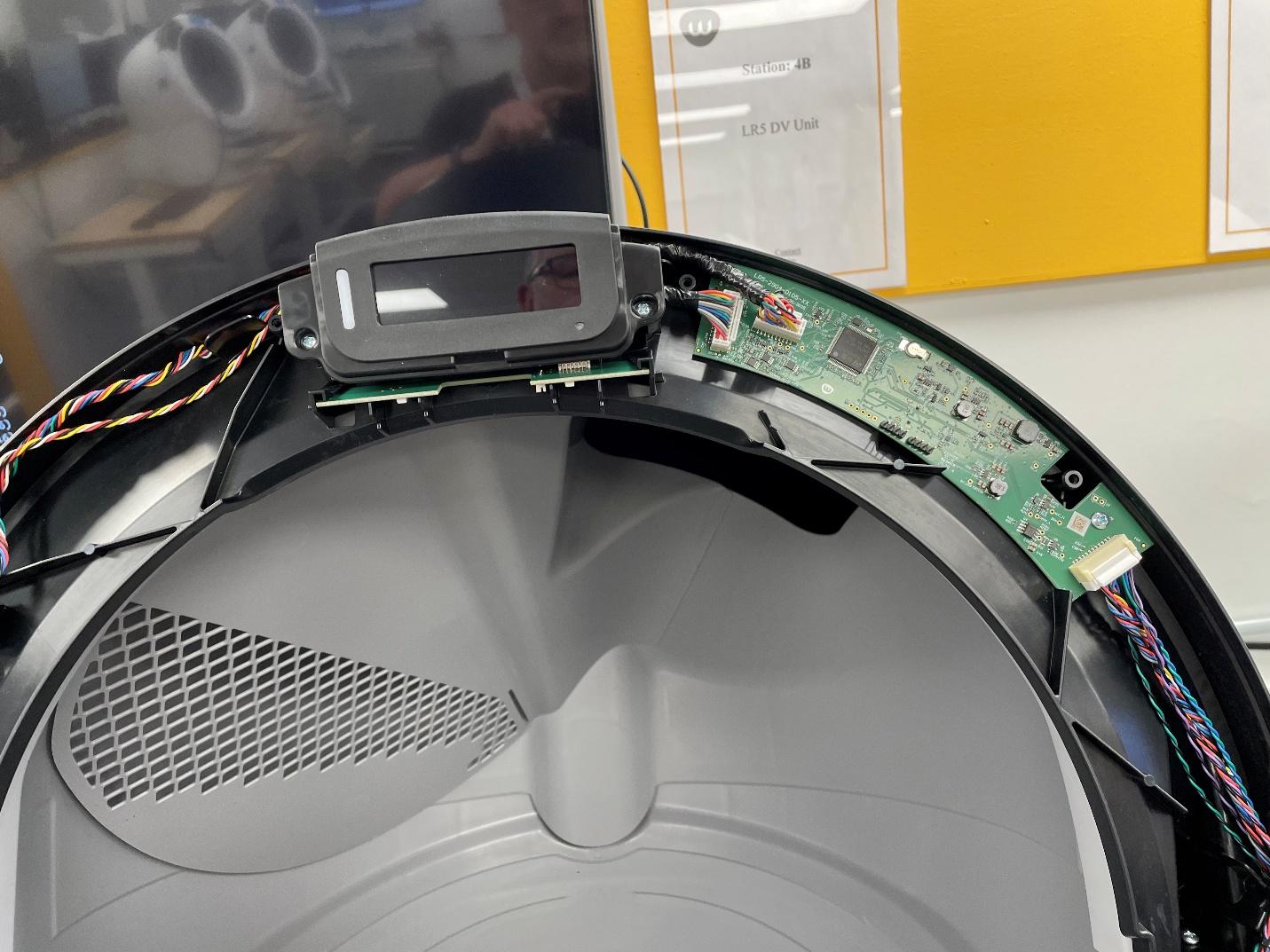

Litter-robot 5 Pro: Pictures of Significant Electronics Front of the Device: RFID PCBA & Antenna Camera PCBA & WiFi Antenna ToF PCBA Display Front Camera Globe Camera Main PCBA Nightlight PCBA Picture of Camera PCBA in assembly: Camera PCBA Antenna Picture of back side of Camera PCBA and WiFi Chip: Wire to Antenna WiFi Chip Picture of RFID PCBA & Antenna in assembly: RFID Antenna RFID PCBA RFID PCBA Front: RFID PCBA Back: Picture of Main PCBA in Assembly: Main PCBA Camera PCBA, WiFi Antenna, and Globe Camera (Back side of Bezel): WiFi Antenna Camera PCBA Globe Camera

FCC Part 1 Subpart I FCC Part 2 Subpart J RSS 102 ISSUE 6 RF EXPOSURE REPORT FOR LITTER-ROBOT 5 PRO MODEL NUMBER: LR5P-XXXX FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO REPORT NUMBER: R15954510-E5 ISSUE DATE: 2025-11-19 Prepared for AUTOMATED PET CARE PRODUCTS, LLC DBA WHISKER 1070 W ENTRANCE DR AUBURN HILLS, MI 48326-2723 Prepared by UL LLC 12 LABORATORY DR. DURHAM, NC 27713 USA TEL: (919) 549-1400 REPORT NO: R15954510-E5 DATE: 2025-11-19 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 2 of 10 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By V1 2025-11-19 Initial Issue Chandler Stanley REPORT NO: R15954510-E5 DATE: 2025-11-19 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 3 of 10 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. DECISION RULES AND MEASUREMENT UNCERTAINTY .............................................. 5 5.1. METROLOGICAL TRACEABILITY ............................................................................. 5 5.2. DECISION RULES ..................................................................................................... 5 6. MAXIMUM PERMISSIBLE EXPOSURE (LIMITS AND EQUATIONS) ............................... 6 6.1. FCC RULES ............................................................................................................... 6 6.2. ISED RULES .............................................................................................................. 7 6.3. EQUATIONS .............................................................................................................. 8 7. RF EXPOSURE RESULTS ................................................................................................10 REPORT NO: R15954510-E5 DATE: 2025-11-19 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 4 of 10 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Automated Pet Care Products, LLC dba Whisker 1080 W Entrance Dr Auburn Hills, MI 48326-2723 United States EUT DESCRIPTION: Litter-Robot 5 Pro MODEL: LR5P-XXXX SERIAL NUMBER: E350800138B374M SAMPLE RECEIPT DATE: 2025-09-16, 2025-09-19, 2025-09-25, 2025-10-24, 2025-11-10, and 2025-11-13 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J RSS 102 ISSUE 6 Complies Complies UL LLC. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. All samples tested were in good operating condition throughout the entire test program. Measurement Uncertainties are published for informational purposes only and were not taken into account unless noted otherwise. This document may not be altered or revised in any way unless done so by UL LLC. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC. will constitute fraud and shall nullify the document. Approved & Released For UL LLC By: Prepared By: Mike Antola Chandler Stanley Senior Staff Engineer Engineer Consumer, Medical and IT Segment Consumer, Medical and IT Segment UL LLC UL LLC REPORT NO: R15954510-E5 DATE: 2025-11-19 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 5 of 10 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 2. TEST METHODOLOGY All calculations were made in accordance with FCC Parts 1.1310, 2.1091, 2.1093, KDB 447498 D01 v06, KDB 447498 D03 V01, IEEE Std C95.1-2005, and IEEE Std C95.3-2002, IC Safety Code 6 and RSS 102 Issue 6. 3. REFERENCES Refer to UL report R15954510-E1 for the 2.4 GHz WLAN test results, R15954510-E2 for the RFID test results, and R15954510-E3 for 5 GHz WLAN test results. 4. FACILITIES AND ACCREDITATION UL LLC is accredited by A2LA, certification # 0751.06, for all testing performed within the scope of this report. Testing was performed at the locations noted below. Address ISED CABID ISED Company Number FCC Registration ☐ Building: 12 Laboratory Dr Durham, NC 27713, U.S.A US0067 2180C 825374 ☒ Building: 2800 Perimeter Park Dr. Suite B Morrisville, NC 27560, U.S.A 27265 5. DECISION RULES AND MEASUREMENT UNCERTAINTY 5.1. METROLOGICAL TRACEABILITY The measuring equipment utilized to perform the tests documented in this report has been calibrated in accordance with the manufacturer's recommendations, and is traceable to recognized national standards. 5.2. DECISION RULES For all tests where the applicable U LAB <= U MAX the Decision Rule is based on Simple Acceptance in accordance with ISO Guide 98-4: 2012 Clause 8.2, where U MAX = 30% (0.3) for RF Exposure evaluations. (Measurement uncertainty is not taken into…

Text truncated - open the document above for the full version.

XTDCT024-00 Copyright 2025 Field Theory Consulting Inc. All Rights Reserved. Page 1 of 8 1029 Butterfield Road, Vernon Hills, IL 60061 +1 (847) 801-6330 [email protected] fieldtheoryinc.com 900 MHz RFID Antenna Custom Built to Serve Your Unique Requirements Features: Frequency Band: (900-930) MHz Type: Dipole Dimensions: 100mm x 30mm x 0.405mm Field Theory Part Number:FTRDIF123 Tester Name: Tadd Scarpelli Testing Date: 04-14-2025 RoHs and REACH compliant Contents Performance & Specifications ................................................................................................................ 2 Passive Efficiency .................................................................................................................................. 3 1D Gain Radiation Patterns .................................................................................................................... 4 2D & 3D Gain Radiation Patterns ............................................................................................................ 5 Test Conditions ...................................................................................................................................... 6 Legal Notices ......................................................................................................................................... 7 Mechanical Drawing ............................................................................................................................... 8 [This specification sheet is only applicable to Field Theory Manufactured Antenna] Data Collected on ABS Plastic. Version: 1.0 Date: 4/14/2025 XTDCT024-00 Copyright 2025 Field Theory Consulting Inc. All Rights Reserved. Page 2 of 8 FTRDIF123 Performance & Specifications Antenna Performance Parameters Frequency (GHz) 900 915 928 Efficiency (%) 62 62 61 Peak Gain (dBi) 0.65 0.65 0.60 VSWR <3 <3 <3 General Specifications Antenna Type Nominal Impedance Power Handling Polarization Dipole 50 Ω 10W Linear Mechanical Specifications Dimensions (L x W x H) Material 100mm x 30mm x .405mmError! Reference s ource not found. FPC with u.fl. coax cable XTDCT024-00 Copyright 2025 Field Theory Consulting Inc. All Rights Reserved. Page 3 of 8 FTRDIF123 Passive Efficiency Fig 1. Typical Performance: Efficiency vs Frequency XTDCT024-00 Copyright 2025 Field Theory Consulting Inc. All Rights Reserved. Page 4 of 8 FTRDIF123 1D Gain Radiation Patterns Figure 1D Gain XTDCT024-00 Copyright 2025 Field Theory Consulting Inc. All Rights Reserved. Page 5 of 8 FTRDIF123 2D & 3D Gain Radiation Patterns 902 MHz 915 MHz 927 MHz XTDCT024-00 Copyright 2025 Field Theory Consulting Inc. All Rights Reserved. Page 6 of 8 FTRDIF123 Test Conditions Results were collected from a passive antenna measurement within a 5-meter fully anechoic antenna chamber equipped with a dual-pol quad-ridged horn receiver antenna and an EL-AZ positioner with laser positioner. Test Conducted Passive DUT SN/PN Prototype Formula & Calculations Gain: Efficiency: Test Equipment Calibration Status Equipment Manufacturer Model No. Serial No. Last Cal. Due Date Network Analyzer Anritsu MS46122B 2135304 2/25/2025 8/25/2026 Quad-Ridge Horn Antenna ETS-Lindgreen 3164-10 217936 2/25/2025 8/25/2026 5 Meter Anechoic Chamber Braden Shielding Systems NA F70331 NA NA RF Cable ENS Microwave S160-160-MKS-MKS 3042020 2/25/2025 8/25/2026 RF Cable ENS Microwave S160-120-MKS-MKS 12042018 2/25/2025 8/25/2026 RF Cable ENS Microwave EMC1-K1K1-72 1GVT4 19002201 2/25/2025 8/25/2026 RF Cable ENS Microwave EMC1-K1K1-72 1GVT4 19002202 2/25/2025 8/25/2026 RF Cable ENS Microwave EMC1-K1K1-216 1GVT4 19002202 001 2/25/2025 8/25/2026 RF Cable ENS Microwave EMC1-K1K1-216 1GVT4 19002202 002 2/25/2025 8/25/2026 DUT Positioner DE LCC D6025 NA NA NA RF Switch Mini-Circuits RC-1SPDT-A18 1810010005 2/25/2025 8/25/2026 XTDCT024-00 Copyright 2025 Field Theory Consulting Inc. All Rights Reserved. Page 7 of 8 FTRDIF123 Legal Notices This specification sheet shall not be duplicated, used, or disclosed, in whole or in part, for any purpose. Field Theory Consulting Inc. and the Field Theory logo are registered trademarks. The information given herein, including drawings, illustrations, and schematics, are included for illustration purposes only and are believed to be accurate and reliable at the time of publishing. However, Field Theory makes no warranties as to their accuracy or completeness and disclaims any liability in connection with their use. Field Theory’s obligations shall be as set forth in Field Theory’s standard Terms and Conditions, found on the Field Theory website at www.fieldtheoryinc.com/terms-and-conditions/ and in no case will Field Theory be liable for any incidental, indirect, or consequential damages arising out of the sale, resale, use, or misuse of the product. XTDCT024-00 Copyright 2025 Field Theory Consulting Inc. All Rights Reserved. Page 8 of 8 FTRDIF123 Mechanical Drawing

TEST REPORT Report Number: R15954510-E2 Applicant : Automated Pet Care Products, LLC dba Whisker 1080 W Entrance Dr Auburn Hills, MI 48326-2723 United States Model : LR5P-XXXX FCC ID : 2BCHY-LR5PRO IC : 31068-LR5PRO EUT Description : Litter-Robot 5 Pro Test Standard(s) : FCC 47 CFR PART 15 SUBPART C ISED RSS-247 ISSUE 4 ISED RSS-GEN ISSUE 5 + A1 + A2 Date Of Issue: 2025-11-19 Prepared by: UL LLC 12 Laboratory Dr. Durham, NC 27713 U.S.A. TEL: (919) 549-1400 REPORT NO: R15954510-E2 DATE: 2025-11-19 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 2 of 43 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC REPORT REVISION HISTORY Rev. Issue Date Revisions Revised By V1 2025-11-19 Initial Issue Chandler Stanley REPORT NO: R15954510-E2 DATE: 2025-11-19 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 3 of 43 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC TABLE OF CONTENTS REPORT REVISION HISTORY ................................................................................................. 2 TABLE OF CONTENTS ............................................................................................................ 3 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST RESULTS SUMMARY .............................................................................................. 6 3. TEST METHODOLOGY ..................................................................................................... 6 4. FACILITIES AND ACCREDITATION ................................................................................. 6 5. DECISION RULES AND MEASUREMENT UNCERTAINTY .............................................. 7 5.1. METROLOGICAL TRACEABILITY ............................................................................. 7 5.2. DECISION RULES ..................................................................................................... 7 5.3. MEASUREMENT UNCERTAINTY .............................................................................. 7 5.4. SAMPLE CALCULATION ........................................................................................... 7 6. EQUIPMENT UNDER TEST ............................................................................................... 8 6.1. EUT DESCRIPTION ................................................................................................... 8 6.2. MAXIMUM OUTPUT POWER .................................................................................... 8 6.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................. 8 6.4. SOFTWARE AND FIRMWARE .................................................................................. 8 6.5. WORST-CASE CONFIGURATION AND MODE ......................................................... 8 6.6. DESCRIPTION OF TEST SETUP .............................................................................. 9 7. MEASUREMENT METHODS ............................................................................................10 8. TEST AND MEASUREMENT EQUIPMENT ......................................................................11 9. ANTENNA PORT TEST RESULTS ...................................................................................13 9.1. ON TIME AND DUTY CYCLE ....................................................................................13 9.2. 20 dB AND 99% BANDWIDTH ..................................................................................14 9.3. HOPPING FREQUENCY SEPARATION ...................................................................15 9.4. NUMBER OF HOPPING CHANNELS .......................................................................16 9.5. AVERAGE TIME OF OCCUPANCY ..........................................................................18 9.6. OUTPUT POWER .....................................................................................................19 9.7. AVERAGE POWER ...................................................................................................20 9.8. CONDUCTED SPURIOUS EMISSIONS ....................................................................21 10. RADIATED TEST RESULTS ........................................................................................24 REPORT NO: R15954510-E2 DATE: 2025-11-19 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 4 of 43 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC 10.1. TRANSMITTER 30 MHz – 18GHz .............................................................................26 10.2. WORST CASE BELOW 30MHZ ................................................................................38 11. AC POWER LINE CONDUCTED EMISSIONS .............................................................40 11.1. AC Power Line Norm .................................................................................................41 SETUP PHOTOS ......................................................................................................................43 REPORT NO: R15954510-E2 DATE: 2025-11-19 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 5 of 43 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Automated Pet Care Products, LLC dba Whisker 1080 W Entrance Dr Auburn Hills, MI 48326-2723 United States EUT DESCRIPTION: Litter-Robot 5 Pro MODEL: LR5P-XXXX SERIAL NUMBER: E350800138B374M and LR5-02-40-01-2510-29E2A3 SAMPLE RECEIPT DATE: 2025-09-16, 2025-09-19, 2025-09-25, 2025-10-24, 2025-11-10, and 2025-11-13 DATE TESTED: 2025-10-21 to 2025-11-18 …

Text truncated - open the document above for the full version.

SETUP PHOTOS EXHIBIT Report Number: R15954510-EP1 Applicant : Automated Pet Care Products, LLC dba Whisker 1080 W Entrance Dr Auburn Hills, MI 48326-2723 United States Model : LR5P-XXXX FCC ID : 2BCHY-LR5PRO IC : 31068-LR5PRO EUT Description : Litter-Robot 5 Pro Test Standard(s) : FCC 47 CFR PART 15 SUBPART C ISED RSS-247 ISSUE 4 ISED RSS-GEN ISSUE 5 + A1 + A2 Date Of Issue: 2026-01-07 Prepared by: UL LLC 12 Laboratory Dr. Durham, NC 27713 U.S.A. TEL: (919) 549-1400 REPORT NO: R15954510-EP1 DATE: 2026-01-07 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 2 of 11 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC REPORT REVISION HISTORY Rev. Issue Date Revisions Revised By V1 2025-11-19 Initial Issue Chandler Stanley V2 2025-12-18 Added DFS Setup Photos John E. Manser III V3 2026-01-07 Updated AC Mains photos and added a legend Manish Baral REPORT NO: R15954510-EP1 DATE: 2026-01-07 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 3 of 11 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC TABLE OF CONTENTS REPORT REVISION HISTORY ................................................................................................. 2 TABLE OF CONTENTS ............................................................................................................ 3 1. SETUP DIAGRAMS ........................................................................................................... 4 2. SETUP PHOTOS ................................................................................................................ 5 END OF EXHIBIT .....................................................................................................................11 REPORT NO: R15954510-EP1 DATE: 2026-01-07 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 4 of 11 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC 1. SETUP DIAGRAMS I/O Cable List Cable No. Port # of Identical Ports Connector Type Cable Type Cable Length (m) Remarks 1 Power 1 Barrel Shielded <3m Part of the AC/DC Adapter 2 Program 1 USB-c Shielded <3m Used for programming 2 REPORT NO: R15954510-EP1 DATE: 2026-01-07 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 5 of 11 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC 2. SETUP PHOTOS CONDUCTED MEASUREMENT SETUP 2.4/5 GHz WLAN RFID REPORT NO: R15954510-EP1 DATE: 2026-01-07 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 6 of 11 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC RADIATED RF MEASUREMENT SETUP RADIATED EMISSIONS SETUP (<30MHz) REPORT NO: R15954510-EP1 DATE: 2026-01-07 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 7 of 11 UL LLC 12 Laboratory Drive, Durham, NC 27713; USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC RADIATED EMISSIONS SETUP (<30MHz) REPORT NO: R15954510-EP1 DATE: 2026-01-07 FCC ID: 2BCHY-LR5PRO IC: 31068-LR5PRO Page 8 of 11 UL LLC …
